IOCREST 1G M.2 B key M key to RJ45 Network Card 1 Port 1000Mbps NIC Lan Card 2242mm Size Realtek 8111H Chipset PCI Express
- Category: Network Cards >>>
- Supplier: Shenzhen,MMUI,Co.,Ltd.
Share on:
Product Overview
Description
Driver Download:
https://www.realtek.com/zh-tw/component/zoo/category/network-interface-controllers-10-100-1000m-gigabit-ethernet-pci-express-software
Product Description
Product Name | Realtek chip new lan adapter b key and m key m.2 gigabit ethernet card |
interface | M.2 B+ M key |
Model | IO-MBF8111L-GLAN |
Chipset | Realtek 8111H |
• Integrated 10/100/1000M transceiver
• Supports Giga Lite (500M) mode
• Auto-Negotiation with Next Page capability
• Supports PCI Express 1.1
• Supports pair swap/polarity/skew correction
• Crossover Detection & Auto-Correction
• Supports 1-Lane 2.5Gbps PCI Express Bus
• Supports hardware ECC (Error Correction Code) function
• Supports hardware CRC (Cyclic Redundancy Check) function
• Transmit/Receive on-chip buffer support
• Supports PCI MSI (Message Signaled Interrupt) and MSI-X
• Fully compliant with IEEE802.3, 802.3u and 802.3ab
• Supports IEEE 802.1P layer 2 Priority Encoding
• Supports 802.1Q VLAN tagging
• Supports IEEE 802.3az-2010(EEE)
• Supports Full Duplex flow control (IEEE.802.3x)
• Supports jumbo frame to 9K bytes
• Supports quad core Receive-Side Scaling(RSS)
• Supports Protocol Offload(ARP&NS)
• Supports Microsoft WPI (Wake Packet Indication)
• Wake-On-LAN and "RealWoW"Technology (remote wake-up) support
• Supports ECMA-393 ProxZzzy Standard for sleeping hosts
• Supports Giga Lite (500M) mode
• Auto-Negotiation with Next Page capability
• Supports PCI Express 1.1
• Supports pair swap/polarity/skew correction
• Crossover Detection & Auto-Correction
• Supports 1-Lane 2.5Gbps PCI Express Bus
• Supports hardware ECC (Error Correction Code) function
• Supports hardware CRC (Cyclic Redundancy Check) function
• Transmit/Receive on-chip buffer support
• Supports PCI MSI (Message Signaled Interrupt) and MSI-X
• Fully compliant with IEEE802.3, 802.3u and 802.3ab
• Supports IEEE 802.1P layer 2 Priority Encoding
• Supports 802.1Q VLAN tagging
• Supports IEEE 802.3az-2010(EEE)
• Supports Full Duplex flow control (IEEE.802.3x)
• Supports jumbo frame to 9K bytes
• Supports quad core Receive-Side Scaling(RSS)
• Supports Protocol Offload(ARP&NS)
• Supports Microsoft WPI (Wake Packet Indication)
• Wake-On-LAN and "RealWoW"Technology (remote wake-up) support
• Supports ECMA-393 ProxZzzy Standard for sleeping hosts
System Requirements
• Windows ME、98SE、2000、XP、Vista、7、8 and 10 32-bit/64-bit
• Windows Server 2003、2008、2012 and 2016 32 -/64-bit
• Linux、MAC OS and DOS
• Windows Server 2003、2008、2012 and 2016 32 -/64-bit
• Linux、MAC OS and DOS

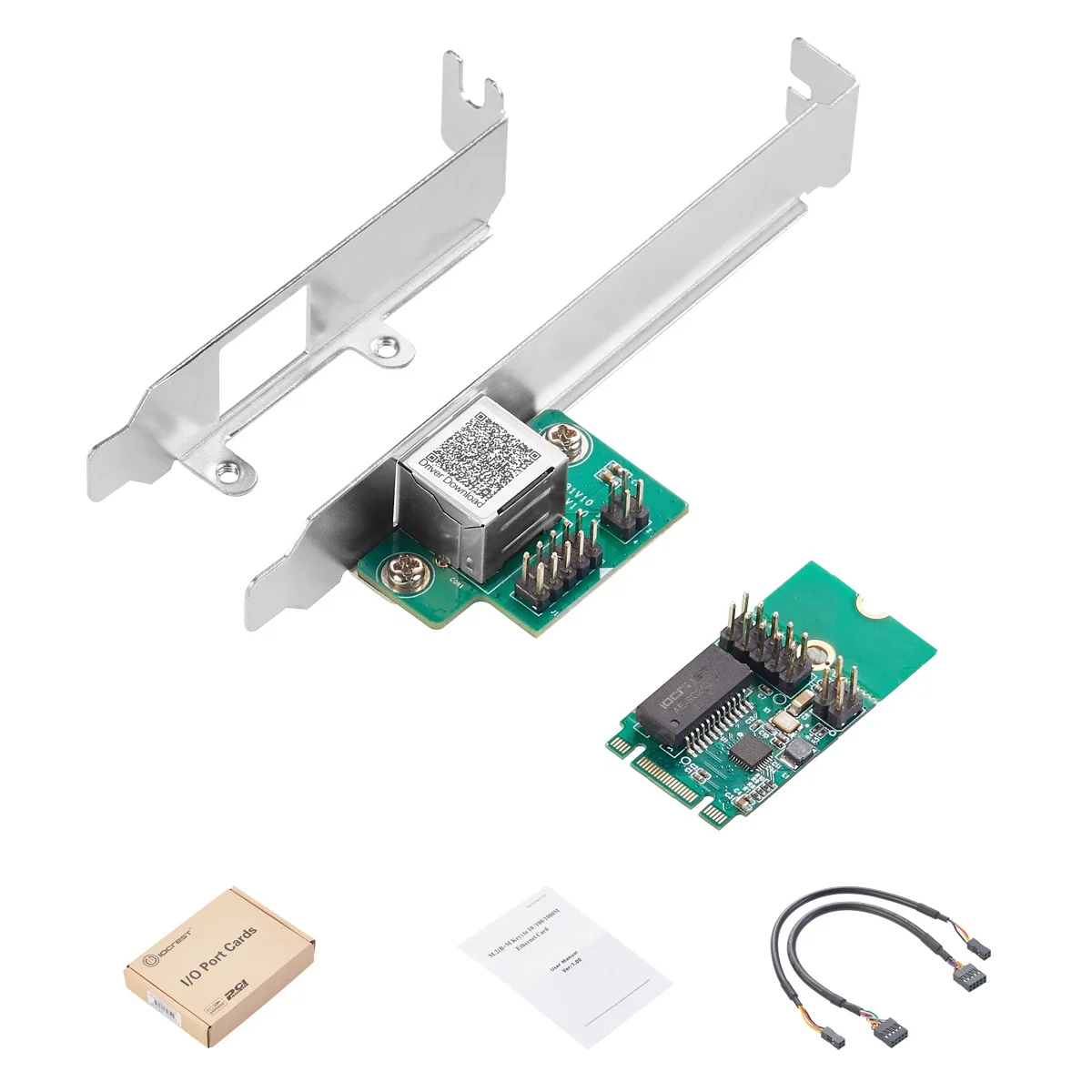

Accessories
• 1 x M.2(B+M Key) to 10 /100/1000M Ethernet Card
• 2 x Connecting Cable
• 1 x Low profile bracket
• 1 x User manual
Note: Contents may vary depending on country/market
• 2 x Connecting Cable
• 1 x Low profile bracket
• 1 x User manual
Note: Contents may vary depending on country/market
