Price:$2,890.00 - $3,018.00

Quantity:


Product Overview

Description





Product Details




• Inversion
The inverter converts direct current to a lternating current consistent with the requirements of the Installed
regional grid and feeds it into the grid.
• Data storage
The AIO stores system information, such as running information and fault records.
• Parameter conffguration
AIO provides a variety of parameter configu rations to meet various needs or to adjust its operating performance to the best.
Users can view the information of AIO through the mobile app.
• Communication interface
It can be connected to the WiFi communication data acquisition module to realize the com mu nication function a nd con nect the monitoring eq uipment with the entire photovoltaic energy storage system • Protection function AIO has protection functions such as short-circuit protection, insulation resistance grounding monitoring, residual current protection, anti-islanding protection,and DC overvoltage/overcurrent protection.

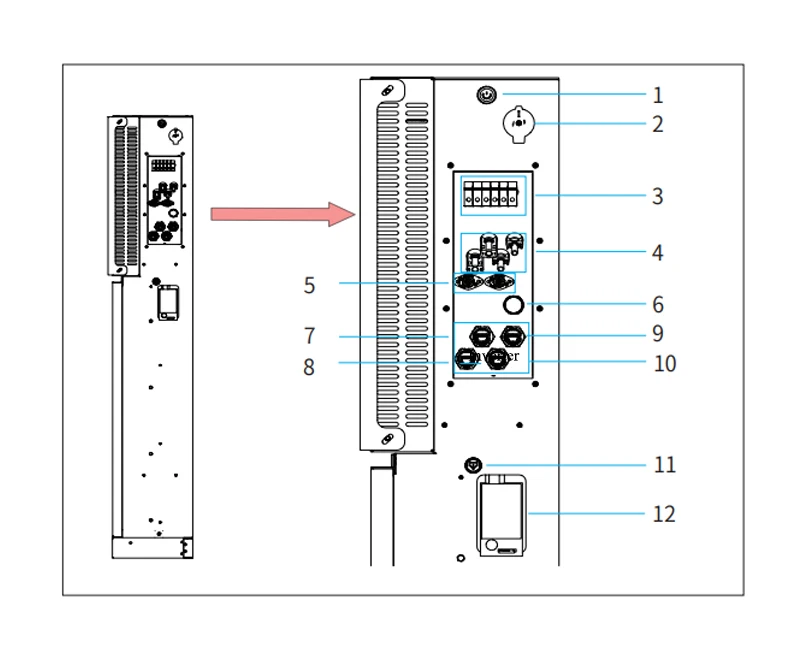

1
Battery Switch
7
Meter/CT Port
2
PV Switch
8
Battery Communication Port
3
Load/EPS(Off-grid) Output port
9
LAN Port
4
PV connection port
10
DRM Port
5
Battery Parallel connection port
11
Waterproof breathable Valve
6
WIFI Module connection Port
12
Battery Breaker


Product Paramenters


Model
Stealth AIO(5.5KWH)
BAUERY
Battery type
Li-Ion
Voltage Range[v]
160-350
Recommended battery voltage[v]
300
Nominal Energy(kWh)
5.5
DOD
95%
Max. continuous charge/ discharge current [A]
25
Communication interfaces
CAN/ RS485
CAN/ RS485
YES
Input (DC)
Max. PV array power [Wp]
6600
Max. DC voltage [V]
580
Nominal DC operating voltage [v]
380
Max. input current [A]
12/12
Max. short circuit current [A]
14/14
MPPT voltage range [V]
70-580
Start operating voltage [V]
100
Output (AC)
Nominal AC power [VA]
5000
Max. apparent AC power [VA]
5000
Nominal grid voltage (AC voltage range) [v]
50/60
Nominal AC current [A]
21.7
Max. AC current [A]
21.7
Displacement power factor
0.8 leading to 0.8 lagging
THDi, rated power [%]
<2
Input(AC)
50/60Hz; 3L/N/PE 220/380,230 / 400Vac
Max. apparent AC power [VA]
10000
Max. AC current [A]
43.4
Nominal grid voltage (AC voltage range) [V]
220/230/240(180-270)
Nominal grid Frequency/ range [Hz]
50/60
EPS Output (WITH BATTERY)
EPS Max. continuous apparent power [VA]
5000
EPS rated voltage [V], Frequency [Hz]
230, 50/60
EPS Max. continuous current [A]
26
EPS peak apparent power [VA]
6000
Changeover time [ms]
<200
THDv, linear Load [%]
<2
Efficiency
Integrated
PVMax. efficiency [%]
97.6
PV Europe Efficiency [%]
97
PV Max. MPPT efficiency [%]
99.9
Max. Battery charge efficiency (PV to BAT) [%]
98.2
Max. Battery charge efficiency (GRID to BAT) [%]
97.4
Max. Battery discharge efficiency (BAT to AC) [%]
97.5
Power Consumption
Night Power Consumption [W]
<10
Standard
Safety
IEC62109-1/IEC62109-2/IEC62619
EMC
EN 61000-6-1/ EN 61000-6-2/ EN 61000-6-3
Certification
VDE-AR-N 4105 / AS4777 / EN50549 / CEI 0-21/G100
Dimension And Weight
Dimensions (WxHxD) [mm]
640*1000*220
Weight [kg]
73
Cooling Method
Natural
Topology
Transformerless
Communication interfaces
EthemeV Meter/ Pocket WiFi (optional) / Pocket LAN (optional) / Pocket GPRS (optional) / DRM/ USB/ ISO alarm/ CT
cycle life
12000


Payment




Payment Term



T/T
EXW
30% T/T in advance, paid the balance before shipment
FOB
CFR(C&F)
30% T/T in advance, paid the balance against copy of B/L
CIF
L/C
L/C amount above 50,000 usd, we can accept L/C at sight
Delivery Time
7~10days after receiving payment for one container

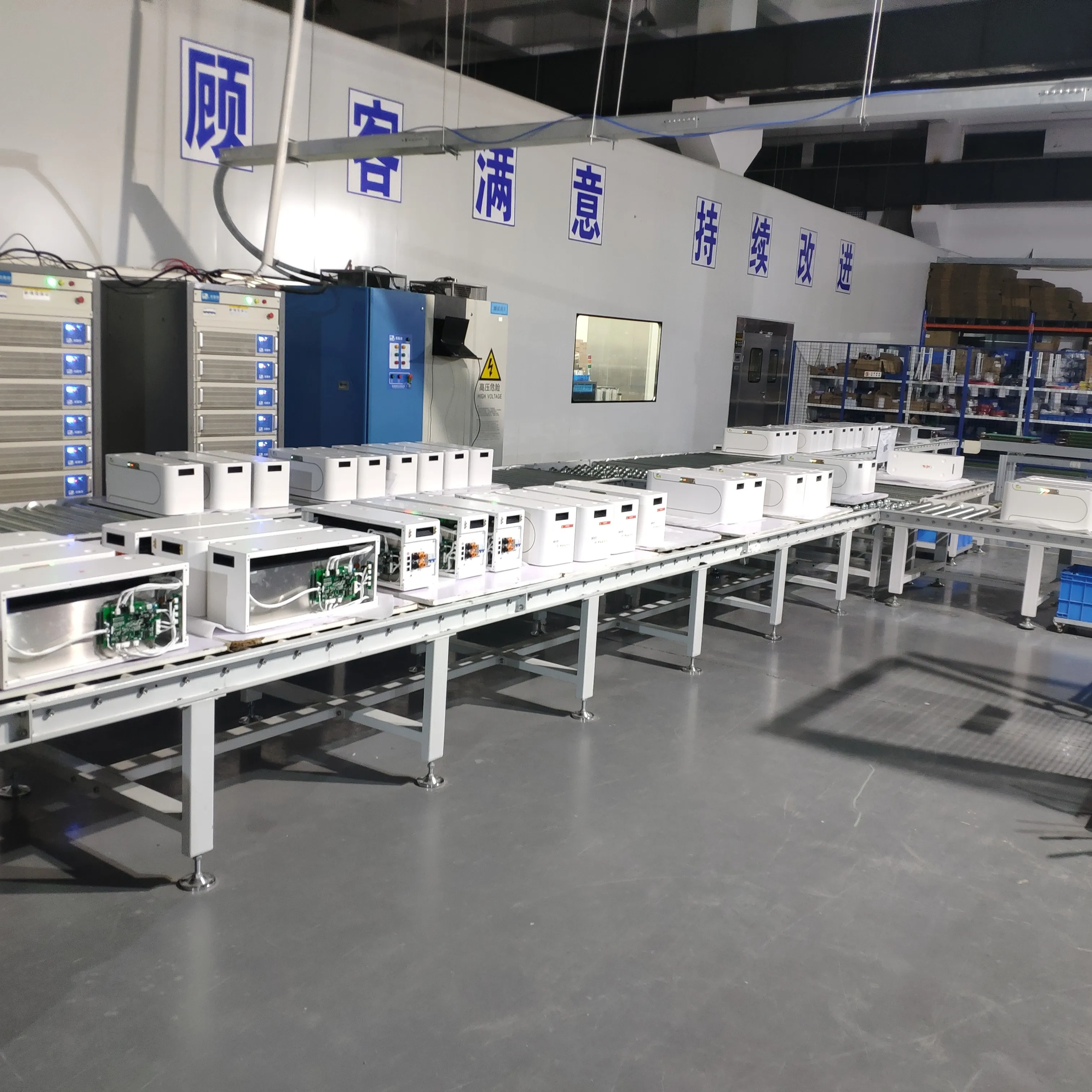

Company Profile




FAQ


Q1: Can I get one for sample?
A1:Yes, we accept sample order or trial order for testing first.

Q2: What's the price and MOQ?
A2:Please just send me inquiry, your inquiry will be replied within 24 hours, we will let you know the latest price and MOQ.

Q3:What's you delivery time?
A3:It depends on your quantity, but usually, 7 days for sample order, 30-45days for batch order

Q4: How about your payment and shipment?
A4:Payment: We accept T/T, Western Union,Paypal etc. terms of payment. Shipment: For sample order, we use DHL, TNT, FEDEX, EMS
etc.,for batch order, by sea or by air( through our forward)

Q5:How about your warranty?
A5:Normally,we provide1 year warranty,and whole life technical support.

Q6.Do you have you own factory?
A6:Yes,we are leading manufacturer mainly in off grid solar power inverter,solar charge controller and systems ect.for about 12 years.
