Laboratory biological microscope JB52N inverted biological microscope
- Category: >>>
- Supplier: Beijing Westvillage Science And Development Co. Ltd.
Share on (1600611794468):
Product Overview
Description
Product Description
Product Summary:

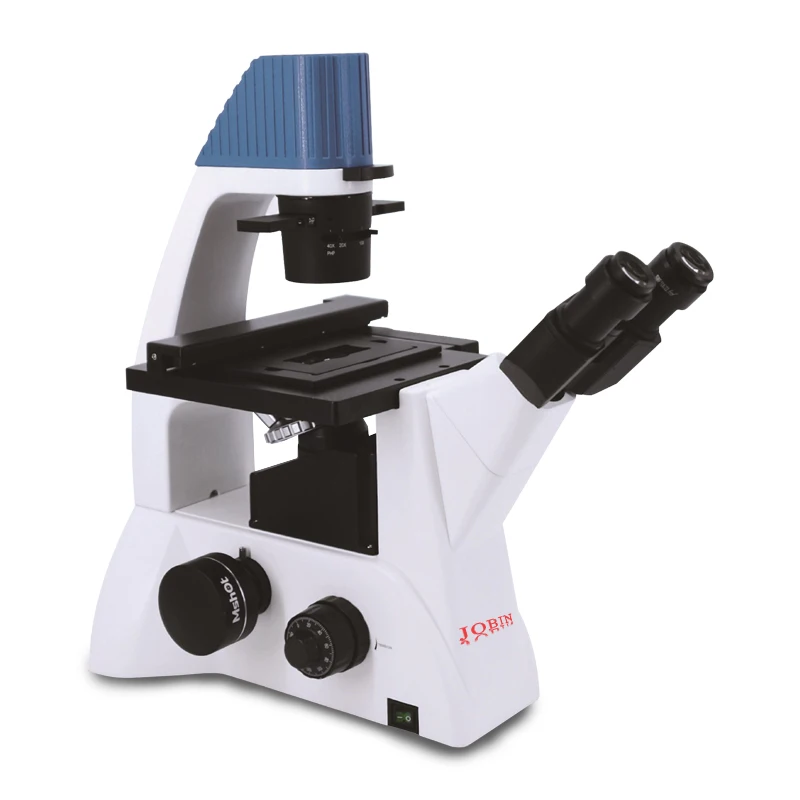

The JB52N inverted biological microscope uses an excellent infinite-range optical system to provide excellent optical performance. The ultra-long working distance concentrator system can observe the culture cells of high culture dish or cylinder flask without contamination, and the lighting system fully considers the heat dissipation and safety. This instrument can be used for microscopic observation of living cells, transparent liquid tissue, and dynamic microscopic observation of cultured tissue in Petri dishes.
Feature:
◆ Large field of view of eyepiece, field of view up to 22mm;
◆ Coarse microactuator coaxial focusing, with locking and limiting device, Fretting lattice value :2um;
◆ Coarse microactuator coaxial focusing, with locking and limiting device, Fretting lattice value :2um;
Specifications:
Item | specification |
Eyepiece | SWF10X/22 flat field eyepiece with high eyeshaft and an eyepiece with adjustable diopter |
Center oriented telescope | |
Eyepiece sleeve | 45° tilt, pupil distance adjustment 53-75mm, visual ability adjustable |
Objective | Infinite long working distance flat field achromatic objective M-UPLFLN 4X/0.13 Working distance :17.15mm |
Infinite long working distance Flat field achromatic objective LACH Plan40X/0.58 Working distance :2.5mm | |
Infinite long working distance Flat field achromatic phase contrast objective Plan10X/ 0.25pH working distance :4.1mm | |
Infinite long working range Flat field achromatic phase contrast objective Plan20X/ 0.45pH working range :5mm | |
Focusing mechanism | Coarse fine-tuning coaxial, equipped with limit device and locking device, low hand position coaxial focusing handwheel, fine-tuning handwheel grid value 2UM objective lens converter five-hole objective lens converter |
Stage | Fixed load stage size :227mmx208mm; Mechanical movement, moving range :135mmx77mm |
Round transparent carrier board: outer ring 118mm, inner ring 68mm | |
Petri dish tray size :86mmx129.5mm, can be matched with 90mm round Petri dish | |
Petri dish plate two inner slot size :34mmx77.5mm, can fit the circular Petri dish 68.5mm | |
Size of three inner slots of Petri dish support plate :57mmx82mm fits 60mm in a round Petri dish | |
Petri dish tray four inner slot size :29mmx77.5mm can fit round Petri dish 35mm | |
A difference of ring plate | There is one 10X phase difference ring and one 20X/40 phase difference ring |
Collecting mirror | Push-pull plate phase difference condenser, working distance :55mm, numerical aperture :0.3 |
Illuminating system | 9WLED with adjustable brightness |
Camera interfaces | Built-in 0.75 XC |
certificate
Company Profile
Beijing Westvillage Science and Development Co., Ltd, established in 2007, is an enterprise selling scientific aboratory instruments and eauipment to universities,scientific institutions, food factories, pharmaceutical companies,environmental protection organizations as well as hospitals. We are located in Beijjng, China with convenient transportation access. We have established a high reputation as an authorized distributor of famous brands worldwide such as Yamato Wiggens,Meiling.Optosky,Bodboge etc. Our cooperative factory also develop refined, intelliaent and automatic goods with INREFINE brand, We dedicated to strict quality control and thoughtful customer service, and our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction. With over 10 years experience in lab instruments and high quality products, we sell well in China with an annual domestic sales amount over 5 million USD, and our products are also exported to Europe, America,Africa and Asia Our clients include Mars FoodNovartis.China CDC.etc. Our products are mainly scientific lab instruments, including freeze drver, centrifuge,cell counter, oven, Constant temperature and humidity chamber.Sterilizer,muffle furnace,rotary evaporator. heatina maanetic stirrer, top stirrina water bath,CO2 incubator,Raman spectrometer,UV-VIS-NIR-MidIR spectrometer,infrared spectroscopy,PCR Ultra-low temperature refrigerator,low temperature refrigerator,freezer,etc.
Welcome to contact us.Weprovide 24-hour online service.
Logistics and Payment
FAQ
Q1: What's the MOQ ?
Under normal circumstances, the minimum order is 5 cases
Q2:Can you produce according to customers' design?
Yes, OEM and ODM are both welcomed.
Q3: How about your delivery time?
Generally, it will take 7 to 15 working days after receiving your advance payment. Depend onthe quantity.
Q4: Quality assurance?
（1）we test all products before shipment to ensure that the products are qualified without anydefect or damage.we test all products
before shipment to ensure that the products are qualified without any defect or damage.
（2）If any product problem is detected within 24 hours of receipt of the goods is found, we provide free replace- ment.
Q5: How to get after services including installation, operation, repair?
（1）Generally we provide auide throuah internet tools such as WeChatemail, video.etc.
（2）If necessary, aoods may be shipped back to China for replacement or repair. We shall burden all relevant fees and taxes within quality guarantee period if quality problem isnot arising from faulty operation.
Q6:Why choose us?
（1）As Alibaba quality certified manufacturer,we provide a standard quality guarantee period for all products: 1 year.
（2）Meet safety standard for Europe and USA;
（3）With rich experience in laboratory instrument sales, to provide one-stop service.
（4） Low price, good quality
（5）Accept trade assurance order to protect buyer;
（6）On-time delivery.
Q2:Can you produce according to customers' design?
Yes, OEM and ODM are both welcomed.
Q3: How about your delivery time?
Generally, it will take 7 to 15 working days after receiving your advance payment. Depend onthe quantity.
Q4: Quality assurance?
（1）we test all products before shipment to ensure that the products are qualified without anydefect or damage.we test all products
before shipment to ensure that the products are qualified without any defect or damage.
（2）If any product problem is detected within 24 hours of receipt of the goods is found, we provide free replace- ment.
Q5: How to get after services including installation, operation, repair?
（1）Generally we provide auide throuah internet tools such as WeChatemail, video.etc.
（2）If necessary, aoods may be shipped back to China for replacement or repair. We shall burden all relevant fees and taxes within quality guarantee period if quality problem isnot arising from faulty operation.
Q6:Why choose us?
（1）As Alibaba quality certified manufacturer,we provide a standard quality guarantee period for all products: 1 year.
（2）Meet safety standard for Europe and USA;
（3）With rich experience in laboratory instrument sales, to provide one-stop service.
（4） Low price, good quality
（5）Accept trade assurance order to protect buyer;
（6）On-time delivery.
