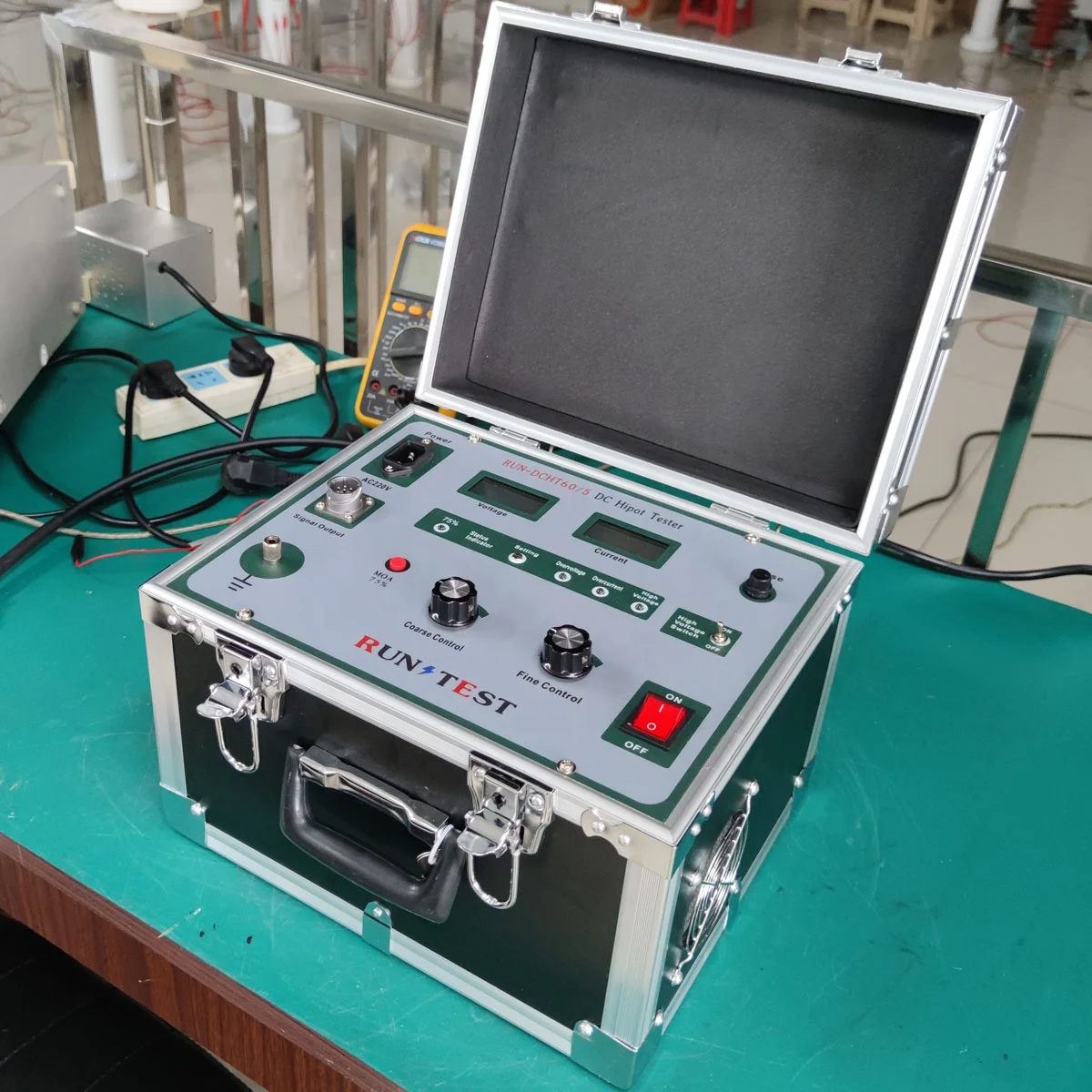

DC Hipot Tester DC High Voltage Generator Withstand Voltage Tester High Voltage Tester
- Category: >>>
- Supplier: Run Test Electric Manufacturing Co. Ltd
Share on (1600611798160):
Product Overview
Description
Product Description

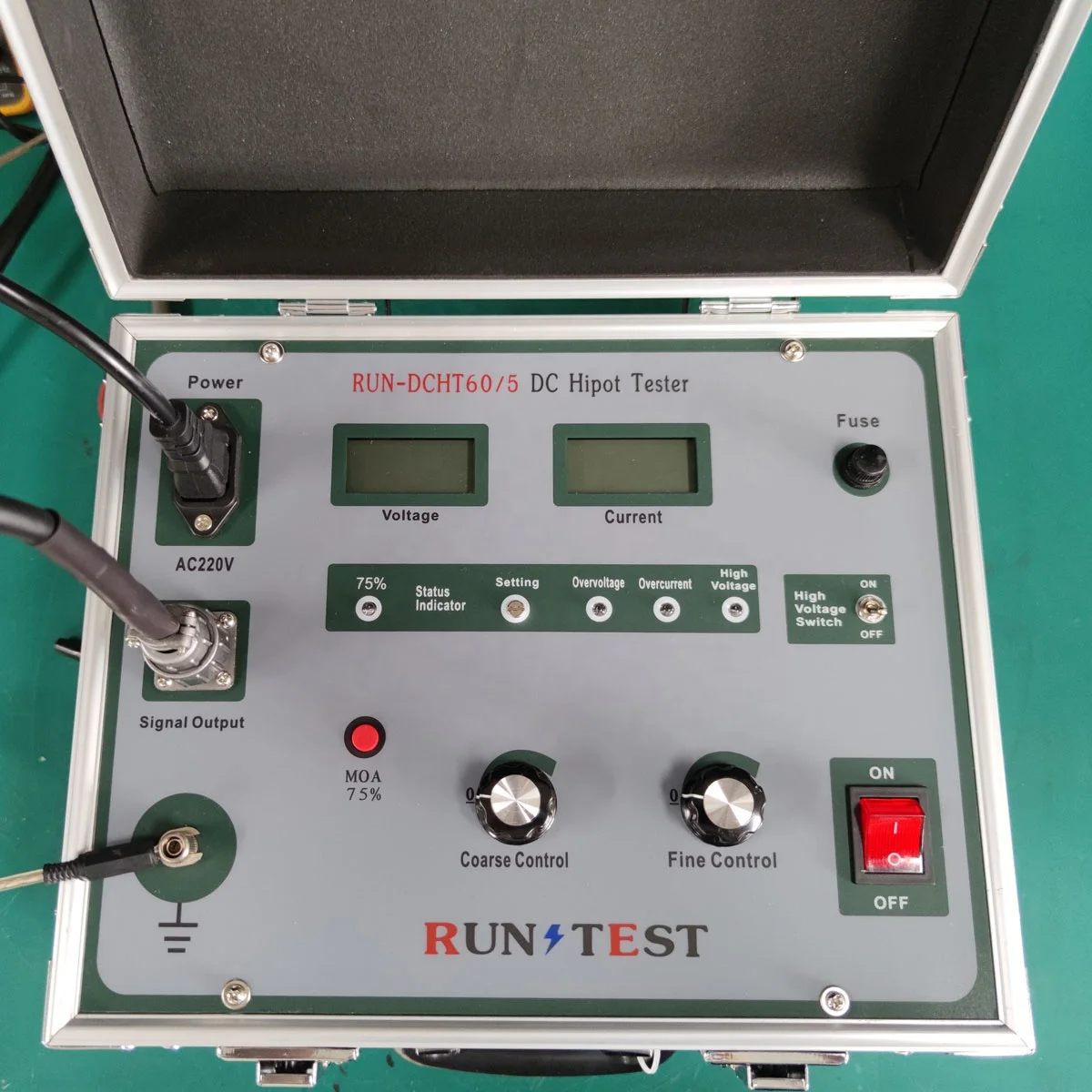

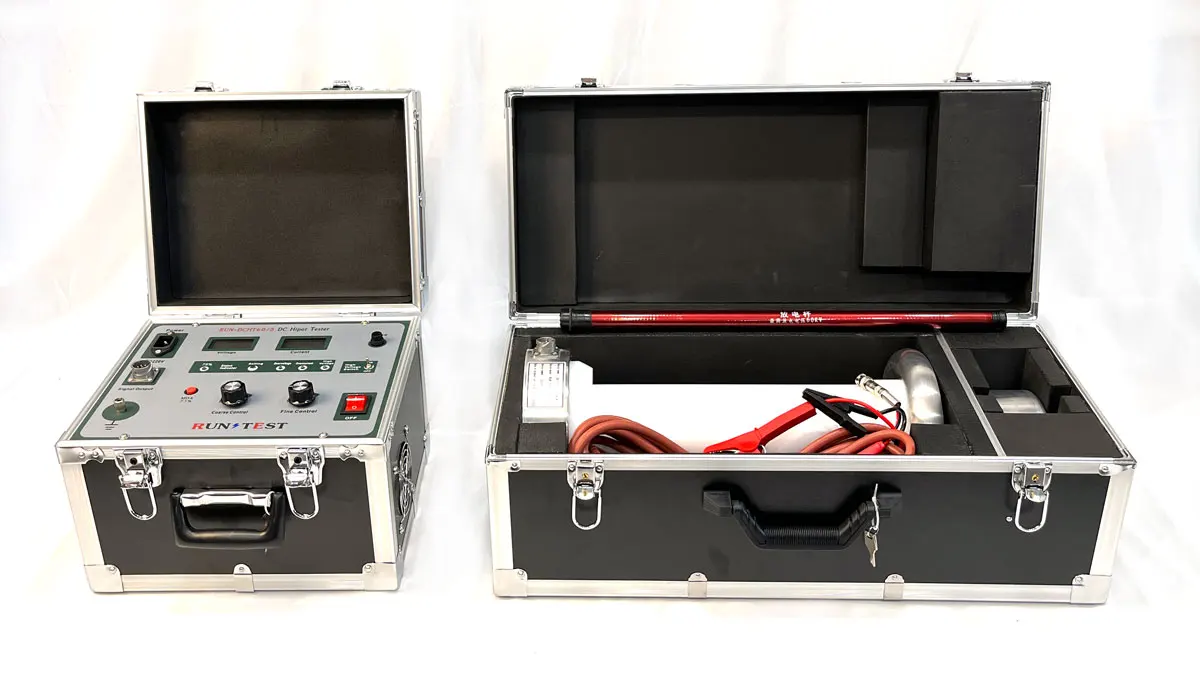

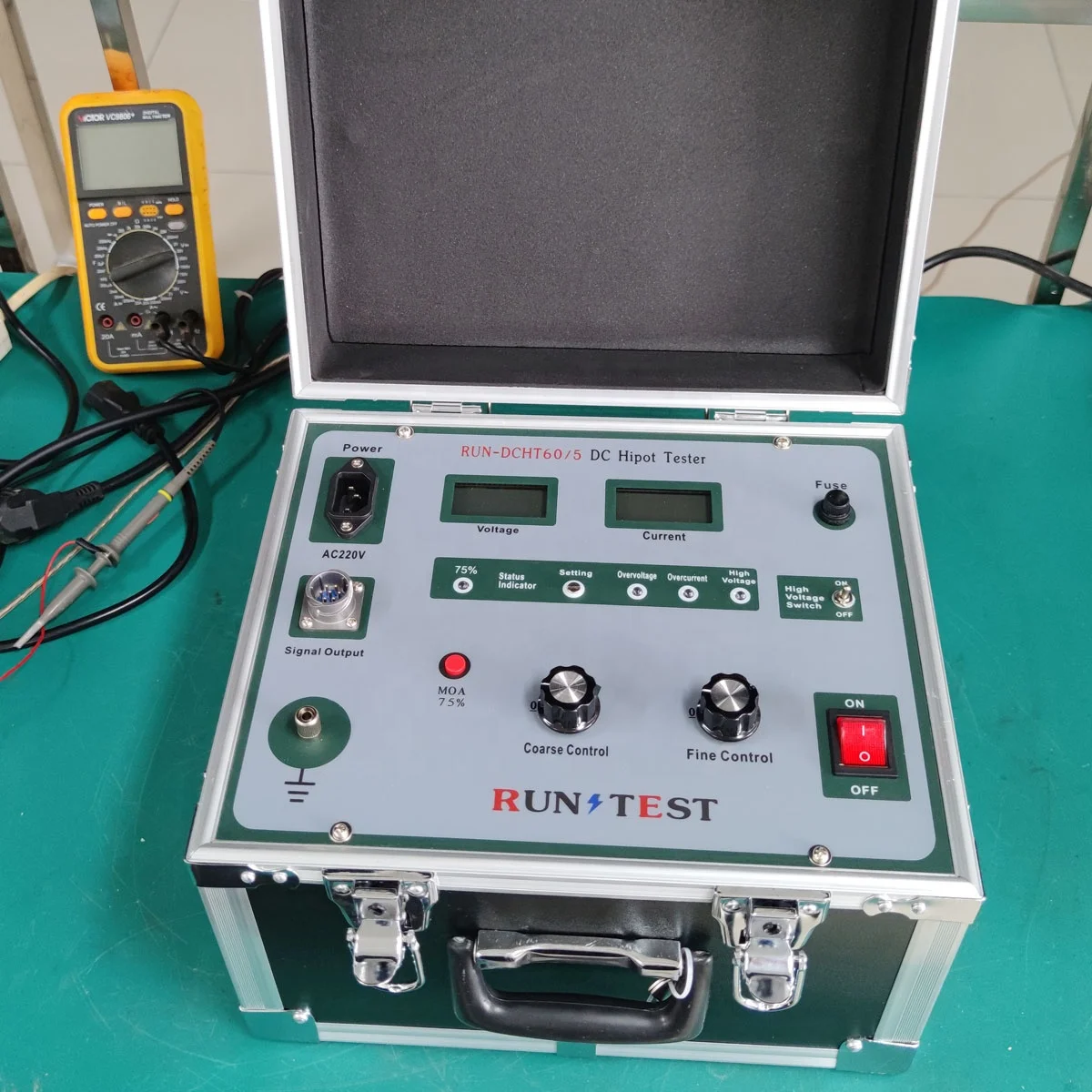

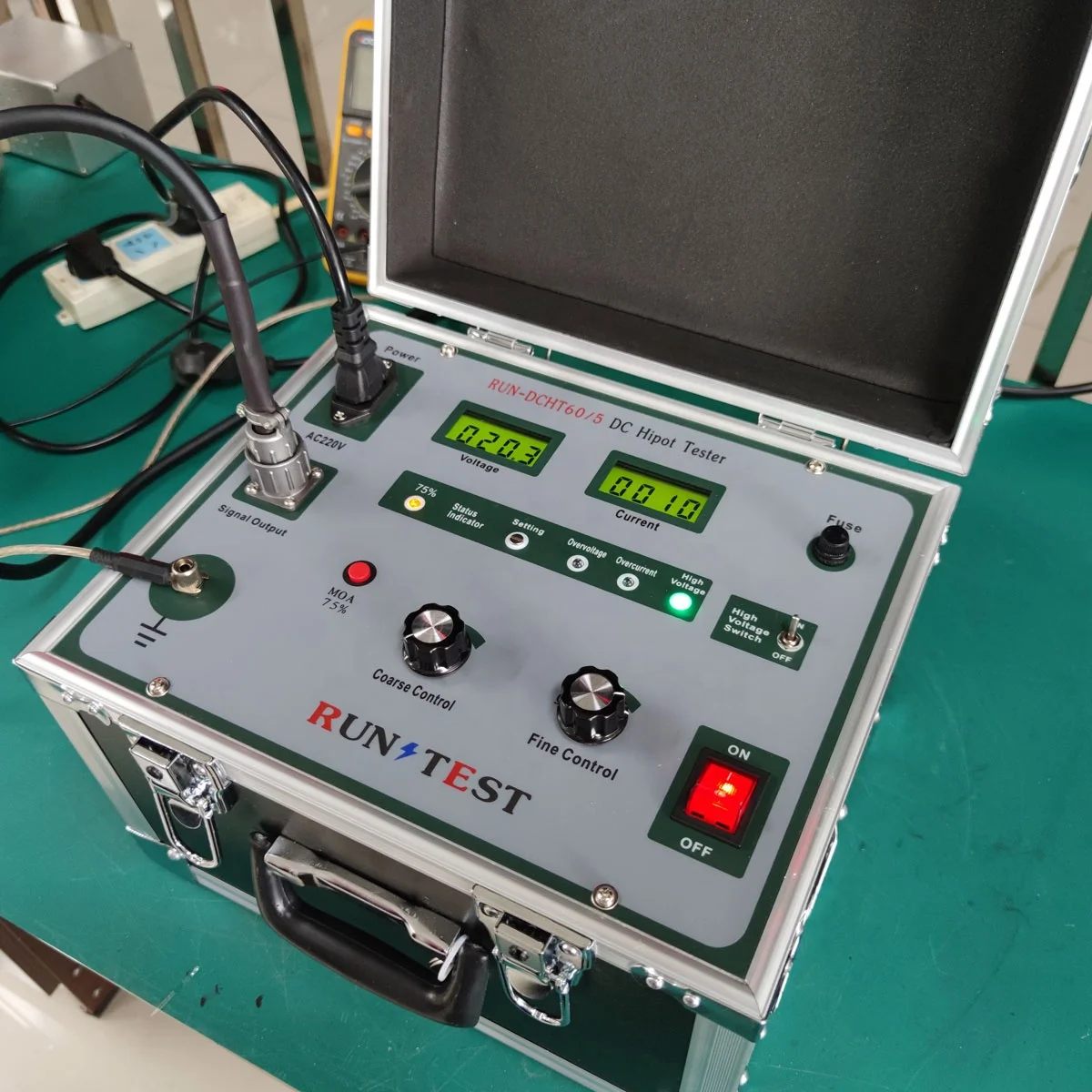

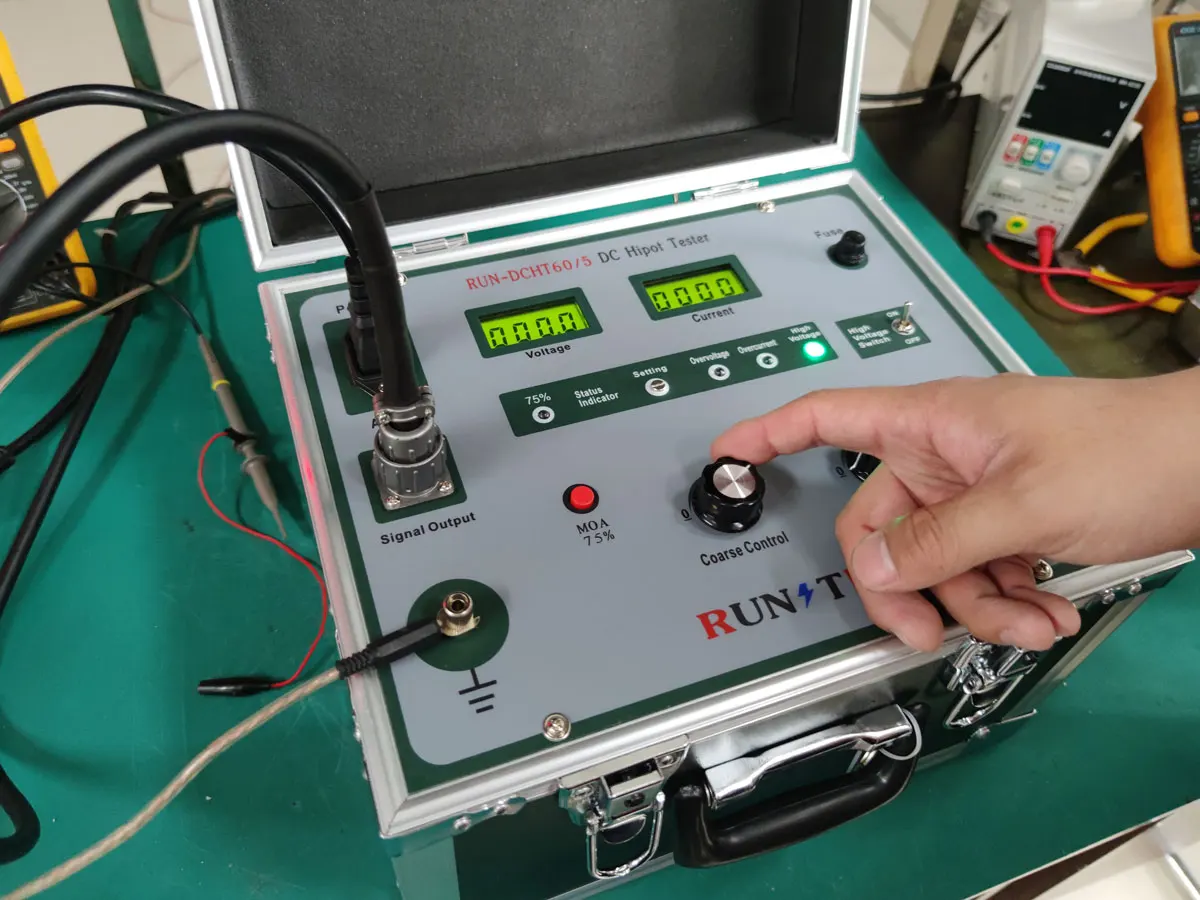

DC Hipot Tester, DC High Voltage Generator Withstand Voltage Tester High Voltage Tester
Dc high voltage generator adopts high frequency pulse width modulation (PWM) technology to make closed adjustment with high voltage stability, small ripple factor and fast reliable protection circuit. The wide temperature LCD screen adopts green back light, which enables clear display either in bright light or in darkness. High-pressure components use Dupont new filling material, making the product more stable and reliable. Products are widely used in electricity power supply departments, power transmission and transformation engineering company and preventive test of large industrial enterprises and scientific research institutes as regulated dc high voltage power supply.
Dc high voltage generator adopts high frequency pulse width modulation (PWM) technology to make closed adjustment with high voltage stability, small ripple factor and fast reliable protection circuit. The wide temperature LCD screen adopts green back light, which enables clear display either in bright light or in darkness. High-pressure components use Dupont new filling material, making the product more stable and reliable. Products are widely used in electricity power supply departments, power transmission and transformation engineering company and preventive test of large industrial enterprises and scientific research institutes as regulated dc high voltage power supply.
Specification
Model Technical | 40/2 | 60/2 | 60/5 | 120/ 2 | 120/ 3 | 120/ 5 | 200/ 2 | 200/ 3 | |||||||
Rated voltage(KV) | 40 | 60 | 60 | 120 | 120 | 120 | 200 | 200 | |||||||
Rated current(mA) | 2 | 2 | 5 | 2 | 3 | 5 | 2 | 3 | |||||||
Rated power(W) | 80 | 120 | 300 | 240 | 360 | 600 | 400 | 600 | |||||||
Voltage accuracy Current accuracy | DRO ± (1.0% of reading ± 0.2KV) DRO ± (1.0% of reading ± 2) | ||||||||||||||
Ripple factor | ≤0.5% | ||||||||||||||
Voltage stability | Random fluctuations, Supply voltage transformation ratio±10%≤1% | ||||||||||||||
Overload capacity | No-load voltage can exceed 10% of the rated voltage using ten minutes maximum charging current of 1.5 times the rated current | ||||||||||||||
Power supply | Single-phase current 50HZ 220V±10% | ||||||||||||||
Temperature | -10~40℃ | ||||||||||||||
Relative Humidity | Room temperature is 25℃less than 85% (non-condensing) | ||||||||||||||
Feature
1. Dc high voltage generator adopts high frequency PWM technology to make closed adjustment with high voltage stability, small ripple factor and fast reliable protection circuit. The generator can endure direct discharge by devices of large capacitance. It is of small size and of light weight, convenient for field use.
2. Over-voltage setting function displays the over-voltage value during regulation process; perfect protection against discharge of over-voltage, over-current and short circuit. This is the best companion for cable experiments.

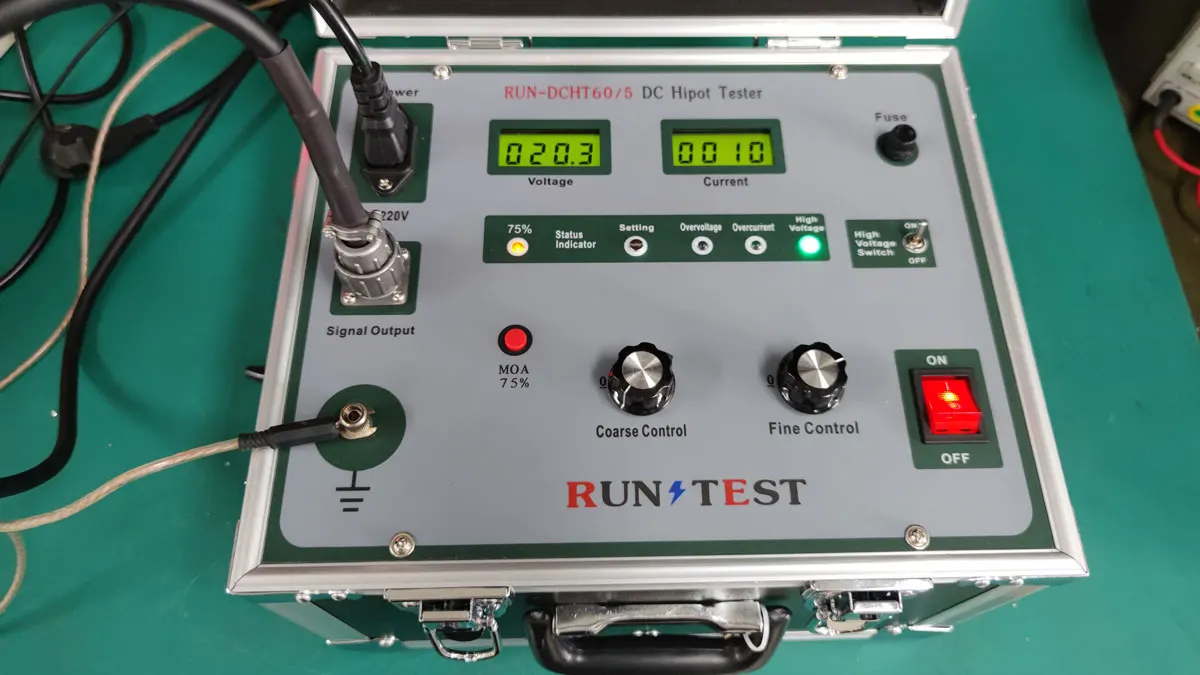

3. Perfect break line and non-zero potential start protection function protects the operator and samples at any time. This product has overall design of shock-proof control box, concise, clear panel design and voice prompt for operation.
4. 75% MOA voltage switch button, simple and convenient testing arrester.
2. Over-voltage setting function displays the over-voltage value during regulation process; perfect protection against discharge of over-voltage, over-current and short circuit. This is the best companion for cable experiments.
3. Perfect break line and non-zero potential start protection function protects the operator and samples at any time. This product has overall design of shock-proof control box, concise, clear panel design and voice prompt for operation.
4. 75% MOA voltage switch button, simple and convenient testing arrester.
Company Profile
Run Test Electric Manufacturing Co., Ltd (brand name: RUN TEST, VOLTEST), premium product and service provider of State Grid, headquartered in Baoding, China, specialized in design and manufacturing of portable electrical test equipment, including: transformer testers, oil & gas testers, circuit breaker testers, relay protection testers, cable testers , insulation resistance testers and hipot testers, etc.
Our products are CE approved, and comply with IEC and other applicable international standards.
Our products can be found and are in use in more than 40 countries.
Our products are CE approved, and comply with IEC and other applicable international standards.
Our products can be found and are in use in more than 40 countries.

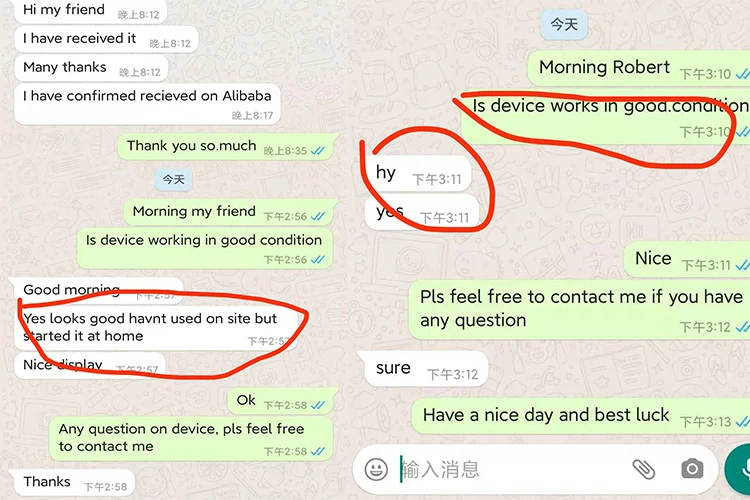

Transaction-and-Feedback
