Automatic Zhengzhou Mobile Rock Ore Lab Roller Electric Quarry Stone Hydraulic Roll Limestone Mining Gold Cone Crusher Machine
- Category: >>>
- Supplier: Yantai Jinpeng Mining Machinery Co. Ltd.
Share on (1600611845051):
Product Overview
Description
Product Description

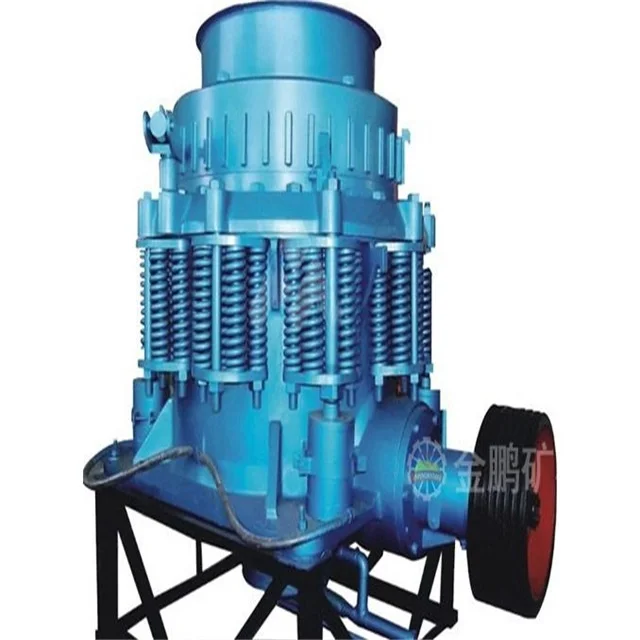

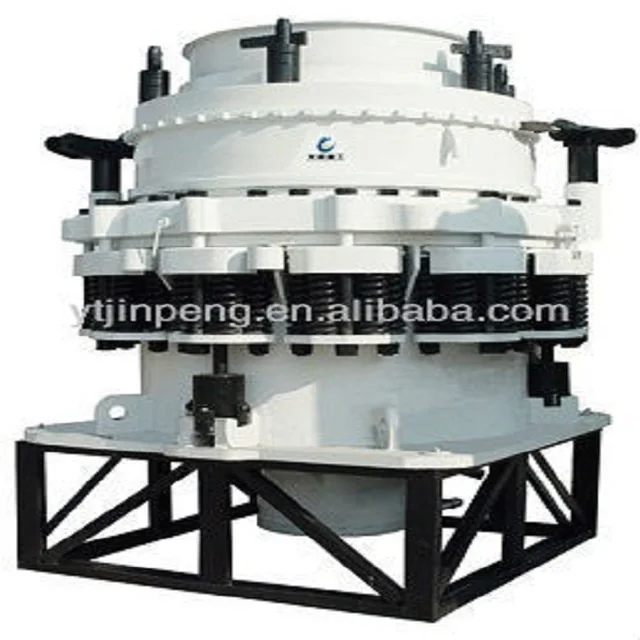

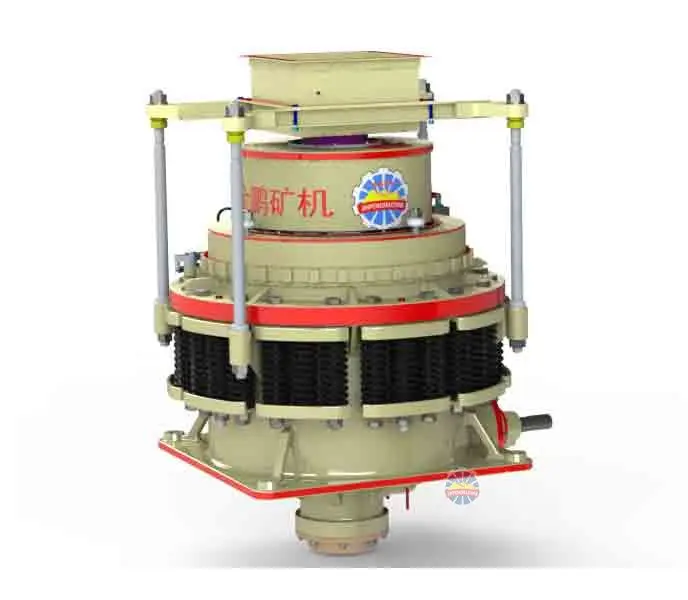

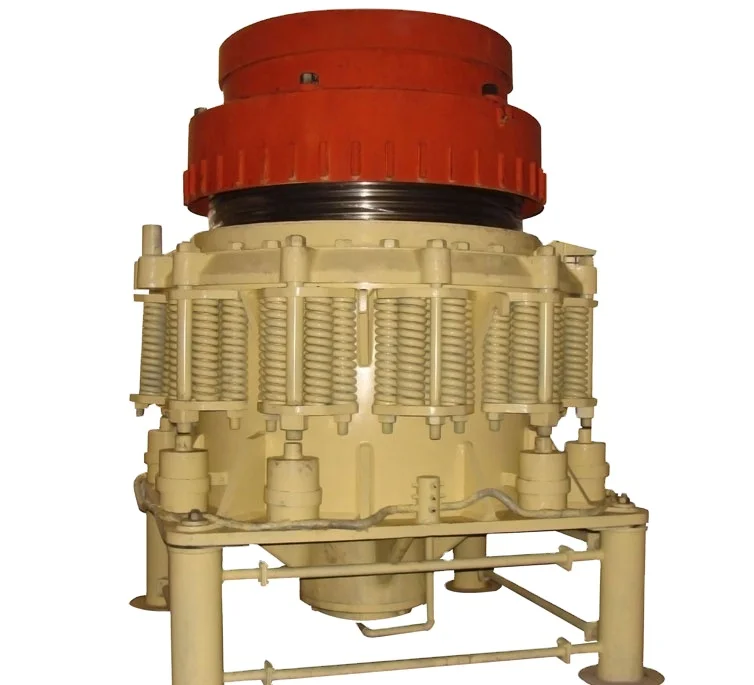

Spring cone crusher
A medium and fine crusher equipment,The spring is not only the safety device and impact crushing force. Crushing cavity form is
decided by the ore use: Standard suitable for broken;Medium suitable for the finely. Short head cone crusher is suitable for fine
grinding.Applicable material : Above medium hardness ores and rocks, such as iron ore, copper ore, limestone, granite, quartz, etc
Product Features: Inheritance of century-old classics, simple structure, stable working performances
Max particle : 1-300mm
Production capacity : 1～500t/h
Material: Granite, marble, basalt, limestone, quartz, pebble, copper ore, iron ore
decided by the ore use: Standard suitable for broken;Medium suitable for the finely. Short head cone crusher is suitable for fine
grinding.Applicable material : Above medium hardness ores and rocks, such as iron ore, copper ore, limestone, granite, quartz, etc
Product Features: Inheritance of century-old classics, simple structure, stable working performances
Max particle : 1-300mm
Production capacity : 1～500t/h
Material: Granite, marble, basalt, limestone, quartz, pebble, copper ore, iron ore
Structure
Spring Cone Crusher breaks material by squeezing or compressing it between convex and concave shaped surfaces covered by manganese as the wear surface. Normally used as the secondary or tertiary crusher, the bone crusher has been developed to crush high or medium hardness material, such as iron ore, copper ore, limestone, quartz, granite, and sand stones, etc.The spring cone crusher has been developed to crush feed materials into desired end products efficiently, reliably and economically. This series offers the highest crushing efficiency and end product quality with the lowest cost per ton production. The safety system uses dry oil and water as two kinds of sealed formation to make plaster powder and engine oil separate to make sure reliable performance. The type of crushing chamber depends upon size of feeding and fineness of crushed product. The standard type is applied to medium crushing, the medium type is applied to medium or fine crushing and the short head type is applied to fine crushing
Working principle
Cone crusher crushes materials by the working surface between the movable cone and fixed cone. So it is more advanced and efficient than jaw crusher. The movable cone is supported by spherical bearing and fixed on a hanging erect shaft which is set in the eccentric sleeve, and the sleeve is set on the stopping and pushing bearing. The movable cone and erect shaft are driven by the eccentric shaft sleeve together. The eccentric shaft sleeve is driven by horizontal shaft and fimbriae gear, and the wheel of the conveyor belt is driven by motor through v-belts. The lower part of vertical shaft is installed in the eccentric sleeve. When the eccentric sleeve rotates, there is a conical surface lined out by the shaft. When the movable cone comes near the fixed cone,rocks are grinded into pieces, when the movable cone leaves, grinded materials is discharged from the discharge hole. The fixed cone can be ascended or descended by adjusting setting to adjust the width of discharge hole, consequently the output size is determined adjusted.
Cone crusher crushes materials by the working surface between the movable cone and fixed cone. So it is more advanced and efficient than jaw crusher. The movable cone is supported by spherical bearing and fixed on a hanging erect shaft which is set in the eccentric sleeve, and the sleeve is set on the stopping and pushing bearing. The movable cone and erect shaft are driven by the eccentric shaft sleeve together. The eccentric shaft sleeve is driven by horizontal shaft and fimbriae gear, and the wheel of the conveyor belt is driven by motor through v-belts. The lower part of vertical shaft is installed in the eccentric sleeve. When the eccentric sleeve rotates, there is a conical surface lined out by the shaft. When the movable cone comes near the fixed cone,rocks are grinded into pieces, when the movable cone leaves, grinded materials is discharged from the discharge hole. The fixed cone can be ascended or descended by adjusting setting to adjust the width of discharge hole, consequently the output size is determined adjusted.
Technical Parameter
MODEL | Broken cone diameter(mm) | Max particle(mm) | feding size(mm) | Output Adjustment Range(mm) |
PYB-600 | 600 | 65 | 75 | 12-25 |
PYB-900 | 900 | 110 | 135 | 15-50 |
PYB-1200 | 1200 | 145 | 170 | 20-50 |
PYB-1750 | 1750 | 215 | 250 | 25-60 |
PYB-2000 | 2000 | 300 | 350 | 30-60 |
PYZ-900 | 900 | 60 | 70 | 8-20 |
PYZ-1200 | 1200 | 100 | 115 | 8-25 |
PYZ-1750 | 1750 | 180 | 215 | 10-30 |
PYZ-2200 | 2200 | 230 | 275 | 10-30 |
PYD-600 | 600 | 35 | 40 | 3-13 |
PYD-900 | 900 | 40 | 50 | 3-13 |
PYD-1200 | 1200 | 50 | 60 | 3-15 |
PYD-1750 | 1750 | 85 | 100 | 3-15 |
PYD-2200 | 2200 | 100 | 300 | 3-15 |
PP-600 | 600 | <=30 | 3-13 | |
PP-900 | 900 | <=38 | 3-13 | |
PP-1200 | 1200 | <=38 | 3-13 |
Project Case
Project name: Zambia 110tph copper flotation plant
Location: Zambia, Africa
Ore type: Oxide & sulfide copper ore
Design capacity: 110tph
Location: Zambia, Africa
Ore type: Oxide & sulfide copper ore
Design capacity: 110tph
Our Services
1. Engineering Consulting
Engineering consulting makes clients have a comprehensive understanding of the value of mine, the useful elements, available
mineral processing technology, plant size, required equipment and period.
2. Mineral dressing test
Mineral dressing test is in charge of Mineral Dressing Research Institute belonging to jinpeng Company.
3. Mine design
Three parts of mine design: feasibility study, preliminary design and construction plan
4. Equipment manufacture
Equipment manufacture is in the charge of jinpeng mine production plants that covers an area of 100 mu, and are divided into 3 production plants. It could manufacture more than 600 kinds of equipment of mining, ore dressing and metallurgy, and provides fullets of main and auxiliary equipment for mine less than 10000 tons / day capacity. jinpeng company passed the ISO9001:2000 international quality management system certification, and has formed a complete and strict quality management system in equipment manufacture that operation is in strict accordance with the requirements of the quality manual.
5. Installation and Commission
Installation & commission is key link of realizing dressing test, mine design, and equipment manufacture, and directly takes influence on production. Jinpeng established professional installation company having four installation teams which are from the mine production line and led by engineering technicians who held the directors of dressing plant and mine leader. Installation personals Jinpeng sent out participate in the whole mine design of clients, and there are two points for this: one is the old technicians are very familiar with structure, performance and using of Jinpeng equipment; the other is the technician who can quickly solve many actual problems in plant construction understand the overall design of factory because of participating in the whole mine design.
6.Personal training
The Jinpeng technicians who have extremely rich practical experience for worker training are experts of installation and
commission team. They help workers to pay attention to some details which usually don't be easy to notice but extremely important.These jinpeng technicians provide training from 3 aspects:Operation training for all workers involved in mineral processingTraining for the common problems in the plant operation and processing technology; a live solution demonstration for workers Training of operation experience grasping, the workers should operate machines by lots of exercises.
7. Designed capacity reached
The target reached of jinpeng EPC includes expected recovery rate reached, design capacity for clients reached, the quality of product reached, consumption indicators meeting requirement, effective controlling of production cost and the stable operation of process and equipment. Whether the recovery rate guarantees is the key of target reached. When the recovery rate could not reach expectation values, it would causes huge losses for dressing plant, especially for precious metals.jinpeng EPC service guarantees the recovery rate reaches the expectation value, and solves all the problems, which makes the dressing plant start soon and reach the target.
8. After-sale Service
After the contract finished, jinpeng would regularly visit customer to provide after-sale technical support and to solve problems of dressing plant. For equipment of dressing plant, jinpeng could provide one-year warranty.
(For more information, please visit //en.ytjpkj.com/comcontent_detail01.html)..
Engineering consulting makes clients have a comprehensive understanding of the value of mine, the useful elements, available
mineral processing technology, plant size, required equipment and period.
2. Mineral dressing test
Mineral dressing test is in charge of Mineral Dressing Research Institute belonging to jinpeng Company.
3. Mine design
Three parts of mine design: feasibility study, preliminary design and construction plan
4. Equipment manufacture
Equipment manufacture is in the charge of jinpeng mine production plants that covers an area of 100 mu, and are divided into 3 production plants. It could manufacture more than 600 kinds of equipment of mining, ore dressing and metallurgy, and provides fullets of main and auxiliary equipment for mine less than 10000 tons / day capacity. jinpeng company passed the ISO9001:2000 international quality management system certification, and has formed a complete and strict quality management system in equipment manufacture that operation is in strict accordance with the requirements of the quality manual.
5. Installation and Commission
Installation & commission is key link of realizing dressing test, mine design, and equipment manufacture, and directly takes influence on production. Jinpeng established professional installation company having four installation teams which are from the mine production line and led by engineering technicians who held the directors of dressing plant and mine leader. Installation personals Jinpeng sent out participate in the whole mine design of clients, and there are two points for this: one is the old technicians are very familiar with structure, performance and using of Jinpeng equipment; the other is the technician who can quickly solve many actual problems in plant construction understand the overall design of factory because of participating in the whole mine design.
6.Personal training
The Jinpeng technicians who have extremely rich practical experience for worker training are experts of installation and
commission team. They help workers to pay attention to some details which usually don't be easy to notice but extremely important.These jinpeng technicians provide training from 3 aspects:Operation training for all workers involved in mineral processingTraining for the common problems in the plant operation and processing technology; a live solution demonstration for workers Training of operation experience grasping, the workers should operate machines by lots of exercises.
7. Designed capacity reached
The target reached of jinpeng EPC includes expected recovery rate reached, design capacity for clients reached, the quality of product reached, consumption indicators meeting requirement, effective controlling of production cost and the stable operation of process and equipment. Whether the recovery rate guarantees is the key of target reached. When the recovery rate could not reach expectation values, it would causes huge losses for dressing plant, especially for precious metals.jinpeng EPC service guarantees the recovery rate reaches the expectation value, and solves all the problems, which makes the dressing plant start soon and reach the target.
8. After-sale Service
After the contract finished, jinpeng would regularly visit customer to provide after-sale technical support and to solve problems of dressing plant. For equipment of dressing plant, jinpeng could provide one-year warranty.
(For more information, please visit //en.ytjpkj.com/comcontent_detail01.html)..
Packing & Delivery
We makes a classification package plan for all the kinds of equipments and materials. Transport the goods to Chinese port in batches, handle the procedure.
