LGS roll forming with truss punch flange cut for back to back truss lgs light steel framing machine
- Category: >>>
- Supplier: Guangzhou Lms Machinery Co. Ltd.
Share on (1600611846534):
Product Overview
Description
Product Overview

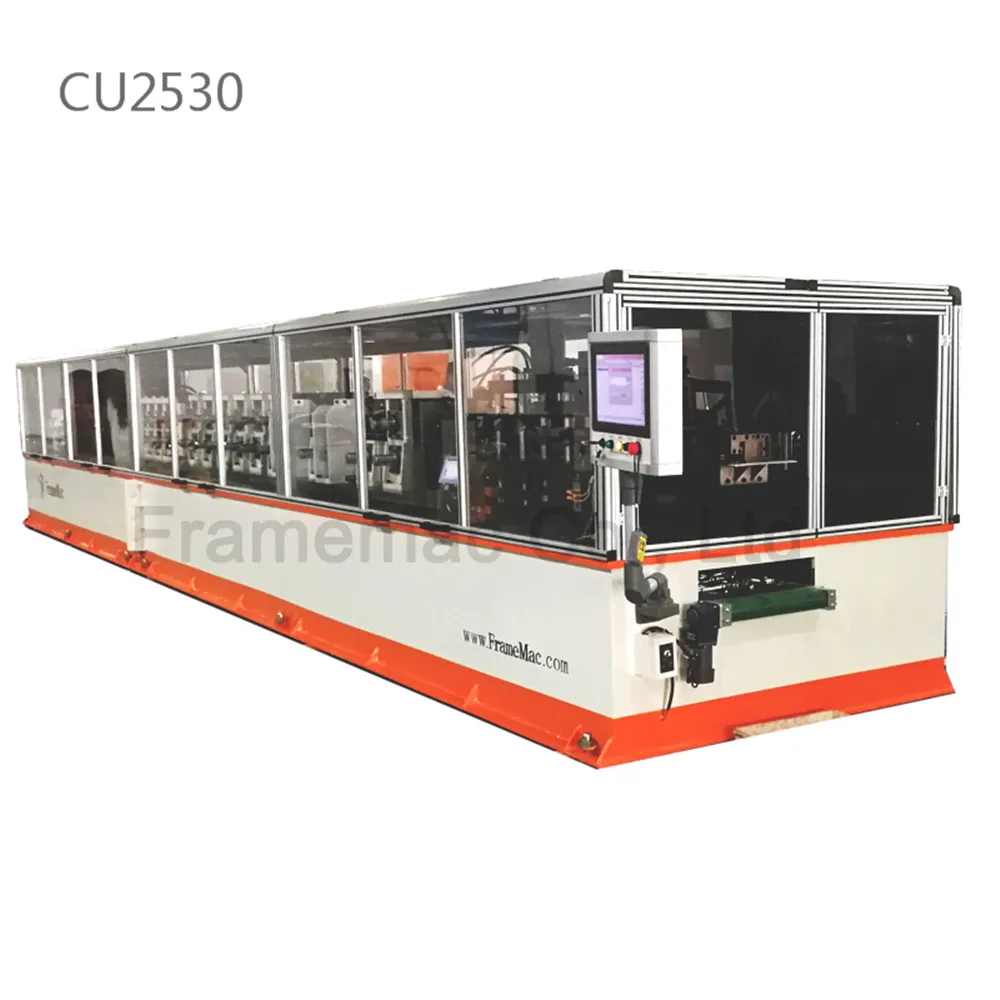

Lsf light steel framing machine LGS roll forming with truss punch, flange cut for back to back truss

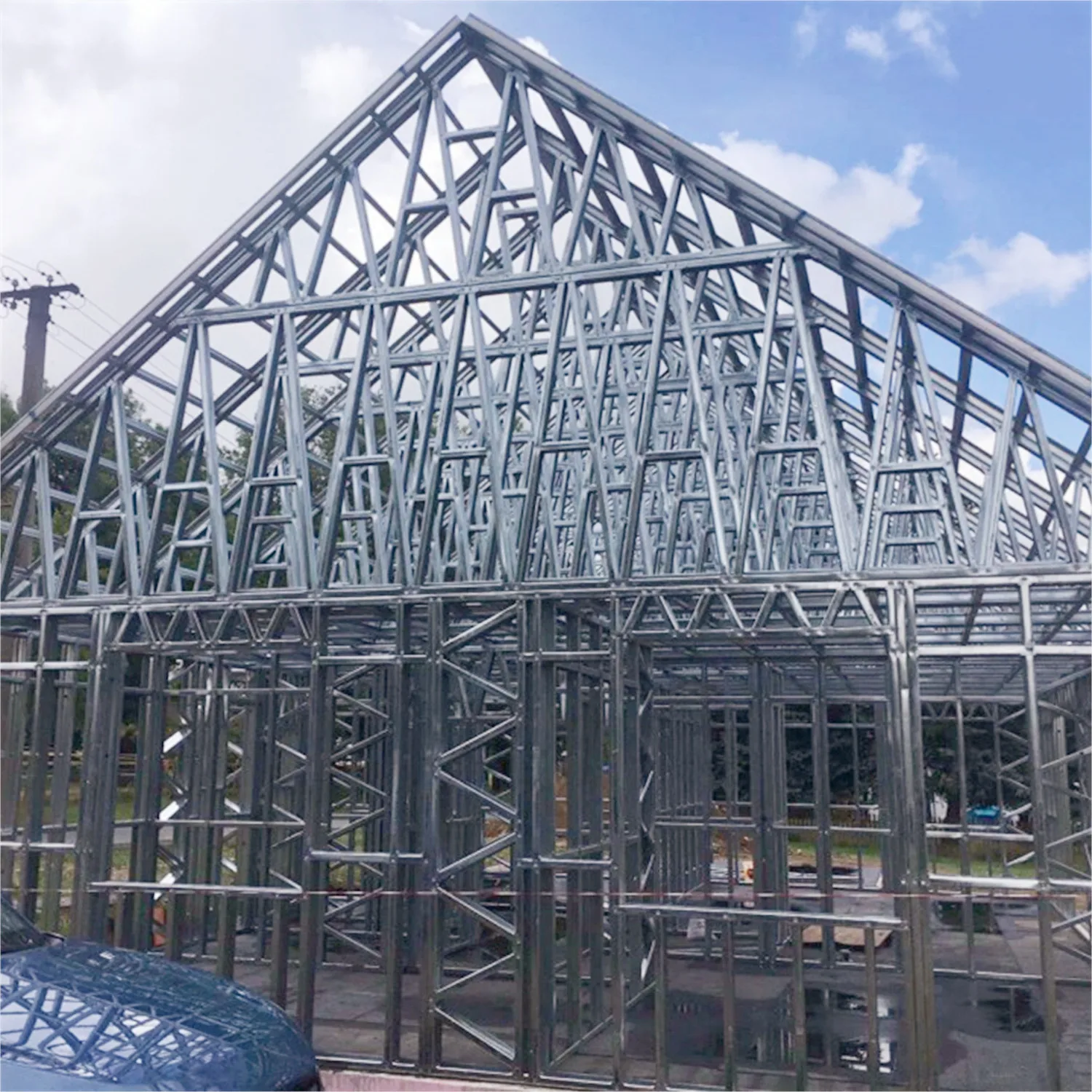

This cold formed machine produces c channel stud and tracks for light gauge steel framing building, by recognizing output files of BIM design software.
FEATURES AT A GLANCE
PRODUCT SPECIFICATIONS
No | Item | Data |
0 | Nc file | CSV/XML or other |
1 | Web | 60-150mm |
2 | Thickness | 0.7-1.5mm |
3 | Production speed | 300-900m/h |
4 | Accuracy | 0.5mm |
5 | Total Power | 16.5kw |
6 | Inkjet printer | 2 sides |
7 | Decoiler | 2 tons |
8 | Machine weight | 4600kg |

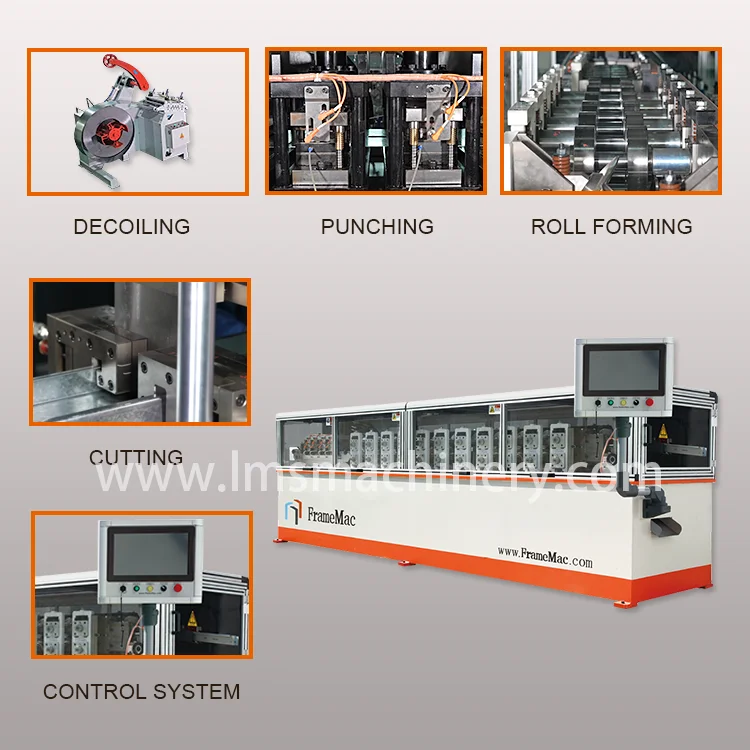

PRODUCT CONFIGURATION
2 in 1 standard uncoiler and straightener:
Decoiler is by hydraulic expansion and tighten, safe and convenient to load and unload steel coils. Leveler , 4 worm gear of which are adjustable for best straightening effect.
Smart punching
The punch group is composed of highly sensitive sensor, powerful hydraulic press force, strong die cut by slow-speed wire and accompany lubrication route.
Roll forming part
The roller stations gap can be auto adjusted for steel strips in different thickness, precisely aligned on steady bench , safely shell shield.
Inkjet printer
The printer with a smart chip, automatically print the code on both side of steel frame ,same as detailing drawings, which should be referred to installed. This shorten precious time of both production and installation offsite or onsite.
Industrial computer
This industrial computer is installed with Lilux system, which can prevent from Microsoft virus. Its communication type is EtherCAT. The most core value is instantly step BIM file to manufacturing proceed.
Successful Project
SIMILAR PRODUCTS
Product packaging
COMPANY PROFILE
About us
FrameMAC is a professional manufacturer of machine combining R&D and sales for light steel framing production equipment and
solutions. Taking "fast,accurate and stable" as our service tenet, insisting on high quality , support the target of providing
long-term running facility to the global.
solutions. Taking "fast,accurate and stable" as our service tenet, insisting on high quality , support the target of providing
long-term running facility to the global.
