2500*3000mm Insulated Glass Manufacturing Equipment For Glass Washing and Pressing
- Category: >>>
- Supplier: Jinan Bluetek Intelligent Co. Ltd.
Share on (1600611848459):
Product Overview
Description
PRODUCT DESCRIPTION AND FEATURES

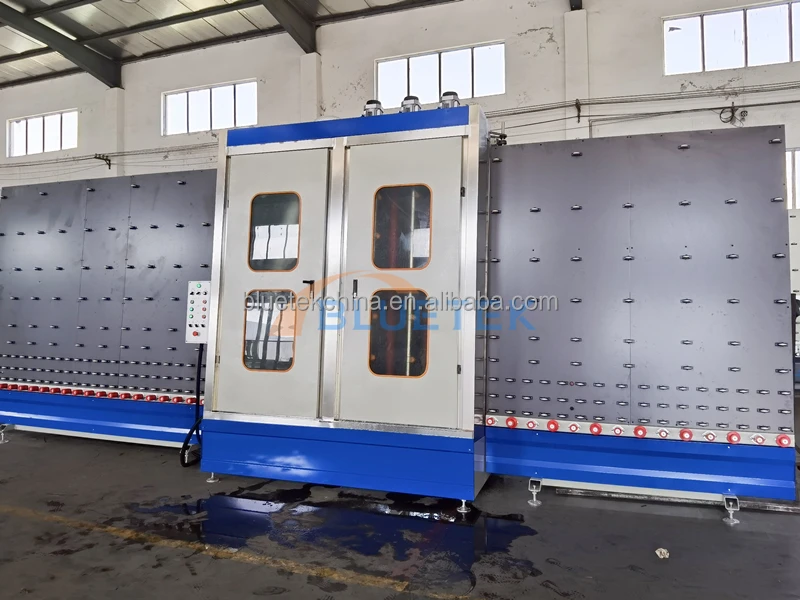

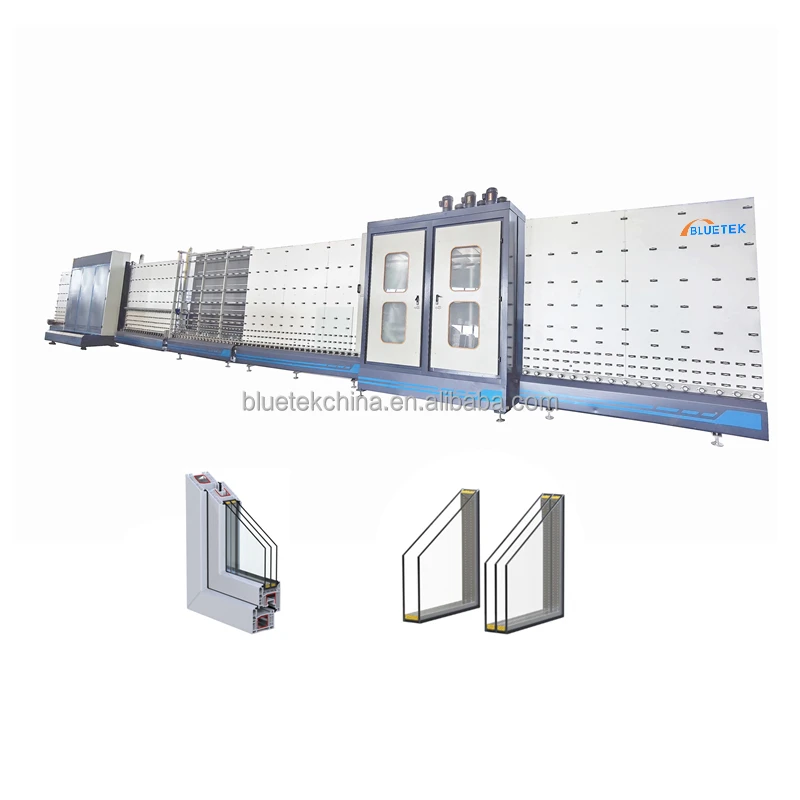

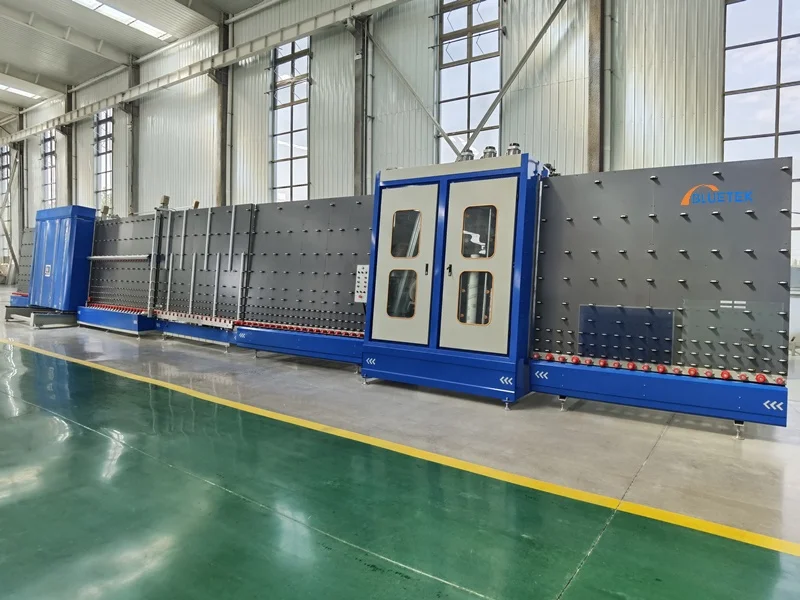

The insulated glass manufacturing equipment is a special machine for producing double-layer and triple-layer insulating glass with aluminium spacers, both LOW-E insulating glass and tempered insulating glass can be processed.

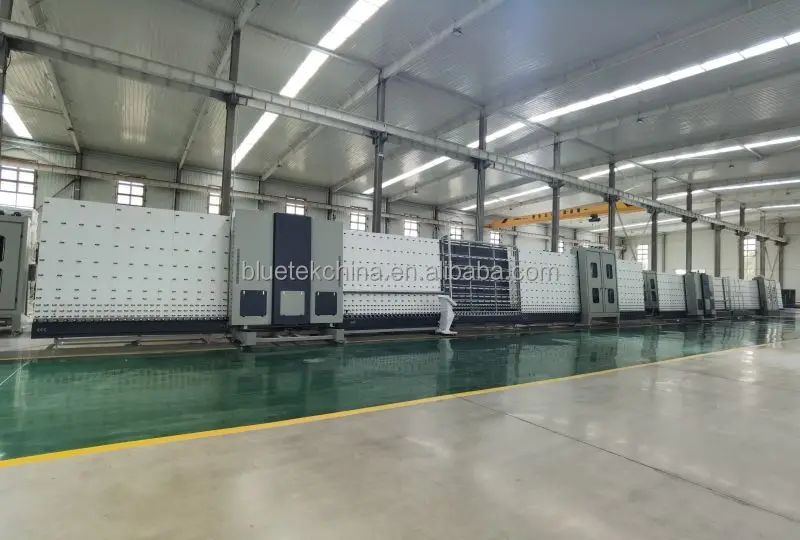

ZKX2500A consists of 7 sections from right to left.
SECTION 1 : Inputting
SECTION 2 : Washing Glass

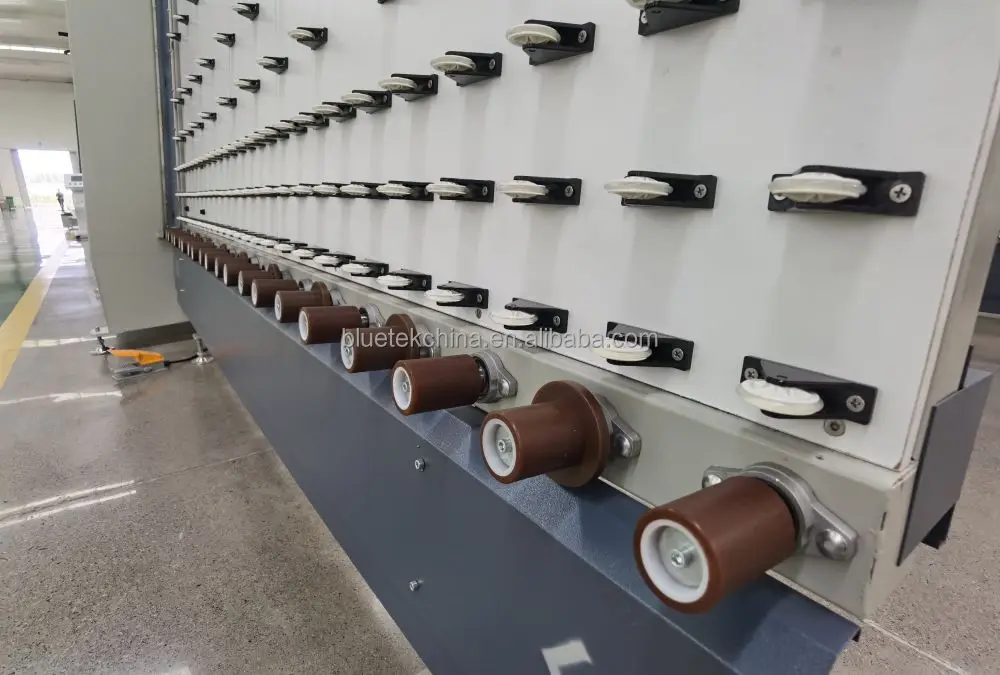

SECTION 3 : Transport
SECTION 4 : Checking
SECTION 5 : Double Glass Assemble
SECTION 6 : Pressing
SECTION 7 : Outputting

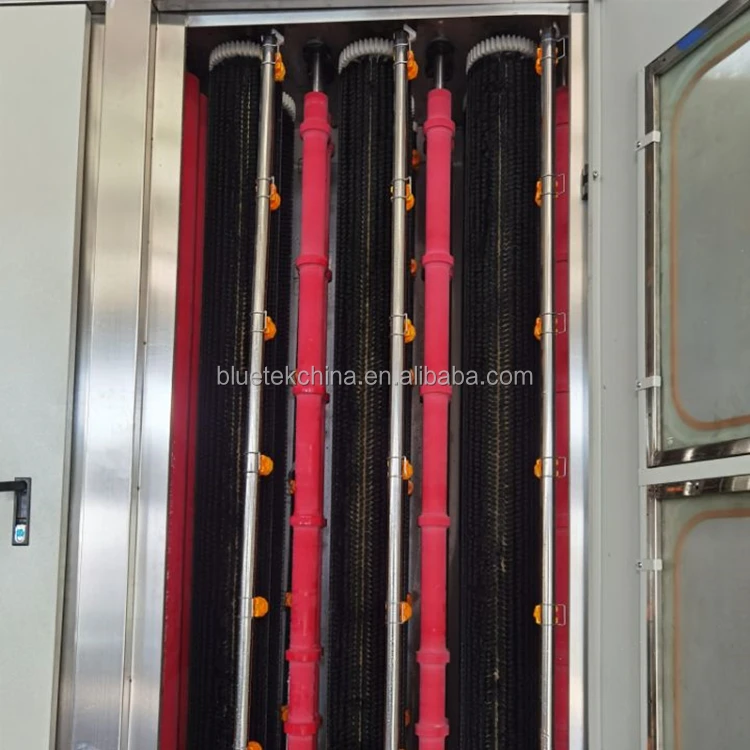

insulated glass manufacturing equipment has three motors driving three pairs of brushes respectively, which is stable and efficient;
Fan-shaped nozzle can be used for thorough cleaning without dead ends;
Aluminum profile air knife, the special baffle structure of the air knife, the wind is strong and the air is evenly supplied;
The 15kw fan is used and is equipped with Wind heating system to improve efficiency, bellows is equipped with sound absorption device to reduce noise pollution.

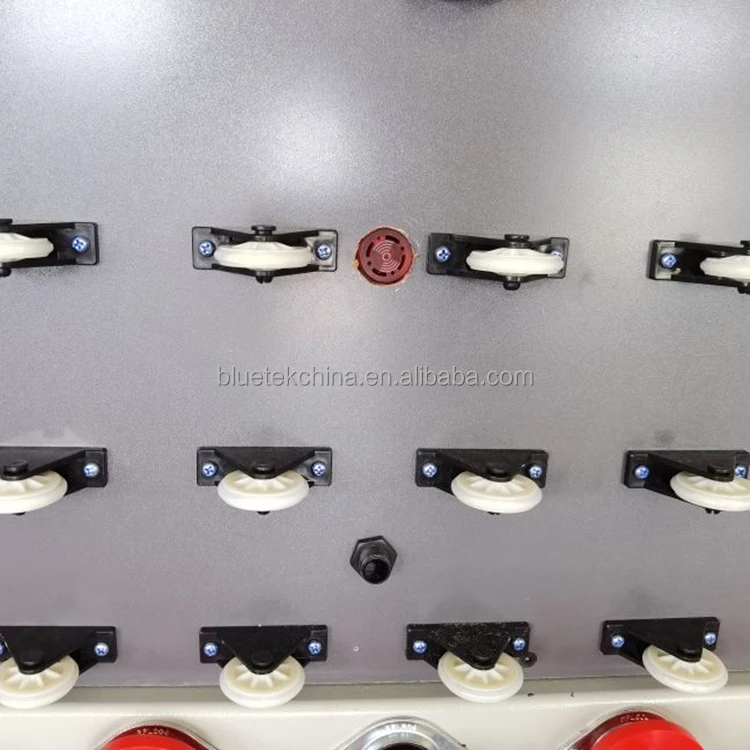

Insulated glass manufacturing equipment is equipped with automatic sensing device and alarm device, which can sense the film surface of LOW-E glass and coated glass.

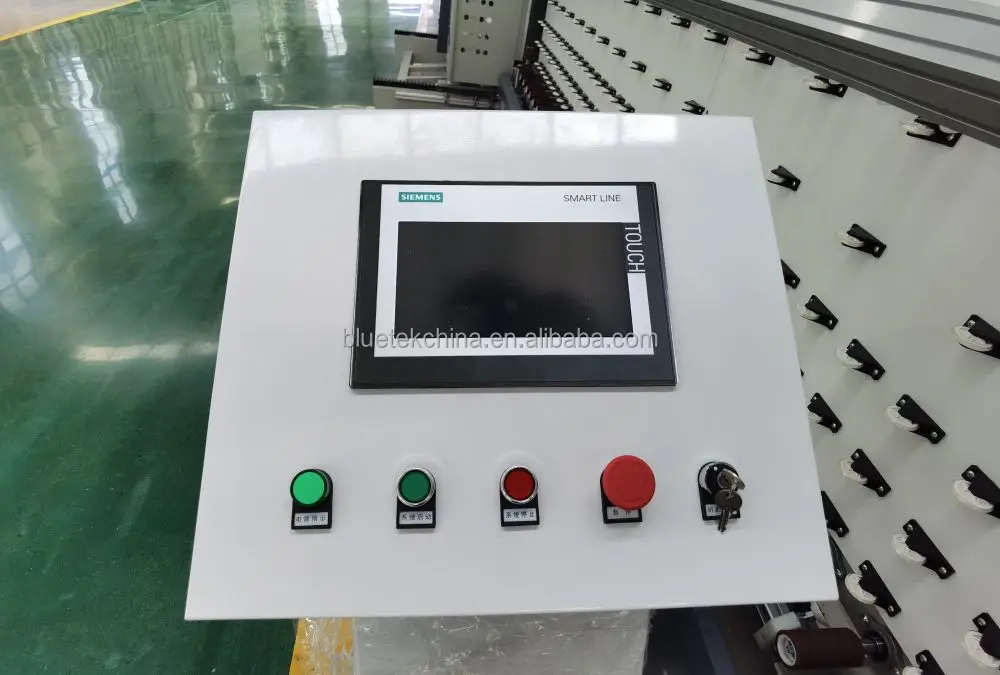

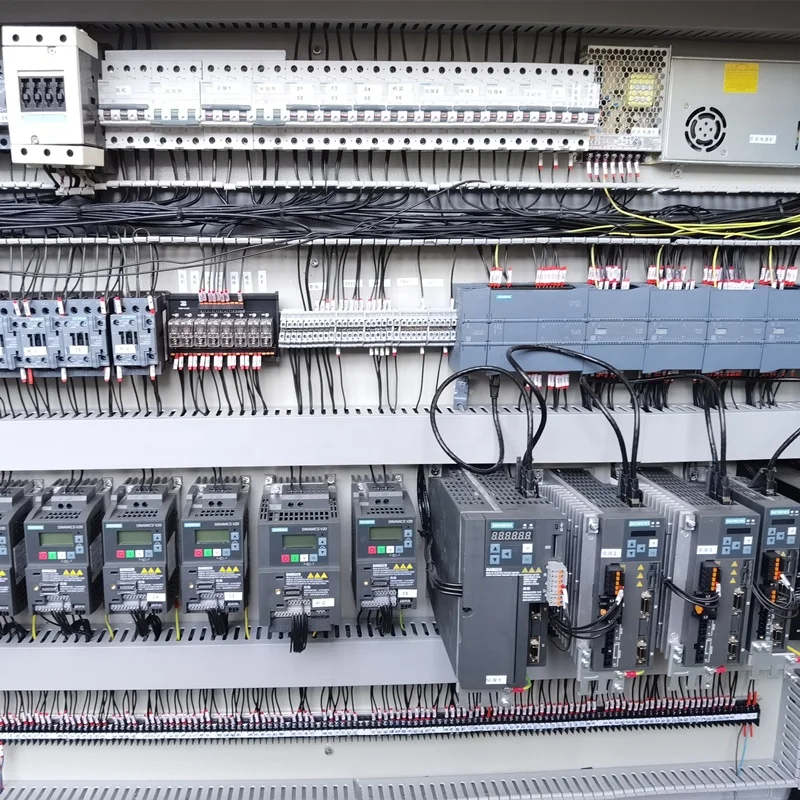

The low-voltage electrical appliances and control system of the vertical insulated glass manufacturing equipment (double glazing automatic production line) use SIEMENS or Schneider, the world's top brands to ensure stable operation, long service life, and extremely low failure rate, reducing customer maintenance costs and time costs.

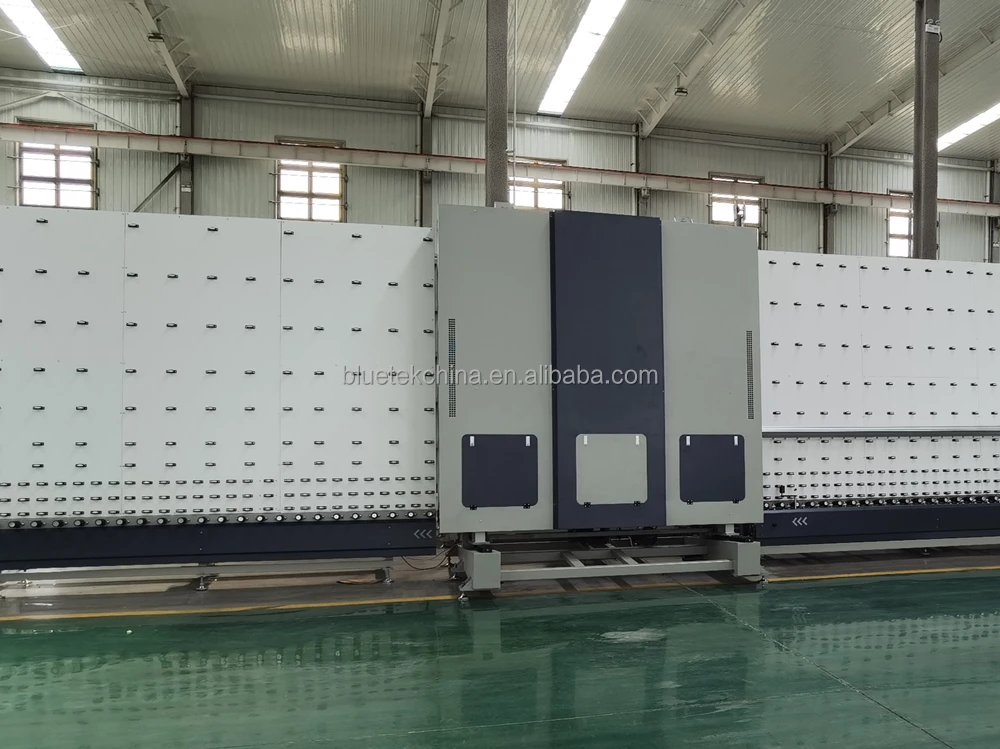

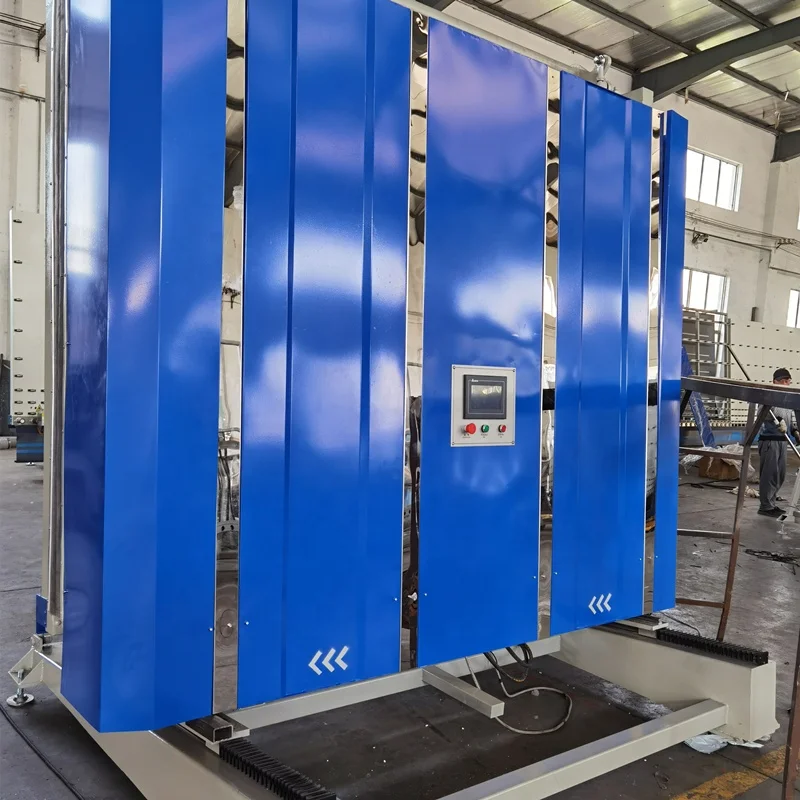

The flat pressing adopts a large stroke, which is convenient for maintenance, and the reinforcing ribs are evenly distributed in a mesh shape, and the force is uniform. The servo synchronous pressing adopts the ball screw to fully ensure the parallel pressing of the two plates. It has a pressing torque function for processing different sizes of insulating glass, and the pressure holding time can also be adjusted according to the size of the glass.
TECHNICAL PARAMETERS
Technical Parameters | Insulated Glass Manufacturing Equipment | ||
Model | LZK2500A | LZk2000A | |
Power Voltage | 380V 50Hz / Customize | 380V 50Hz / Customize | |
Input Power | 28 KW | 22KW | |
Max. Glass Size | 2500*3000mm ( Height * Length ) | 2000*2500mm ( Height * Length ) | |
Min. Glass Size | 450*300mm | 450*300mm | |
Glass Thickness | 3~ 19mm | 3~ 19mm | |
Insulated Glass Thickness | Max. 50mm | Max. 50mm | |
Washing Speed | 2 ~ 12 M/min | 2 ~ 12 M/min | |
Overall Dimension | 23000*2000*3350mm | 20000*2000*3100mm | |
Weight | 8000 KG | 7000 KG | |
Note | Can customize machine size based on customer's glass size ! | ||
Main Accessories Of Vertical Insulated Glass Manufacturing Equipment LZK2500A | ||
Frequency Converter | SIEMENS , Germany | |
Circuit Breaker | SIEMENS , Germany | |
AC Contactor | SIEMENS , Germany | |
Power Switching | MEAN WELL , Taiwan China | |
Solenoid Valve | AirTAC , Taiwan China | |
Transmission Motor | Taiwan, China | |
Sensor | Autonics, South Korea | |

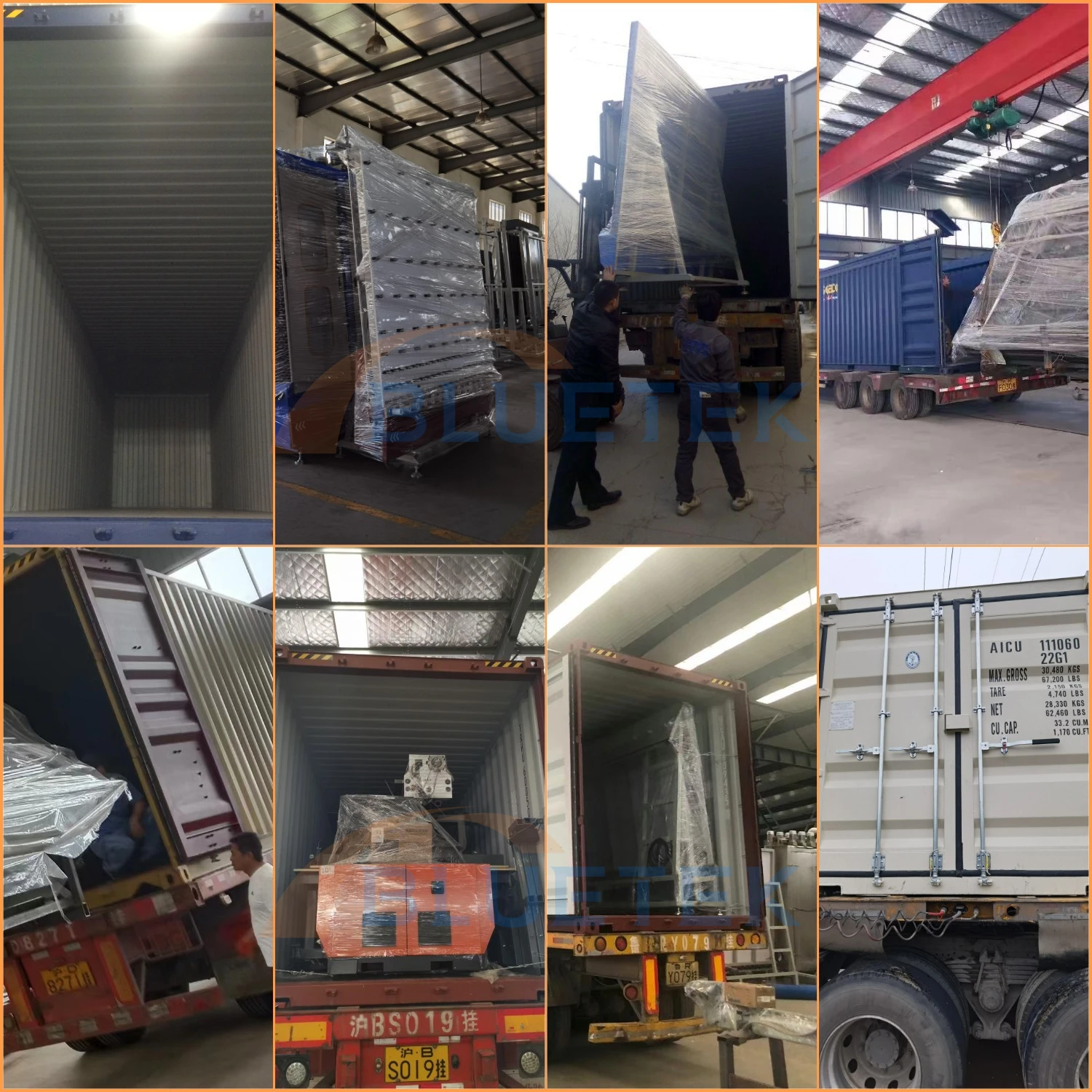

PACKING AND SHIPPING
FULL CONTAINER LOADING ( FCL )
Insulated Glass Manufacturing Equipment needs two containers - 40HC *1 and 20GP *1
The waterproof plastic film is the outer packaging, and the bottom of the machine is fixed on a steel tray to ensure stability. The top and feet of the machine are fixed with steel wire, which can safely reach the customer's factory.
The waterproof plastic film is the outer packaging, and the bottom of the machine is fixed on a steel tray to ensure stability. The top and feet of the machine are fixed with steel wire, which can safely reach the customer's factory.
PRODUCTION SOLUTION

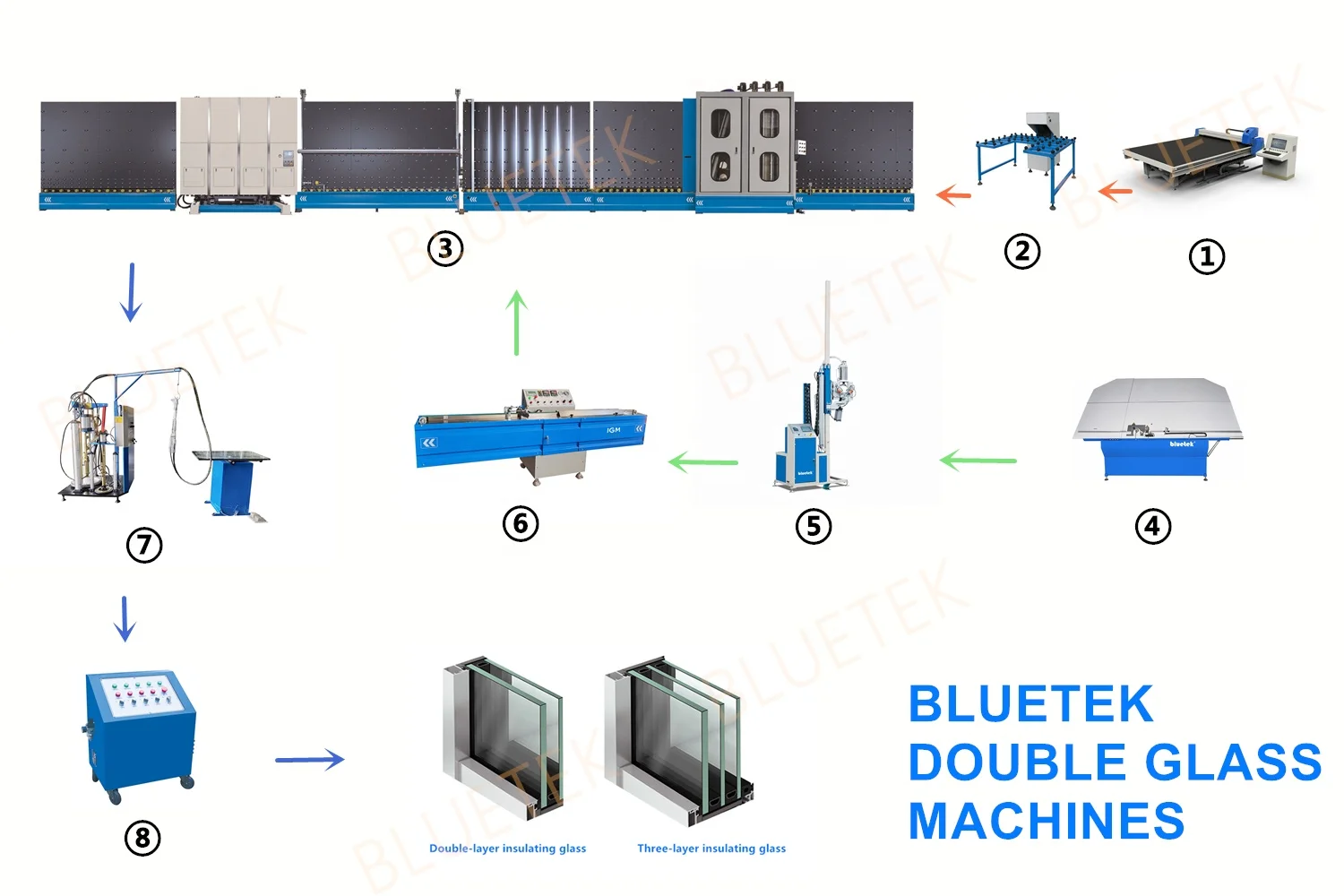

Insulated Glass Manufacturing Equipment Production Line
1. Glass Cutting Machine ( CNC Auto Type or Semi-auto Type ) : Cutting Glass For Different Sizes
2. Glass Edging Machine : Grinding Glass Edge
3. Vertical Insulating Glass Production Line : Glass Washing , Drying, Assemble Sapcer ( Manual ), Double Glazing Pressing.
4. Aluminum Spacer Bending Machine ( Semi-auto or CNC Auto Type ) : Bending Aluminium Spacer Frame
5. Desiccant Filling Machine ( Semi-auto or CNC Auto Type ) : Filling Desiccant In Aluminium Spacer
6. Butyl Sealant Coating Machine ( Coating Butyl Glue on Spacer )
7. Two Components Sealant Extruder : Second Sealing Sealant For Double Glass
8. Argon Gas Filling Machine : Filling Gas in Double Glass
RECOMMEND PRODUCTS
COMPANY PROFILE
ABOUT US

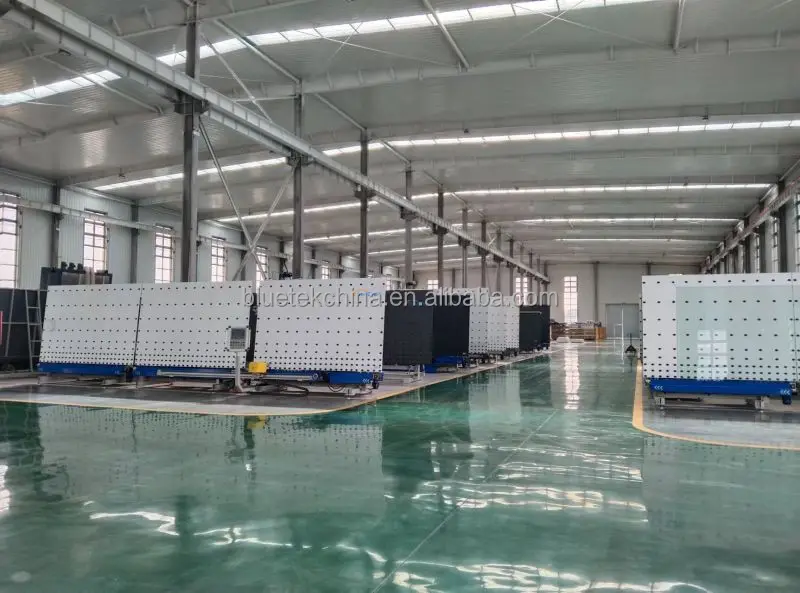

After years of development, BLUETEK now has a workshop area of about 16,000 square meters, more than 90 employees, professional technical department, sales department and after-sales department, and its own sheet metal workshop, machining workshop, spraying workshop, assembly workshop, etc.
