Yeacomm NR210 Outdoor 5G 4G Antenna ODU NA SNA Router For Home Business
- Category: >>>
- Supplier: Xiamen Yifan Communication Technology Co. Ltd.
Share on (1600611851482):
Product Overview
Description
Products Description
Instruction
The Yeacomm NR210 is a 5G outdoor CPE which supports the latest 5G NR technology and full compatible with 4G/3G networks. The product supports advanced Gigabit networking functionalities. It enables wide service coverage and provides high data throughput and networking features to customers who needs easy broadband access.
Standard Version:
5G NR: N1/N3/N5/N7/N8/N20/N28/N38/N40/N41/N77/N78
LTE: B1/B3/B5/B7/B8/B20/B28/B32/B38/B40/B41/B42/B43
WCDMA:B1/B5/B8
LTE: B1/B3/B5/B7/B8/B20/B28/B32/B38/B40/B41/B42/B43
WCDMA:B1/B5/B8
Optional Version :
5G NR: N2/ N5/N7/N12/N25/N41/N48/N66/N71/N77/N78
LTE: B2/B4/B5/B7/B12/B13/B14/B25/B26/B29/B30/B66/B71
WCDMA: B2/B4/B5
5G NR: N2/ N5/N7/N12/N25/N41/N48/N66/N71/N77/N78
LTE: B2/B4/B5/B7/B12/B13/B14/B25/B26/B29/B30/B66/B71
WCDMA: B2/B4/B5
Ultra-fast internet connectivity
NR210 is with 2.0GHz high performance quad-core CPU, the 5G download speed is up to 4.67Gbps. It supports 5G carrier aggregation. The wide spectrum bandwidth accelerates internet speeds and reduces network latency for premium and timesensitive connectivity services.

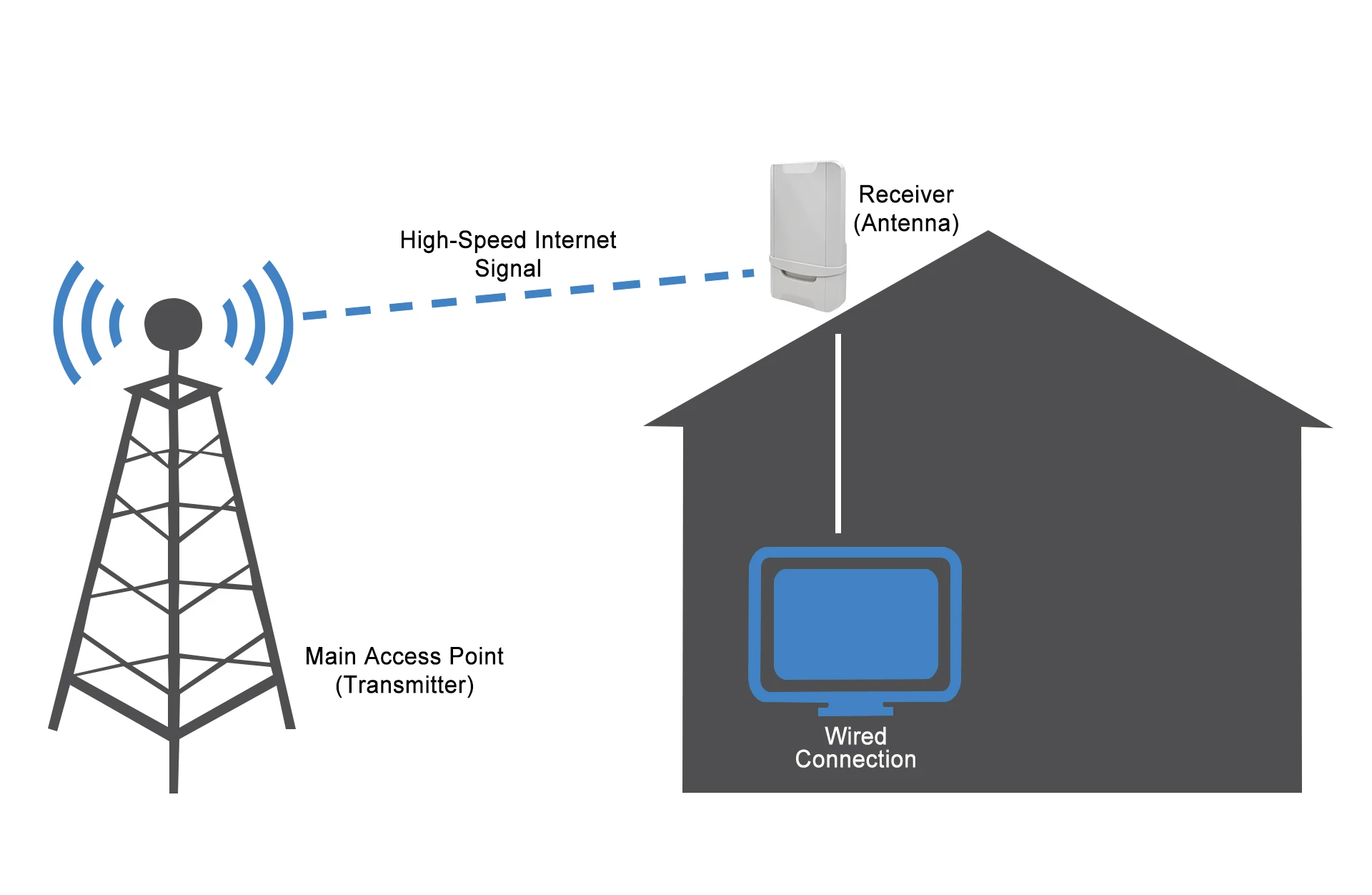

Strengthen your core competitiveness with FWA
Deploying NR210 as part of Fixed Wireless Access allows you to extend your 5G service coverage into homes and workplaces without extra fix-line broadband.Connecting everywhere, it increases business revenue by supporting a larger number of subscribers with a premium fixed-grade connection. It is the best internet solution for rural areas.
Easy installation and Environmental durability

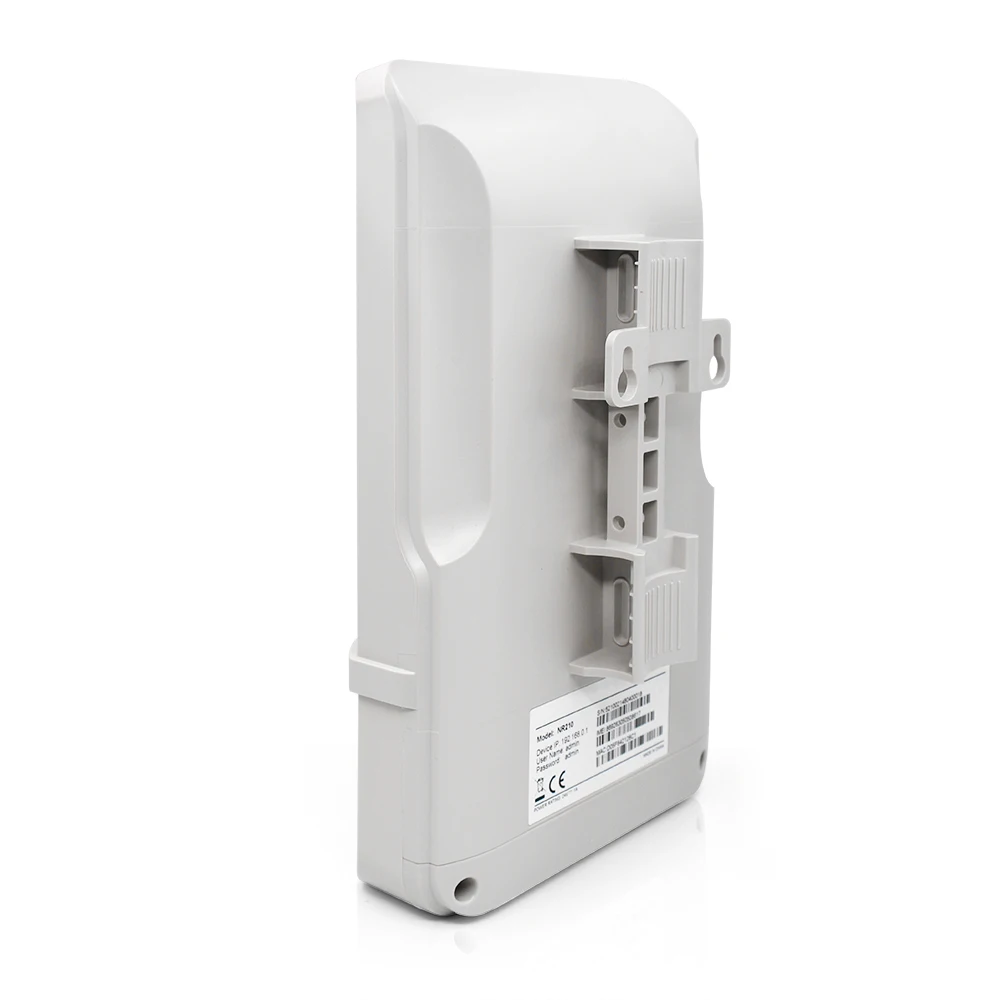

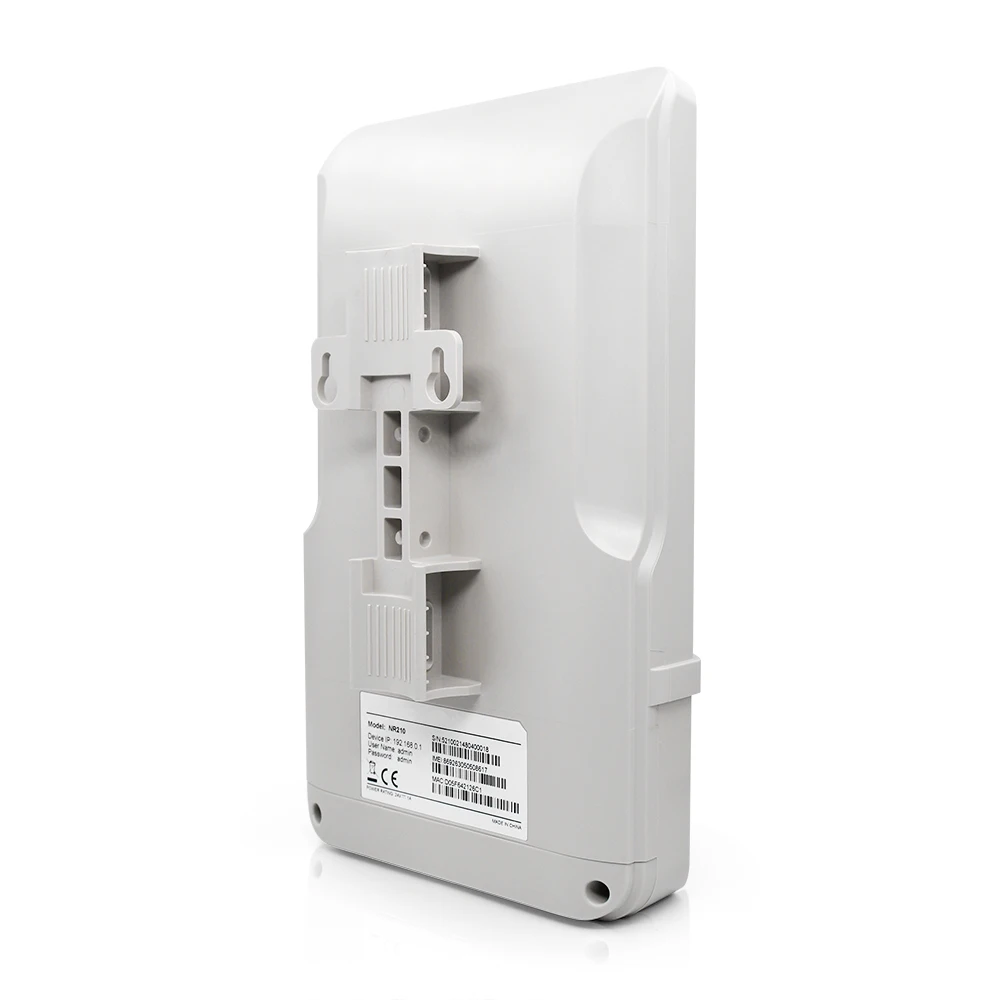

The NR210 is equipped with a flexible pole mounting kit, integrated with Power over Ethernet (PoE), easy to install. With IP65 protection, NR210 can operator within a wide range of temperature and humidity which support your services deployed in wide territorial scopes.
Specification
Technical Specifications
Cellular Parameters | ||||||||
MIMO | 5G NR: DL 4×4 MIMO, UL 2×2 MIMO LTE: DL 4×4 MIMO | |||||||
Theoretical Bandwidth | 5G NR: Downlink 4.67Gbps, uplink 2.5Gbps LTE Cat20: Downlink 1.6Gbps, uplink 211Mbps WCDMA/HSPA+: Downlink 42Mbps, uplink 11Mbps | |||||||
Hardware | ||||||||
Chipset | MediaTek T750, 4 core ARM Cortex-A55 CPU @2GHz | |||||||
Flash | ROM: 8Gb(Max) Nand | |||||||
RAM | RAM: 8Gb(Max) DDR3 | |||||||
Software | ||||||||
Data Service | Supports four APNs (two for data, one for voice, and one for management) Supports Multi PDN Supports IPv4/6 dual stack | |||||||
LAN | VLAN 802.1Q DHCP Server, Client DNS and DNS proxy DMZ Multicast/Multicast Proxy MAC Address Filtering GPS broadcast to LAN | |||||||
SECURITY | Firewall, MAC Address Filtering, IP Address Filtering, URL Filtering, Access Control, HTTPS Login from WAN, Dos attach protection, Hierarchical user management | |||||||
Routing | Route Mode Bridge Mode NAT mode Static Route Port Mirror ARP IPv4, IPv6 and IPV4/IPv6 Dual Stack Port forwarding | |||||||
SIM Card | PIN Management SIM card Authentication | |||||||
DDNS | Support | |||||||
Band Lock | Support | |||||||
Cell Lock | Support | |||||||
PCI Lock | Support | |||||||
Carrier SIM Lock | Support | |||||||
VPN | PPTP, L2TP, IPSEC,GRE,VPN pass-through | |||||||
Device Management | ||||||||
Version management | Image Checksum Active version and backup version Auto Rollback version when upgrade fails | |||||||
TR069 | Support HTTP/HTTPS url Support remote upgrade Support cycle monitor Support TR143 for remote test Support STUN for Nat pass through | |||||||
SNMP | SUPPORT | |||||||
Power Supply | ||||||||
Standard Power Supply | AC100V~240V,50Hz~60Hz DC 24V 1.5A DC Passive POE | |||||||
Power Consumption | < 24W | |||||||

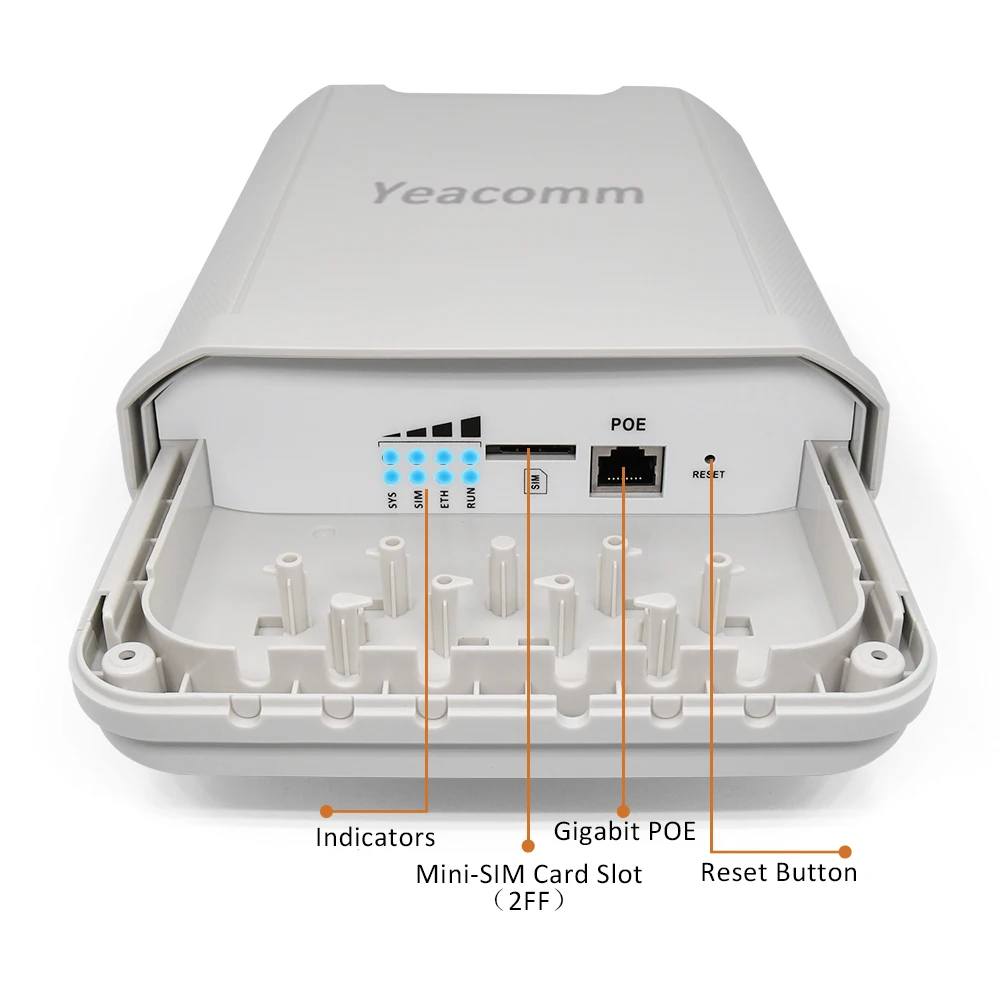

Interfaces | ||||||||
PoE Port | 1 x Gigabit RJ45 LAN Ports with PoE | |||||||
Lan Port | 1 x 10/100/1000M auto-sensing, auto-MDI/MDIX | |||||||
Indicator | 8 LED Indicators (RUN, SIM, ETH, SYS, RF Signal*4) | |||||||
SIM Card Slot | 1 x 2FF USIM/SIM slot(1.8V/3V), 1x eSIM (Option) | |||||||
USB Port | miniUSB for Manufacture | |||||||
Reset Button | Reset the parameters to default setting | |||||||

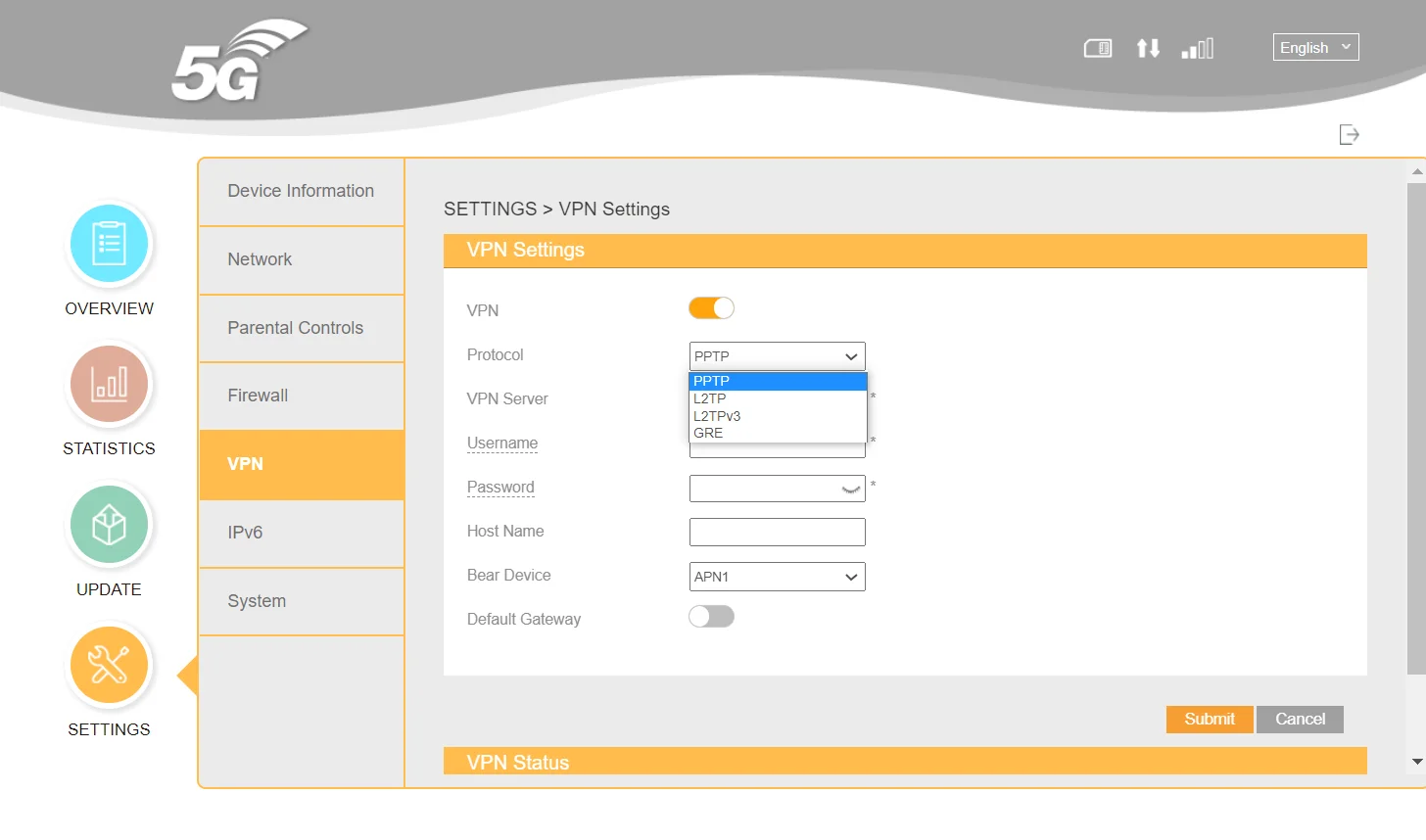

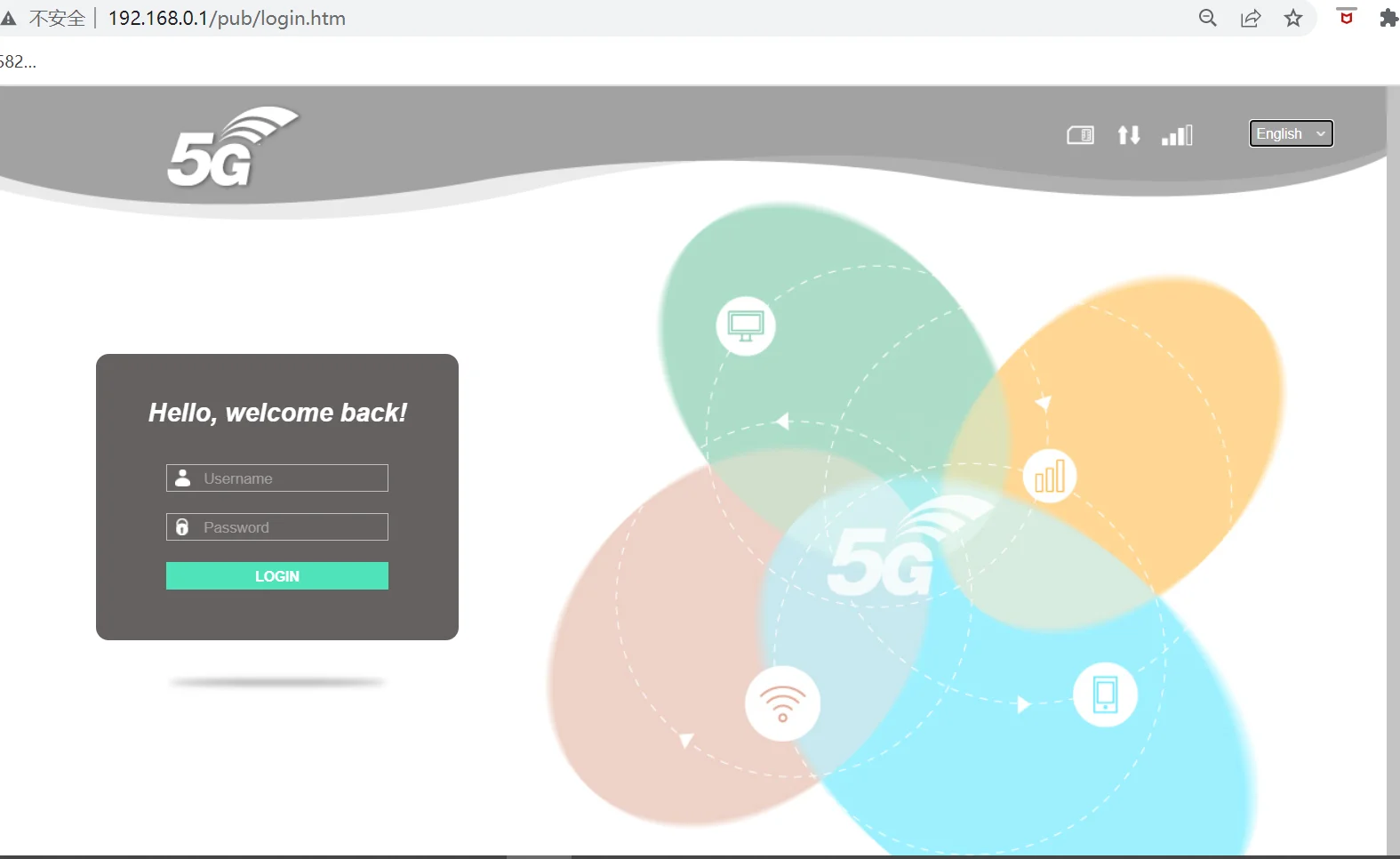

web page

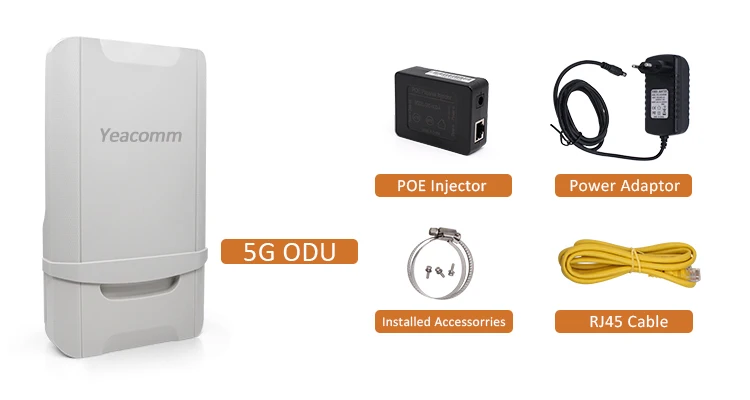

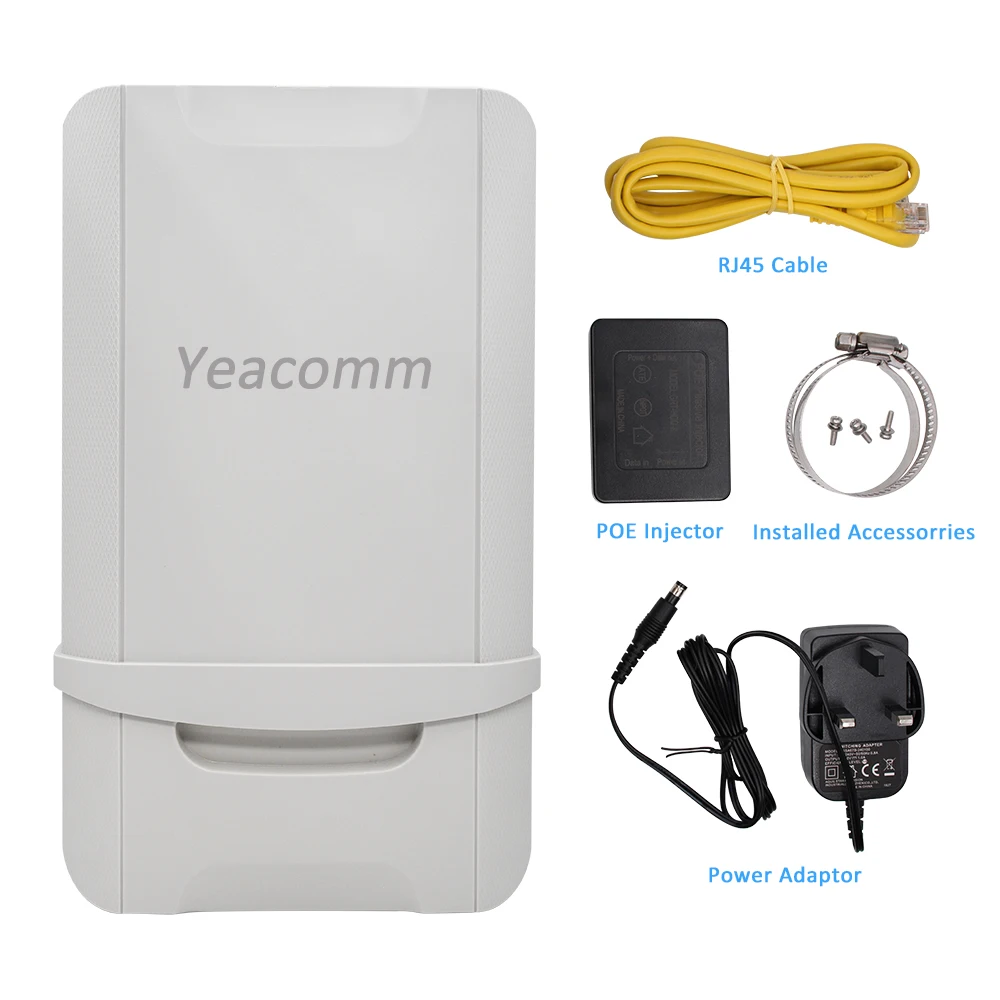

Packing List
Recommend Products
Certifications
Our Company
FAQ
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q3. How about your delivery time?
A: Generally, it will take 3-7 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q4. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.
Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q6: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
