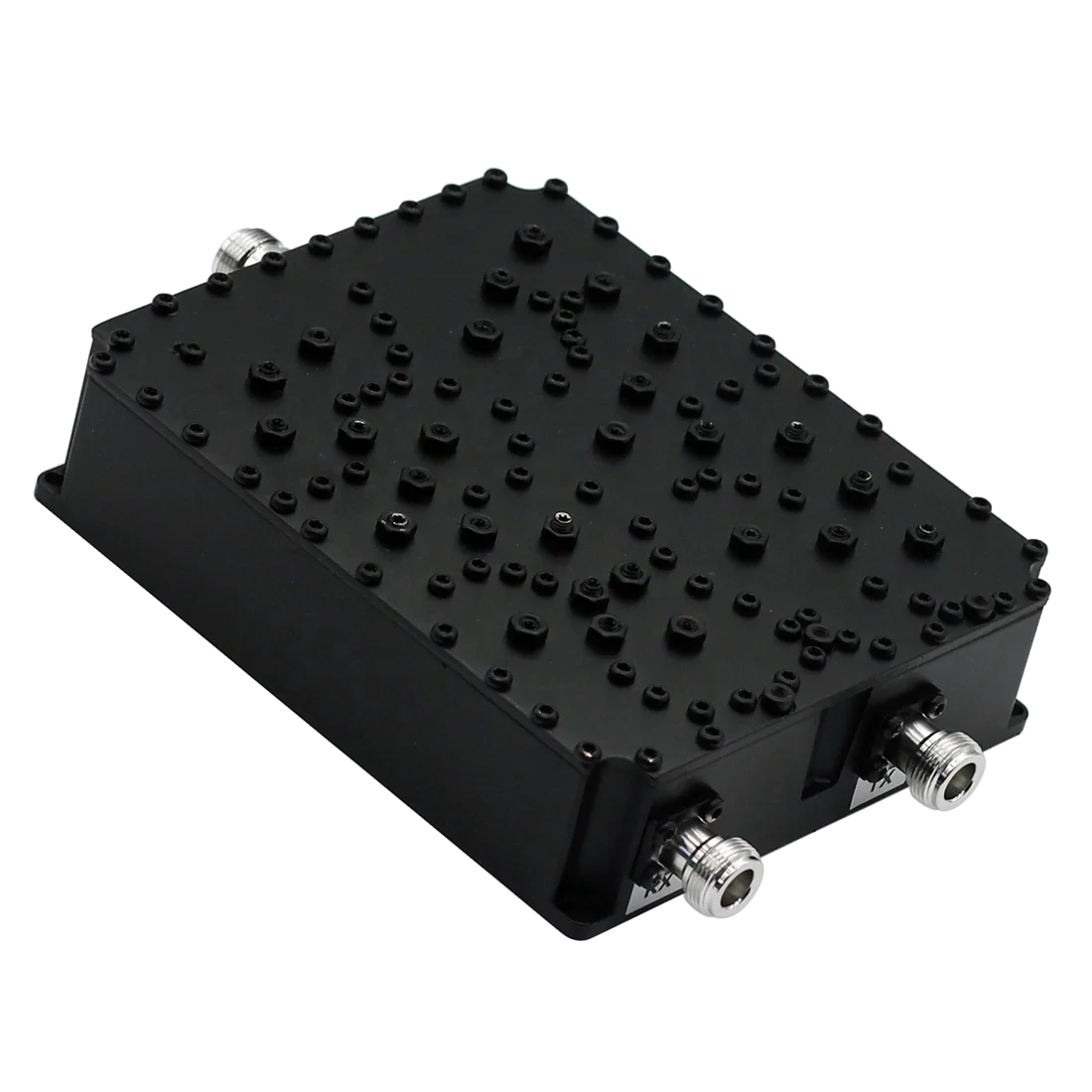

RF 700MHz 800MHz 900MHz 2I in 1Out Duplexer Combiner LTE Diplexer 2 Way Combiner With DIN N 4310 Connector
RF 700MHz 800MHz 900MHz 2I in 1Out Duplexer Combiner LTE Diplexer 2 Way Combiner With DIN N 4310 Connector
RF 700MHz 800MHz 900MHz 2I in 1Out Duplexer Combiner LTE Diplexer 2 Way Combiner With DIN N 4310 Connector
RF 700MHz 800MHz 900MHz 2I in 1Out Duplexer Combiner LTE Diplexer 2 Way Combiner With DIN N 4310 Connector
RF 700MHz 800MHz 900MHz 2I in 1Out Duplexer Combiner LTE Diplexer 2 Way Combiner With DIN N 4310 Connector
RF 700MHz 800MHz 900MHz 2I in 1Out Duplexer Combiner LTE Diplexer 2 Way Combiner With DIN N 4310 Connector
RF 700MHz 800MHz 900MHz 2I in 1Out Duplexer Combiner LTE Diplexer 2 Way Combiner With DIN N 4310 Connector

RF 700MHz 800MHz 900MHz 2I in 1Out Duplexer Combiner LTE Diplexer 2 Way Combiner With DIN N 4310 Connector

Share on (1600611855459):


Price:$150.00 - $300.00

Quantity:


Product Overview

Description



Product Show



Main Features

 * Combiner For Feeder Sharing
* High Directivity / Isolation
* 200W Power Handing, High Reliability
* Low VSWR, Low PIM(IM3)








Specification


Frequency Range
Port 1: 806-824MHz
Port 2: 851-869MHz
Insertion Loss
≤0.3dB
Fluctuation In Band
±0.2dB
Isolation
>80dB
PIM (IM3)
<-150dBc @ +43dBm×2
VSWR
<1.25
Power Handling
200W
Impedance
50Ω
Operating Temperature
-40 to +85℃
Relative Humidity
5 to 95%
Applied Environment
Indoor or outdoor, IP67
Connectors Type
N-Female
