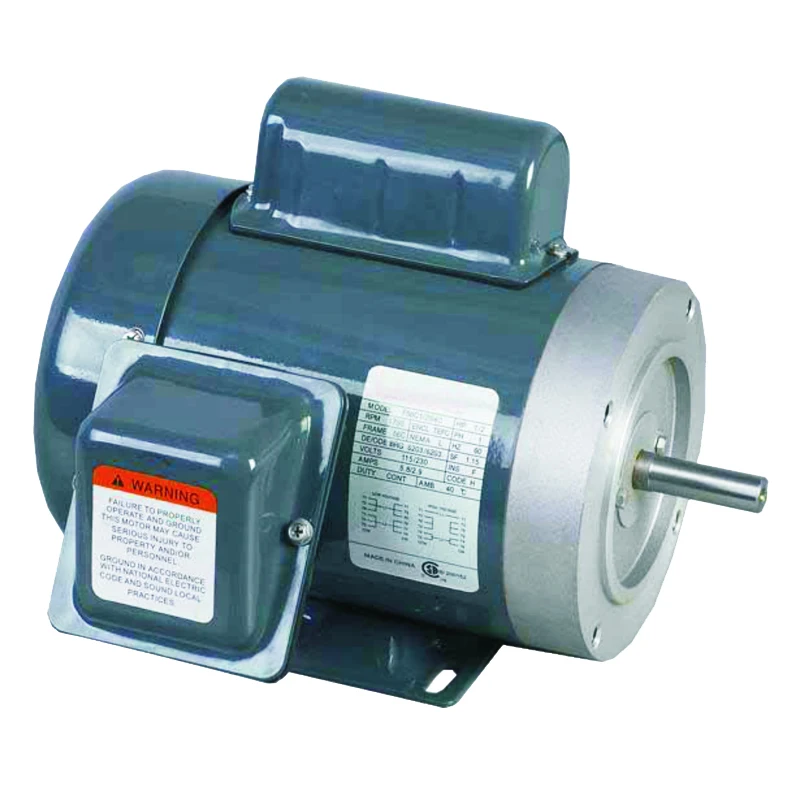

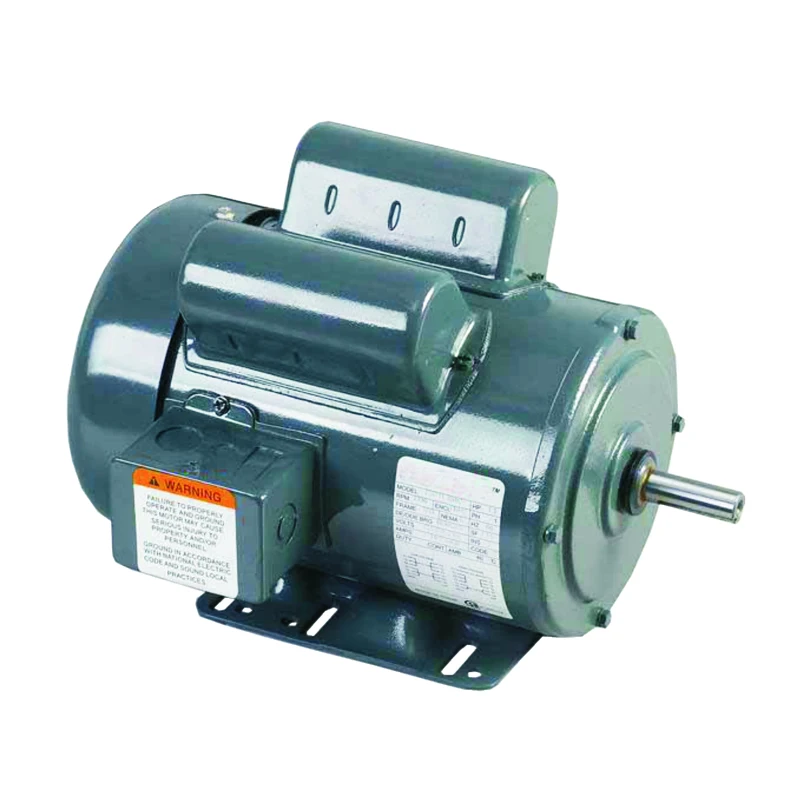

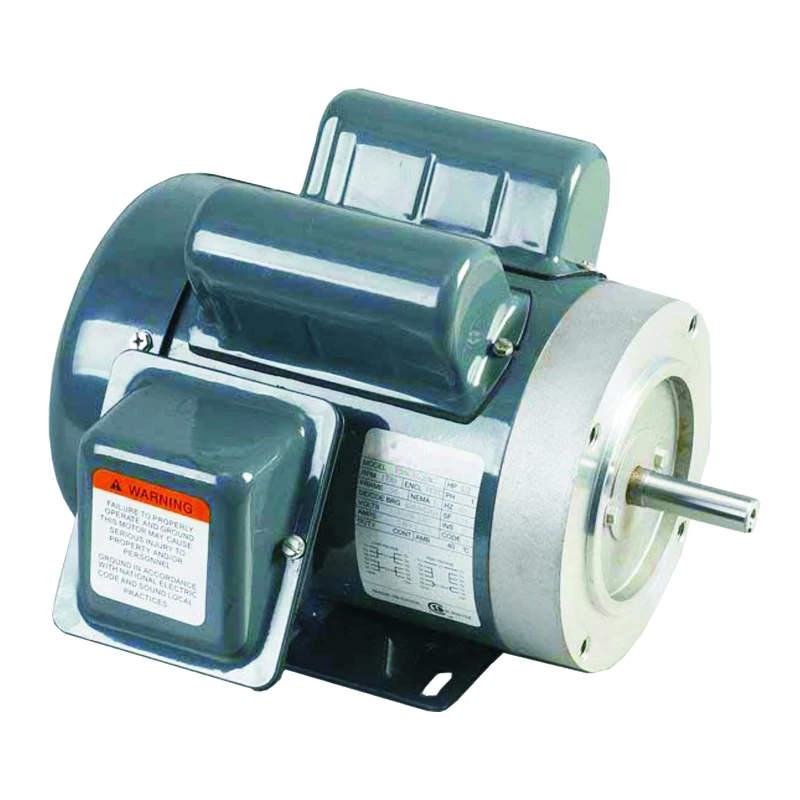

1 2 hp AC motor general purpose Electric motors 3450rpm ODP 56C frame Capacitor start
- Category: >>>
- Supplier: Ningbo Biote Mechanical Electrical Co. Ltd
Share on (1600611865417):
Product Overview
Description
General purpose motor type
Confirm which type you want and application. contact us!!!
Resistance start motor
Drippoof Single-Phase Capacitor start MotorDrippoof Single-Phase Capacitor Run Motor
Totally Enclosed Single-Phase Capacitor Start Motor
Totally Enclosed Single-Phase Capacitor Run Motor
Single-Phase, Dripproof, General Purpose, Capacitor Start & Run Motor
Single-Phase, Totally Enclosed, General Purpose, Capacitor Start & Run Motor
Single phase fractional Horsepower Premium Efficiency Motor
Three phase fractional Horsepower Premium Efficiency Motor
General purpose single phase ODP capacitor start and run
General purpose AC motors, also known as induction motors, are electric motors that convert AC power into torque (where torque is the measure of a rotational or twisting force) to drive mechanical loads. They are suitable for powering pumps, blowers, conveyors, and machine tools. Split-phase NEMA frame general purpose AC motors are lower efficiency and have a lower starting torque for a softer startup compared to other AC motors. Capacitor-start NEMA frame general purpose AC motors use a capacitor to provide additional power during startup for higher torque. Capacitor-start/run NEMA frame general purpose AC motors are single-phase motors that use a capacitor to provide additional power during startup for higher torque and a separate capacitor to run with higher operating efficiency. Three phase NEMA frame general purpose AC motors and three phase IEC metric motors operate on efficient three phase power with high torque and don’t require start or run capacitors.
Features
1. Capacitor start design for high starting torque
2. Durable rolled steel, double shielded ball bearing
3. Thermal protector is available as demand
4. Open Drip proof is available as demand
5. NEMA service factor
6. General purpose use on pumps, conveyors, blowers, and other machinery requiring high starting torque
7. C flange is inter chhange able as demands
Features
1. Capacitor start design for high starting torque
2. Durable rolled steel, double shielded ball bearing
3. Thermal protector is available as demand
4. Open Drip proof is available as demand
5. NEMA service factor
6. General purpose use on pumps, conveyors, blowers, and other machinery requiring high starting torque
7. C flange is inter chhange able as demands
Model | HP | RPM | Frame | VOLTAGE | S.F | Full Load Amps@230V |
BT-B1 | 1/3 | 3450 | 56 | 115/208-230 | 1.35 | 2.3 |
BT-B2 | 1/3 | 1725 | 56 | 115/208-230 | 1.35 | 2.2 |
BT-B3 | 1/2 | 3450 | 56 | 115/208-230 | 1.25 | 3.1 |
BT-B4 | 1/2 | 1725 | 56 | 115/208-230 | 1.35 | 2.9 |
BT-B5 | 3/4 | 3450 | 56 | 115/208-230 | 1.25 | 4.1 |
BT-B6 | 3/4 | 1725 | 56 | 115/208-230 | 1.25 | 4.2 |
BT-B7 | 1 | 3450 | 56 | 115/208-230 | 1.25 | 5.6 |
BT-88 | 1 | 1725 | 56 | 115/208-230 | 1.15 | 5.8 |
BT-B9 | 1.5 | 3450 | 56 | 115/208-230 | 1.15 | 7.1 |
BT-B10 | 1.5 | 1725 | 56 | 115/208-230 | 1.15 | 7.6 |
BT-B11 | 1.5 | 1725 | 145T | 115/208-230 | 1.15 | 7.6 |
BT-B12 | 2 | 3450 | 145T | 115/208-230 | 1.15 | 9.1 |
BT-B13 | 2 | 3450 | 56 | 115/208-230 | 1.15 | 9.1 |
BT-B14 | 2 | 1725 | 56 | 115/208-230 | 1.15 | 9.3 |
BT-B15 | 2 | 1725 | 145T | 115/208-230 | 1.15 | 9.3 |
BT-B16 | 3 | 3450 | 145T | 115/208-230 | 1.15 | 13.0 |
BT-B17 | 3 | 3450 | 56 | 115/208-230 | 1.15 | 13.0 |
BT-B18 | 3 | 3450 | 145T | 115/208-230 | 1.15 | 13.0 |
BT-B19 | 3 | 1725 | 182T | 208-230 | 1.15 | 13.5 |
BT-B20 | 5 | 3500 | 184T | 208-230 | 1.15 | 20 |
BT-B21 | 5 | 1750 | 213T | 208-230 | 1.15 | 21 |
BT-B22 | 7.5 | 1750 | 213T | 208-230 | 1.15 | 32 |
BT-B23 | 10 | 1750 | 215T | 208-230 | 1.15 | 40 |
General purpose single phase TEFC capacitor stanrt and run
Motors have NEMA frame construction with standard dimensions for drop-in replacement of motors from multiple suppliers with no modifications required to existing installations. Models may have two capacitor covers on the top or side of the motor shell for the start and run capacitors and may also have a conduit box that houses the electrical connections between the external power cables and the motor's internal electrical wiring. The motor's frame size is shown on the motor nameplate under “Frame” or “FR”.
Features
1. Steel frame, ball bearing construction
2. Totally Enclosed Fan cooled
3. Reversible rotation
4. Capacitor start design for high starting torque
5. Thermal protector is available as demand
6. C flange is inter chhange able as demands
1. Steel frame, ball bearing construction
2. Totally Enclosed Fan cooled
3. Reversible rotation
4. Capacitor start design for high starting torque
5. Thermal protector is available as demand
6. C flange is inter chhange able as demands
Model | HP | RPM | FRAME | VOLTAGE | FULLLOAD AMPS @230V | S.F |
BT-D1 | 1/3 | 1725 | 56/56C | 115/208-230 | 3.3 | 1.15 |
BT-D2 | 1/3 | 3450 | 56/56C | 115/208-230 | 3.1 | 1.15 |
BT-D3 | 1/2 | 1725 | 56/56C | 115/208-230 | 4.4 | 1.15 |
BT-D4 | 1/2 | 3450 | 56/56C | 115/208-230 | 4.0 | 1.15 |
BT-D5 | 3/4 | 1725 | 56/56C | 115/208-230 | 5.5 | 1.15 |
BT-D6 | 3/4 | 3450 | 56/56C | 115/208-230 | 5.3 | 1.15 |
BT-D7 | 1 | 1725 | 56/56C | 115/208-230 | 6.0 | 1.15 |
BT-D8 | 1 | 3450 | 56/56C | 115/208-230 | 5.6 | 1.15 |
BT-D9 | 1.5 | 1725 | 56/56C | 115/208-230 | 7.6 | 1.15 |
BT-D10 | 1.5 | 3450 | 56/56C | 115/208-230 | 7.1 | 1.15 |
BT-D11 | 1.5 | 3450 | 56 | 115/208-230 | 7.1 | 1.00 |
BT-D12 | 1.5 | :3450 | 143T | 115/208-230 | 7.1 | 1.00 |
BT-D13 | 1.5 | 1725 | 56 | 115/208-230 | 7.6 | 1.15 |
BT-D14 | 1.5 | 1725 | 145T | 115/208-230 | 7.6 | 1.00 |
BT-D15 | 2 | 3450 | 56 | 115/208-230 | 9.0 | 1.15 |
BT-D16 | 2 | 3450 | 145T | 115/208-230 | 9.0 | 1.15 |
BT-D17 | 2 | 1725 | 56 | 115/208-230 | 9.2 | 1.15 |
BT-D18 | 2 | 1725 | 145T | 208-230 | 9.2 | 1.15 |
BT-D19 | 3 | 3450 | 56H | 115/208-230 | 13.0 | 1.15 |
BT-D20 | 3 | 3450 | 145T | 208-230 | 13.0 | 1.15 |
BT-D21 | 3 | 1725 | 184T | 208-230 | 13.5 | 1.15 |
BT-D22 | 5 | 3450 | 184T | 208-230 | 20.0 | 1.15 |
BT-D23 | 5 | 1725 | 184T | 208-230 | 21 | 1.15 |
BT-D24 | 7.5 | 3450 | 213T | 208-230 | 32 | 1.00 |
BT-D25 | 7.5 | 1725 | 215T | 208-230 | 32 | 1.15 |
BT-D26 | 10 | 3800 | 215T | 208-230 | 141.5 | 1.15 |
FEATURES AT A GLANCE
Capacitor-start & run NEMA frame general purpose AC motors are single-phase and use a capacitor to provide additional power during startup for higher torque and a separate capacitor to run with higher operating efficiency compared to standard capacitor-start motors

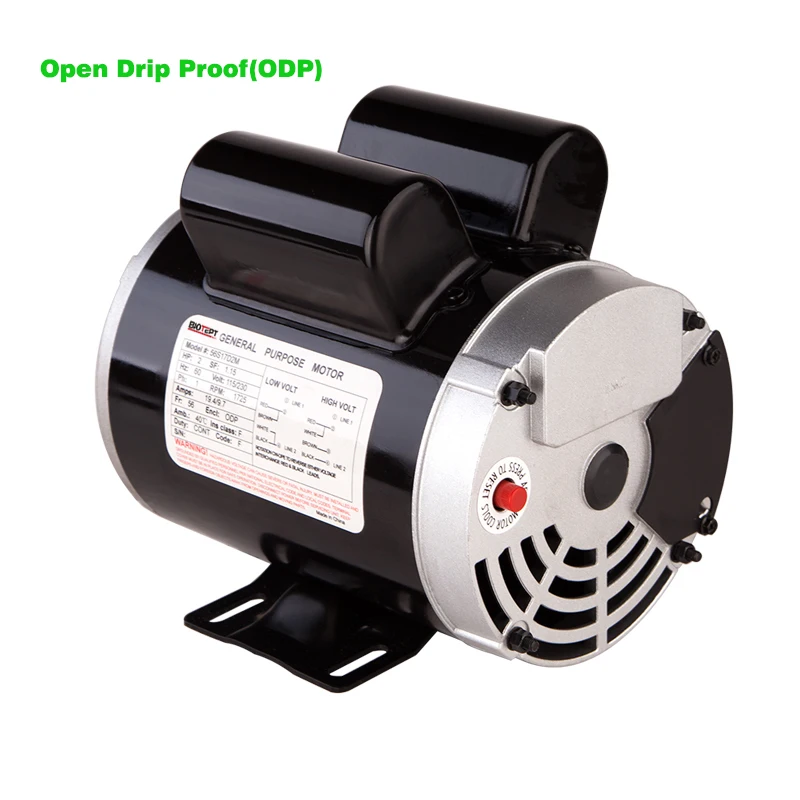

ODP enclosure protects against falling drops of liquid entering the motor from angles of up to 15 degrees from the vertical. A shaft-mounted fan pulls air directly from the environment through open vents in the motor's body, circulating it around the inside of the motor and over the stator and rotor windings for cooling.

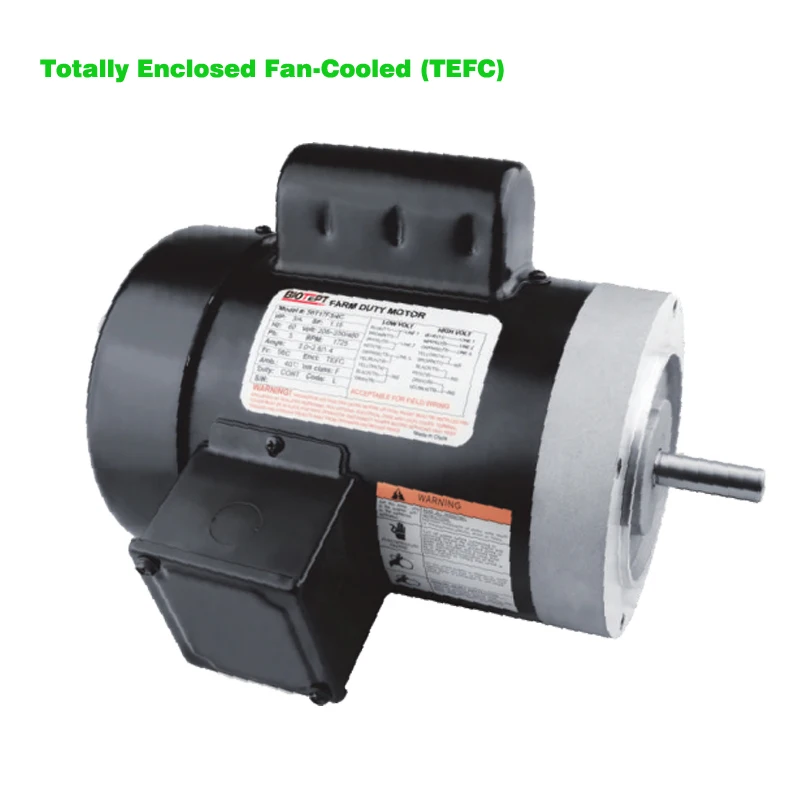

TEFC enclosures are very common in industrial environments, They are more expensive than ODP enclosures but provide a much higher level of protection, and when properly maintained, ensure that the motor remains in peak condition for a long time.
Application
They have a main winding and auxiliary winding with both a start capacitor and run capacitor for use in medium-to-high-torque requirements in air conditioner, auger drive, compressor, conveyor, fan, and pump applications.
Company Information
Our company was founded in 2007, and possesses advanced production equipment and automated assembly lines. Our main products include AC motors, DC motors and other accessories, electronic components, plastic product materials, and hardware products. We have more than 50 Professional and technical personnel of various projects, have strong motor design and production & processing capacity.
Our annual production of motor is 250,000 units, and of motors is 200,000 sets, under a reliable quality guarantee system.Our sophisticated products are praised by the majority of domestic and overseas customers, enjoying a good reputation.
"Quality first, customer first" is our purpose. We sincerely welcome friends from all over the world to cooperate with us andbuild a better future together!
Our annual production of motor is 250,000 units, and of motors is 200,000 sets, under a reliable quality guarantee system.Our sophisticated products are praised by the majority of domestic and overseas customers, enjoying a good reputation.
"Quality first, customer first" is our purpose. We sincerely welcome friends from all over the world to cooperate with us andbuild a better future together!
FAQ
Q1: What kind motors you can provide?
A1: Our main products are NEMA standard and IEC standard motors, Pool pump motor, Compressor motor. General purpose motor. SPA Pump motor. Air blower motor, clean water pump motor. PM AC Motor, Stainless steel motor and so on
Q2: Is there a MOQ for your motors?
A2: No. we can accept 1 pcs for sample making for your testing,and the price for sample making will have 30% to 50% difference based on different style. after batch oder. we will refund this differentce
Q3: Could you send me a price list?
A3: For all of our motors, they are customized based on different requirements like power, voltage, type etc. The price also varies according to different order qty. So it's really difficult for us to provide a price list. If you can share your detailed specification and order qty, we'll see what offer we can provide.
Q4: Can you OEM for us?
A4: Yes, OEM is available. Package, label, power plug can be customized. we have our own design team and mold developing department.
Q5: Do you have any certifications?
A5: We have North America certificates
Q6:How about your delivery time?
A6: Usually the leading time is 30-45 days. If the products you ordered is in stock, they might be shipped immediately. You'd better contact us to check if it is available in our warehouse.
A1: Our main products are NEMA standard and IEC standard motors, Pool pump motor, Compressor motor. General purpose motor. SPA Pump motor. Air blower motor, clean water pump motor. PM AC Motor, Stainless steel motor and so on
Q2: Is there a MOQ for your motors?
A2: No. we can accept 1 pcs for sample making for your testing,and the price for sample making will have 30% to 50% difference based on different style. after batch oder. we will refund this differentce
Q3: Could you send me a price list?
A3: For all of our motors, they are customized based on different requirements like power, voltage, type etc. The price also varies according to different order qty. So it's really difficult for us to provide a price list. If you can share your detailed specification and order qty, we'll see what offer we can provide.
Q4: Can you OEM for us?
A4: Yes, OEM is available. Package, label, power plug can be customized. we have our own design team and mold developing department.
Q5: Do you have any certifications?
A5: We have North America certificates
Q6:How about your delivery time?
A6: Usually the leading time is 30-45 days. If the products you ordered is in stock, they might be shipped immediately. You'd better contact us to check if it is available in our warehouse.
