Replace Dan foss White Parker LSHT BMPT OMPT Hydraulic Orbital Motor Tank Parts for Construction Machinery Tractor
- Category: >>>
- Supplier: Dongguan Danliss Technology Co. Ltd.
Share on (1600611890849):
Product Overview
Description
Danliss - Products Description
Danliss

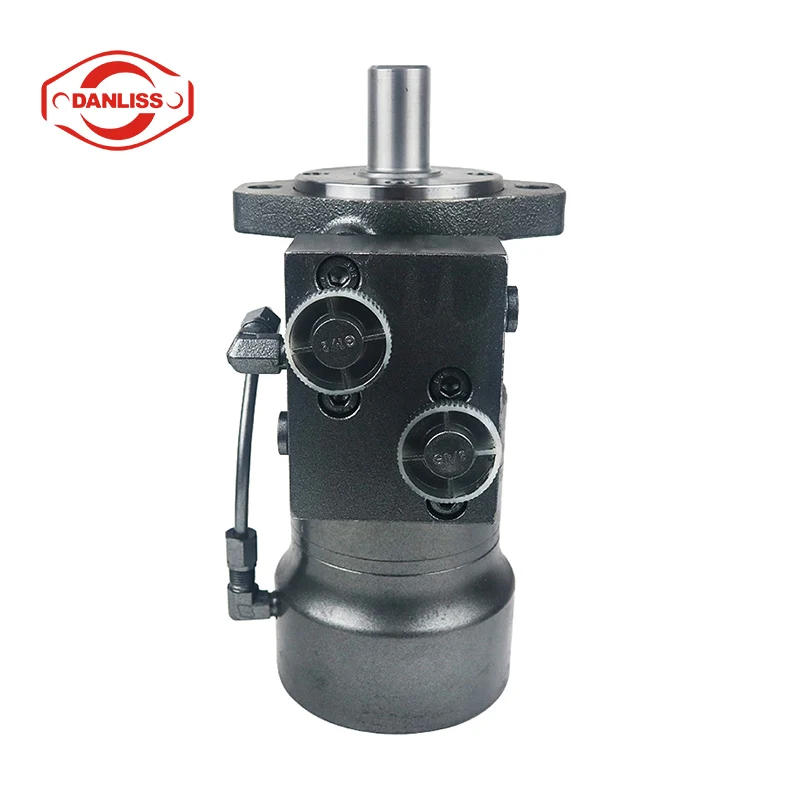

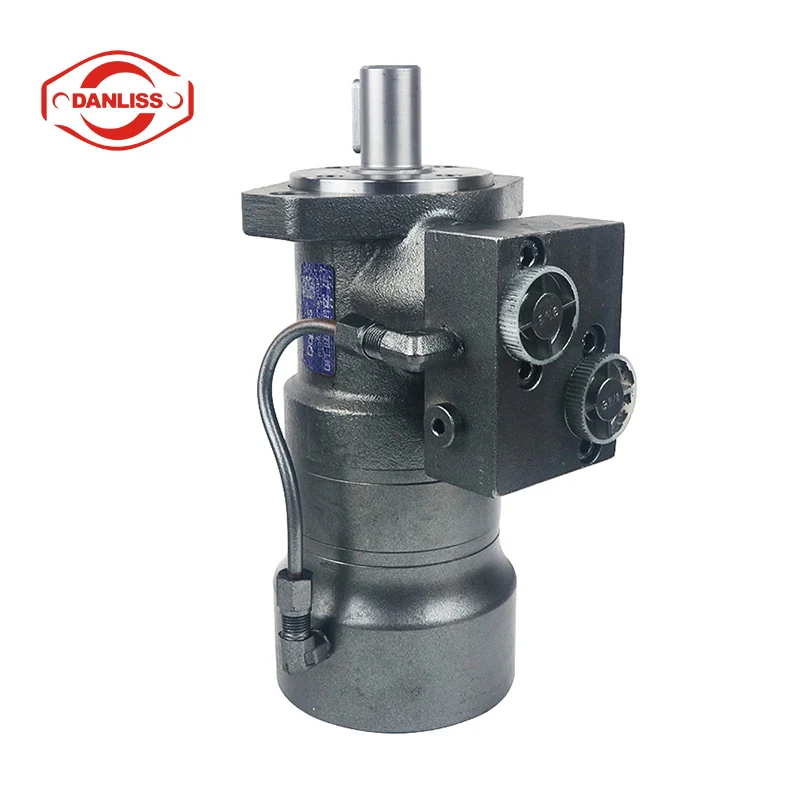

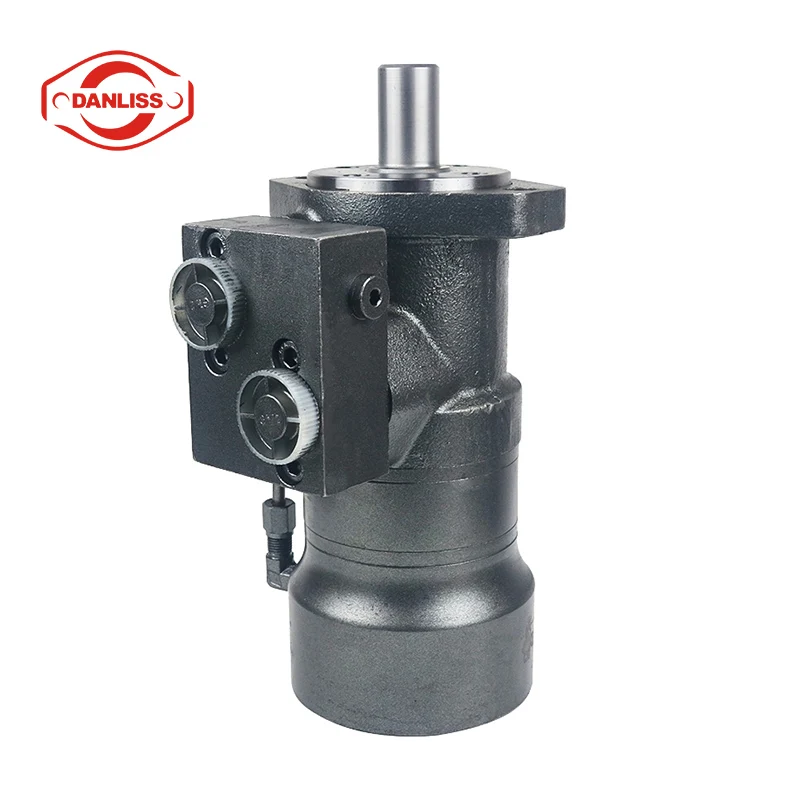

BMPT Hydraulic Orbital Motor Hydraulic Tank Parts for Construction Machinery Tractor
BMPT series motor are small volume, economical type, which is designed with shaft distribution flow, which adapt the Gerotor gear set design and provide compact volume, high power and low weight.
Brand | Danliss | |
Model | BMPT | |
Displacement | 50-400 mL/r | |
Max pressure | 14 Mpa | |
Speed range | 120-1500 r/min | |
Max torque | 385 N.m | |
If you have any questions, please contact our customer service. During the purchase process, we can meet all your needs. Danliss - Rising star in the field of hydraulics in the world！ | ||

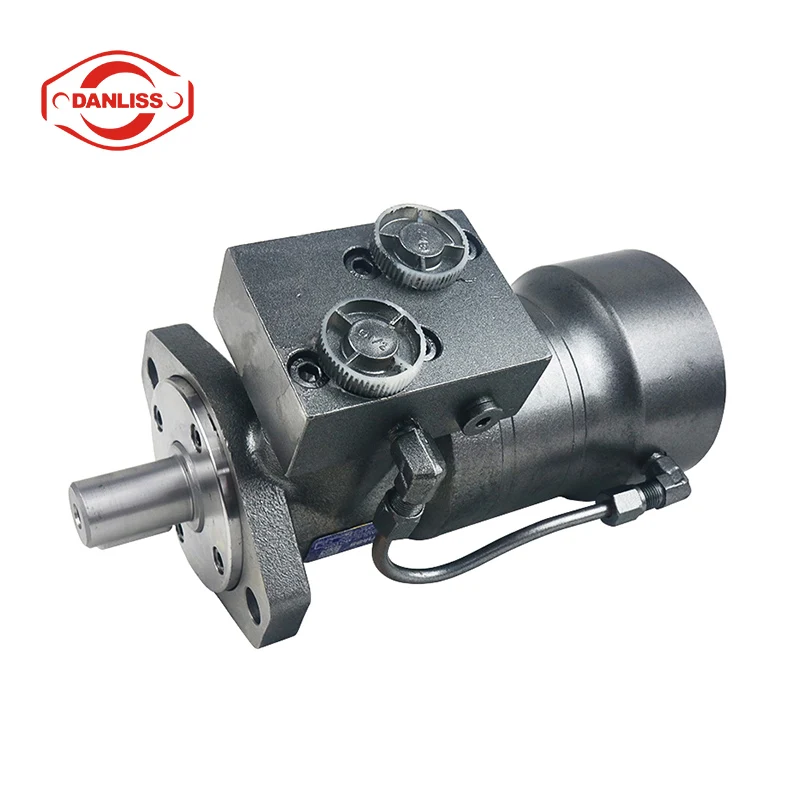

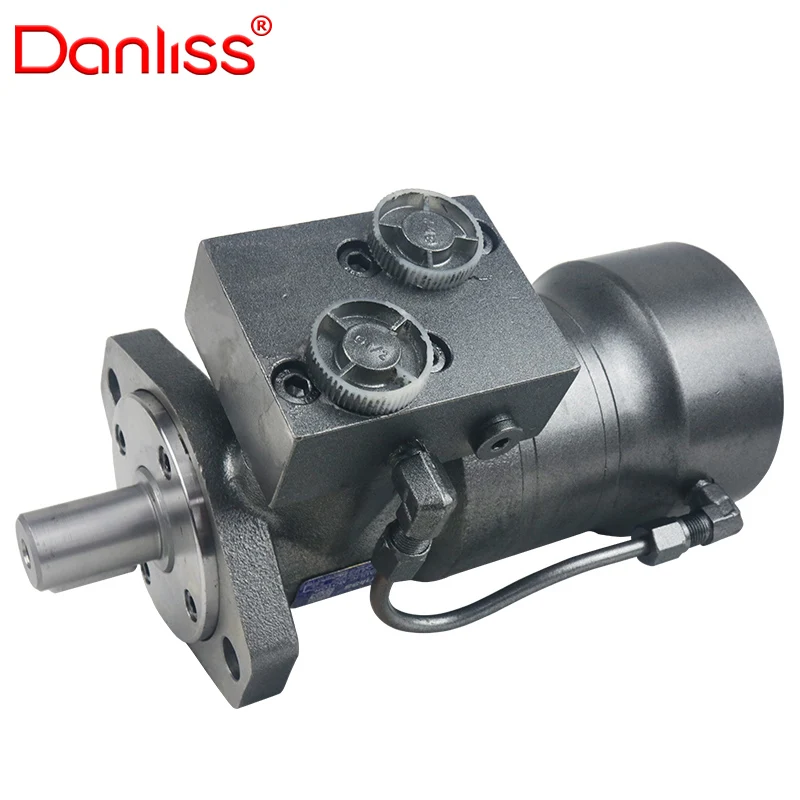

OMPT/BMPT Series hydraulic motor with brake extending OMP series motor range. This motor has an intergrated holding brake.
Characteristic features:
Characteristic features:
1.Advanced manufacturing devices for the Geroler gear set, which use low pressure of start-up, provide
smooth, reliable operation and high efficiency.
smooth, reliable operation and high efficiency.
2.Shaft seal can bear high pressure of back and the motor can be use in parallel
or in series.
or in series.
3.Special design in the driver-linker and prolong operating life.
4.Special design for distribution system can meet
the requirement of low noise of unit.
5.Compact volume and easy installation. 6.Small volume and radial dimension， high holding
torque, power brake, low weight and easy to install.
torque, power brake, low weight and easy to install.
Product application:
Blince hydraulic motors are widely applied in agriculture machinery, fishing machinery, plastic industry, mining, and construction
machinery, especially fitted to lower load applications, such as plastic injection mold machine, cleaner, grass cutter,Winches,
Conveyors, Slews, Sweeper Drives, Augers, Cutters, Mowers and Chippers.
Blince hydraulic motors are widely applied in agriculture machinery, fishing machinery, plastic industry, mining, and construction
machinery, especially fitted to lower load applications, such as plastic injection mold machine, cleaner, grass cutter,Winches,
Conveyors, Slews, Sweeper Drives, Augers, Cutters, Mowers and Chippers.
OMPT/BMPT series: | ||||||||||||||||
Type | 50/80 | 100/125 | 160 | 200 | 250 | 315 | 375 | |||||||||
Geometric displacement（cm³/rev.） | 51.7/81.5 | 102/128 | 157 | 195 | 253 | 318 | 381 | |||||||||
Max.speed（rpm） | cont. | 509/502 | 497/459 | 372 | 301 | 231 | 184 | 166 | ||||||||
int. | 603/598 | 574 | 465 | 376 | 289 | 230 | 192 | |||||||||
Max.torque (N*m) | cont. | 103/203 | 254/317 | 391 | 359 | 437 | 456 | 465 | ||||||||
int. | 88.6/160 | 200/250 | 308 | 333 | 473 | 502 | 520 | |||||||||
Max.output (kw) | cont. | 5.5/10.7 | 13.2/15.2 | 15.2 | 11.3 | 10.6 | 8.8 | 8.1 | ||||||||
int. | 5.6/10 | 12/15 | 15 | 13.1 | 14.3 | 12.1 | 10.5 | |||||||||
Max.pressure drop (MPa) | cont. | 14/17.5 | 17.5 | 17.5 | 13 | 12 | 10 | 8.5 | ||||||||
int. | 17.5/20 | 20 | 20 | 17.5 | 13 | 11 | 9.5 | |||||||||
Max.flow (L/min) | cont. | 27/42 | 52/60 | 60 | 60 | 60 | 60 | 65 | ||||||||
int. | 32/50 | 60/75 | 75 | 75 | 75 | 75 | 75 | |||||||||
Min.opening pressure (MPa) | 1.7-2.2 | |||||||||||||||
Max.inlet pressure (MPa) | 25 | |||||||||||||||
Max.brake release port pressure (MPa) | 25 | |||||||||||||||
Max.static torque (Nm) | 500-550 | |||||||||||||||
Weight(kg) | 11.7/11.9 | 11.9/12.2 | 12.5 | 13 | 13.5 | 14 | 14.5 | |||||||||
*Rated speed and rated torque: output value of speed and torque under rated flow and rated pressure. *Continuous pressure: Max.value of operating motor continuously. *Intermittent pressure: Max.value of operating motor in 6 seconds per minute. *Peak pressure: Max.value of operating motor in 0.6 second per minute. *Such kind of brake is only used in static paring brake. Dynamic braking in not recommended. When the motor integrated with brake is working, the pressure at releasing port must be more than 2.2 Mpa. In the status of braking, the pressure at releasing port must be less than 1.7 Mpa, optimally 0 Mpa. It is attention in use that the back pressure of the oil circuit is the best 0 Mpa. | ||||||||||||||||
If you have any questions, please contact our customer service. During the purchase process, we can meet all your needs. For hydraulic equipment, please look for Blince！ | ||||||||||||||||
HYDRAULIC MOTOT APPLICATION
Packing detail:
1. Inside packed with anti-earthquake PE&PA airbags and EPS foams to protect for side-impact
2. Small size cooler packed with extra thick 5 layers cartons, Large size cooler packed with fireproof glued wood cases
1. Inside packed with anti-earthquake PE&PA airbags and EPS foams to protect for side-impact
2. Small size cooler packed with extra thick 5 layers cartons, Large size cooler packed with fireproof glued wood cases
Danliss - Recommend

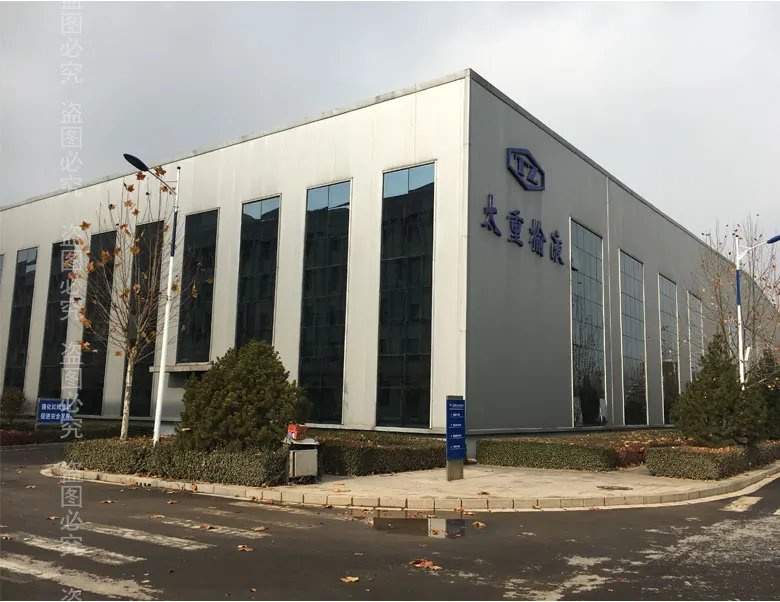

Danliss - Company Profile
Danliss
Dongguan Danliss Technology Co., Ltd., focusing on hydraulic valves and systems for 11 years. We have a production and operation workshop of 1,500 square meters and an independent office area of 500 square meters, more than ten product patents.
We are an enterprise integrating design, development, production and foreign trade. The company's annual sales exceed 30 million. The company has been adhering to the business philosophy of "integrity, diligence, trust, development, innovation and win-win".
The main products are: hydraulic valves and systems. Hydraulic valves include directional control valve, flow control valve, pressure control valve, superposition valve, cartridge valve, plate valve, tube valve and so on. For hydraulic system, we provide a team of designers to design and complete one-stop merchandise purchase, provide you with the most professional service, please believe Danliss!
We are an enterprise integrating design, development, production and foreign trade. The company's annual sales exceed 30 million. The company has been adhering to the business philosophy of "integrity, diligence, trust, development, innovation and win-win".
The main products are: hydraulic valves and systems. Hydraulic valves include directional control valve, flow control valve, pressure control valve, superposition valve, cartridge valve, plate valve, tube valve and so on. For hydraulic system, we provide a team of designers to design and complete one-stop merchandise purchase, provide you with the most professional service, please believe Danliss!
Danliss - Rising star in the field of hydraulics in the world！
Danliss - Exhibition

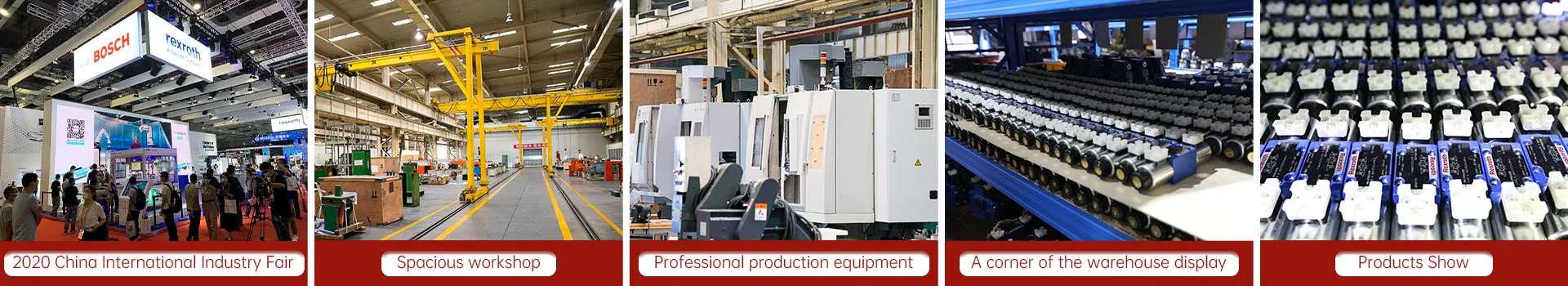

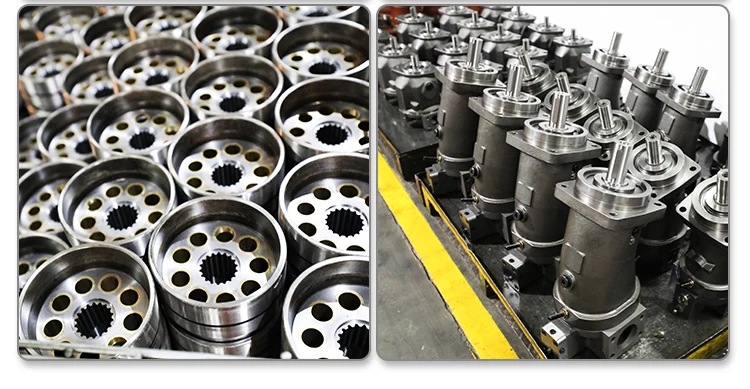

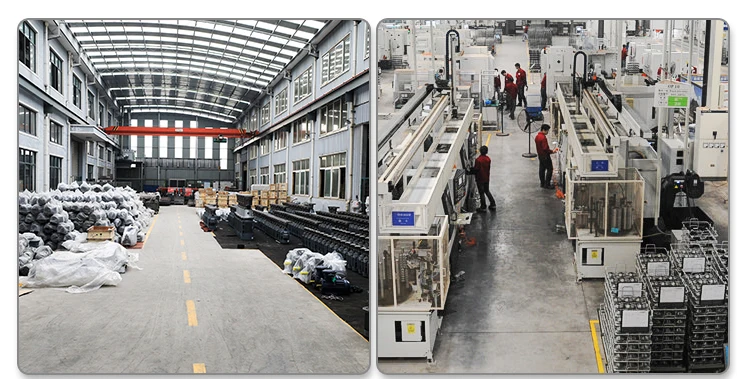

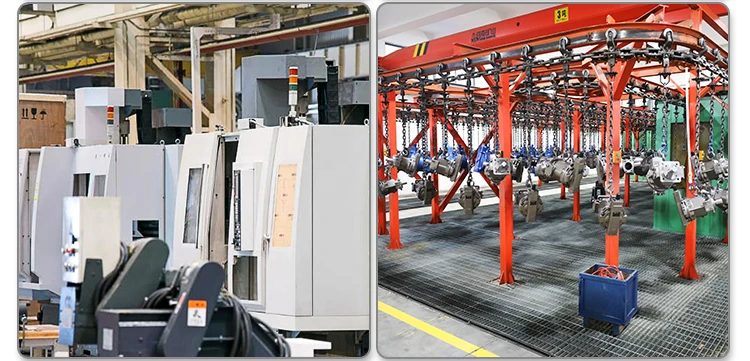

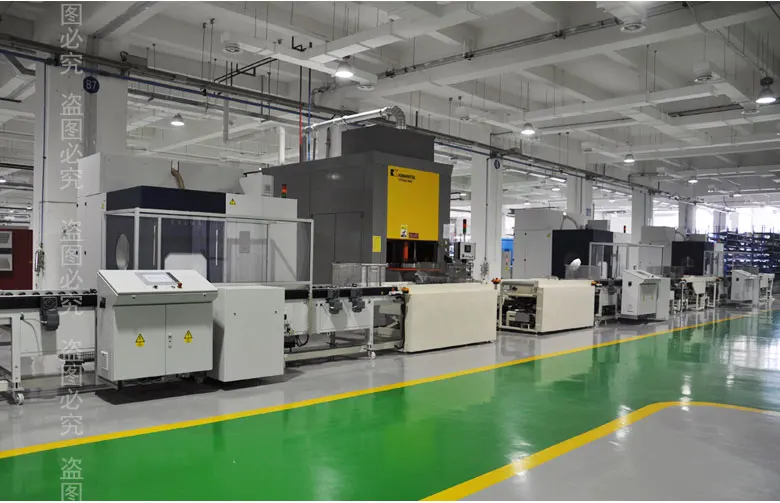

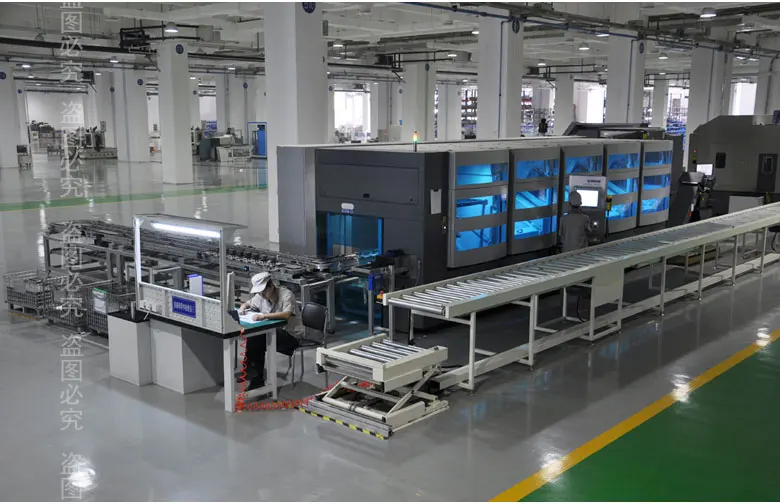

Danliss - Factory Processing

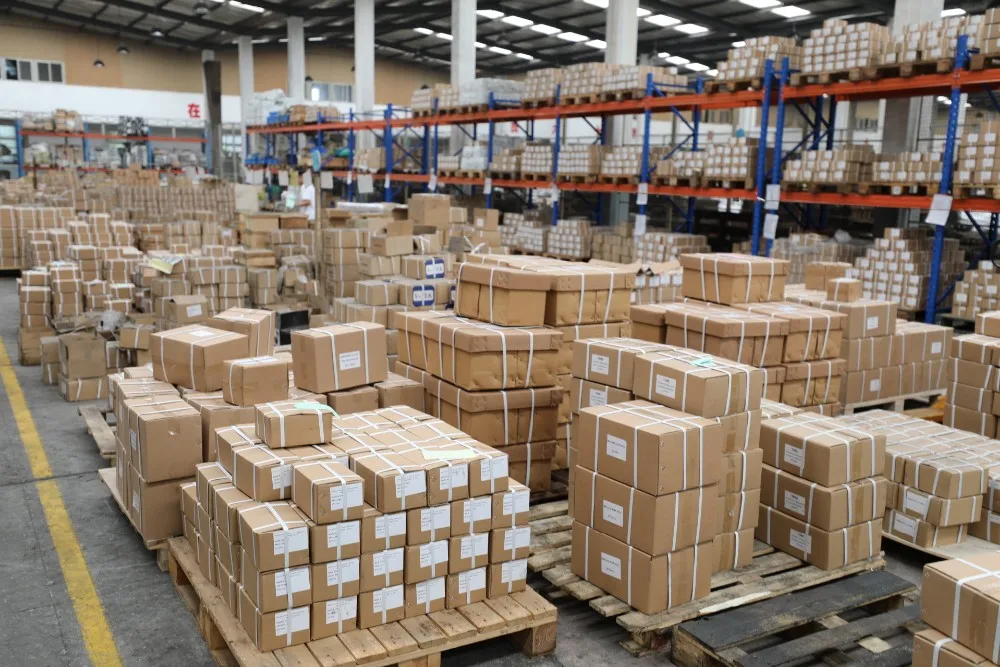

Danliss - Product Packaging
Danliss - FAQ
Q1: Which payment terms do you accept?
A:L/C T/T D/A D/P Western Union Paypal Money Gram
Q2: What is your delivery time？
A:It depends on whether the products you buy is in stock.If in stock, ship it within 3-5 days, if not, it will be decided by the time of factory production.
Q3: What's the warranty of your products?
A:One Year after shippment.
Q4: Is your company accept customization?
A:We could accept OEM depends on quantity.
Q5:Can I have my brand on the products?
A:Of course you can.
