Stand 1mw House Of For Industrial Ecotrade Farms Largest Floating Power Plant Solar Panel Internal Light Led Shipping Container

Share on (1600611972606):


Price:$166,363.60

Quantity:


Product Overview

Description



Trade Assurance








Product Descriptions























































































































































































100kW-350kWh Energy Storage System







Model No.



PS100kW-350kWh







Lithium Battery



Model No.



PS100KW-350KWh



Battery Capacity



350 kWh







Battery Type



Lithium Iron Phosphate Battery







Battery Warranty



5000 cycle times or 5 Years (DOD90% & 25)







AC Input (Charging)







AC Input Voltage



400 / 480 VAC







Power Factor



-1~+1







AC Input  Frequency



50Hz / 60Hz ± 2.5Hz







Max Charge Power



100 kW







Max Efficiency



98.2%







AC Output (Discharging)







Rated AC Output Power



100kW







AC Output Voltage



400 / 480 VAC







AC Output Frequency



50 / 60Hz ± 2.5Hz







Max Efficiency



98.2%







PV Input (Optional)







Max PV Input Power



110kWp







MPPT Input Voltage Range



450~850 VDC







MPPT Number



1 / 2







MPPT Efficiency



99.50%







Max Efficiency



99.01%







Unique Function







Grid-Level Function



Peak shaving and valley filling for electric network







Operational Mode



Off-Grid Mode / On-Grid Mode / On & Off grid Mode (Optional)







UPS Function



YES







Black Start Function



YES







Communication Mode



Modbus TCP/IP







Communication Interface



LAN, RS485, CAN







General







Working Condition



Temperature range  -20~50, Humidity range 0~95%







Noise and Altitude



          70dB, <3000m

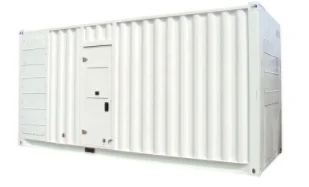

Size of PS100kW-350kWh



20 foot container







Weight of PS100kW-350kWh



15 tons







Certification



CE, TUV, IEC,ETL







Email : cmo@cds-solar. com          Whatsapp : +86 18340803630                      Facebook : Cds solar



Power Station supports multiple battery technologies and configurations for maximum application and supply chain flexibility. The modular, pre-engineered design simplifies project development and enables repeatable deployment for maximum project velocity.

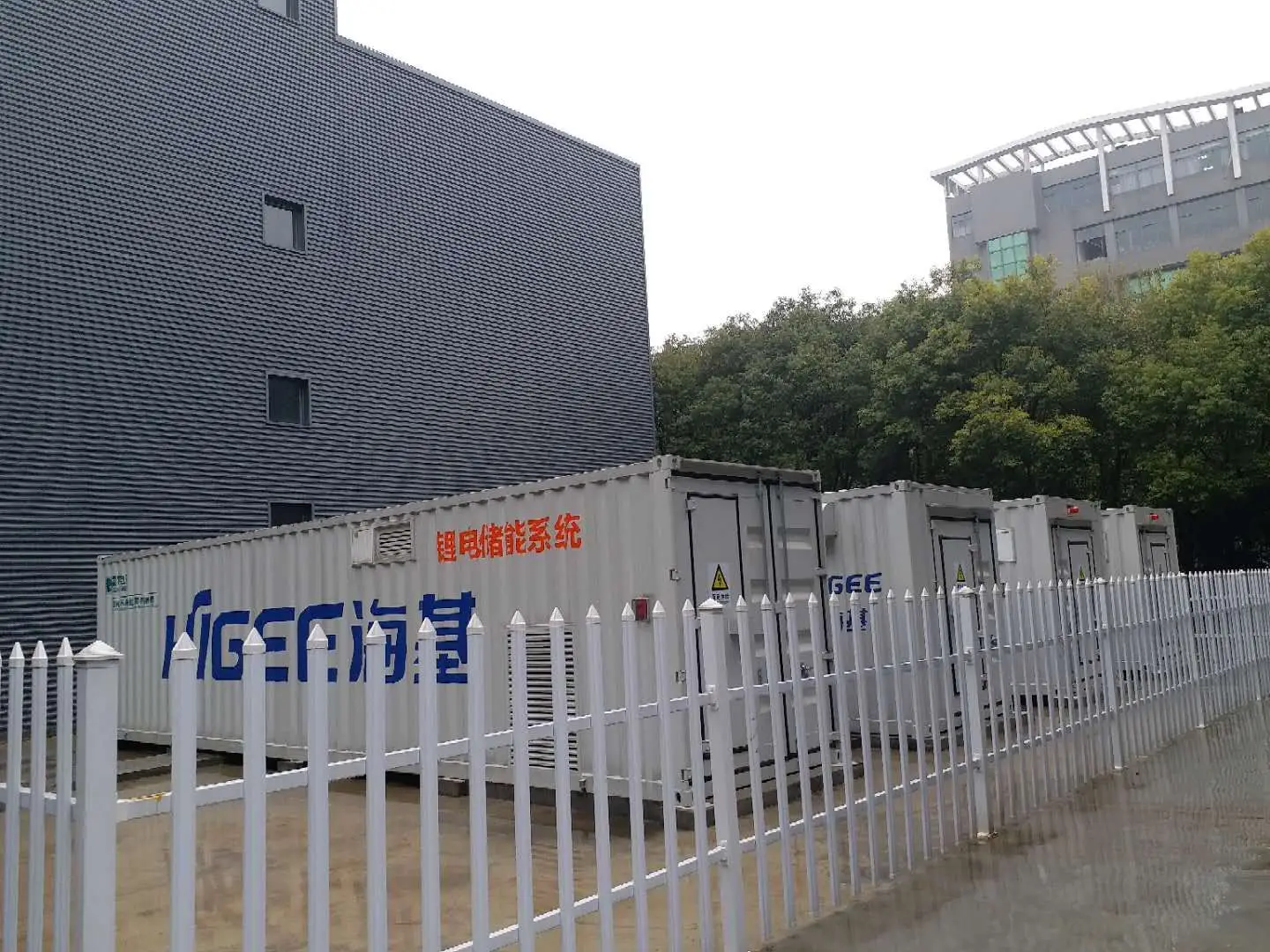

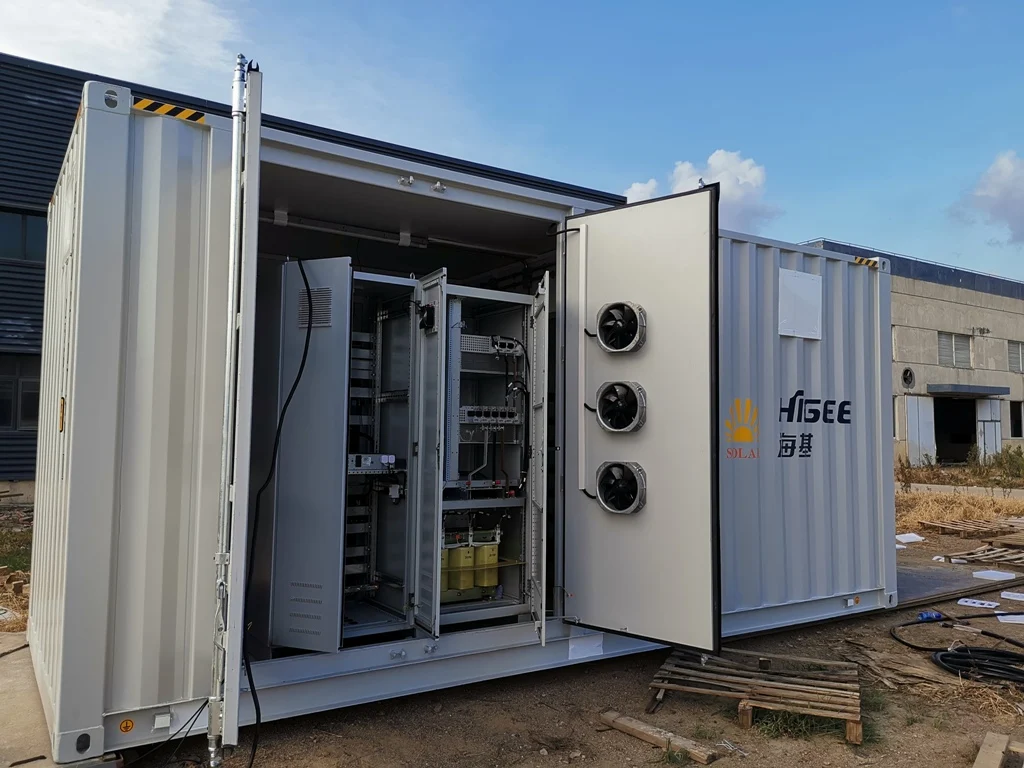

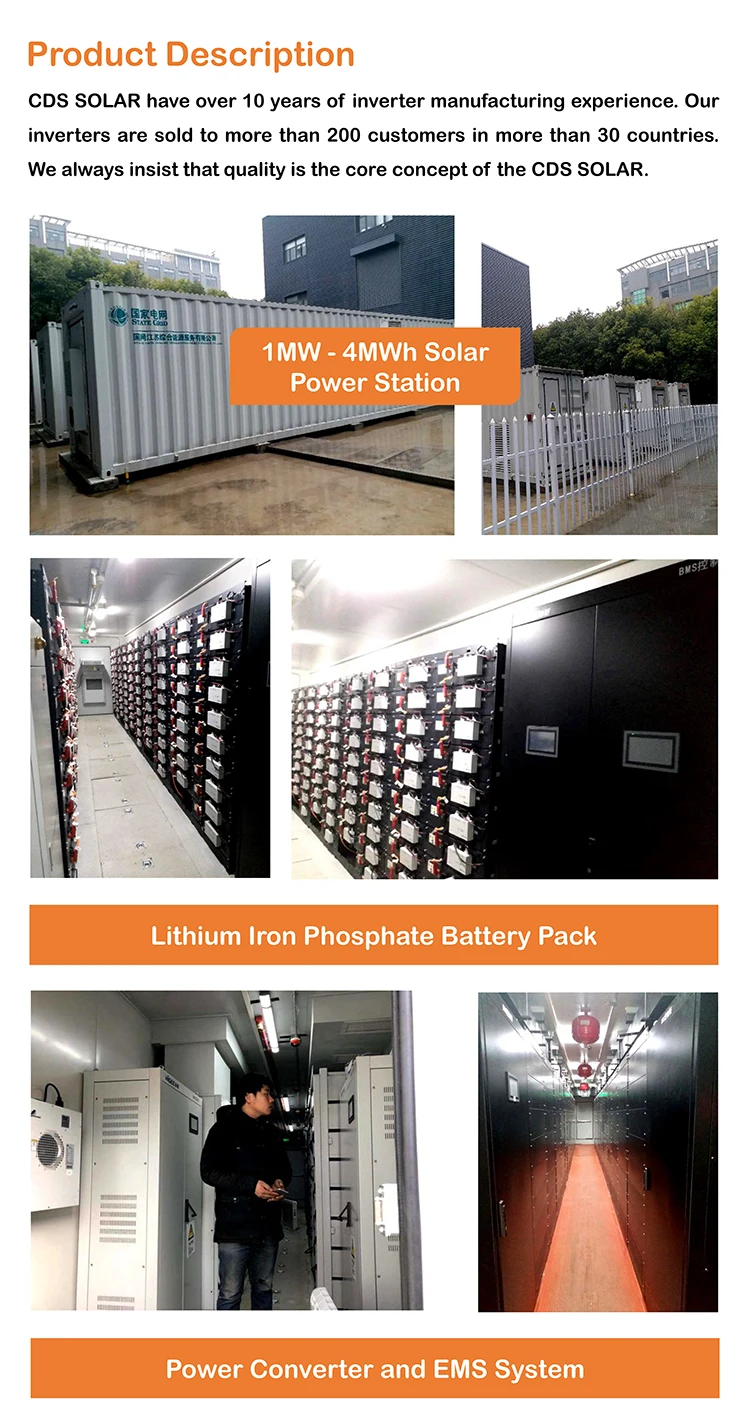

PowerStation provides a flexible, pre-engineered energy storage solution consisting of a standard ISO container with integrated electrical, mechanical, and thermal management features. Using advanced, patent-pending technologies to ensure safe operation and optimized performance, the container delivers a standardized system infrastructure for customer-supplied Tier 1 lithium-ion batteries.











Related Products









About us






CDS Solar is a Chinese leading company in the market of solar research and development, who has the great business sense and rich experience of product development. CDS Solar could provide client with not only solar power storage system, tracker and condenser, but also the professional service for solar plant design and the service of intelligent monitoring system of solar plant.

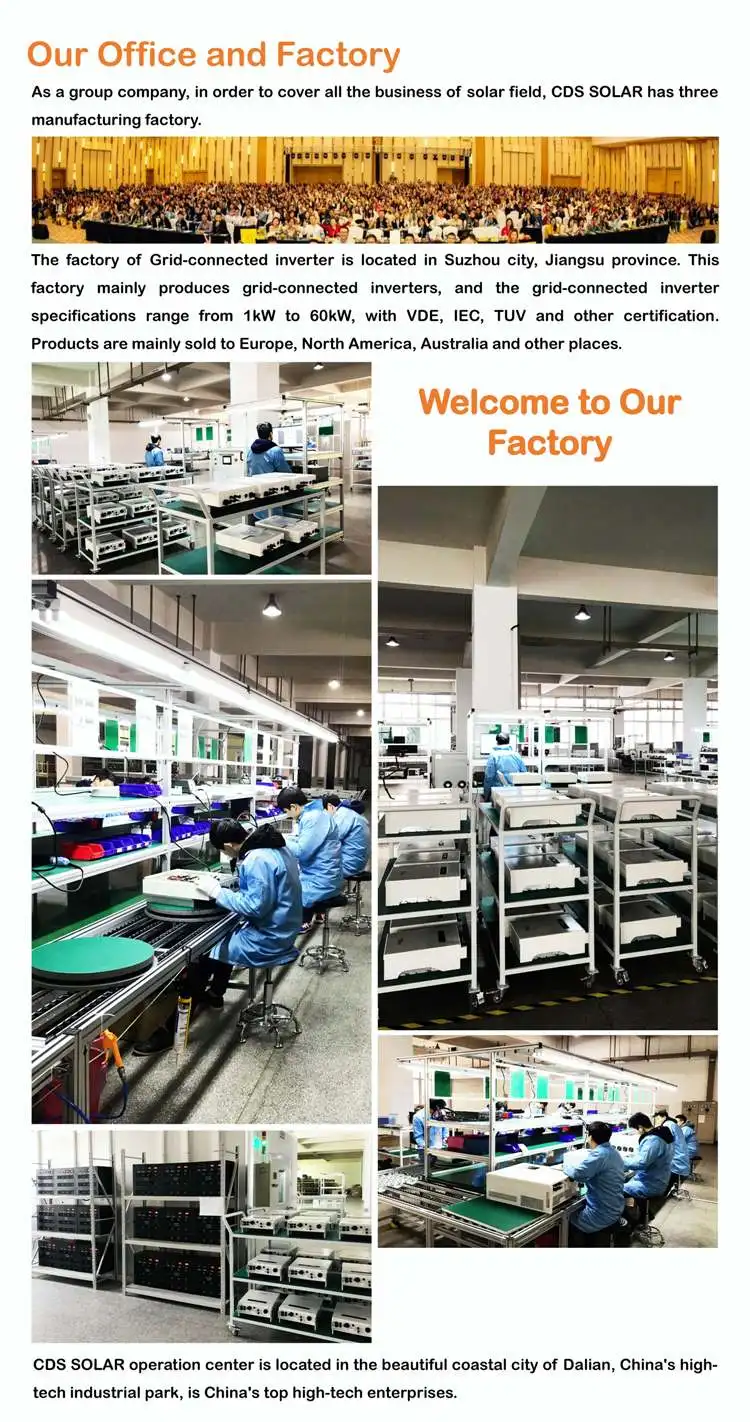

The factory of Grid-connected inverter is located in Suzhou city, Jiangsu province. This factory mainly produces grid-connected inverters, and the grid-connected inverter specifications range from 1kW to 60kW, with VDE, IEC, TUV and other certification. Products are mainly sold to Europe, North America, Australia and other places.

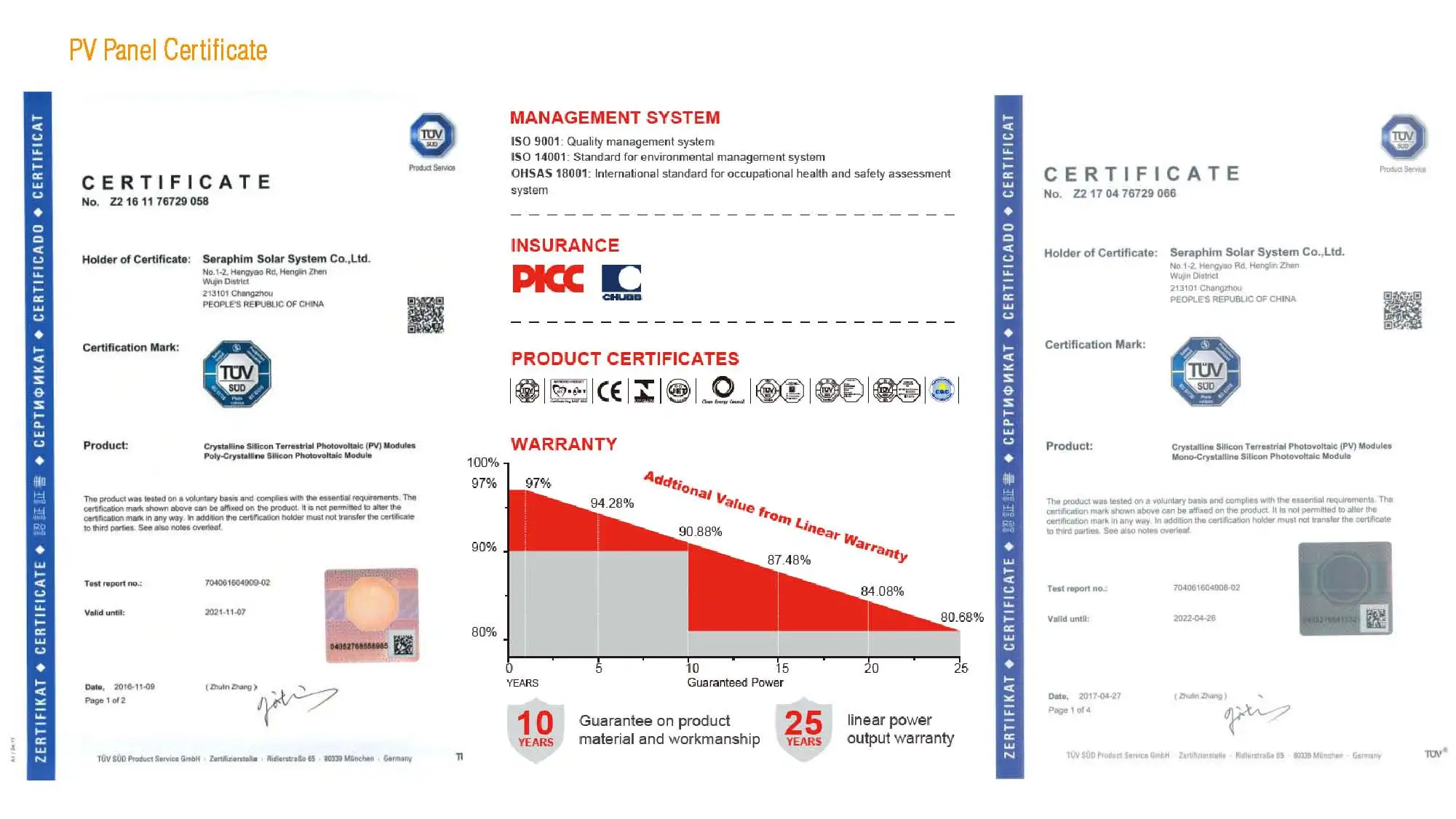

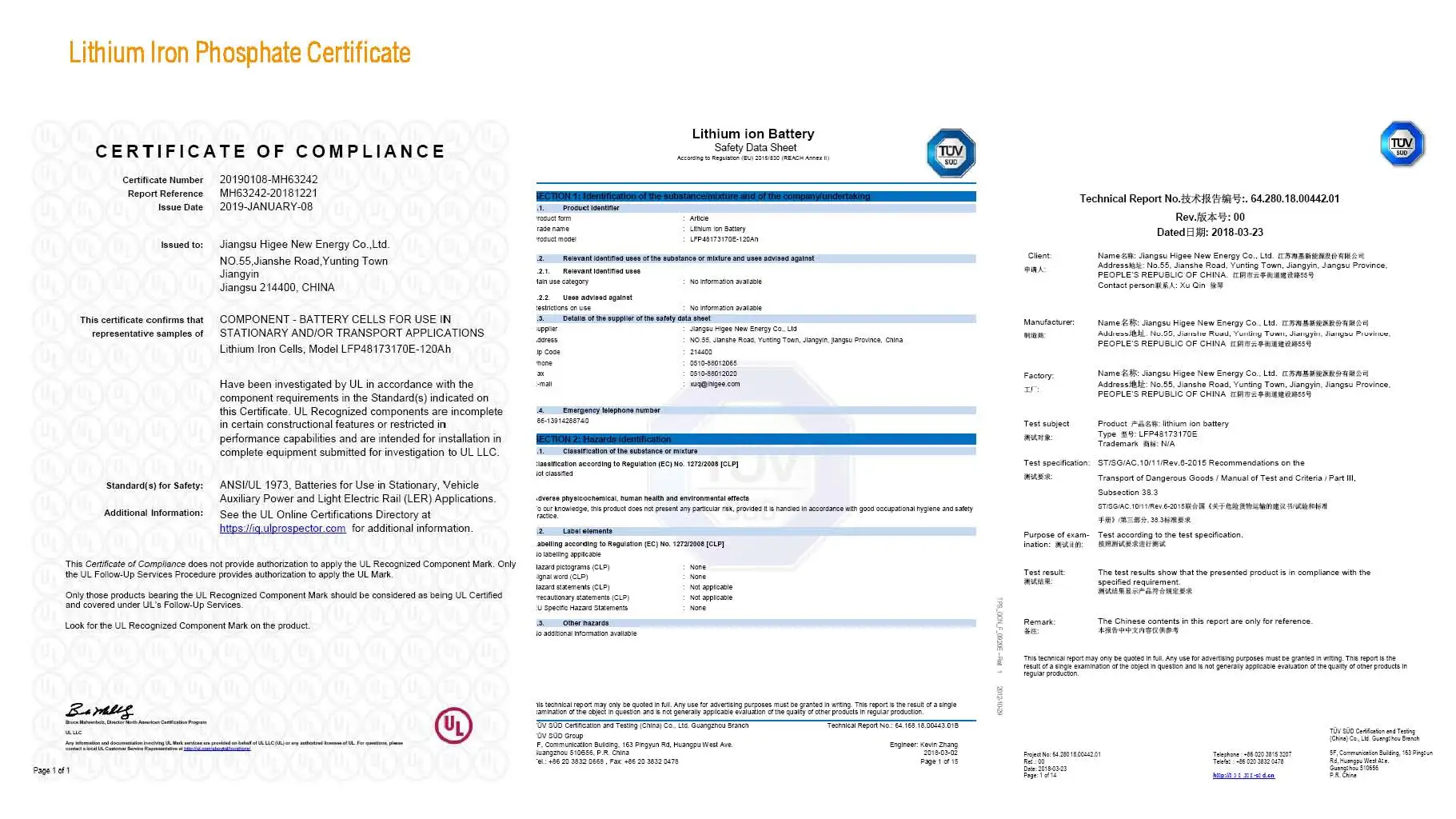

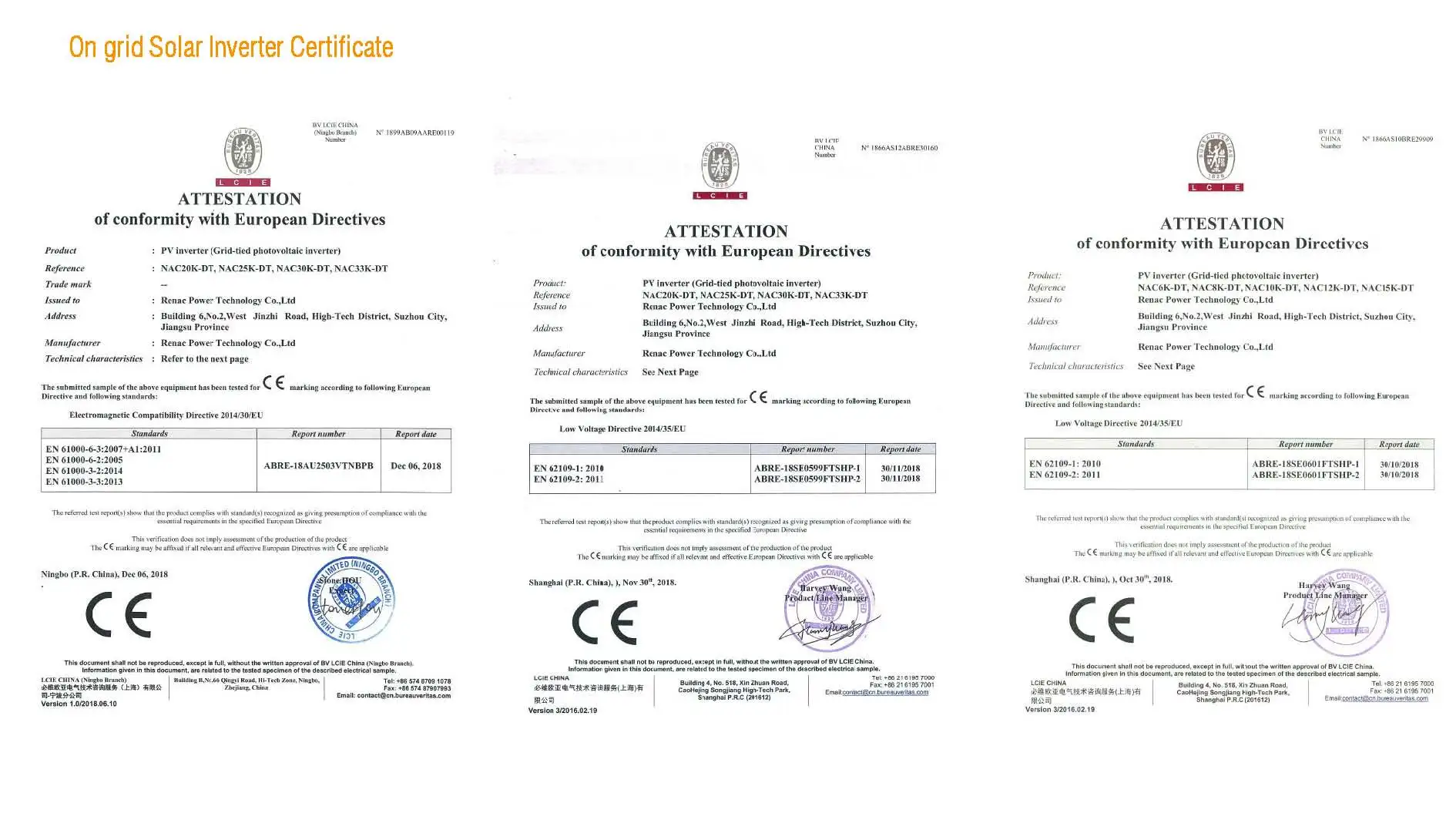

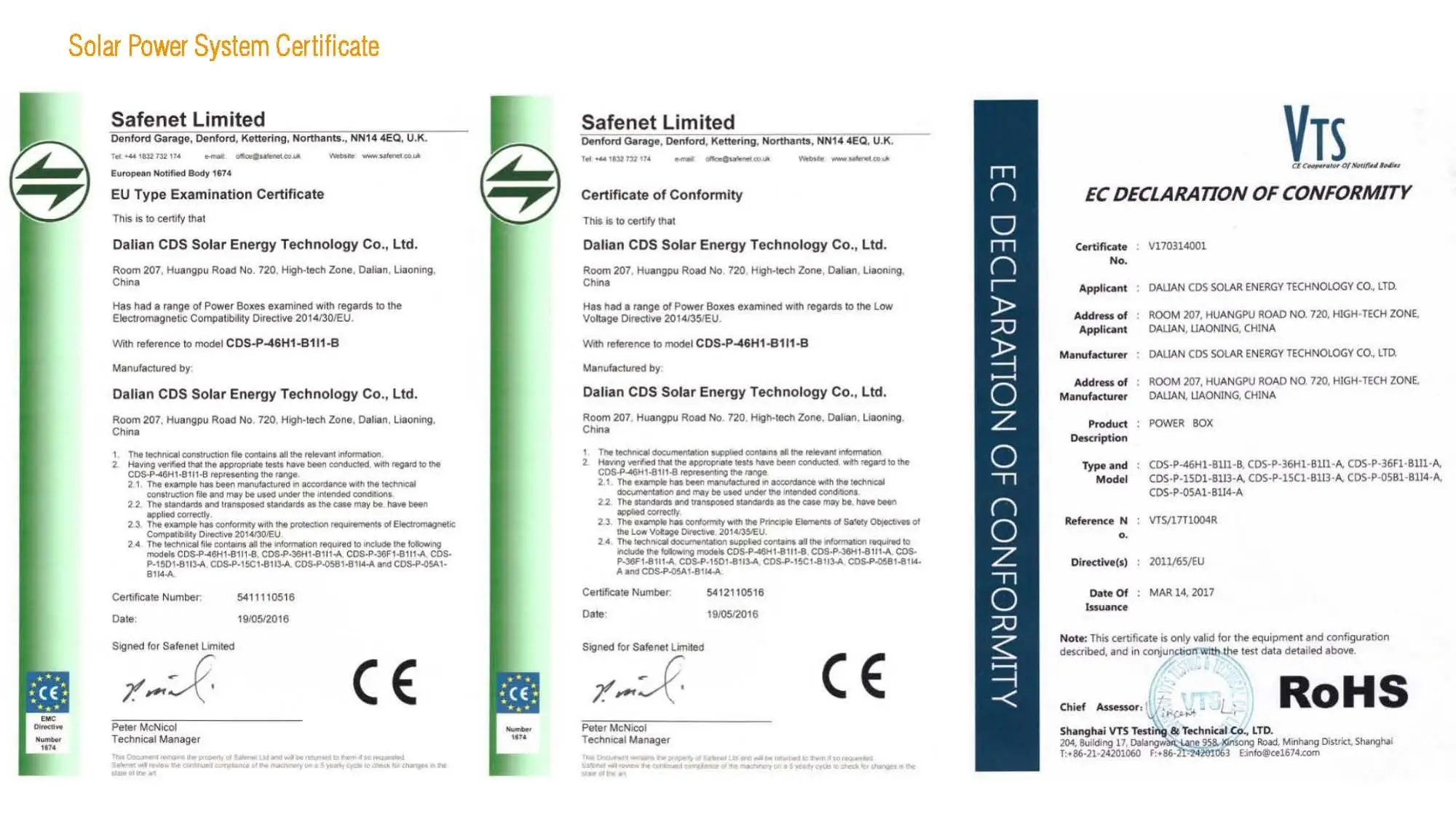

Certifications








Our projects









Our clients


 As a leading technology company, our customers are all over the world. Our expertise is the foundation of customer recognition. We have a strong technical research and development strength and a strong supply chain management capabilities. We not only provide customers with products, we also provide one-stop service for customers.





Our team
