Cheap PVC RFID Card Making Machine for small businesses
US $630.00-$730.00
EVA coating machine PET extrusion lamination machine line for Card protection laminating film
- Category: Plastic Laminating Machines >>>
- Supplier: Nanjing,Gs-Mach,Extrusion,Equipment,Co.,Ltd.
Share on:
Product Overview
Description
Product Overview

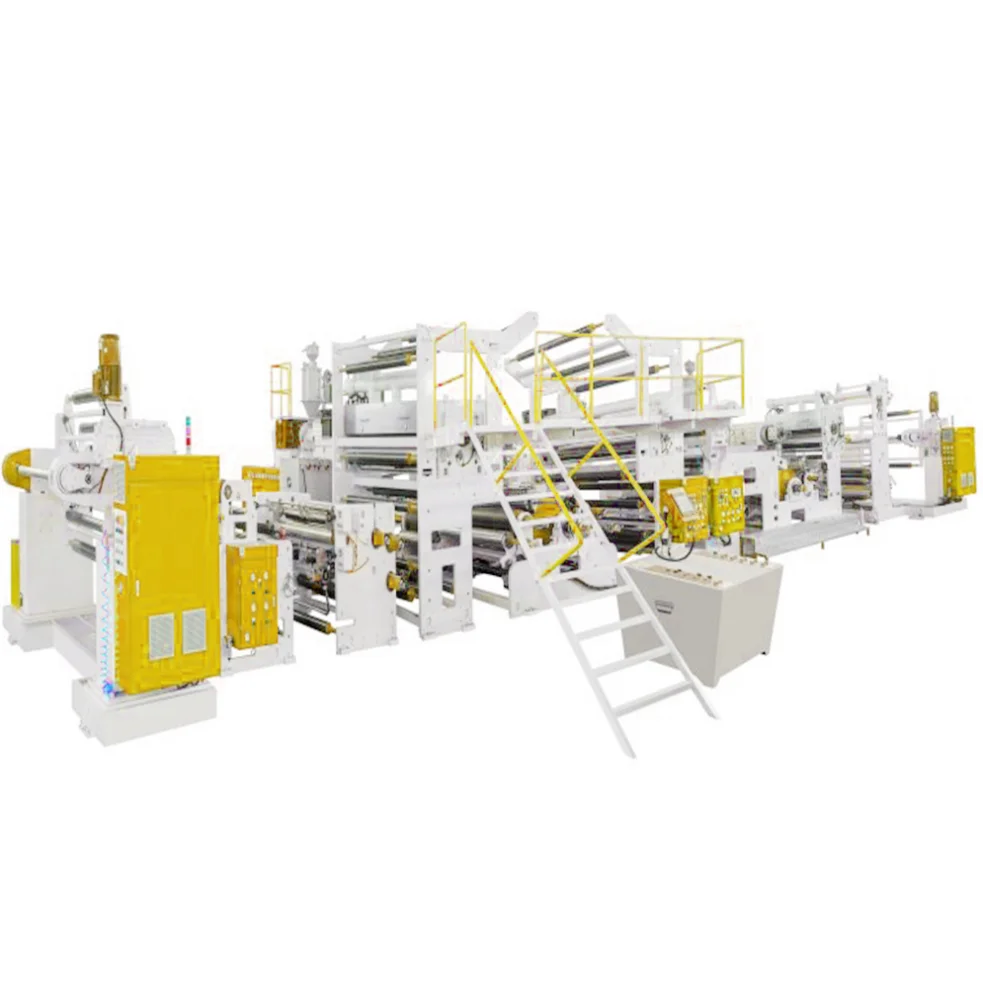

EVA coating machine PET extrusion lamination machine line for Card protection laminating film
The equipment adopts a one-by-one design, the unwinding adopts exchange volume, magnetic powder tension design, constant tension control, and the production acceleration and deceleration speed can be synchronized.Ratio control, edge material crushing online recycling, less production waste, speed can reach 50m\\min_100m\\min_150m\\min three designs
pe laminating roll paper coating extrusion machine machine uses imported electrical components. The central control unit mainly adopts the German SIEMENS-CPU-315 series or better than the above; the human-machine interface selects the German SIEMENS-TP270; the temperature control unit adopts the CPU temperature control module; the extruder Siemens Beide's high-performance governor;
The speed of the film machine is imported and controlled by the field bus. The line speed can be adjusted between 0 and 50 m/min. The high-performance vector speed controller of Siemens Beide is used for winding. The specific parameter setting can be realized by touch screen.
Equipment model | 400/800/1000/1600/2000/2500 |
Product width (mm) | 400/800/1000/1600/2000/2500 |
Product thickness (mm) | 0.015-0.2mm |
Max line speed m/min | 100-150 |
Application Area
pe laminating roll paper coating extrusion machine machine is suitable for general plastics, engineering plastics, special engineering plastics and other equipment.Customization. It consists of a single-layer, double-layer, multi-layer co-extruded cast film extrusion line.The whole set of equipment is designed and developedby Nanjing Guosu Extrusion Equipment, and the extrusion system uses a metering pump.Closed-loop control can effectively stabilize the film formation and uniform thickness.Multi-layerSqueeze with a distributor for stratification, including AB\\ABA\\ABC\\ABCBA\\ABCDCBA
Processing Material | paper/ film / moisture-proof, disposable clothing/ aluminum foil |
Final Product | laminated film |
Application | packaging , clothes, etc |
Capacity | 100-150m/min |
Technology & Training | Available |
PRODUCT SPECIFICATIONS
Machine Composition | Machine Composition | |||
Model | Machine | Quantity | ||
1 | Double station unwinding system | 1 set | ||
2 | Vacuum screw feeder | 1 set | ||
3 | Hopper dryer | 1 set | ||
4 | Single screw extruder | 1 set | ||
5 | Single board single station filter | 1 set | ||
6 | Solution static mixer | 1 set | ||
7 | Laminating Special Mould | 1 set | ||
8 | Laminating composite molding system | 1 set | ||
9 | Online Infrared Detection System | 1 set | ||
10 | Correction device | 1 set | ||
11 | Fabric static elimination device | 1 set | ||
12 | Tractor | 1 set | ||
13 | Double station automatic winding system | 1 set | ||
14 | SIEMENS human-machine interface control system | 1 set | ||
Laminating composite system

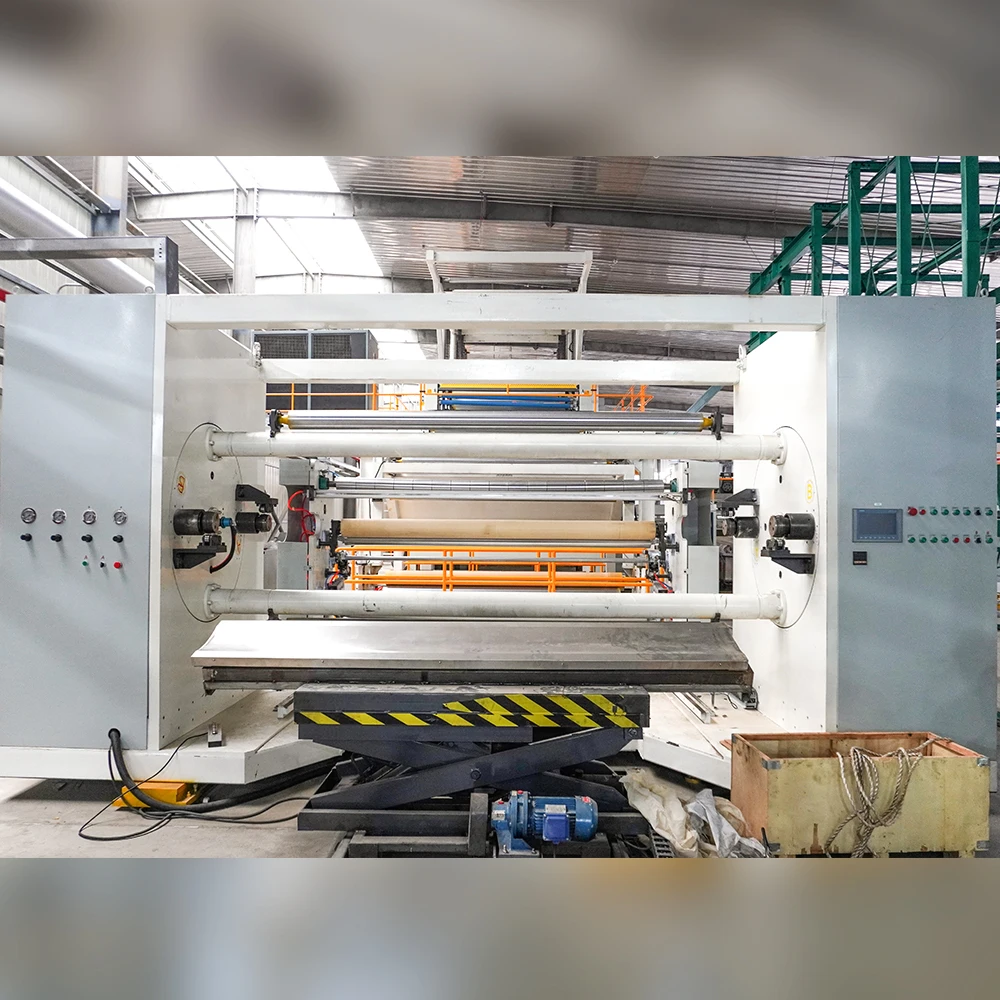

Double station winding system
Solution static mixer
Process principle
Material rewinding→ Corona→ Tractionroller coated →Traction → Drying → Deflection → Flip→Spray→Drying→ Edge→Four cylinder thermal shaping→ rewinding
Material rewinding→ Corona→ Tractionroller coated →Traction → Drying → Deflection → Flip→Spray→Drying→ Edge→Four cylinder thermal shaping→ rewinding
The characteristics of the machine:
-----The rewinding volume using the upper and lower cutting mode, can adapt to the requirements of different process coating level.
-----Speed 150m/min, change the winding non-stop machine, do not slow down, tension stability.
-----The bottom coating using three-roller transfer coating, coating amount by precision ball screw quasi-adjustment, accurate and reliable. Can be adapted to a relatively wide range of coating changes.
-----surface coating using extrusion spraying coating head, uniform coating, clean and clean coating, coating quality is stable.
-----the oven adopts the step mussel design structure, the installation is convenient, the paper is on the transition roller. The package angle does not change due to installation errors and the structure is stable. Special septum of the inner gall. Thermal design, low energy consumption.
-----The rewinding volume using the upper and lower cutting mode, can adapt to the requirements of different process coating level.
-----Speed 150m/min, change the winding non-stop machine, do not slow down, tension stability.
-----The bottom coating using three-roller transfer coating, coating amount by precision ball screw quasi-adjustment, accurate and reliable. Can be adapted to a relatively wide range of coating changes.
-----surface coating using extrusion spraying coating head, uniform coating, clean and clean coating, coating quality is stable.
-----the oven adopts the step mussel design structure, the installation is convenient, the paper is on the transition roller. The package angle does not change due to installation errors and the structure is stable. Special septum of the inner gall. Thermal design, low energy consumption.
