Product Overview
Description
FLY180 EPE Foam Sheet Extrusion Line,
FLY180 PE FOAM EXTRUSION MACHINE
EPE Foam Mattress Making Machine,
EPE Foaming Extruder
FLY180 PE FOAM EXTRUSION MACHINE
EPE FOAM SHEET MAKING MACHINE
NON-CROSS LINKED POLYETHYLENE FOAM SHEET MACHINE

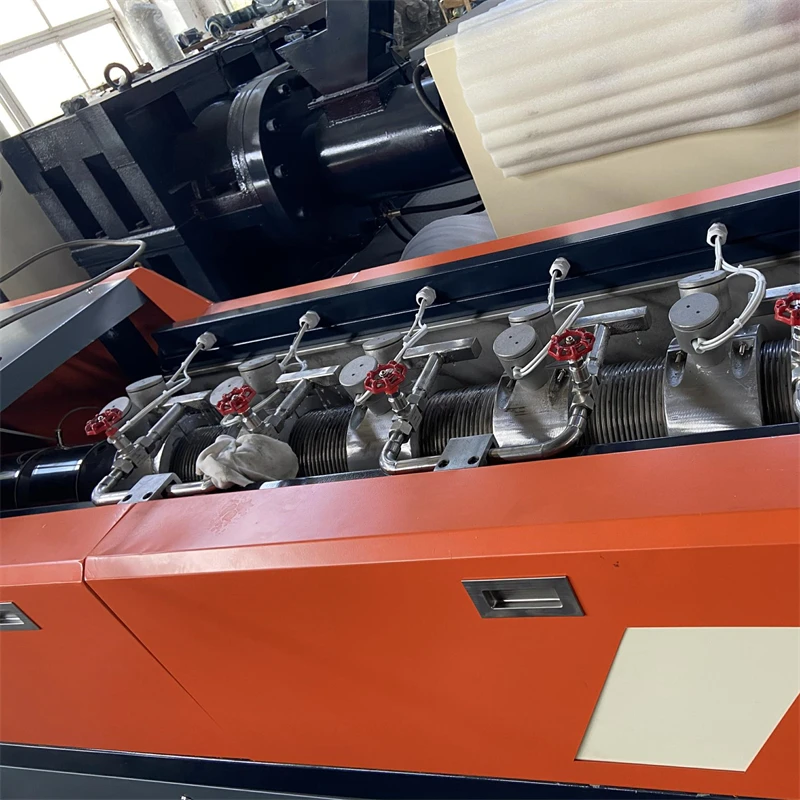

THIS MACHINE MAINLY USED LDPE, MONOGLYCERIDES, TALCUM POWEDER, BUTANE GAS/LPG AS THE MAIN MATERIAL
AFTER PRE-HEATING IN THE SCREW UPTO THE MELTED TEMPERATURE, THEN ADD THE AGENT, THEN COOLING HALF OF THE SCREW, FIRST TIME FOAMING INSIDE,

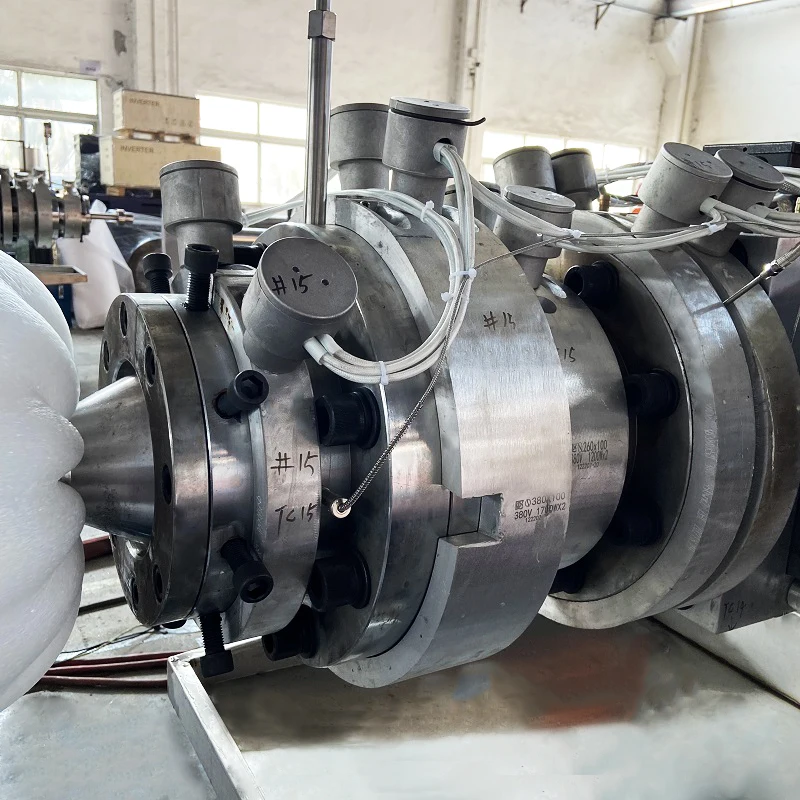

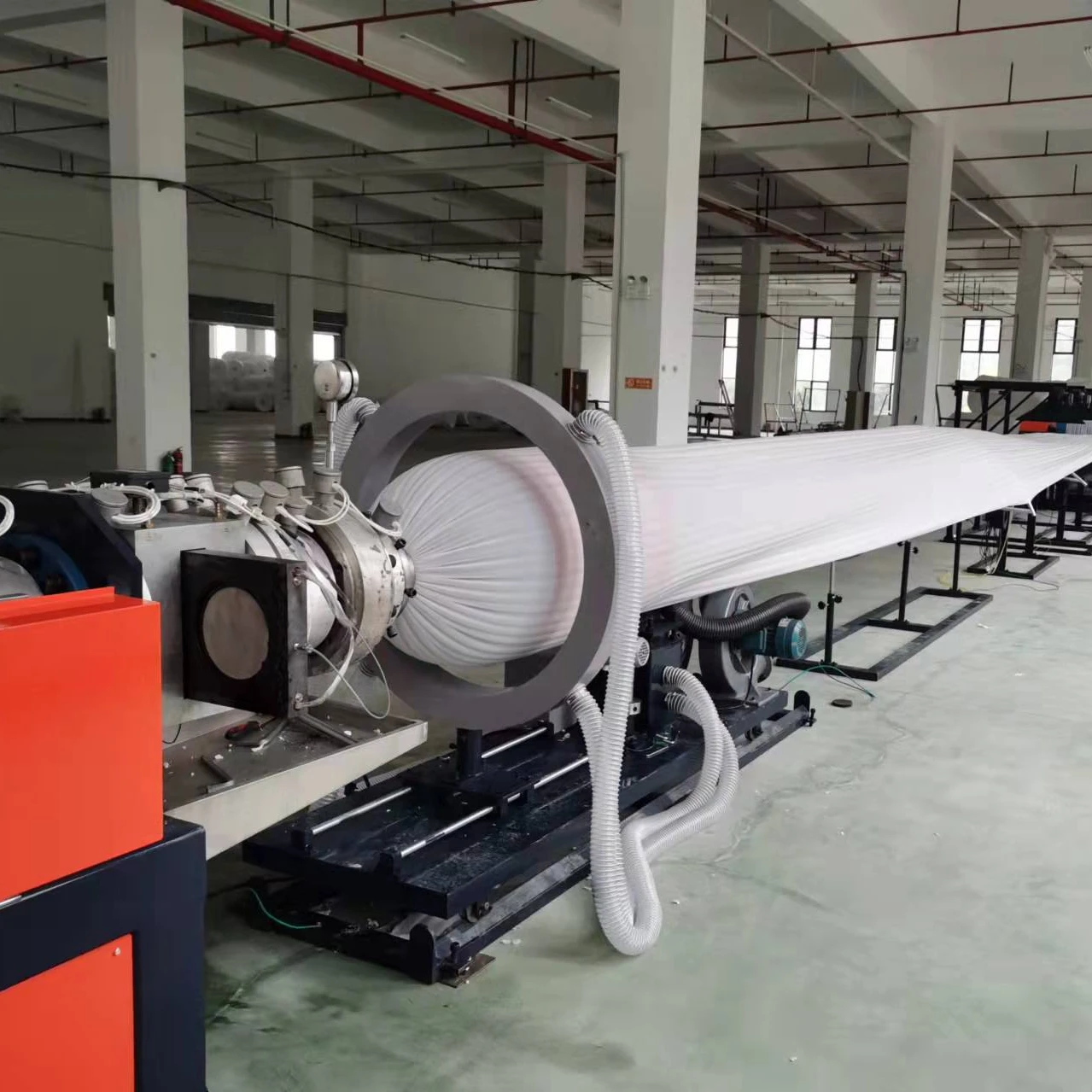

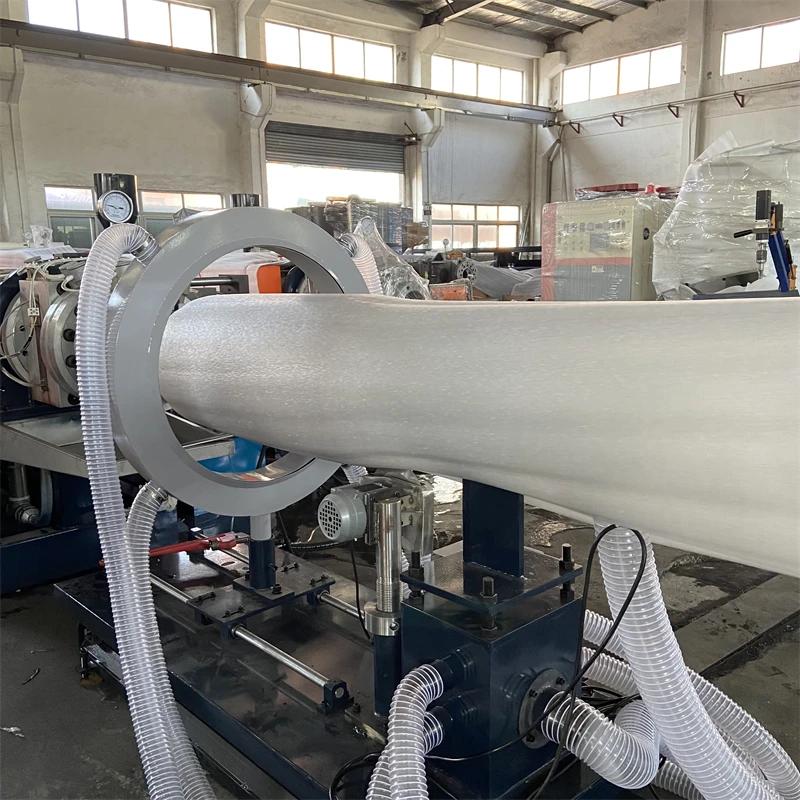

THEN EXTRUDING FROM THE ROUND DIE, THEN GO TO THE SHAPING DRUM, CUT FROM ROUND TO THE SHEET, THEN

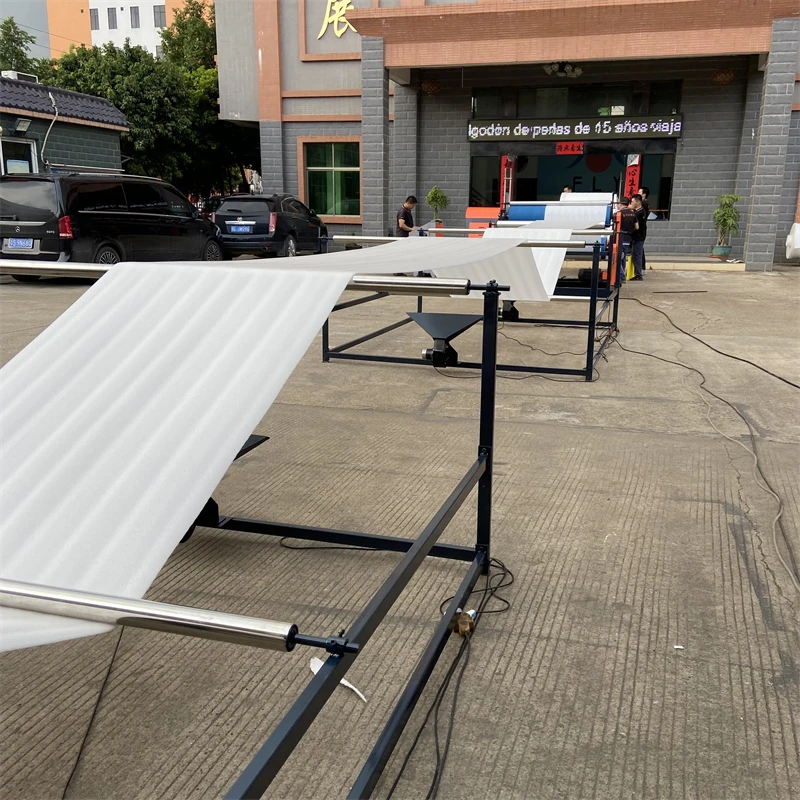

EXPANDING, THEN COOLING ON LINE THEN CROSS THE TRACTION MACHINE, THEN WINDING RUN, GET THE PRODUCT TO THE WAREHOUSE, PREPARE THE SECOND FOAMING TIME.
FLY220 MODEL IS BIG SCREW DIA. MODEL, SCRE DIA. IS 220MM, SCREW LENGTH IS VERY LONG, TOTAL WORKING LENGTH NEED AROUND 60METERS.
THE TOTAL FACTORY NEED AROUND 6000 SQUARE METERS IS BETTER.
THE FINAL PRODUCT FOAMING HOLE IS GOOD, AND DENSITY CAN BE VERY LOW AND CAN BE VERY HIGH, ACCORDING TO THE MARKET.
THE EPE FOAM SHEET MAIN FEATURES ARE NOISE AND HEATING INSULATION, CUSHION PROTECTION, FRICTION AVOD, WATER, DECAY AND MOSTURE RESISTANCE, GOOD ELASTICITY, ETC. THIS MODEL CAN MAKE FROM 3MM TO 30MM,
IF MAKE 18MM TIME CAN MAKE AROUND 600MM WIDTH, IF MAKE 3MM TIME, CAN MAE AROUND 4000MM,
FOR GREENHOUSE COVER, CUSTOMER MAKE 5MM THICKNESS WITH 3000MM WIDTH ,
FOR MATTRESS MAKING TIME, CUSTOMER MAKE LESS THAN 7.5MM THICKNESS WITH 2150MM WIDTH OR 1950MM WIDTH.
WELCOME TO CHECK MORE DETAILS FROM US.
THANK YOU!
Product Description
FLY180 epe foaming extruder:Siemens motor.
| Model | FLY-180 |
| Screw dia | 180mm |
Screw L:D | 55:1 |
| Output | ≤500kg/h |
| Thickness | 2-18mm |
| Width | ≤2000mm |
| Foaming times | 16-47 |
| Total power | 300kw |
| Dimension | 37000*2800*3500mm |
| Weight | 14.5t |

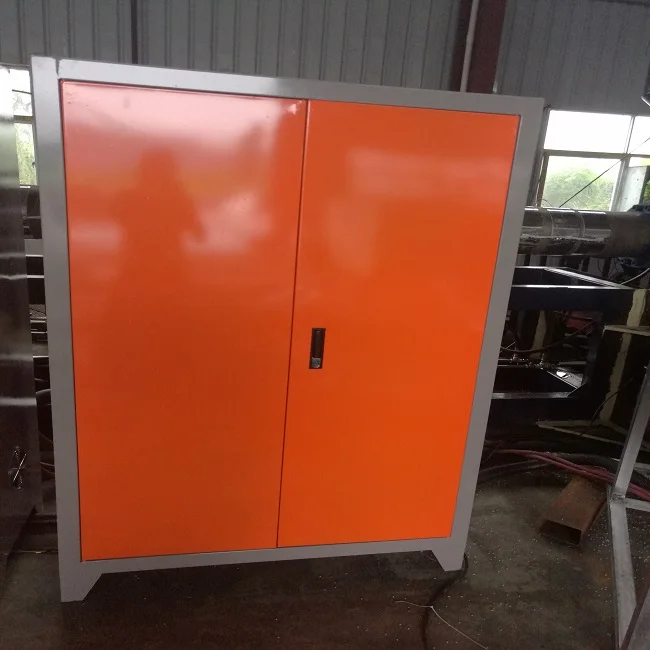

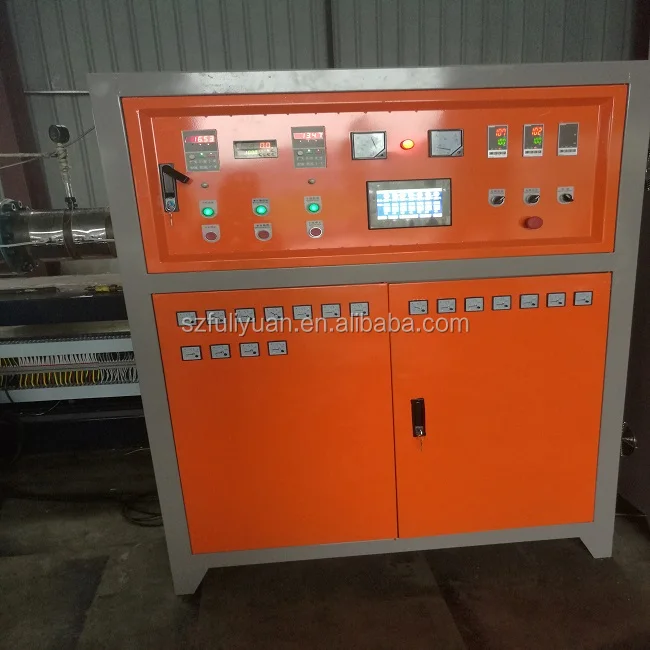

Omron PLC:

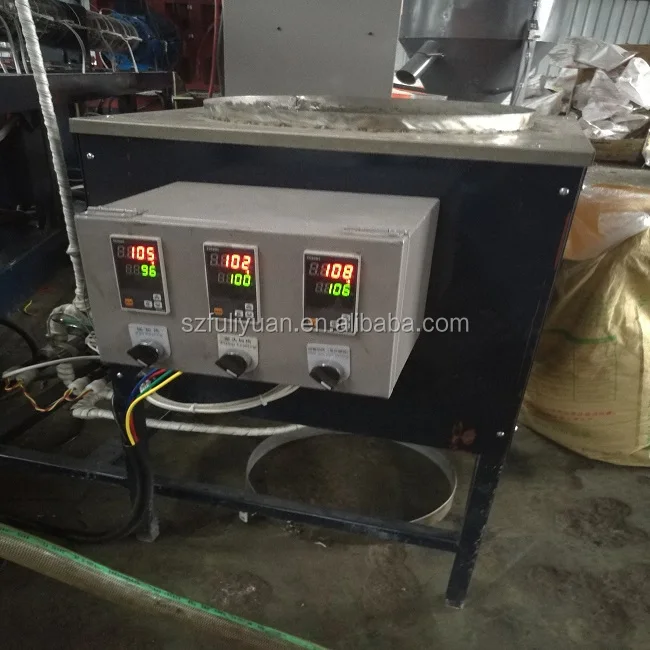

Monoglycerides Pump for anti-shrinking agent:

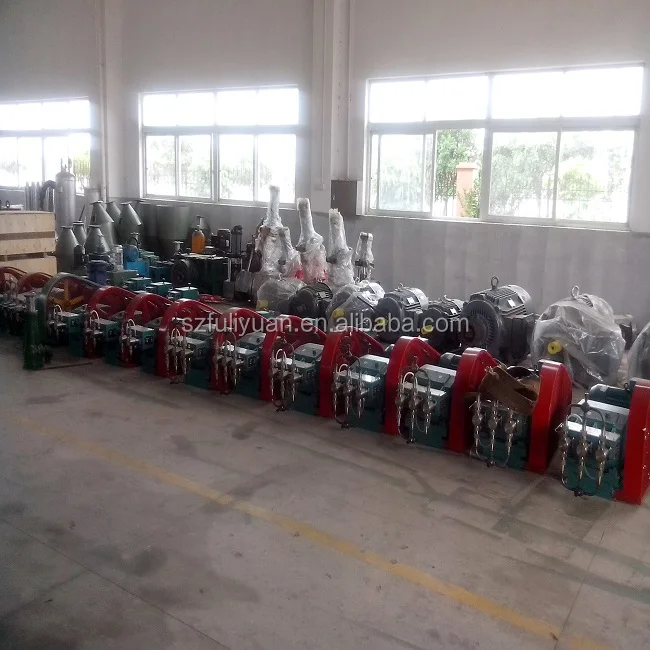

Butane pump/ LPG pump for gas injection:
Company Information
1. HUIZHOU FULIYUAN MACHINERY is specialized in manufacturing three series of plastic machinery :
First class: EPE series machinery
EPE foam sheet extrusion machine, it includes:
1.Model 75mm-250mm EPE foam sheet extruder,
2. V type, U type , pipe, bar and many other profiles extruder,
3. Fruit net extruder, EPE foam sheet bonding machine (epe foam sheet lamination machine), EPE foam sheet coating machine, , EPE foam sheet cutting machine,
4.pole hydraulic cutting machine (punching machine), hot melt glue machine, EPE foam sheet auto-cutting machine, EPE foam bag making machine, EPE recycling machine (EPS recycling machine), PE sliting machine.
Second class: plastic film equipment
Automatic single layer, double layer or three layer of PE stretch film extrusion machine, with model of FLY500, FLY1000, FLY1500.
Third class: Plastic bag machine
Single, multi-layer co-extrusion PO(HDPE). PE(LDPE) film blowing machine, high-glass PP blowing machine, single to ten colors flexographic printing press, mixer, PO/PE/ABS/PVC plastic recycler.
2.FuLiYuan machinery brand is more than 10 years old.

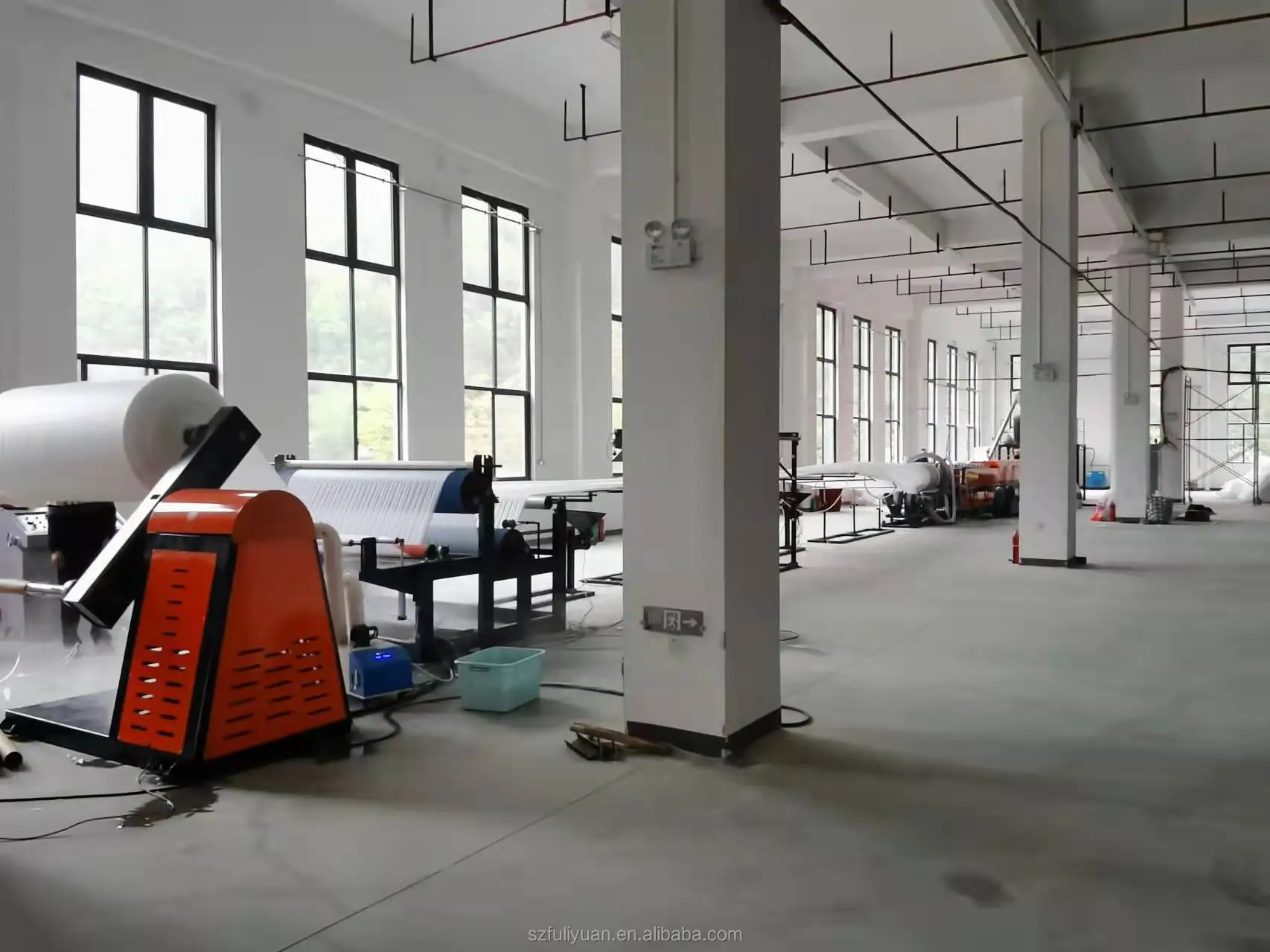

3.The factory covers area of 10000 square meters, has different kinds of technical staffs more than 100.
4.We have the right of import and export license.
5.The products have exported to Southeast Asia, America, Africa, Europe etc.
We attended exhibitions all over the world: Thailand, India, Indonesia, Bangladesh, Turkey, South Africa, Dubai, Russia, Brazil, Mexico, Vietnam and so on.
Our customers come from all over the world!
Our Customers Come From All Over The World.
Our Certificate:
Packaging & Shipping
| Packaging | |
| Size | 20/40GP |
| Packaging Details | The normal package is wooden box,we use the EPE foam sheet for packing to protect the machine from damages during transportation. And we can also use other materials to pack the machine according to customers special request. |
Our Services
1.Guarantee Period: Life-long paid service. First year if any parts broken, not including the easy consumption parts, supplier give the parts free, customer pay all the wood box packing fee, customs and delivery fee and all fees outside the supplier’s factory. In the second year or later, if any parts broken, supplier add 15% profit on the parts cost fee as ex work terms sell to customer.
2.Technology support.
3.Engineer available for installing machines over seas.
FAQ
Q1.Are you a factory or a trade company?
A1: We are manufacturer ,direct supplier from China.
Q2.Where is your factory located in,how can I visit the factory ?
A2: Our factory is located in Huizhou city Guangdong province,China .welcome to visit our factory ,you will get our warmly reception teart.
Q3.What is your payment terms?
A3: 30%T/T in balance , the balanced will be paid before shipment or L/C.
Q4.What is your lead time?
A4: Within 30-60days after recived your deposit or original L/C.
Q5.How many days you engineers can stay abroad?
A5: 3 days for free.
Q6.If we need more than 3 days training after install pe foam machine,how to do?
A6:One Engineers for 3 days arranging supervision and training for free, his visa fee, round air ticket, eating and accommodation should be supplied or paid by the buyer.USD$80/day should be paid as the salary to the technician by the buyer if exceed 3 days.
