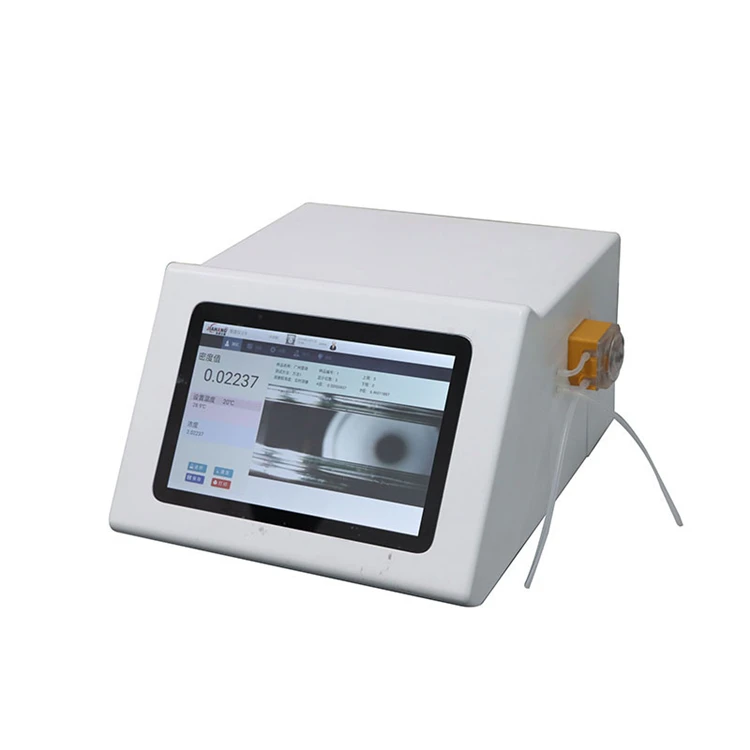

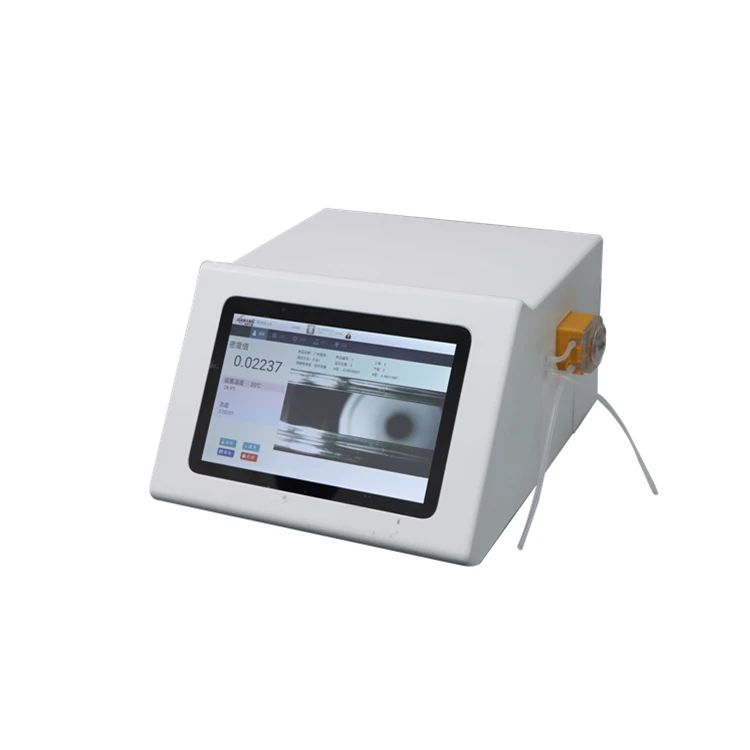

High Precision Constant Temperature Liquid Density Meter for Diesel Petroleum Oil Alcohol

    The oscillating U-tube densitometer method is a technique to determine the density of liquids and gases based on an electronic measurement of the frequency of oscillation, from which the density value is calculated. Density meters work by measuring the oscillation of a glass tube containing the sample. Specific gravity and refraction index can be measured. They are used in many industries such as: oil, chemical, food and beverage industries for quality control and research and development. Density meters are especially useful when working with viscous liquids or difficult gases.

Innovation

1. Automatic integration to realize one-key measurement function;

2. Built-in Peltier temperature control to improve accuracy and stability;

3. High-definition video camera technology effectively avoids the influence of bubbles;

4. The data can be printed directly through the printer;

5. Compliant with 21CFR Part 11, audit trail, pharmacopoeia and electronic signature.

Application areas:

Pharmaceutical industry: quality control of APIs and pharmaceutical intermediates, determination of specific gravity and density of pharmaceuticals;

Flavor and fragrance: raw material verification of edible flavor, daily flavor, tobacco flavor and food additive;

Petrochemical industry: crude oil API index, gasoline and diesel density detection, additive mixing ratio process monitoring;

Beverage industry: measuring sugar concentration, alcohol concentration, beer quality control, soft drink quality control;

Food industry: quality control of grape juice, tomato juice, fructose syrup, vegetable oil and soft drink processing;

Brewing industry: detection of alcohol concentration in liquor, rice wine, red wine, beer, fruit wine, rice wine, etc.;

Chemical industry: testing of chemical urea, detergent, ethylene glycol, acid-base and ammonia concentration;

Machinery manufacturing: cleaning agent testing for metal processing, machine manufacturing, automotive industry, electronic appliances;

Technical indicators:

Measuring range: 0 g/cm³ to 3 g/cm³;

Resolution: ±0.00001g/cm³;

Repeatability: ±0.0001g/cm³;

Accuracy: ±0.0003g/cm³;

Sampling method: fully automatic (compatible with manual);

Whether with video: yes;

Temperature control method: Peltier temperature control;

Temperature control range: 5℃-45℃;

Temperature control stability: ±0.02℃;

Display mode: 10.4-inch FTF color touch screen;

Data storage: 32G;

Output mode: USB, RS232, RJ45, SD card, U disk;

User management: have/three levels of authority management;

Audit Trail: Yes;

Electronic signature: yes;

Custom method library: yes;

Export file verification high-level protection MD5: yes;

WIFI printing: yes;

Export in multiple file formats: PDF and Excel;

Dimensions: 480x320x 200 mm;

Weight: 8kg;

Power supply: 110V-230V, 50HZ/60HZ;
