DPB 80 Pharmaceutical Medicine Dry Fruit Biscuit Fruit Foodstuff Five Metals Parts Carton Tray Blister Packing Machine

Share on (1600612373391):


Price:

Quantity:


Product Overview

Description

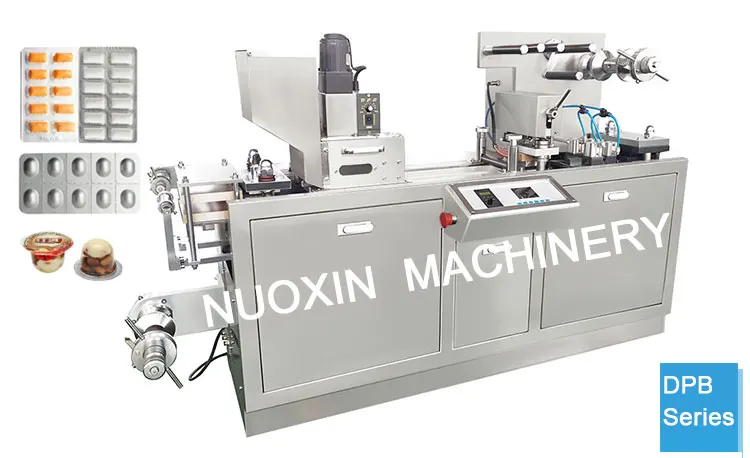

DPB-80 Pharmaceutical Medicine Dry Fruit Biscuit Fruit Foodstuff Five Metals Parts Carton Tray Blister Packing Machine


Product Description




Cutting Frequency
8-35times/min
Capacity
600-2100strip/h
Max shaping areas and depth
110×60×15 mm
Stroke
20-70mm(can be manufactured as user's requirements)
Standard Sheet
80×57,80×35,105×42,105×55 mm(can be manufactured as user's requirements)
Air Pressure
0.5mpa-0.7mpa0.15m3/min
Total power
380V/220V 50Hz/ 60Hz   1.8kw
Main motor power
0.55 KW
PVC hard pieces
0.15-0.5×80 mm
PTP Aluminum Foil
0.02-0.035×80 mm
Dialysis Paper
50-100g×80 mm
Overall Dimensions
1560×460×890 mm
Weight
380 kg


Applications:
DPB-80 Pharmaceutical Medicine Dry Fruit Biscuit Fruit Foodstuff Five Metals Parts Carton Tray Blister Packing Machineis specially designed for hospital dosage room, laboratory institute, health care product, middle-small pharmacy factory, and featured by compact machine body, easy operation, stroke adjustable, long durability etc, It can protect the material from steam or dust, improve product packing degree, and increase the additional value. The machine is used to produce small quality and many kinds of products.

Characteristic:
1. The material is fed automatically. The mould and feeding equipment can be designed as user's requirements.
2. Travel scope can be adjusted. Mould is located by located groove so that it's easy to change mould. The machine heats the PVC through conduction and forms it through pressing and frothing.
3. The equipment of trace pressing, batch number printing and scrap-collecting can be chose.
4. The heating moulds will automatically separate when the machine stops, which contributes to protect the material between them and extend the machine's life.

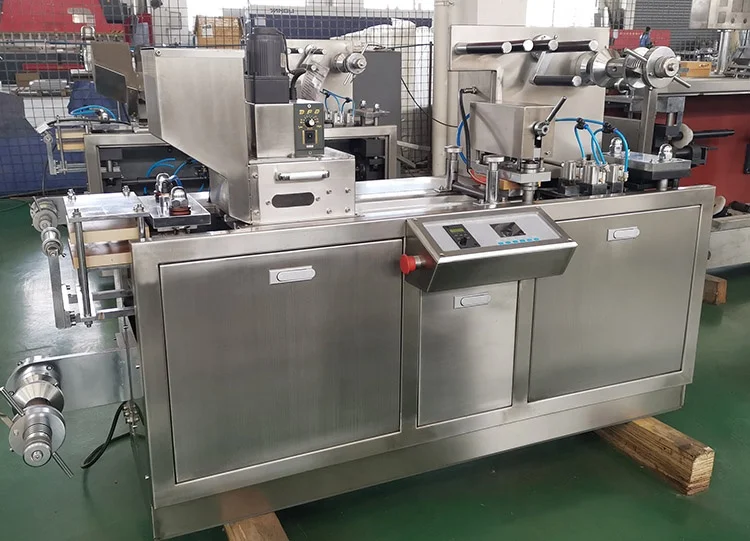

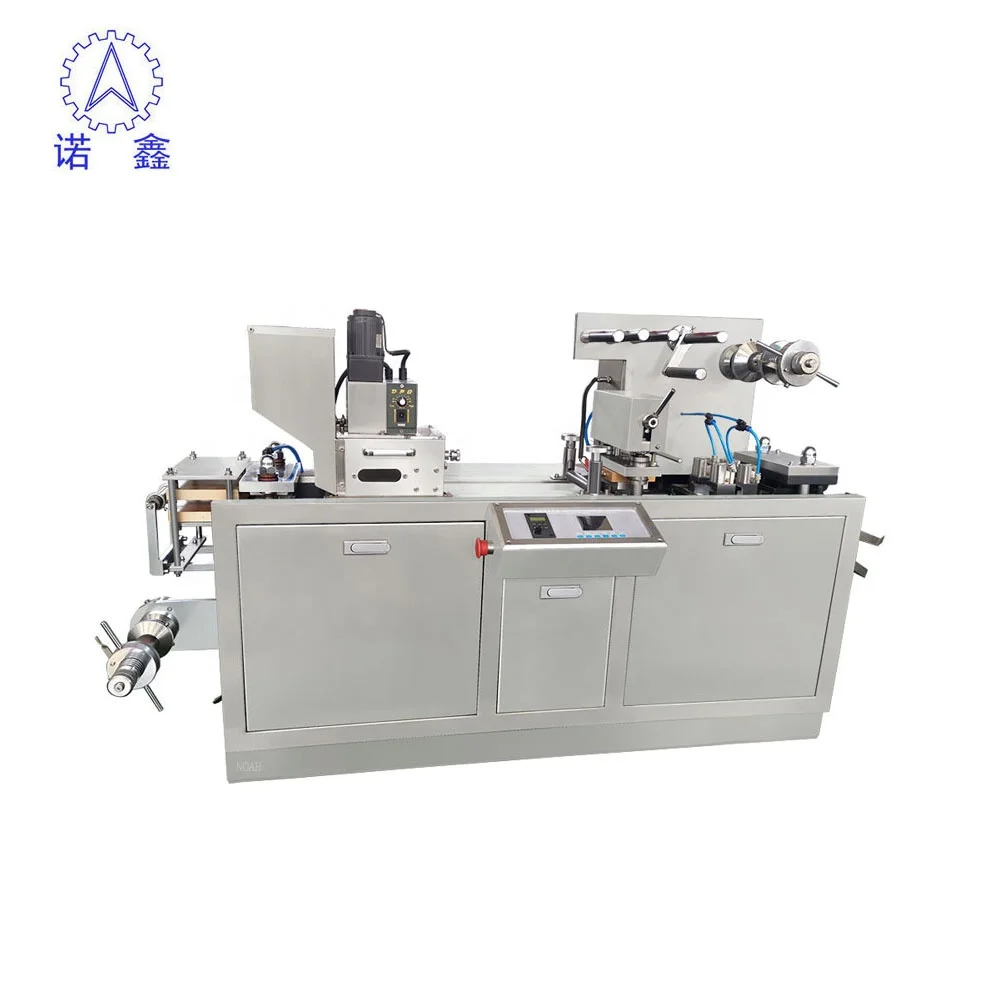

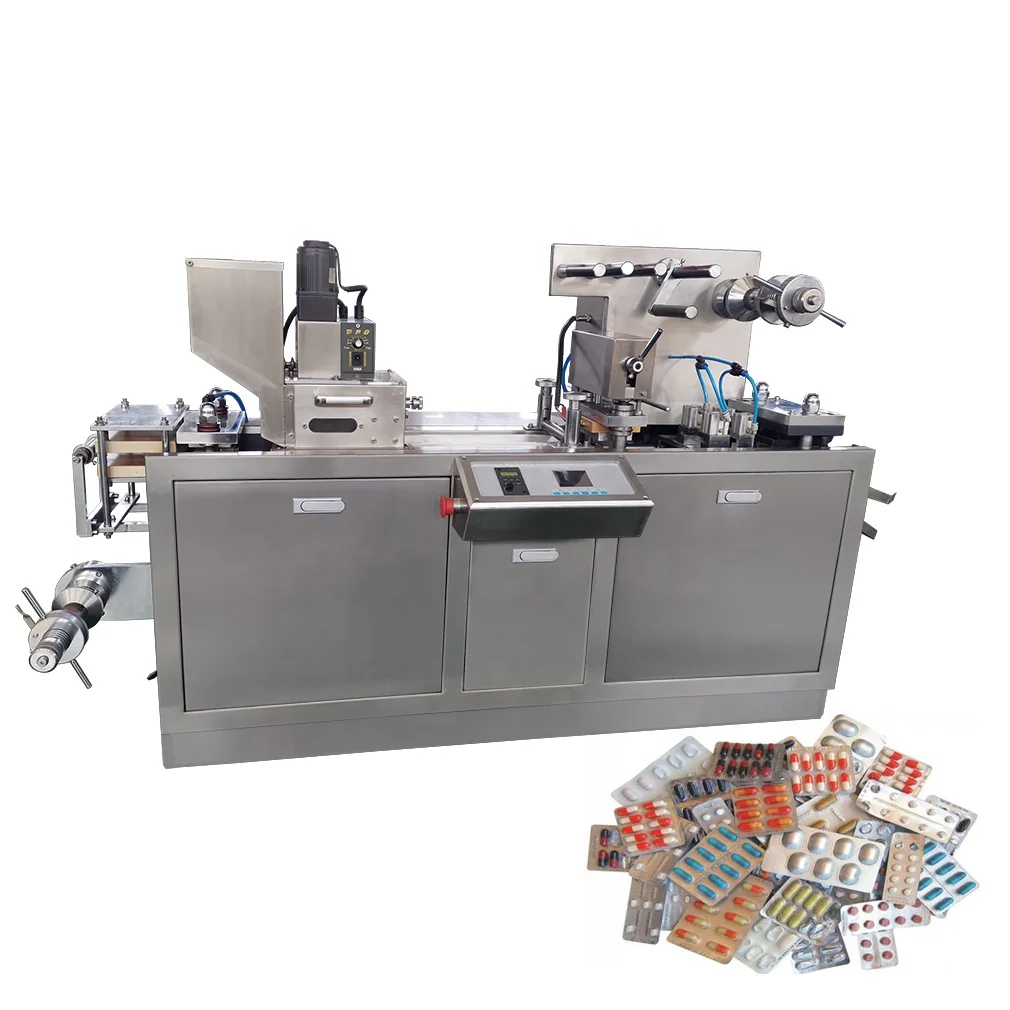

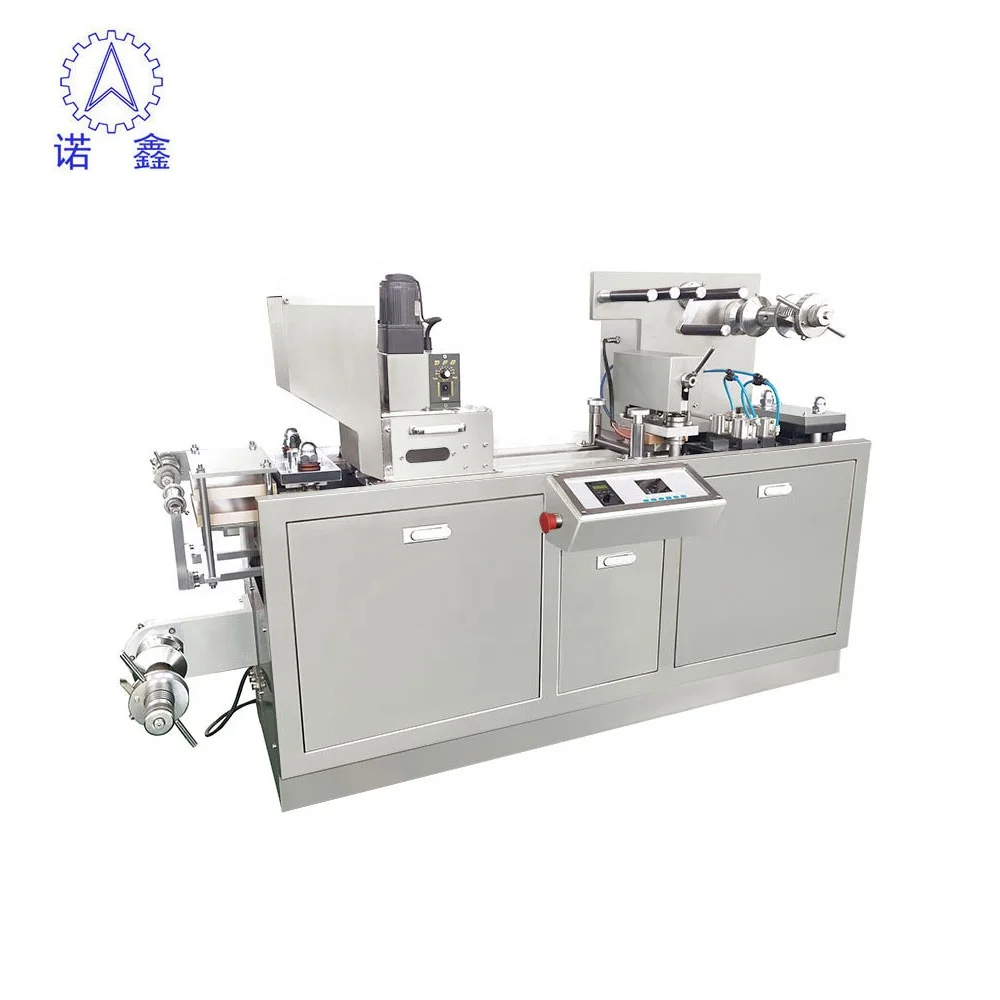

Detailed Images




Packing & Delivery




Our Advantages

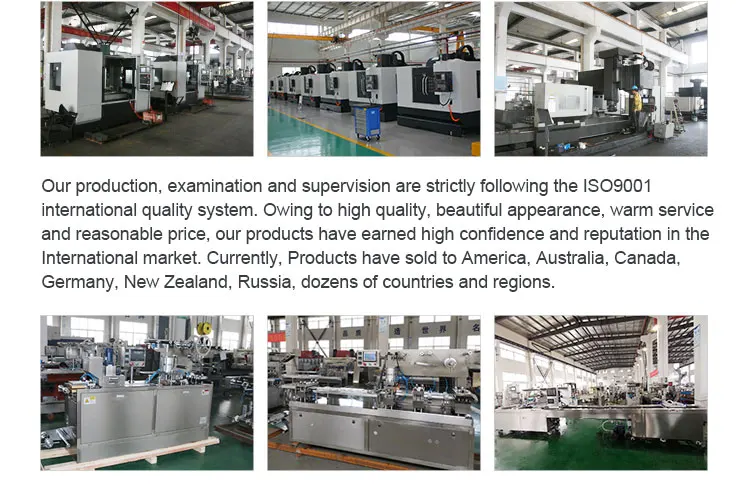

Our Company






Customer Photos
