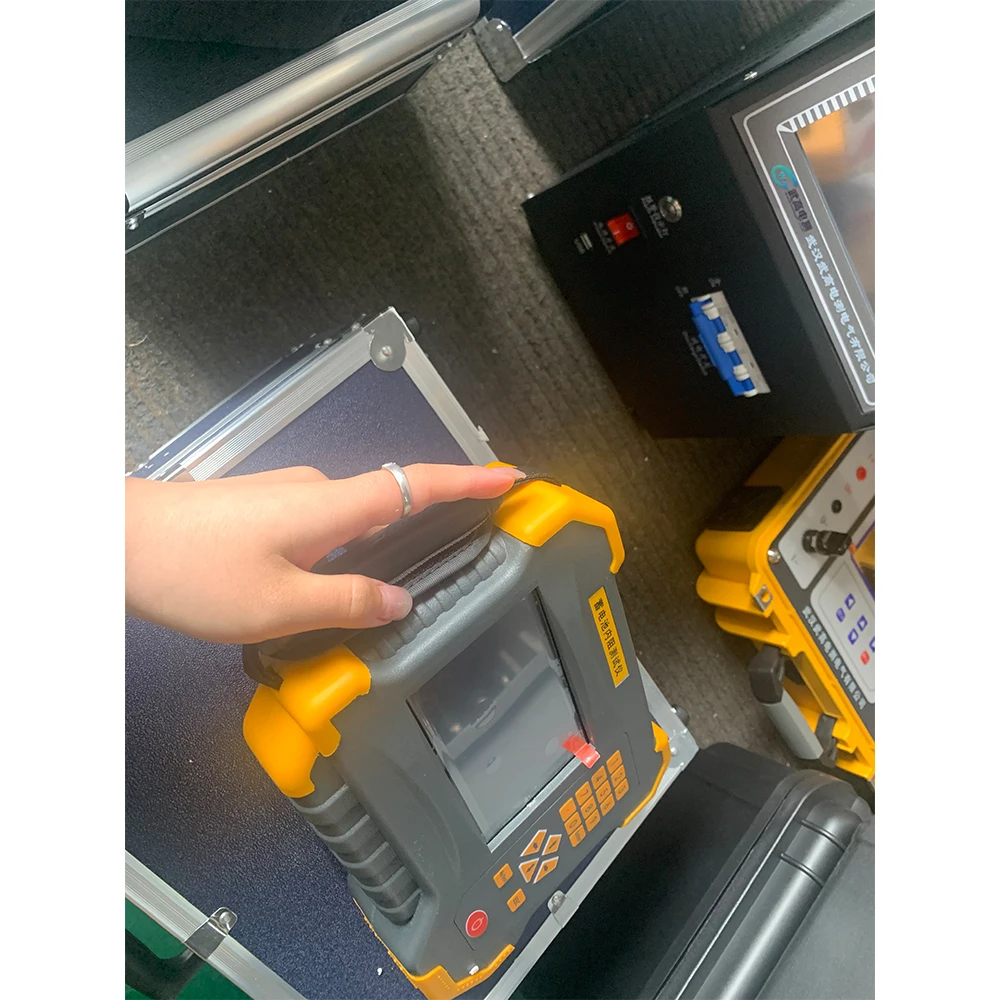

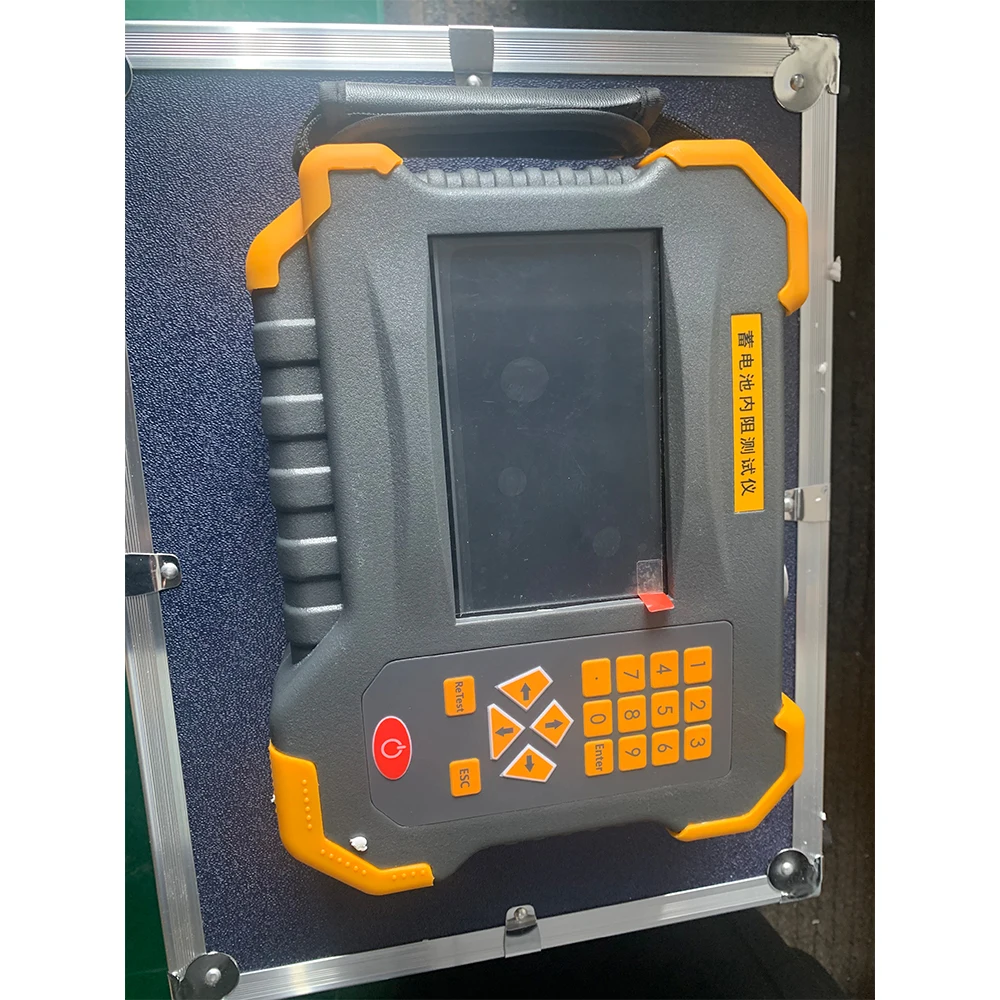

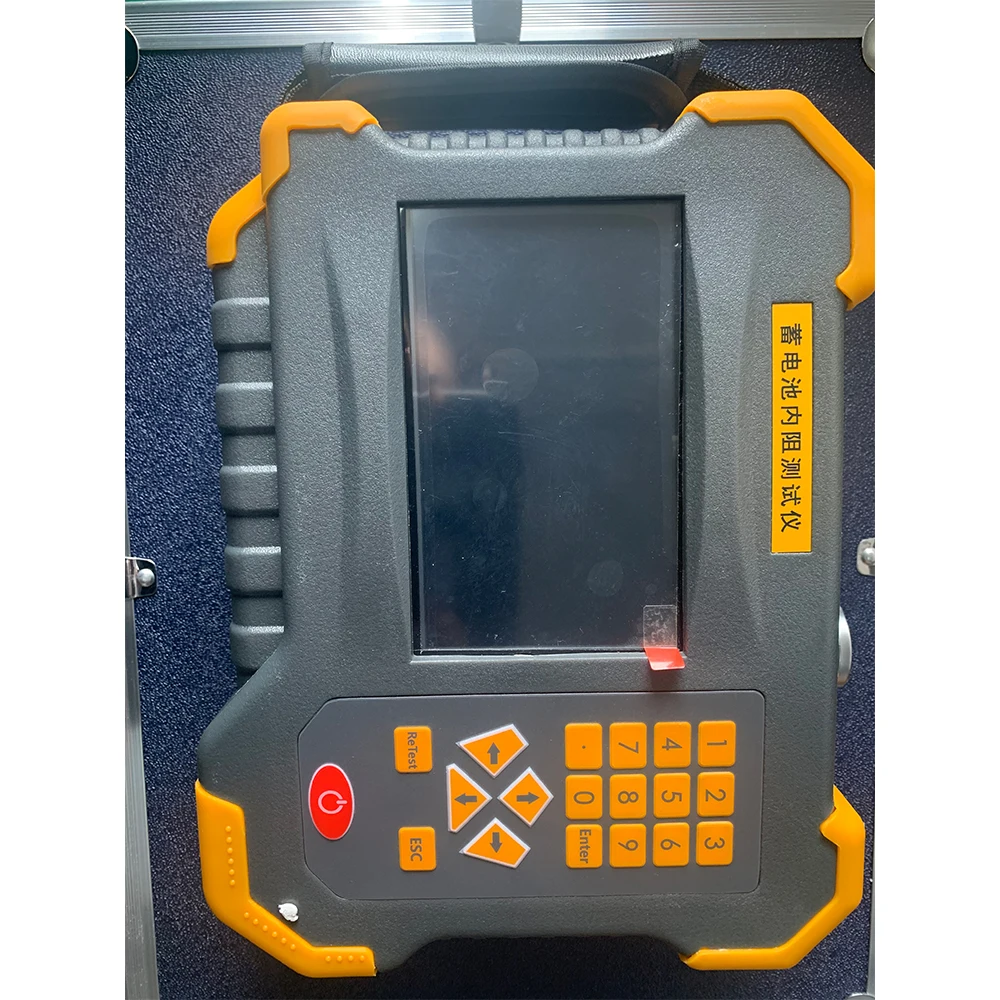

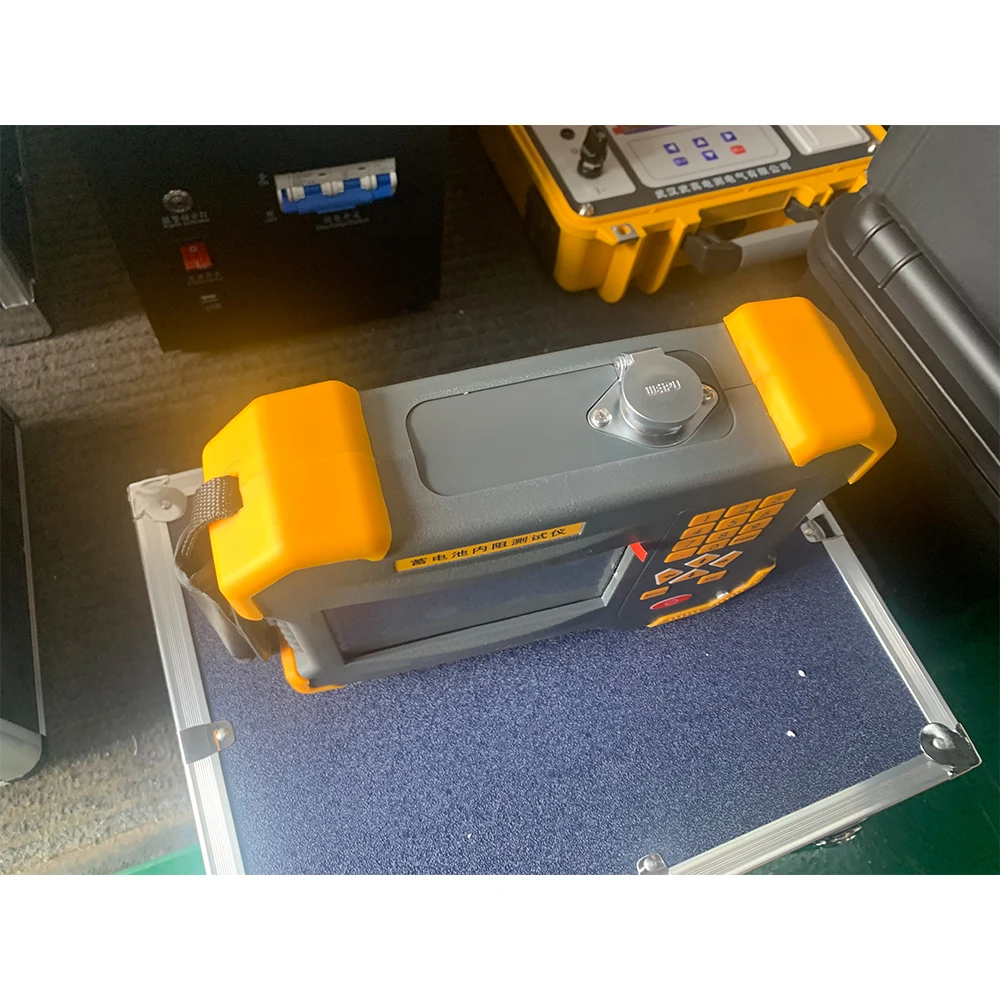

WD 6650 Battery internal resistance tester Internal Resistance Test Meter Electric high precision battery impedance test
- Category: >>>
- Supplier: Wuhan Wugao Electric Measurement Co. Ltd.
Share on (1600612400396):
Product Overview
Description
Product Overview
WD-6650 digital Battery internal resistance tester Internal Resistance Test Meter Electric high precision battery impedance test
Battery internal resistance tester is a digital storage type portable testing instrument which can quickly and accurately measure the operating parameters of battery. The instrument through online testing, and can display and record multiple sets of battery voltage, conductivity, article connection resistance and other important parameters, accurately and effectively discriminant battery is good condition, and with the computer and battery data analysis software together form the set of intelligent test equipment, further tracking decay trend of battery, and early warning, to facilitate engineering technical and management personnel, as appropriate.
Products Description
Main features
1. High-precision online testing, automatic range conversion, large capacity data storage.
2. The instrument automatically changes the measuring range from 0.000 to 19990S.
3. Permanently stores 999 battery groups (each group contains a maximum of 999 batteries). Permanently stores 500 battery string Settings.
4. Battery capacity test range :5AH to 6000AH.
5.5-inch color touch LCD screen, Chinese modular operation, every step has Chinese prompts, man-machine dialogue interface is very good.
6. The instrument itself has chart display and histogram analysis function.
7. The instrument itself has capacity analysis function, can carry out excellent, good, poor battery analysis.
8. The instrument has oscilloscope function: it can display the highest and lowest voltage and average voltage of the battery in real time and calculate voltage ripple.
9. Through SD interface, the test data will be permanently stored on the PC, to achieve battery "medical record" tracking
analysis.
10. Powerful data management function, so that the instrument can be used independently from the computer.
11. Enhanced over voltage protection function, make the instrument work more safe and reliable.
12. Self-recovery over current protection function, make the instrument more convenient to use.
13. Using the latest SOC chip, the circuit is greatly simplified and the reliability of the instrument is improved.
14. Large capacity lithium battery and adapter two sets of power supply, convenient user.
15. Intelligent reminder of battery undervoltage to ensure test accuracy.
16. Small size and light weight.
1. High-precision online testing, automatic range conversion, large capacity data storage.
2. The instrument automatically changes the measuring range from 0.000 to 19990S.
3. Permanently stores 999 battery groups (each group contains a maximum of 999 batteries). Permanently stores 500 battery string Settings.
4. Battery capacity test range :5AH to 6000AH.
5.5-inch color touch LCD screen, Chinese modular operation, every step has Chinese prompts, man-machine dialogue interface is very good.
6. The instrument itself has chart display and histogram analysis function.
7. The instrument itself has capacity analysis function, can carry out excellent, good, poor battery analysis.
8. The instrument has oscilloscope function: it can display the highest and lowest voltage and average voltage of the battery in real time and calculate voltage ripple.
9. Through SD interface, the test data will be permanently stored on the PC, to achieve battery "medical record" tracking
analysis.
10. Powerful data management function, so that the instrument can be used independently from the computer.
11. Enhanced over voltage protection function, make the instrument work more safe and reliable.
12. Self-recovery over current protection function, make the instrument more convenient to use.
13. Using the latest SOC chip, the circuit is greatly simplified and the reliability of the instrument is improved.
14. Large capacity lithium battery and adapter two sets of power supply, convenient user.
15. Intelligent reminder of battery undervoltage to ensure test accuracy.
16. Small size and light weight.
Product Paramenters
Measuring range | Internal resistance: 0.000mΩ-99.999mΩ voltage: 0.000v--25v |
Minimum measurement resolution | conduction： 1S voltage：1mV |
Measurement accuracy | conduction: ±0.5%rdg ±6dgt Voltage: ±0.2%rdg ±6dgt |
Power supply | 11.1V, 2400mAh, * Li-On rechargeable |
Power Consumption | Can work continuously for 8 hours |
Memory capacity | 64Mbit Flash+4G 8G SD card |
Display | 5 inch color touch screen |
dimension | 220 x 170 x 52mm |
weight | 1.1Kg |
