Plastic PVC Window Profile Ceiling Panel/Door Board/Flooring Siding/Edge Banding/Corner Bead Extruder Production Line
- Category: >>>
- Supplier: Xingya (suzhou) Intelligent Equipment Manufacturing Co. Ltd.
Share on (1600612436416):
Product Overview
Description
Products Description

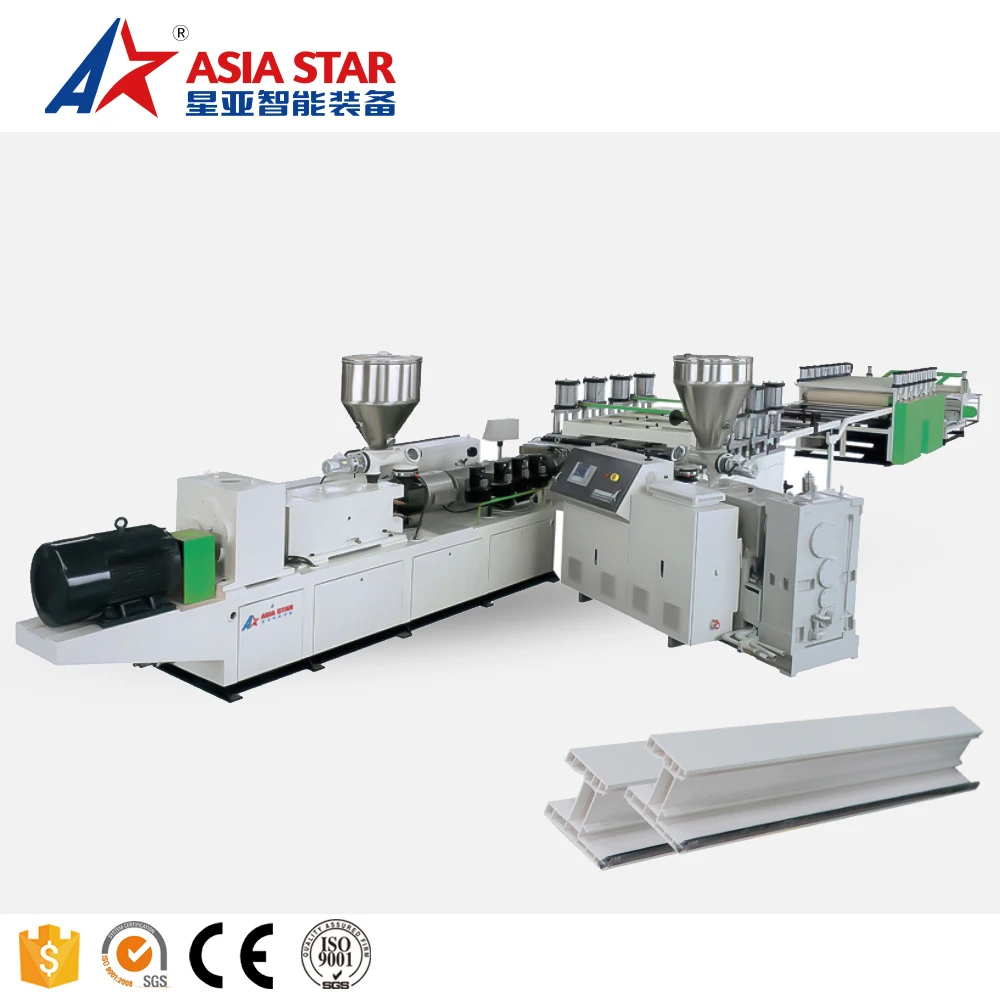

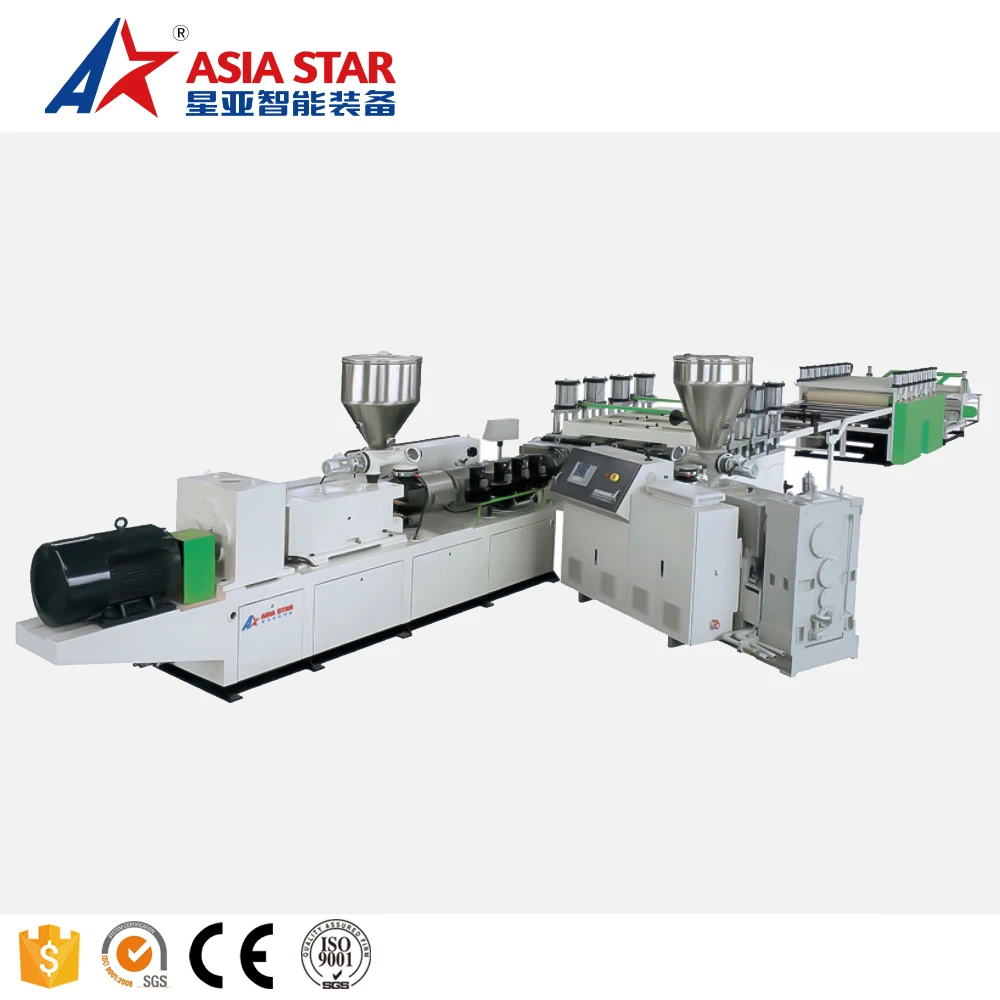

PVC/WPC/PP/PE Profile Production Line
YF Series PVC profile production line is mainly used in PVC door & window profile,wide door plate,window plate, extrusion of multi-holes pipe for passing through lines (four holes,six holes,seven holes,nine holes etc.) For different sectional surface and molds different specifications of twin parallel (conical) screws extruder can be chosen together with corresponding vacuum calibrating table,haul-off unit,cutting unit,tilter,etc.

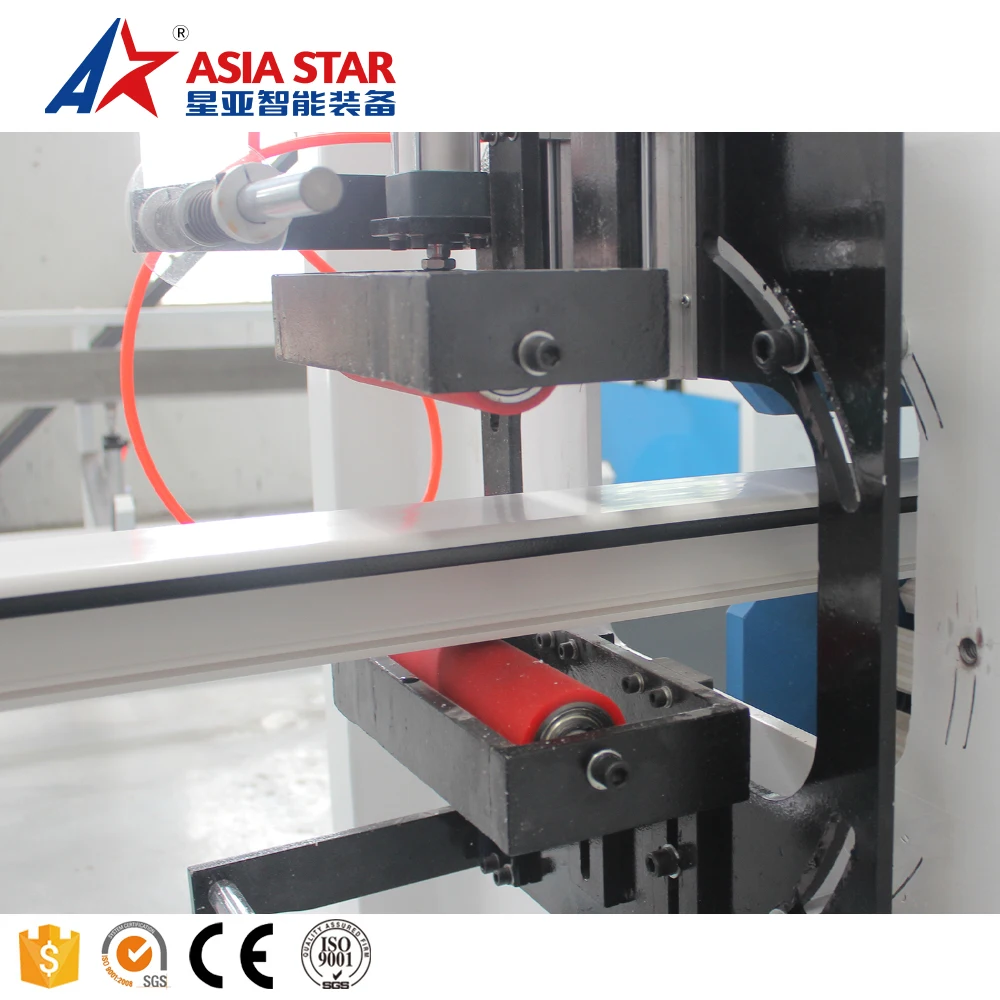

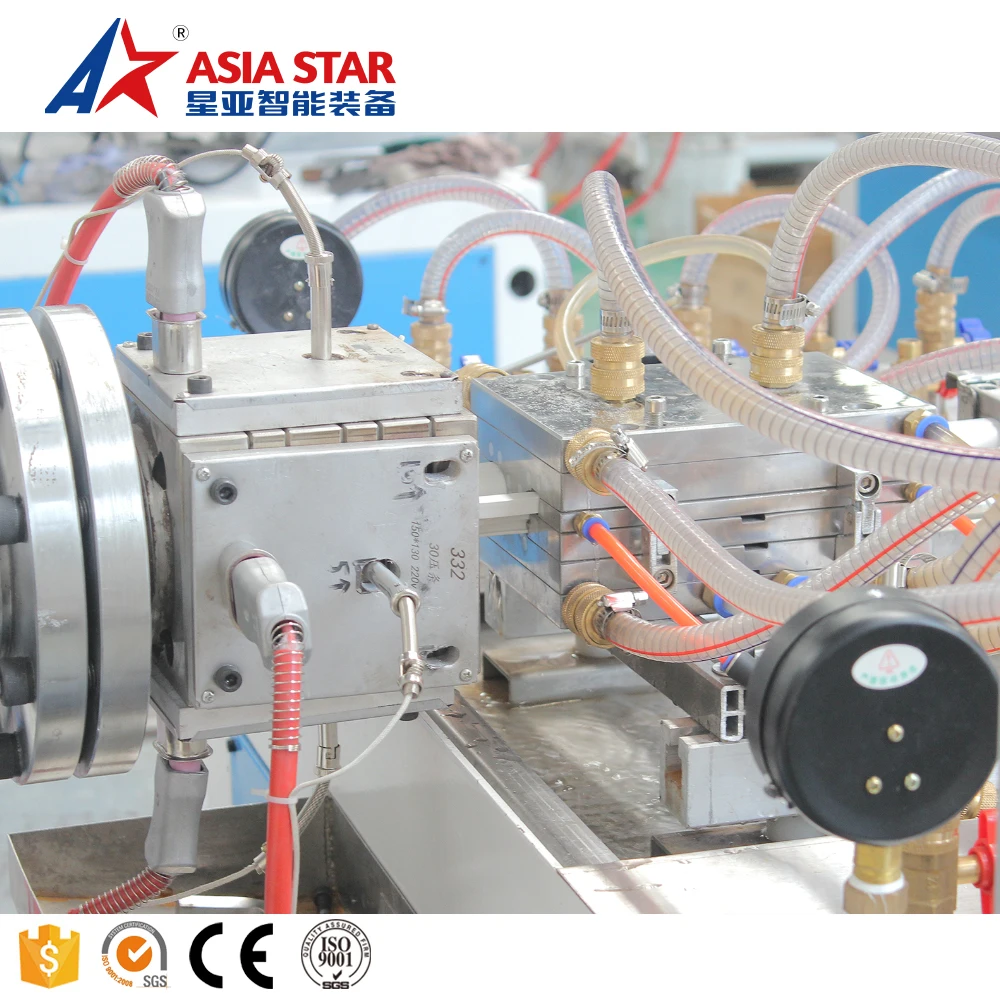

Capacity of extruder can be optionally chosen from 60-700kg/h.The haul-off unit has applied unique lift technique of our co.lts work is stable,its reliability is good,its pulling force is large.Vacuum setting has applied special enlarged vortex cooling system which is good for cooling and calibrating so as to meet demand of high speed extruding.Movement speed and drawing speed of cutting machine keep synchronous .All movements are controlled by imported PLC,the design is reasonable,the operation is stable,it can conduct automatic cutting with fixed length.Power & dust suction device can be provided.With different molds,the calibration table can choose such specifications as 4-metre,6-metre, 7-metre, 11-metre, etc. With twin parallel screw extruder,it is particular suitable for high speed extruding of profile.
Capacity of extruder can be optionally chosen from 60-700kg/h.The haul-off unit has applied unique lift technique of our co.lts work is stable,its reliability is good,its pulling force is large.Vacuum setting has applied special enlarged vortex cooling system which is good for cooling and calibrating so as to meet demand of high speed extruding.Movement speed and drawing speed of cutting machine keep synchronous .All movements are controlled by imported PLC,the design is reasonable,the operation is stable,it can conduct automatic cutting with fixed length.Power & dust suction device can be provided.With different molds,the calibration table can choose such specifications as 4-metre,6-metre, 7-metre, 11-metre, etc. With twin parallel screw extruder,it is particular suitable for high speed extruding of profile.
Model | Max.width of board | Drawing height | Drawing force | Drawing speed | Auxiliary equipment sum power | Compression air |
YF180 | 180 | 140 | 15 | 0.5-5 | 18.7 | 0.6 |
YF240 | 240 | 140 | 30 | 0.5-5 | 31.6 | 0.6 |
YF400 | 400 | 140 | 30 | 0.5-5 | 31.6 | 0.6 |
YF600 | 600 | 140 | 40 | 0.5-5 | 31.6 | 0.6 |
YF800 | 800 | 140 | 50 | 0.5-5 | 31.6 | 0.6 |
YF1000 | 1000 | 140 | 50 | 0.5-5 | 37.1 | 0.6 |
Product Application

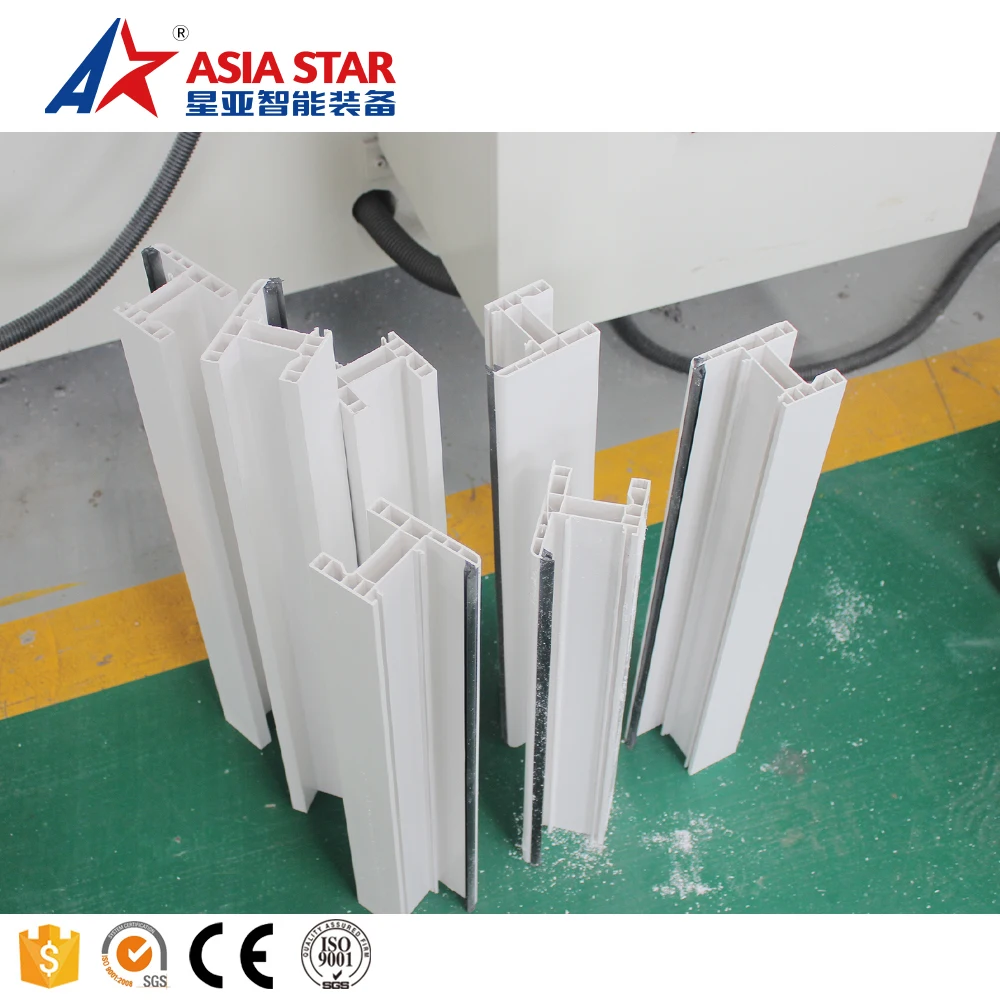

PVC/WPC/PP/PE Profile
Pvc PVC artificial marble sheet
WPC/PVC foam board
Wpc door and door frame
Main Products
Company Profile
A-Star(Suzhou) Intelligent Equipment Manufacturing Co.,Ltd.
A-Star(Suzhou) Intelligent Equipment Manufacturing Co.,Ltd. is a modern factory, which engaged in the plastic extrusion machine and recycling machines' researching, manufacturing and saling. Our professional research teams, sales teams, rich experience and processing equipment will offer customers high quality machines and perfect after sales services.
Our major products including: single screw extruder, twin screw extruder, HDPE pipe production line, PP-R pipe production line, PVC pipe production line, plastic profile production line, plastic sheet production line, plastic mixing machine, waste plastic recycling machines, plastic pelletizing machines and relative auxiliary machines for the plastic machines. We will offer the customers the whole set of solution from extrusion to recycling and turn key projects. Our machines are highly praised by our customers for perfect perfomance, quick service, advantagetechnology.
Customer's satisfied is our target forever. We will offer detail solutions according to different customers detail conditions. Customers' expected products, services is what we are always insisting. High quality, Quick services, mutually beneficial will our promise to customers around the world.
Our major products including: single screw extruder, twin screw extruder, HDPE pipe production line, PP-R pipe production line, PVC pipe production line, plastic profile production line, plastic sheet production line, plastic mixing machine, waste plastic recycling machines, plastic pelletizing machines and relative auxiliary machines for the plastic machines. We will offer the customers the whole set of solution from extrusion to recycling and turn key projects. Our machines are highly praised by our customers for perfect perfomance, quick service, advantagetechnology.
Customer's satisfied is our target forever. We will offer detail solutions according to different customers detail conditions. Customers' expected products, services is what we are always insisting. High quality, Quick services, mutually beneficial will our promise to customers around the world.
