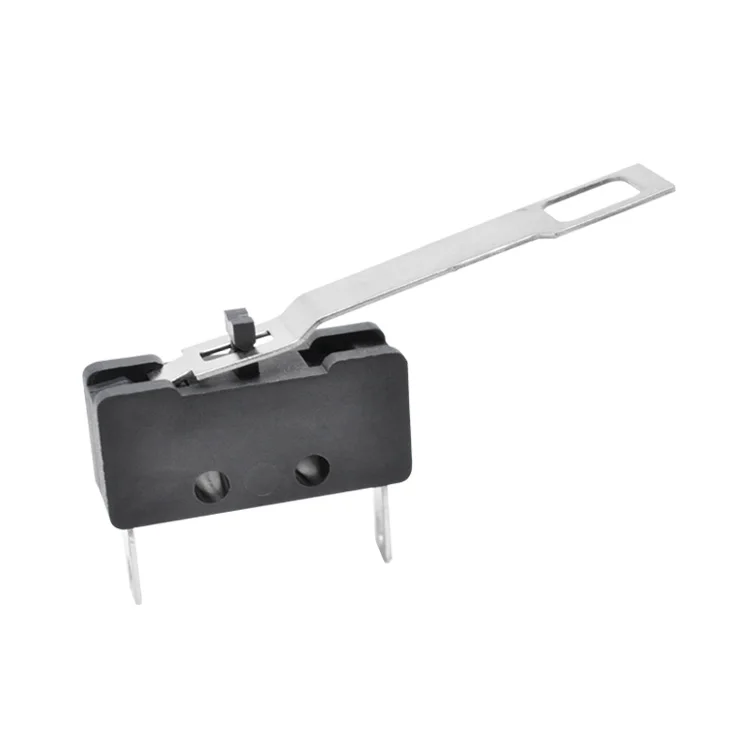

6A 125/250VAC 0.5A 125/250VDC 40t125 Condensate Pump Water Level Control Floater Activating Micro Switches
- Category: >>>
- Supplier: Huizhou Grandye Industrial Co. Ltd.
Share on (1600612489183):
Product Overview
Description
Our Advantages
1.Zing Ear factory with high standard in product quality control;
2.We are certificated by ISO9001,ISO/TS16949, ENEC, RoHS, REACH, CQC etc.
3.Our customers from all over the world, like US, UK, Japan, Germany, Argentina, Mexico, Singapore
4.One-stop Service for Customers
2.We are certificated by ISO9001,ISO/TS16949, ENEC, RoHS, REACH, CQC etc.
3.Our customers from all over the world, like US, UK, Japan, Germany, Argentina, Mexico, Singapore
4.One-stop Service for Customers
5. Free sample and datasheet are available
Products Description
Rating | 0.5A 125/250VDC; 6A 125/250VAC; 1/4HP 250VAC |
Operating Frequency | 10-30 cycles/minute(Electrical); 120 cycles/minute(Mechanical) |
Contact Resistance(Initiative) | 30 to 100mΩ Max |
Insulation Resistance (at500VDC) | 100mΩ Min |
Dielectric strength | AC 750V RMS (50-60HZ) |
Operation Temperature | -40℃~+125℃ |
Storage Humidity | 85%RH Max |
Service Life - Electrical | 100000cycles |
Service Life - Mechanical | 500000 cycles |
G6 Micro Switch Features
☑ Contact size and tight construction;
☑ Long life and high reliability with global safety approvals
☑ Double poles with DPDT and DPST-NO for options
☑ Widely used in industry control, such as the float, sewage pump, condensate pump, and so on.
☑ Long life and high reliability with global safety approvals
☑ Double poles with DPDT and DPST-NO for options
☑ Widely used in industry control, such as the float, sewage pump, condensate pump, and so on.

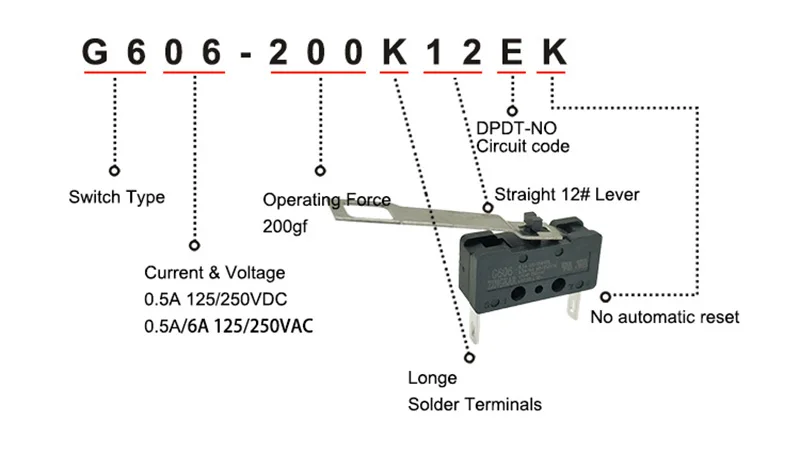

G606-200K12EK Item

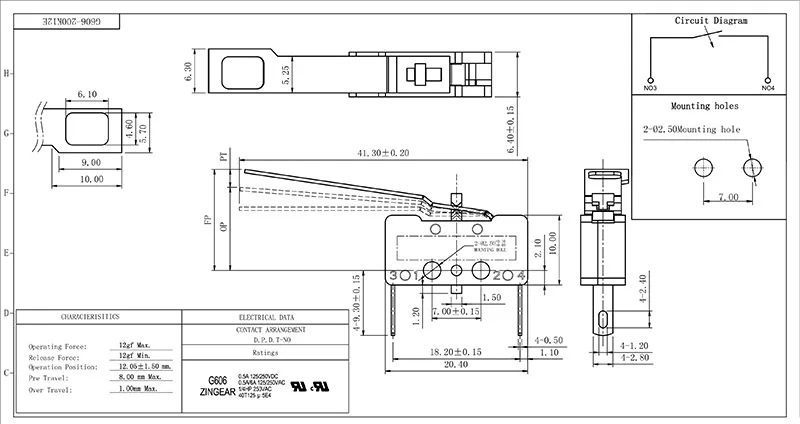

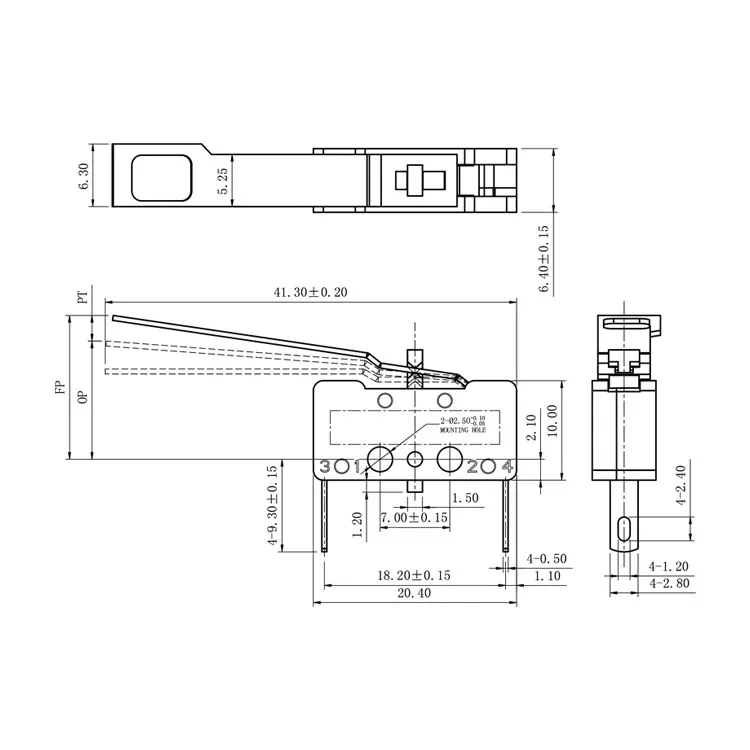

G606-200K12EK Microswitch Drawing

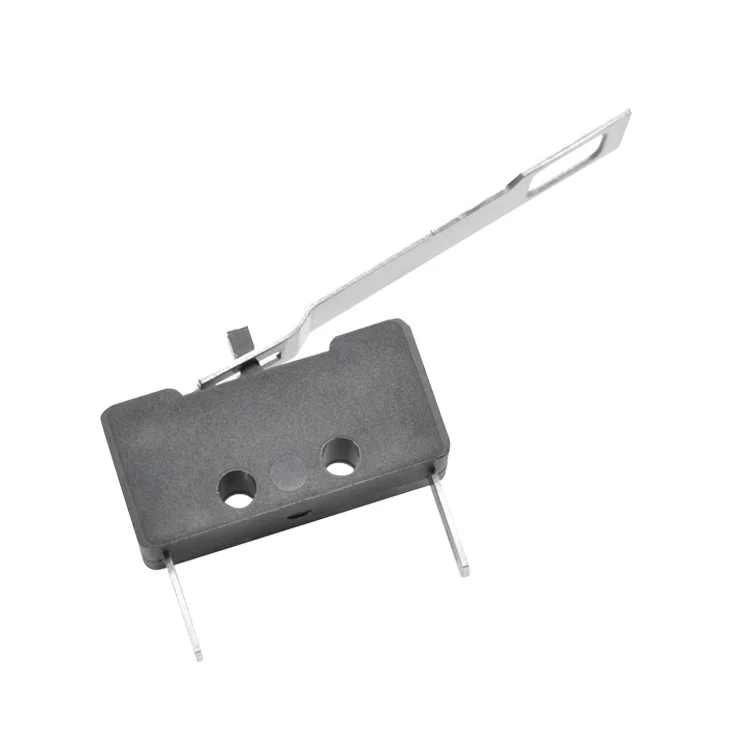

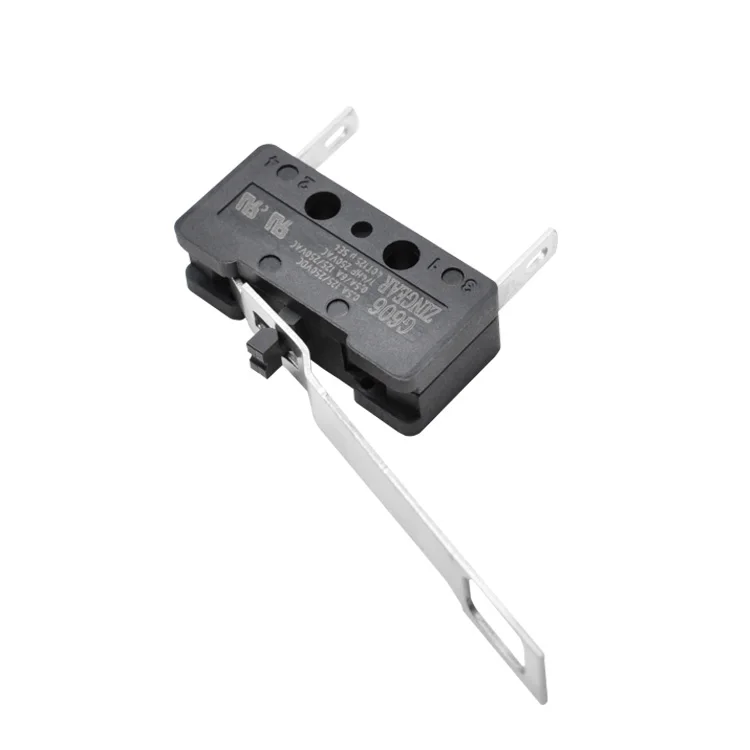

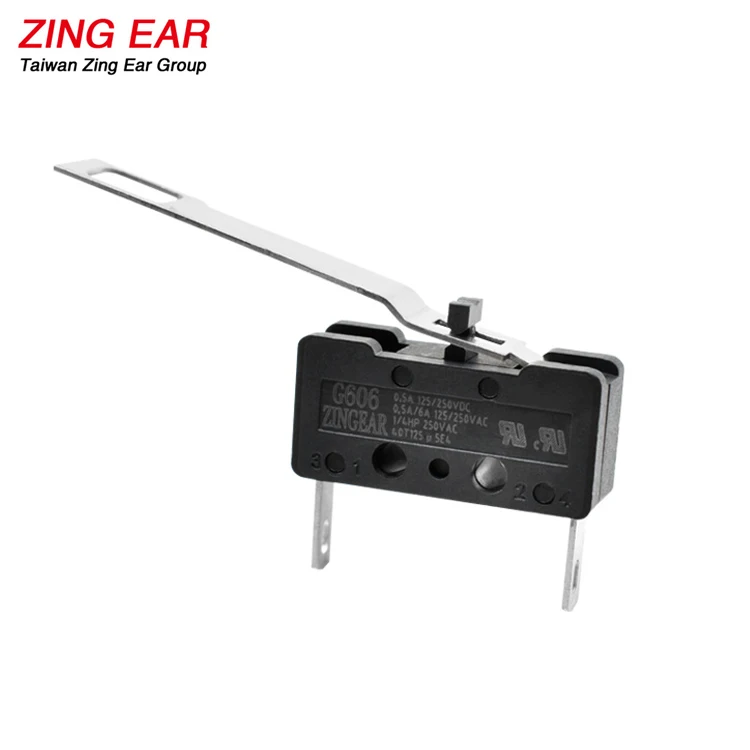

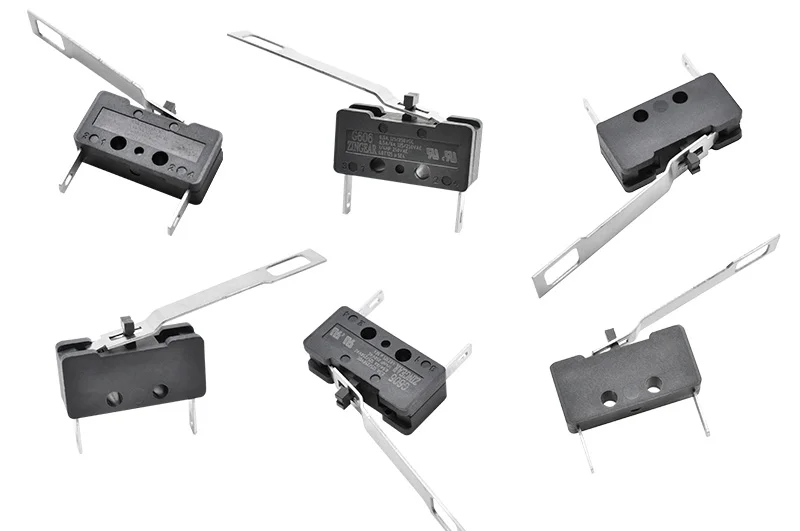

G606-200K12EK Micro Switch Pictures
