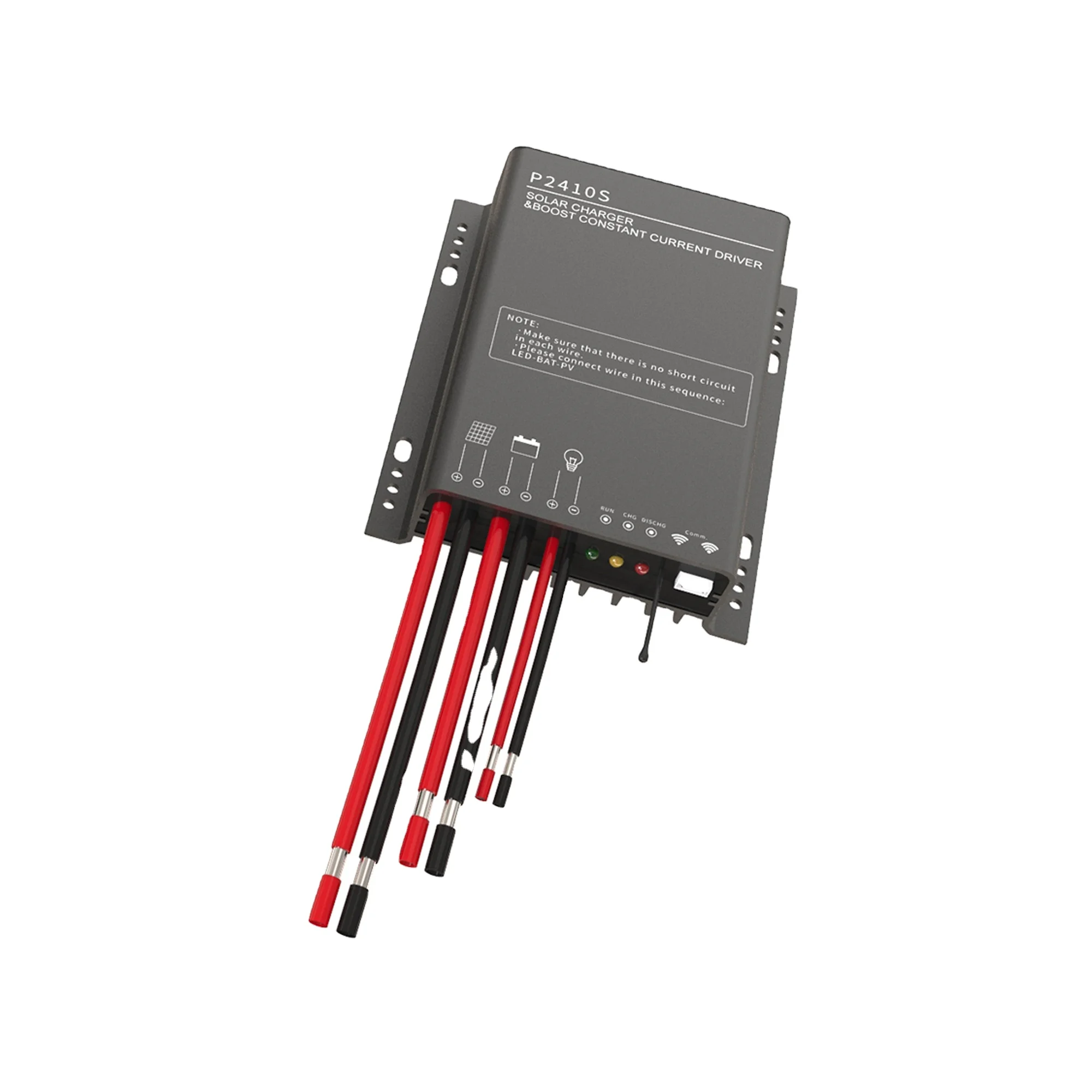

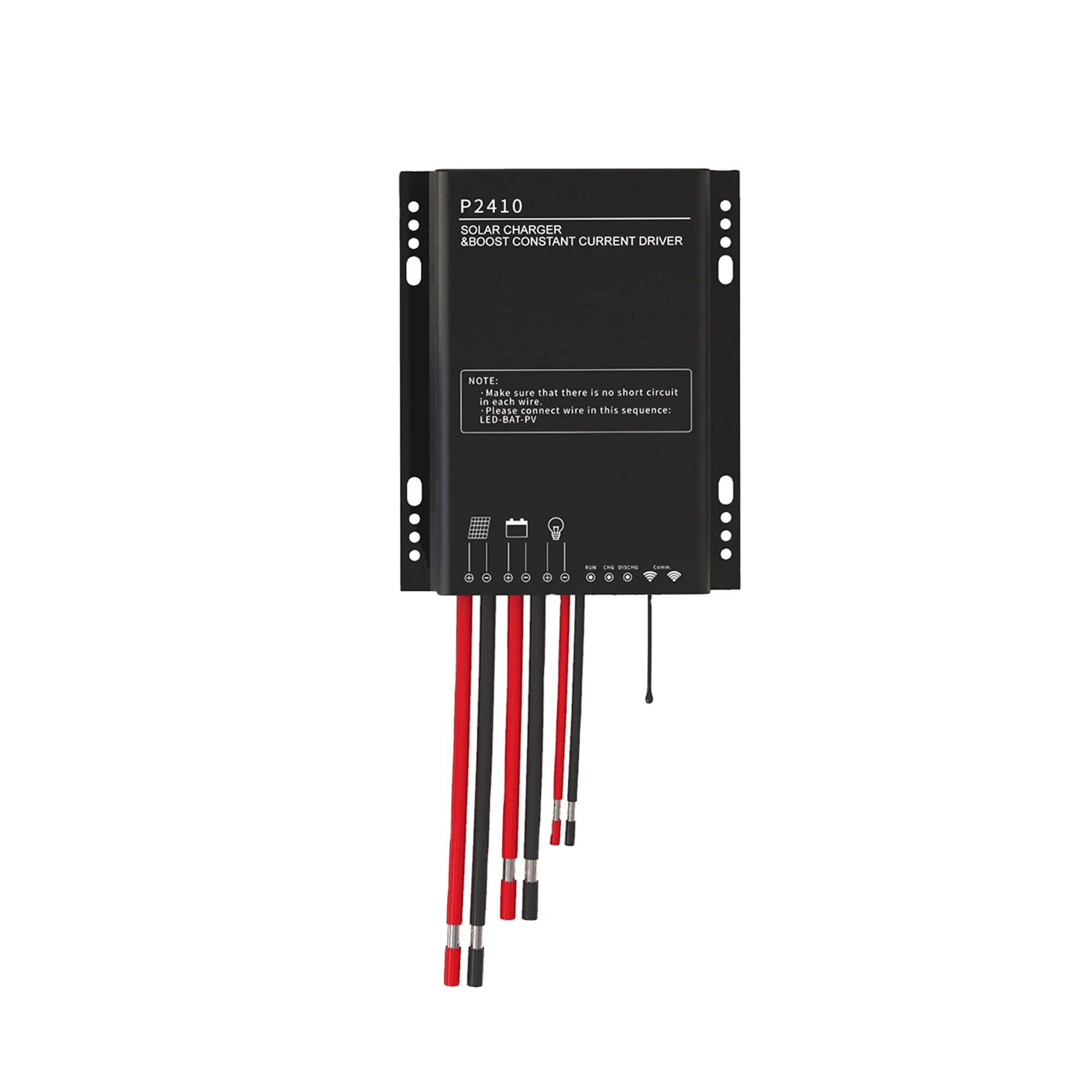

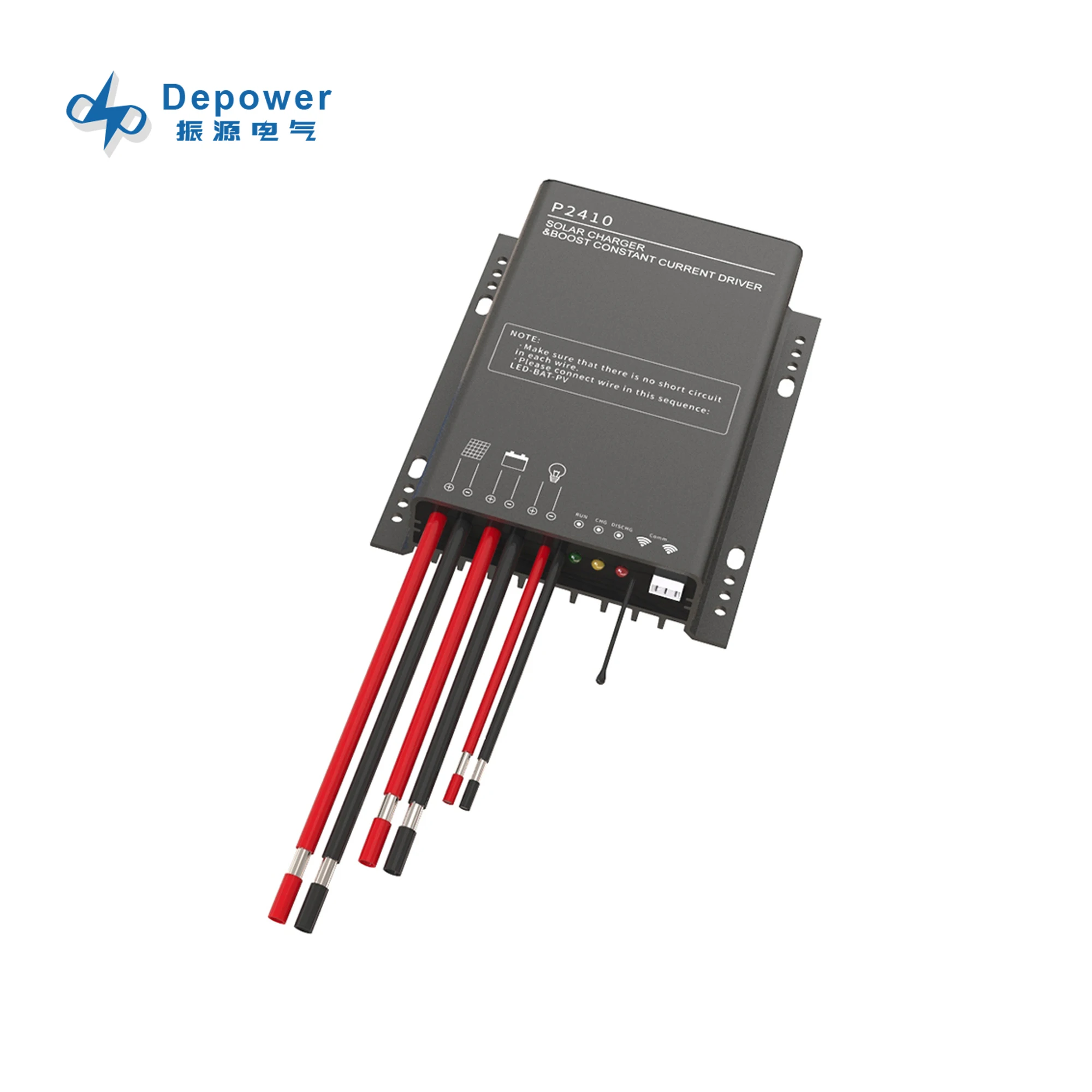

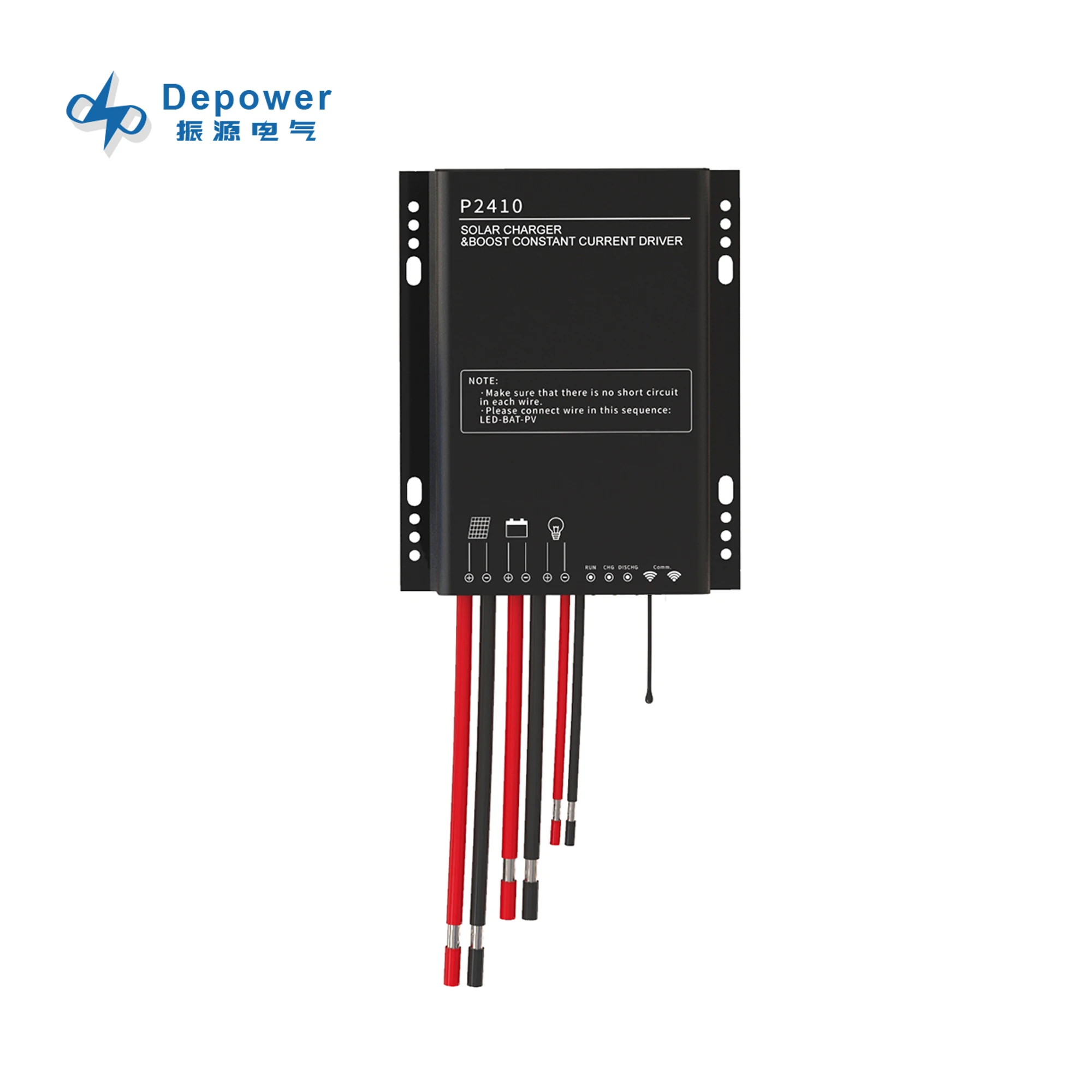

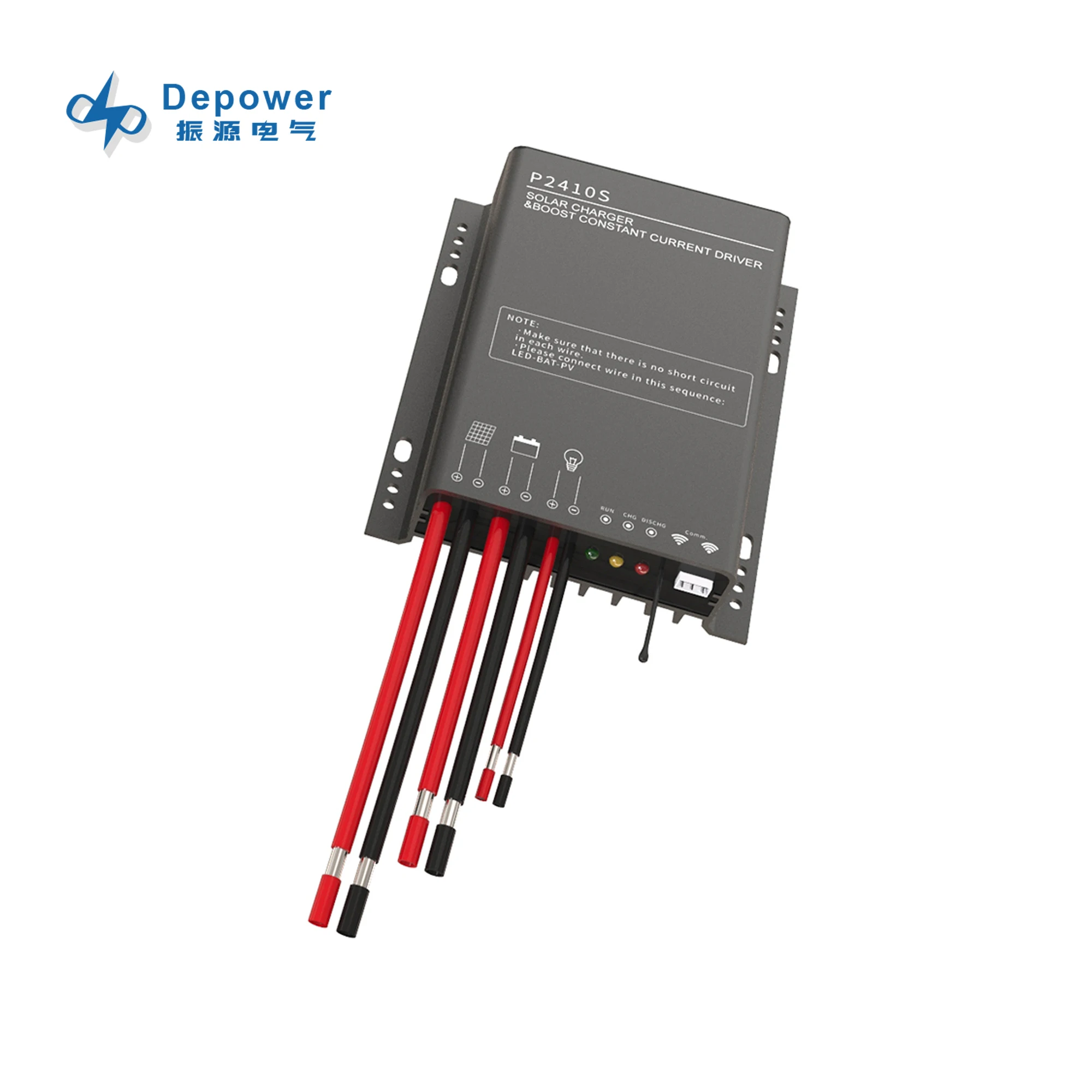

Excellent Waterproof IP68 PWM P2410 12V 24V 15A Solar Charge Controller P2410 for 30W 40W LED Solar Street Light
Excellent Waterproof IP68 PWM P2410 12V 24V 15A Solar Charge Controller P2410 for 30W 40W LED Solar Street Light
Excellent Waterproof IP68 PWM P2410 12V 24V 15A Solar Charge Controller P2410 for 30W 40W LED Solar Street Light
Excellent Waterproof IP68 PWM P2410 12V 24V 15A Solar Charge Controller P2410 for 30W 40W LED Solar Street Light
Excellent Waterproof IP68 PWM P2410 12V 24V 15A Solar Charge Controller P2410 for 30W 40W LED Solar Street Light
Excellent Waterproof IP68 PWM P2410 12V 24V 15A Solar Charge Controller P2410 for 30W 40W LED Solar Street Light
Excellent Waterproof IP68 PWM P2410 12V 24V 15A Solar Charge Controller P2410 for 30W 40W LED Solar Street Light

Excellent Waterproof IP68 PWM P2410 12V 24V 15A Solar Charge Controller P2410 for 30W 40W LED Solar Street Light

Share on (1600612508148):


Price:$18.00 - $25.00

Quantity:


Product Overview

Description



Products Description


Solar charge controller M2410(24V 10A USA Standard Wire IP68 Solar Charge Controller)Specification


Content
Model
Unit
P1240
P2410
Battery type
Lead acid battery/Lithium battery①
-
Rated system voltage
12
Lead acid(auto identified)12/24，lithium(need to be set)
V
Max. charge current
8
10
A
Charge voltage range
0～15
0～30
V
Temperature compensation coefficient
-4mV/℃/2V②
-
Max. PV input voltage
25
55
V
Solar panel Max. Power
130
160(12V)，320(24V)
W
MPPT voltage range
15≤Vmp≤25
15≤Vmp≤25(12V) 30≤Vmp≤50(24V)
V
Turn on lamp PV voltage
≤5
≤5(12V), ≤10(24V)
V
Output current range
50～4000
mA
Output voltage range
16～35
16～50V(12V)
V
32～50V(24V)
Max. output power
40
60(12V), 100(24V)
W
Output current accuracy
≤3%FS
-
Output dimming range
0～100
%
MPPT efficiency
92%-96%
%
Self consumption current
≤0.12(BT)
≤0.20(BT)；≤0.22(2.4G)
W
≤0.16(2.4G)
Communication
2.4G, Infrared
-
Operating temperature range
-35～60
℃
Relative humidity range
0～100%
RH
Max. operating altitude
3000
m
Degree of protection
IP68(1.5m,72h)
-


Product Feature-Solar charge controller of solar street lighting system
1. MPPT efficiency ≥99.9%, system power generation efficiency up to 98%, improve system efficiency and reduce system cost
2. IP68 protection level, further improve waterproof reliability
3.  Five time periods control
4. Support 2.4G wireless communication,Infrared communication
5. Battery low voltage protection


MPPT solar charge controller M2410U_G




Company Profile


Shenzhen Depowersupply Electric CO.,Ltd
Shenzhen Depowersupply Electric Co., Ltd. is committed to the application of power electronics in the new energy industry. The main products include MPPT solar charge controller, solar street light controller, solar off-grid inverter and so on. We rely on our own intellectual property and technology platforms to provide our customers with the best off-grid systems and product solutions.
Depowersupply has a highly qualified R&D team with an average age of 35 years. We have core cutting-edge power electronics platforms such as vector control technology, three-electrical level technology, LLC technology and SRC technology, and have obtained a number of national patents. Depowersupply adheres to the needs of customers and adheres to the design concept of “efficient, lightweight, reliable and easy to use” to develop products with industry-leading


Our Advantages


1. Professional design to comprehensively promote system reliability
 Use internationally well-known semiconductor devices,such as IR, TI, ST, ON and so on
 Use Industrial MCU total digital technology, without any adjustable resistance, strong anti-interference ability, no aging and drift problems
2.High MPPT efficiency
 MPPT efficiency ≥99.9%, system power generation efficiency up to 98%, improve system efficiency and reduce system cost
3.High conversion efficiency
 Charging conversion efficiency is up to 98.4%
 Driving efficiency is up to 97.4%
