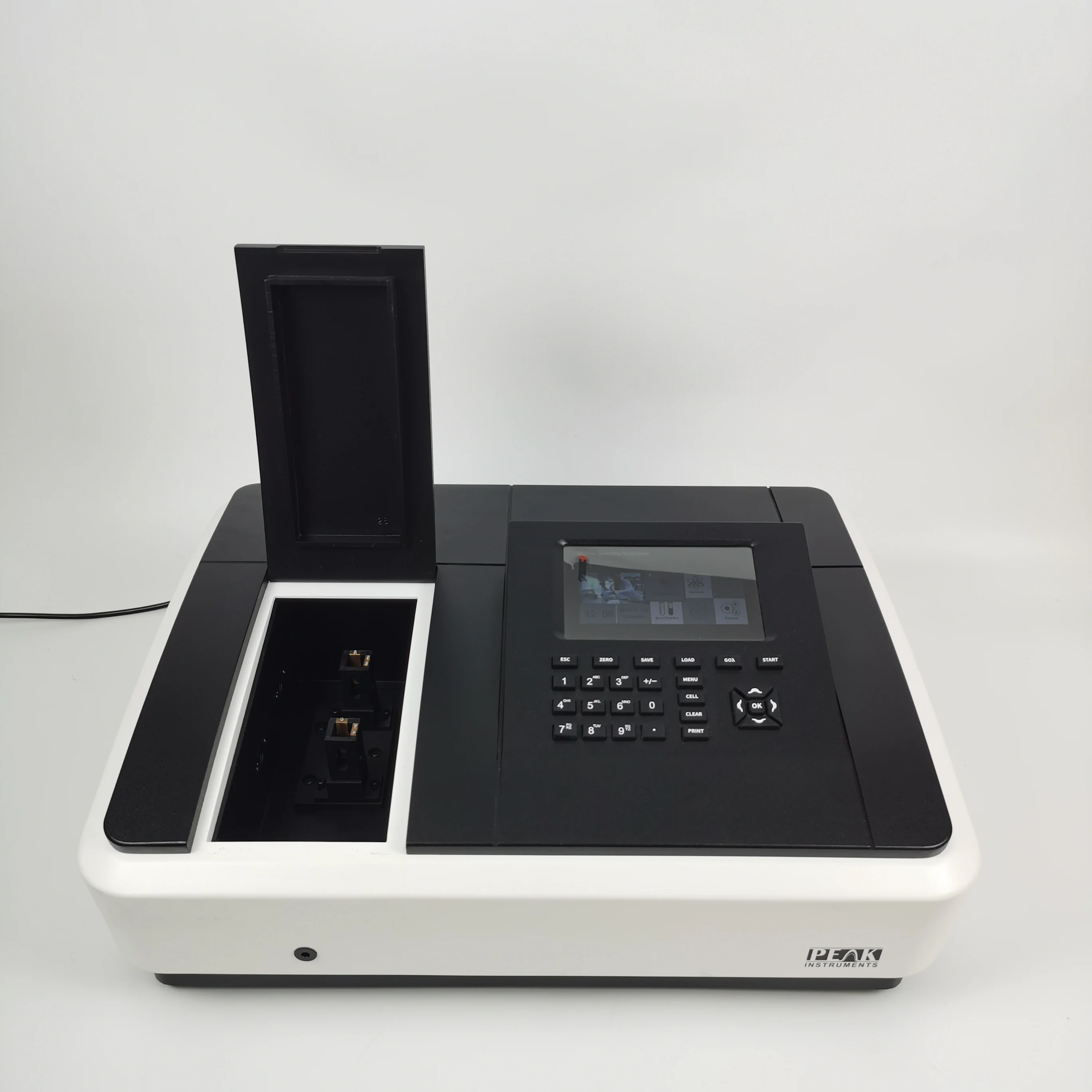

Laboratory Dual Beam 1nm Slit 190 1100nm Uv Vis Spectrophotometer
- Category: >>>
- Supplier: PEAK Instruments (Shanghai) Co. Ltd.

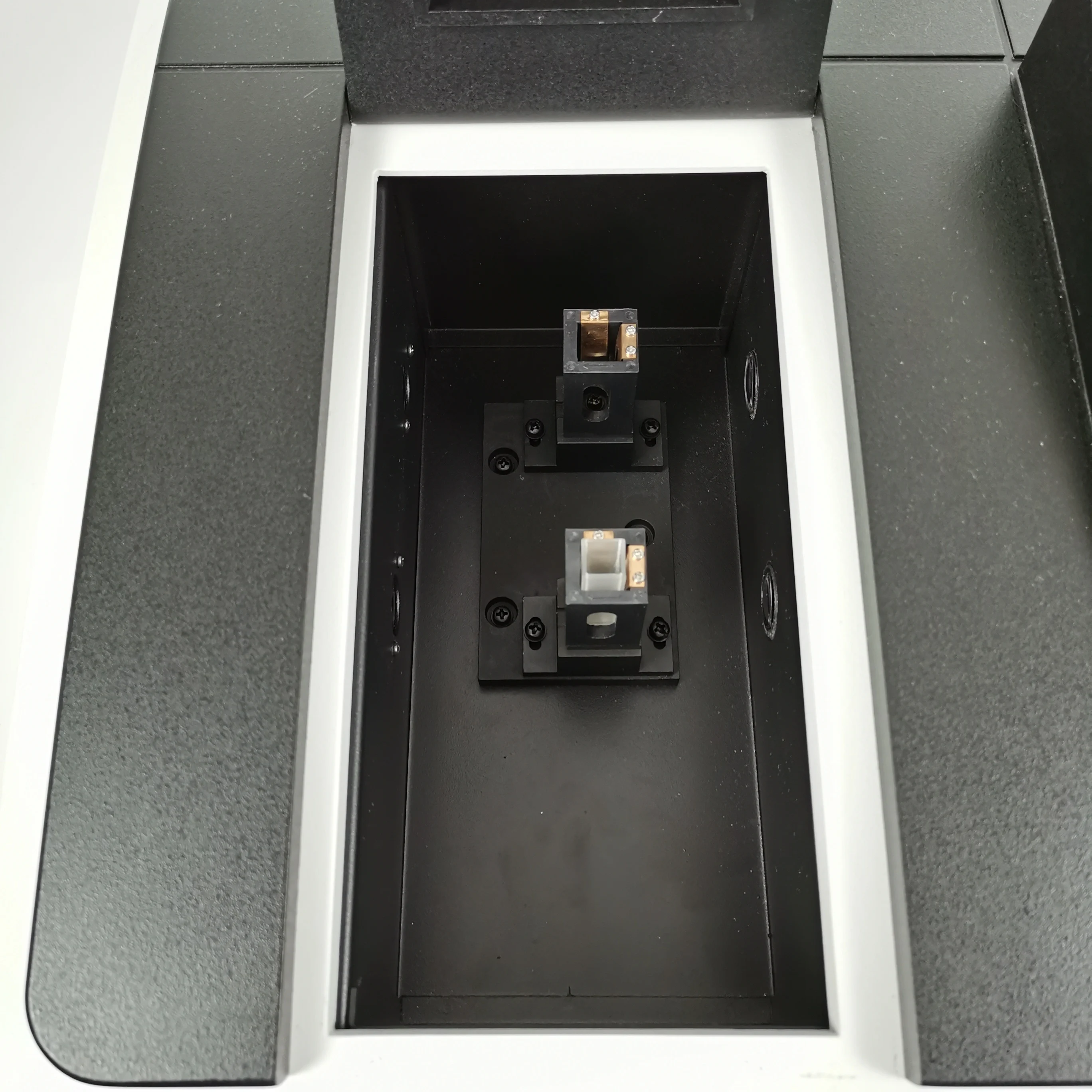

Share on (1600612552117):
Product Overview
Description
Product Description
Product Name | 1nm UV Vis double beam spectrophotometer |
Origin | China |
Brand | PEAK INSTRUMENTS |
Model | C-7200S |
Size | 61*46*24CM |
Weight | 23KG |
Focal length | null |
Wavelength range | 190-1100nm |

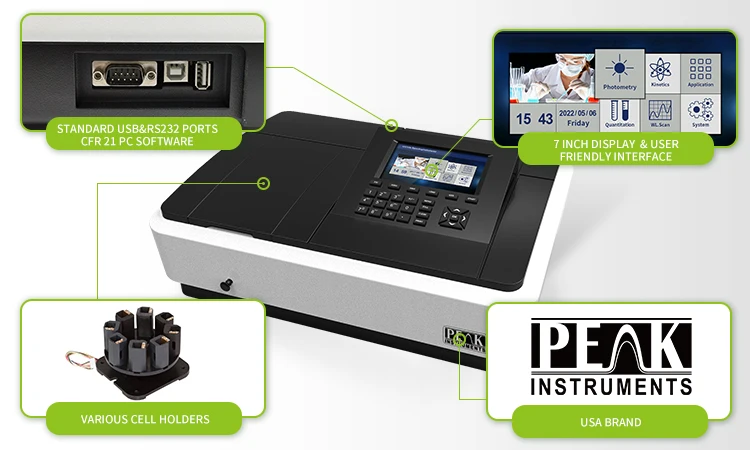

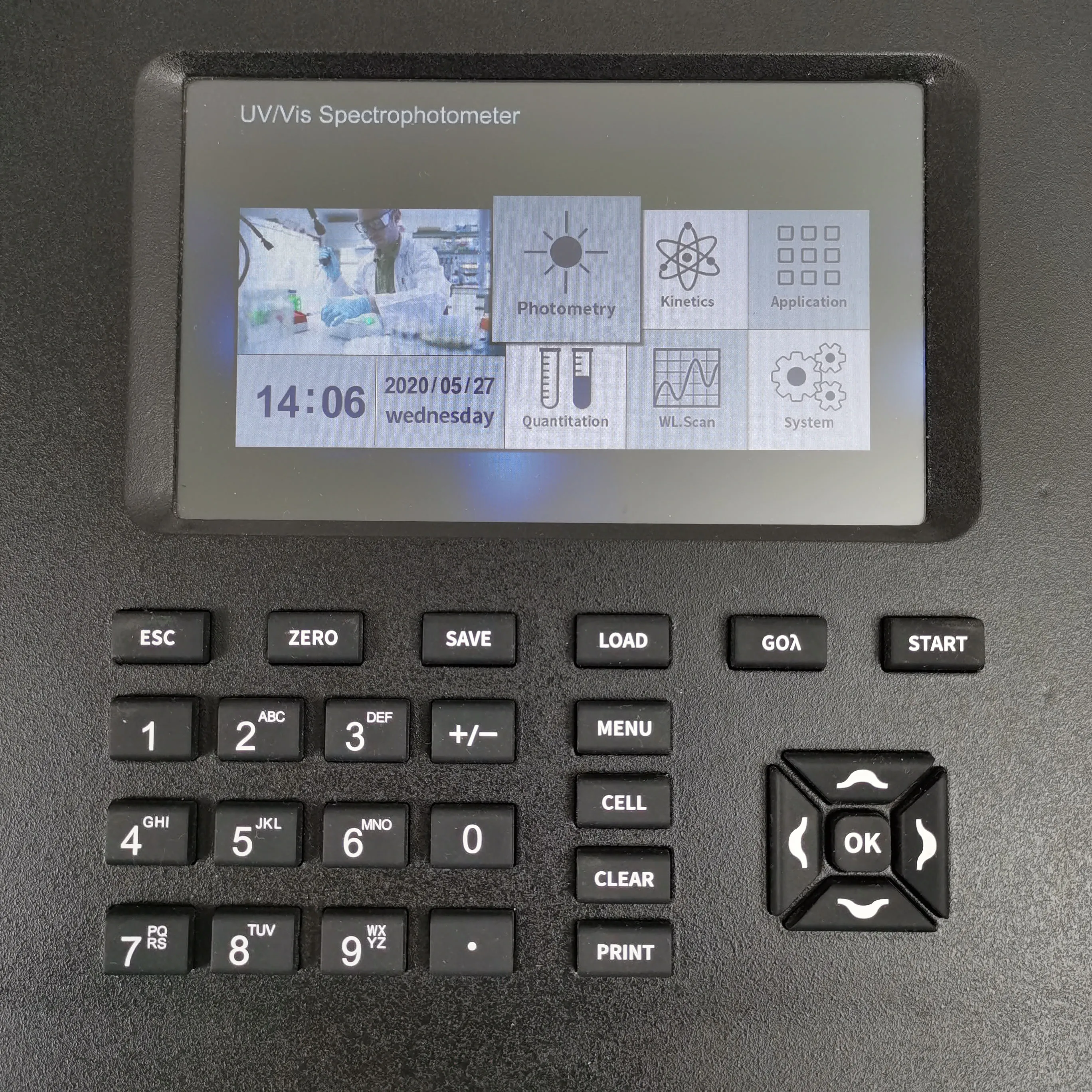

Display | 7 inch LCD screen |
Optical System | Double beam, Holographic Grating (1200 Lines/mm) |
Spectral Bandwidth | 1nm |
Wavelength Accuracy | ±0.3nm |
Wavelength Repeatability | ≤0.2nm |
Stray Light | ≤0.05%T@220, 360nm |
Baseline Flatness | ±0.002A |
Noise | 0.0003@500nm |
Detector | Solid Silicon Photodiode |
Light Source | Deuterium/Tungsten Lamp |
Product Display
Automatic 8-position holder
Tube Rack
Long path length holder

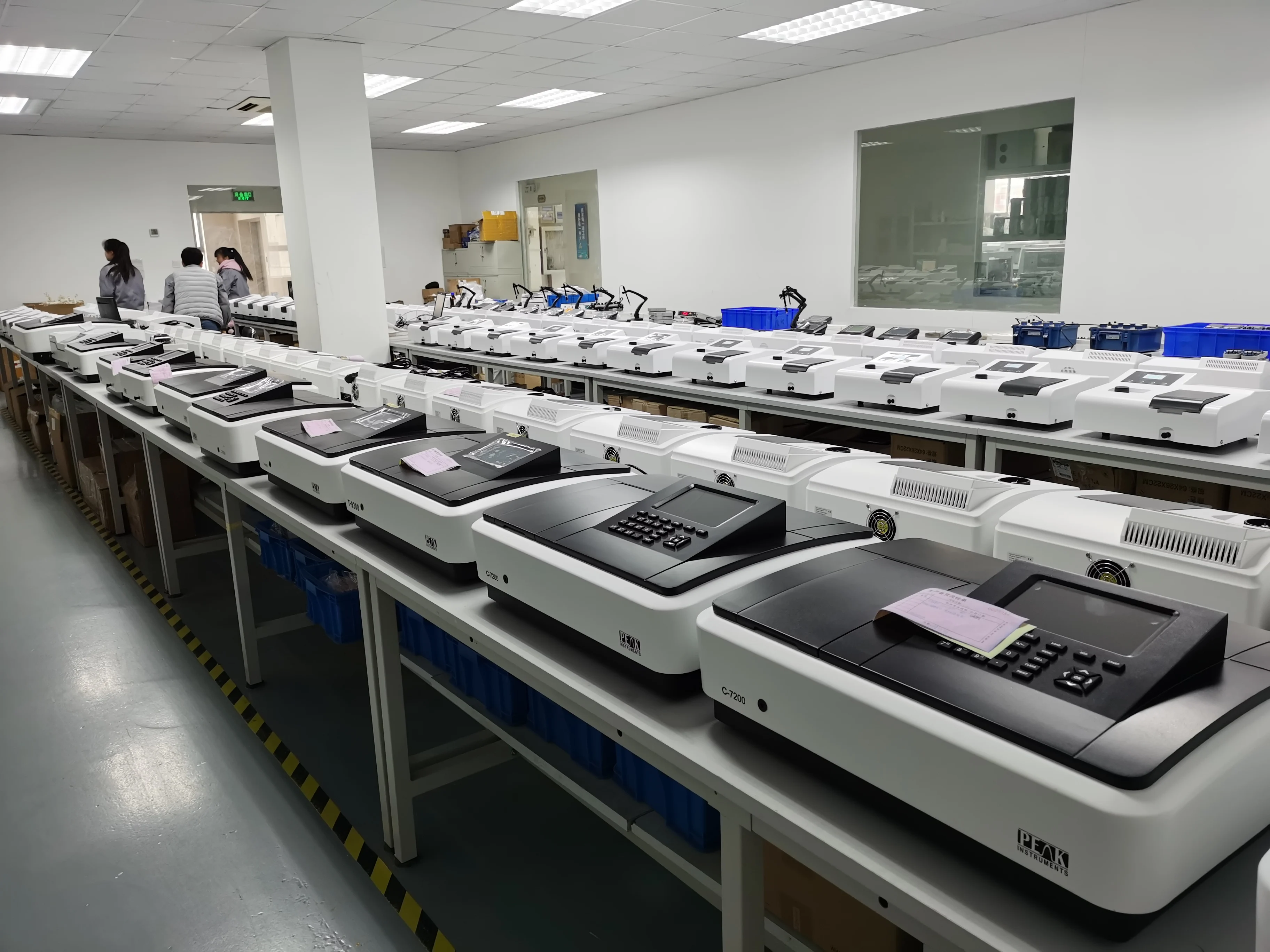

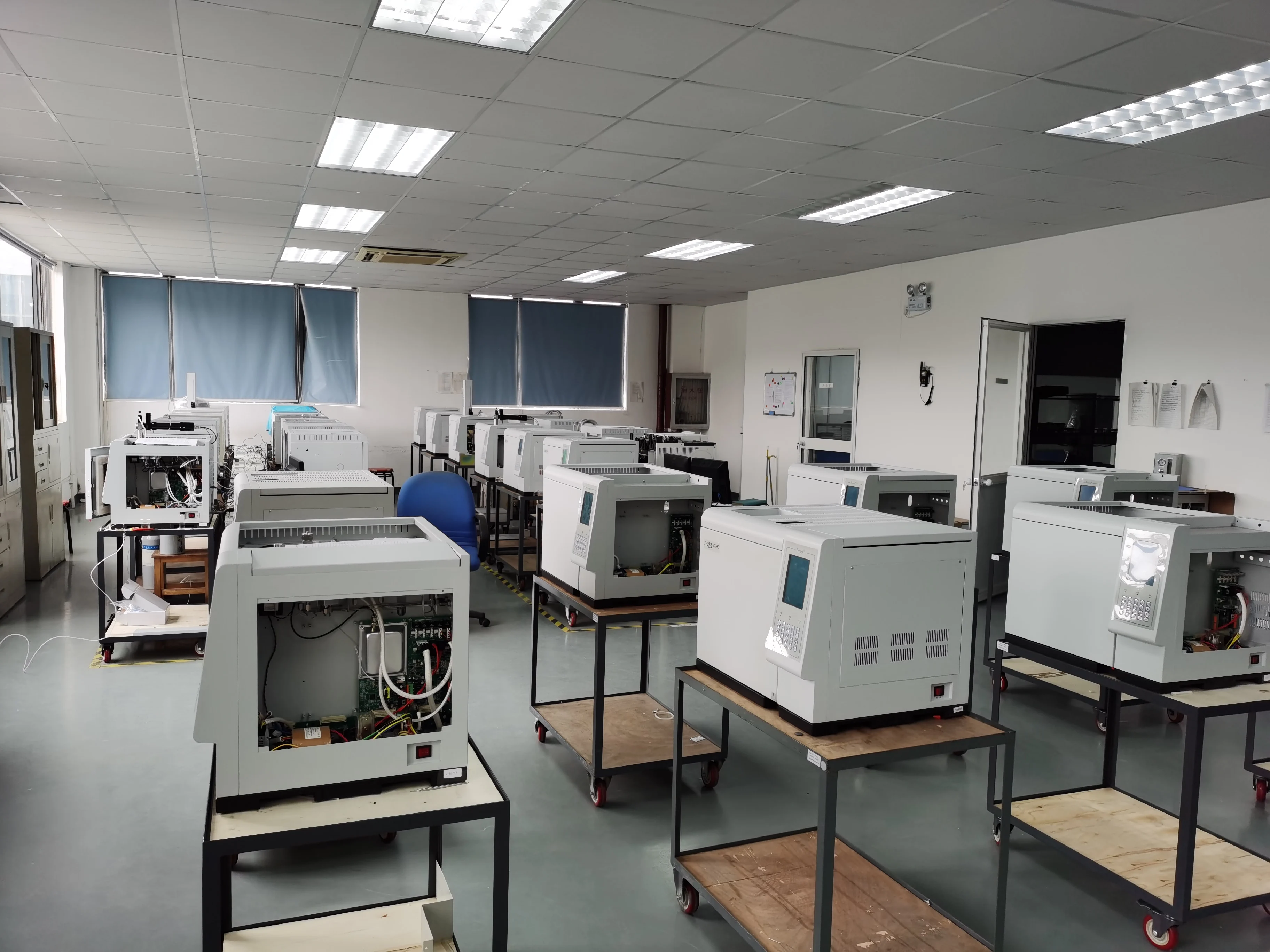

Product process

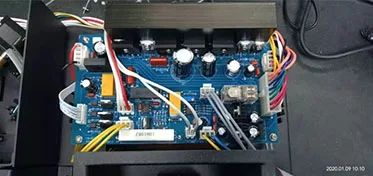

1.Install main board | 2.Connect the cables for main board | 3.Install W1 lamp and D2 lamp | 4.Assemble sample chamber and cell holder |
5.Install power board | 6.Assemble monochromator |
7.Upload software | 8.Adjust and test W1 lamp and D2 lamp | 9.System test | 10.Housing installation and final calibration |
Company Profile
PEAK Instruments is a high tech enterprise integrated with R&D, production, sales and service of spectrophotometers, pH meter, conductivity meter, DO meter, ion meter and other instruments, which have wide applications in the following areas: metallurgy, pharmacy, food, health, institutes, biological chemistry, life science, petrochemical industry, quality control, environmental protection, electrochemistry and water quality analysis, etc..
We adopt the newest microcomputer technology and electronic control system, optimize optical system and structure which can both extend new functions and ensure the accuracy, sensitivity, stability and durability. We have all kinds of spectrophotometers like UV, visible, single beam, double beam, adjustable slit, xenon and big capacitive touch screen with high resolution (1024*600) and high sensitivity.
We have professional teams for management, R&D, production, QC, sales and technical support, which make sure to provide high quality products, good prices and efficient service for our global customers. There are totally 116 employees in our company. We have obtained 46 patents and CE, ISO9001, ISO14001 certificates driven by innovation and joint efforts of all staff.
We continuously absorb new ideas, promote product quality and improve our service in accordance with the concept of Innovation, quality and service. We have steady growth and good reputation in the markets of more than 30 countries, like USA, Canada, Mexico, Argentina, Chile, Brazil, Korea, India, Thailand, Indonesia, Philippines, UAE, Turkey, Spain, Poland, Egypt, Tunisia, South Africa and Russia.
