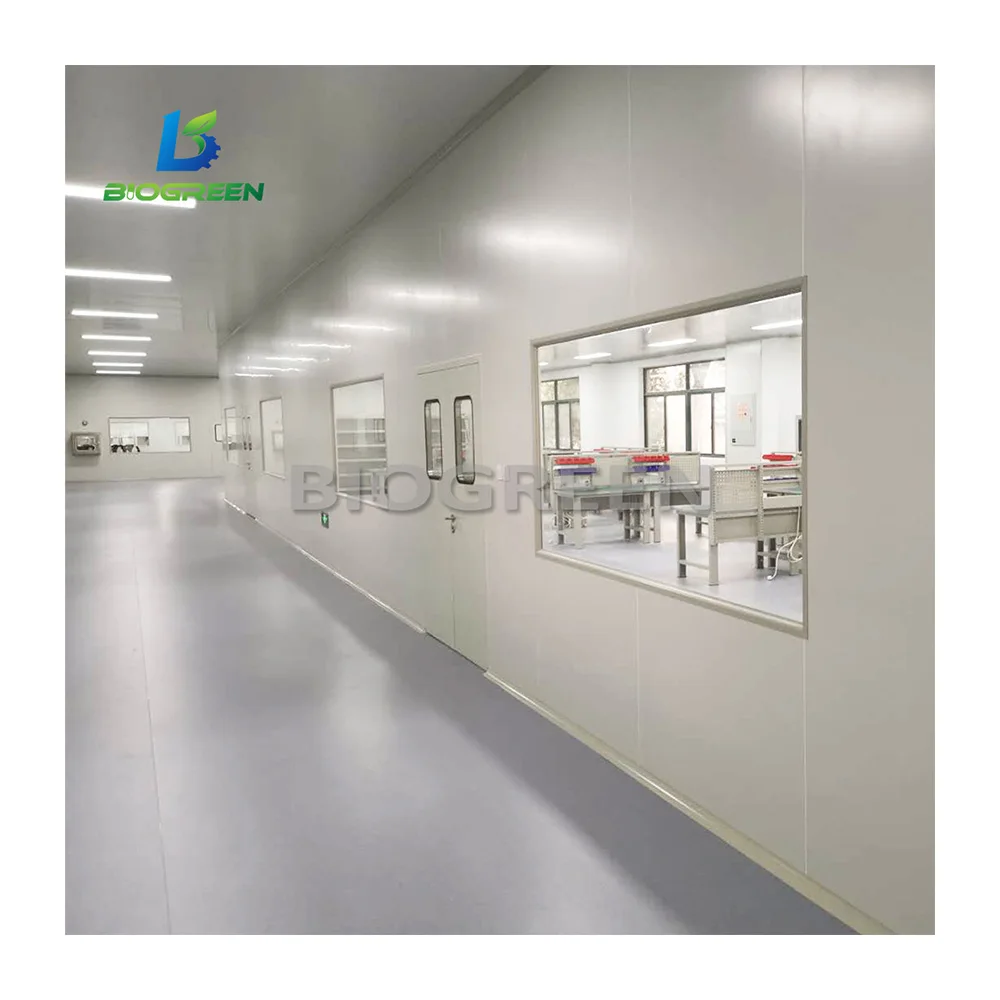

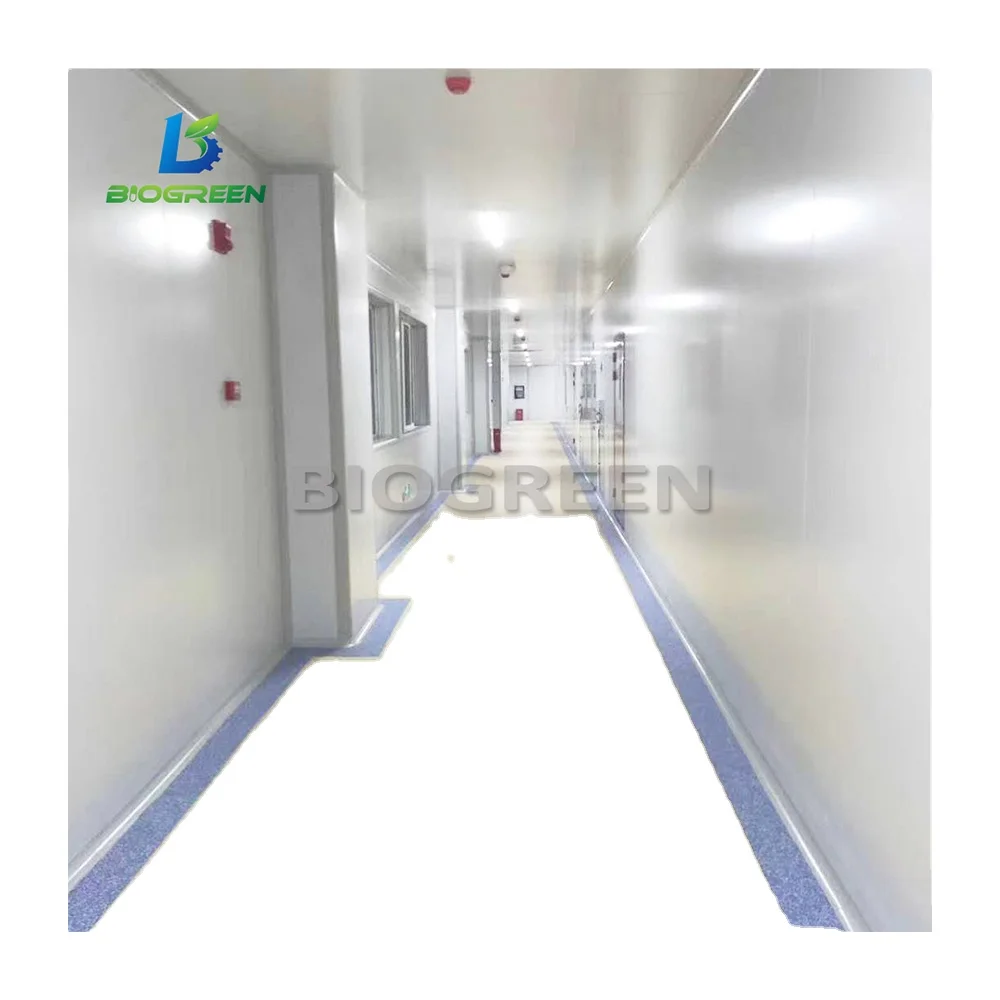

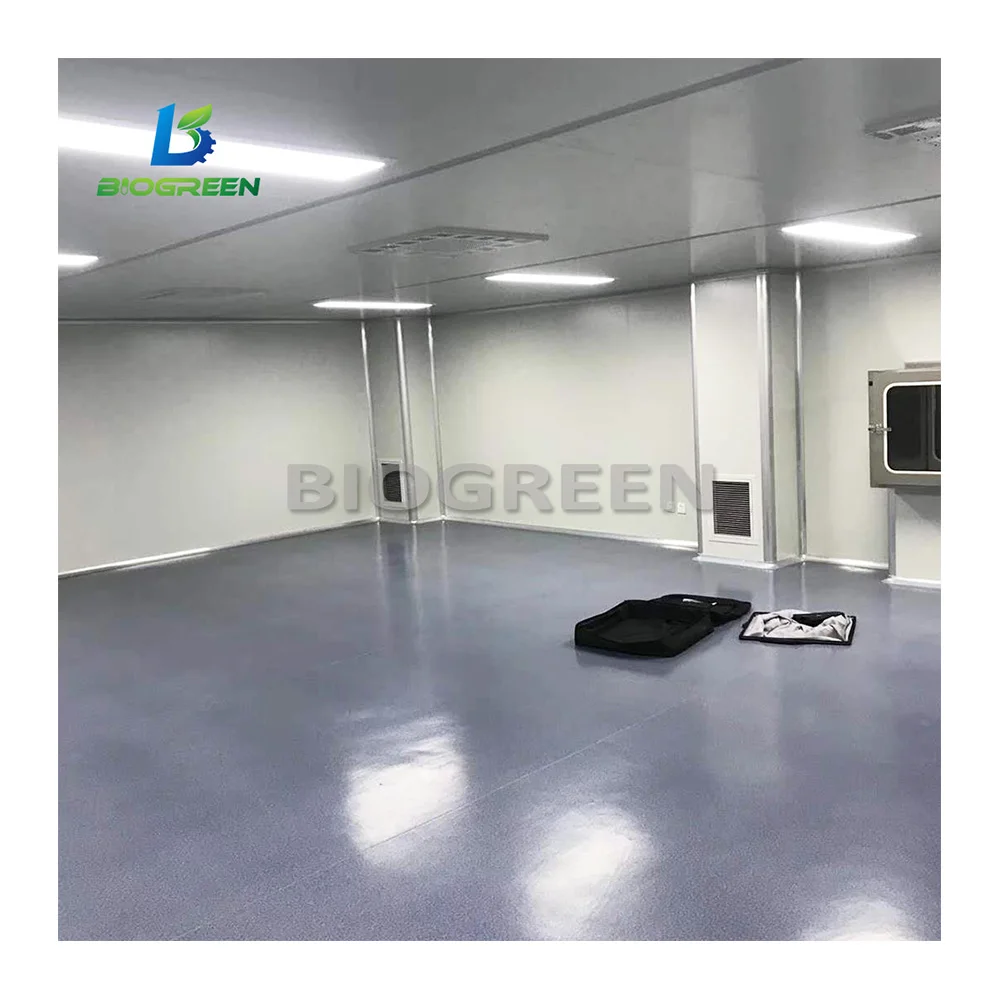

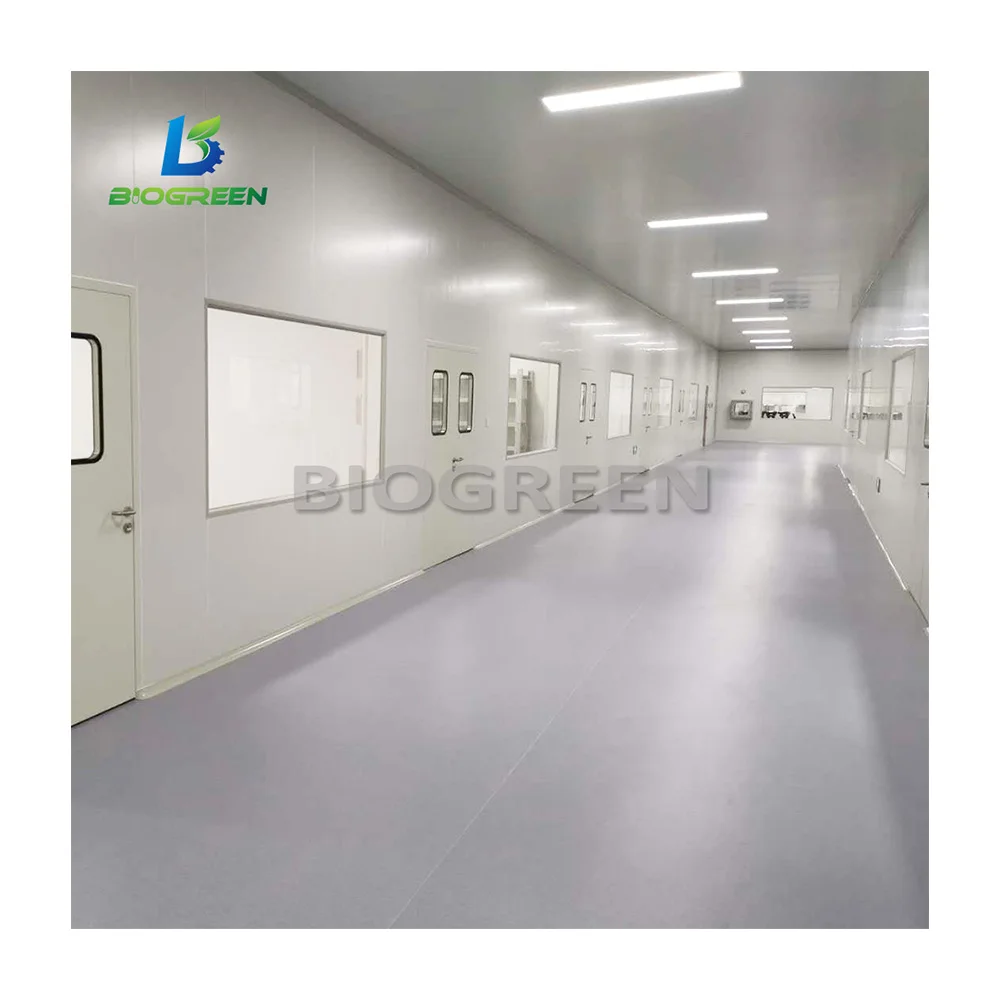

Installation In Hepa Filter Ceiling Mount For Clean Room
- Category: >>>
- Supplier: Wuxi Biogreen Pharma Technology Co. Ltd.
Share on (1600612558121):
Product Overview
Description
Preferential Activities
Product Description
BIOGREEN Cleanroom Design
We specialize in Class 10 to Class 100,000 (ISO 4 – ISO 8) stainless steel Modular Cleanroom that are used for some of the following activities: Pharmaceutical Production Cleanrooms, Medical Production Cleanroom, pharmaceutical storage rooms, temperature controlled rooms, bio-safety laboratories, pharmaceutical research laboratories, server control rooms, organic chemistry laboratories, Plant Growing Modular Cleanroom, laser rooms, dry rooms and more.
We offer a complete turnkey solution that begins with building to your exact specifications and seeing your project through until completion. Our non-invasive modular construction process involves the manufacturing of your clean room in a factory, resulting in short lead times and a minimal amount of on-site construction contamination. Our stainless steel modular clean rooms are reusable, reconfigurable and environmentally friendly which will minimize your carbon footprint.
FED STD 209E equivalent | ||||||||||||
Class | >=0.1um | >=0.2um | >=0.3um | >=0.5um | >=5um | ISO | ||||||
1 | 35 | 7 | 3 | 1 | ISO3 | |||||||
10 | 350 | 75 | 30 | 10 | ISO4 | |||||||
100 | 100 | ISO5 | ||||||||||
1000 | 1000 | 7 | ISO6 | |||||||||
10000 | 10000 | 70 | ISO7 | |||||||||
100000 | 100000 | 700 | ISO8 | |||||||||
ISO 14644-1 Cleanroom Standards | ||||||||||||||
Class | >=0.1um | >=0.2um | >=0.3um | >=0.5um | >=1um | >=5um | Class | |||||||
ISO1 | 10 | 2 | ||||||||||||
ISO2 | 100 | 24 | 10 | 4 | ||||||||||
ISO3 | 1000 | 237 | 102 | 35 | 8 | 1 | ||||||||
ISO4 | 10000 | 2370 | 1020 | 352 | 83 | 10 | ||||||||
ISO5 | 100000 | 23700 | 10200 | 3520 | 832 | 29 | 100 | |||||||
ISO6 | 1000000 | 237000 | 102000 | 35200 | 8320 | 293 | 1000 | |||||||
ISO7 | 352000 | 83200 | 2930 | 10000 | ||||||||||
ISO8 | 3520000 | 832000 | 29300 | 100000 | ||||||||||
ISO9 | 35200000 | 8320000 | 293000 | Room Air | ||||||||||
Detailed Images
Classification
Cleanroom Applicable Industries
Electronics Cleanrooms, Aerospace, Optics, Research, Military, Defense, Etc.

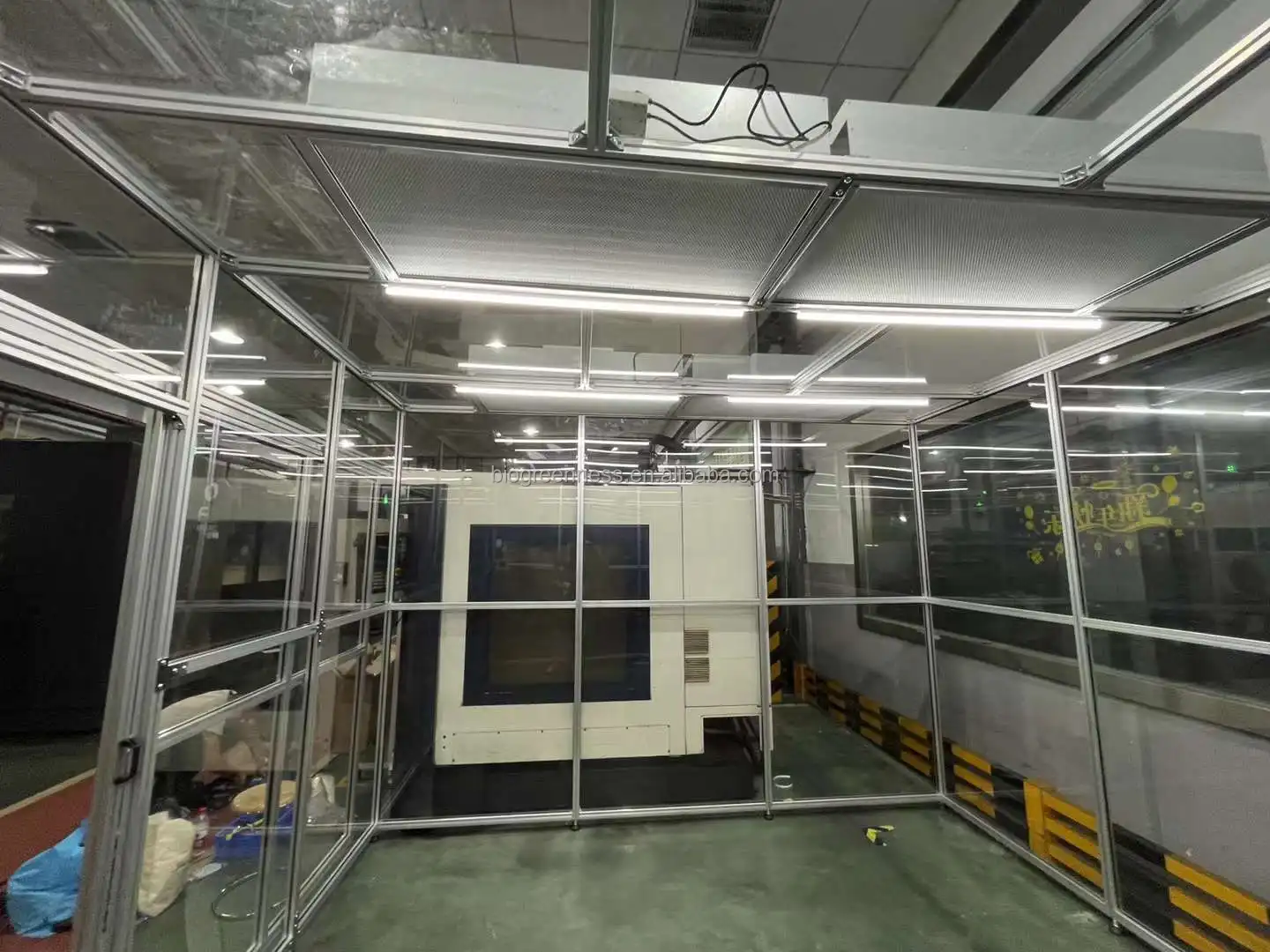

This Modular Hard Wall HEPA Filter Cleanroom /Soft Wall Cleanroom design normally involves products research, manufacturing, or repair & calibration that does not normally require the room surfaces, and equipment to be sanitized or sterilized to eliminate microbial contamination.
Pharmaceutical Production Cleanrooms
This Modular Hard Wall HEPA Filter Cleanroom /Soft Wall Cleanroom requires additional details of construction to allow wet chemical sterilization of surfaces, equipment, and increased positive air pressure gradients, etc. Professional certification available cleanrooms require additional capability to validate and certify control and monitor equipment and procedures to either manually or automatically record permanent written records or data- logging to match manufactured batches of product with the cleanroom facility performance.
Medical Production Cleanroom
This Modular Hard Wall HEPA Filter Cleanroom /Soft Wall Cleanroom is similar to the pharmaceutical cleanroom style. The product requirements for particulate cleanliness and sterility will determine specifications for finishes, controls, and manual and automatic documentation.
Pharmaceutical / Medical Research Cleanrooms
This Modular Hard Wall HEPA Filter Cleanroom /Soft Wall Cleanroom is similar to the requirements for pharmaceutical or medical products cleanrooms except that there is usually no requirement for any Professional certification available features.
Plant Growing Cleanroom
Provide high-quality plant growth clean rooms from Flowering room, Drying room... etc. We can also supply and design for you.
Start Cleanroom
What information do you need to provide us for design the cleanroom
1.What industry do you need the cleanroom?
2.What size and height and cleanliness do you need?
3.What temperature and humidity for room you need?
4.Are there any requirements for safety and fire protection?
More requirement you could let us know when you contact us.
Process when we got your information
Desige Detail Plan
Collect detailed information, customize design drawings and detailed solutions
Start Installation
Professional engineers provide on-site installation services to ensure the quality of clean rooms and provide guidance for Cleanroom use.
Turnkey Cleanroom
Provide on-site acceptance services and support quality certification
