CE Approved Power Star LW Dc To Ac Inverter With Charger For Home
US $100.00-$350.00
EU версия wechselrichter Deye SUN 12K SG04LP3 EU на складе 8kw 10kw 12 кВт 48В Гибридный инвертор 3 фазы солнечный гибридный инвертор
- Category: Solar Energy Products >>>
- Supplier: Ningbo,Dcloud,Information,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Specification

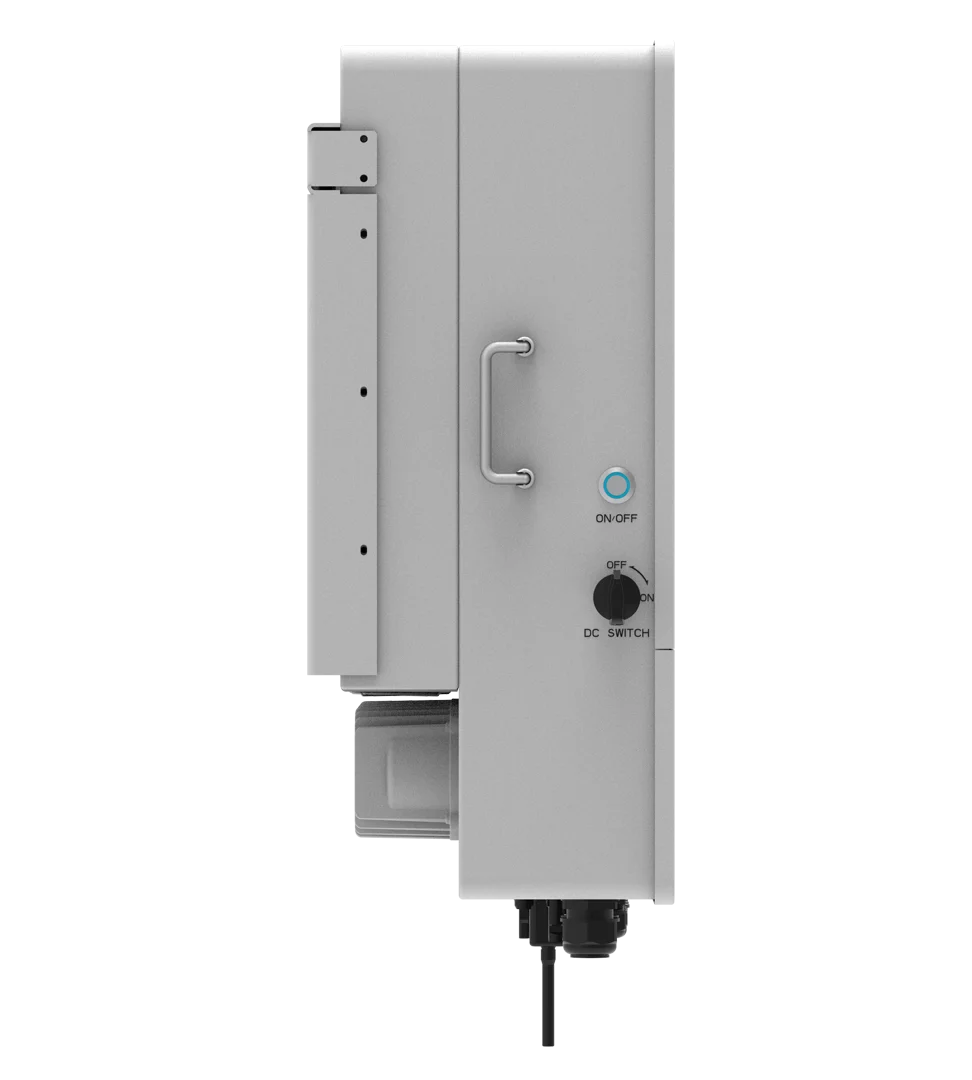

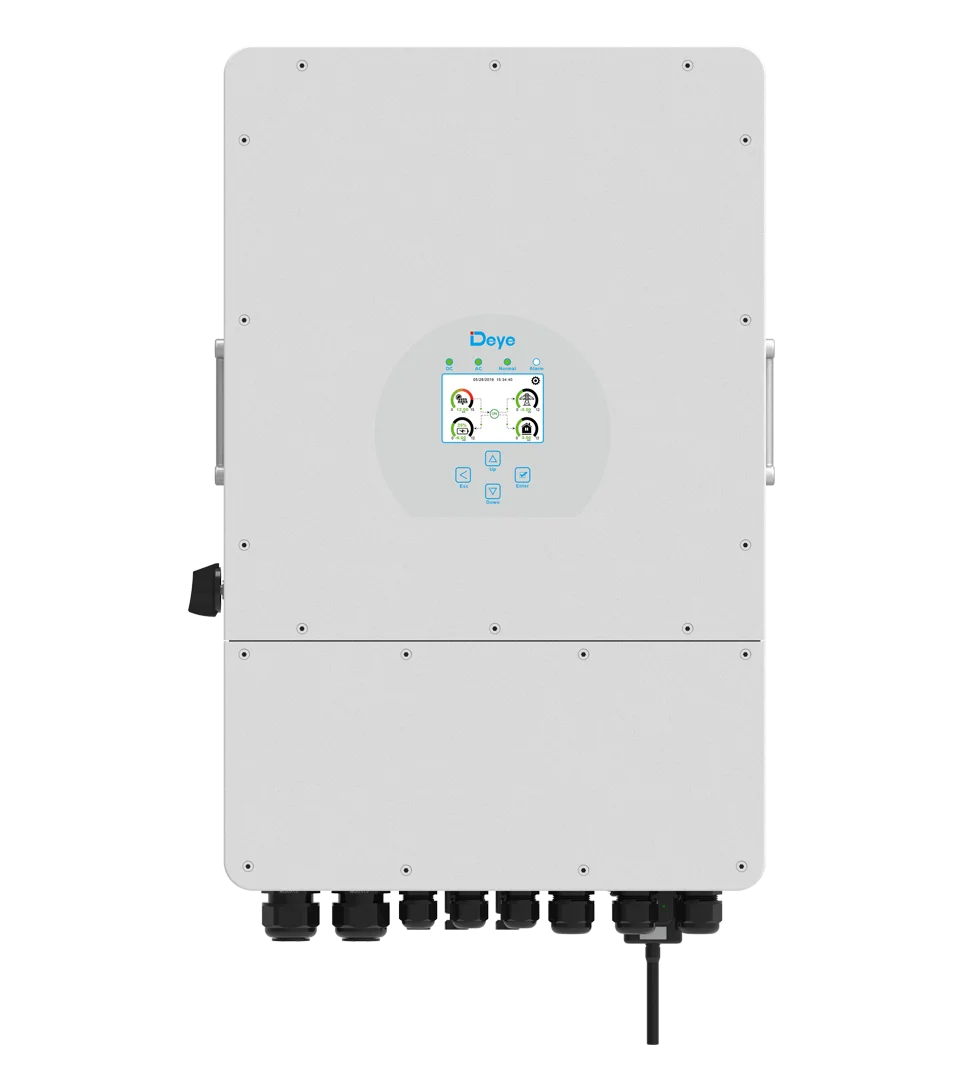

Deye Three Phase Hybrid Inverter
SUN-5/6/8/10/12K-SG04LP3 | 5-12KW | Three Phase | 2 MPPT | Hybrid Inverter | Low Voltage Battery
SUN-5/6/8/10/12K-SG04LP3 | 5-12KW | Three Phase | 2 MPPT | Hybrid Inverter | Low Voltage Battery
SUN 5/6/8/10/12K-SG is brand new three phase hybrid inverter with low battery voltage 48V, ensuring system safe and reliable. With compact design and high-power density, this series supports 1.3 DC/AC ratio, saving device investment. It supports three phase unbalanced output, extending the application scenarios. Equipped with CAN port (x2) BMS and parallel, x1 RS485 port for BMS, x1RS232 port for remotely control, x1 DRM port, which makes the system smart and flexible.
Parameter
Model | SUN-8K-SG04LP3-EU/AU | SUN-10K-SG04LP3-EU/AU | SUN-12K-SG04LP3-EU/AU | |||
Battery Input Data | ||||||
Battery Type | Lead-acid or Lithium-ion | |||||
Battery Voltage Range (V) | 40~60V | |||||
Max. Charging Current (A) | 190A | 210A | 240A | |||
Max. Discharging Current (A) | 190A | 210A | 240A | |||
Charging Curve | 3 Stages / Equalization | |||||
External Temperature Sensor | YES | |||||
Charging Strategy for Li-Ion Battery | Self-adaption to BMS | |||||
PV String Input Data | ||||||
Max. DC Input Power (W) | 10400W | 13000W | 15600W | |||
PV Input Voltage (V) | 550V (150V~800V) | |||||
MPPT Range (V) | 200V-650V | |||||
Start-up Voltage (V) | 160V | |||||
PV Input Current (A) | 13A+13A | 26A+13A | 26A+13A | |||
No.of MPPT Trackers | 2 | |||||
No.of Strings Per MPPT Tracker | 1+1 | 2+1 | 2+1 | |||
AC Output Data | ||||||
Rated AC Output and UPS Power (W) | 8000W | 10000W | 12000W | |||
Max. AC Output Power (W) | 8800W | 11000W | 13200W | |||
Peak Power (off grid) | 2 times of rated power, 10 S | |||||
AC Output Rated Current (A) | 12A | 15A | 18A | |||
Max. AC Current (A | 18A | 25A | 36.7A / 38.5A | |||
Max. Continuous AC Passthrough (A) | 18A | 23A | 27A | |||
Max. Continuous AC Passthrough (A) | 50A | |||||
Output Frequency and Voltage | 50/60Hz; 230/400Vac (Three phase) | |||||
Grid Type | Three Phase | |||||
Current Harmonic Distortion | THD<3%(Linear load<1.5%) | |||||
Efficiency | ||||||
Max. Efficiency | 97.60% | |||||
Euro Efficiency | 97.00% | |||||
MPPT Efficiency | 99.90% | |||||
Certifications and Standards | ||||||
Grid Connection Standard | EC61727, IEC62116, IEC60068, IEC61683, NRS 097-2-1 | |||||
Safety EMC / Standard | IEC62109-1/-2, IEC61000-6-1, IEC61000-6-3, IEC61000-3-11, IEC61000-3-12 | |||||
Warranty | 5 years | |||||

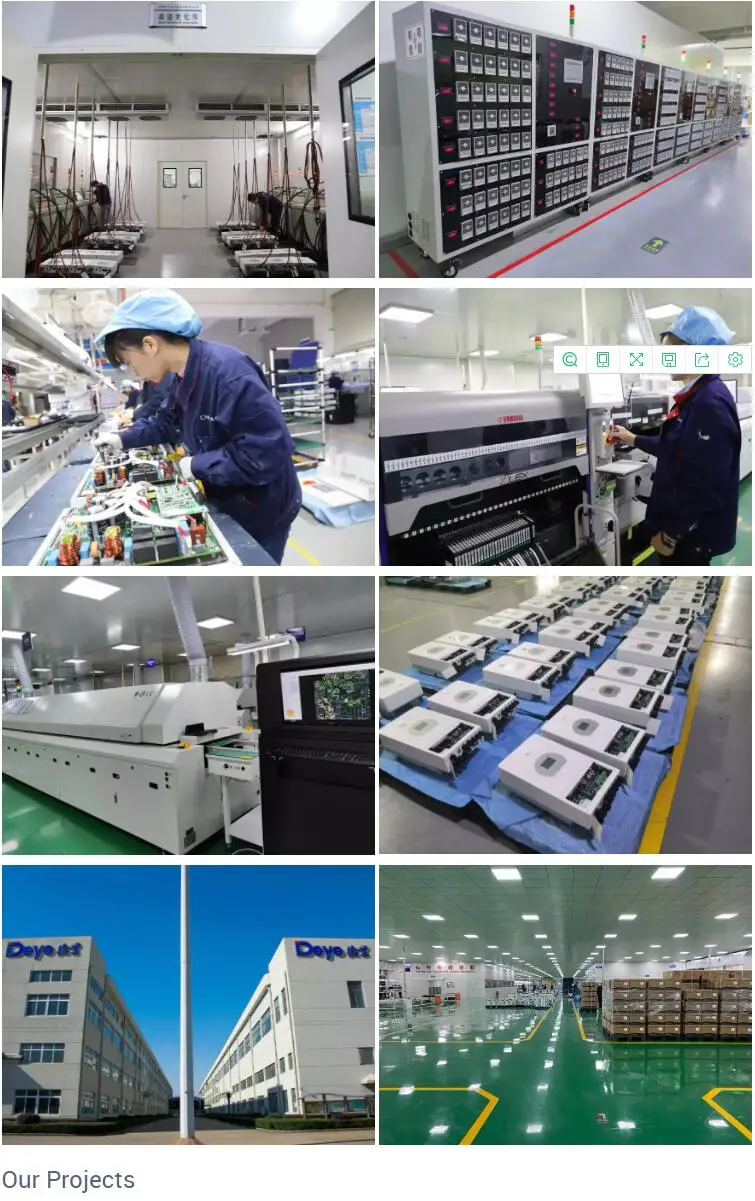

DeYe Factory
