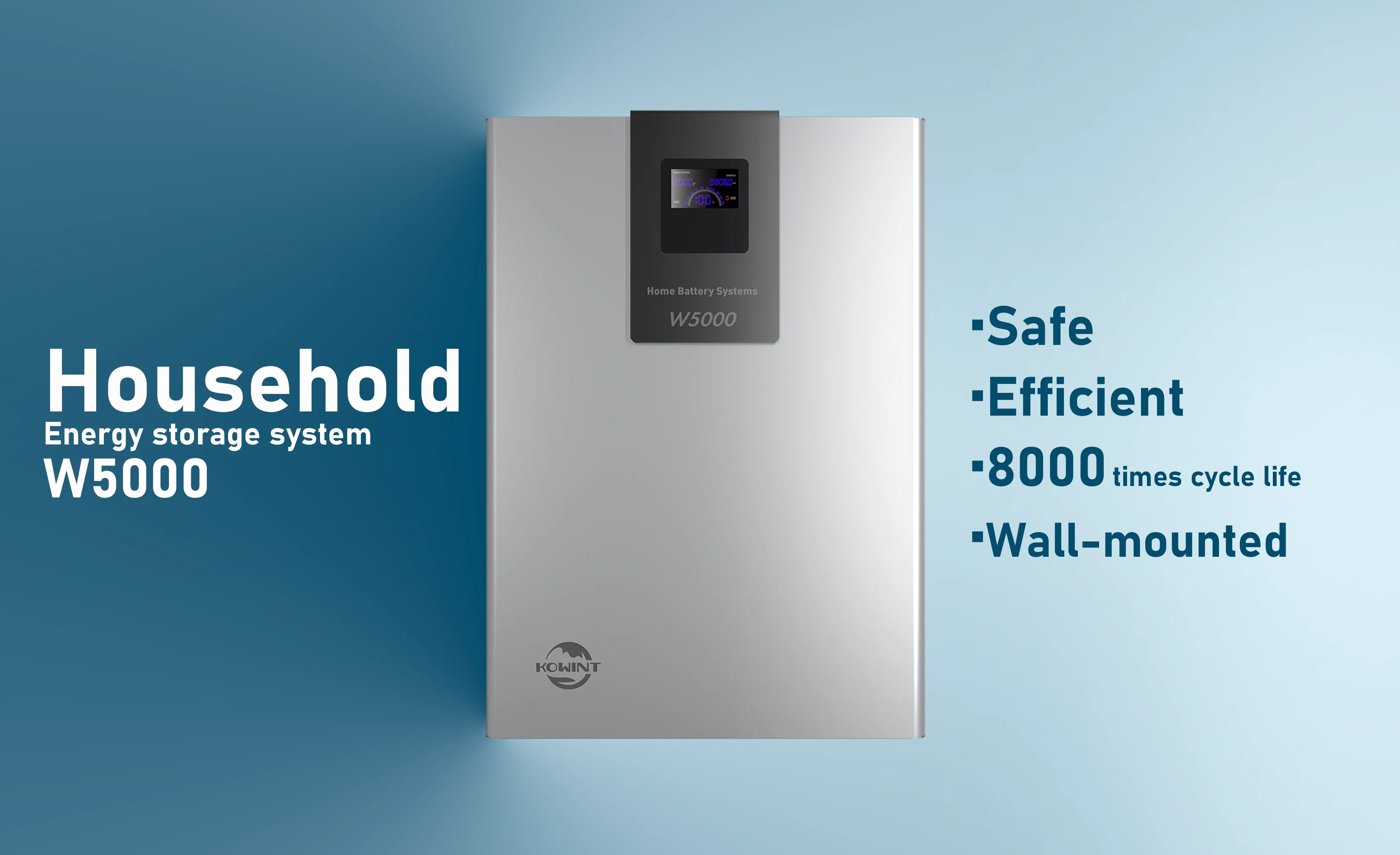

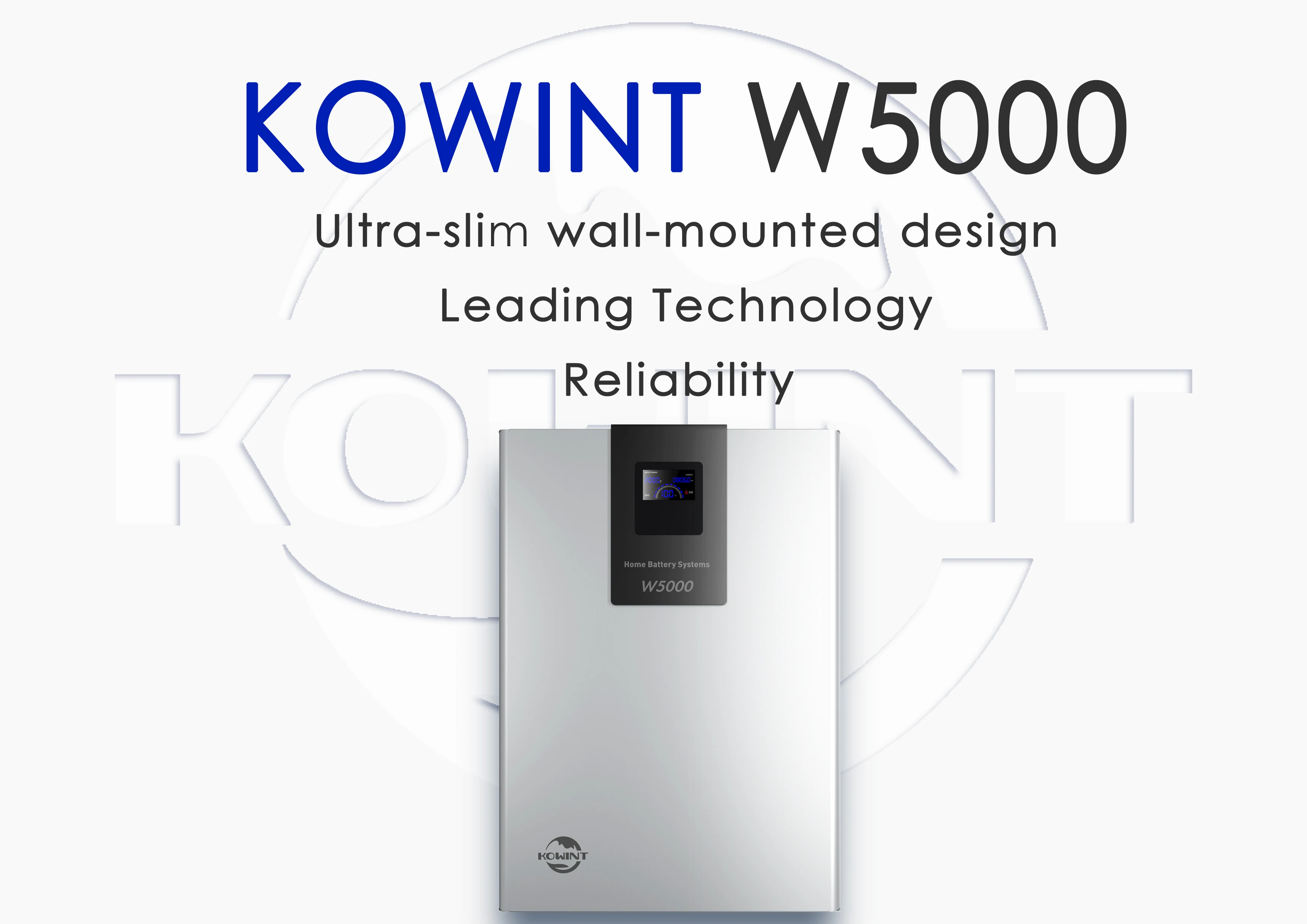

5kw 10kw Solar battery Power System 10 Year Warranty Home Wall Mounted Lithium Battery inverter hybrid home powerwall
- Category: >>>
- Supplier: Kowint Energy (shenzhen) Co. Ltd.
Share on (1600612601064):
Product Overview
Description
Specification
Item | Unit | Value | Remark |
Cell Model | - | 100Ah/3.2V | |
Combination Mode | - | 1P16S | |
Nominal Capacity | Ah | 100 | |
Rated energy | Wh | 5120 | |
Initial Internal Resistance | mΩ | ＜50 | AC 1KHz |
Rated Voltage | V | 51.2 | |
Recommend Charge Voltage | V | 56.8 | Unit cell max. charge voltage not exceed 3.55V |
Recommend Discharge Cut-off Voltage | V | 46.8 | Unit cell min. discharge voltage not lower than 2.93V |
Standard Charge Current | A | 20 | 0.2C |
Max. Charge Current | A | ≤100 | |
Standard Discharge Current | A | 50 | |
Max. Discharge Current | A | ≤100 | |
Operating Temperature | ℃ | -0~+55℃ | Charge |
Shell type | - | Painted metal | |
Weight | kg | 55 | About |
Dimension | mm | 450*190*635 |
Product Description

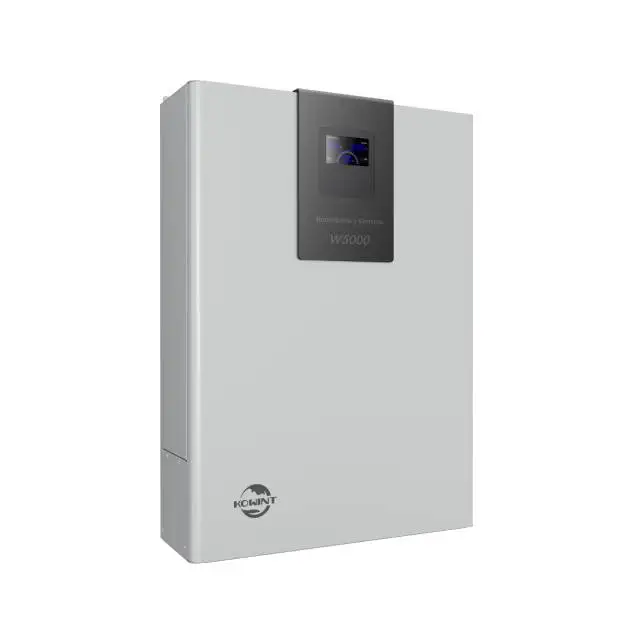

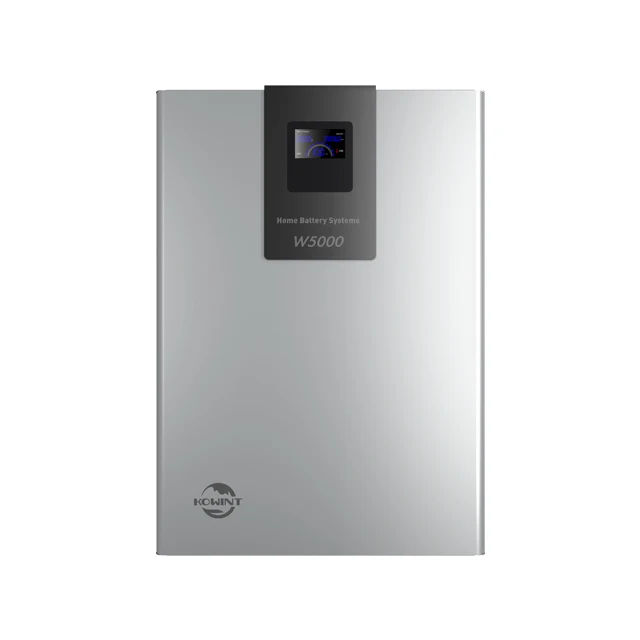

Front Side

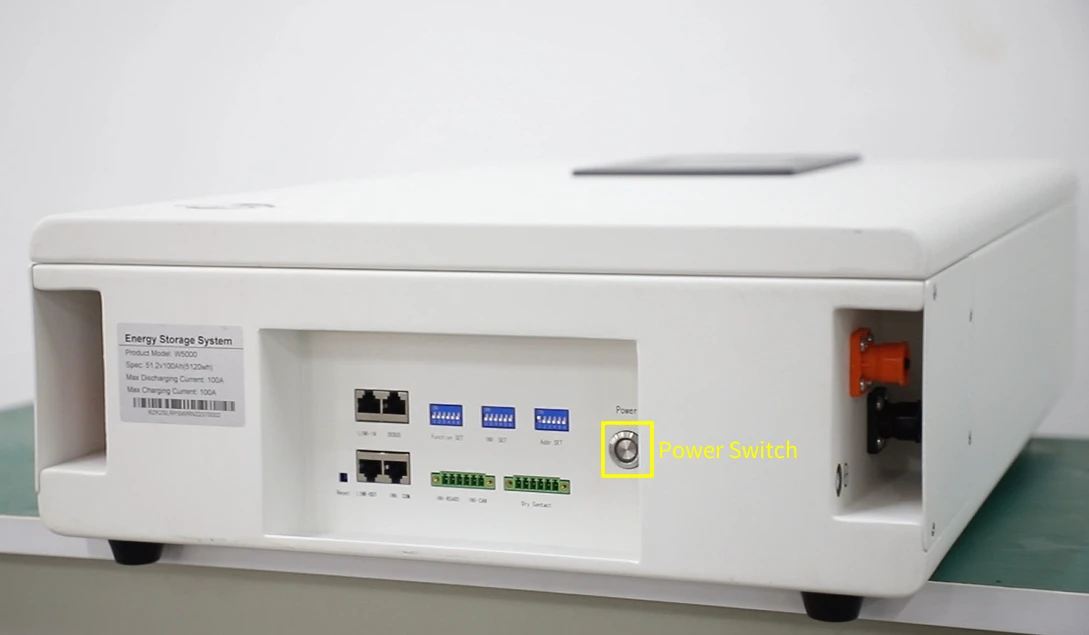

Back Side

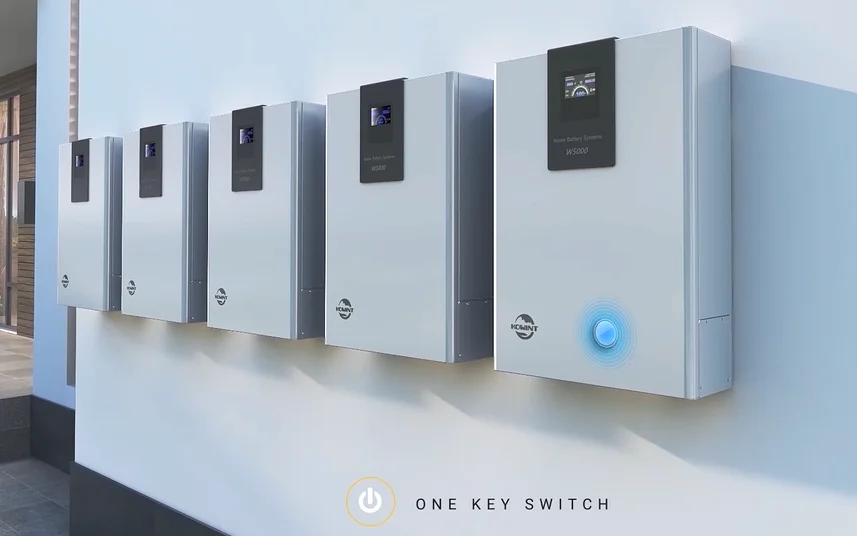

Equipped with mounting plate
Bottom Side

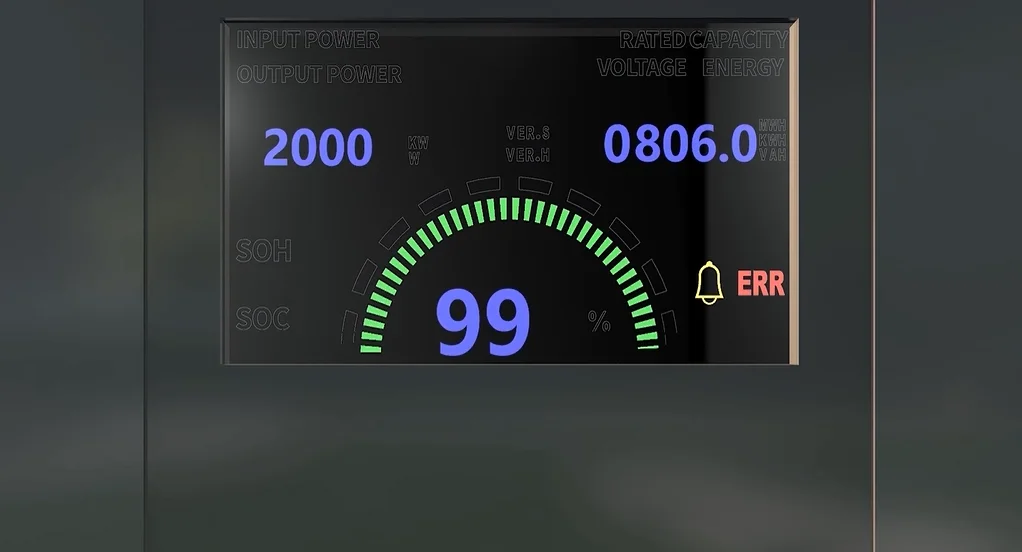

Super Large Touch LCD Display Design
Cloud monitoring

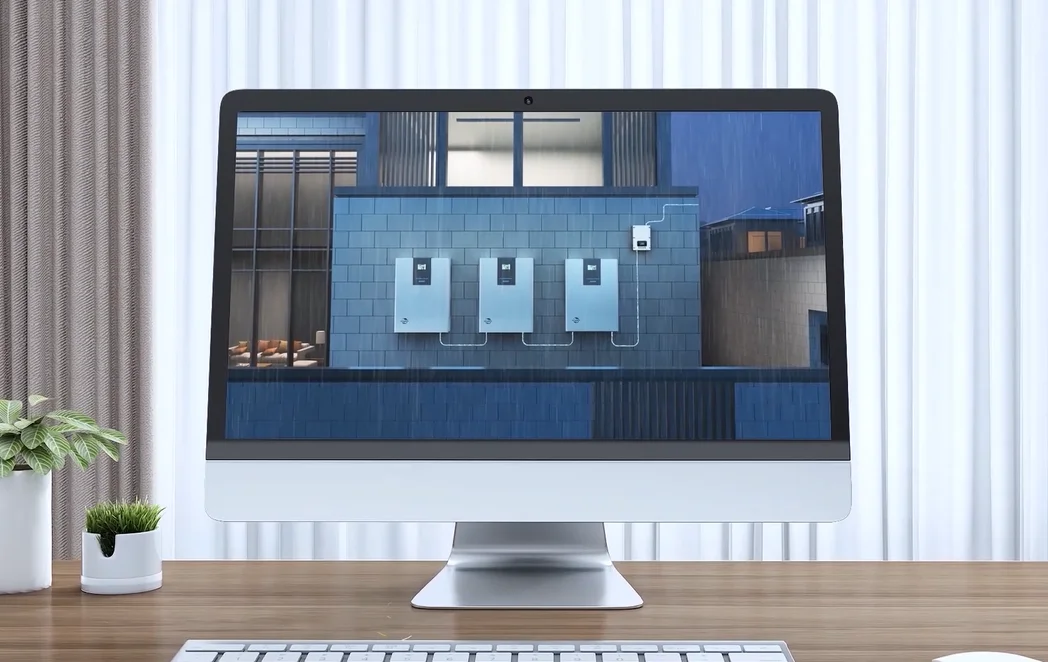

Real Time Monitoring the Battery Status on Computer
Compatible with Inverter Brand
Recommend Products
Company Profile
KOWINT ENERGY (SHENZHEN) CO., LTD. established in 2014, is a high-tech enterprise focusing on the R&D, design, production and sales of lithium battery energy storage systems, BMS, EMS and lithium battery modules.
We have continuous independent innovation capabilities, excellent lithium battery module development & design abilities and advanced manufacturing technology. Our products have passed UL, CE, ROHS, TUV, PSE and other related certifications, our factory has passed ISO9001 and ISO14000 system certification.
We have continuous independent innovation capabilities, excellent lithium battery module development & design abilities and advanced manufacturing technology. Our products have passed UL, CE, ROHS, TUV, PSE and other related certifications, our factory has passed ISO9001 and ISO14000 system certification.
Production Process
Cell sorting
Preload section
Polarity test
Highly automated laser spot welding
Welding Section
Integration section
Dielectric Withstand Voltage Test
Packing

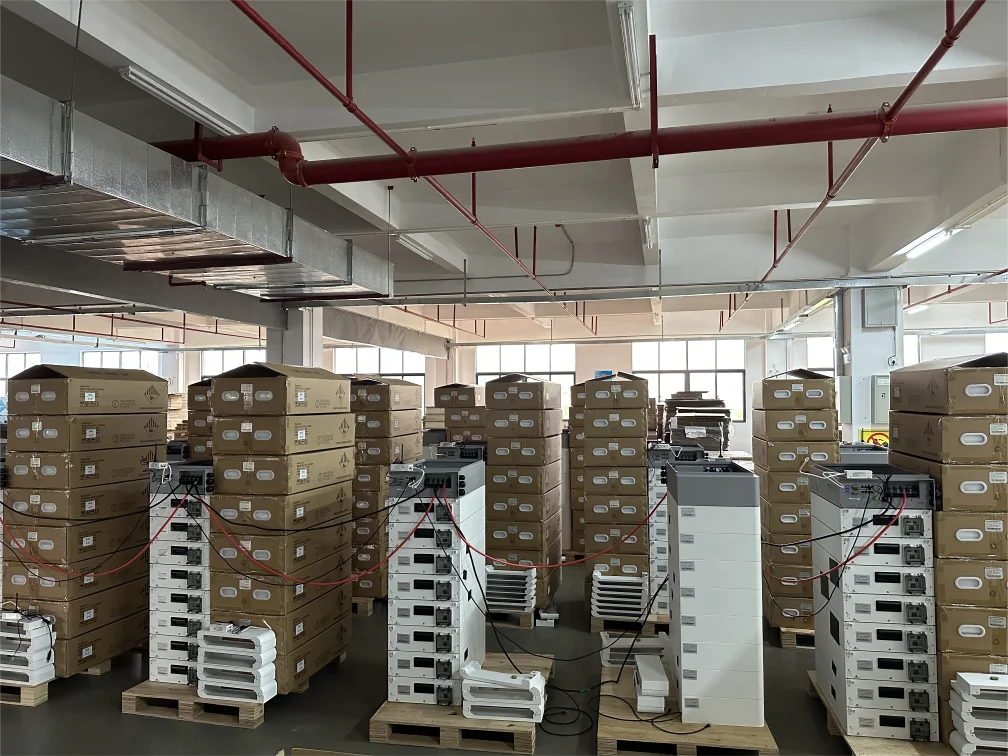

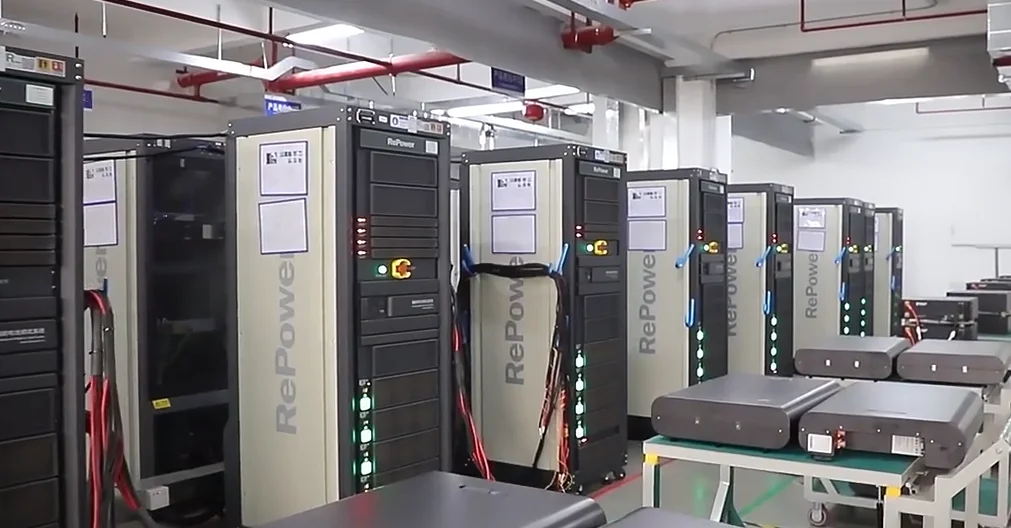

Aging test

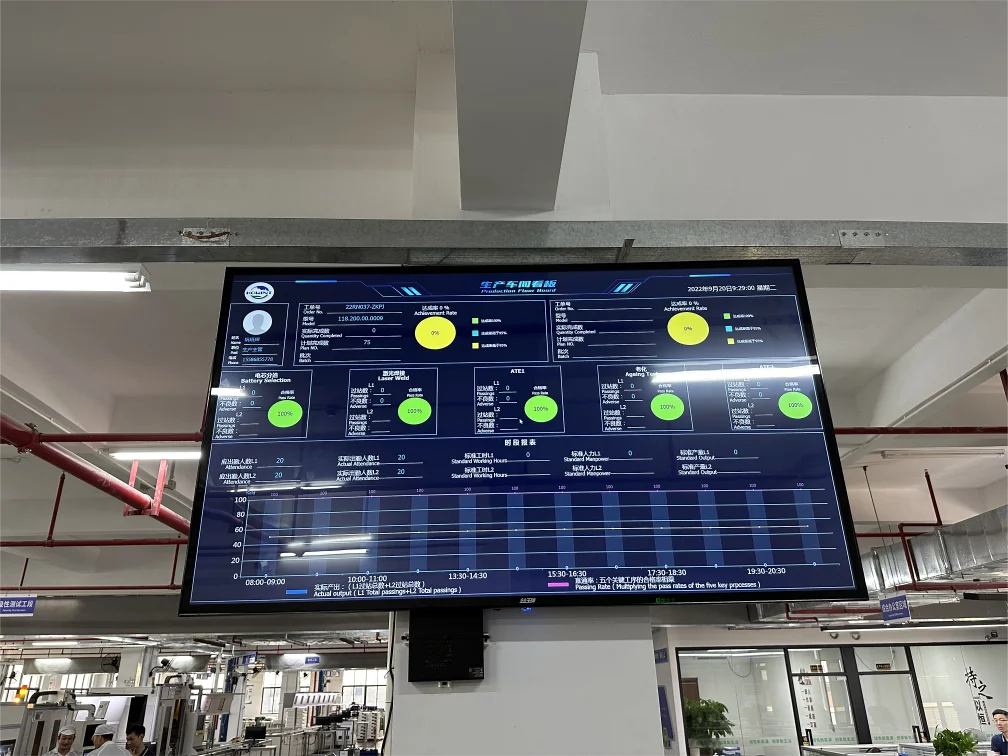

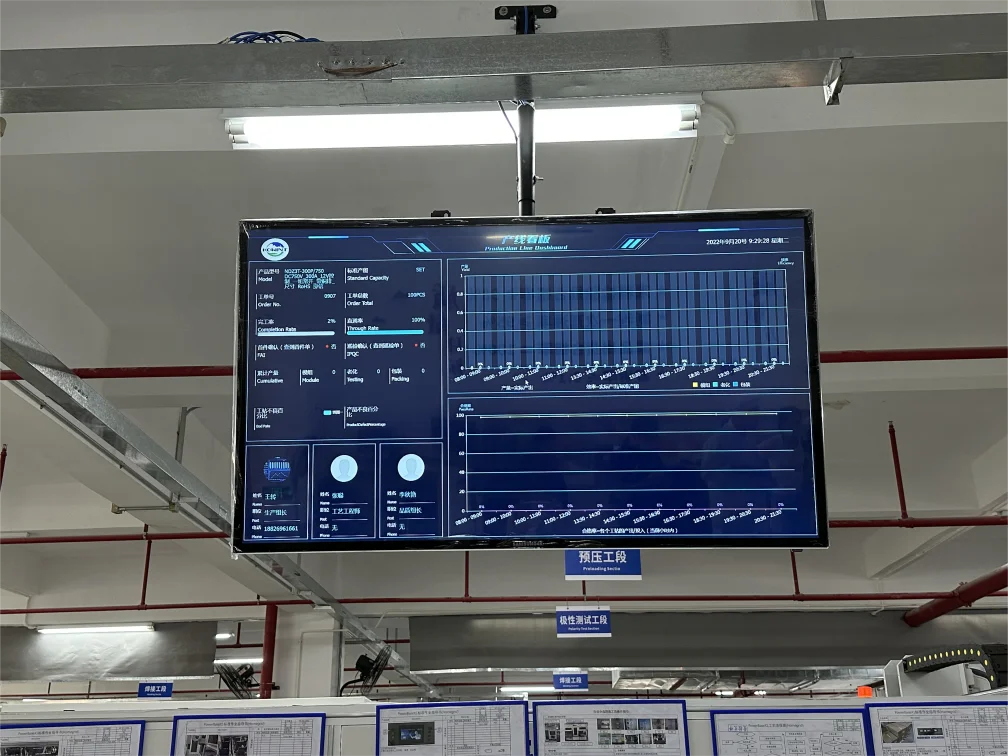

Automated production lines are equipped with MEX systems, traceable to every production link of every product
100% Aging Test & Connection Test for each battery before leaving the factory
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Certifications
