Riot Control vehicle ANTI RIOT vehicle security car

Product Overview

Description



Utility vehicle -   Security car

Rated mass 495

Total mass 2810

Curb weight 1990

Fuel type: gasoline

Emission basis standard: 183526-2016 national V

Number of shafts: 2

Wheelbase: 3085

Axle load: 1218 / 1592

Number of clarinets played - / 6

Number of tires: 4

Tire specification: 265 / 60r18

Approach departure angle: 28 / 25

Front suspension rear suspension: 940 / 1280

Front track: 1570

Rear track: 1570



Vehicle length: 5305

Vehicle width: 1905

Vehicle height: 1835

Length of cargo compartment: 1475

Width and height of cargo compartment: 500

Maximum speed: 170

Rated passenger capacity: 2 + 3

Steering form: steering wheel



General precautions



1. The body is modified to be security purpose

on all sides, mainly in four directions, front, rear, left and right, to protect the passenger



Seated personnel. The security part adopts the technology of inserting ... steel plates, and the inner and outer skins of the original vehicle body three Insert 2.5mm ...f plate between the front and front fender of the vehicle, and special steel cannot be inserted.



For the plate, the technology of "welding + gluing" is used for security. The front panel of the car is equipped with special steel Plate to ensure the safety of drivers. At the door with specialf hidden dangers, according to the actual situation

In addition, bulletproof steel plates are installed outside the door and decorated, and the door hinges are reinforced;



2. Anti collision bumper is made in front of the vehicle, and baffle plate is made of special steel plate to protect the engine

And its components;



3. The rear note loading compartment uses square steel as the frame and 3mm special steel as the outer skin for transportation

For notes, the door is opened at the rear of the vehicle, and equipped with a double safety lock, a monitoring system and an audible and visual alarm system





4. The wheels are equipped with special wheel cores and can travel 40 kilometers at 60 kilometers per hour.



5. The window glass is replaced with special security glass, and its structure is generally glass + speciall film, 18mm thick,

The glass is provided with a shooting hole so that the personnel in the vehicle can shoot outside.



Security configuration description

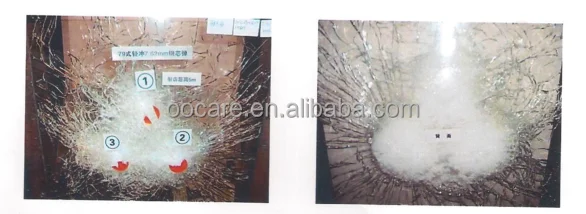

1. The modified special security steel plate and  glass can withstand the 79 type light submachine ..

When using dap518 7.62mm pistol bullets to shoot at distances of 5m, 10m and 15m,

Bullets cannot penetrate, and there is no splash in the special glass.







Necessary configuration after vehicle modification

1. Central door lock

9. Anti riot emergency door

2. Driver's and passenger's air bags

10. Multi function voice alarm

3. Front and rear row side airbags

11. Special tire

4. Leather seat

12. Audible and visual alarm system

5. Aluminum alloy wheel

13. Inner opening special firing hole

6. Independent lighting system

14. Dual lens color LCD monitoring system

7. Reversing image / reversing radar

15. Reserved interface of satellite positioning system

8. Large color screen of central console
