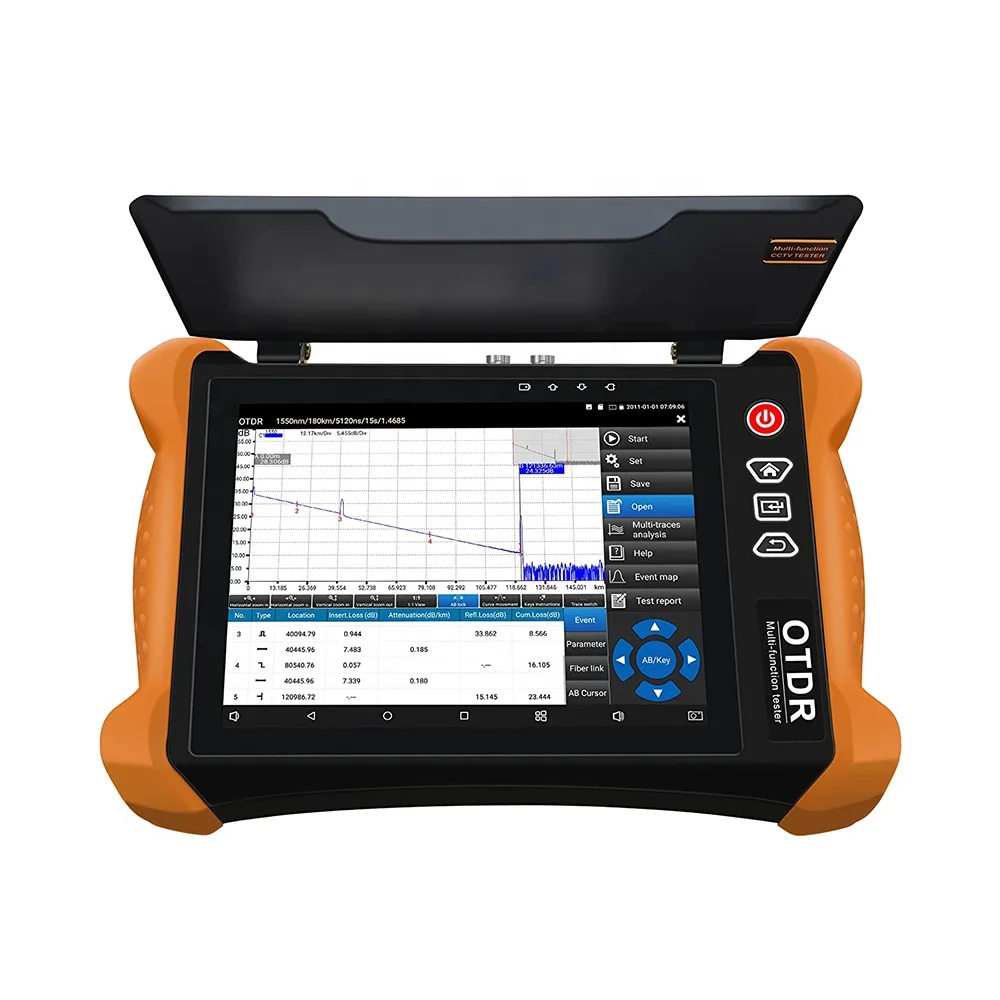

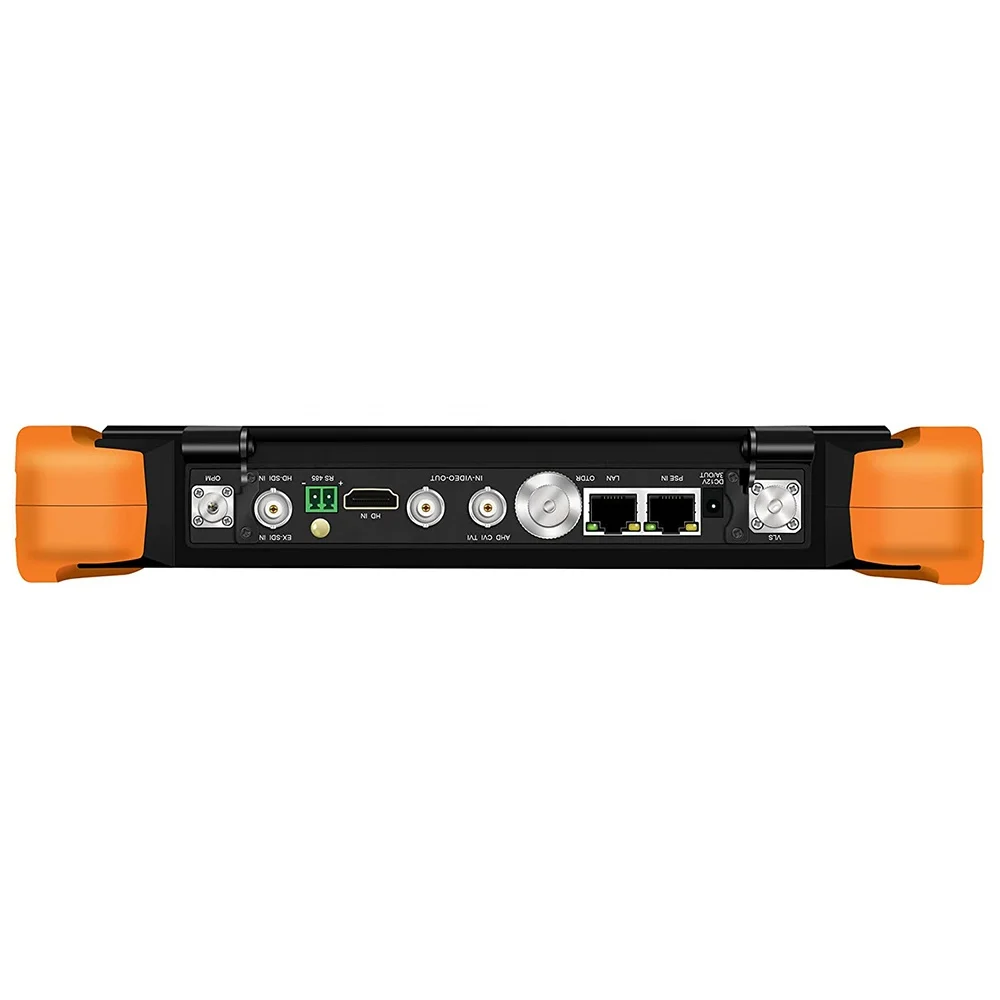

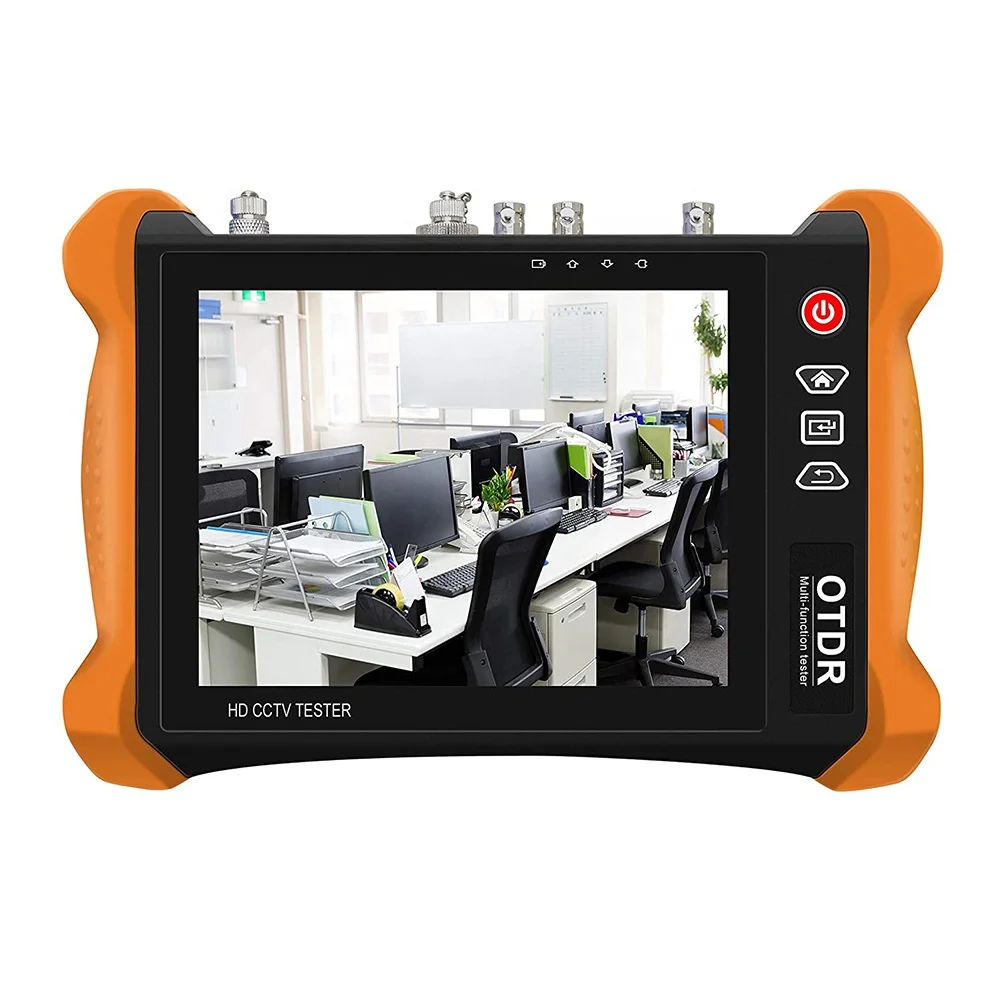

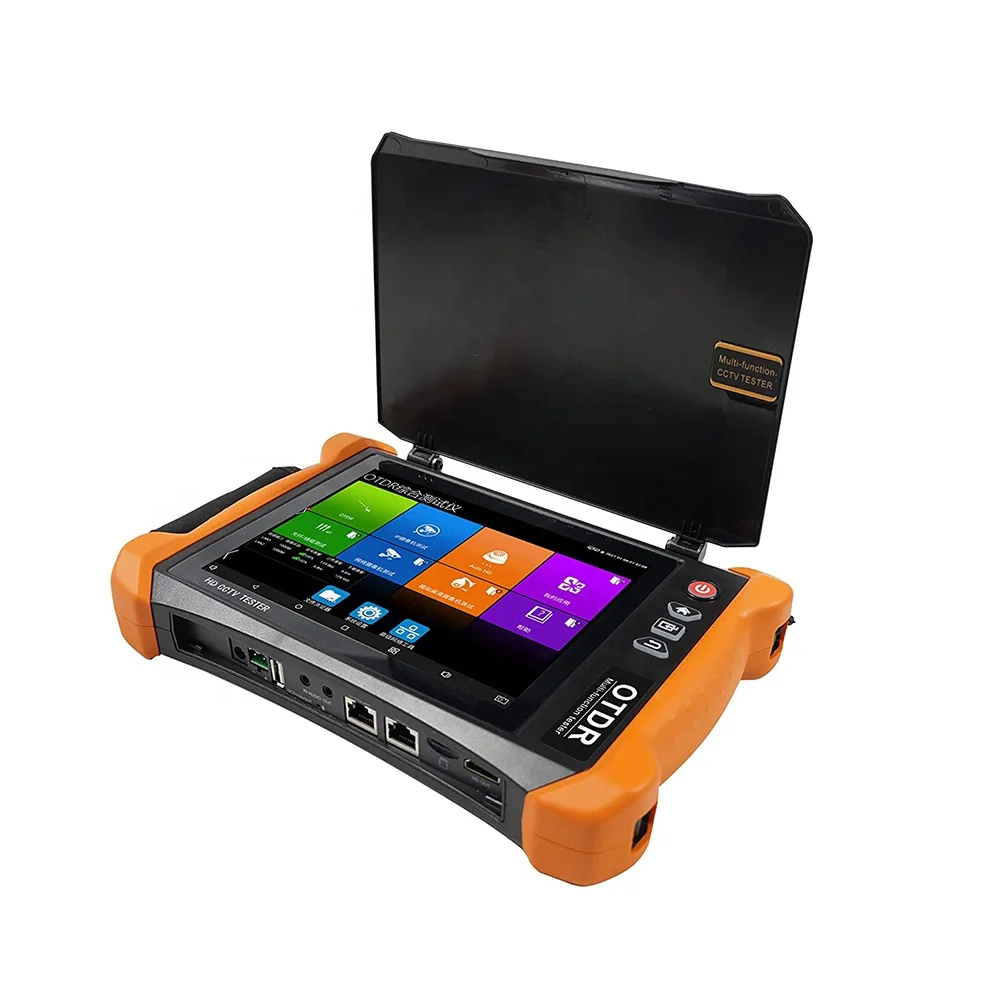

Mult Function 8 inch IP AHD TVI CVI Analog CCTV IPC Tester OTDR with 4K HD Input/Output 8 inch Retina touch screen
- Category: >>>
- Supplier: Shenzhen Angsen Technology Co. Ltd.
Share on (1600612669341):
Product Overview
Description
Product Description
◆ 8 inch retina touch screen, 2048*1536 resolution +New system
◆ Anti-sunlight and screen protecting cover
◆ 1310/1550 Dual wavelength,
◆Dynamic range, 30dB/28dB, max measurement range is 130KM
◆ Automatic analysis of various linkers/fusion points, easy analyze of various events
◆ Save and view the testing curves, support zoom and move curves, view details
◆ Support saving cures number ≥30000pcs
◆ 4K H.265 IP camera testing, DH Test tool and Hik testing tool for brand camera testing
◆ 8MP TVI CVI AHD camera testing
◆Support 4K 60FPS HDMI input, 4K 30 FPS HDMI output
◆Improvement UTP cable tester, cable etc continuity test, detect the near-end, mid-end and far-end fault point of the RJ45 cable
plug
◆ Digital Cable tracer, search BNC cable, network cable and telephone cable from the messy cables.
◆ TestPlay : Support Internet remote control and voice intercom function
◆ Wifi Analyzer, Support 2.4G& 5G frequency band, Wi-Fi connection, formation, signal strength and detection
◆ DC24V 2A power output, DC12V 3A, DC48V PoE power output
◆ Network tool PRO: IP address conflict and switch port detection
◆7.4V/7000mAh, support fast charging, 3.5 hours faster charging, normal working time 11 hours
◆ Anti-sunlight and screen protecting cover
◆ 1310/1550 Dual wavelength,
◆Dynamic range, 30dB/28dB, max measurement range is 130KM
◆ Automatic analysis of various linkers/fusion points, easy analyze of various events
◆ Save and view the testing curves, support zoom and move curves, view details
◆ Support saving cures number ≥30000pcs
◆ 4K H.265 IP camera testing, DH Test tool and Hik testing tool for brand camera testing
◆ 8MP TVI CVI AHD camera testing
◆Support 4K 60FPS HDMI input, 4K 30 FPS HDMI output
◆Improvement UTP cable tester, cable etc continuity test, detect the near-end, mid-end and far-end fault point of the RJ45 cable
plug
◆ Digital Cable tracer, search BNC cable, network cable and telephone cable from the messy cables.
◆ TestPlay : Support Internet remote control and voice intercom function
◆ Wifi Analyzer, Support 2.4G& 5G frequency band, Wi-Fi connection, formation, signal strength and detection
◆ DC24V 2A power output, DC12V 3A, DC48V PoE power output
◆ Network tool PRO: IP address conflict and switch port detection
◆7.4V/7000mAh, support fast charging, 3.5 hours faster charging, normal working time 11 hours
Specification
Wavelength | 1310/1550 nm |
Dynamic range 30dB/28dB,max measurement range 130 KM | √ |
Dynamic range 32dB/30dB,max measurement range 150 KM | Optional |
Remote control | √ |
4K HDMI Input | √ |
IP/CVI/TVI/AHD/CVBS | √ |
Digital cable tracer | √ |
HD SDI /EX SDI 2.0 | Optional |
Optical power meter | Optional |
Visual fault locator | √ |
Standard POE++ | x |
TDR cable test, max test length 1.2KM) | x |
OTDR Technical Specifications | ||
Wavelength (nm) | 1310/1550 | |
Dynamic range(dB)2 | 30/28 | |
Pulse width (ns) | 5,10,20,40,80,160,320,640,1280,2560,5120,10240,20480 | |
Testing range | ≤130 Km | |
Event blind zone (m)3 | ≤2.4m | |
Attenuation blind zone (m)3 | ≤14m | |
Linearity (dB/dB) | ±0.05 dB/ dB | |
Loss threshold (dB) | 0.05 | |
Loss resolution ratio (dB) | 0.01 | |
Sampling resolution ratio (m) | 0.125~8 | |
Sampling point | 32K | |
Distance uncertainty (m) | ±(1 m + 5×10-5× distance + sampling interval) | |
Distance scope (km) | 1,5,10,30,60,100,180 | |
Typical real-time refreshing duration | 1s | |
Measurement duration | 5sec, 10sec, 15sec, 30sec, 1min, 2min, and 3min are selectable | |
Interface type | FC-UPC | |
Tester Specification | ||
Size & Display | 8 inch touch screen with retina display ,2048*1536 resolution | |
Network Port | Dual 1000M LAN port, 10/100/1000M auto adapt | |
WIFI | Built in WIFI, speeds150M,display wireless camera image | |
H.265 mainstream test | H.265 & H .264 IP, 4K video display via mainstream | |
IP camera test | Support many brands IP camera test | |
IP discovery | Auto-scan the whole network segment IP address | |
HD coaxial camera test | TVI 5.0/ CVI 4.0/ AHD 4.0 camera test, UTC control & call OSD menu | |
CVBS camera test | 1 channel BNC input & 1 channel BNC looped output, NTSC/PAL (Auto adapt) | |
Zoom Image | 4x zoom, enlarge image, screen snapshot, save, view and record and playback | |
RJ45 cable TDR test | Test cable pair status, length, attenuation, reflectivity, and impedance, skew etc. max measurement range 180M. | |
HDMI input/output | HDMI input and output, support 4K 30FPS | |
Power output | 48V PoE/ 12V 3A / 5V 2A power output | |
color bar generator | Output one channel PAL/NTSC color bar video signal for testing monitor or video cable | |
UTP cable test | Test UTP cable connection status and display on the screen. detect the near-end, mid-end and far-end fault point of RJ45 cable connector, also can test shield cable | |
Data monitor | Captures and analyzes the command data from controlling device, also can send hexadecimal | |
Network test | Trace route, Link monitor, DHCP server, port flashing , Ping test | |
Digital Cable tracer | Search BNC cable, network cable and telephone cable from the mess cables. Cable tracer and UTP cable test app in the same interface, also can search shield cable | |
PoE Voltage test | Measurement POE switch or PSE power supply voltage and cable connection status | |
Visual fault locator | 10mW visual fault locator with 650nm wavelength, emit red laser sources to test multi-mode and single mode fiber’s bending and breakage, test range 10KM | |
Power | ||
External power supply | DC 12V（2A） | |
Battery | Built-in 7.4V Lithium polymer battery, 7000mAh | |
Rechargeable | After charging 3.5 hours, normal working time 11 hours | |
Parameter | ||
Operation setting | OSD menu, English and Chinese language optional | |
Auto off | 5-30 (mins) | |
Working environment | ||
Working Temperature | -10℃---+50℃ | |
Working Humidity | 30%-90% | |
Dimension/Weight | 264mm x 182mm x 43mm / 1Kg | |
Packing & Delivery
1)Tester
2) Network cable tester
3) Adaptor DC12V 1A
4) Li-ion battery (7.4V DC 3350mAh)
5) Tool bag / DC Power cable/BNC cable/ RS485 cable/ Audio cable/ wrist belt/Safety cord
6) Tester built in manual
3) Adaptor DC12V 1A
4) Li-ion battery (7.4V DC 3350mAh)
5) Tool bag / DC Power cable/BNC cable/ RS485 cable/ Audio cable/ wrist belt/Safety cord
6) Tester built in manual
