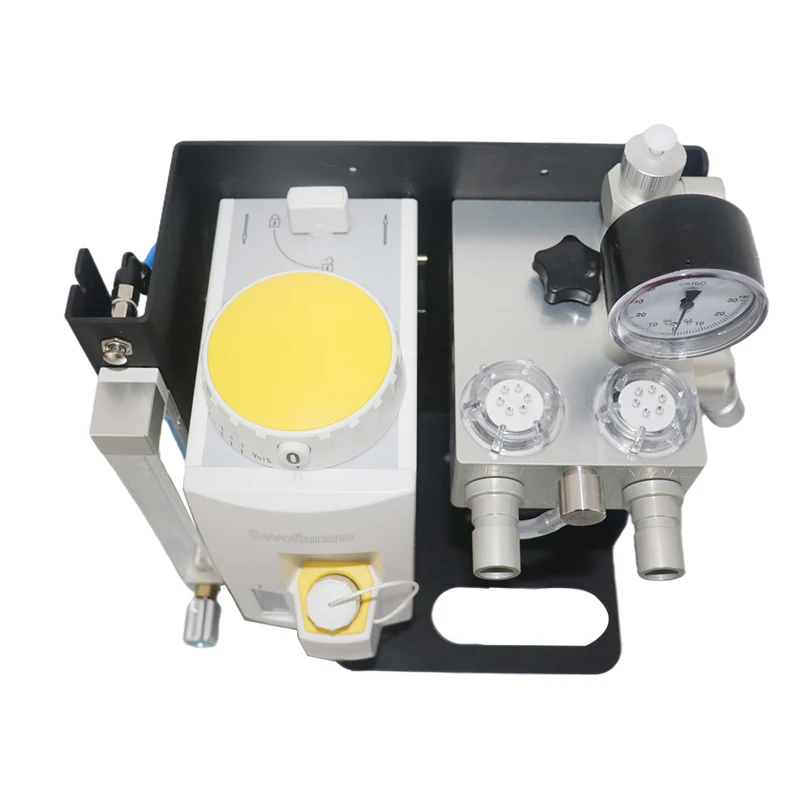

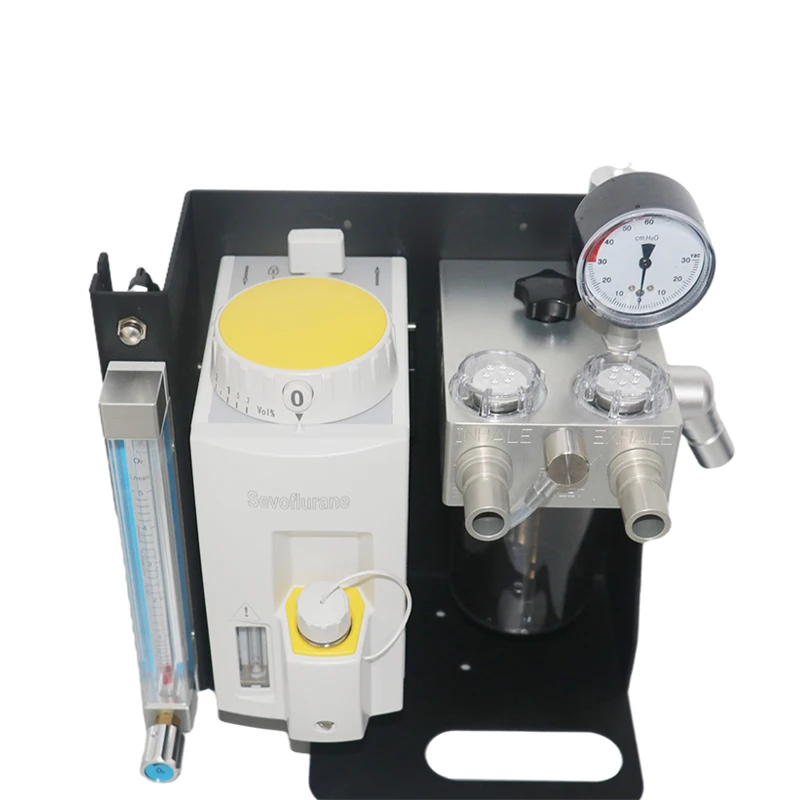

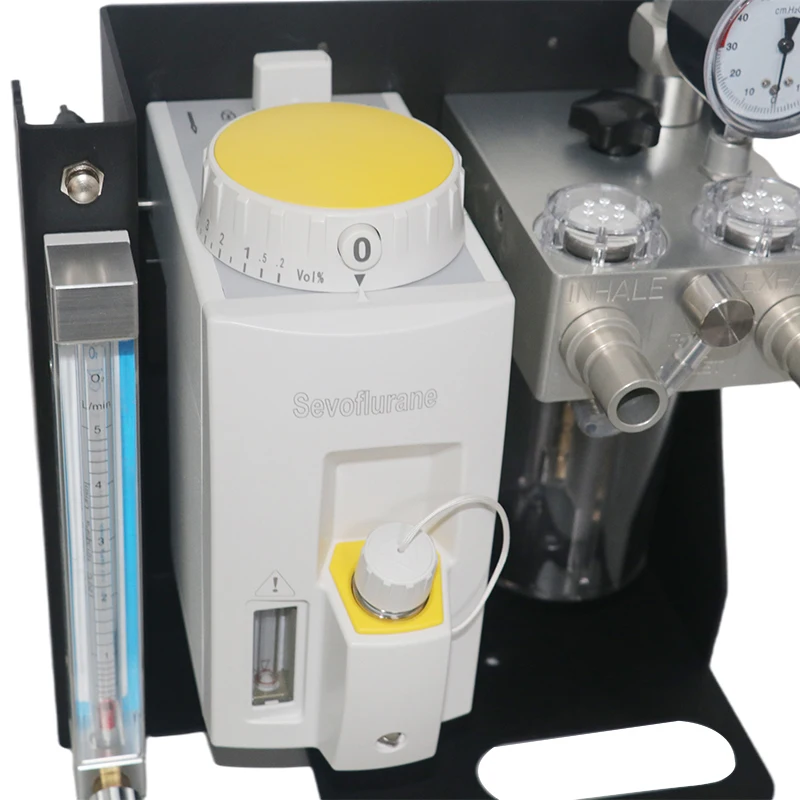

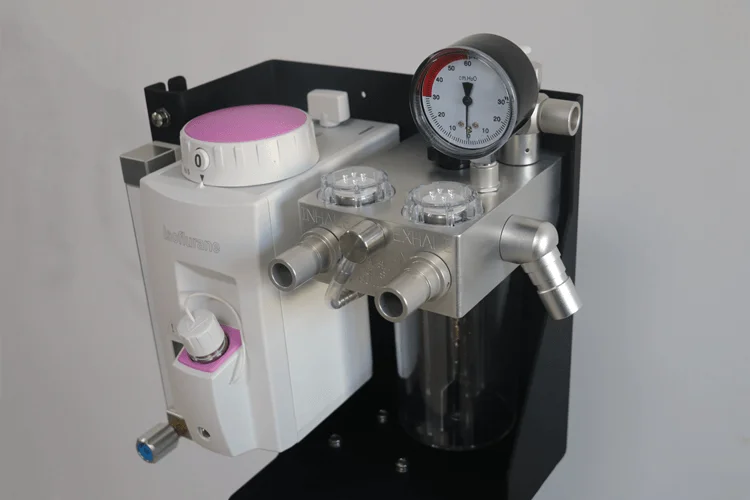

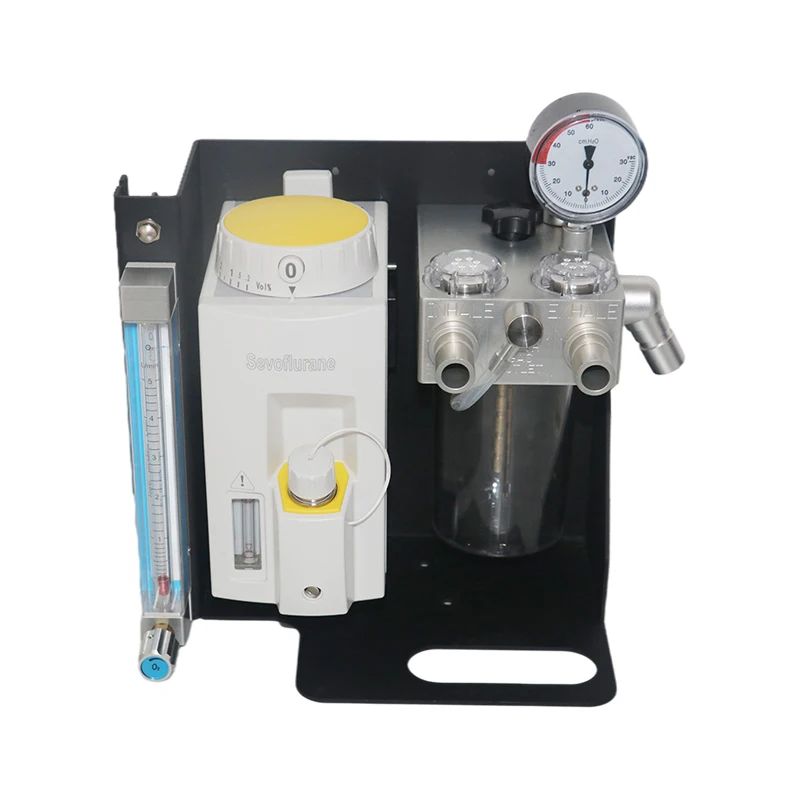

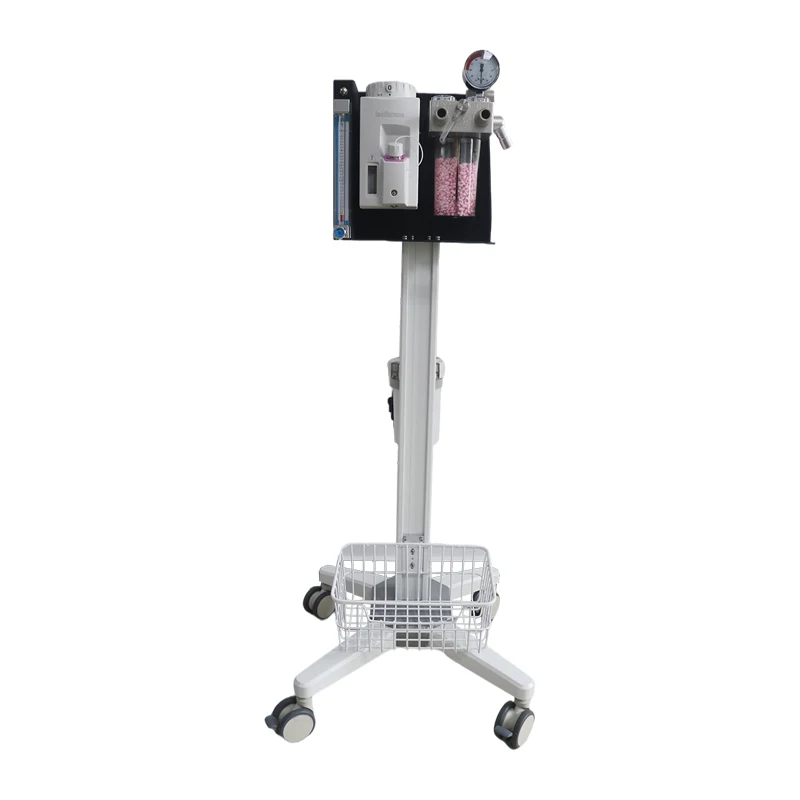

Anesthesia in cats dogs veterinary anesthesia machine for veterinary with good price

Technical Specification

Application

0.5-100kg animal

Ventilation mode

Closed,half-closed,half-open

Tidal volume

0-1500ml

Oxygen source pressure

0.25~0.65Mpa

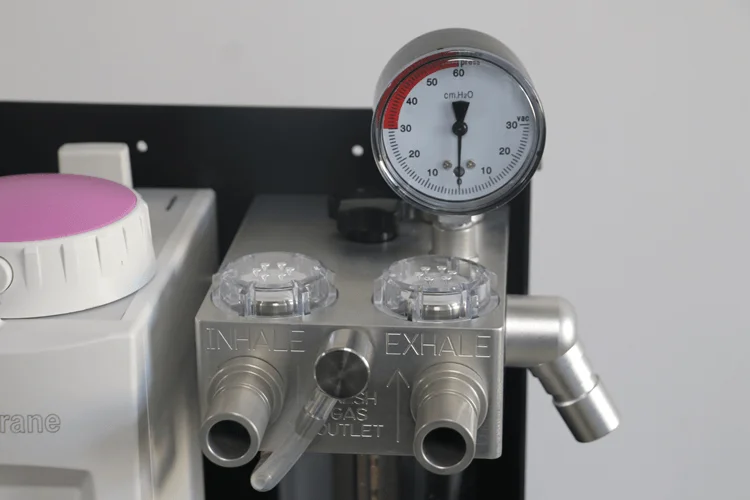

Airway pressure scope

030~60CMH2O

Flow Control

0-4L/min

Oxygen Flush

35L/min~75L/min

Pop adjust scope

Directs the waste anesthetic gas from the machine to a scavenging system. In the completely open position, the pop-off valve will release pressure at 2 cm H2O, while maintain a constant passive volume in the breathing bags.

Inspiration impedance

no more than 0.6Kpa

Expiration impedance

no more than 0.6Kpa

Absorption tank capacity

700ml

Monitoring

Airway pressure,Gas source pressure monitoring

I:E

As doctor need

BPM

As doctor need
