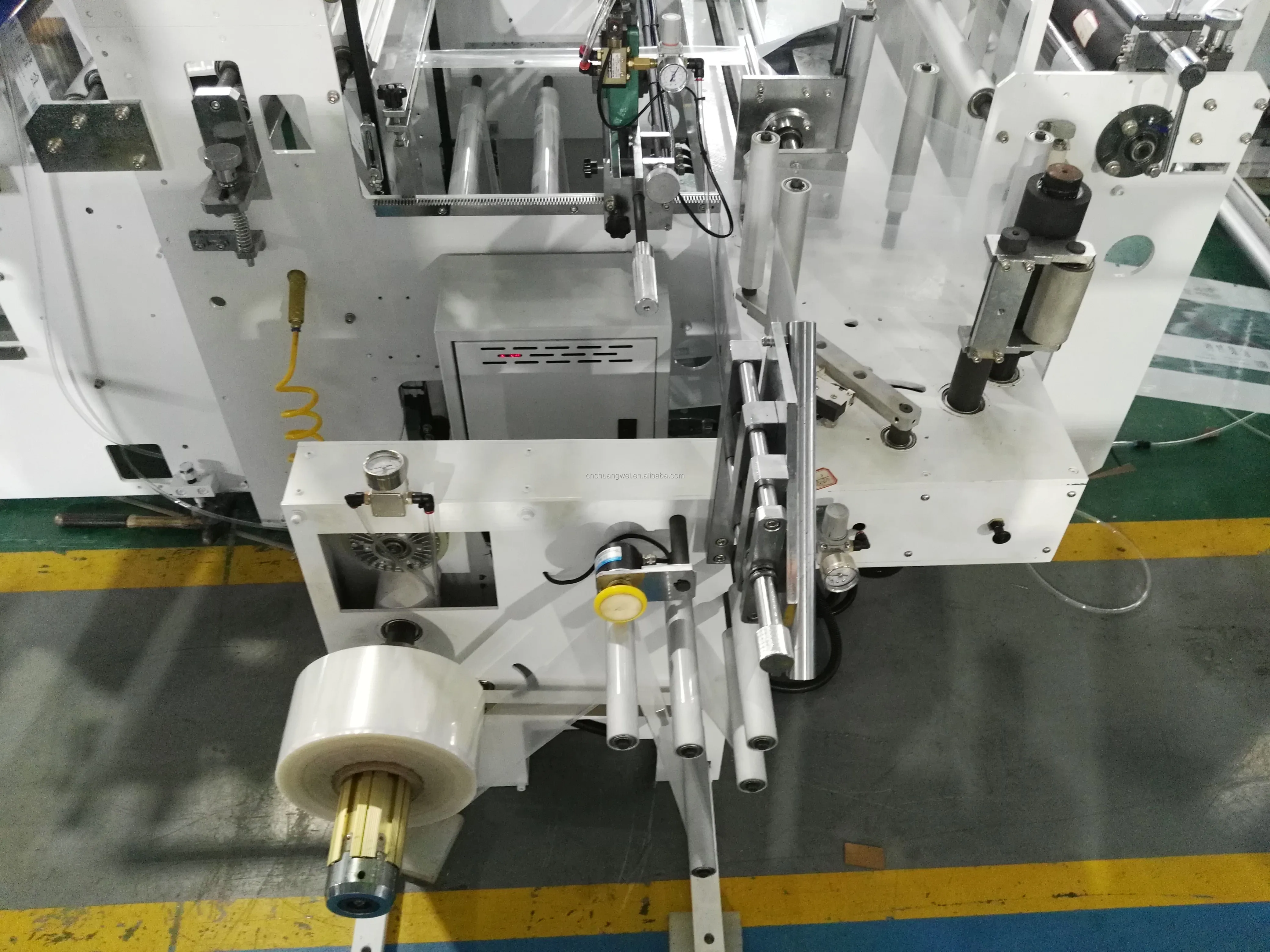

Laminated PA Pet PE 3 Side Seal Stand up Zipper Pouch Making Machine for Snack Packaging Bag
- Category: >>>
- Supplier: Zhejiang Chovyting Machinery Co. Ltd.
Share on (1600612699989):
Product Overview
Description
Click picture to jump to the webpage.
This is a multifunctional machine combining CHOVYTING CW-800LP fully automatic soft loop handle bag making machine, CW-800SP fully automatic patch handle bag making machine and CW-800PD fully automatic draw string handle bag making machine. It is the best choice for increased capacity and space-saving benefits.
Click picture to jump to the webpage.
This machine is specializing in producing rolling bag. It also can make garbage bag, fruit bag,vegetable bag and table bag. Fully automatic exchange system can reduce the labor fore. And it is easy to operate with the excellent servo drive system control. It is the best choice for high output of printed bag and blank bag.
Click picture to jump to the webpage.

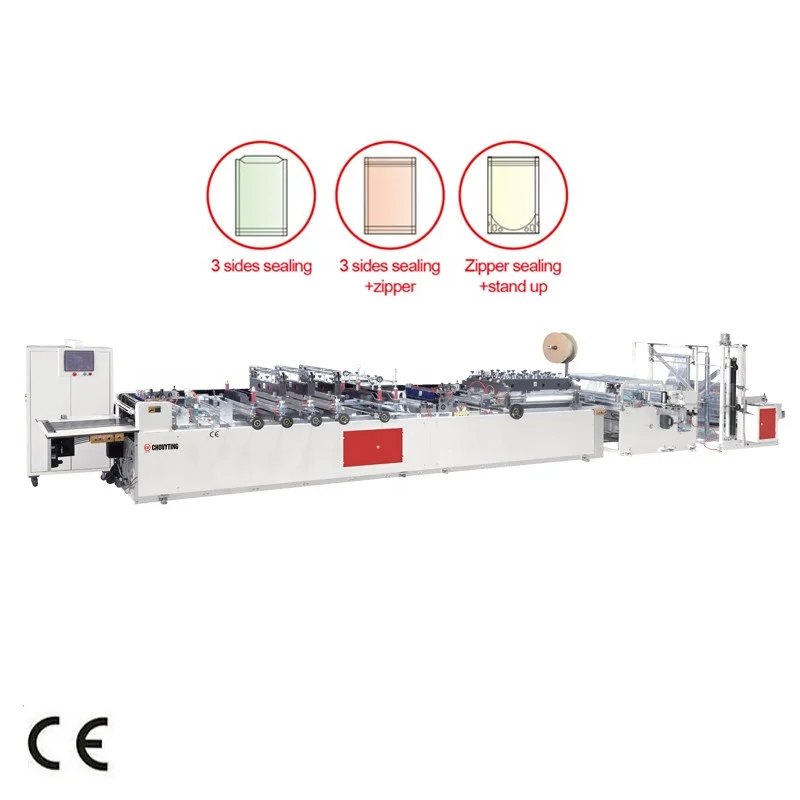

Newly design multifunction laminated bag making machine, it can manufacture 3 side sealing bag, 3 side sealing with zipper bag,
4side sealing bag,central sealing bag, and single film insert stand up bag. Easy to operate, fast to change different type
bagmaking device
4side sealing bag,central sealing bag, and single film insert stand up bag. Easy to operate, fast to change different type
bagmaking device
Products Description
Product Application
Heavy duty laminated bag making machine,is used for producing various kinds of laminated soft package bag,such
as three side sealing bag.stand up bag,zipper bag,spout bag.
Main Features
1. Large human-computer interface screen control,automatic design.
2. It has EPC and double photocells tracking for unwinding.
3. Heavy-duty brige type heat sealing structure,will get stronger sealing.
4. Unwinding with automatic tension control.
Optional
1.Double layer unwinder device
2.Handle hole puncher
as three side sealing bag.stand up bag,zipper bag,spout bag.
Main Features
1. Large human-computer interface screen control,automatic design.
2. It has EPC and double photocells tracking for unwinding.
3. Heavy-duty brige type heat sealing structure,will get stronger sealing.
4. Unwinding with automatic tension control.
Optional
1.Double layer unwinder device
2.Handle hole puncher
Specification
Bag making function | three side sealing, zipper bag ,stand up bag,spout bag |
Main electric scheme | 3 servo motor for traction from JAPAN, with PLC used panasonic from Japan., Touch Screen from Taiwan; main driving is alternating current with Yaskawa from JAPAN inverter automatic constant tension for unwinding. |
Suitable material | this machine is suitable for producing multi-layer three side sealing laminated film, plating ALU laminated film, paper-plastic laminated film, pure-ALU laminated film which takes BOPP, CPP,PET, ALU, and Nylon etc plastic laminated film as base material. |
The dimension of roll material | ф600*1200mm (diameter* web-width) |
Accuracy of orientation | ≤± 0.5mm |
Thermal-sealing knife’s quantity of heat | 1. Vertical-sealing adopts 3 groups for heating fluctuation, cooling fluctuation from up and down.. 2. bottom sealing adopt 3 groups heating fluctuation, 1 group for cooling fluctuation |
The quantity of temperature heating | 16 |
The bound of temperature | 0-300 ℃ |
Total power | 40kw |
Overall Dimension | (L*W*H) 10000×2050×2000mm |
Weight of machine | About 4100 kg |
The type of control system | SSF-Ⅱ High speed laminating film bag making machine control system |
solid state relay | 16 pcs |

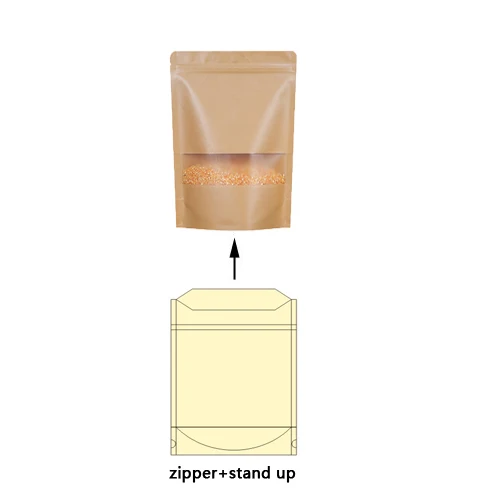

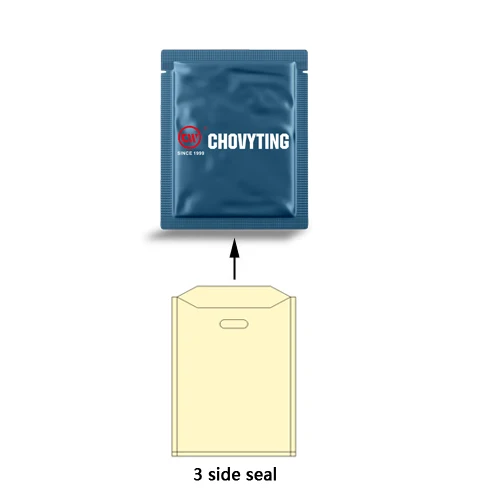

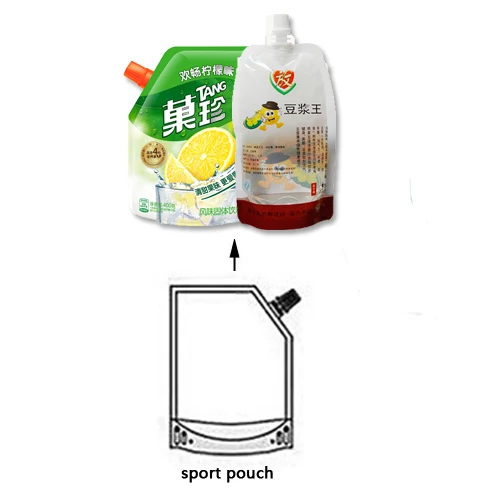

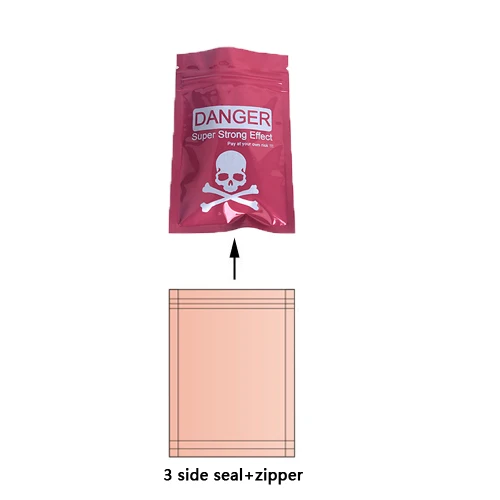

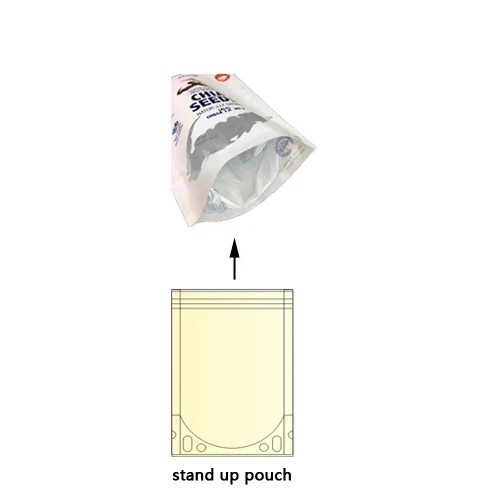

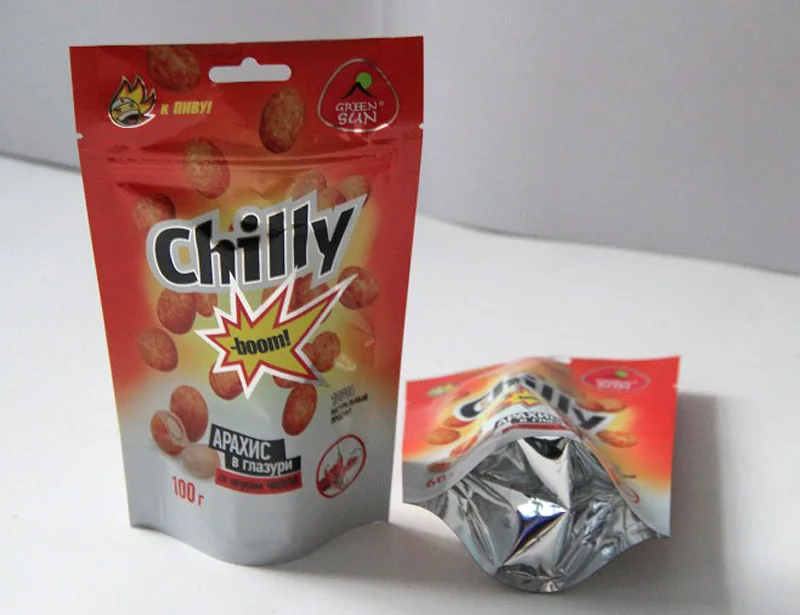

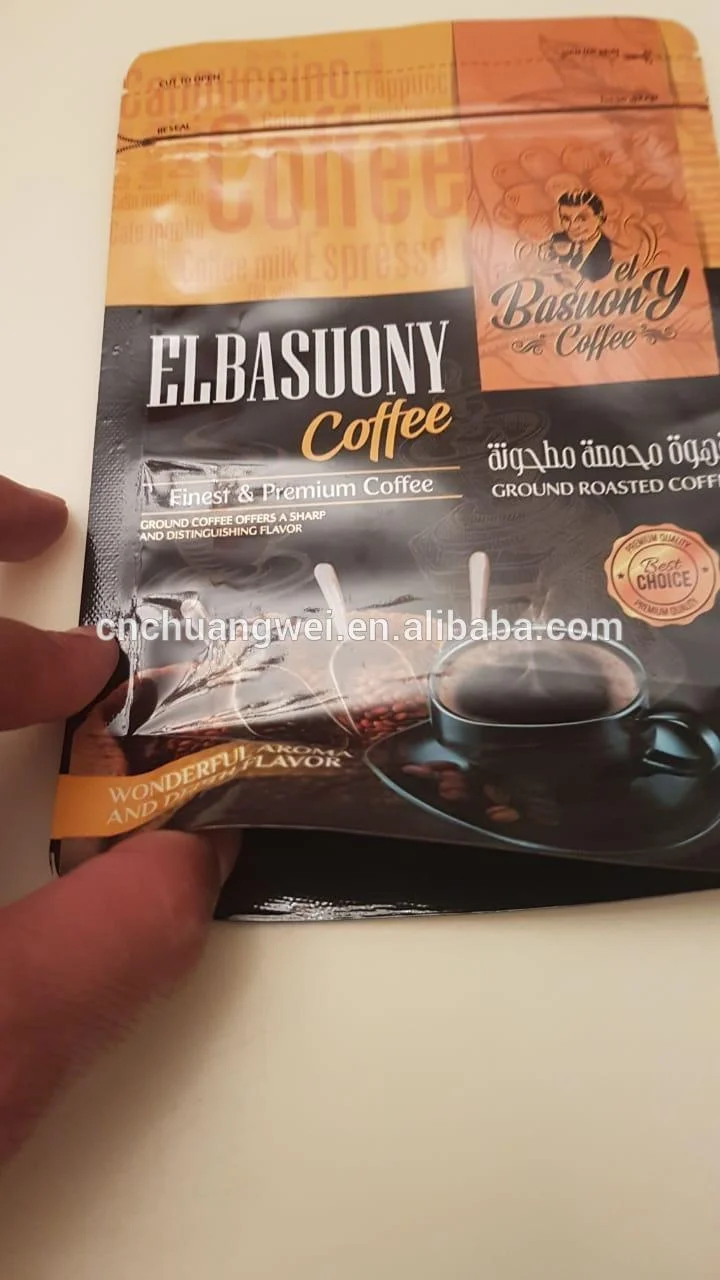

Bag Samples
insert third film as stand up gusset
Details Images

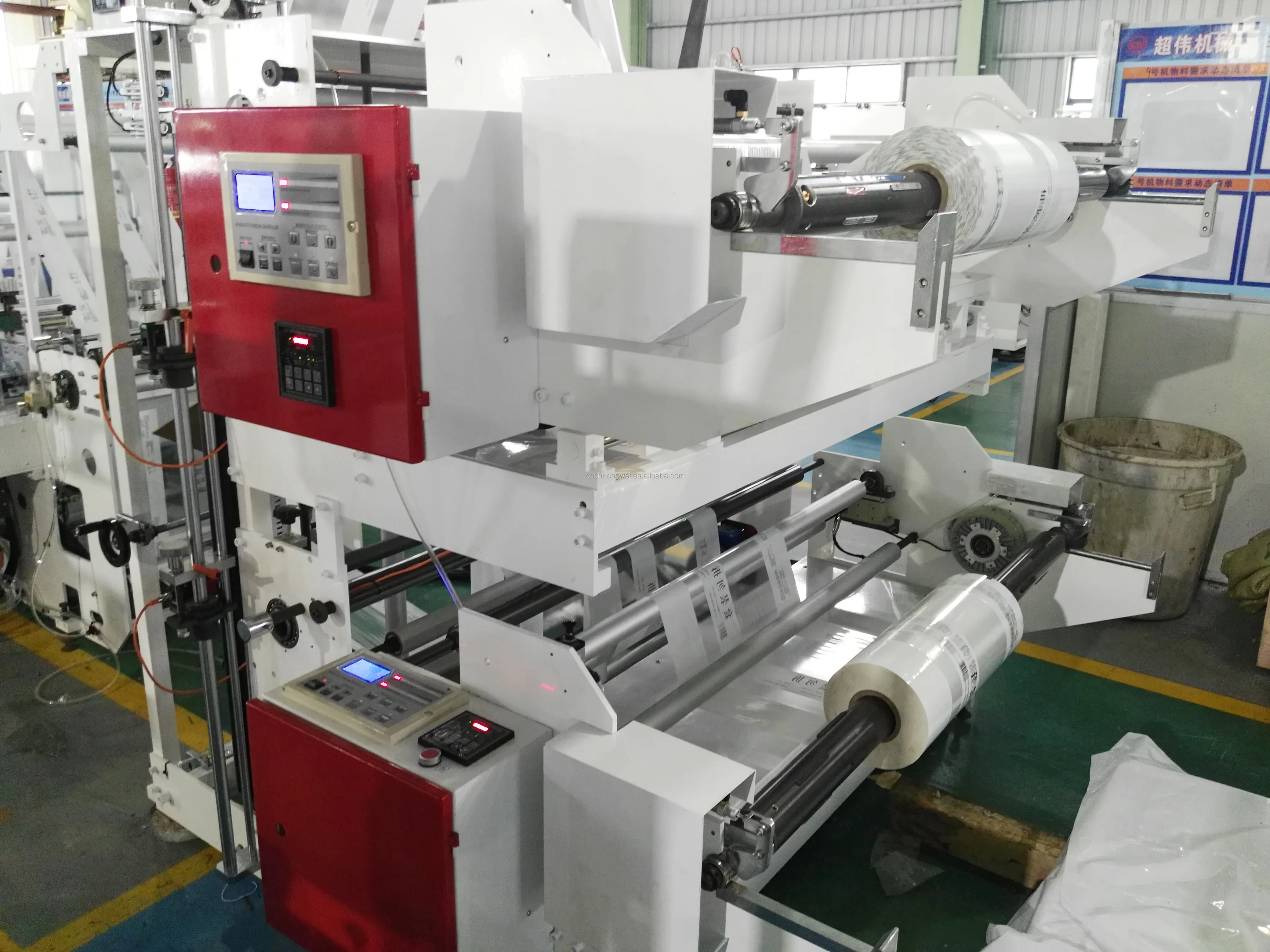

Unwinder
1.With automatic tension monitor
2.Equipped with plug type and pneumatic locking device
1.With automatic tension monitor
2.Equipped with plug type and pneumatic locking device

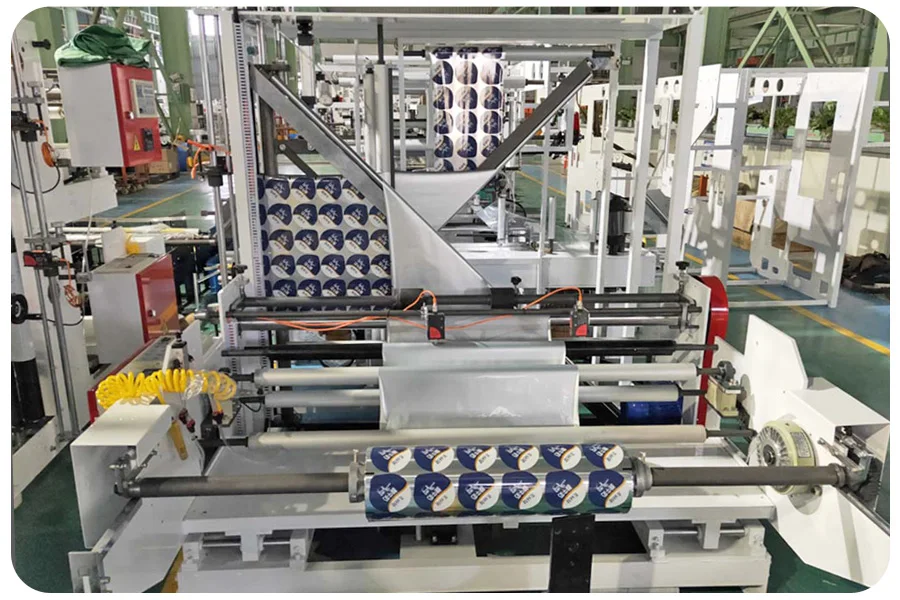

Third film inserted stand up device
This device is horizontal expected level with photoelectric tracking with centralized control of the host computer with the computer on pneumatic control.
This device is horizontal expected level with photoelectric tracking with centralized control of the host computer with the computer on pneumatic control.
Zipper device
The zipper ultrasonic device make the zipper seal much more stronger with a independent controller.
The zipper ultrasonic device make the zipper seal much more stronger with a independent controller.

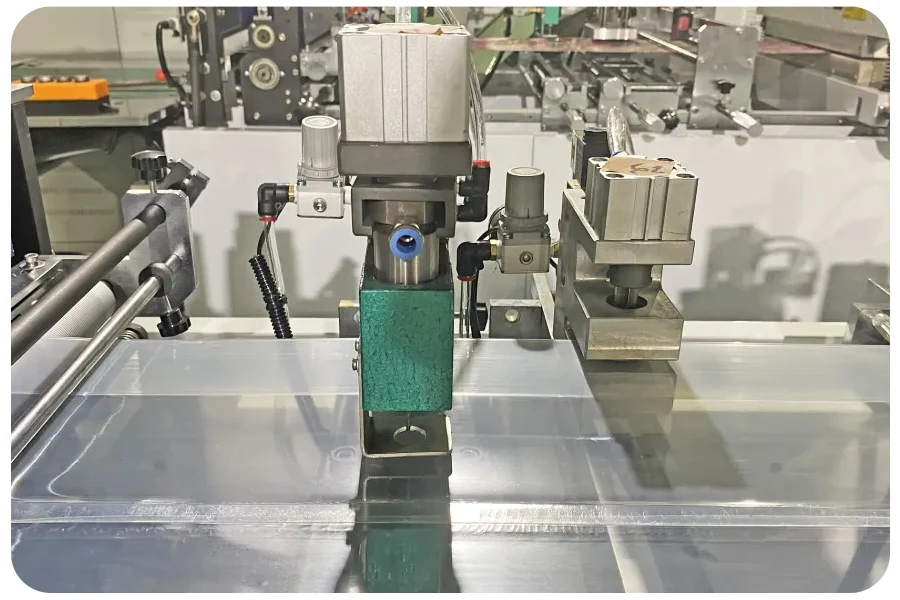

punch device
standard: easy tear hole& round hole(diameter:6/8/10 each one pcs)
optional: handle punch(customerized) euro hole
standard: easy tear hole& round hole(diameter:6/8/10 each one pcs)
optional: handle punch(customerized) euro hole

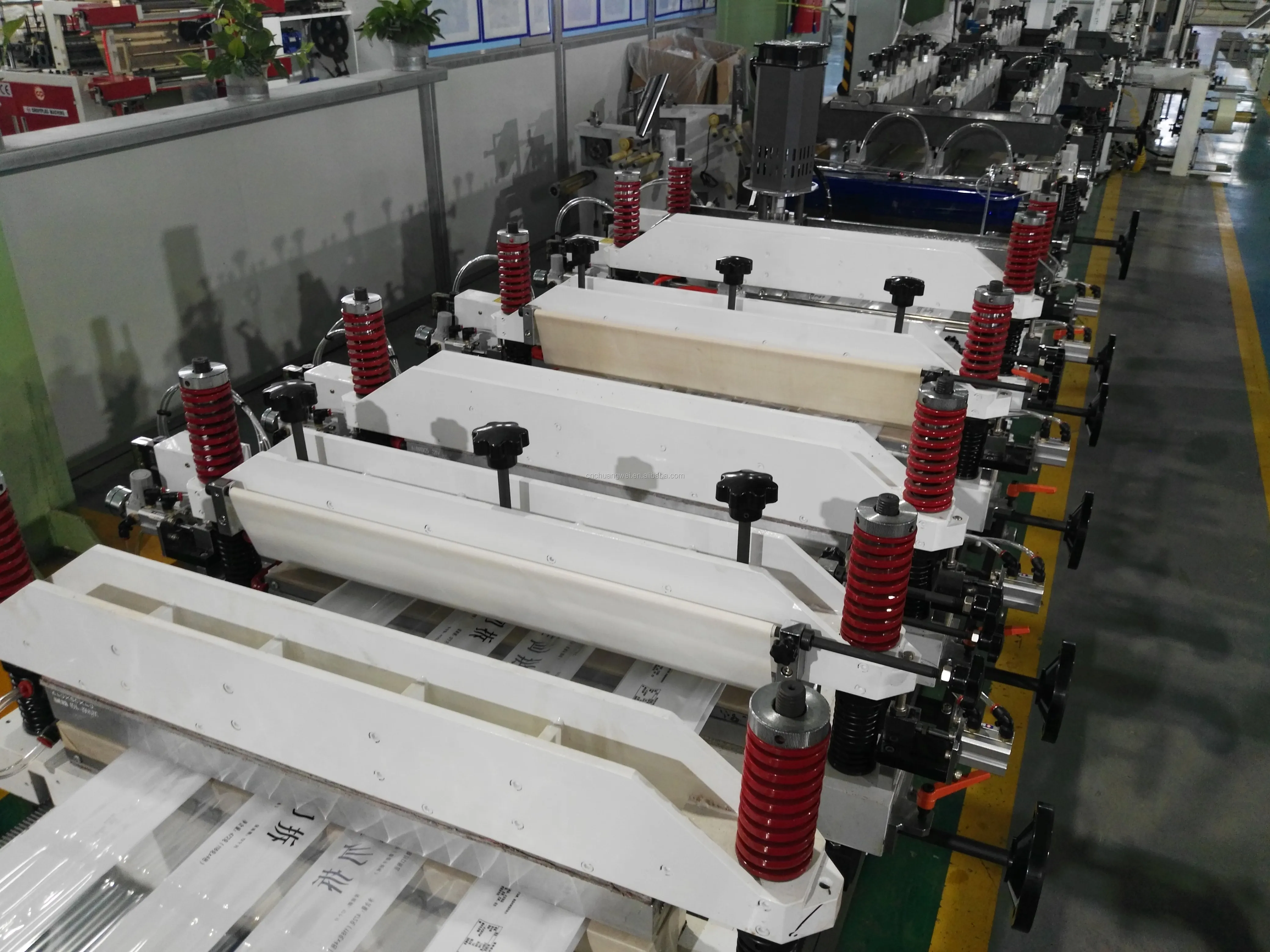

bottom sealing bar
Bottom sealing adopt 3 groups heating fluctuation, 1 group for cooling fluctuation.
Bottom sealing adopt 3 groups heating fluctuation, 1 group for cooling fluctuation.

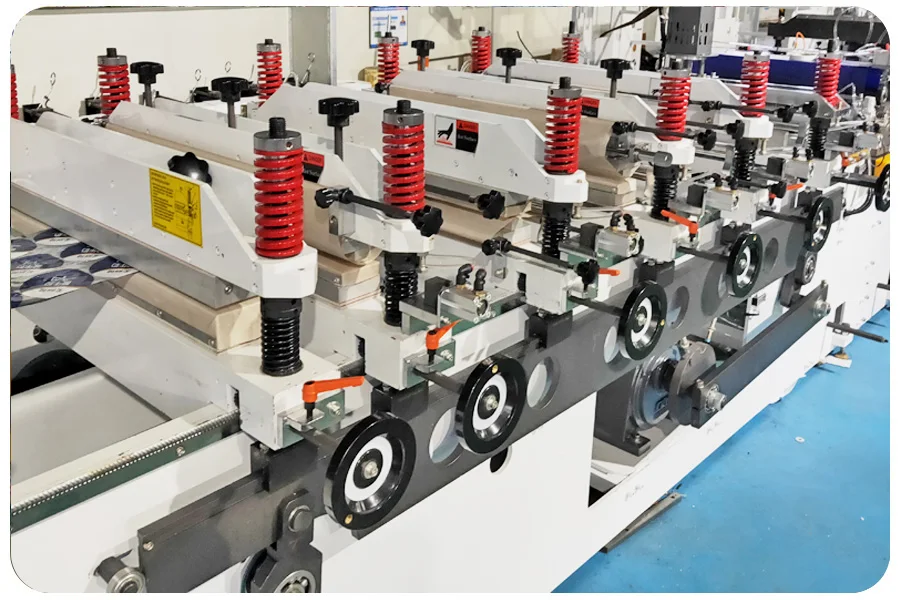

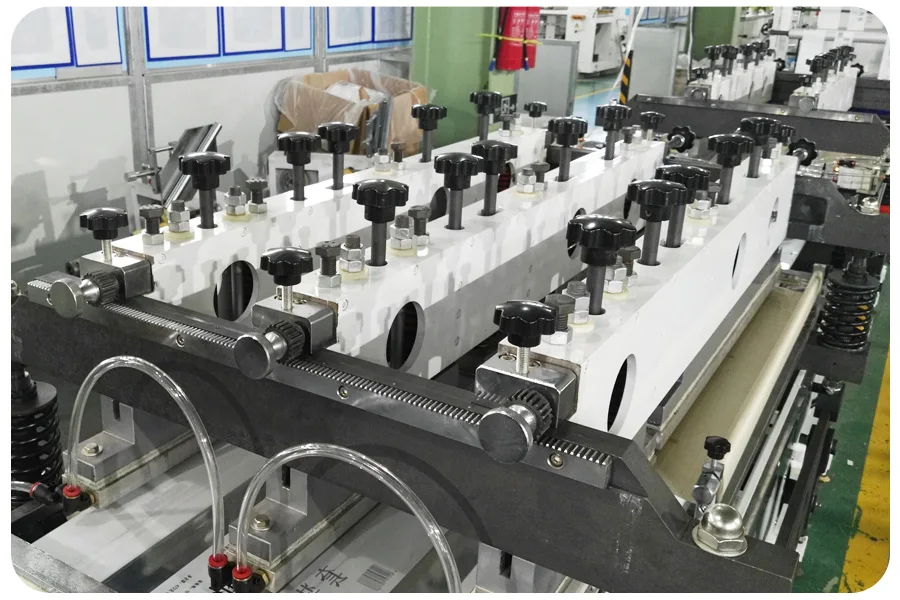

vertical sealing part
Vertical-sealing adopts 3 groups for heating fluctuation, cooling fluctuation from up and down..
Vertical-sealing adopts 3 groups for heating fluctuation, cooling fluctuation from up and down..
Main Part
Packing & Loading
Certifications
About Us
CHOVYTING Machinery is a manufacturer specialized in the design and production of plastic bag machinery. it has adopted modern management methods such as 6S site management, PMC production management and international standard QC management, and adopted 3D mechanical design and IEC standard electrical 3D design to standardize production operations, so that to receive a higher rating from customer after use.
CHOVYTING always insists on providing customers with high quality and perfect products. Therefore, the actual process of each production step is strictly controlled, and the ISO-9000 quality system process is used to track and control and have passed the EU CE safety regulations.
CHOVYTING has more than 120 employees, 8 person for research and development, 9 person for sale, and 10 technical person for after sales that includes 5 person work in overseas all year round.
EXHIBITIONS
FAQ
1) Is your company a factory or a trading company?
We are a factory.
2) Where is your factory? How can i visit your company?
Our factory is located in Ruian, Zhejiang Province, China. It takes about 40 minutes from Shanghai to take the plane(5 hours for train). All our clients from home and abroad are warmly welcomed to visit us.
3) What is the suitable material for your machines?
PE, OPP, laminated material ,etc are suitable for our machines
4) What kind of machine do you have ?
We are specializing in manufacturing various of plastic bag making machine, laminated bag making machine, slitter, film blowing machine, etc...
5) How many years of your factory?
Our company is established since 1999.
6) What certificate of machine do you have?
CE, ISO 2008, more than 50 pieces Patent of machine
7) What about the development of your company?
Titled as “National Key and New Products” and Pass identification of the provincial new product, honored as” Patent Model Enterprise” as well.
8) How many exhibition do you take part in?
We start to took part in CHINAPLAS from 2008-2019,BANGLADESH, INSTANBUL, MOROCCO, MEXICO, EGYPT,
UZBEKIKSTAN, DUBAI E,THAILAND, INDIA EXBIHITION, K SHOW etc...
9) How many agent do your company have?
We have agents from Chile, Argentina, South Africa, Egypt, Israel, Lebanon, Syria etc...
10) How many workers of your company?
More than 150 workers.
We are a factory.
2) Where is your factory? How can i visit your company?
Our factory is located in Ruian, Zhejiang Province, China. It takes about 40 minutes from Shanghai to take the plane(5 hours for train). All our clients from home and abroad are warmly welcomed to visit us.
3) What is the suitable material for your machines?
PE, OPP, laminated material ,etc are suitable for our machines
4) What kind of machine do you have ?
We are specializing in manufacturing various of plastic bag making machine, laminated bag making machine, slitter, film blowing machine, etc...
5) How many years of your factory?
Our company is established since 1999.
6) What certificate of machine do you have?
CE, ISO 2008, more than 50 pieces Patent of machine
7) What about the development of your company?
Titled as “National Key and New Products” and Pass identification of the provincial new product, honored as” Patent Model Enterprise” as well.
8) How many exhibition do you take part in?
We start to took part in CHINAPLAS from 2008-2019,BANGLADESH, INSTANBUL, MOROCCO, MEXICO, EGYPT,
UZBEKIKSTAN, DUBAI E,THAILAND, INDIA EXBIHITION, K SHOW etc...
9) How many agent do your company have?
We have agents from Chile, Argentina, South Africa, Egypt, Israel, Lebanon, Syria etc...
10) How many workers of your company?
More than 150 workers.
