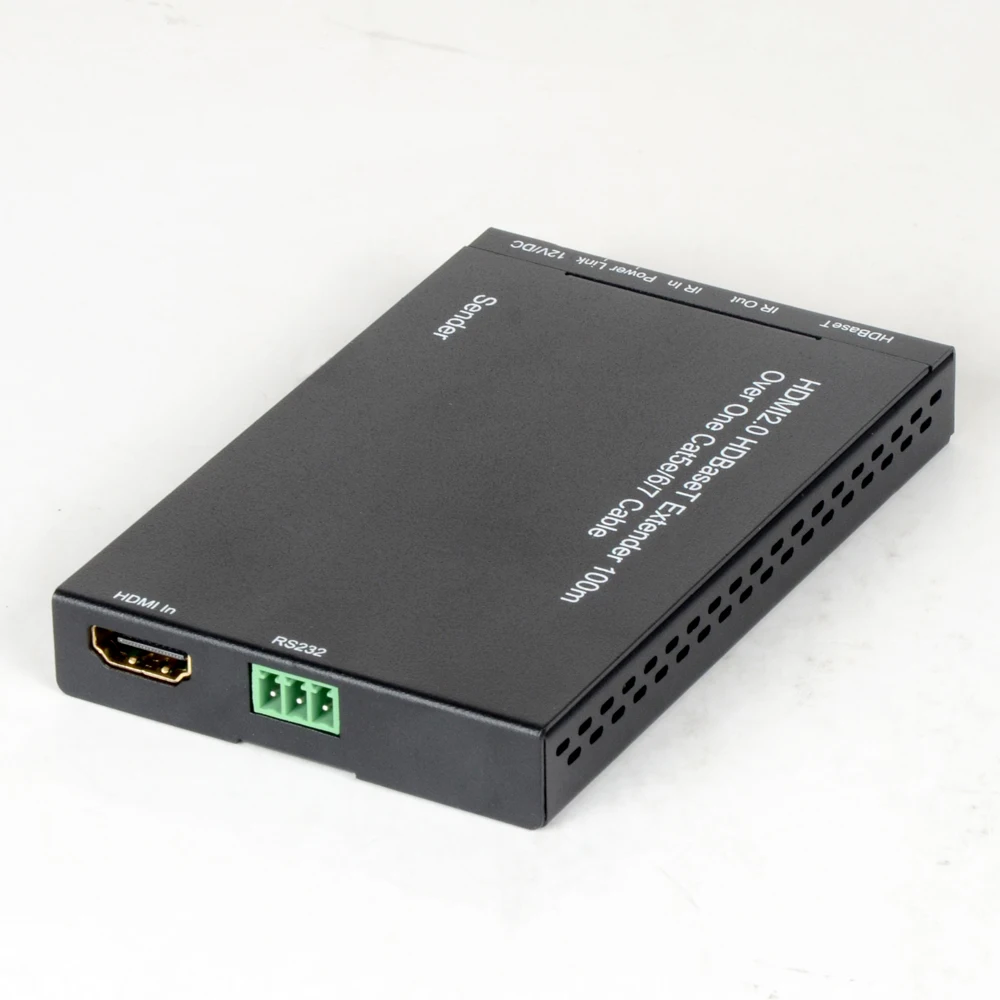

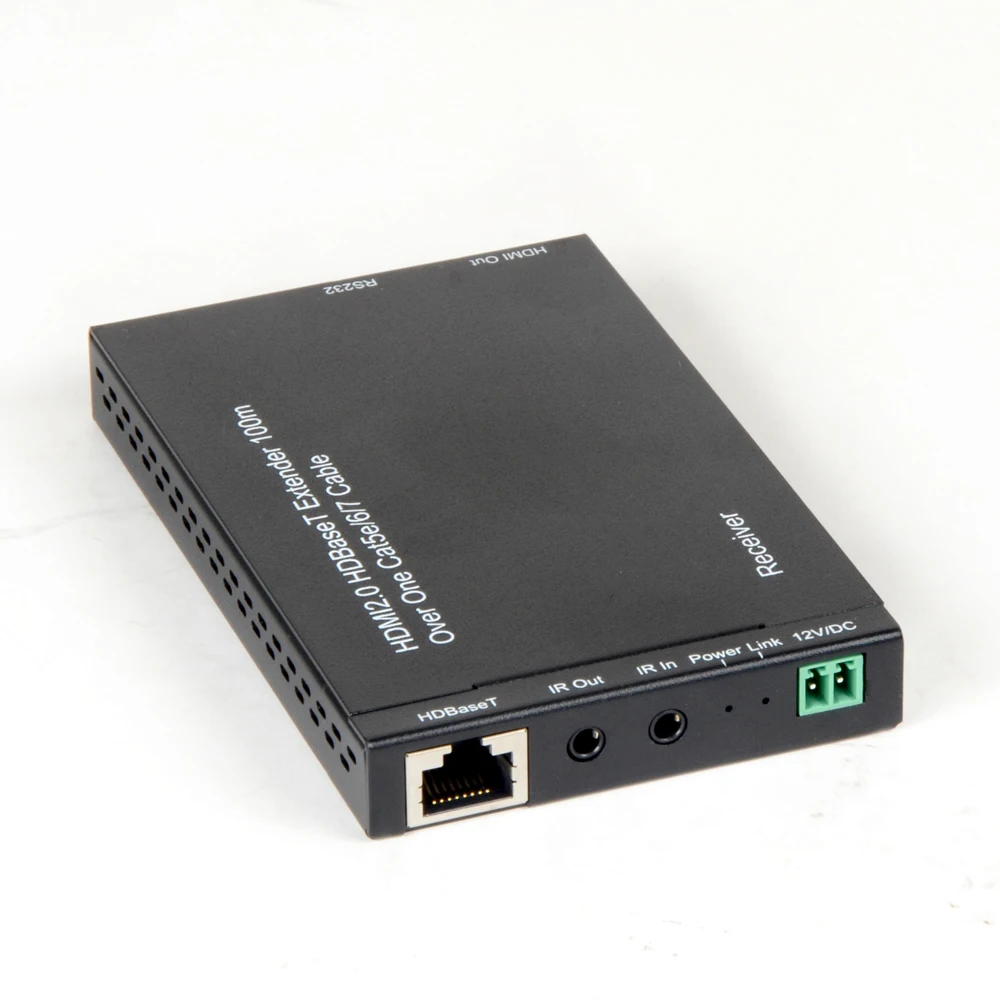

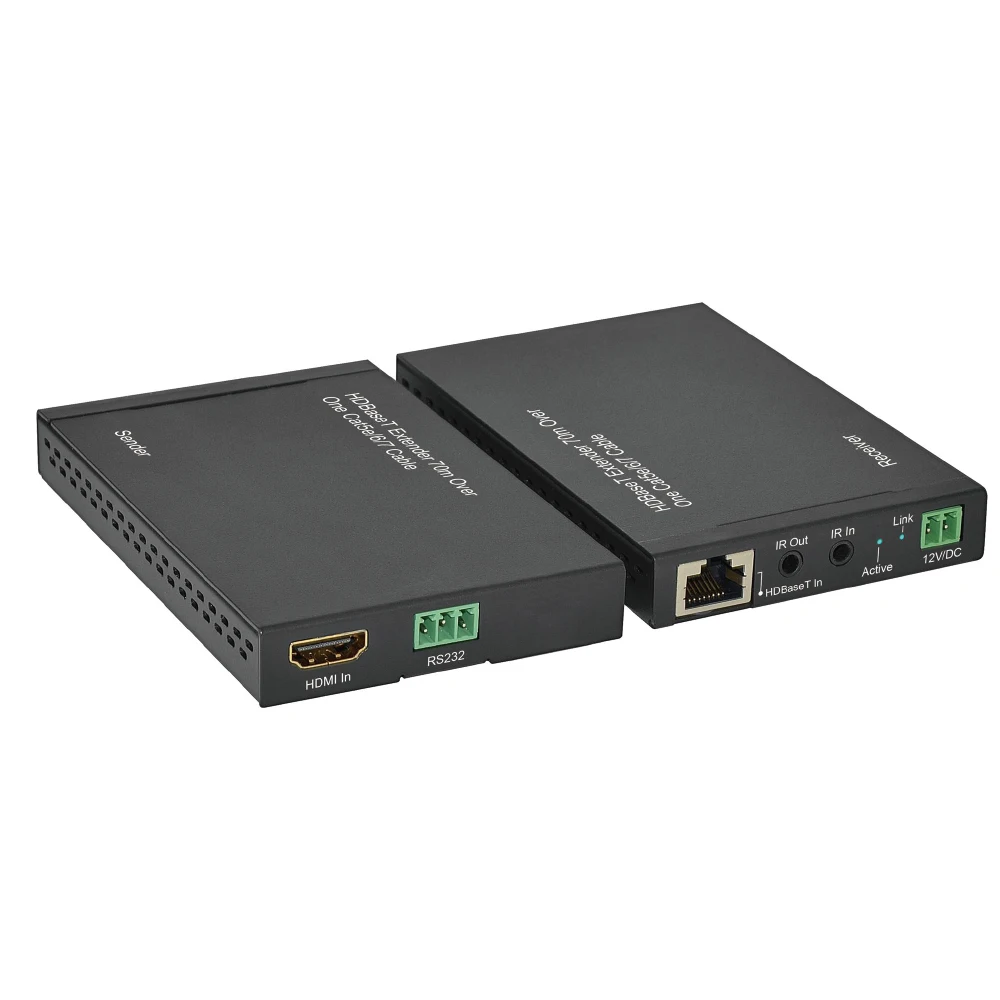

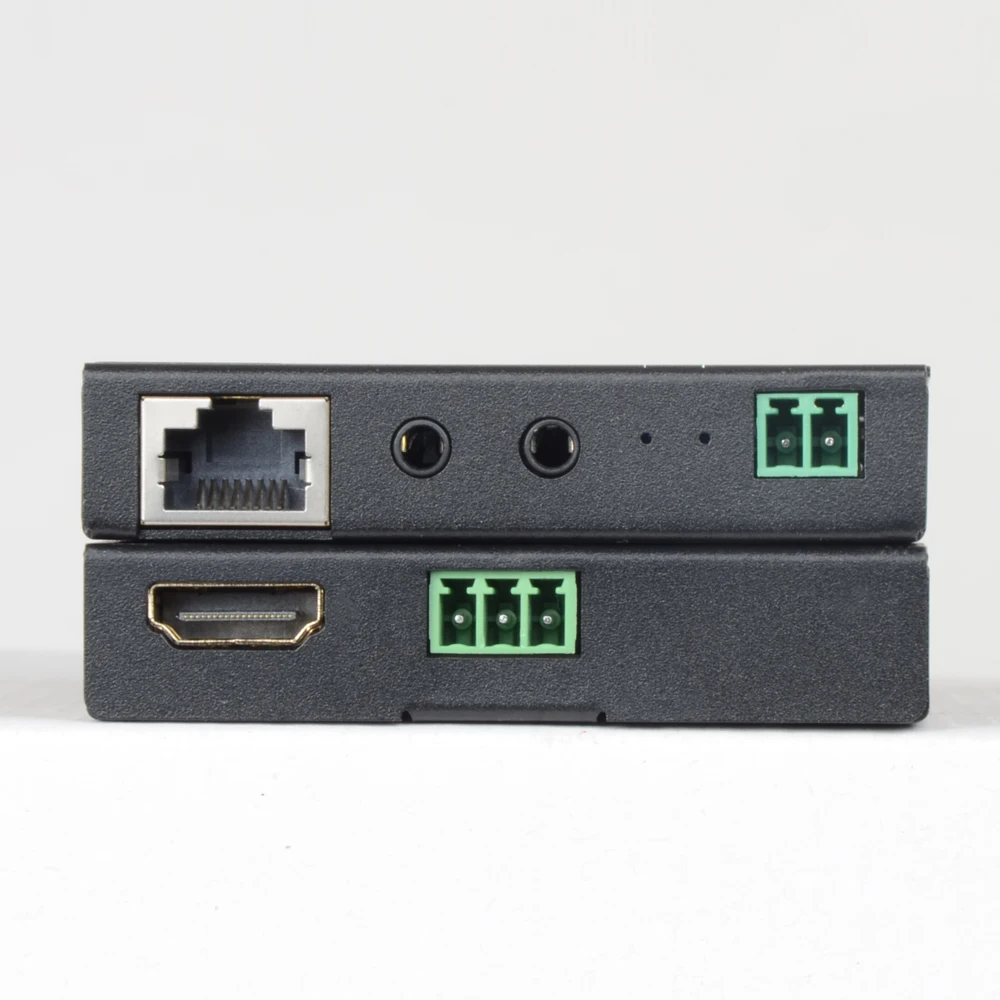

GMAX Hot selling HDMI 1.4a 70M Extender Support 3D pass through 1080p@60Hz@48bit pixels 4K x 2K HDCP1.4/2.2
- Category: >>>
- Supplier: G-Max Technology Co. Ltd.
Share on (1600612801671):
Product Overview
Description
Item Name: | HDBaseT Extender |
Place of Origin: | Guangdong, China |
Color: | As is shown |
Brand Name: | Gmax |
Certification: | FCC, CE, RoHS |
Products Description
This HDMI extender using the next-generation connectivity technology HDBaseT, this technology is designed to keep the HD market thriving for years to come.
This innovative patent pending technology is the first to enable long-reach wiredconnectivity of uncompressed HD multimedia content over a single standardCat-5e/6 cable.
Product Feature
● Support HDCP
● Support uncompressed HDMI signal.
● Enables HDMI Gbps and IR signal in parallel over a single 70m Cat5e/6cable.
● Supports 340MHz/3.4Gbps per channel (10.2Gbps all channel) bandwidth.
● Support 1080p@60Hz@48bit pixels, 4K x 2K.
● Support 3D pass-through.
● Support CEC pass-through.
● Supports uncompressed audio such as LPCM.
● Supports compressed audio such as DTS Digital, Dolby Digital（includingDTS-HD and Dolby True HD）.

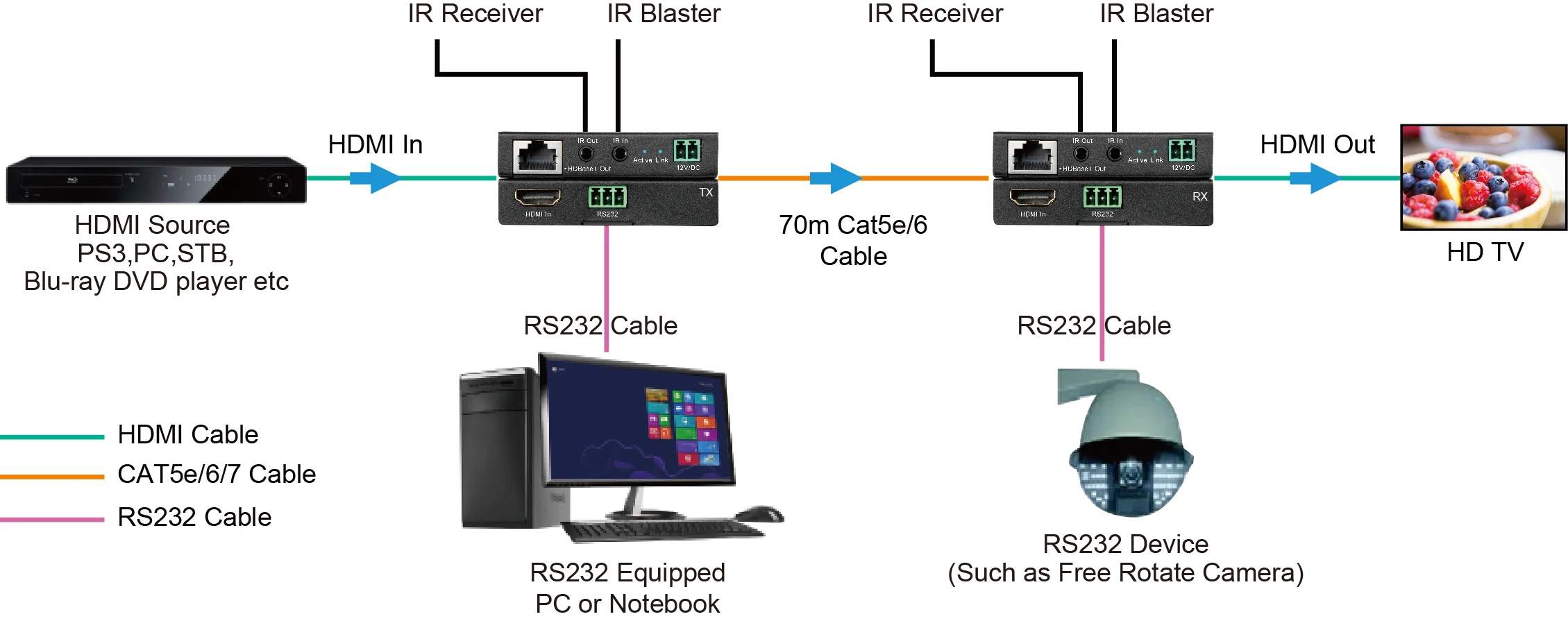

● Built-in IR extender function allows IR remote control of Source devices fromremote viewing location by sending IR commands received in the vicinity ofthe Display back to the Source devices.
● Support RS232 pass-through.
● Support POC,Support POC function,just powered one of them betwee
● Support uncompressed HDMI signal.
● Enables HDMI Gbps and IR signal in parallel over a single 70m Cat5e/6cable.
● Supports 340MHz/3.4Gbps per channel (10.2Gbps all channel) bandwidth.
● Support 1080p@60Hz@48bit pixels, 4K x 2K.
● Support 3D pass-through.
● Support CEC pass-through.
● Supports uncompressed audio such as LPCM.
● Supports compressed audio such as DTS Digital, Dolby Digital（includingDTS-HD and Dolby True HD）.
● Built-in IR extender function allows IR remote control of Source devices fromremote viewing location by sending IR commands received in the vicinity ofthe Display back to the Source devices.
● Support RS232 pass-through.
● Support POC,Support POC function,just powered one of them betwee
Technical Data
HDMI version.................................... HDMI v1.4a
HDCP version................................... HDCP1.4/2.2
Support resolution.............................4K/1080P/1080i/720P/576P/576i/480P/480i
Support video color bit ......................deep color 24bit/36bit/48bit
Support audio format..........................LPCM/Dolby-AC3/DTS7.1/DSD
Operating Humidity range...................5 to 90%RH (No Condensation)
Operating Temperature range.............-15 to +55C° (5 to 131°F)
Power adapter format.........................Input AC (50Hz.60Hz) 100- 240V
Power Supply......................................DC 12V/2A
HDCP version................................... HDCP1.4/2.2
Support resolution.............................4K/1080P/1080i/720P/576P/576i/480P/480i
Support video color bit ......................deep color 24bit/36bit/48bit
Support audio format..........................LPCM/Dolby-AC3/DTS7.1/DSD
Operating Humidity range...................5 to 90%RH (No Condensation)
Operating Temperature range.............-15 to +55C° (5 to 131°F)
Power adapter format.........................Input AC (50Hz.60Hz) 100- 240V
Power Supply......................................DC 12V/2A
Package Contents
● 1x Main unit Transmitter
● 1x Main unit Receiver
● 2x IR-Receiver cable
● 2x IR-Blaster cable
● 1x User Manual
● 2x Phoenix plugs for RS232 cable termination
● 1x 12V Power adapter
● 1x Main unit Receiver
● 2x IR-Receiver cable
● 2x IR-Blaster cable
● 1x User Manual
● 2x Phoenix plugs for RS232 cable termination
● 1x 12V Power adapter
