Hand Push Electric Asphalt Concrete Ground Scarifier Planer Road Milling Machine Scarifying Epoxy Coating Equipment Price
- Category: >>>
- Supplier: Suzhou Bersi Industrial Equipment Co. Ltd.
Share on (1600612834053):
Product Overview
Description

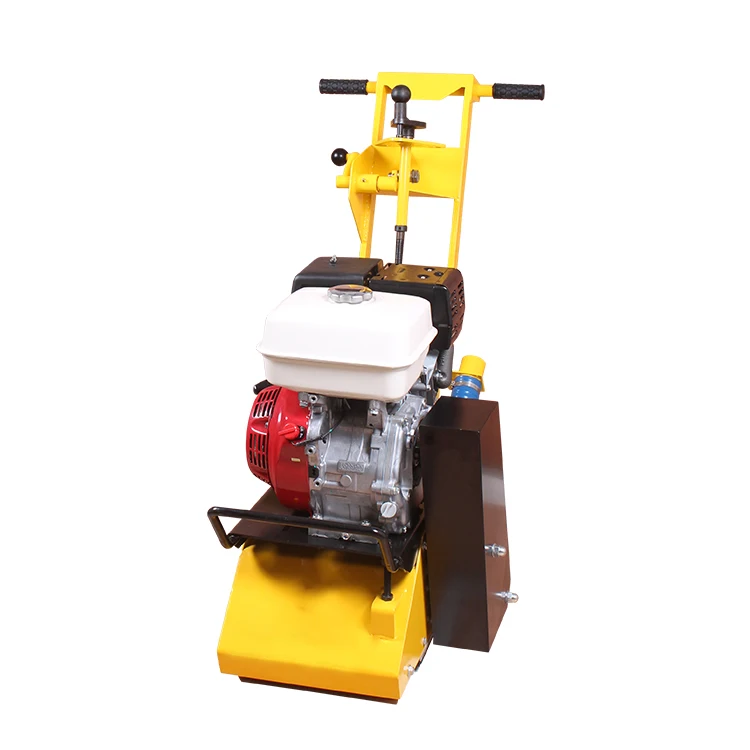

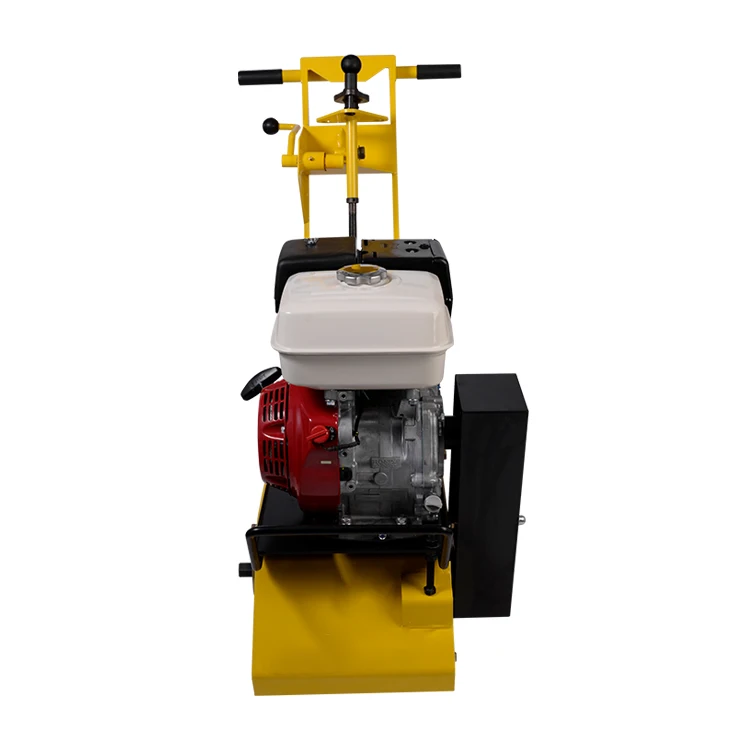

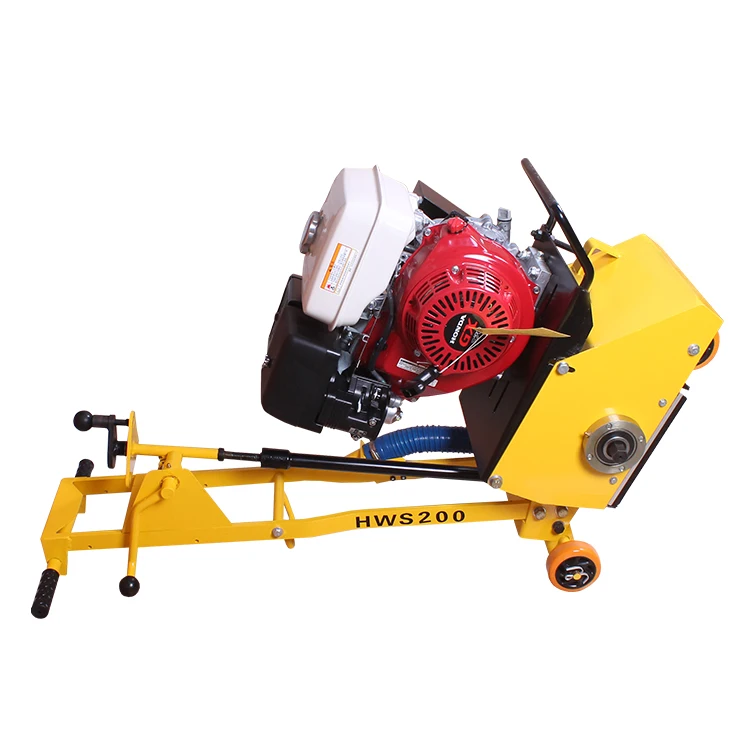

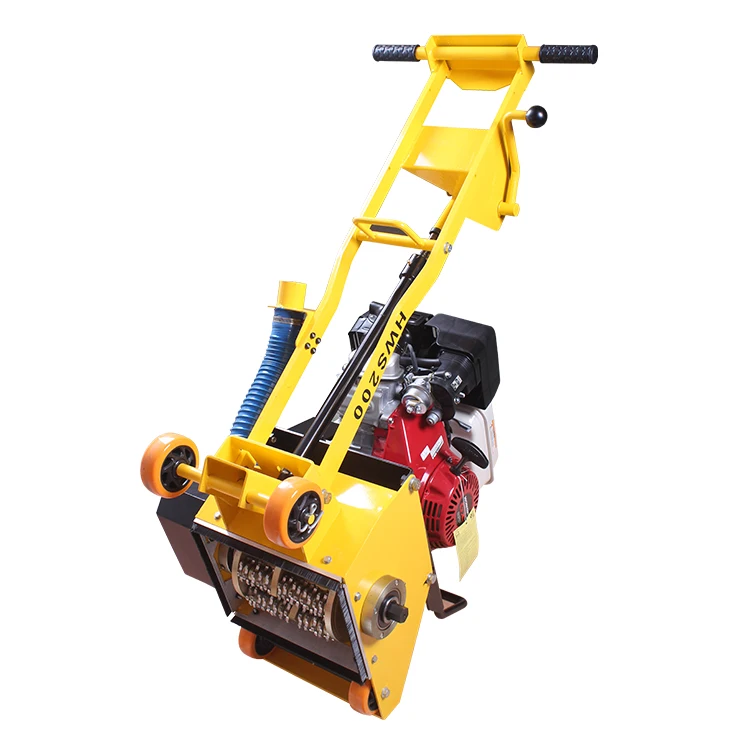

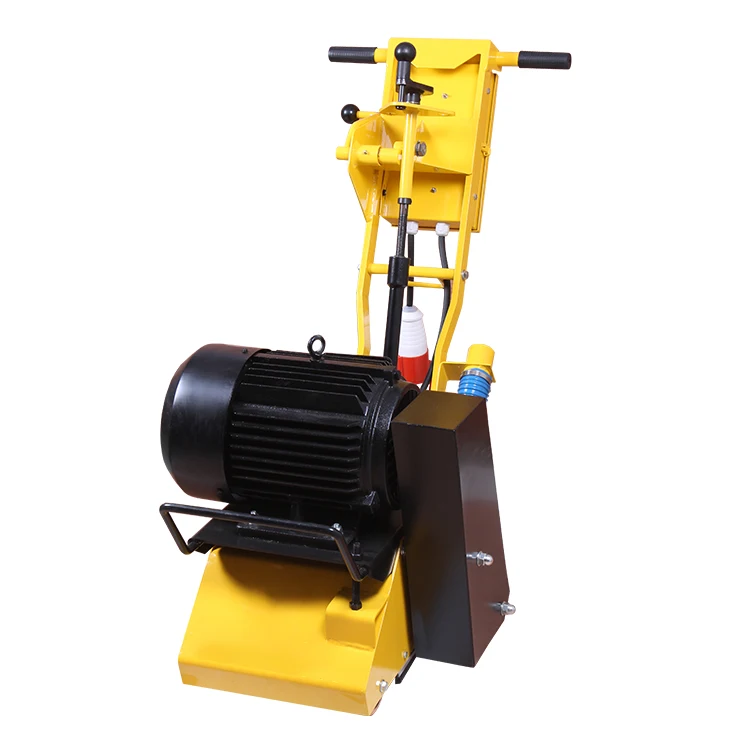

HWS200 PUSH MODEL CONCRETE SCARIFIER
The concrete scarifier’s drum with TCT cutters rotates forward at very high speed; which swings the group of cutters crashes the floor, therefore the carbide tungsten tips on the cutters mill, plan, scarifying concrete, asphalt, and epoxy resin on the floor surface.
HWS200 has a drum design, zero depth height adjustment, better balance and less vibration, and side-entry roller components. There are heat treated hardened hexagonal shaft, sealed bearing and toothed belt.
Featured accessories include carbide (TCT), ripper drum and shaft, and Honway vacuum device.
8” 200mm scarify floor maximum 350-500sq.ft. depth at 1/8” per pass per hour.
Chip traffic line at 800-1000 lineal ft per hour.
APPLICATION
Removing traffic line and coatings.
Small, narrow areas or edges.
Sidewalk repair.
Floor preparation or cleaning.
Creating nonslip surfaces.
HWS200 has a drum design, zero depth height adjustment, better balance and less vibration, and side-entry roller components. There are heat treated hardened hexagonal shaft, sealed bearing and toothed belt.
Featured accessories include carbide (TCT), ripper drum and shaft, and Honway vacuum device.
8” 200mm scarify floor maximum 350-500sq.ft. depth at 1/8” per pass per hour.
Chip traffic line at 800-1000 lineal ft per hour.
APPLICATION
Removing traffic line and coatings.
Small, narrow areas or edges.
Sidewalk repair.
Floor preparation or cleaning.
Creating nonslip surfaces.
KEY FEATURES:
Zero-depth height adjustment.
long-life tungsten carbide cutters.
Heavy-duty hex shaft, sealed bearings and toothed belt.
Technical data sheet:
Model | HWS200E | HWS200G |
Power | 380-440 V 3~ /5.5kw(7hp) | Gasoline 6.6kw(9hp) |
Working width | 200mm / 8” | 200mm / 8” |
Working depth | 1-3mm | 1-3mm |
Drum rotation | Down cut(clockwise) | Down cut(clockwise) |
Drum assembly | Changeable | Changeable |
Drum of shaft | 6pcs | 6pcs |
Drum of cutter | 78pcs | 78pcs |
Machine weight | 105kg(231lbs) | 120kg(265lbs) |
Machine size | 1100*530*970mm | 1100*530*970mm |
Walking way | Push model | Push model |
ADVANTAGES:
2. Pure copper electrical motor, 380v, three phrases, built-in overload protection, leakage protection, phase loss protection.
3. Specially Heated and welded drum and shafts, which affords the high speed rotation of heavy duty drum sets.
3. Specially Heated and welded drum and shafts, which affords the high speed rotation of heavy duty drum sets.
Packaging: Pallet packing | ||
Size | 1100(L)*530(W)*970(H) | |
Weight | 120kg/Unit | |
Package Details | The regular package is carton box, fumigated wooden box packing for optional, we will customize the pallet size according to the models Nos, load more quantities to save space when shipped by container. | |
