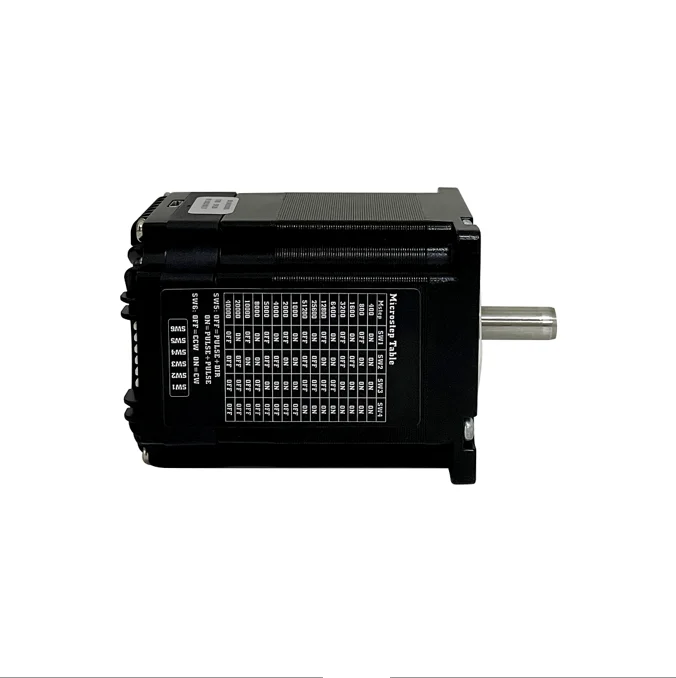

2 phase 57mm Nema 23 2.4Nm 24V 48V 3000RPM encoder integrated closed loop step servo motor with driver
2 phase 57mm Nema 23 2.4Nm 24V-48V 3000RPM encoder integrated closed loop step-servo motor with driver
2 phase 57mm Nema 23 2.4Nm 24V-48V 3000RPM encoder integrated closed loop step-servo motor with driver
2 phase 57mm Nema 23 2.4Nm 24V-48V 3000RPM encoder integrated closed loop step-servo motor with driver
2 phase 57mm Nema 23 2.4Nm 24V-48V 3000RPM encoder integrated closed loop step-servo motor with driver
2 phase 57mm Nema 23 2.4Nm 24V-48V 3000RPM encoder integrated closed loop step-servo motor with driver
2 phase 57mm Nema 23 2.4Nm 24V-48V 3000RPM encoder integrated closed loop step-servo motor with driver

2 phase 57mm Nema 23 2.4Nm 24V 48V 3000RPM encoder integrated closed loop step servo motor with driver

Share on (1600612868276):


Price:

Quantity:


Product Overview

Description



Product Overview


2 phase 57mm Nema 23 2.4Nm 24V-48V 3000RPM encoder integrated closed loop step-servo motor with driver



FEATURES AT A GLANCE


TST57-76P
NEMA23, 2.4N/m, 48g/cm2,
Supply Voltage:22-60Vdc,
Encoder Resolution:4000counts/rev,(1000 lines)
Pulse Input Type,
Control Command:Pulse Input

● Multi-axis field bus control
● Intelligent built-in controller
● Compact all-in-one solution
● Efficient, smooth, accurate, fast
● Enhanced motor, optimized design

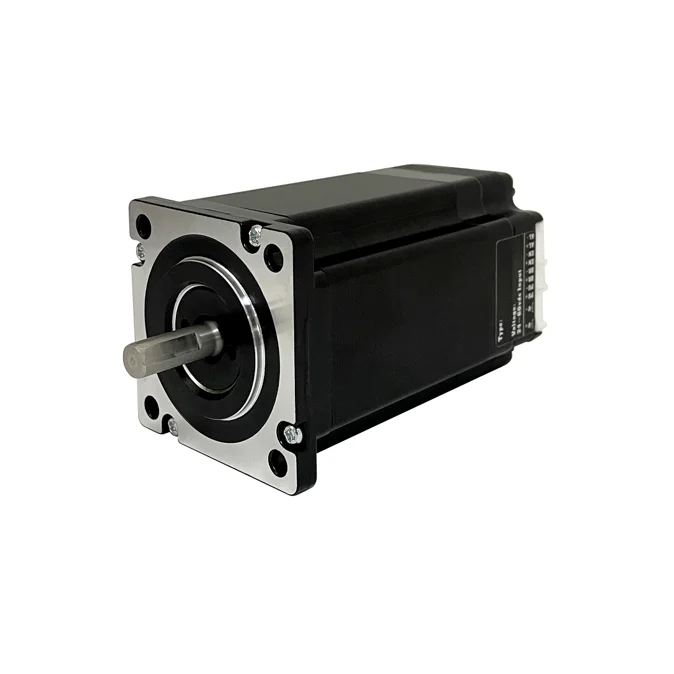

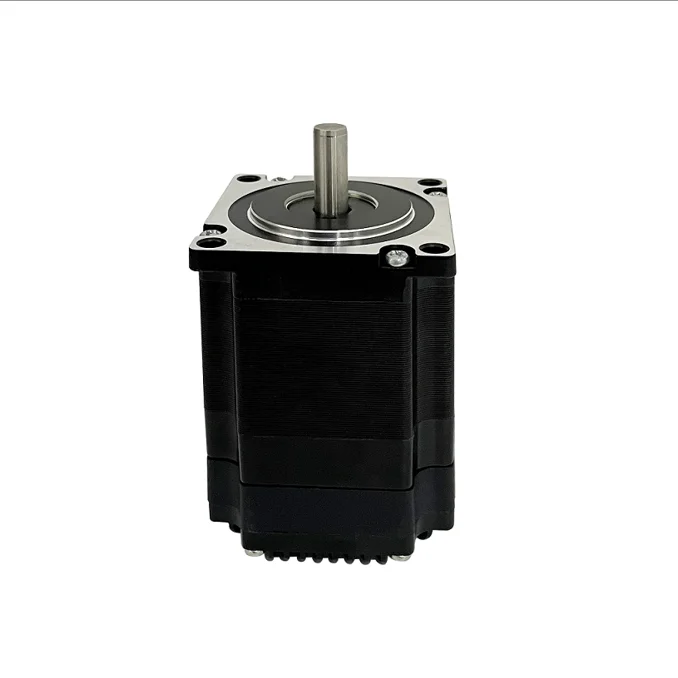

Product show


Front

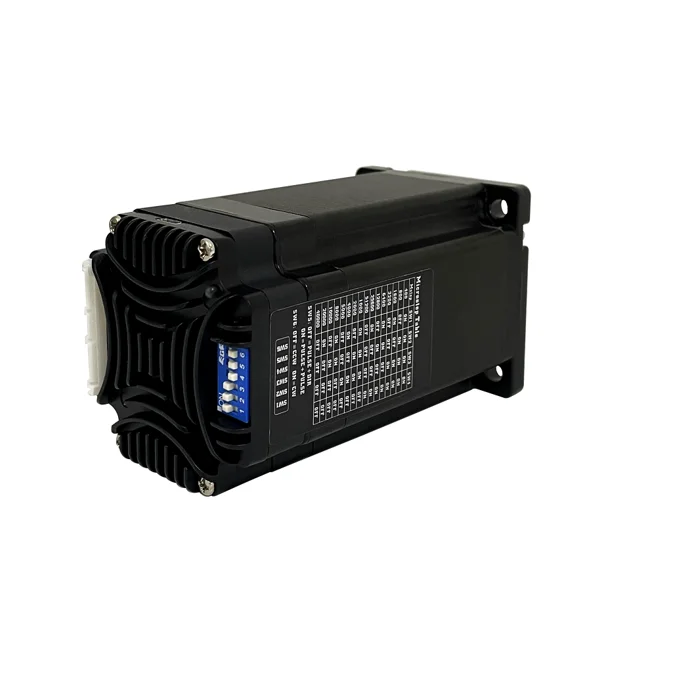

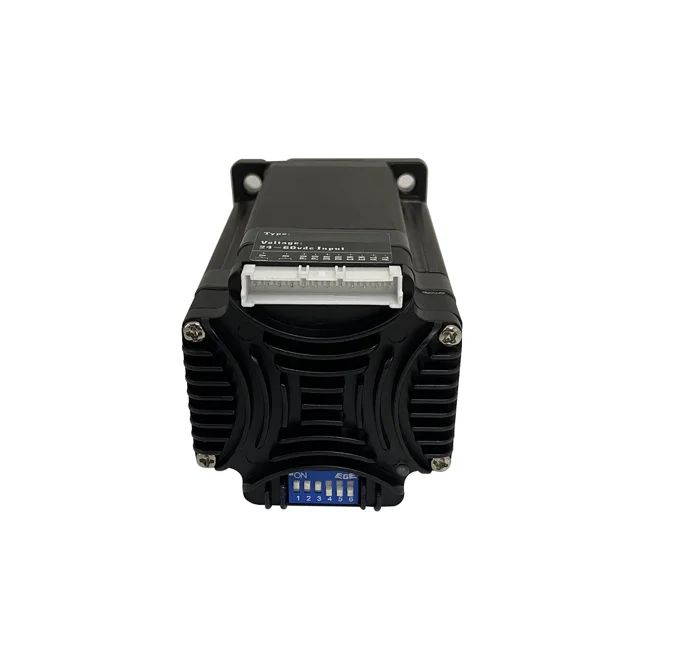

Back
side





Parameter


Parameter
Value
Supply Voltage
22-60 VDC
Control Modes
Pulse Mode
Rated Current
5.0A
Resistance
0.6±10%ohm(20℃)
Inductance
1.8±20%mH(1KHz)
Step Angle
1.8 degree
No of Phase
2
Holding Torque
2.4Nm
Rotor Inertia
480g·cm²
Dielectric Strength
500VA.C
Insulation Resistance
100MΩ above/MIN
Insulation Glass
B
Operation Ambient Temperature
0℃～+50℃
Operation Ambient  Humidity
20%RH～90%RH
Weight
1.1kg

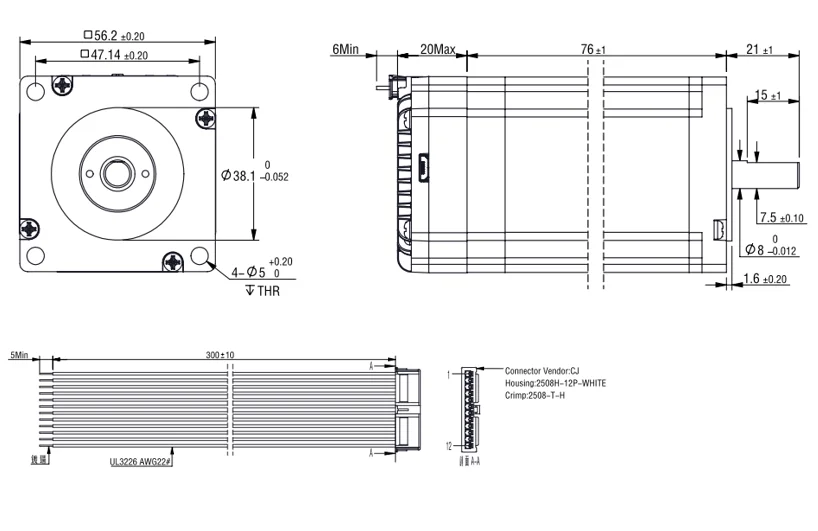

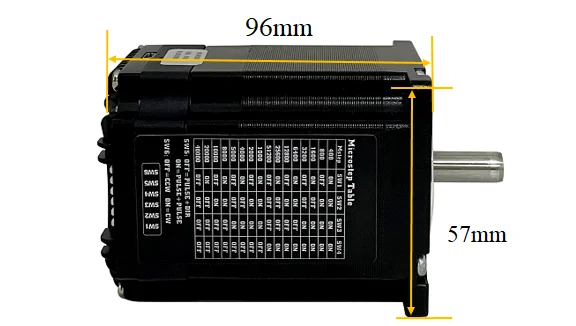

Dimensions(Unit:MM)













Terminal Definitions/Port Function







Microstep Setting




SW5 ：Setting single/double pulse
OFF:Single pulse
ON:Double pulse

SW6:Setting Motor running direction
OFF:Counterclockwise rotating
ON:Clockwise rotating




LED Error Codes






USB to TTL data cable(to be purchased separately)






SALES AND SERVICE NETWORK




Successful Project


Coating machine
Laser cleaning + winding equipment
Volumetric OCV detection equipment


SIMILAR PRODUCTS




FAQ


FAQ
1.Factory or Agent?
We are Agent, but have professional R&D team as introduced in company information.

2. How about the delivery?
- Sample: 1-3 days.
- Bulk order: 5-20 days.

3. What is your after-sales services?
1. Free maintenance within 12 months guarantee, lifetime consultant.
2. Professional solutions in installation and maintence.

4. Why choose us?
1. Accept customize & 24/7 after-sale services.
2. From mold customization to material processing and welding, from fine components to finished assembly,strict aging, finished
product inspection.

5. Do you get the relevant certification?
All products are made according to ISO9001, CE &RoHS requirements.


Company Information
SAMSR Motor has 30 years history of manufacturing stepper motors and drives. Along with the development of automation the SAMSR
motors are becoming increasingly towards high precision, superior technology and comprehensive.

SAMSR stepping motors and drivers are widely used in those fields which requiring precise positioning, automatic aiming and automatic recording, etc...Such as precision machining, automation control, aerospace technology, medical apparatus, robots,textile and semiconductor equipment. Packaging and transportation machinery and so on
