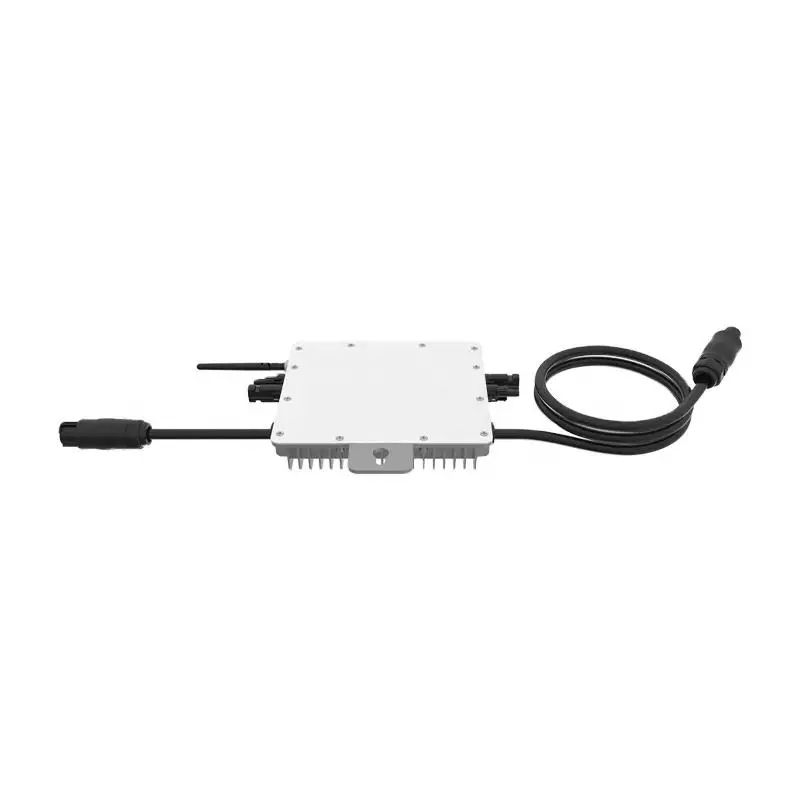

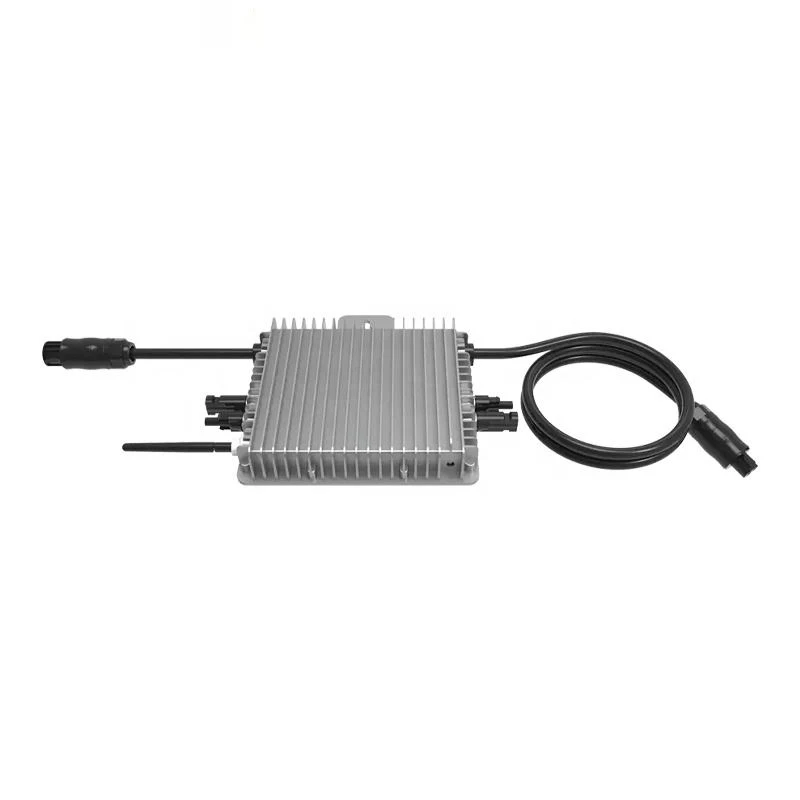

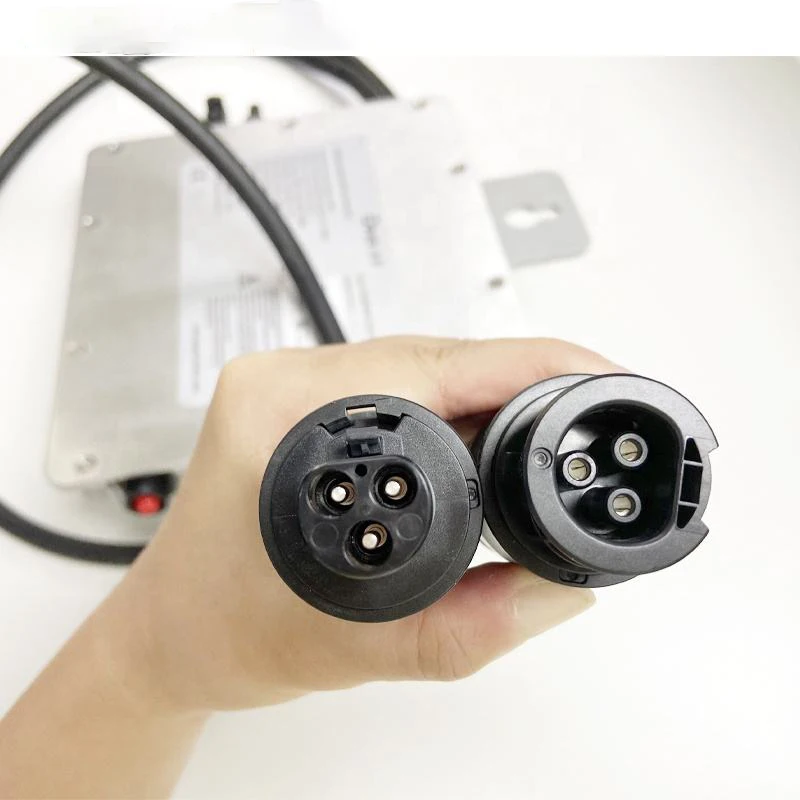

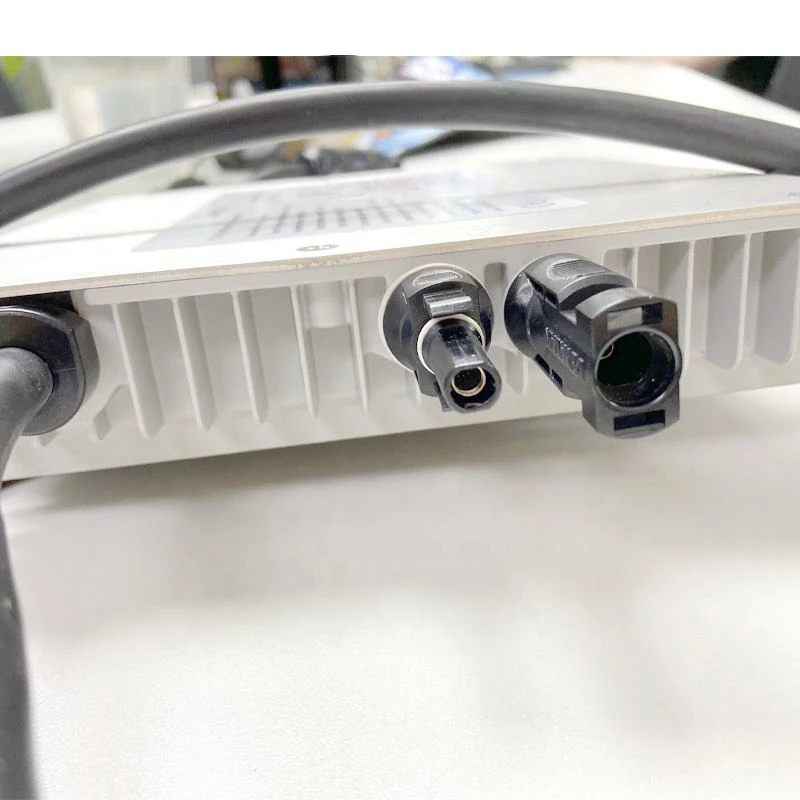

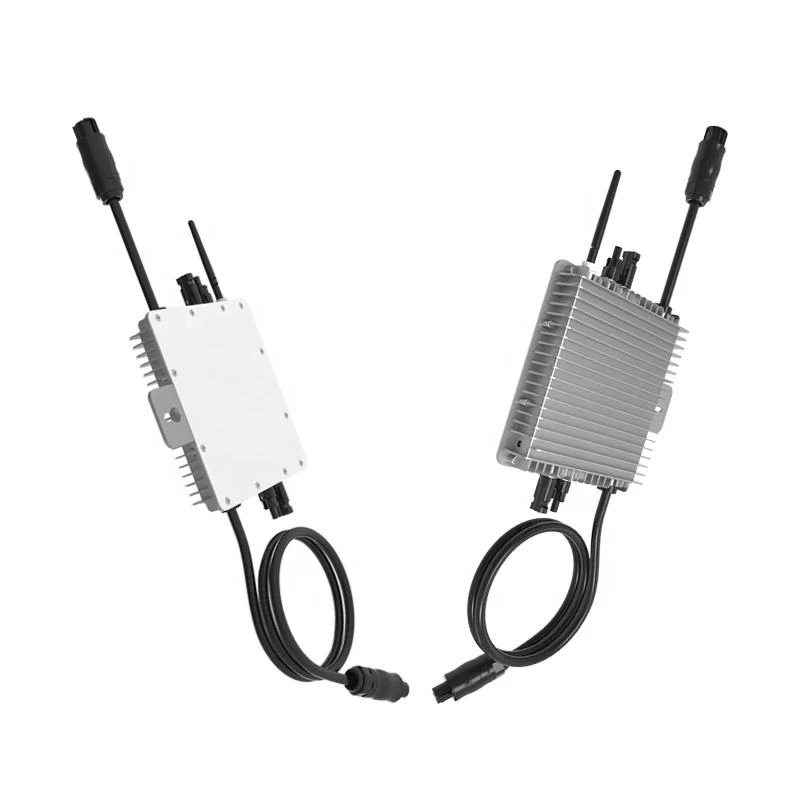

Deye microinverter 300W 60VDC 230VAC IP67 protection grade on grid solar system solar micro inverter SUN300G3 EU 230
Deye microinverter 300W 60VDC 230VAC IP67 protection grade on grid solar system solar micro inverter SUN300G3-EU-230
Deye microinverter 300W 60VDC 230VAC IP67 protection grade on grid solar system solar micro inverter SUN300G3-EU-230
Deye microinverter 300W 60VDC 230VAC IP67 protection grade on grid solar system solar micro inverter SUN300G3-EU-230
Deye microinverter 300W 60VDC 230VAC IP67 protection grade on grid solar system solar micro inverter SUN300G3-EU-230
Deye microinverter 300W 60VDC 230VAC IP67 protection grade on grid solar system solar micro inverter SUN300G3-EU-230
Deye microinverter 300W 60VDC 230VAC IP67 protection grade on grid solar system solar micro inverter SUN300G3-EU-230

Deye microinverter 300W 60VDC 230VAC IP67 protection grade on grid solar system solar micro inverter SUN300G3 EU 230

Share on (1600612878642):


Price:$140.00

Quantity:


Product Overview

Description







Products Description






Specification


Model
SUN300G3-EU-230
SUN500G3-EU-230
SUN600G3-EU-230
Input Data (DC)
Recommended input power(STCZ)
210-400W
210-600W
210-400W
Maximum input DC voltage
60V
MPPT Voltage Range
25〜55V
Operating DC Voltage Range
20-60V
Max DC： short circuit current
16A
16A
16A
Max input current
10.5 AX 1
12.5AX 1
10.5A X 2
Output Data (AC)
Rated output Power
300W
500W
600W
Maximum output power
330W
550W
660W
Maximum output Current
1.4A
2.4A
2.9A
Nominal voltage / range
230V/ 184~265V
Nominal frequency
50/60HZ
Extended frequency / range
45~55Hz/ 55~65Hz
Power factor
>0.99
Maximum unit per branch
17
10
8
Max. allowed altitude operating
< 4000m
Max output fault current
10A
Max output overcurrent protection
1.4A
2.4A
2.9A
Efficiency
CEC weighted efficiency
95%
Peak inverter efficiency
96.5%
Static MPPT efficiency
99%
Night time power consumption
50mW
Mechanical Data
Ambient temperature range
40℃～+65℃
Dimensions(WX H X D mm)
212 X 229 X 40 mm (Does not include cable)
Weight (kg)
3.5
Cooling
Natural Convection -No Fans
Enclosure environmental rating
IP67
Protective class
Class I
Features
Compatibility
Compatible with 60-72 cell PV modules
Communication
Power line/ WiFi / Zigbee
Compliance
EN50549，VDE0126，VDE4105，IEC62109，CE，INMETRO
Warranty
10 Years


Company Profile




FAQ


Questions from our clients:
1. Can you supply sample for testing?
Yes, but if it is for personal use, then we recommend our agents to buy locally because shipping is not cost-effective.
2. What certificates do you have for micro inverters?
VDE 4105,EN50549-1,VDE0126-1-1,ABNT NBR 16149 ABNT NBR 16150, ABNT NBR 62116, RD1699, UNE 206006 IN, UNE 206007-1 IN, IEEE1547.
3.Do you support OEM?
Yes, we can put your brand on the product.
4.How long you can ship goods after payment?
Sample 1 week
Bulk order 25 days
