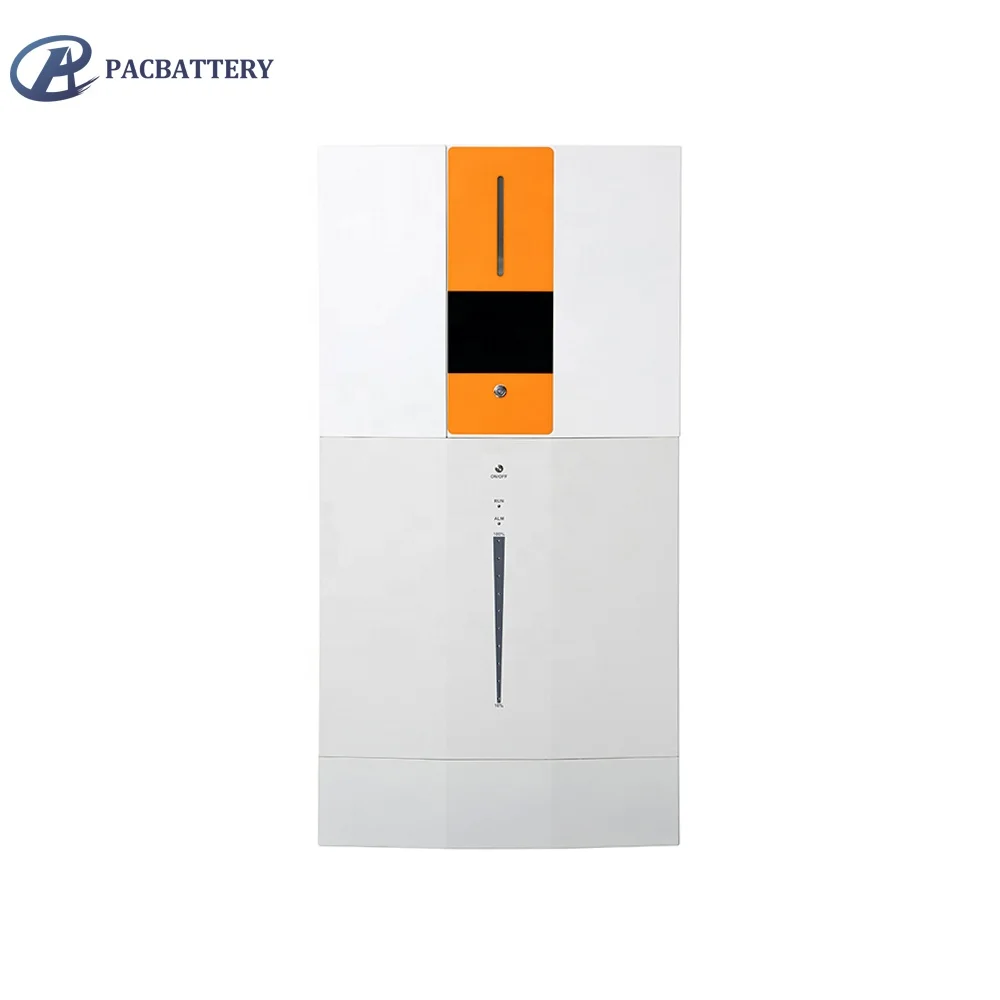

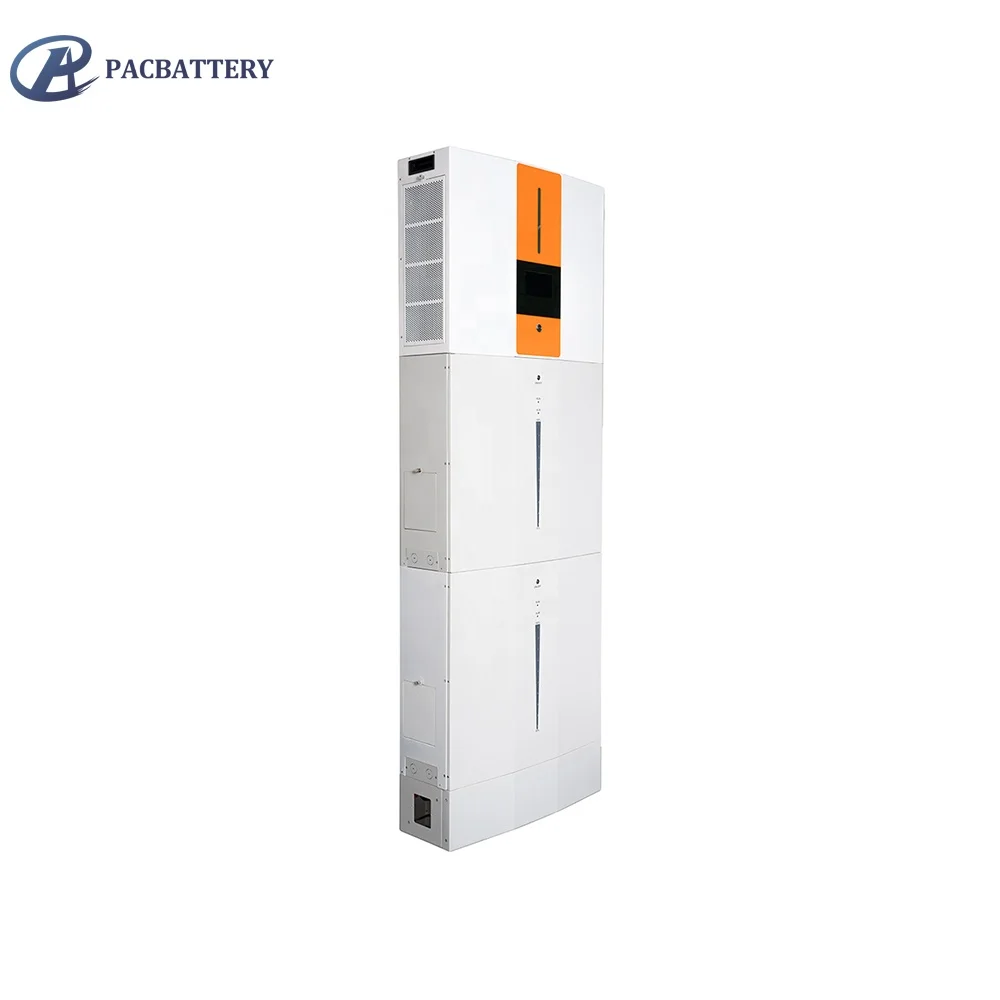

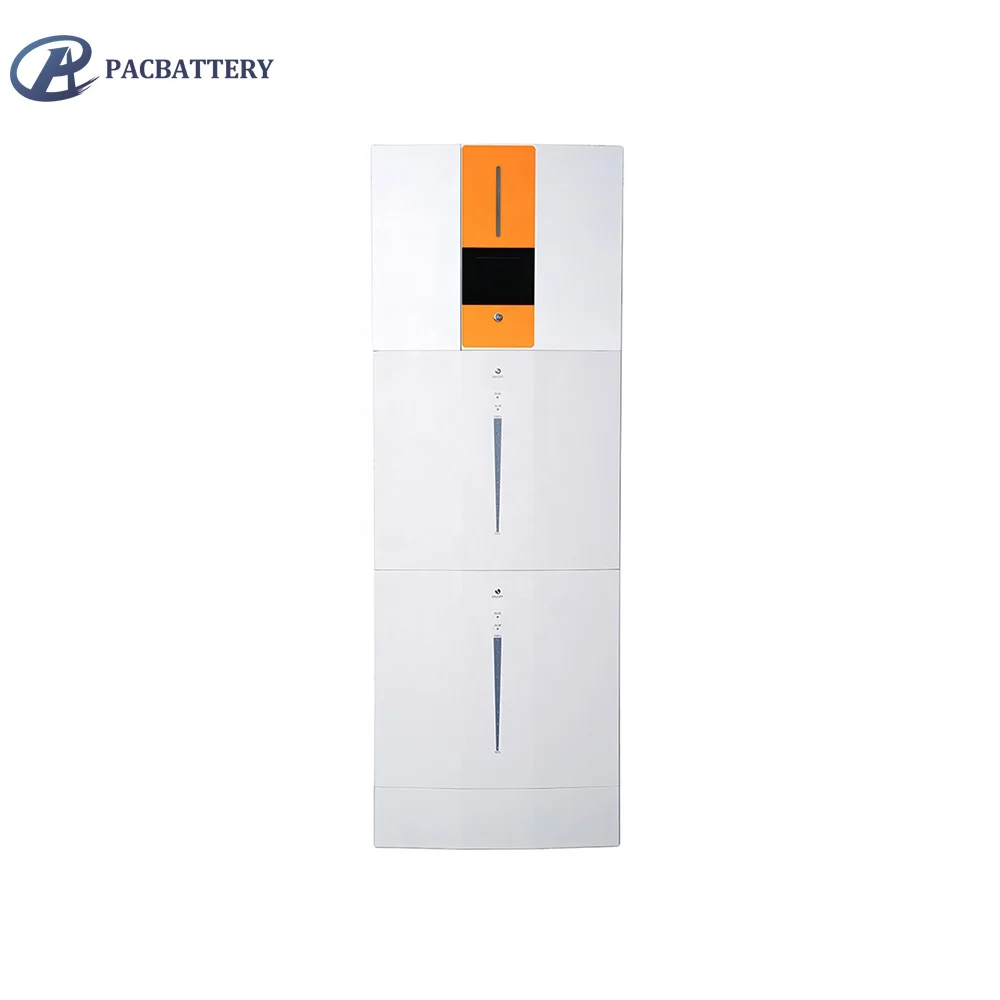

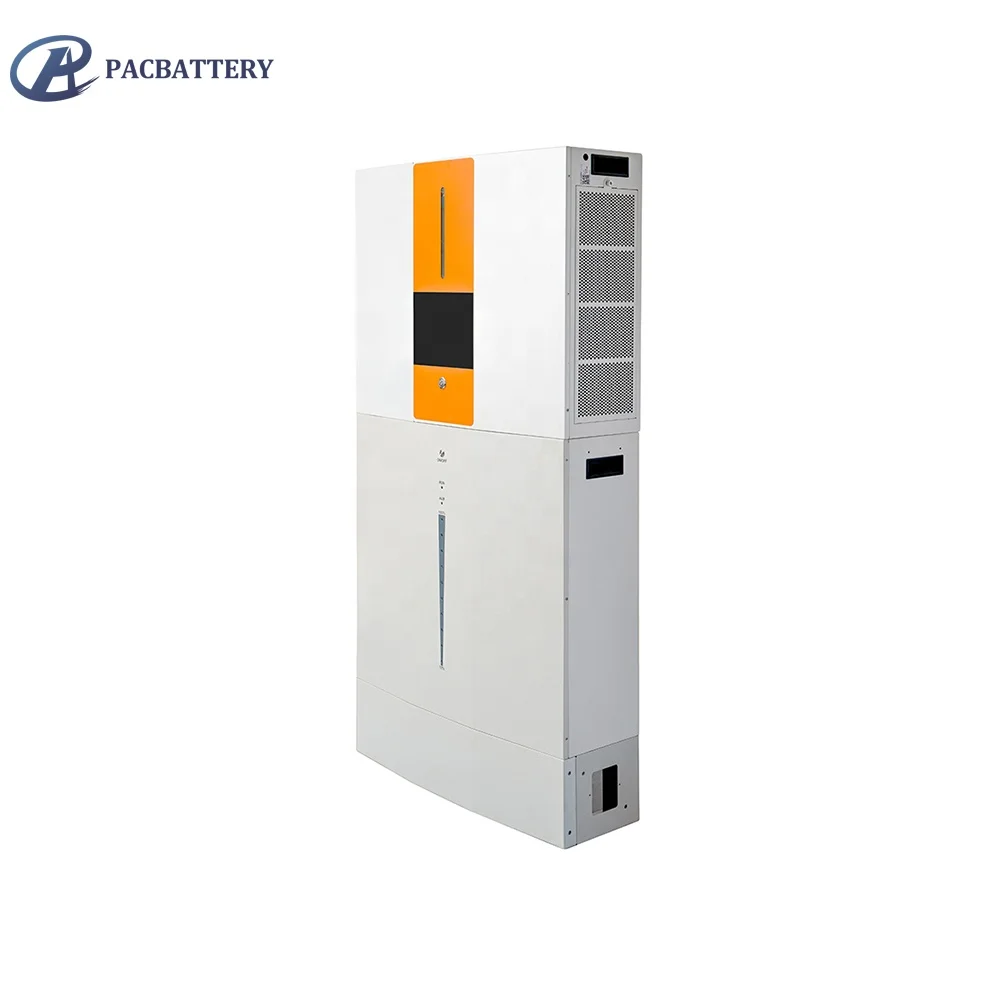

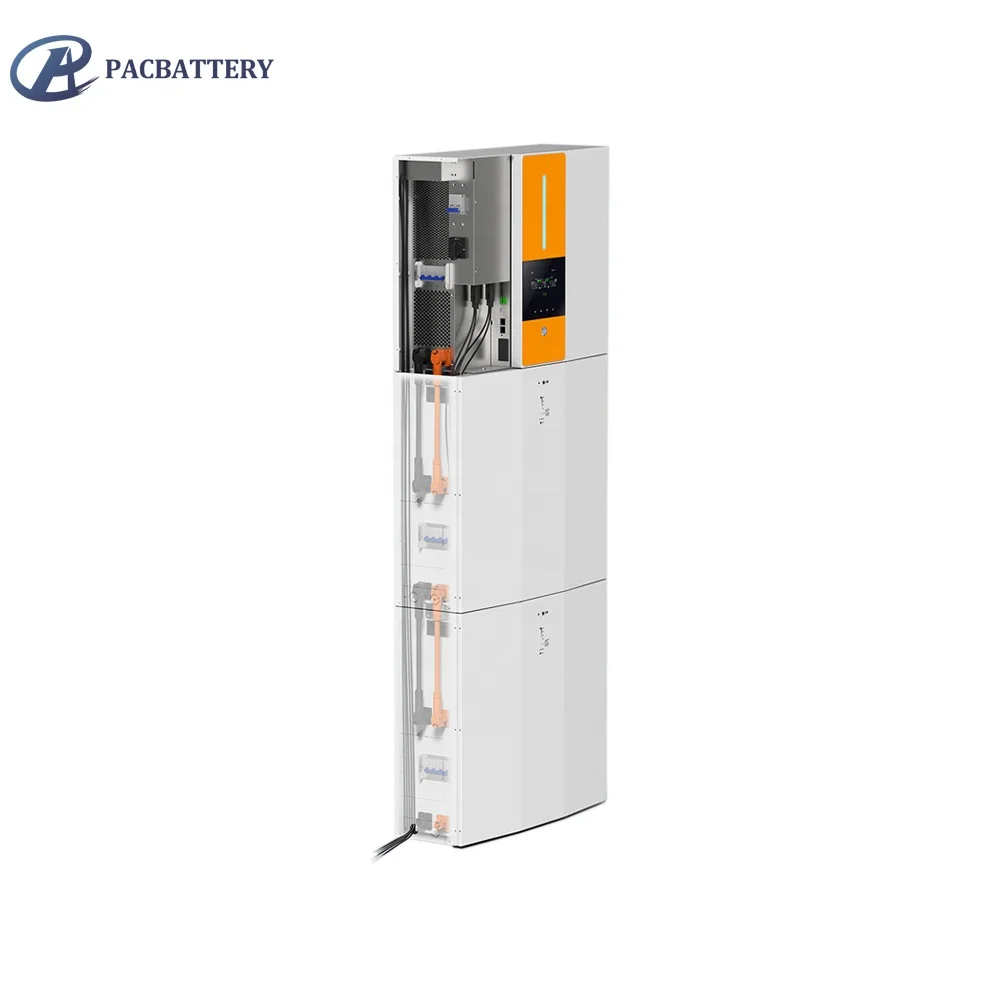

PAC Home Use 20kWh Battery On Off Grid All In One Solar Storage 5kW Inverter Output Ess Solar Power System
PAC Home Use 20kWh Battery On-Off Grid All In One Solar Storage 5kW Inverter Output Ess Solar Power System
PAC Home Use 20kWh Battery On-Off Grid All In One Solar Storage 5kW Inverter Output Ess Solar Power System
PAC Home Use 20kWh Battery On-Off Grid All In One Solar Storage 5kW Inverter Output Ess Solar Power System
PAC Home Use 20kWh Battery On-Off Grid All In One Solar Storage 5kW Inverter Output Ess Solar Power System
PAC Home Use 20kWh Battery On-Off Grid All In One Solar Storage 5kW Inverter Output Ess Solar Power System
PAC Home Use 20kWh Battery On-Off Grid All In One Solar Storage 5kW Inverter Output Ess Solar Power System

PAC Home Use 20kWh Battery On Off Grid All In One Solar Storage 5kW Inverter Output Ess Solar Power System

Share on (1600612895177):


Price:$1,020.00 - $1,056.00

Quantity:


Product Overview

Description





General
Module dimensions (W×H×D）
T214*W550*H621mm
Module Weight
About 100kgs
Enclosure Rating
IP21
Operating Temperature
-4°F to 122°F (-20°C to 50°C)
Charging Temperature (batteries)
32°F to 120°F (0 °C to 49°C)
Mounting
Free-standing

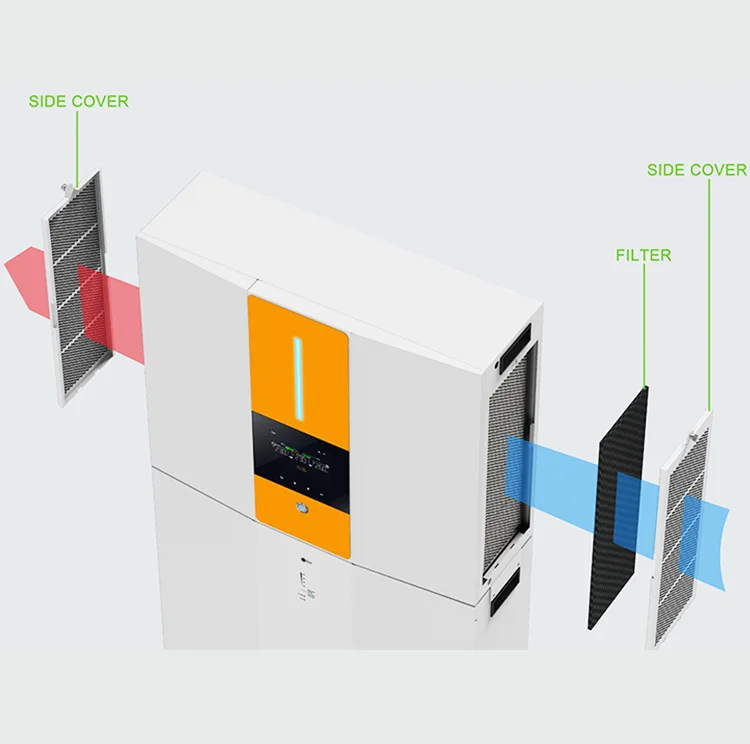

Cooling
/
Inverter

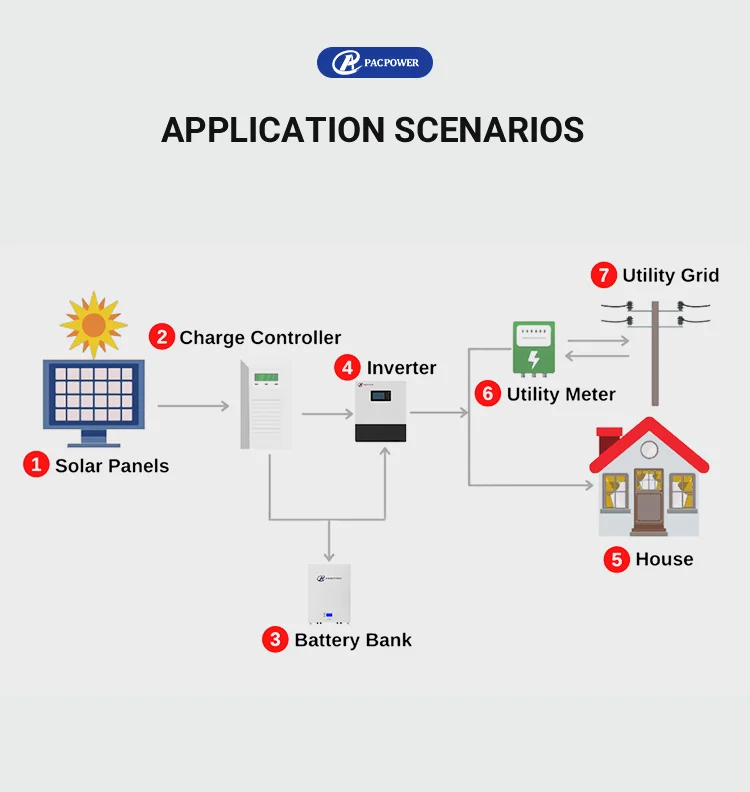

Application
On grid or Off-Grid battery storage, home storage battery
Grid Type
Single Phase
Output Frequency (selectable)
60 Hz or 50 Hz
Output Voltage
220Vac
Rated AC Output(W)
5000W
Max AC Output Power(W)
6000W
Output power factor
0.8 leading-0.8 lagging
Current Harmonic Distortion
THD<3%(Linear loading<1.5%)
MPPT Efficiency
99.90%
Protection
PV Arc Fault Detection, PV Input Lightning Protection, Anti-islanding Protection, PV String Input Reverse Polarity Protection,
Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection, Output Shorted Protection, Output
Over Voltage Protection
Solar PV – DC Coupled
Max. number of PV strings per MPPT
2
No. of MPPT
2
Max.PV input power
6500W
Max.PV input voltage
370V
Startup voltage
150V
MPPT voltage range
100-500V
Battery
Total Lithium Battery capacity
20 kWh-51.2V LiFePO4 battery
Rated kWh Capacity @ C/2
20 kWh
Usable kWh Capacity @ 80% DoD
16 kWh
Max Combined Output Power
7680W
Max Combined Charge Current
80 ADC
Max Combined Discharge Current
150 ADC
Charging Temperature
32°F to 50°F (0°C to 10°C): 30A charging current
50°F to 122°F (10°C to 50°C): 80A charging current
Depth of Discharge
Up to 100% DoD
Round Trip Efficiency
98%
Cycle Life
6,000+ cycles (@ 80% DoD)






























1. Can you provide a sample for quality test?
---Yes, we can provide samples.

2. Can you accept OEM and ODM Service?
---Yes, Most of our batteries are customized, so please tell me your requirements, we will provide the best solution for you.

3. What’s the minimum order MOQ?
---This depends on the battery model. For power storage wall battery, power storage brick battery and rack Lifepo4 battery module, we don’t have MOQ requirements.

4. What’s your payment term?
---TT, LC, West Union, Paypal etc.

5. What’s your warranty for products?
---5~15 years, depends on different batteries. For quality problems, we can send new ones for replacement.

6. How long will be the delivery?
---Generally delivery time is 15-30 days, depends on the shipping method.

7. How do you control your product quality.
---We control quality from the source. We choose the top quality electric vehicle grade battery cells with best consistency, use advanced assembly technology and modular design, do 100% inspection after each process.

8. How can you send batteries to our address?
---We can send the lithium batteries by sea, by air, by express, by train and by truck, with DDU/DDP service.
