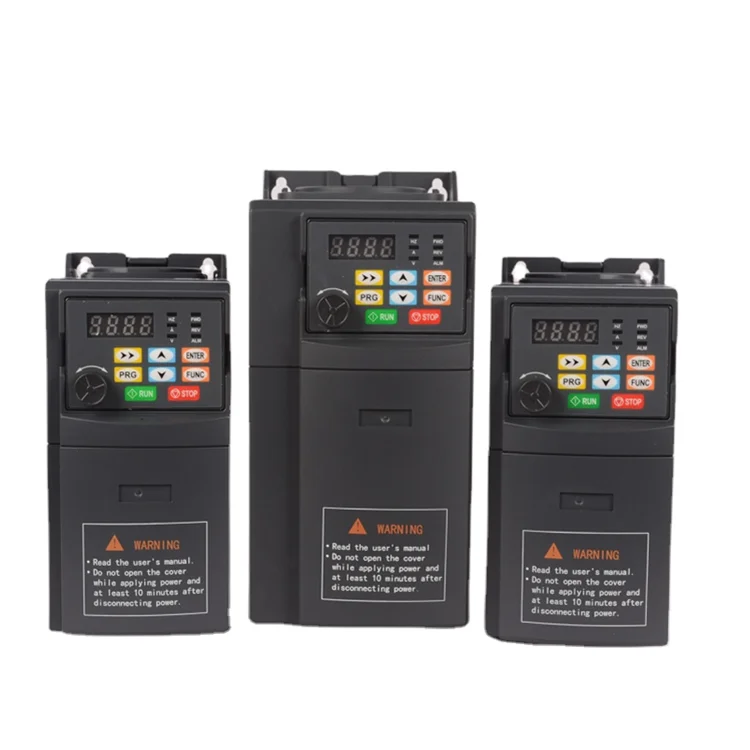

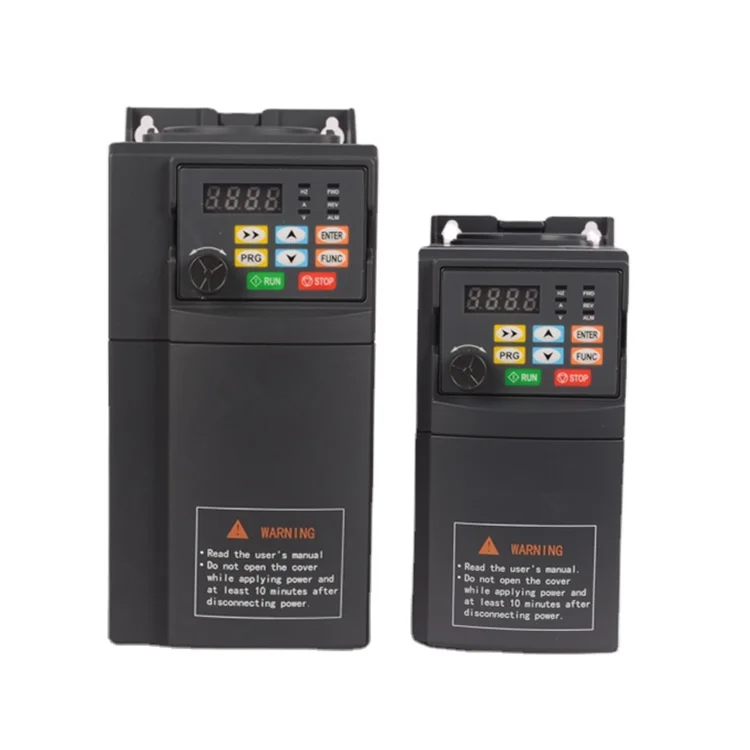

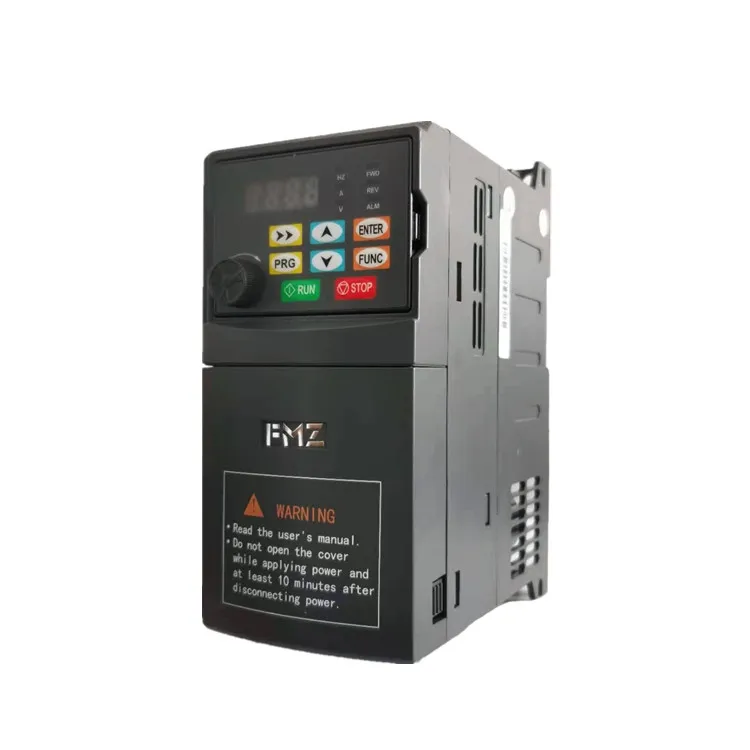

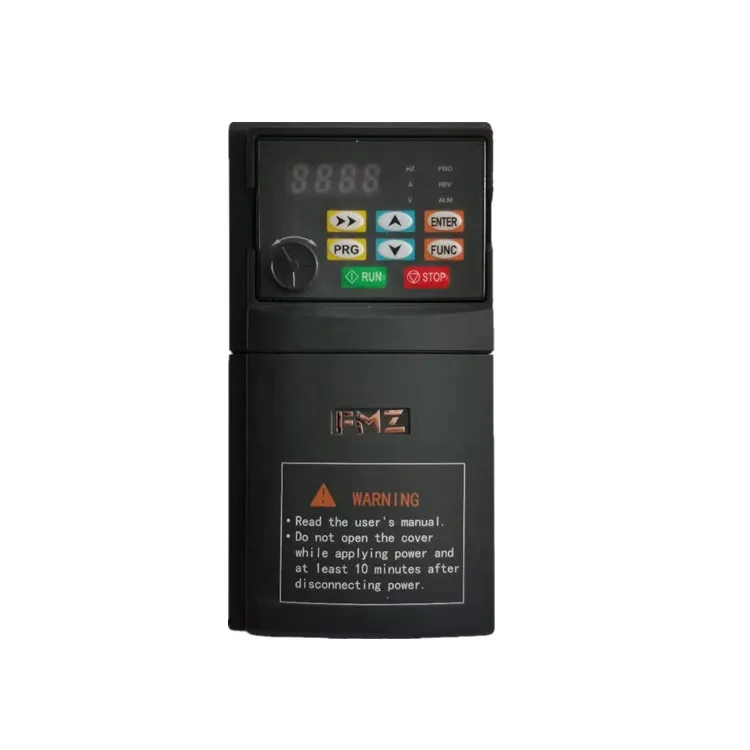

  • 220V 2.2kw 3HP Mini VFD variable frequency inverter variadores de frecuencia 220 v variador de frecuencia
220V 2.2kw 3HP Mini VFD variable frequency inverter variadores de frecuencia 220 v variador de frecuencia
220V 2.2kw 3HP Mini VFD variable frequency inverter variadores de frecuencia 220 v variador de frecuencia
220V 2.2kw 3HP Mini VFD variable frequency inverter variadores de frecuencia 220 v variador de frecuencia
220V 2.2kw 3HP Mini VFD variable frequency inverter variadores de frecuencia 220 v variador de frecuencia
220V 2.2kw 3HP Mini VFD variable frequency inverter variadores de frecuencia 220 v variador de frecuencia
220V 2.2kw 3HP Mini VFD variable frequency inverter variadores de frecuencia 220 v variador de frecuencia
220V 2.2kw 3HP Mini VFD variable frequency inverter variadores de frecuencia 220 v variador de frecuencia

220V 2.2kw 3HP Mini VFD variable frequency inverter variadores de frecuencia 220 v variador de frecuencia

Share on (1600612897181):


Price:$55.50 - $58.50

Quantity:


Product Overview

Description

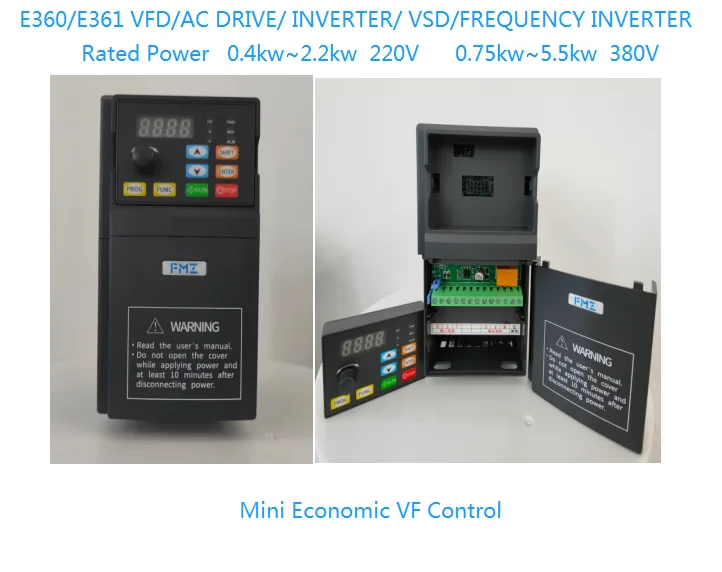

Product Description




FMZ vfd single phase variador 1.5kw 220v inverters & converters drive variador de frecuencia 220v frequency inverter

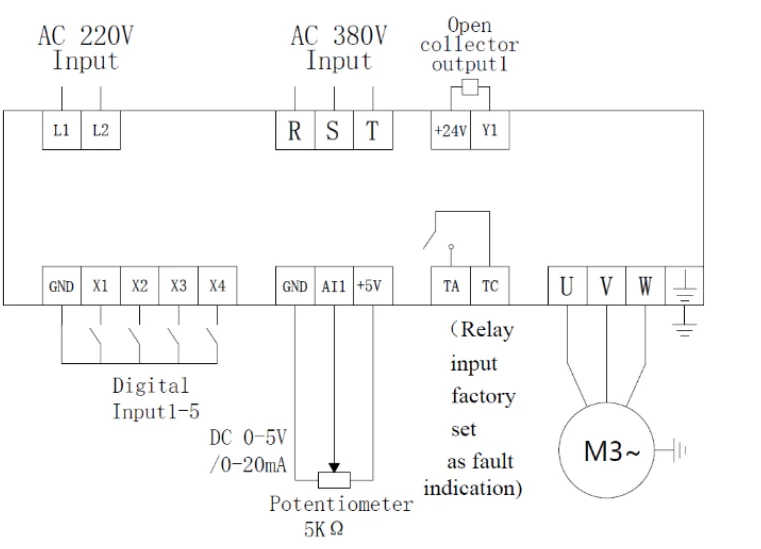

Wiring Diagram

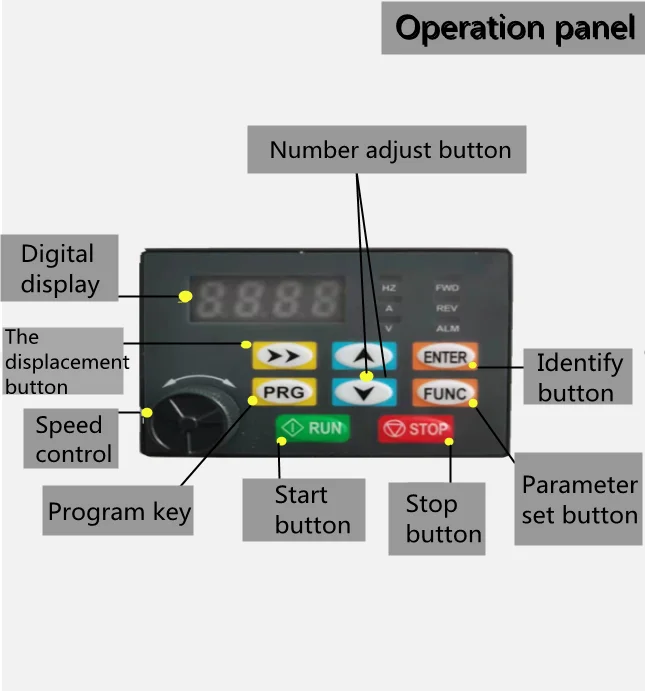

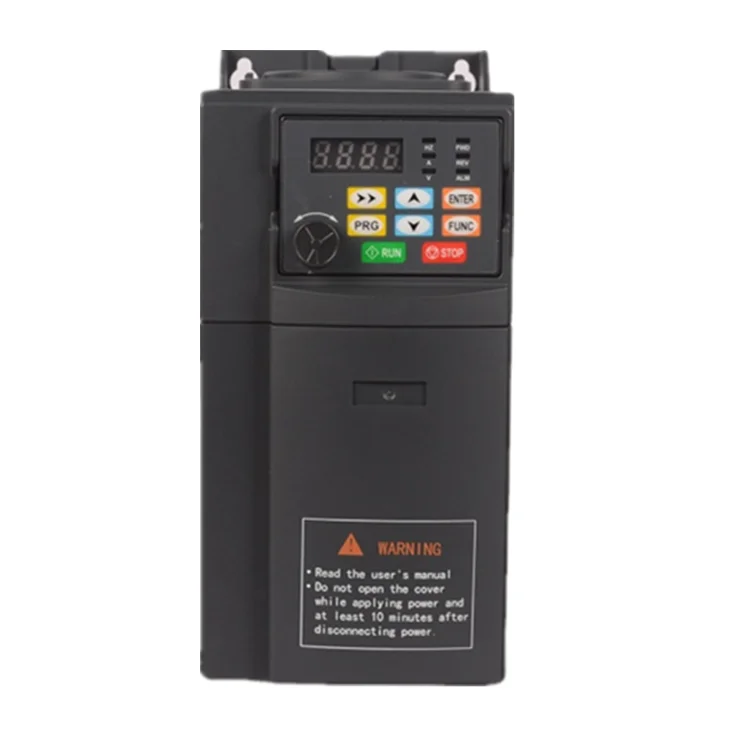

Opeation Digital Keypad Description
Note: After the frequency converter is powered on, the running panel will display.

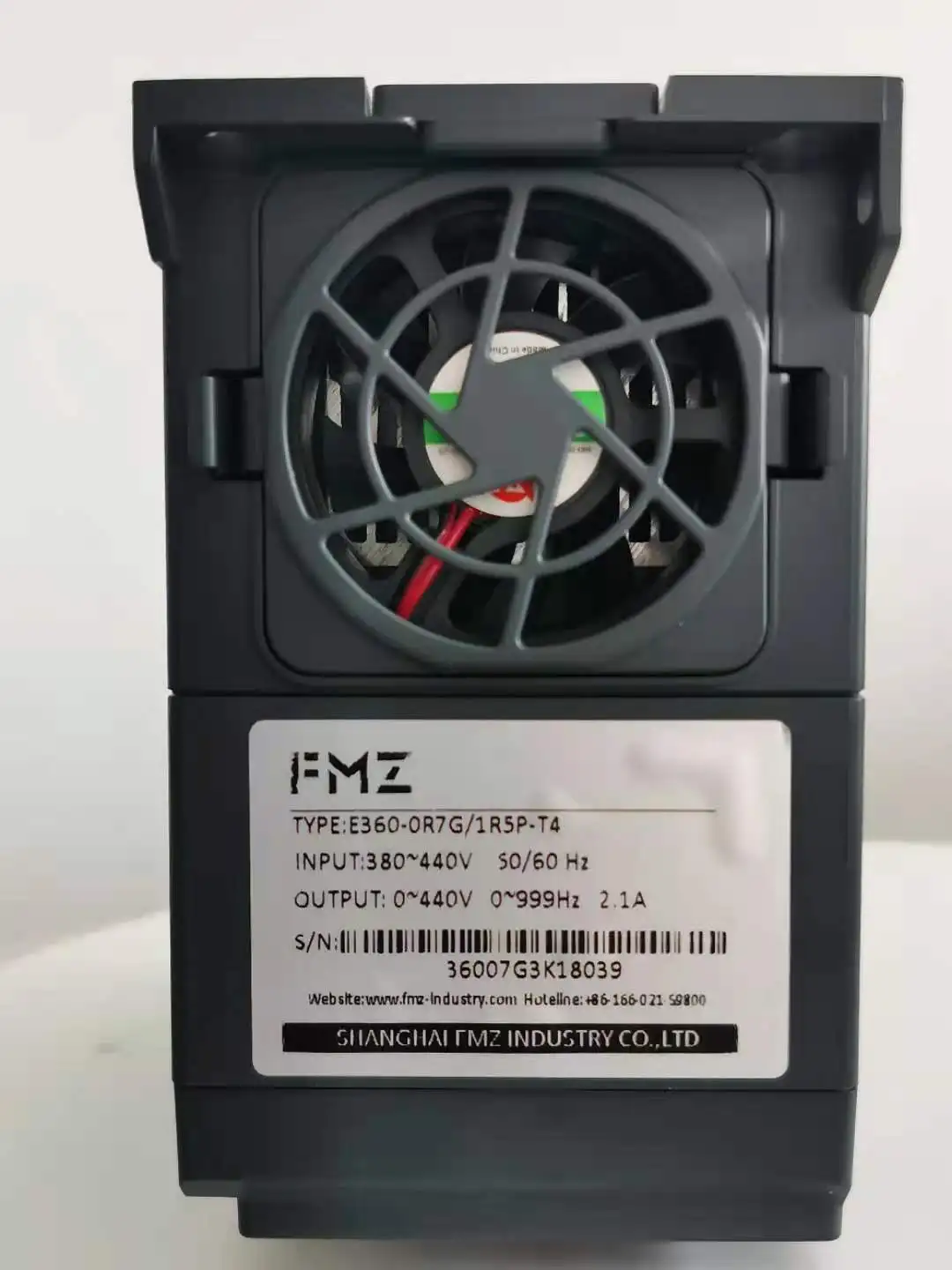

COOLING FAN

The function of the cooling fan of the frequency inverter motor is mainly used for cooling and temperature reduction. The use of the cooling fan can improve machine stability ,reduce noise and increase product life. The cooling fan is the main part of the cooling system, the purpose is to protect the machine from damage caused by overheating.


Product specifications


Product name
Frequency Inverter
Network
No
Customized support
Software reengineering
Place of Origin
China
Brand Name
FMZ
Model Number
E360-2R2G-S2
Type
DC/AC Inverters
Output Type
Three Phase
Output Current
9.5A
Output Frequency
50Hz/60Hz
Size
170*79*135mm
Weight
1.5KG
Application
Home Appliance Fan Pump
Control mode
VF Control
Advantage
High Adaptability
Warranty
18 Months
Rated power
2.2kw
Inverter type
Low Freqnency Transformer Inverter
Customized
Yes
OEM
Accepted
Phase
Single Phase Power Inverter


Rated data of frequency inverter.
E360 Series AC Drives Single phase AC 220V （Voltage Range: -10% 220V~220+10%）
E360 Series AC Drives Three phase AC 380V （Voltage Range: -15% 380V~380+15%）


Model
Power
Power supply
Output current (A)
E360-0R4G-S2 220V
0.40KW
Single phase alternating 220V-240V
50Hz/60Hz
2.1
E360-0R7G-S2 220V
0.75KW
4
E360-1R5G-S2 220V
1.5KW
7
E360-1R5G-S2 220V
2.2KW
9.5
E360-0R4G-T4 360V
0.40KW
Three-phase alternating 380V-440V 50Hz/60Hz
1.2
E360-0R7G-T4 360V
0.75KW
2.5
E360-1R5G-T4 360V
1.5KW
4.1
E360-2R2G-T4 360V
2.2KW
5.8
E360-4R0G-T4 360V
4.0KW
9.4
E360-5R5G-T4 360V
5.5KW
12.6


Main Specification
Motor control method
0:VF control 1:Advanced VF Control 2:Simple vector control
Frequency setting selection
0:Panel potentiometer
1:Digital setting 1, adjust by operating keys on the panel
2:AVI simulation given(0~5 V/0~20mA)
3:Digital setting2, adjust by terminals UP/DOWN
4:Two-stage speed terminal is connected to the given and run,terminal UP/DO WN adjusts the frequency
5:The second-stage speed terminal triggers the setting and run
Maximum output frequency
Max{50.0,[F0.06]}~999 Hz
Acceleration time
0.1~999.9s 0.4~4.0KW 7.5s 5.5~7.5KW 15.0s
Deceleration time
Torque boost
0.0~30.0%
Motor rated frequency
The range is 1.0~999.9 Hz The default value is 50.0Hz
Slip compensation selection
0:Invalid 1:Valid
Current limit level
50%~250% Default value 180%
Voltage compensation
0:Invalid 1:Valid
Motor tuning
0:Invalid 1:Statical tuning
User password
Available
PID Functional Setting
LED one's place: PID sleep mode
0:Disabled
1: Nomal hiberation
2:Disturbance sleep Same as the parameter setting when the sleep
mode is selected as 0, if the PID feedback value is within the range of the F0.85 setting value, the sleep delay time will be
maintained and the disturbance sleep will be entered.When the feedback value is less than the wake-up threshold(PID polarity is positive),immediately wake up.
LED ten's place: PID feedback disconnedtion selection
0:disabled
1:disabled
LED hundres's place:reserved
LED thousand's place:reserved


Other Products


E280 Series Compact High Performance AC Drives/VFD/Splar Pump Inverter
E580 Series High Performance SVC AC Drives/VFD
Integrated HIM &PLC All-in-one

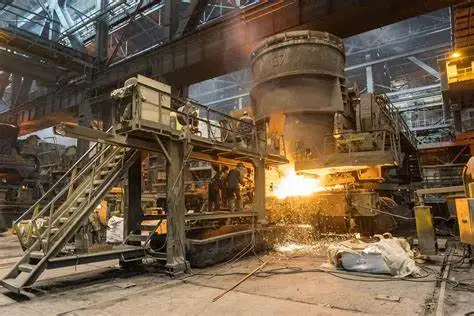

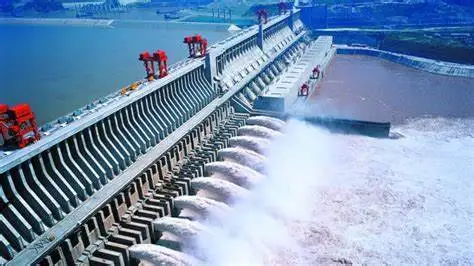

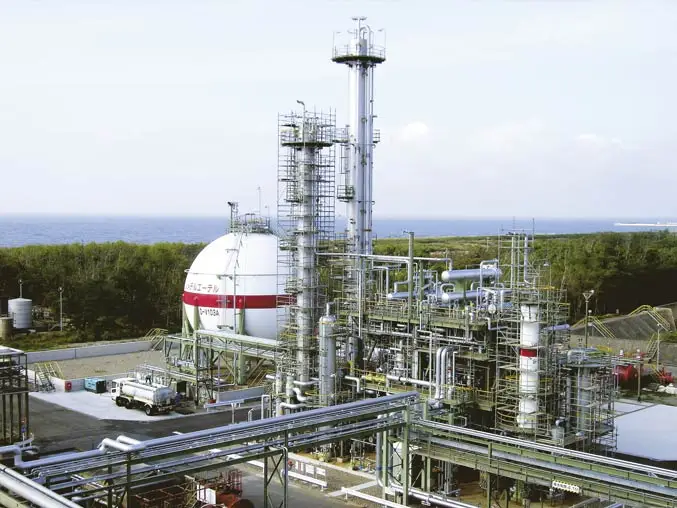

Application






Packing & Delivery


1) Trade Term: FOB Shanghai/Yiwu/Guangzhou/Shenzhen
(Trade term will be Ex-works if the order amount is below 20,000 but we also will afford the delivery to your appointed forwarder or warehouse located in the above four cities)


2) Package
The package is FMZ Standard. OEM packing (≥20,000 US Dollar per order)
(If there is any special request, the packing cost should be re-negotiated)


Single Product Size
170*79*135MM
Single Package Dimension
200*120*180MM
Single Gross Weight
2KG




3)Delivery
We support a variety of transportation methods such as ocean shipping, land transportation, air transport, express, etc., and can also be consigned by the customer's designated freight forwarder.You can be negotiated with us.


Lead time:
Can be negotiated.


 Sample order:
1~2 working days for delivery.
Large order:
10-20 working days for delivery.


Company Profile




Shanghai FMZ Industry Co., Ltd specializes in R&D, manufacture, sales and professional technical services upon industrial automation control products such as frequency inverter (variable frequency drive, VFD, VSD, frequency converter, AC Drive), soft starter, HMI, motor servo, PLC and other general parts.

Our products could widely meet demands of all kinds of machinery equipment, system integration and industrial applications, which are reliable, intelligent and excellent. They are widely applied to CNC(machine tool), mine, textiles, metallurgy, lifting, oil, plastics, chemicals, municipal project and other industries.

We always keep working hard to support our customers with our all-around services and do our best to provide them with prompt customized solutions. Thanks for the persistent efforts from our hard working colleagues, we are getting more and more comprehensive recognition from our valuable customers all around the world.

About after-sales service, we have organized an experienced team to support our customers with various effective solutions, help analyze all kinds of automation applications, and they are available to go to the site to carry out the equipment commissioning, operation or problem shot and offer free training.

Our business philosophy is to 'Always be with you and enjoy success together'.


FAQ


1. Who are we?
We are based in Shanghai, China, start from 2014,sell to South Asia(30.00%),Southeast Asia(20.00%),Mid East(15.00%),Eastern Europe(15.00%),Western Europe(5.00%),Africa(5.00%),South America(5.00%),Oceania(3.00%),Northern Europe(2.00%). There are total about 11-50 people in our office.

2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.What can you buy from us?
frequency inverter,ac variable frequency drive,mppt solar pump inverter,ac servo drive,soft starter

4.Why should you buy from us not from other suppliers?
Over 15 years in variable frequency drive/frequency inverter/ac drive and over 3 years in international market.
Own software to offer customized service.
We accept OEM service with technical support.
CE &TUV, ISO9001, CCC certificate.

5.What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,FCA,DDP,Express Delivery；
Accepted Payment Currency:USD,EUR,AUD,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Russian
