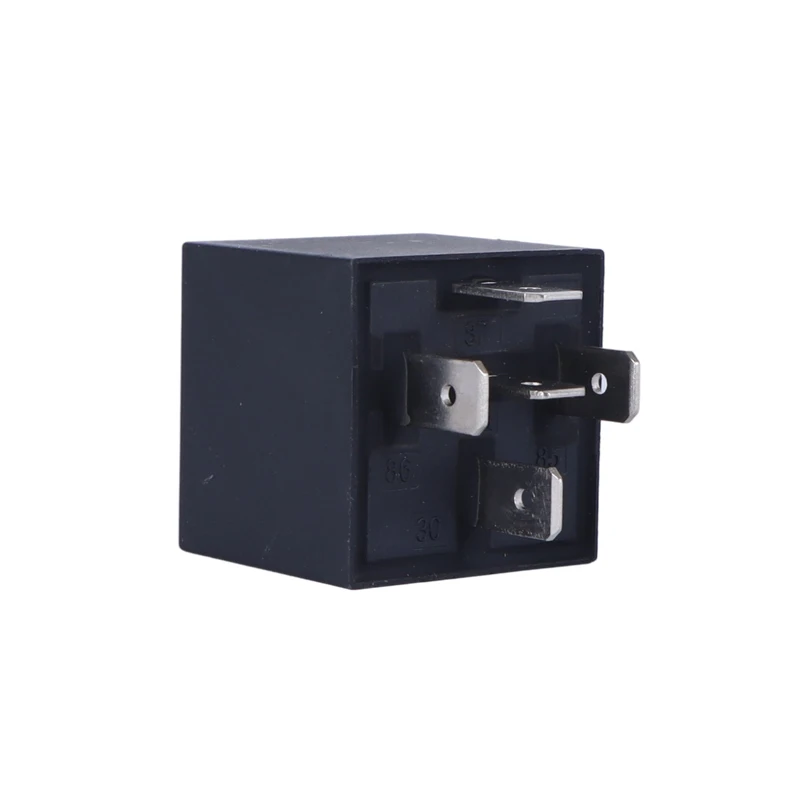

Zhenglin 12V 24V Automotive Relay DC 4 Pin 5 pin Car Used Micro Protection Relay JD1912
- Category: >>>
- Supplier: Yueqing Zhenglin Electric Appliance Factory
Share on (1600612908302):
Product Overview
Description
Products Description
Electrical Characteristics | ||
Rated Voltage | 12VDC/24VDC | |
Operating Voltage | 9-16VDC/18-32VDC | |
Pull-in voltage | 8.4VDC/16.8VDC | |
Release voltage | 1.2VDC/2.4VDC | |
Coil Power Consumption | 1.6W | |
Coil resistance(Ω+/- 10) | 90Ω | |
Electrical life | 100,000 cycles | |
Mechanical life | 1,000,000 cycles | |
Rated Switching Current | 40A @12VDC | |
Insulation resistance | 100MΩ (500VDC) | |
Mechanical Data | ||
Contact material | silver alloy | |
Fixed contact | silver alloy | |
Moving contact | silver alloy | |
Contact arrangement | 1C/1A/1B | |
Ambient temperature | -40°C~+125°C | |
Operate time Max | 10ms | |
Release time Max | 10ms | |
Vibration resistance | 10Hz-40Hz, 1.5mm | |
Shock resistance | 147m/s2, 11ms | |
Cover retention | 245N | |
Terminal retention | 100N | |
Terminal retention to bending | 10N | |
Terminals | Pure copper, 6.3x0.8mm | |
Coil | Oxygen Free Copper | |
Base plate | Nylon PA66 | |
Cap | Nylon PA66 | |
