INCHOI Horizontal plate freezer Fish block freezing machine/Contact plate freezer
- Category: >>>
- Supplier: Shandong Inchoi Machinery Co. Ltd.
Share on (1600612939004):
Product Overview
Description
Product Description

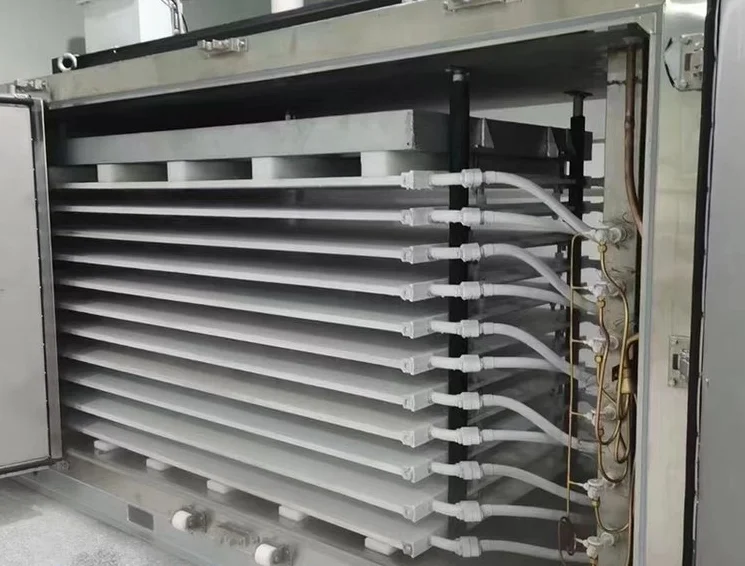

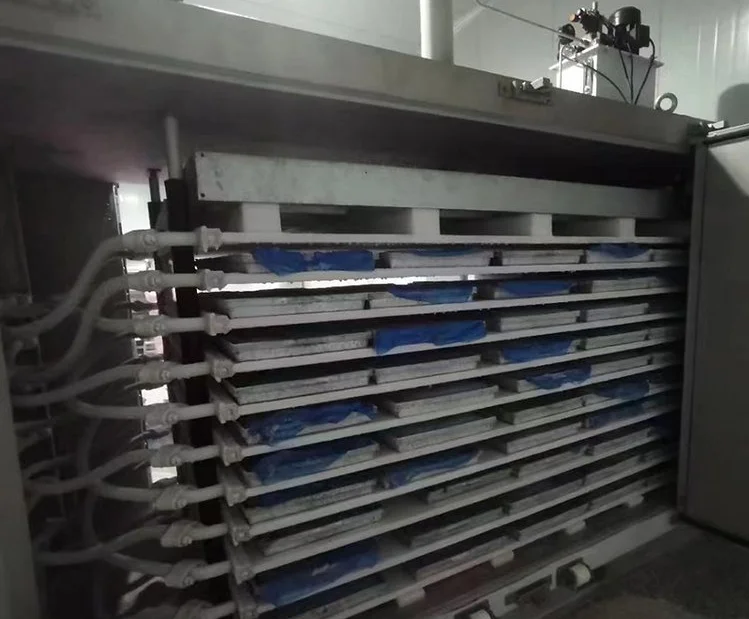

Hydraulic contact freezer is composed of Plate evaporator, Electrol Cabinet, Hydraulic Pressure device etc. The Aluminum alloy evaporator is driven by hoist cylinder to contact with frozen foods directly and keep certain pressure. The closed touch, with frozen food forms advantages of high frozen speed, high efficiency energy-saving, sanitation and c ompact. The unit is running under normal temperature to ensure long-ter m life. Adopt contact-type heat conducting, no air flow, which is benefit to decrease foods weight loss. Refrigeration system can be equipped as per defferent requirments of users.
Product description

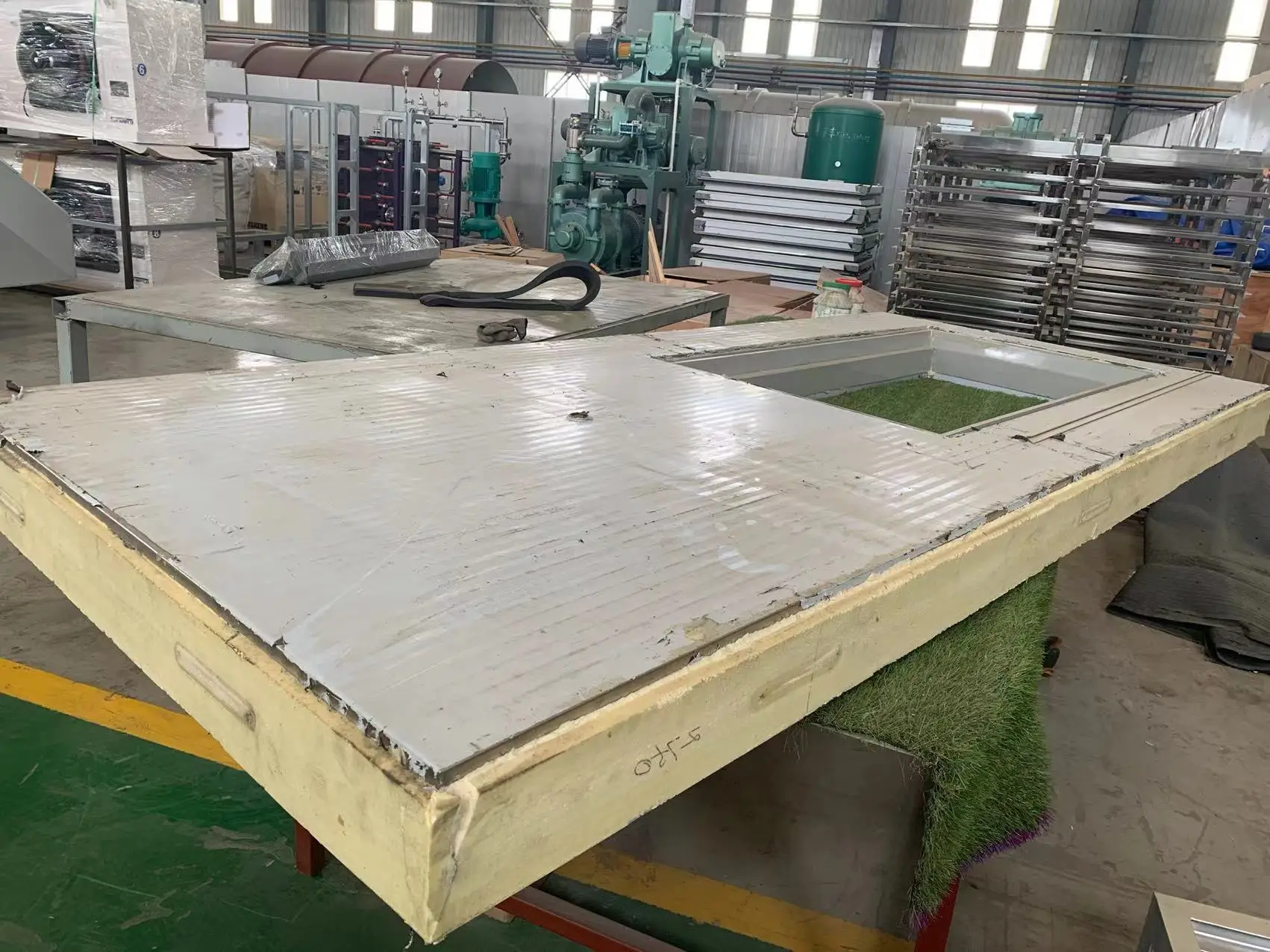

Insulation storage body
The box body adopts integral polyurethane foaming to ensure that the frame of the library body does not deform under high
pressure. The box body is a fully closed structure with thermal insulation doors on both sides, and the shell adopts stainless
steel shell seamless docking to prevent dirt and dirt.
pressure. The box body is a fully closed structure with thermal insulation doors on both sides, and the shell adopts stainless
steel shell seamless docking to prevent dirt and dirt.

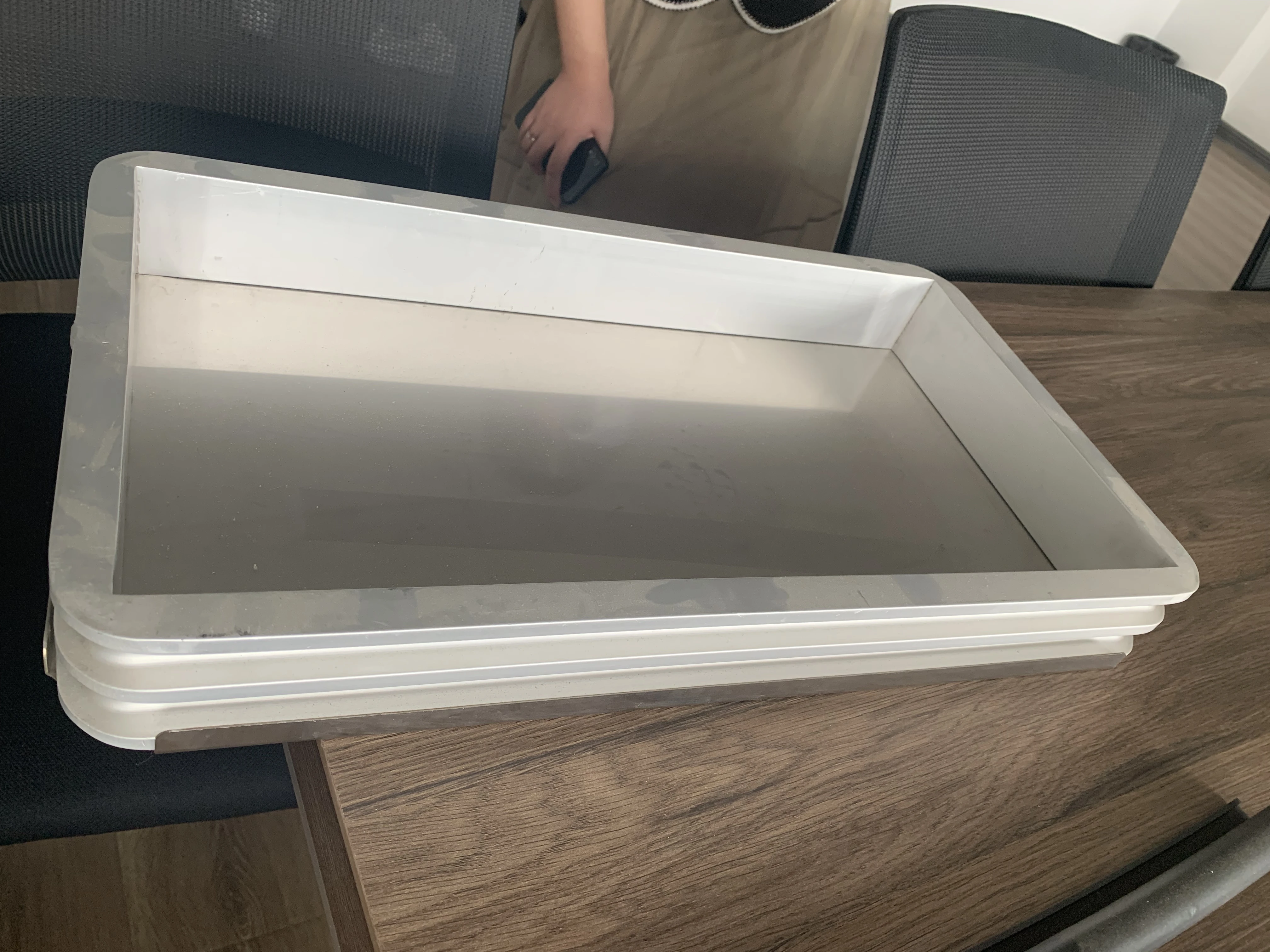

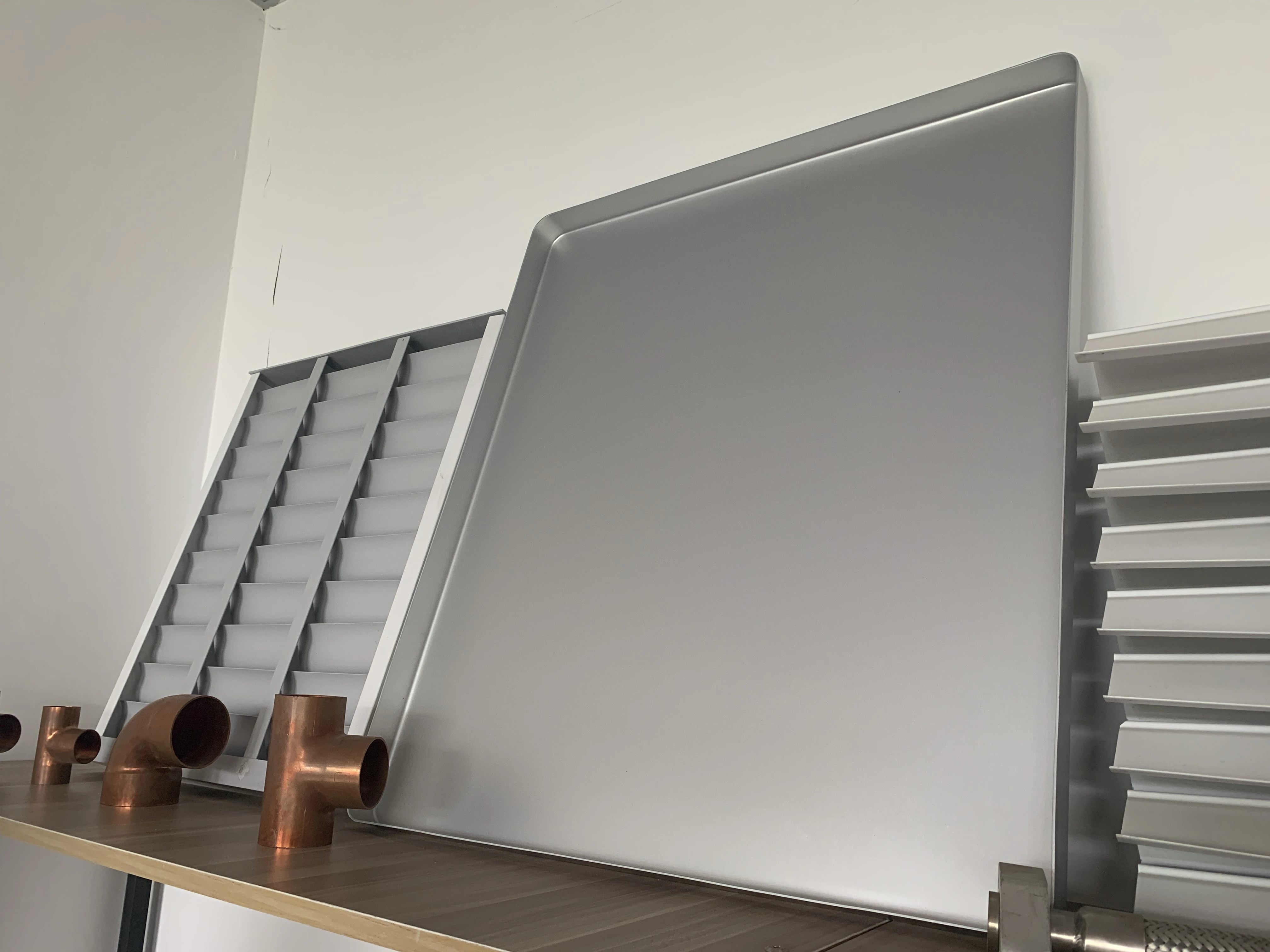

resistance. The surface of cold plate is smooth to ensure good contact with frozen products. The advantages are convenient
installation, large load capacity, uniform heat conduction, long service life, fast freezing speed, to the purpose of rapid
freezing.
The hydraulic system is designed by domestic professional hydraulic manufacturers and driven by 1.5KW AC motor. The high-pressure
oil is provided by the oil pump and enters into the high-precision hydraulic cylinder block through the superimposed relief valve,
double hydraulic control check valve, electromagnetic directional valve and other instruments. Reliable sealing, stable operation,
easy to disassemble.
The electric control system can reasonably control the operation of refrigeration system and hydraulic system, display the
temperature of the plate evaporator, and timely alarm if there is a fault.
oil is provided by the oil pump and enters into the high-precision hydraulic cylinder block through the superimposed relief valve,
double hydraulic control check valve, electromagnetic directional valve and other instruments. Reliable sealing, stable operation,
easy to disassemble.
The electric control system can reasonably control the operation of refrigeration system and hydraulic system, display the
temperature of the plate evaporator, and timely alarm if there is a fault.
Specification
item | value |
Applicable Industries | Food & Beverage Factory, Farms, Restaurant, Food Shop |
Showroom Location | United States, France, Philippines, Russia, Spain, Kenya, Romania |
Video outgoing-inspection | Provided |
Machinery Test Report | Provided |
Marketing Type | Hot Product 2022 |
Warranty of core components | 1 Year |
Core Components | PLC, Compressor |
Condition | New |
Place of Origin | China |
Shandong | |
Brand Name | Inchoi |
Voltage | 220V/380V/440V |
Power | 10KW |
Dimension(L*W*H) | 325*167*260cm |
Weight | 3450KG |
Warranty | 1 Year |
Cooling Capacity | 840kg/h, Customization |
Key Selling Points | High Productivity |
Product name | Freon Quick Freezer |
Application | Food Quick Frozen Machine |
Function | Quick-freezing Food |
Material | 304 Stainless Steel |
Freezer Type | Air Cooling |
Brand Name | INCHOI |
Product Keywords | Cabinet quick-freezing machine |
Name | Food Quick Freezing Equipment |
Capacity | 100-2500kg/h |
Frozen products | Fish Meat Seafood Fruit Vegetable |
Packing & Delivery

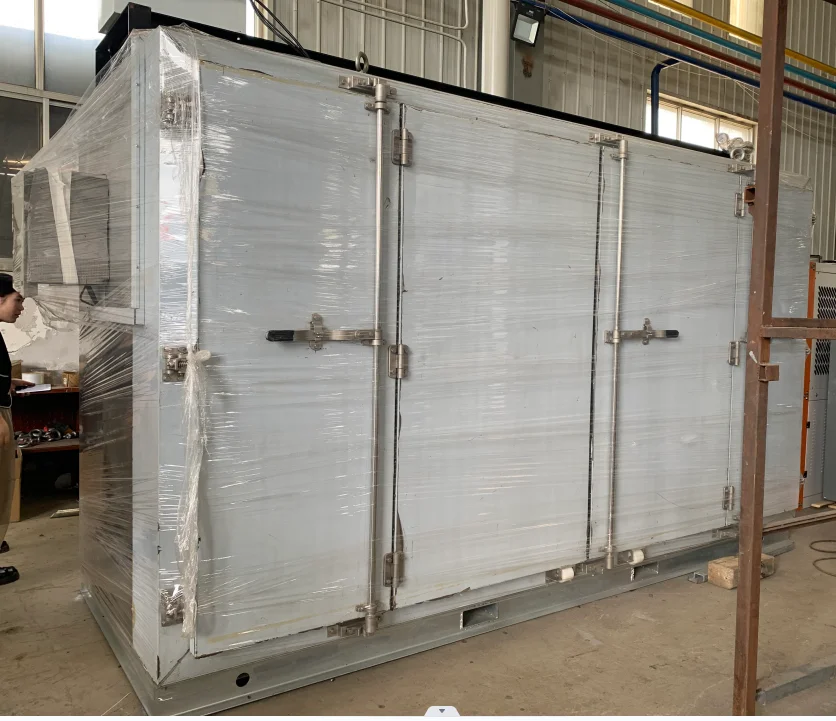

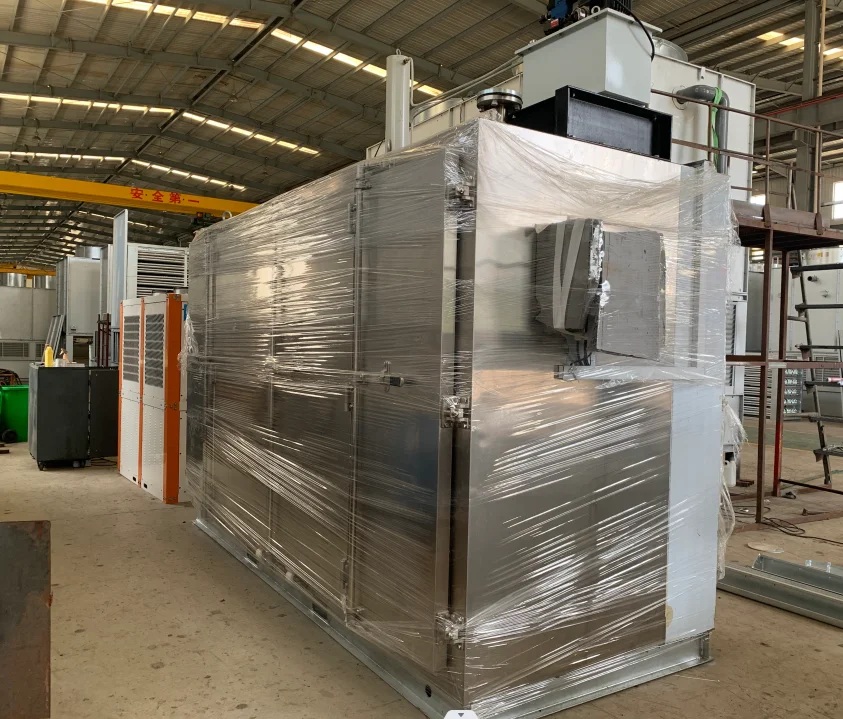

Machine packaging with plastic film and fixed by steel wire in the container.
