Standard ST630 ST800 ST1200 Steel Cord Rubber Conveyor Belting for Mine
- Category: >>>
- Supplier: Baoding Hi Hero Conveying Equipement Imp & Exp Co. Ltd.
Share on (1600612944190):
Product Overview
Description
Products Description
Hi Hero conveyor belt
Steel cord conveyor belts a re widely used in high strength, long distance and heavy load transportation of materials and they are also used in high strength and shont distance transportation of materials on special occasions.

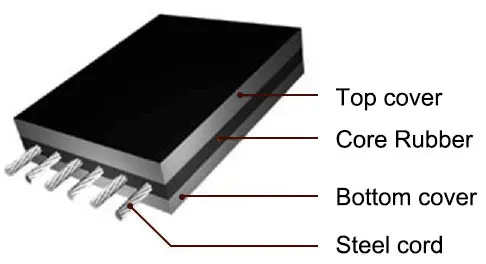

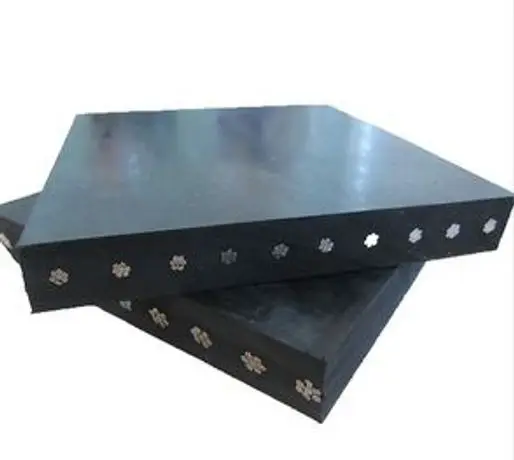

Steel cord conveyor belt
* High tensile strength
* Small stretch
* Uniform force, not easy to deviate
* Good adhesion of rubber & steel wire rope
Our standard
GB/T 7984
DIN 22102
JISK 6322
AS 1332-2000
SANS 1173:2005
BS 490
DIN 22102
JISK 6322
AS 1332-2000
SANS 1173:2005
BS 490

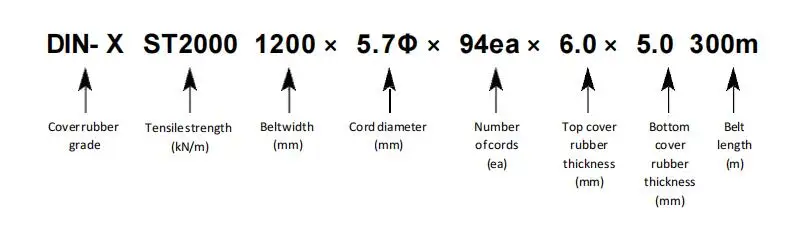

Specification
Belt Strenth | Max Cord diameter (mm) | TOP rubber (mm) | Bottom rubber (mm) | Pitch(mm) | Belt weight (kg/m) |
ST630 | 3.0 | 5 | 5 | 10 | 19 |
ST800 | 3.5 | 5 | 5 | 10 | 20.5 |
ST1000 | 4 | 6 | 6 | 12 | 23.1 |
ST1250 | 4.5 | 6 | 6 | 12 | 24.7 |
ST1600 | 5 | 6 | 6 | 12 | 27 |
ST2000 | 6 | 8 | 8 | 12 | 34 |
ST2500 | 7.2 | 8 | 8 | 15 | 36.8 |
ST3150 | 8.1 | 8 | 8 | 15 | 42 |
ST3500 | 8.6 | 8 | 8 | 15 | 46 |
ST4000 | 8.9 | 8 | 8 | 15 | 49 |
ST4500 | 9.7 | 8 | 8 | 16 | 53 |
ST5000 | 10.9 | 8.5 | 8.5 | 17 | 58 |
ST5400 | 11.3 | 9 | 9 | 17 | 63 |

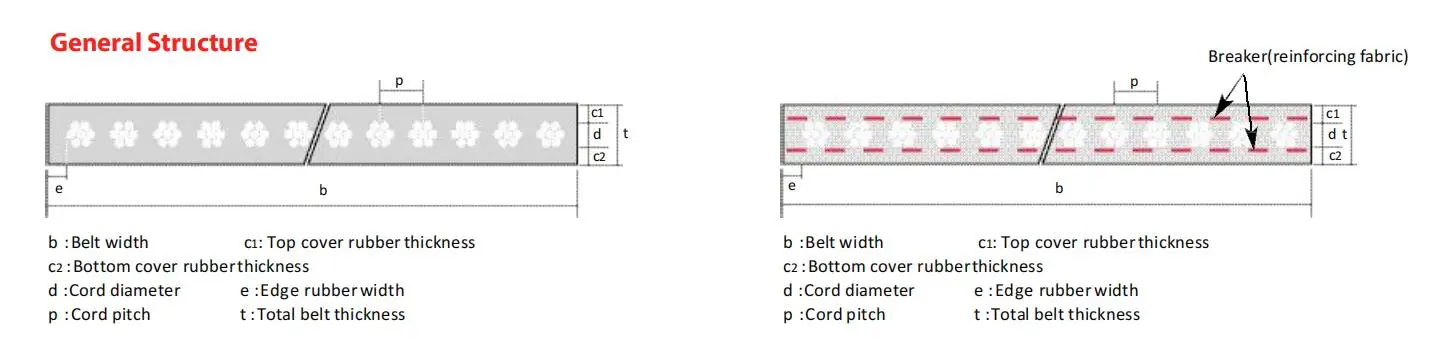

Breaker(reinforcing fabric)
* prevents length-wise tearing by foreign substances or sharp objects
* prevents broken steel cord from protruding through coverrubber
* provides high withdrawal strength (in stationarytests)
* reduces risks for belt breakage by impact
* prevents broken steel cord from protruding through coverrubber
* provides high withdrawal strength (in stationarytests)
* reduces risks for belt breakage by impact
Quality control
The administration for the procedure is our advantage, which includes material procurement, orders follow-up, quality control,inspection & loading supervision handling, etc
Wide Of Application
Company Profile
Hi Hero conveyor belting
hi hero is a manufactures an extensive line of Conveyor Belt products constructed from polyester, polyester cotton, nylon and other fabrics to meet the most demanding bulk materials and various industrial applications. The product and service range reaches from expert advise, professional planning, conveyor belt and installation. Extensive testing and development methods ensure that our services are of excellent quality and our products in prime condition.
FAQ
Q1. Are you a manufactuer?
Q2. What about the lead time?
1) 3--5 days for sample
2) 15--20 days for mass production. If urgent,we have green channel
Q3. How to pay?
1) T/T or L/C through bank account
2) Select Alibaba Trade Assurance Service
Q4. How about package?
1) Inner is packed on round rubber core with 30cm diameter and 12cmx12cm square hole
2) Outer is packed with one ply water-proof PP fabric
Yes, we mainly produce Rubber conveyor belts and Rubber v belts over 20 years.
Q2. What about the lead time?
1) 3--5 days for sample
2) 15--20 days for mass production. If urgent,we have green channel
Q3. How to pay?
1) T/T or L/C through bank account
2) Select Alibaba Trade Assurance Service
Q4. How about package?
1) Inner is packed on round rubber core with 30cm diameter and 12cmx12cm square hole
2) Outer is packed with one ply water-proof PP fabric
