ICT51 5 Axis PV Module Solder Robot Automatic, XYZ Solar Cell Robotic Soldering Machine, PCB Cheap Soldering Robot Price
- Category: Welding Equipment >>>
- Supplier: Shenzhen,ETA,Technology,Co.,Ltd.
Share on:
Product Overview
Description
ICT51 5 Axis PV Module Solder Robot Automatic, XYZ Solar Cell Robotic Soldering Machine, PCB Cheap Soldering Robot Price
Product Description

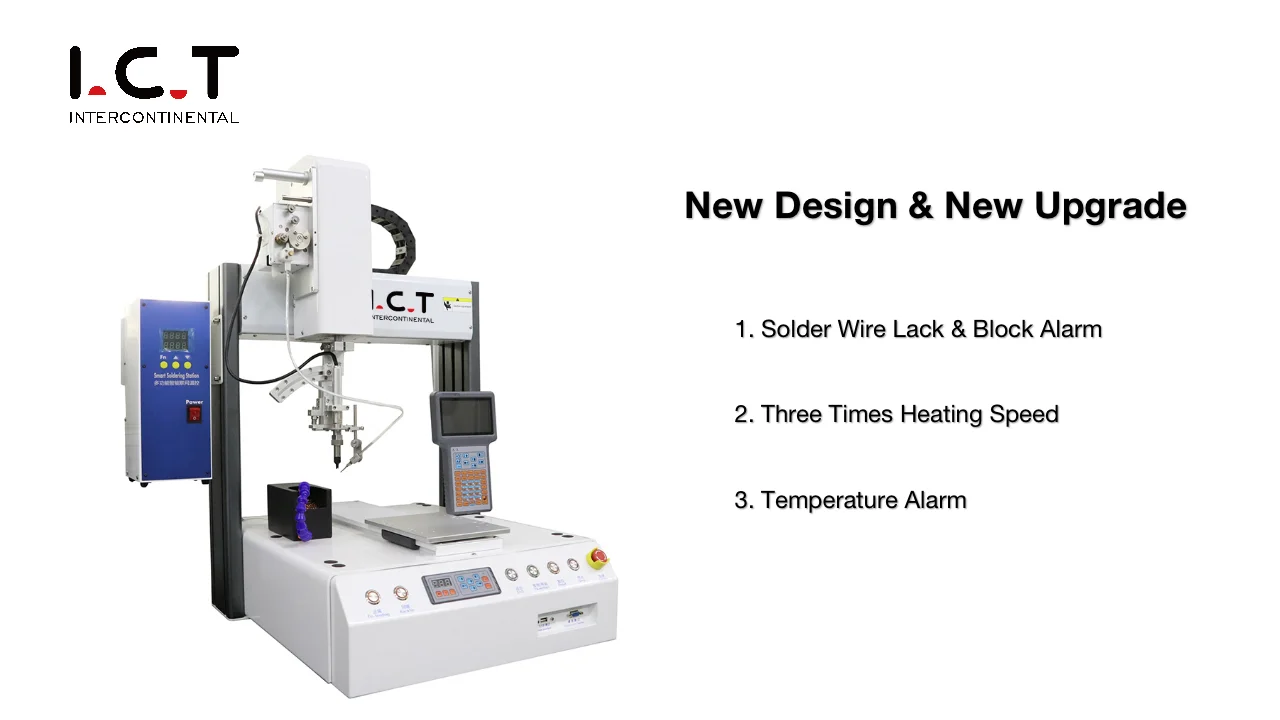

Automatic Soldering Robot

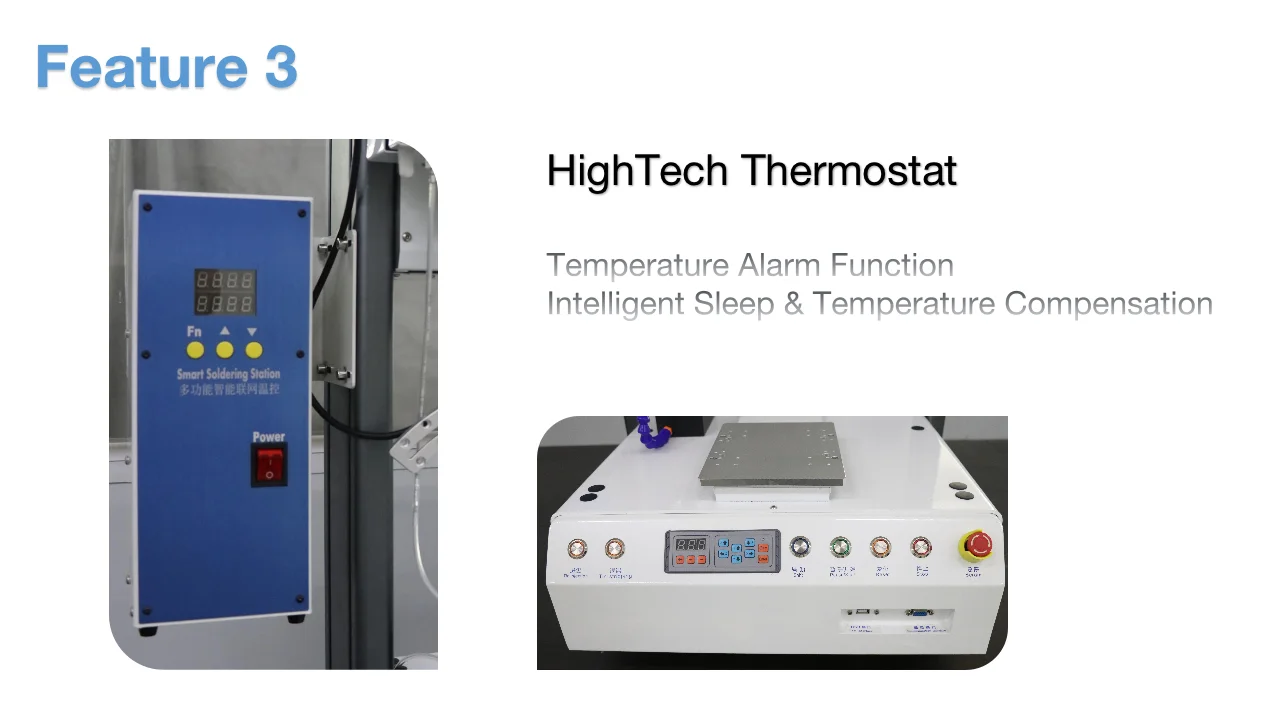

High frequency heatig system with rapid heat recovery, soldering tip is easy to te exchanged with low cost.

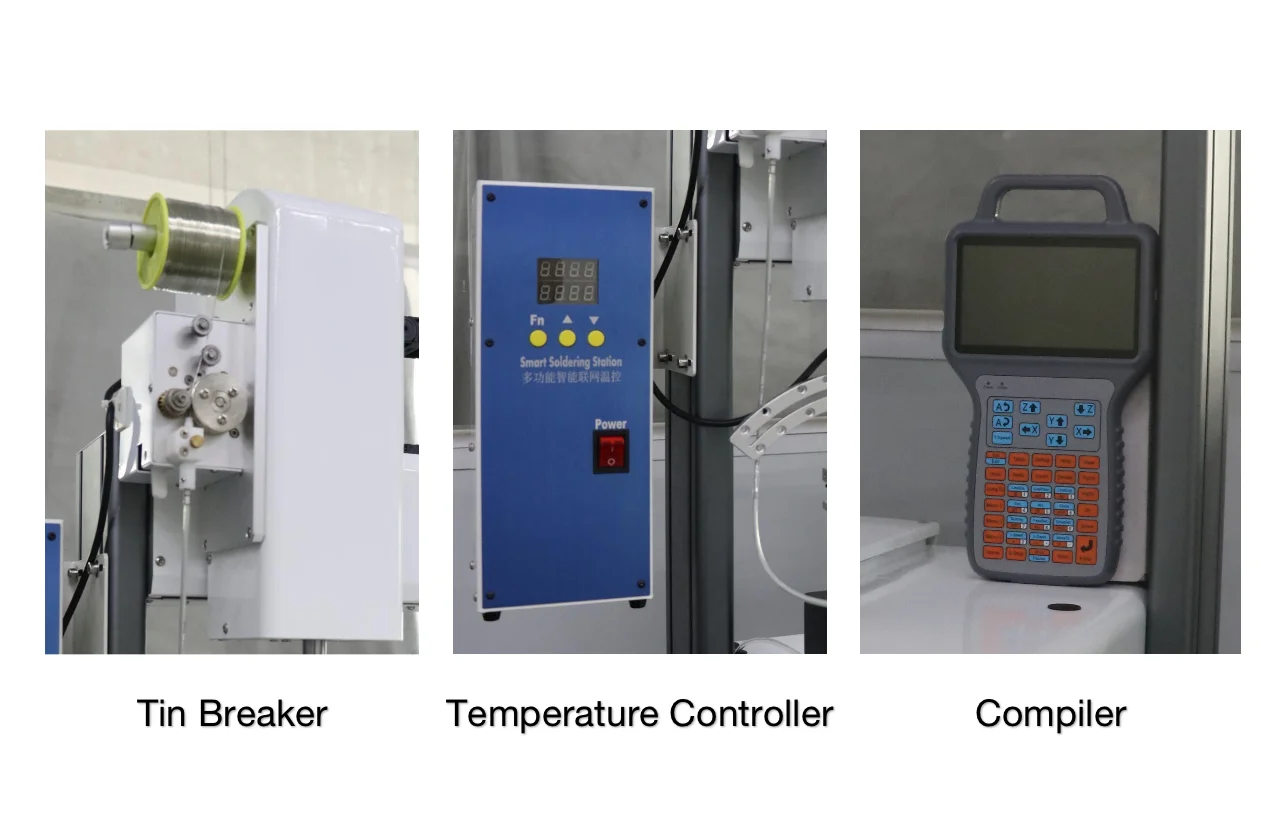

Break tin automatic solder wire feeder can reduce flux remaining problem after soldering.

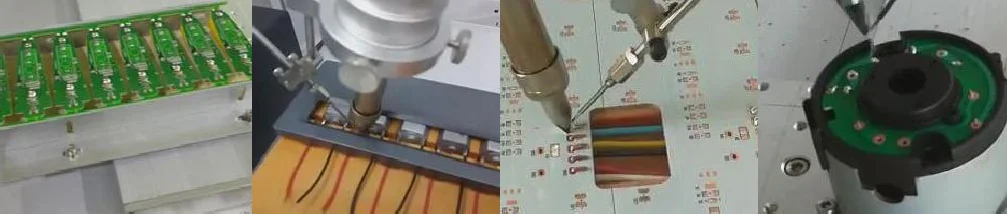

Applications:
Model | I.C.T-SR300 | I.C.T-SR530 | I.C.T-SR250D | I.C.T-SR250DD | |||
Platform Number | 1 | 1 | 2 | 2 | |||
Head Number | 1 | 2 | 1 | 2 | |||
Heating Power | 150w | 300w | 150w | 300w | |||
Max. PCB Size(mm) | 300*300 | 500*300 | 250*250 for each Platform | 250*250 for each Platform | |||
Max Move Speed | X,Y axis:600-800mm/s. Z axis:400 mm/s. R axis:300°/s | ||||||
Temperature Range | 0-550C° | ||||||
Temperature Accuracy | ±3° | ||||||
Driving Mode | Step Motor | ||||||
Dimension(mm) | 620*660*770 | 780*660*770 | 780*660*770 | 780*660*770 | |||
Weight | Approx:60kg | Approx:65kg | Approx:70kg | Approx:75kg | |||
Mini Robotic Auto Soldering Machine, PV Module Solar Cell Solder Robot, PCB Cheap Soldering Robot Automatic 5 Axis Price
Product Description
Automatic Soldering Robot
High frequency heatig system with rapid heat recovery, soldering tip is easy to te exchanged with low cost.
Break tin automatic solder wire feeder can reduce flux remaining problem after soldering.
Applications:
Model | I.C.T-SR300 | I.C.T-SR530 | I.C.T-SR250D | I.C.T-SR250DD | |||
Platform Number | 1 | 1 | 2 | 2 | |||
Head Number | 1 | 2 | 1 | 2 | |||
Heating Power | 150w | 300w | 150w | 300w | |||
Max. PCB Size(mm) | 300*300 | 500*300 | 250*250 for each Platform | 250*250 for each Platform | |||
Max Move Speed | X,Y axis:600-800mm/s. Z axis:400 mm/s. R axis:300°/s | ||||||
Temperature Range | 0-550C° | ||||||
Temperature Accuracy | ±3° | ||||||
Driving Mode | Step Motor | ||||||
Dimension(mm) | 620*660*770 | 780*660*770 | 780*660*770 | 780*660*770 | |||
Weight | Approx:60kg | Approx:65kg | Approx:70kg | Approx:75kg | |||
