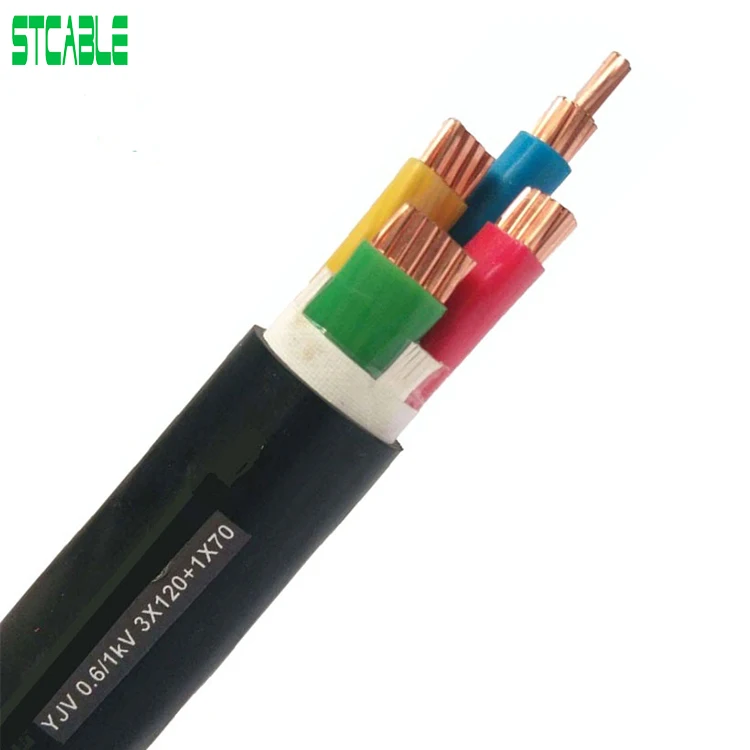

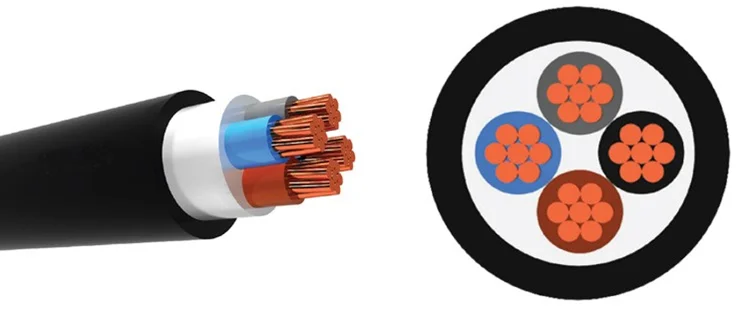

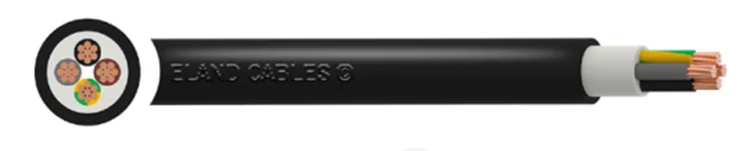

Cables 0,6/1 kV N2XOH

Application

Suitable for the following installations:

• Sub-surface power source networks for outdoor lighting installations


• General supply line


• Individual bypass


• Interior or receptor installations


• Public premises


• Sub-surface networks for low voltage distribution


• Electric energy distribution networks. Sub-surface supply lines


• Installations in premises with special features

Standards:

International :  IEC 60332-1-2; IEC 60502-1

National standards NTP-IEC 60228: Conductors of insulated cables. NTP-IEC 60502-1:

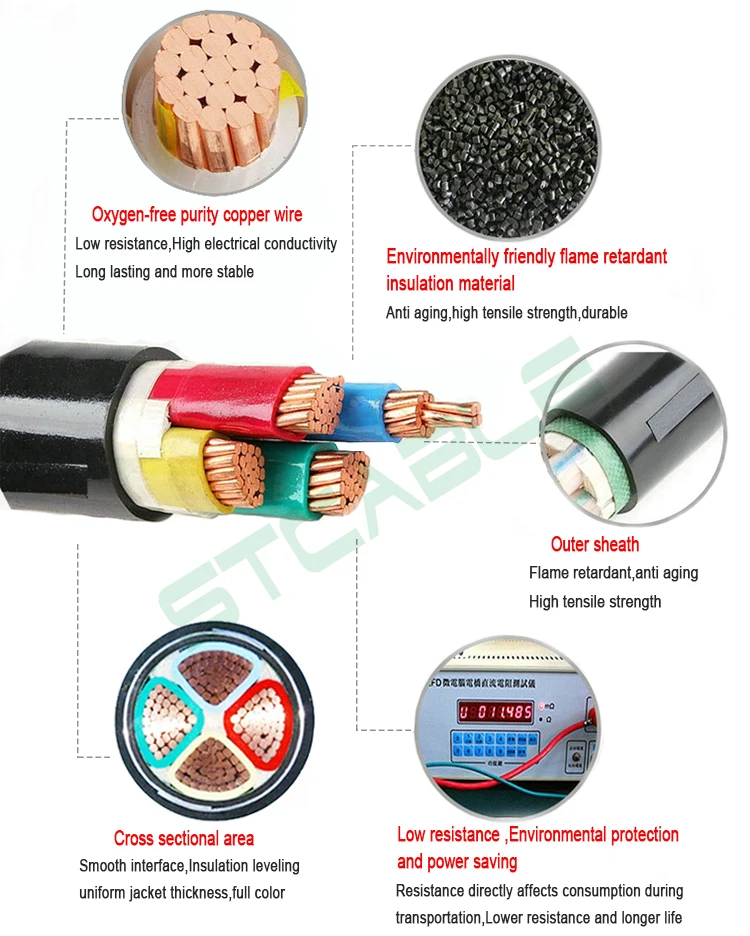

Main characteristics: The cable has excellent electric properties. The cross-linked polyethylene insulation allows a higher power capacity current under any operation conditions, lower dielectric losses, high insulation resistance. The outer sheath has the following characteristics: Fire retardant, low emission dense smoke and halogen free. Sunlight resistance.

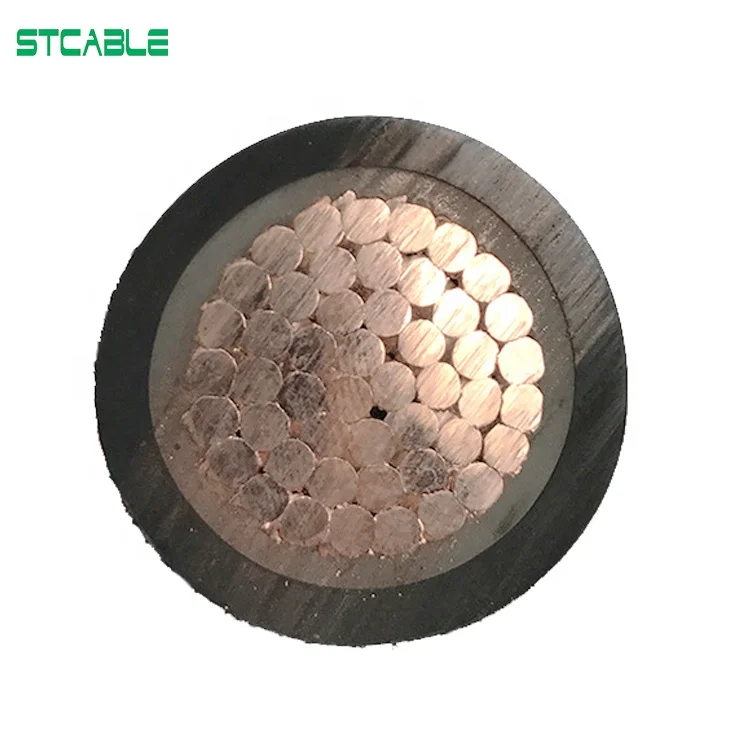

Cross section: From 6 mm2 up to 500 mm2 .

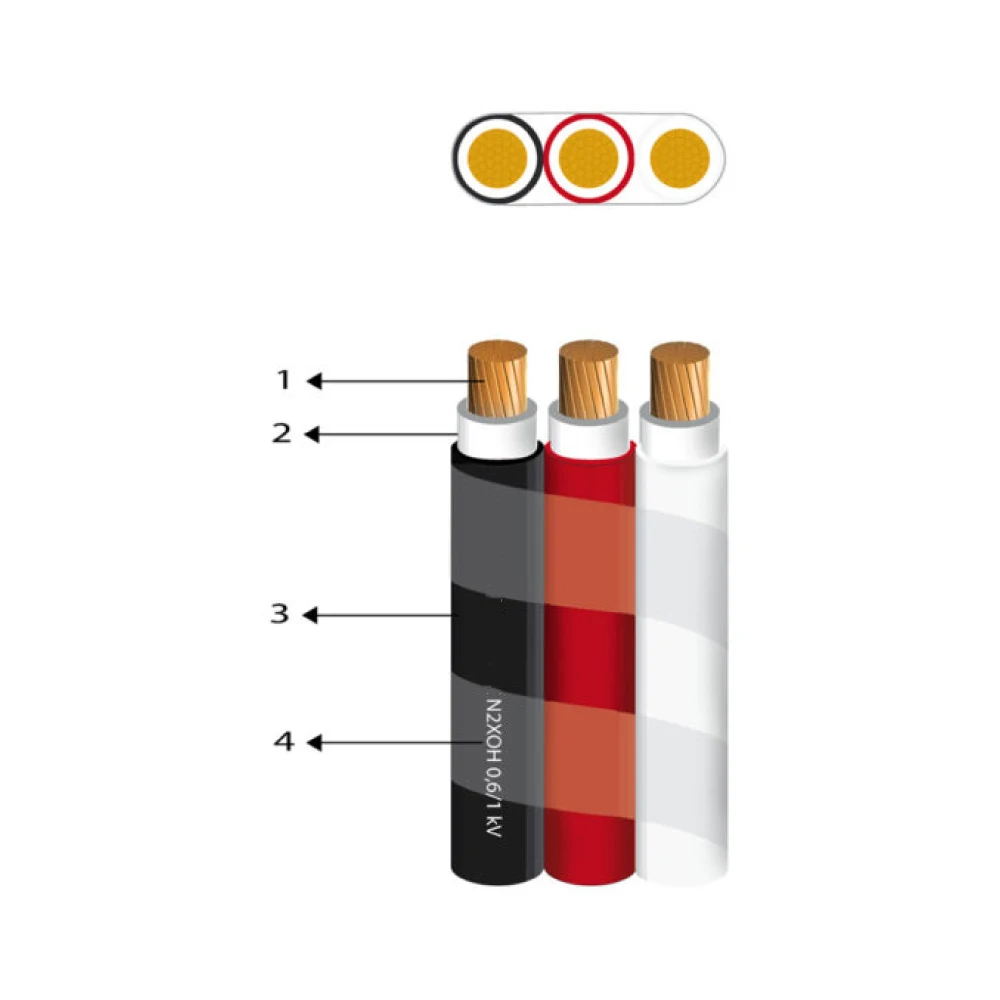

Marking: INDECO S.A. FREETOX N2XOH 0,6/1 kV (3 or 2) - 1 x Section - Year (- sequential length m. || sequential length m. + ).

Packing: Non returnable wooden reels.

Colour: Insulation: Natural.

Outer sheath: White, black, and red, or white and black

SITONG CABLE   can design and produce for special application requirement

Packaging Details: The standard export wooden drum or as the requirements of clients

Delivery Details: Shipping will be 15days after advance payment

We have the professional lashing&packaging team to ensure the cargos tighted and secured when transporting
