Meiyad Soft Module Curved Flexible Indoor Advertising Led Display Screen For Cylindrical Column
- Category: >>>
- Supplier: Shenzhen Meiyad Optoelectronics Co. Ltd.
Share on (1600613006082):
Product Overview
Description
Products Description
Meiyad Flexible LED Screen
2 invention patents, 6 times technology innovations, CE LVD FCC CCC certified.
Soft, thin, strong magnets column, patent flexible led module.
Realize your eye-catching design.
High contrast ratio and high grayscale for better image effect.
Installation in front/rear according to site conditions, supports hanging, wall-mounting and stacking installation.
Composed of layers of quality raw materials, the flexible led module uses highly fireproof PCBs and soft bottom housing, thoroughly ensuring its reliability.
Meiyad curved flexible led screens have range of sizes to meet your display needs.
Various customizable shapes (concave/convex/wave/cylinder) according to customer needs.
Various customizable shapes (concave/convex/wave/cylinder) according to customer needs.

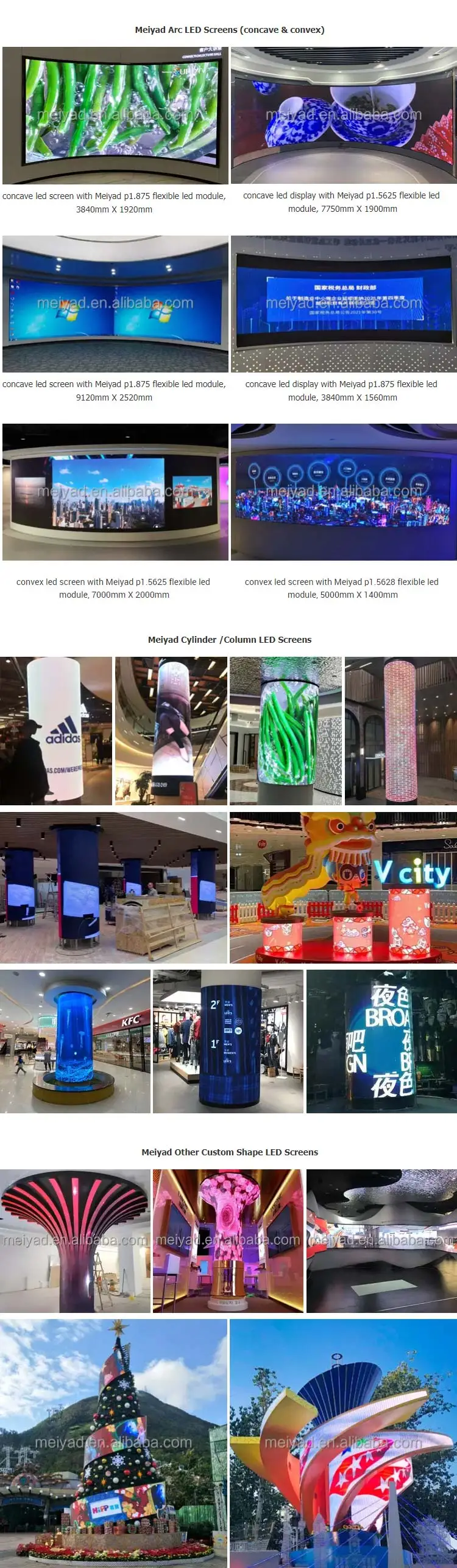

Concave LED Screen
Wave LED Display
Cylinder LED Screen

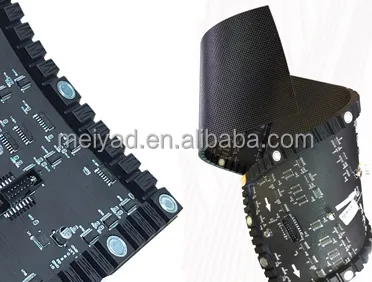

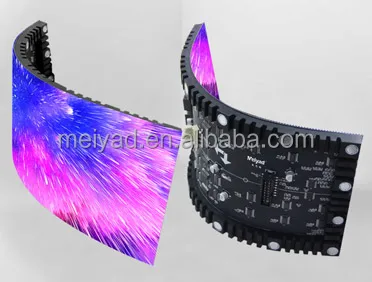

A soft led module is less than 2cm thick and is pliable up to 120°. It passed 10,000 folding tests and easily fits all curved surfaces.
Highly Customizable in terms of size, shape, pixel pitch. Now we have indoor P1.25 P1.5625 P1.875 P2 P3 P4 P5 P6, outdoor P4.
Wide Application
Flexible LED screen can be used in so many fields and occasions, especially in all kinds of irregular buildings. For example hotel advertising, stage renting, television, shopping malls, outdoor stadiums, concerts, fairground, etc.
Product Paramenters
Pixel Pitch (mm) | P1.5625 | P1.875 | P2 | P2.5 | P3 | P4 | P5 | P6 | Outdoor P4 | ||||||||
Configuration | SMD 1010 | SMD 1515 | SMD 1010 | SMD 1010 | SMD 1515 | SMD 2121 | SMD 2121 | SMD 3528 | SMD 1921 | ||||||||
Pixel Density (pixel/m2) | 409600 | 284444 | 250000 | 160000 | 111111 | 62500 | 40000 | 27777 | 62500 | ||||||||
Module Size (mm) | 250*100 | 240*120 | 256*128 | 240*120 | 240*120 | 256*128 | 320*160 | 192*192 | 256*128 | ||||||||
Module Resolution | 160*64 | 128*64 | 128*64 | 96*48 | 80X40 | 64*32 | 64*32 | 32*32 | 64*32 | ||||||||
Scan Mode | 32S | 32S | 32S | 24S | 20S | 16S | 16S | 8S | 16S | ||||||||
Brightness (cd/m2) | ≥700 | ≥700 | ≥700 | 800-1200 | 800-1200 | 800-1200 | 800-1200 | 800-1200 | ≥4500 | ||||||||
Environment | Indoor | Indoor | Indoor | Indoor | Indoor | Indoor | Indoor | Indoor | Outdoor | ||||||||
Viewing Angle | 160° | ||||||||||||||||
Brightness Adjustment | 0-255 Levels adjustable | ||||||||||||||||
Control Mode | Synchronous display with control PC by DVI | ||||||||||||||||
Input Signal | Composite, S-Vido, component, VGA, DVI, HDMI, HD-SDI | ||||||||||||||||
Operating Voltage | AC100/24050/60HZ | ||||||||||||||||
Operating Temperature | -20℃～+60℃ | ||||||||||||||||
Operating Humidity | 10～90%RH | ||||||||||||||||
Lifespan(h) | 100,000 hours | ||||||||||||||||

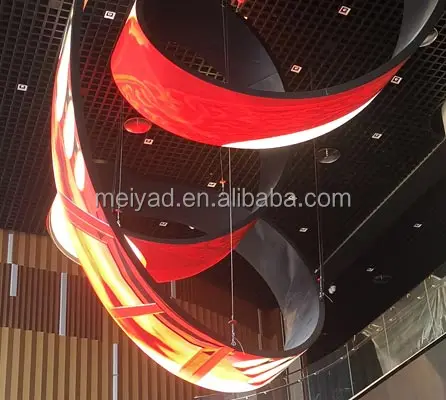

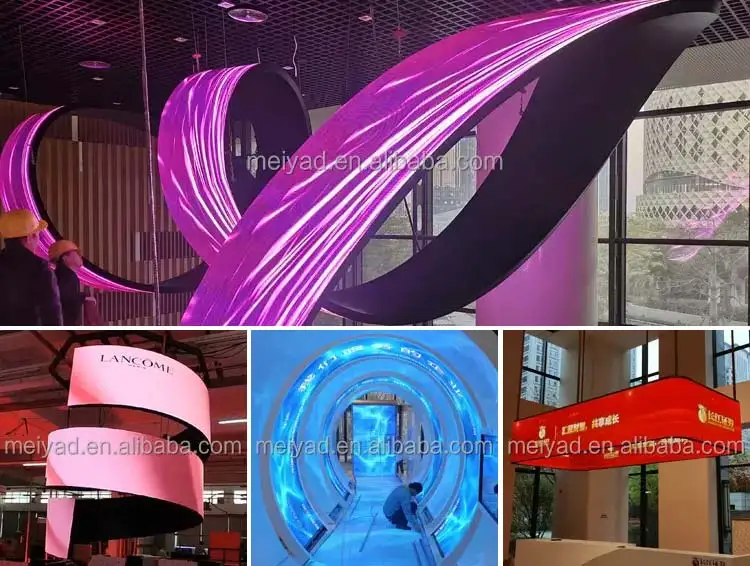

Showcases

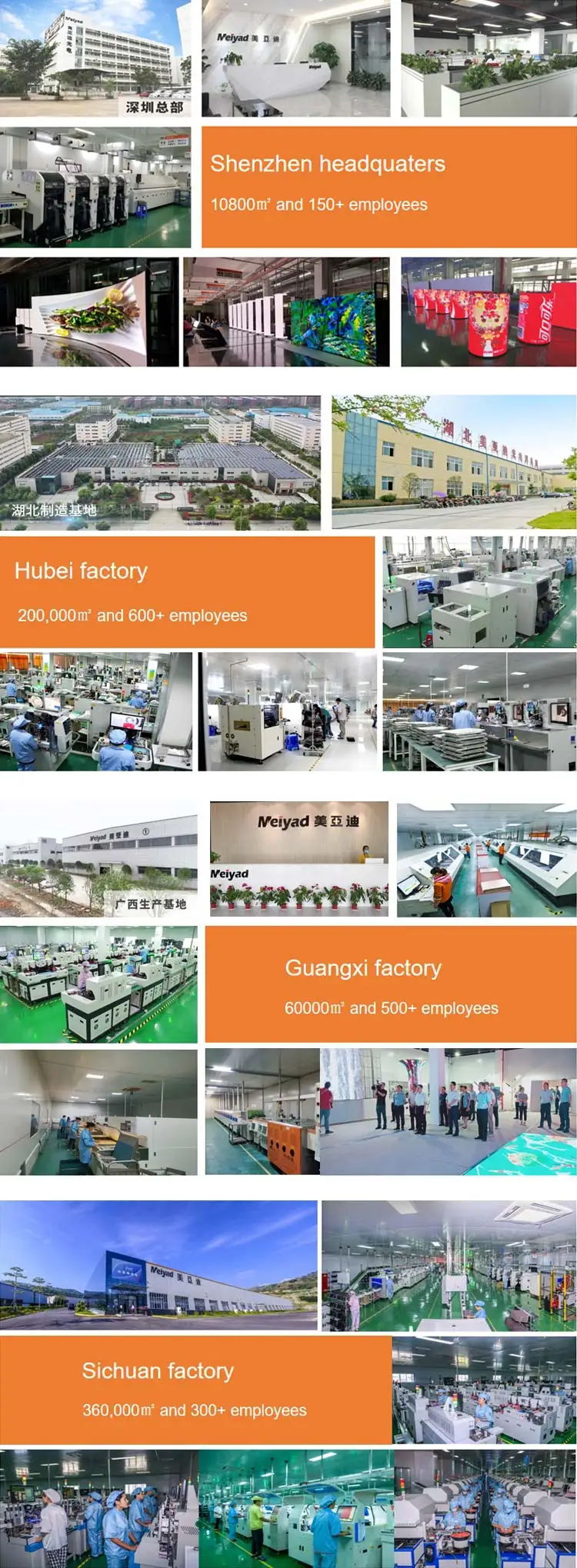

About Meiyad
Founded in 2008
4 production bases, 600,000+sqm, 1500+employees
National high-tech enterprise
Exported to 100+ countries
Successful 5000+ project cases
Meiyad was established in 2008, our headquarters was located in Shenzhen, we also have factory in Hubei, Guangxi and Sichuan.
Some more information about our company:
1. Production line: 150 LED encapsulation lines, 200 DIP lines, 30 SMD lines.
2. Lower Price: we have our own PCB and encapsulation factory for lower price.
3. Short Delivery time: we have professional team to produce good products for you in our shortest time.
4. Certificate: our quality meet FCC/ROHS/CE/CCC standard.
5. Good Service: we are technical assistance for all of our products, always available to our clients for any problem.
Some more information about our company:
1. Production line: 150 LED encapsulation lines, 200 DIP lines, 30 SMD lines.
2. Lower Price: we have our own PCB and encapsulation factory for lower price.
3. Short Delivery time: we have professional team to produce good products for you in our shortest time.
4. Certificate: our quality meet FCC/ROHS/CE/CCC standard.
5. Good Service: we are technical assistance for all of our products, always available to our clients for any problem.
Certifications
Packing & Delivery
Packing:
1. Carton case
2. Honeycomb case
3. Plywood case
4. Flight case
