Carrier Wall Mounted Air Conditioner Fancoil Fan Coil Unit Slim Slim Fan Coil Unit
- Category: >>>
- Supplier: Henan Honming Smart Technology Co. Ltd.
Share on (1600613259580):
Product Overview
Description
Slim Fan Coil Unit
Product Description

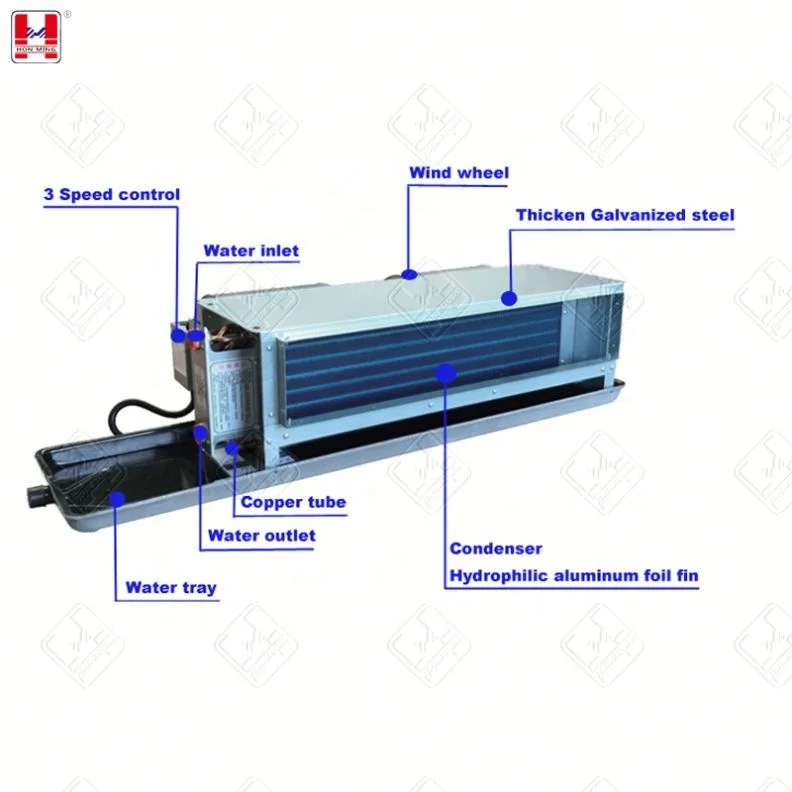

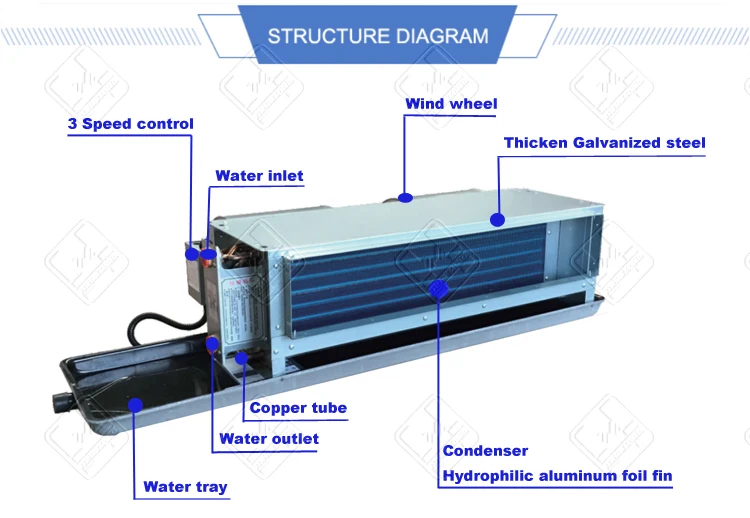

HON MING Carrier Wall Mounted Air Conditioner Fancoil Fan Coil Unit Slim Slim Fan Coil Unit are mainly composed of power module, control module, drive module,pure copper motor coil heat exchangers. It is a high-tech energy-saving product, which is quiet, comfortable, energy-saving, environmental protection, especially suitable for high-end hotels.
One product can meet the national standards of electromagnetic compatibility and power factor, easily realize digital control and adapts to the current international development trend of energy saving and environmental protection.
It is the terminal device of the central air conditioning system. And the fan sends indoor air or outdoor mixed air through the air cooler to be cooled or heated, then sends the air into the room to lower or raise the indoor temperature to meet people's comfort requirements.
Carrier Wall Mounted Air Conditioner Fancoil Fan Coil Unit Slim Slim Fan Coil Unit Carrier Wall Mounted Air Conditioner Fancoil Fan Coil Unit Slim Slim Fan Coil Unit Carrier Wall Mounted Air Conditioner Fancoil Fan Coil Unit Slim Slim Fan Coil Unit

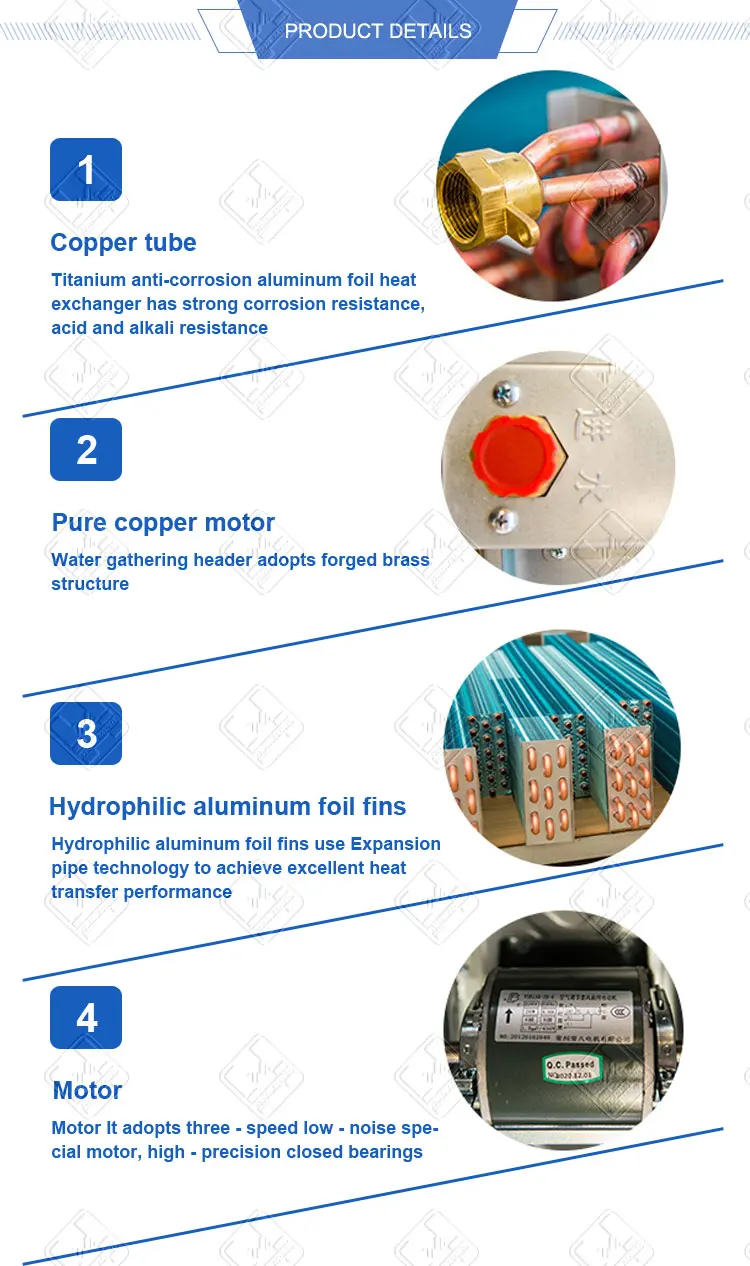

Product details
Fan coil design condition:
1.Cooling capacity as following.
1)Water temperature: 7 C( inlet )/12C ( outlet) or customized
2)Air entering condition: 27 C DB/19.5C WB or customized
2.Heating Capacity as following(with same water flow rate as cooling cycle):
1)water temperature: 60C( inlet) or customized
2)Air entering condition: 21C DB or customized
3.The air volume is tested under entering air condition of 20 C DB and dry coil condition.
4.The sound pressure level is based on 11.5d B(A)anechoic room background noise.
5.The manufacturer reserves the rights to make changes to the above specification without notice.
| Technical Performance of Carrier Wall Mounted Air Conditioner Fancoil Fan Coil Unit Slim Slim Fan Coil Unit | ||||||||||
| Model | FP-200 | FP-300 | FP-400 | FP-500 | FP-600 | FP-800 | FP-1000 | FP-1200 | FP-1400 | |
| Air volume m3/h | H | 340 | 510 | 680 | 850 | 1020 | 1360 | 1700 | 2040 | 2380 |
| M | 286 | 445 | 535 | 664 | 815 | 1080 | 1278 | 1570 | 1785 | |
| L | 226 | 339 | 390 | 476 | 555 | 760 | 932 | 1151 | 1190 | |
| Cooling capacity W | H | 2025 | 2820 | 3665 | 4580 | 5476 | 7493 | 8992 | 10889 | 12110 |
| M | 1762 | 2566 | 3005 | 3710 | 4545 | 6219 | 7014 | 8719 | 9446 | |
| L | 1397 | 1946 | 2199 | 2656 | 3121 | 4346 | 5125 | 6430 | 6450 | |
| Heating capacity W | H | 2206 | 2738 | 3652 | 4034 | 4749 | 6332 | 7823 | 9388 | 10725 |
| M | 1831 | 2355 | 3812 | 3106 | 3752 | 4939 | 5789 | 7135 | 7937 | |
| L | 1434 | 1780 | 2045 | 2279 | 2517 | 3483 | 4224 | 5257 | 5363 | |
| Noise dB(A) | 12Pa | 37 | 39 | 41 | 43 | 45 | 46 | 48 | 50 | 52 |
| 30Pa | 40 | 42 | 44 | 46 | 47 | 48 | 50 | 52 | 54 | |
| 50Pa | 42 | 44 | 46 | 47 | 49 | 50 | 52 | 54 | 56 | |

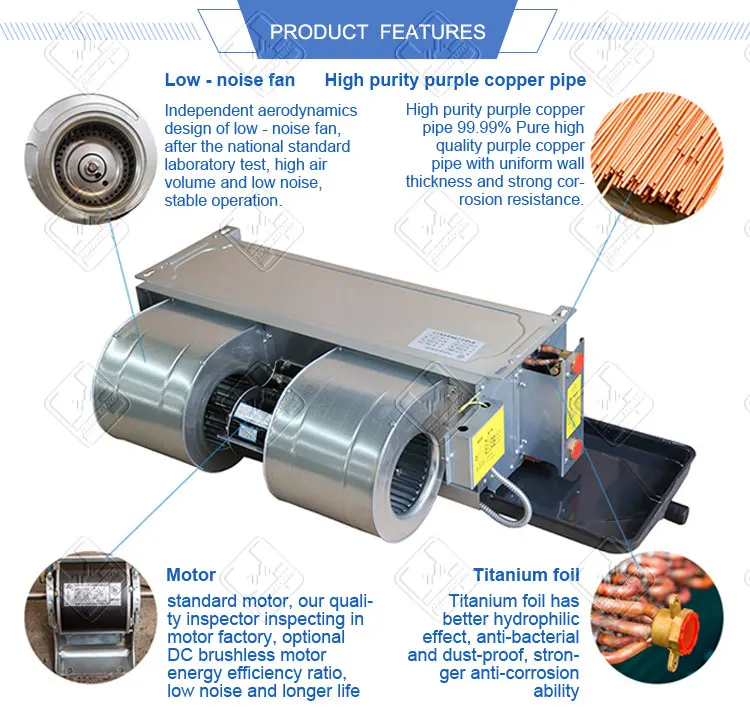

Main Features
1) Simple structure&easy installation
2) Adopt advanced world famous brand components
3) High pressure double crank to control opening and closing.
4) Running in a high automatization and intellectualization,no pollution.
Carrier Wall Mounted Air Conditioner Fancoil Fan Coil Unit Slim Slim Fan Coil Unit Carrier Wall Mounted Air Conditioner Fancoil Fan Coil Unit Slim Slim Fan Coil Unit Carrier Wall Mounted Air Conditioner Fancoil Fan Coil Unit Slim Slim Fan Coil Unit Carrier Wall Mounted Air Conditioner Fancoil Fan Coil Unit Slim Slim Fan Coil Unit Carrier Wall Mounted Air Conditioner Fancoil Fan Coil Unit Slim Slim Fan Coil Unit
Carrier Wall Mounted Air Conditioner Fancoil Fan Coil Unit Slim Slim Fan Coil Unit
Application
Carrier Wall Mounted Air Conditioner Fancoil Fan Coil Unit Slim Slim Fan Coil Unit

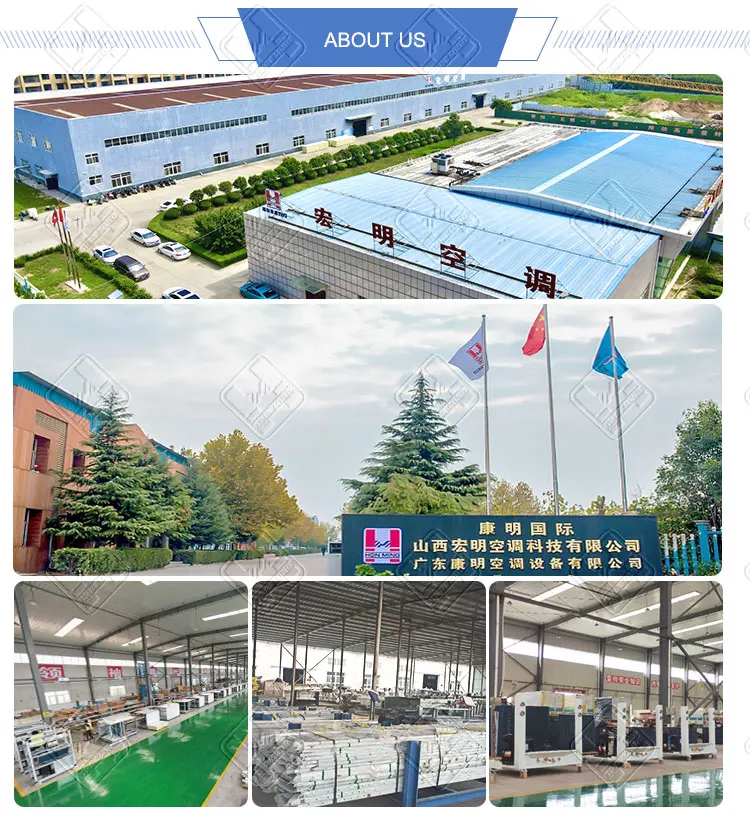

Company Information
| Established:Since 1993 |
| Brand: HON MING |
| Factory Size: 90 000 SQM |
| Employees: 900 - 1000 People |
| No. of R&D Staff : 90-100 People |
| No. of QC Staff: 10 - 20 People |
| Total annual turnover:>250 million RMB |
| Management Certification: ISO 9001,CTI,CE,Utility Model Patent, etc. |
| Main Markets: North America,South America,Eastern Asia,Western Europe etc. more than 100 countries. |
Main products: Horizontal concealed fan coil unit, casette fan coil unit, Vertical exposed floor standing fan coil unit, Vertical concealed fan coil unit, Jet air handler, Carrier Wall Mounted Air Conditioner Fancoil Fan Coil Unit Slim Slim Fan Coil Unitetc. Air conditioning chiller, air conditioner products,air cooled chiller, water cooled chiller, central air conditioning terminal, ventilation and SMC products, |
Customer visit
Carrier Wall Mounted Air Conditioner Fancoil Fan Coil Unit Slim Slim Fan Coil Unit

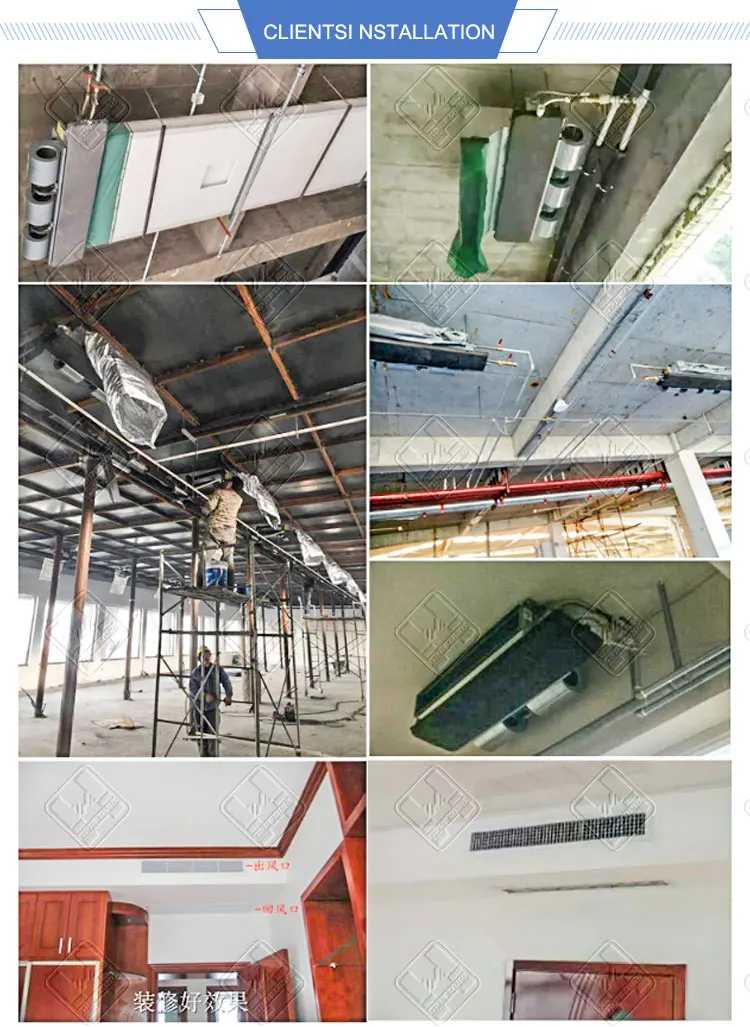

Clients installation
