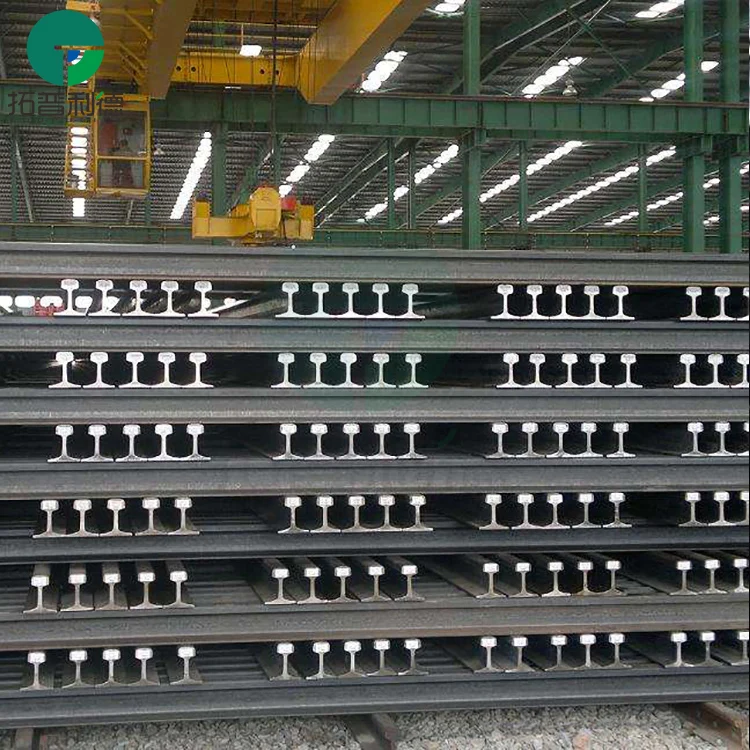

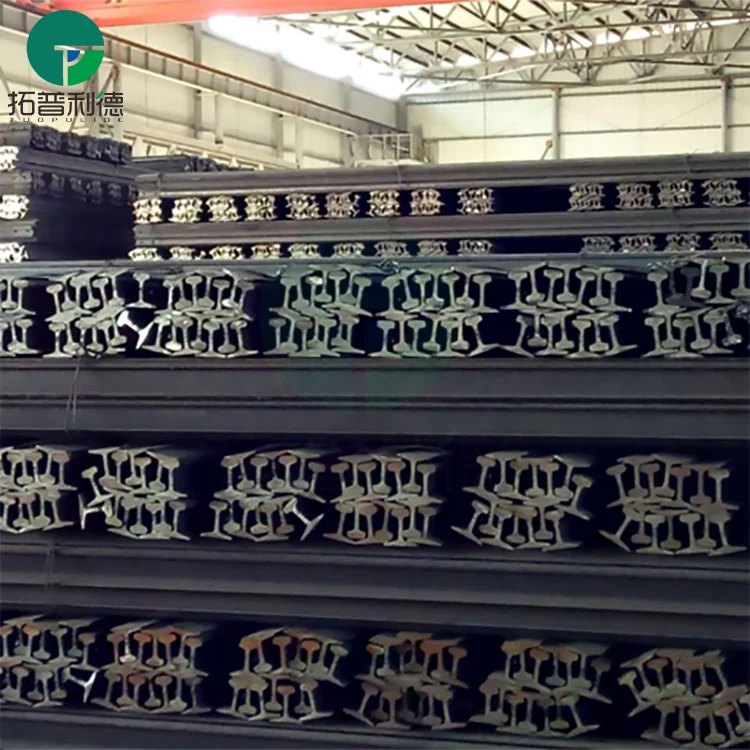

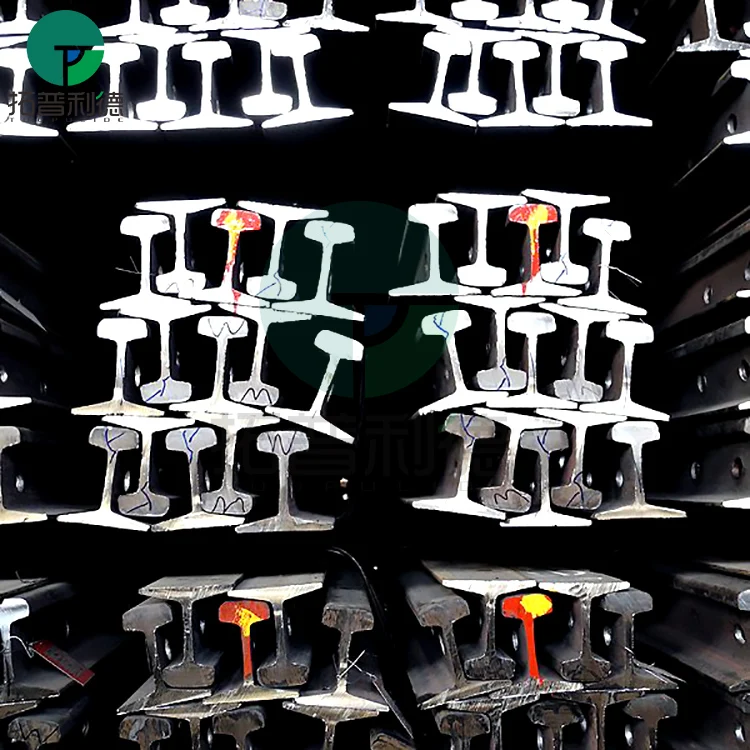

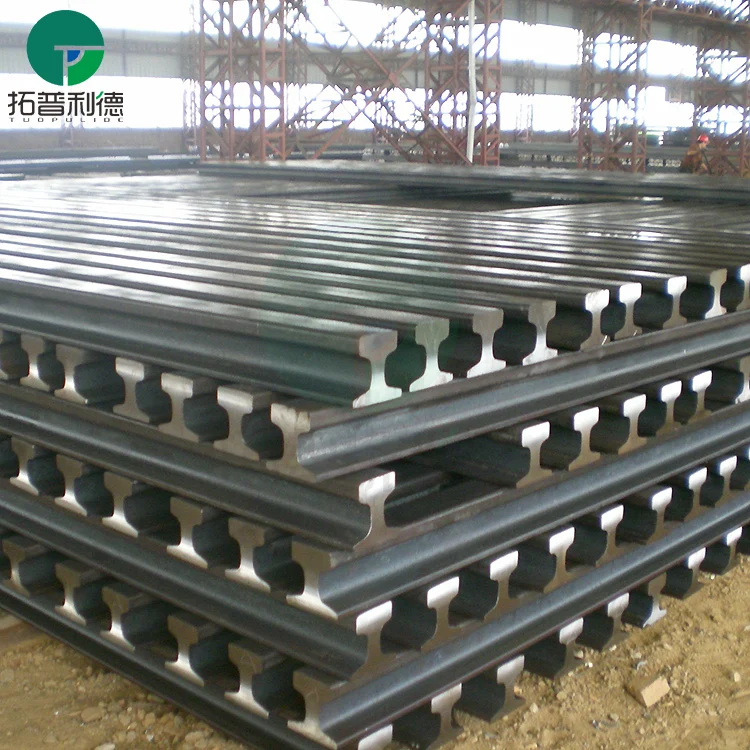

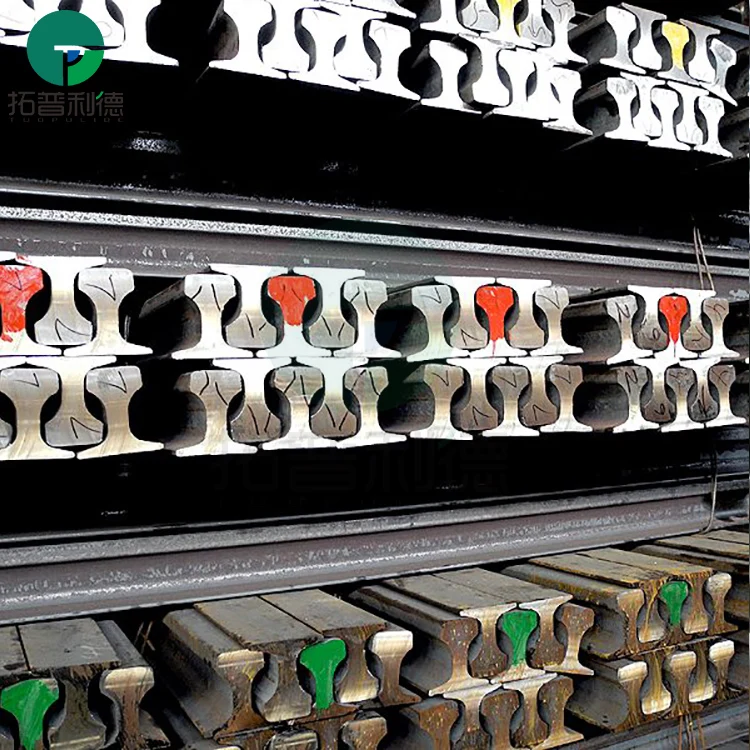

Heavy type narrow gauge 5Kg 6Kg 8Kg 12Kg 22Kg 120Kg rail 24kg/m

Product Overview

Description

Model	Height(mm)	Bottom (mm)	Head (mm)	Web(mm)	Weight(kg/m)	Length per piece (m)	Material
8kg/m	65	54	25	7	8.42	6	Q235
12kg/m	69.85	69.85	38.1	7.54	12.2	6	Q235
15kg/m	79.37	79.37	42.86	8.33	15.2	6/8	Q235/55Q
18kg/m	90	80	40	10	18.6	6/8/9	Q235/55Q
22kg/m	93.66	93.66	50.8	10.72	22.3	6/8/10	Q235/55Q
24kg/m	107	92	51	10.9	24.46	6/8/10	Q235/55Q
30kg/m	107.95	107.95	60.33	12.3	30.1	8/10	Q235/55Q
38kg/m	134	114	68	13	38.73	12.5	45MN/U71MN
43kg/m	140	114	70	14.5	44.653	12.5	45MN/U71MN
50kg/m	152	132	70	15.5	51.51	12.5	45MN/U71MN
60kg/m	176	150	73	16.5	60.64	12.5	U71MN
QU70	120	120	70	28	52.8	12	U71MN
QU80	130	130	80	32	63.69	12	U71MN
QU100	150	150	100	38	88.96	12	U71MN
QU120	170	170	120	44	118.1	12	U71MN

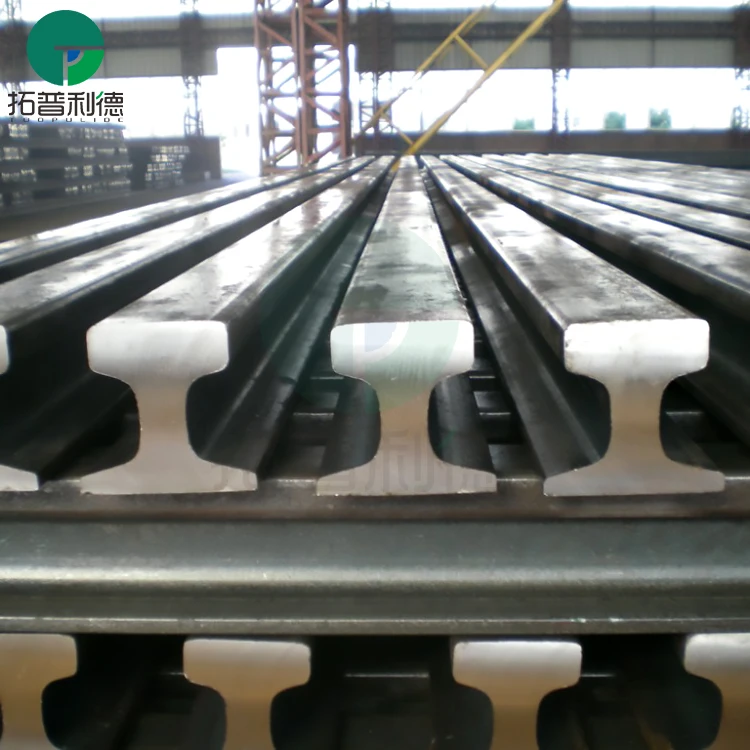

• 1)Light rail, material: Q235, 55Q, type: 30kg/m, 24kg/m, 22kg/m, 18kg/m, 15kg/m, 12 kg/m, 8 kg/m;


• 2)Heavy rail, material: 45MN, U71MN, type: 38kg/m, 43kg/m, 50kg/m;

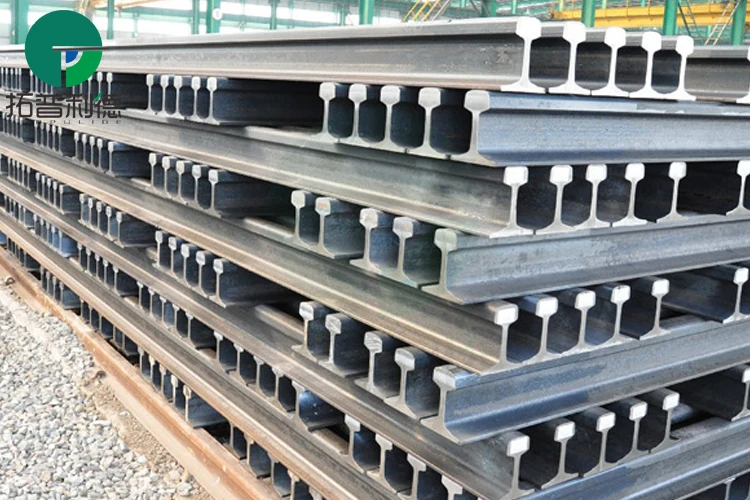

• 3)Crane rail, material: U71MN, type: QU70kg/m, QU80kg/m, QU100kg/m, QU120kg/m;



• Chinese standard:GB2585— 81;


• Good quality with competitive price;


• Free overseas techincal guidance in rail installation;

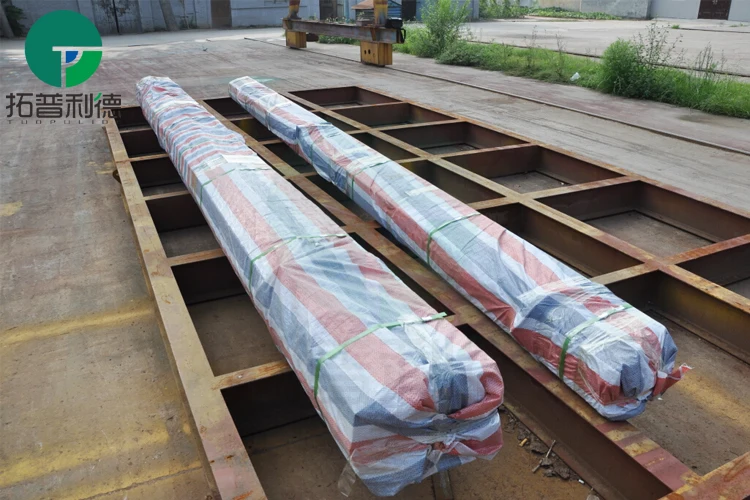

• Rich supply experience in recommend type, package, delivery and sea transportation.

We also supply accessories to connect and fix rail for crane on the ground or steel structure, such as joint bars, bolts, nuts, clamps, foundation bolts and so on.







If you have any interest or question about our rail for crane, please do not hesitate to contact us.

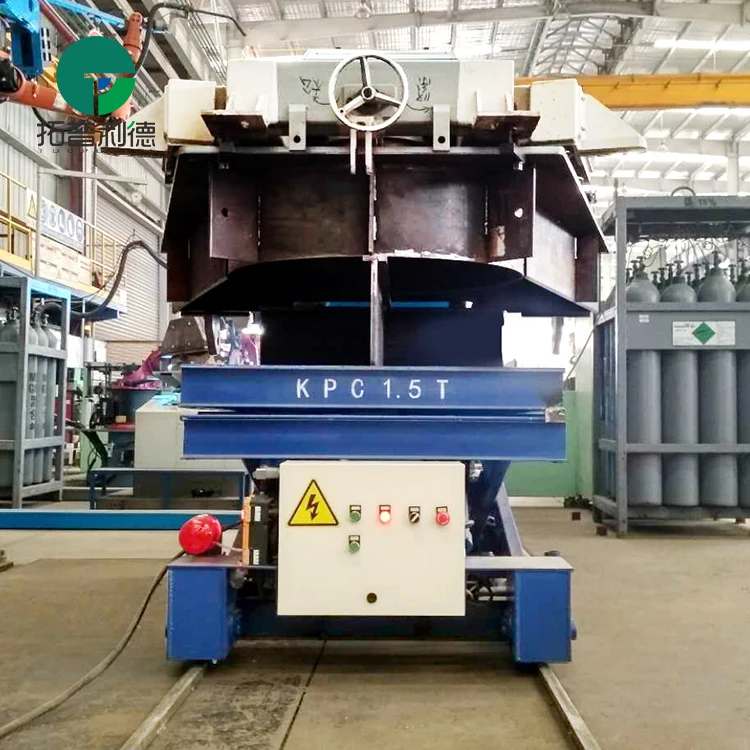

Self Propelled Turning Mould Transfer Trolley

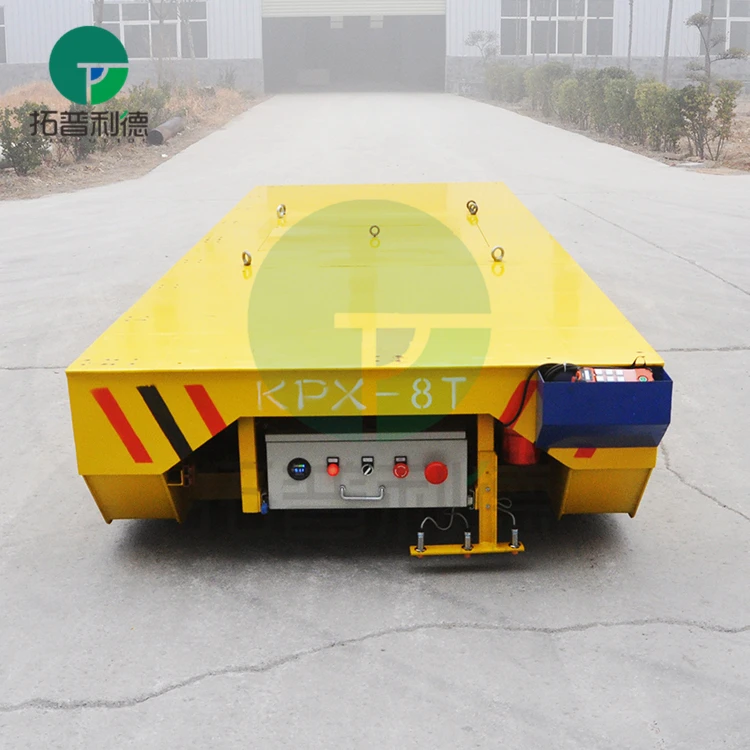

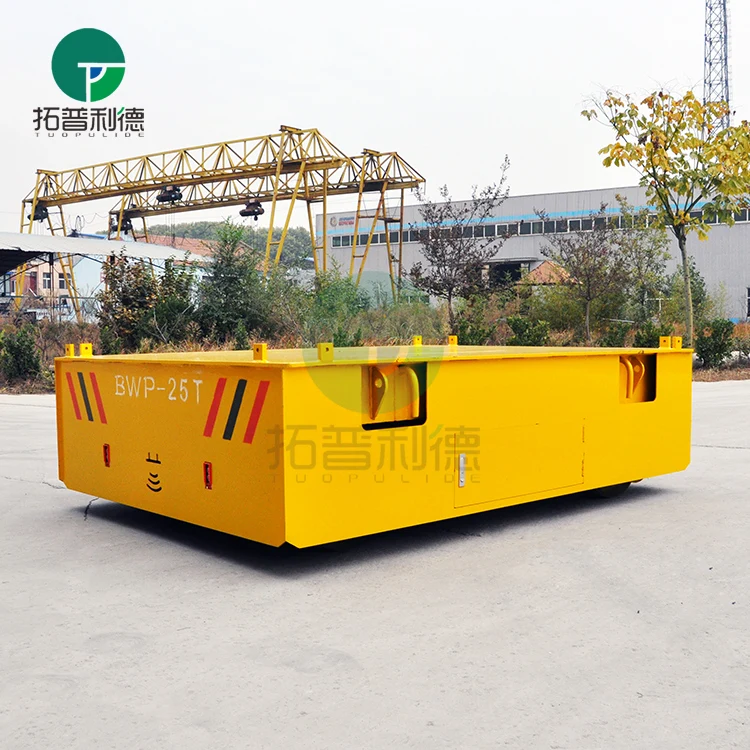

Battery Operated Railway Transfer Car
