New High Voltage Coolant Heater electric bus heater 15kw 20kw coolant heater
- Category: >>>
- Supplier: Beijing Golden Nanfeng International Trading Co. Ltd.
Share on (1600613367974):
Product Overview
Description
Product Description
10KW | 15KW | 20KW | |
Rated voltage（V） | 600V | 600V | 600V |
Supply voltage (V) | 450-750V | 450-750V | 450-750V |
Current consumption(A) | ≈17A | ≈25A | ≈33A |
Flow (L/h) | ＞1800 | ＞1800 | ＞1800 |
Weight (kg) | 8kg | 9kg | 10kg |
Installation size | 179x273 | 179x273 | 179x273 |
Control signal | Rocker switch hardwire control | Rocker switch hardwire control | Rocker switch hardwire control |

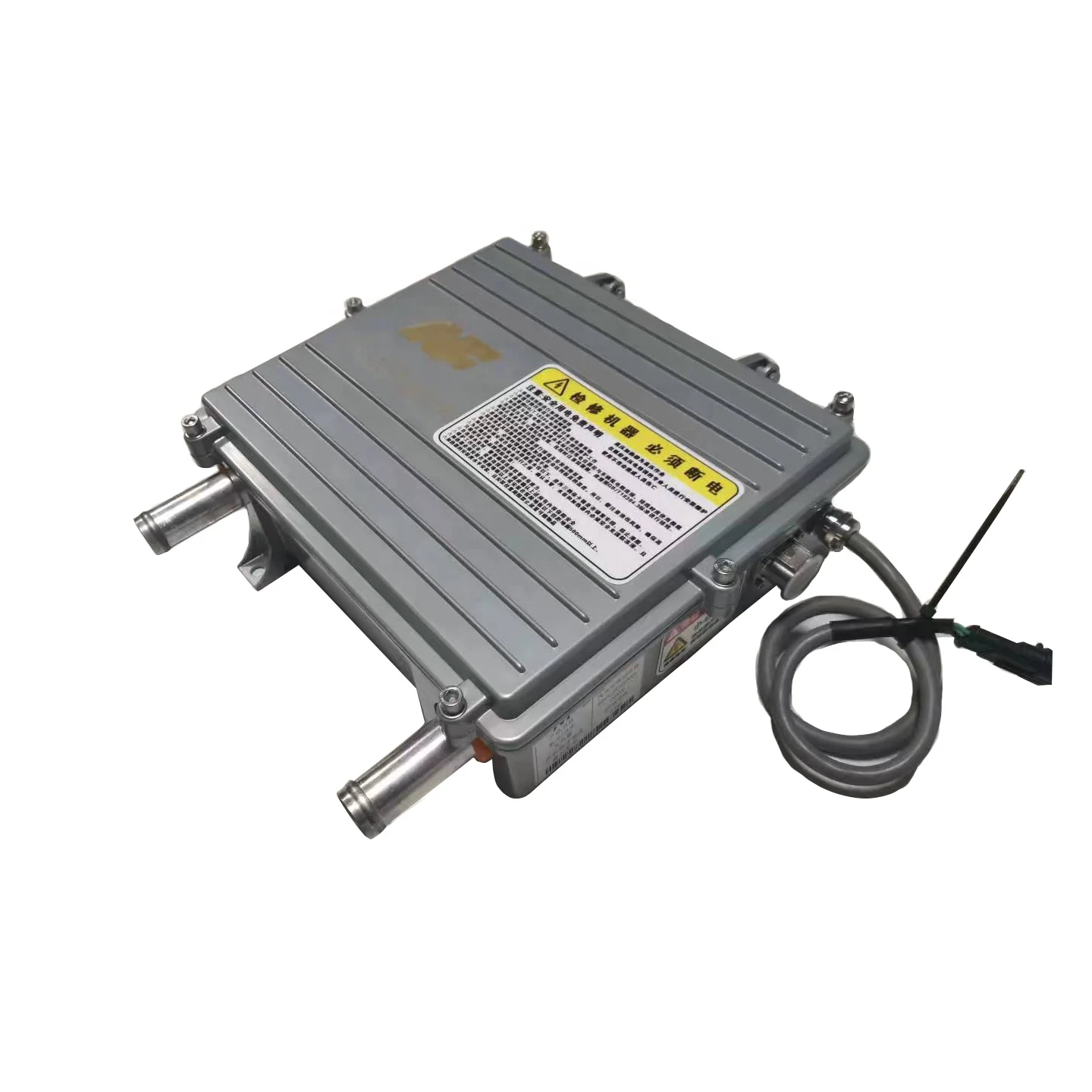

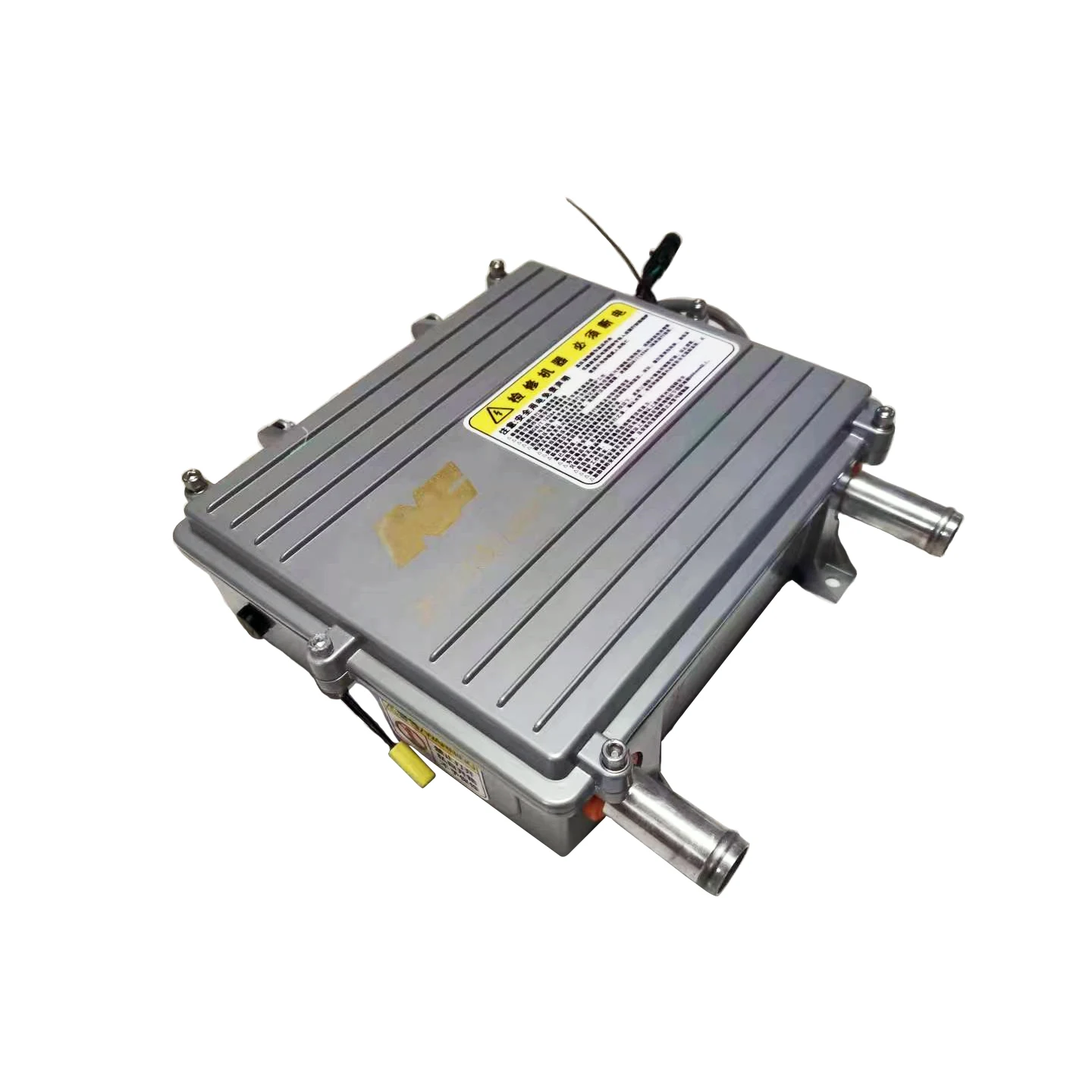

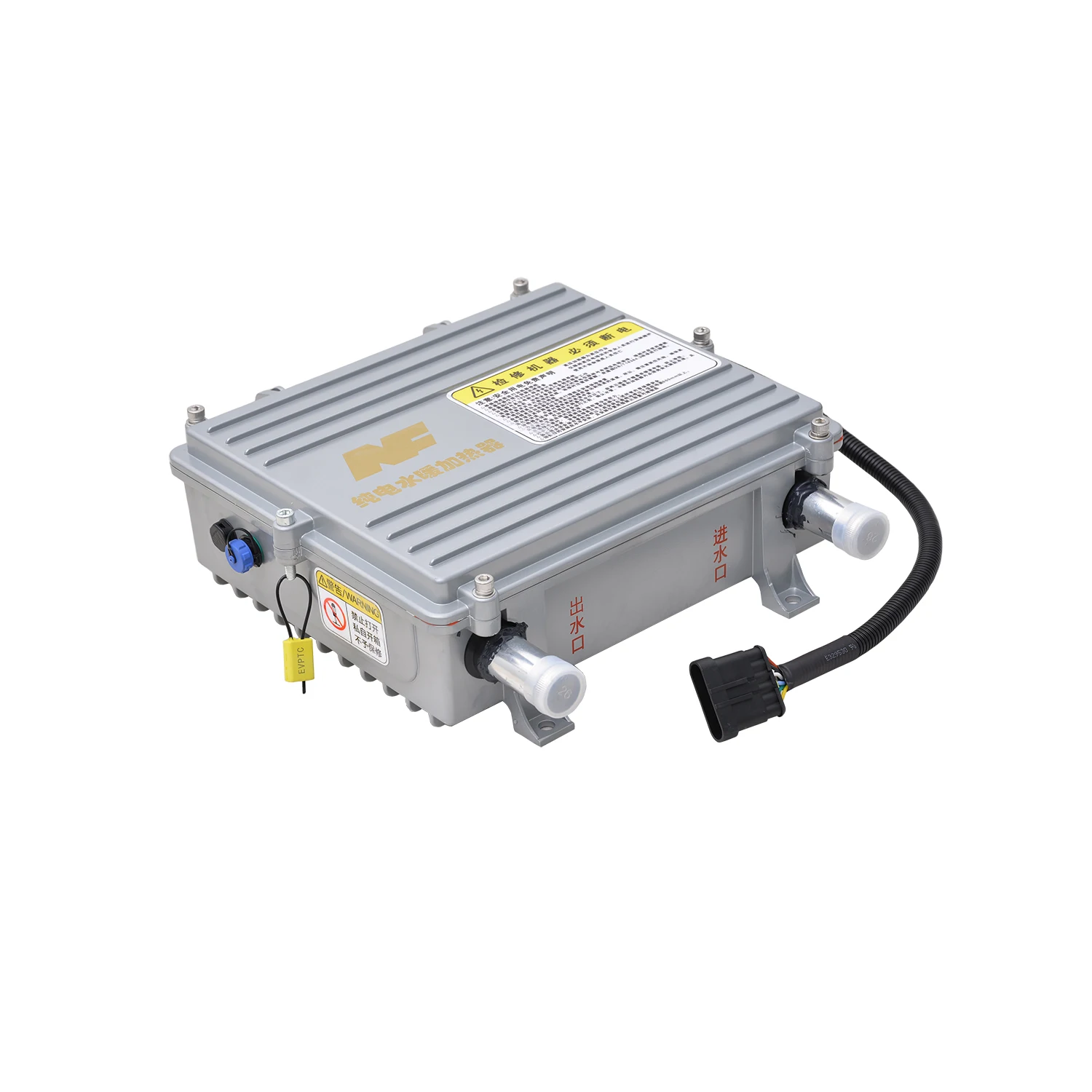

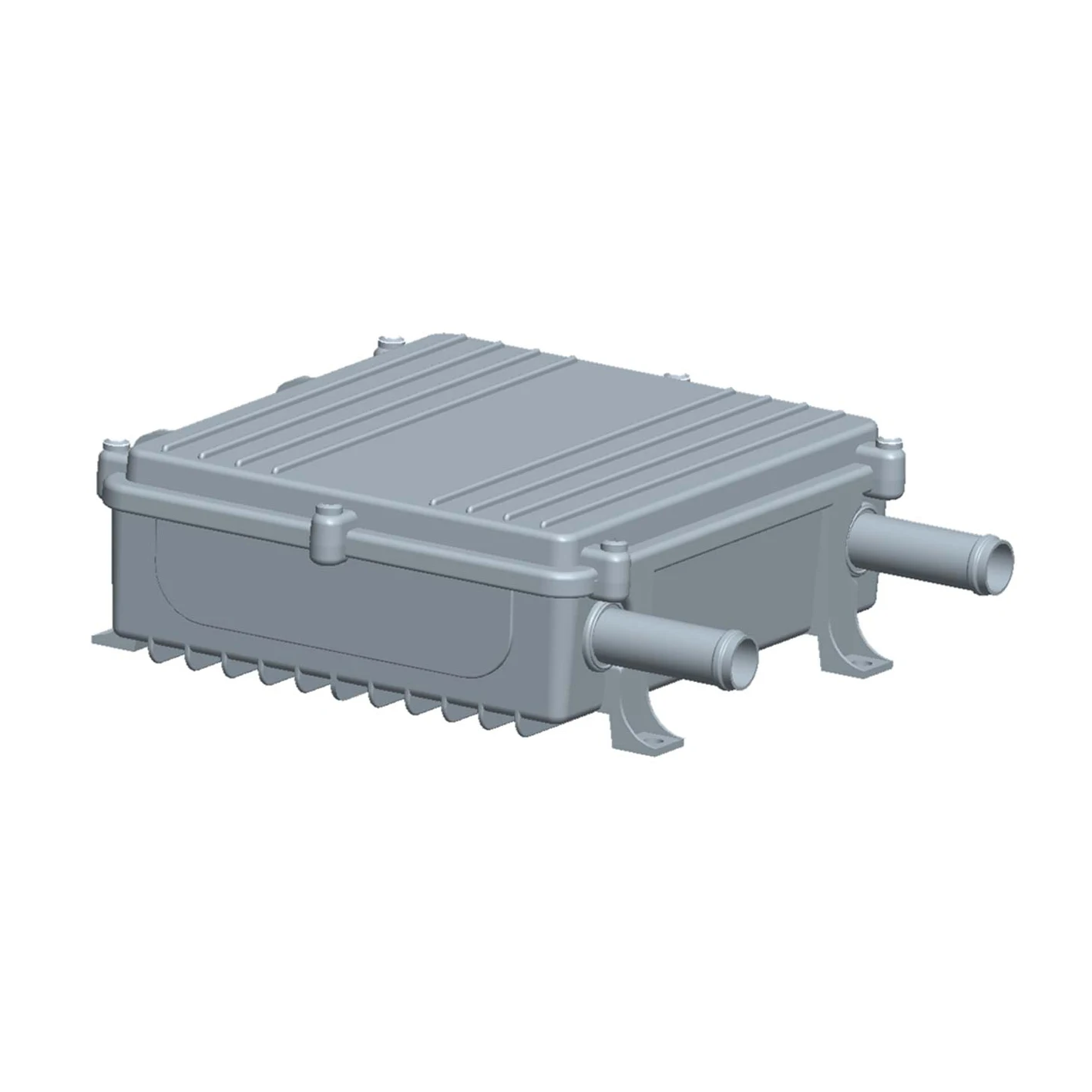

The heating device uses PTC semiconductor (positive temperature coefficient thermistor), and the shell is made of aluminum alloy precision casting, with Excellent anti-dry, anti-interference, anti-collision, explosion-proof performance, safe and reliable, trustworthy.
This product is a liquid heater, specially designed for pure electric buses. PTC coolant heaters rely on on-board power to provide heat for pure electric buses. The rated voltage of the product is 600V and the power is 20KW, which can be adapted to various pure electric bus models. The heating power is strong, providing sufficient and sufficient heat, providing a comfortable driving environment for drivers and passengers, and can also be used as a heat source for battery heating.
This product can be used alone to replace traditional oil-fired liquid heaters to achieve complete energy saving, emission reduction and cost reduction. In extremely cold areas, considering the lack of electricity, it can assist the use of traditional oil-fired liquid heaters. The use method is to connect the pure electric heater and the oil-fired heater in series, and confirm whether it is necessary to increase the water pump according to the actual demand to improve the circulation efficiency.
This product can be used alone to replace traditional oil-fired liquid heaters to achieve complete energy saving, emission reduction and cost reduction. In extremely cold areas, considering the lack of electricity, it can assist the use of traditional oil-fired liquid heaters. The use method is to connect the pure electric heater and the oil-fired heater in series, and confirm whether it is necessary to increase the water pump according to the actual demand to improve the circulation efficiency.
1.wall heater with fan
2.heat exchanger inlet
3.pure electric plumbing heater
4.circulatingwater pump
5.top heat exchanger
6.driver seat heater
7.temperature control panel
8.battery
9.battery management system
Advantages
1. Provide sufficient heat source, the power can be adjusted, and solve the three major problems of defrosting, heating and battery insulation at the same time.
2. Low operating cost: no oil burning, no high fuel costs; maintenance-free products, no need to replace parts damaged by high temperature combustion every year; clean and no stains, no need to clean up oil stains frequently.
3. Pure electric buses no longer need fuel for heating and are more environmentally friendly.
2. Low operating cost: no oil burning, no high fuel costs; maintenance-free products, no need to replace parts damaged by high temperature combustion every year; clean and no stains, no need to clean up oil stains frequently.
3. Pure electric buses no longer need fuel for heating and are more environmentally friendly.
Application
This PTC electric heater is suitable for electric / hybrid / fuel cell vehicles and is mainly used as the main heat source for temperature regulation in the vehicle. The PTC electric heater is applicable to both vehicle driving mode and parking mode. In the heating process, electric energy is effectively converted into heat energy by PTC components. Therefore, this product has faster heating effect than internal combustion engine. At the same time, it can also be used for battery temperature regulation (heating to working temperature) and fuel cell starting load.
