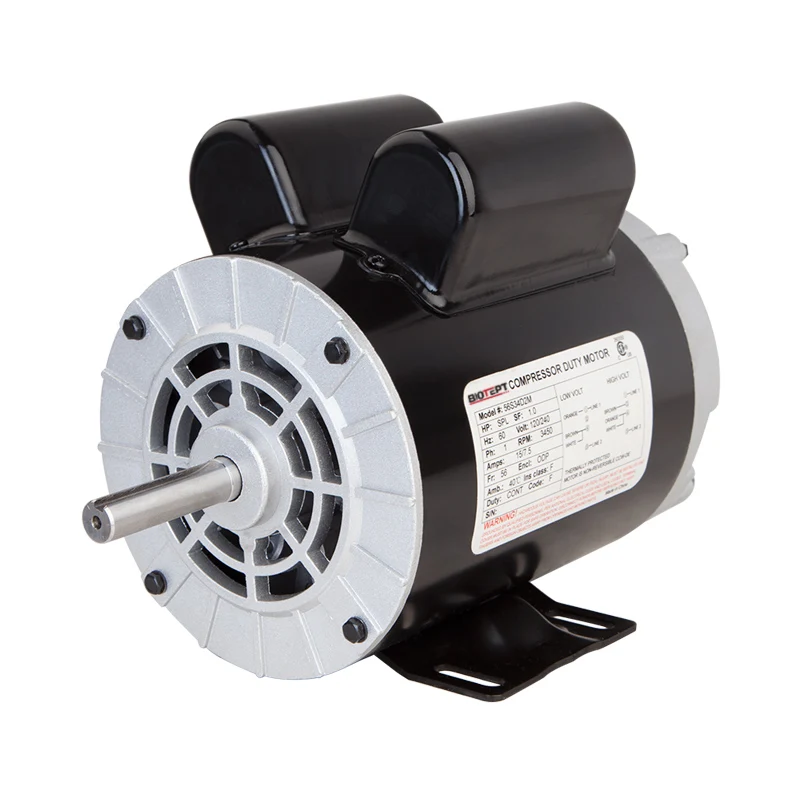

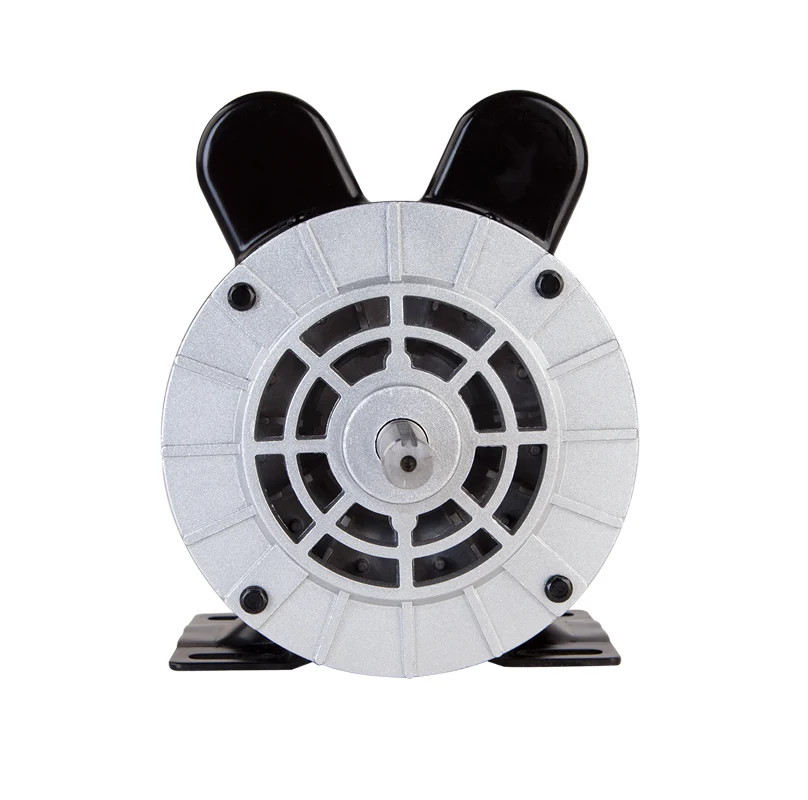

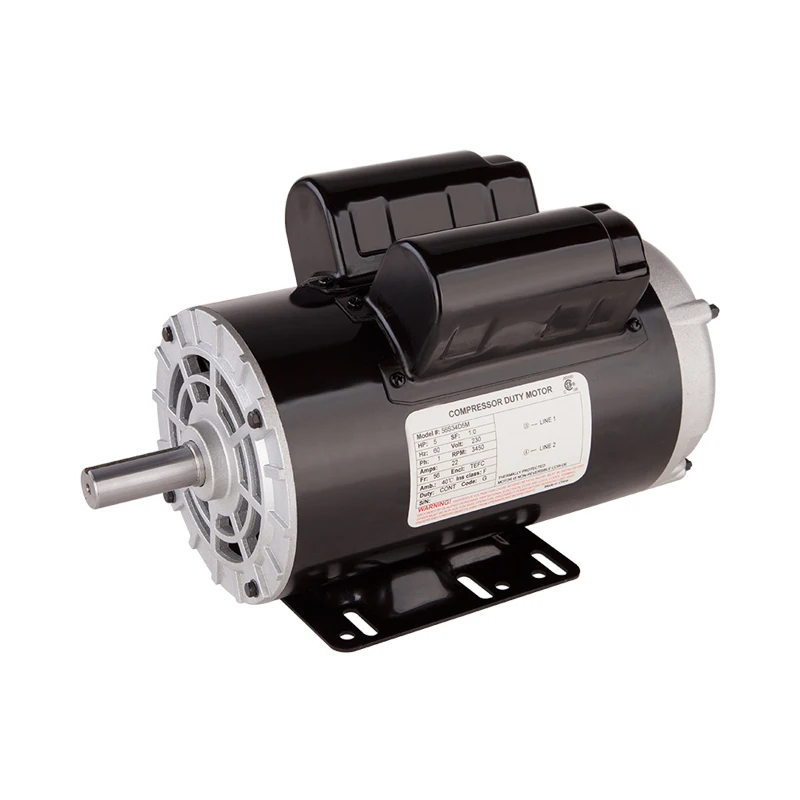

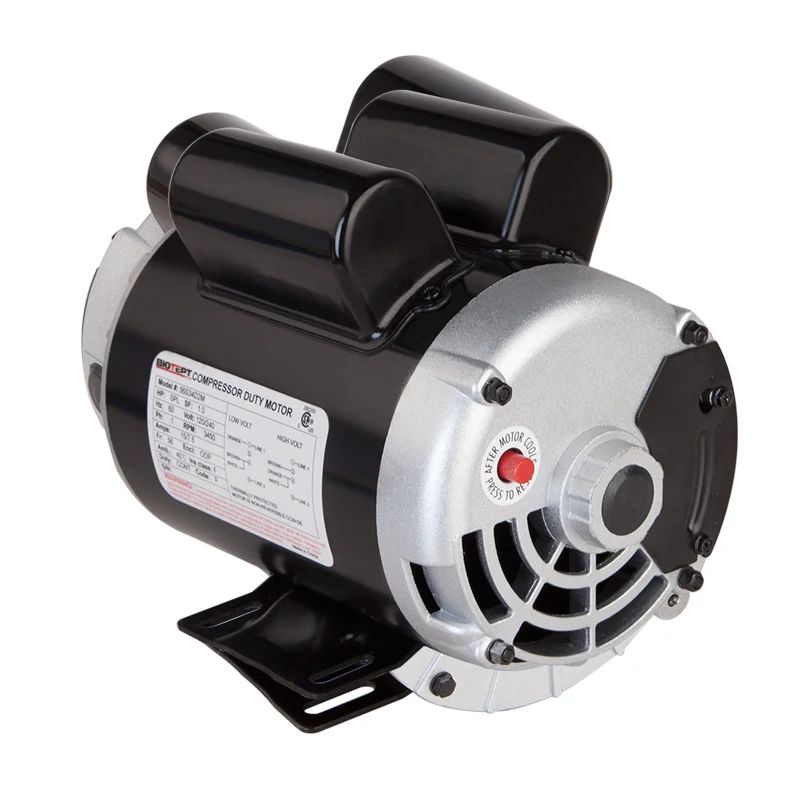

5 hp cheap price ODP frame two capacitor motor for Air Compressor Motor
- Category: >>>
- Supplier: Ningbo Biote Mechanical Electrical Co. Ltd
Share on (1600613368901):
Product Overview
Description
10 HP 3450RPM 215 Frame Single Phase Air Compressor Shaft 60HZ 208-230 Volts Electric Air Compressor Motor
Service Factor 1.15Mounting Type Foot-Mounted
Actual Rated Input Voltage:208-230V
Rated Load (HP):10
AC Frequency Rating:60 Hz
Shaft Diameter:1 1/8 in
AC Phase:Single Phase
Amperage: 15/17.5 fl amps at 115/208-230v
craftsman air compressor motor
air compressor motor wiring diagram
10 hp POWERCRAFTair compressor motor harbor freight
how much are air compress motor
This motor is specifically designed for use with air compressors to meet start up load / torque specifications. This can replace a higher rpm motor, you will just have to use a larger pulley to make up the RPMs on your compressor. If you have any questions about this motor or if it will work as a replacement on your compressor feel free to contact us.
Model | HP | RPM | Voltage | Frame | Full Load Amps @230V |
BTA01 | 1/2 | 3450 | 115/208-230 | 56 | 4.2 |
BT-A02 | 1/2 | 1725 | 115/208-230 | 56 | 4.3 |
BTLA03 | 3/4 | 3450 | 115/208-230 | 56 | 4.9 |
BT-A04 | 3/4 | 1725 | 115/208-230 | 56 | 5.5 |
BT-A05 | 1 | 3450 | 115/208-230 | 56 | 5.5 |
BT-A06 | 1 | 1725 | 115/208-230 | 56 | 6.7 |
BT-A07 | 1-1/2 | 3450 | 115/208-230 | 56 | 7.5 |
BT-A08 | 1-1/2 | 1725 | 115/208-230 | 56 | 9.0 |
BT-A09 | 2 | 3450 | 115/208-230 | 56 | 9.6 |
BT-A10 | 2 | 1725 | 115/208-230 | 56 | 9.8 |
BT-A11 | 3 | 3450 | 208-230 | 56 | 13.6 |
BT-A12 | 3 | 1725 | 208-230 | 56 | 14 |
BT-A13 | SPL5 | 3450 | 208-230 | 56 | 15 |
BT-A14 | SPL1.8 | :3450 | 120/240 | 56 | 14.8/7.4 |
BT-A15 | SPL2 | 3450 | 120/240 | 56 | 15/7.5 |
BT-A16 | 3 | 3450 | 230 | 56 | 15 |
BT-A17 | 3.5 | 6450 | 230 | 56 | 16.2 |
BT-A18 | 3.7 | 3450 | 230 | 56 | 17.2 |
BT-A19 | 4 | 3450 | 230 | 56 | 17.5 |
BT-A20 | 5 | 3450 | 208-230 | 56 | 22 |
BT-A21 | 5 | 3450 | 208-230 | 184 | 19.8 |
BT-A22 | 5 | 1725 | 208-230 | 215 | 23 |
BT-A23 | 712 | 3450 | 208-230 | 215 | 32 |
BT-A24 | 712 | 1725 | 208-230 | 215 | 33.8 |
BT-A25 | 10 | 3450 | 208-230 | 215 | 41.5 |
BT-A26 | 10 | 1725 | 208-230 | 215 | 40.0 |
FEATURES AT A GLANCE
This NEMA standard High power copper wire motors allows conserving energy over extended periods, can reduce the energy cost or overhead, reducing energy costs or overheads, easy to move.
This NEMA motor adopts heavy rolled steel shell structure, with a maximum speed of 3450 RPM, The motor adopts a pure copper motor to achieve stable performance and ensure a long lifespan.
The rotation is non reversible, The rated horsepower, rated voltage and rated current should be checked before the motor is put into operation to ensure that it is used in the correct environment.

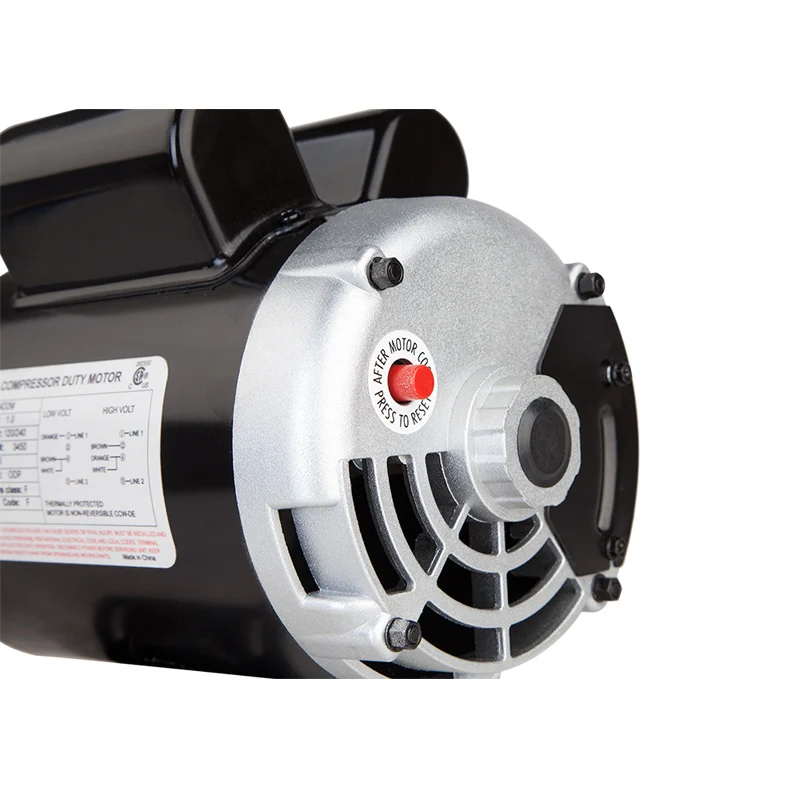

Equipped with UL approved manual thermal overload, Capacitors & High quality call bearin gto ensure the lifetime
Automatic assembly, get the shaft into the machinery. get the rotor and stator install together, realizes zero error and high efficiency production. speed up the delivery time
The NEMA electric motor is suitable for air compressors, medical equipment refiners, metal cutting machine tools, pumps, fans, transport machinery mixers, food machinery, etc.
We supply Compressor Duty Electric Motor by Totally Enclosed Fan Cooled(TEFC). The power from 1HP to 10HP, Pole have 2P and 4P. IP44 protection Class, If you need more information. Please send an email for detailed inquiry at any time
Company Information
Our company was founded in 2007, and possesses advanced production equipment and automated assembly lines. Our main products include AC motors, DC motors and other accessories, electronic components, plastic product materials, and hardware products. We have more than 50 Professional and technical personnel of various projects, have strong motor design and production & processing capacity.
Our annual production of motor is 250,000 units, and of motors is 200,000 sets, under a reliable quality guarantee system.Our sophisticated products are praised by the majority of domestic and overseas customers, enjoying a good reputation.
"Quality first, customer first" is our purpose. We sincerely welcome friends from all over the world to cooperate with us andbuild a better future together!
Our annual production of motor is 250,000 units, and of motors is 200,000 sets, under a reliable quality guarantee system.Our sophisticated products are praised by the majority of domestic and overseas customers, enjoying a good reputation.
"Quality first, customer first" is our purpose. We sincerely welcome friends from all over the world to cooperate with us andbuild a better future together!
FAQ
Q1: What kind motors you can provide?
A1: Our main products are NEMA standard and IEC standard motors, Pool pump motor, Compressor motor. General purpose motor. SPA Pump motor. Air blower motor, clean water pump motor. PM AC Motor, Stainless steel motor and so on
Q2: Is there a MOQ for your motors?
A2: No. we can accept 1 pcs for sample making for your testing,and the price for sample making will have 30% to 50% difference based on different style. after batch oder. we will refund this differentce
Q3: Could you send me a price list?
A3: For all of our motors, they are customized based on different requirements like power, voltage, type etc. The price also varies according to different order qty. So it's really difficult for us to provide a price list. If you can share your detailed specification and order qty, we'll see what offer we can provide.
Q4: Can you OEM for us?
A4: Yes, OEM is available. Package, label, power plug can be customized. we have our own design team and mold developing department.
Q5: Do you have any certifications?
A5: We have North America certificates
Q6:How about your delivery time?
A6: Usually the leading time is 30-45 days. If the products you ordered is in stock, they might be shipped immediately. You'd better contact us to check if it is available in our warehouse.
A1: Our main products are NEMA standard and IEC standard motors, Pool pump motor, Compressor motor. General purpose motor. SPA Pump motor. Air blower motor, clean water pump motor. PM AC Motor, Stainless steel motor and so on
Q2: Is there a MOQ for your motors?
A2: No. we can accept 1 pcs for sample making for your testing,and the price for sample making will have 30% to 50% difference based on different style. after batch oder. we will refund this differentce
Q3: Could you send me a price list?
A3: For all of our motors, they are customized based on different requirements like power, voltage, type etc. The price also varies according to different order qty. So it's really difficult for us to provide a price list. If you can share your detailed specification and order qty, we'll see what offer we can provide.
Q4: Can you OEM for us?
A4: Yes, OEM is available. Package, label, power plug can be customized. we have our own design team and mold developing department.
Q5: Do you have any certifications?
A5: We have North America certificates
Q6:How about your delivery time?
A6: Usually the leading time is 30-45 days. If the products you ordered is in stock, they might be shipped immediately. You'd better contact us to check if it is available in our warehouse.
