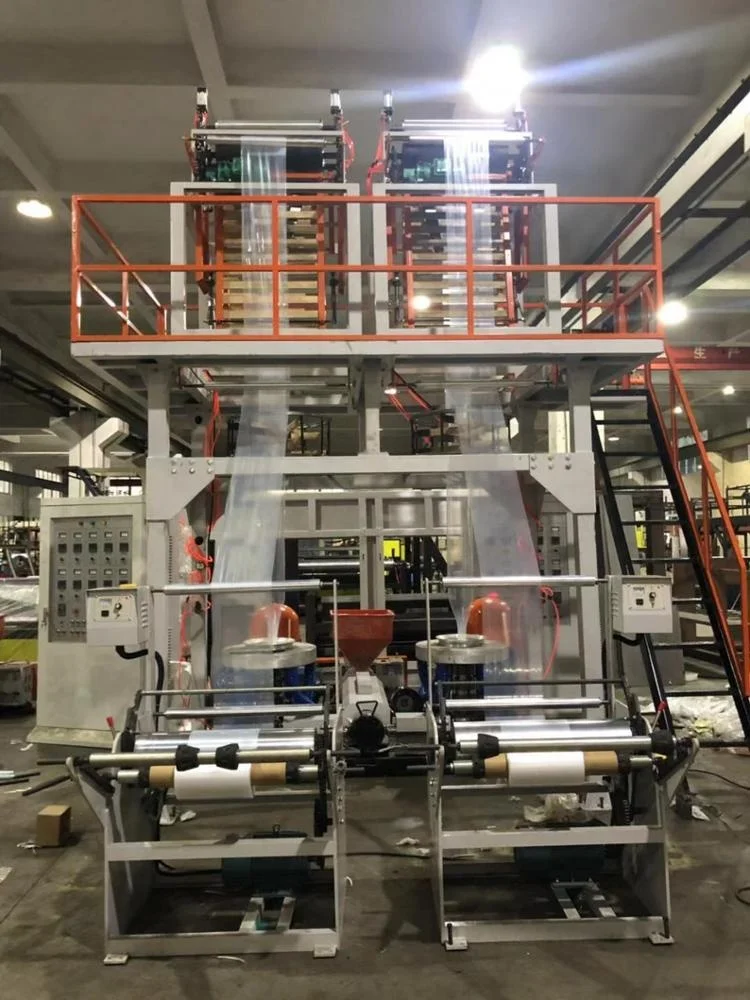

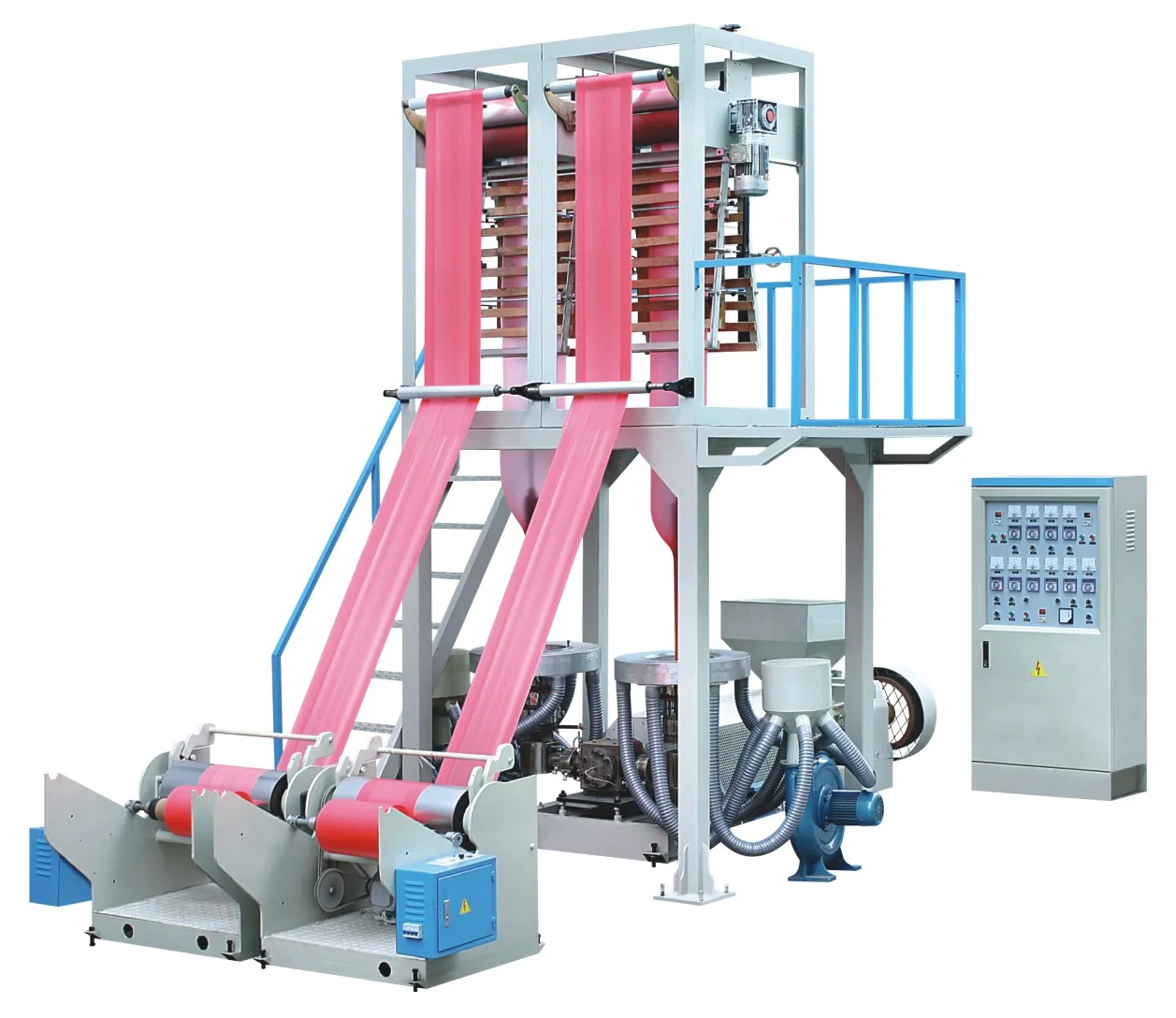

Newest Single Extrusion and Double Lines PE Film Blowing Machine
- Category: >>>
- Supplier: Ruian Guotai Plastic Machine Co. Ltd.
Share on (1600613378540):
Product Overview
Description
Banner
Product Description
use:
This machine set is used for blowing Low-density polyethylene (LDPE) and high- density polyethyene (HDPE) plastic film to make various vest bags and flat-rim bags which have been widely used for packing in the food industry, garment industry and textile industry, etc.
Characteristics :
Both the cylinder and the screw of the extruder are made of high quality alloy steel through nitration and precision finishing with the best hardness and corrosion resistance.,Scientifically designed, this machine set has two heads for one extruder with such advantages as increasing production capacity, saving energy, labour and workshop area, etc
This machine set is used for blowing Low-density polyethylene (LDPE) and high- density polyethyene (HDPE) plastic film to make various vest bags and flat-rim bags which have been widely used for packing in the food industry, garment industry and textile industry, etc.
Characteristics :
Both the cylinder and the screw of the extruder are made of high quality alloy steel through nitration and precision finishing with the best hardness and corrosion resistance.,Scientifically designed, this machine set has two heads for one extruder with such advantages as increasing production capacity, saving energy, labour and workshop area, etc
Model | SJ-H2-65FM600 | SS-H2-75FM800 |
Screw Diameter | Φ65mm | Φ75mm |
Screw ratio | 30 : 1 | 30 : 1 |
Screw speed | 10-90rpm | 10-90rpm |
Main motor power | 18.5KW | 30KW |
Max.Extrusion Output | 50-55kg/h | 65-90kg/h |
Die model | Φ50mm*2 | Φ55mm*2 |
Single-sided Thickness o f film | 0.008-0.12mm | 0.008-0.12 mm |
Max.Folding Width of film | 100-600mm*2 | 100-800mm*2 |
Weight of machine | 2.5t | 3t |
Overall Dimension(L*W*H) | 4800 x 2200 x 3500mm | 5500*3400*4300mm |
Detailed Images
Machine Parts
Name: Gearbox
Brand: Guomao
Original:China
it is hard surface gearbox. with Oil Lubrication system and water cooling system
Main Features
Name: Main driving motor
Brand: Siemens
Original: Germany
Reaching CE standard, longer life, higher quality
Machine Parts
Name: Fast Screen Changer
Brand: Guotai
Original: China
It is 45 Steel Materials, very stronger, non leakage
Main Features

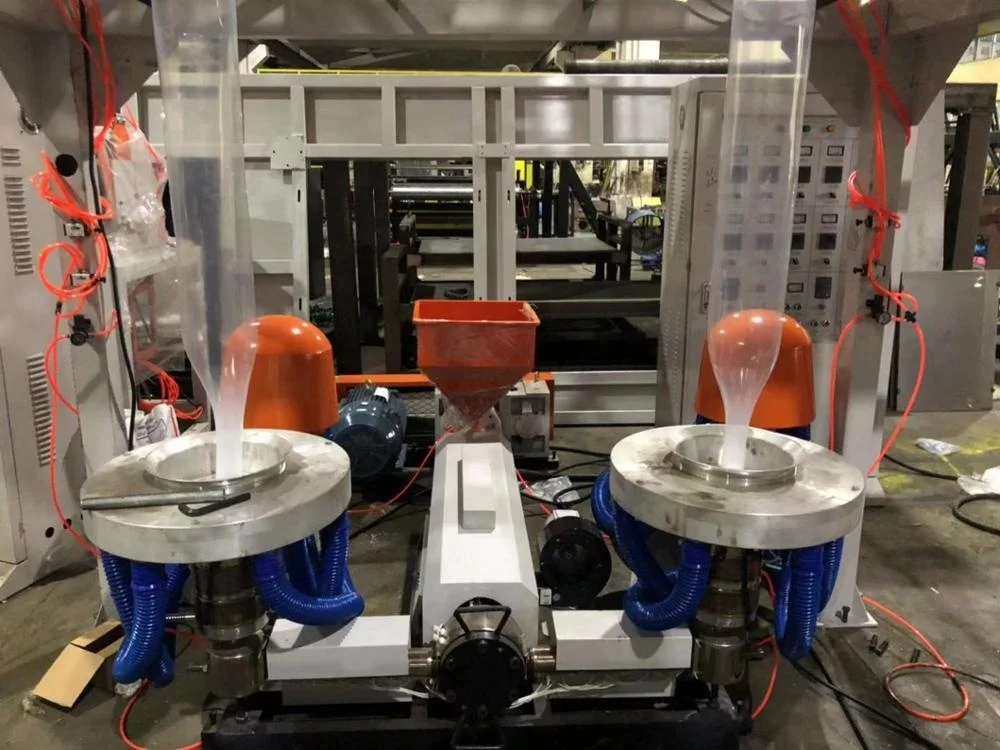

Name: High Speed Die Head
Brand: Guotai
Original: China
It is 45 Steel Materials.
it is processed by Taiwan Machine Center, Taiwan design
Machine Feature
Name: Double vent air ring
Brand: Guotai
Original: China
It is aluminum double vent air ring, which cool the film faster. And it is controlled by LG inverter
Machine Feature

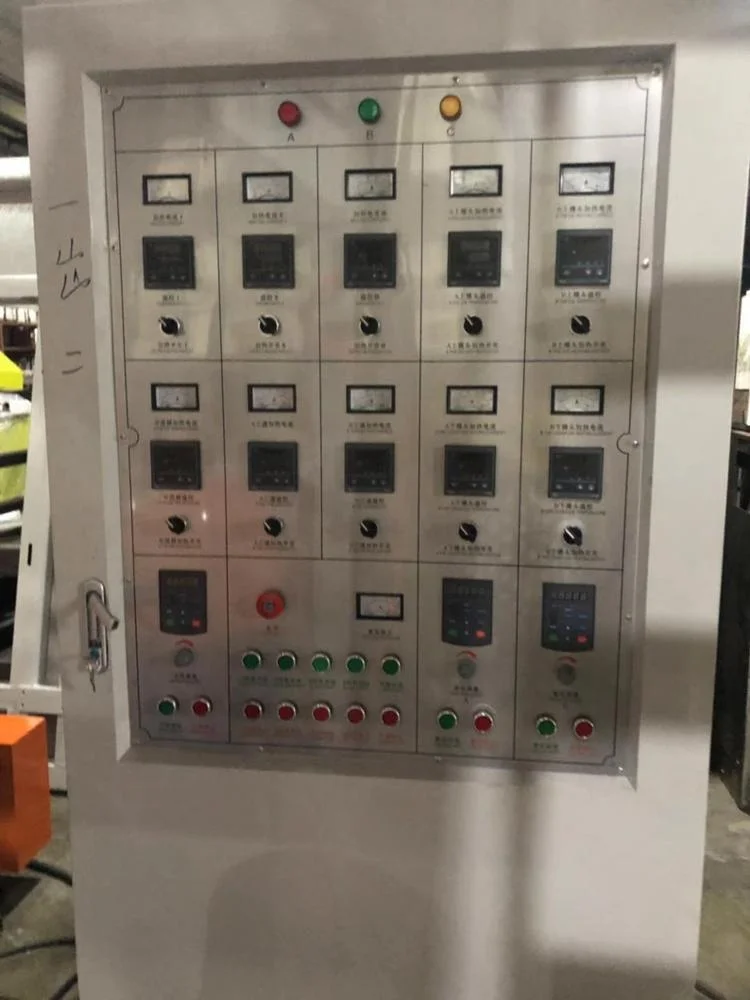

Name: Electric Box
Brand: Guotai
Original: China
Temperature controller is Omron Brand
Inverter is LG brand
Switch is CHINT brand, best supplier of China
Main Products
Company Profile
Packing & Shipping
FAQ
1. Q: Are you a factory or trading company?
A: We are a factory.Our factory has been engaged in making plastic machine since 1988.
2.Q：What equipment do you mainly produce？
A:Including film blowing machine, bag making machine, printing machine, stretch film machine, slitting rewinding machine,bubble film machine, label printing machine and recycling machine
3. Q: How dose your factory do regarding quality control?
A: Strict quality control system, factory products for full inspection
4. Q: What's the main market of your company?
A: We have customers all over the world.
5.Q:What about the service after sale?
A: One you have bought our machine, you can call us or email us telling us the machine problems and any questions about the machines. We will reply to you with 12 hours and help you to slove the problem.
Welcome old customers and new customers send us inquiries or visit our company. We'll sincerely do our best to offer best quality and service to all customers
A: We are a factory.Our factory has been engaged in making plastic machine since 1988.
2.Q：What equipment do you mainly produce？
A:Including film blowing machine, bag making machine, printing machine, stretch film machine, slitting rewinding machine,bubble film machine, label printing machine and recycling machine
3. Q: How dose your factory do regarding quality control?
A: Strict quality control system, factory products for full inspection
4. Q: What's the main market of your company?
A: We have customers all over the world.
5.Q:What about the service after sale?
A: One you have bought our machine, you can call us or email us telling us the machine problems and any questions about the machines. We will reply to you with 12 hours and help you to slove the problem.
Welcome old customers and new customers send us inquiries or visit our company. We'll sincerely do our best to offer best quality and service to all customers
