Automatic shot blasting machine and painting line for steel plate and structure beam
- Category: >>>
- Supplier: Qingdao Xinke Machinery Technology Co. Ltd.
Share on (1600613379296):
Product Overview
Description
2023 New Arrival High Quality
Automatic shot blasting machine and painting line
Name: Automatic shot blasting machine and painting line
Machine Model: QXY Series - Customized
The preservation line(Steel pretreatment line) is a complete blasting and painting line that can be easily integrated into existing production lines, consisting of independently modified conveyor systems, a preheater, shot blasting machine, paint booth, and a post treatment dryer. Conveyor systems can be chosen according to individual requirements, along with roller conveyors, travel grates, and transversely conveyor, etc. It is process to treat the surface of the steel plate by shot blasting, and coated with protective paint before the treatment (in the raw material state). The preservation line can improve the corrosion resistance of mechanical products and metal parts, enhance the fatigue resistance of steel plates, extend the service life of mechanical products, and also optimize the steel surface for further treatment.
In addition, due to the relatively regular shape of the steel plate, and it is easy to perform mechanical rust removal and automatic painting through processing. Therefore, the cleaning efficiency will be greatly improved, labor intensity and environmental pollution will be effectively reduced too.

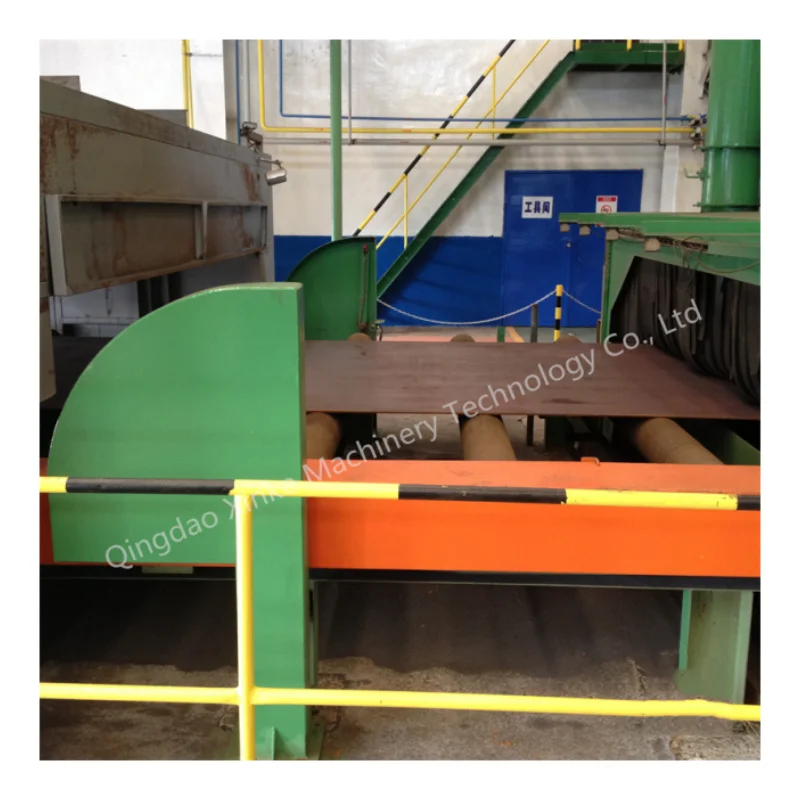

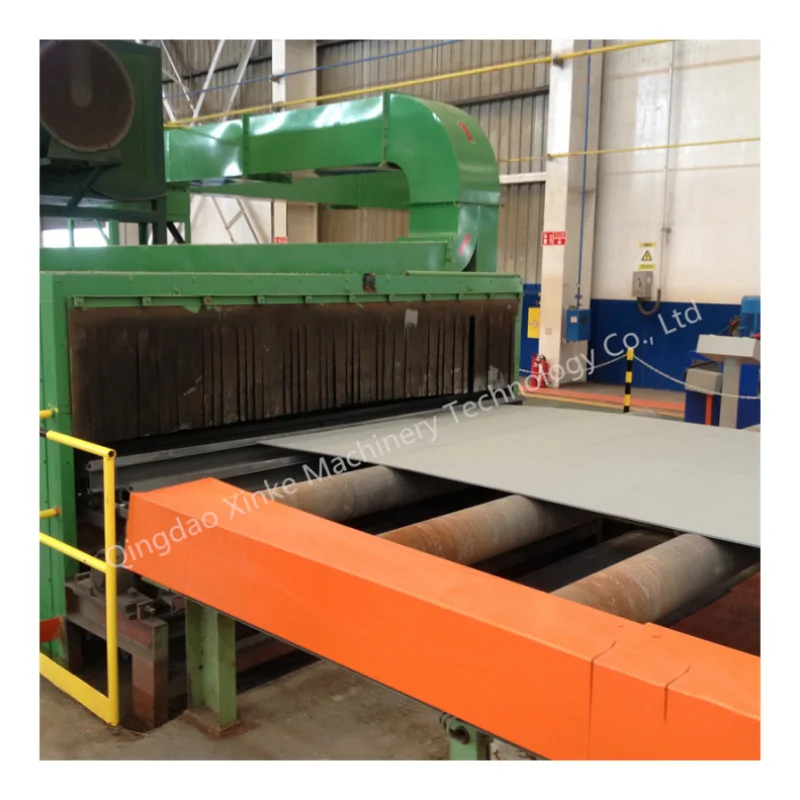

Roller conveyor lines are an essential part of the overall preservation system. The components (steel plate, steel pipe or steel section) continuously pass through the pre-treatment chamber, the blasting chamber and the cleaning chamber, on a special roller conveyor. The high performance turbines mounted on the blasting chamber ensure full coverage under controlled process conditions, and result in the desired cleaning effect.
We are a professional steel plate surface treatment line manufacturer. Steel plates can be processed in widths ranging from 1m to 6m. It can also handle general structural steel, such as angle steel, channel steel, I-beam, etc.
Main Specification of Automatic shot blasting machine and painting line
Item\\type | QXY1600 | QXY2000 | QXY2500 | QXY3500 | QXY4000 | QXY4500 | QXY5000 |
Speed(m/min) | 0.5-3.0 | 0.5-3.0 | 0.5-3.0 | 1.0-6.0 | 1.0-6.0 | 1.0-6.0 | 1.0-6.0 |
Width(mm) | 1600 | 2000 | 2500 | 3500 | 4000 | 4500 | 5000 |
Height(mm) | 450 | 450 | 450 | 450 | 500 | 500 | 500 |
Total power(kw) | 240 | 300 | 360 | 600 | 660 | 680 | 760 |
Ventilation capacity(m³/h) | 26000 | 34000 | 38000 | 40000 | 45000 | 50000 | 55000 |
Key benefits：
-Continuous blasting
-Highly efficient blast wheel
-Versatile transport technology
-High process security
-Custom designs with
flexible layouts
flexible layouts
-Simple integration into existing manufacturing processes
Professional customizable shot blasting machine manufacturer
Xinke is not only specialise in the blast process, but we can also design and deliver a completed, automatic materials handling solution to include masking, delivery, loading and unloading of the components, and delivery to the next process in your production line Our standard machine range is available with short lead times and delivers maximum efficiency, flexibility and reliability.

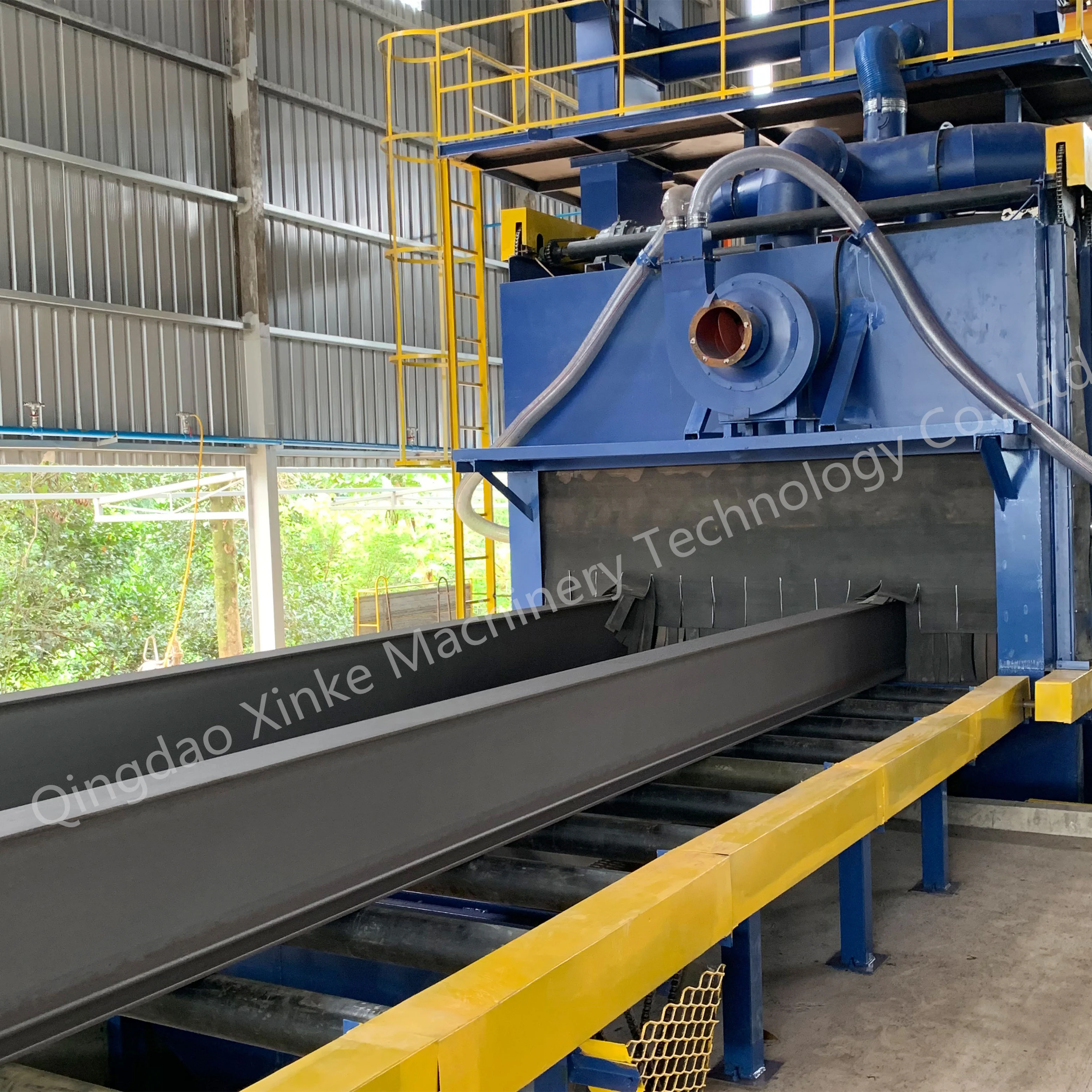

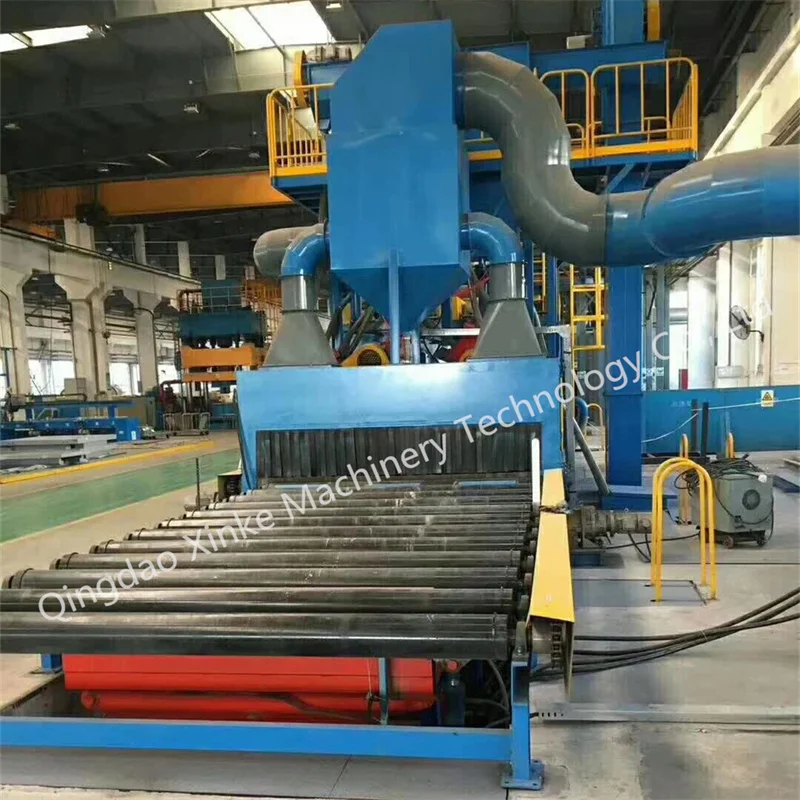

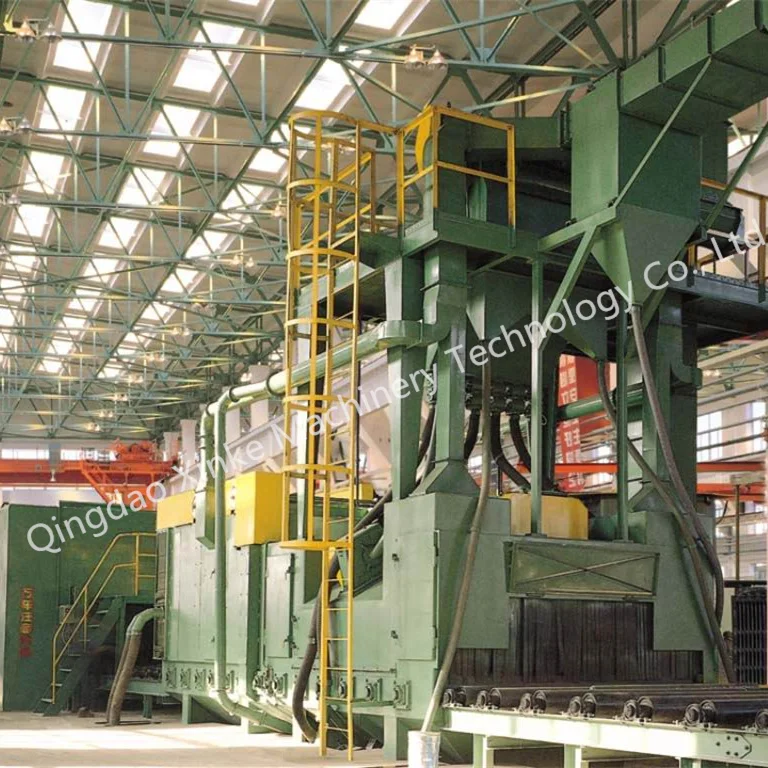

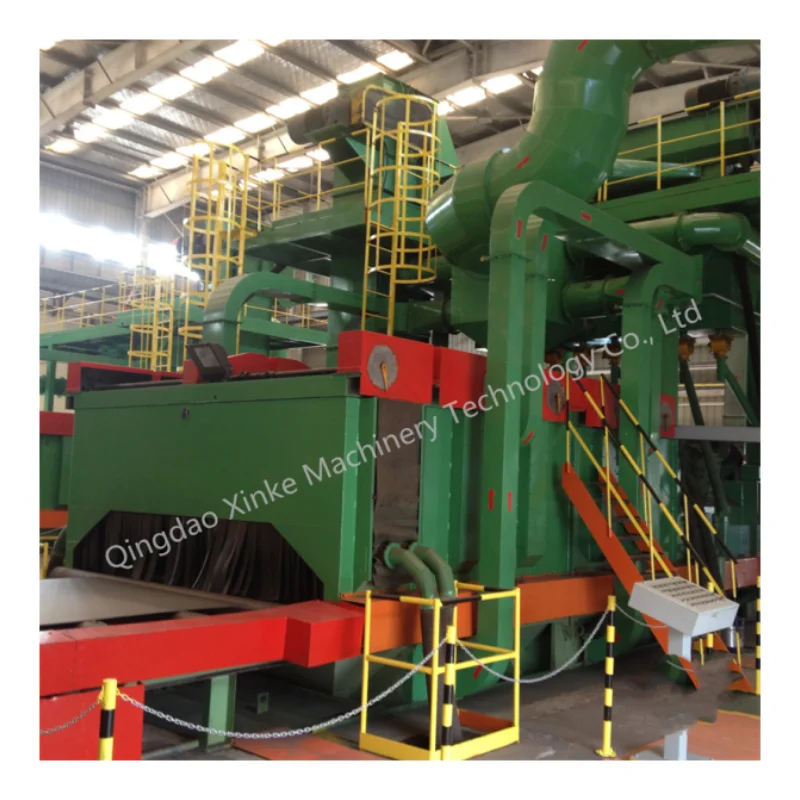

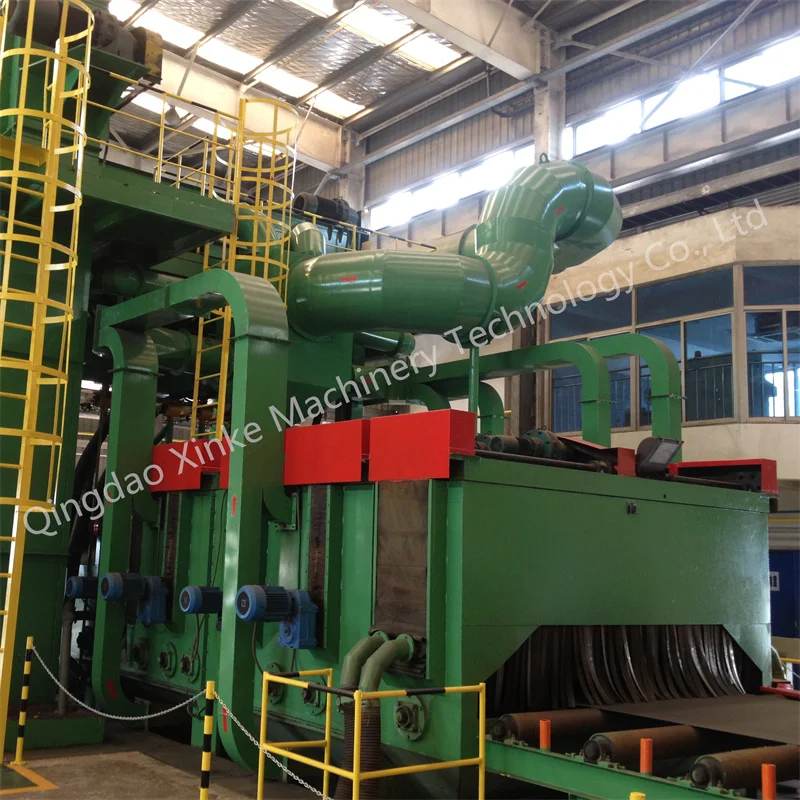

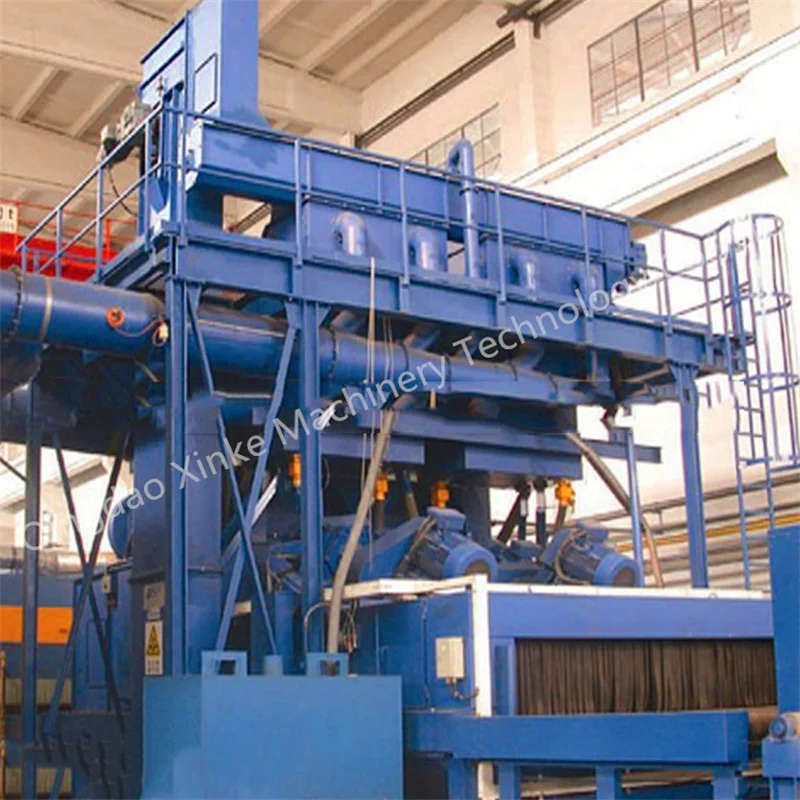

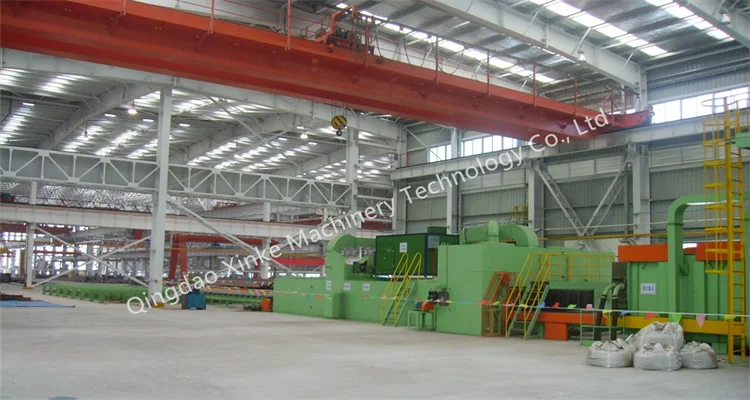

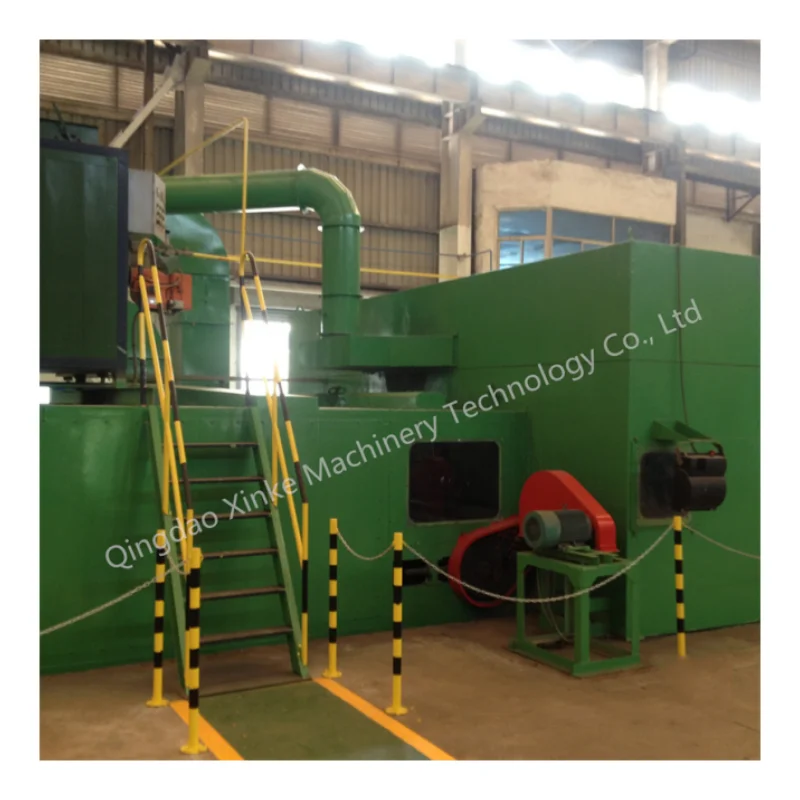

Photographing in Client's factory of Automatic shot blasting machine and painting line

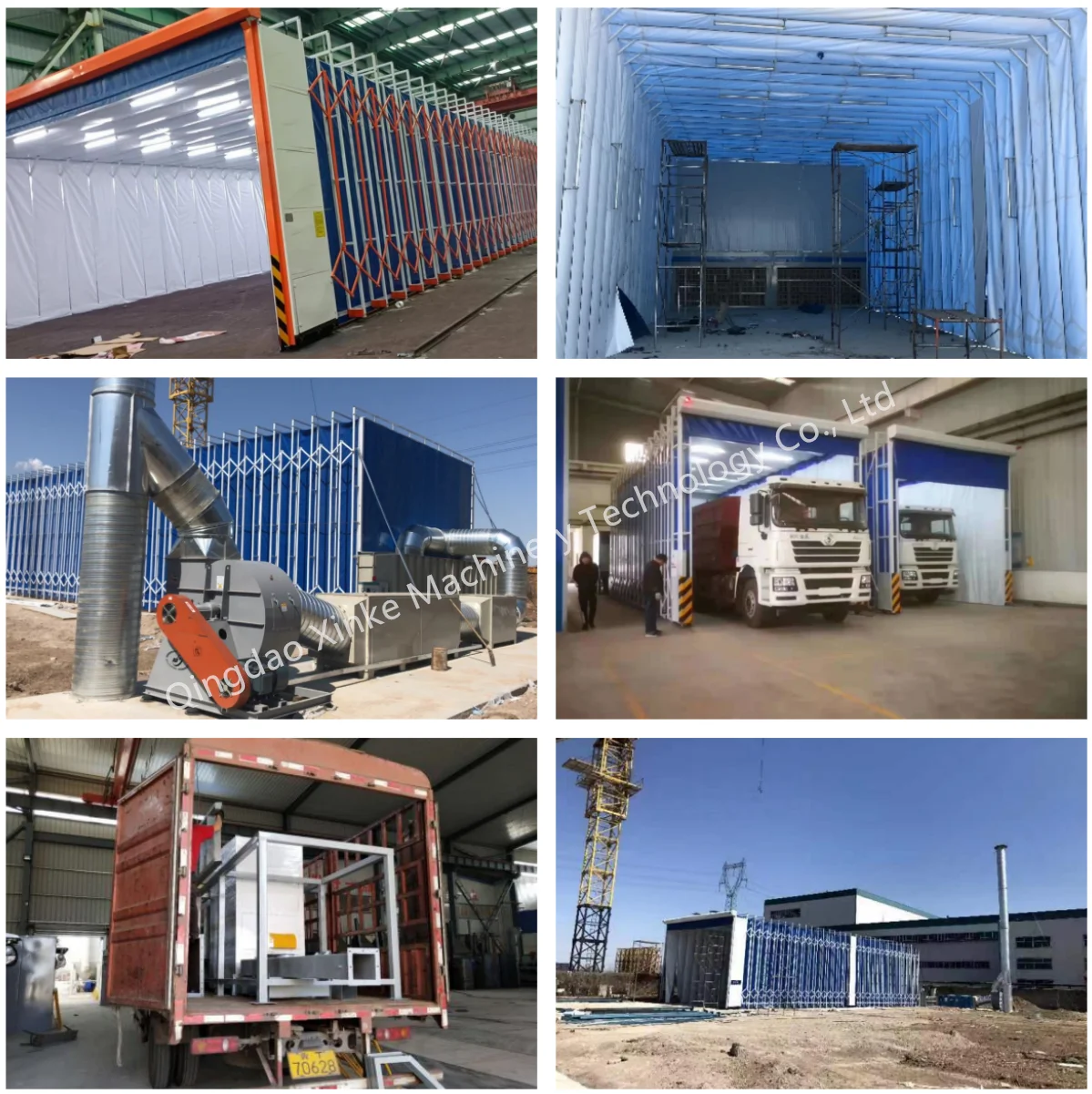

Independent paint room of Automatic shot blasting machine and painting line
Production Process of Automatic shot blasting machine and painting line
Cleaning effect display of Automatic shot blasting machine and painting line
1.How many days do you need to produce this machine?
This is our standard machine and we have some in stock,can be delivered right now after your deposit.
2.What does your factory do regarding quality control?
We pay much more importance to quality from the very beginning to the end of production,Every machine will be fully assembled and carefully tested before shipment.
3.What's your machine quality guarantee?
Quality guarantee time is one year,We choose world famous brand components to keep our machine in perfect working condition.
4.Are you able to give installation and commissioning overseas?How long will it takes?
Yes,we supply overseas service, but customers needs to pay for the engineers fight tickets and hotel,food .Small machine usually takes about 20days.
This is our standard machine and we have some in stock,can be delivered right now after your deposit.
2.What does your factory do regarding quality control?
We pay much more importance to quality from the very beginning to the end of production,Every machine will be fully assembled and carefully tested before shipment.
3.What's your machine quality guarantee?
Quality guarantee time is one year,We choose world famous brand components to keep our machine in perfect working condition.
4.Are you able to give installation and commissioning overseas?How long will it takes?
Yes,we supply overseas service, but customers needs to pay for the engineers fight tickets and hotel,food .Small machine usually takes about 20days.
