Parcel Sorting Line Logistics Package Sorting Machine Weigh Scan Dimens
- Category: >>>
- Supplier: Senad Robot(Shanghai)Co. Ltd.
Share on (1600613406283):
Product Overview
Description
Product Description
Weight Solution Sorter Sorting Conveyor Dimensioning System Logistics Equipment

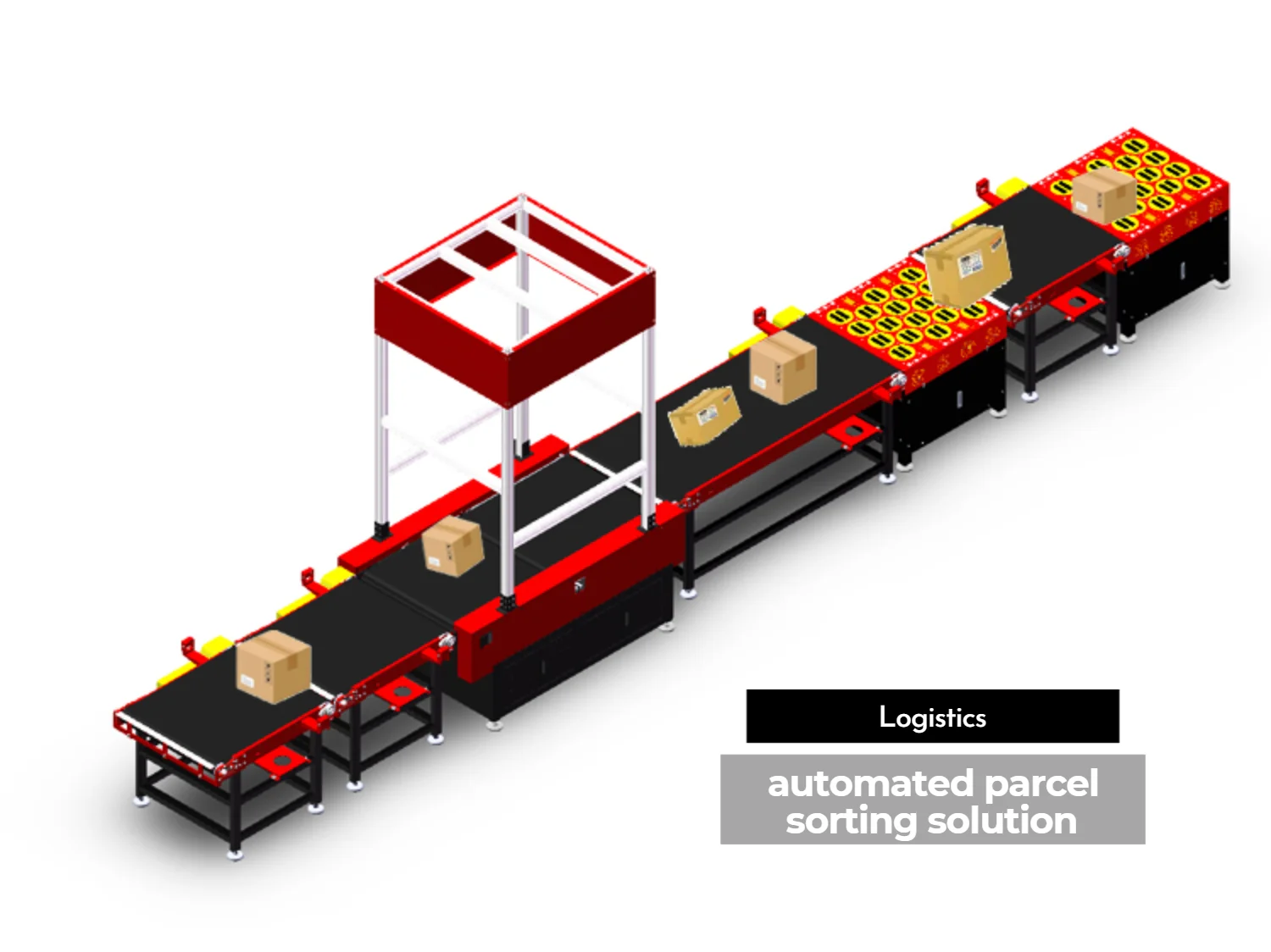

Dimensioning, Weighing and Scanning (DWS) systems are used by parcel express companies to identify, weigh and measure the goods they transport. Parcel express companies have different volumes of parcels and different levels of automation. Some measure parcels on high-speed conveyors; others process small items that move in totes or on tilt-tray sorters. Some handle palletized freight; others do a bit of everything. Each terminal has different requirements for barcode reading,conveyor control, integration and weight and volume measurement. Whatever the application, an express company’s DWS system is important to the daily operation of the facilities that use them.
Main features:
1、Collect data automatically with accuracy -Data are collected in one pass without operator's intervention,ensuring its accuracy
2、Exception alarm - The equipment will alarm when Packages' weight and dimention are beyond limit or thecode can not be read
3、Highly flexible with expandability
- The equipment can be equipped with cameras with different resolution
-It can be connected to telescopic conveyor and conveyor belt
Product Paramenters
Description | Specification | Remarks | ||
Industrial computer | Intel I5 | SENAD customized | ||
Display | 19.5inches | LCD | ||
Camera | 20 million pixels smart camera | / | ||
Dedicated light source | For smart camera | / | ||
Keyboard mouse | Wireless mouse and keyboard set | Logitech | ||
Load cell sensor | 100kg | Express delivery | ||
Lens | 20mm Lens | / | ||
Volume Line Structure Light | 3D Camera | / | ||
DWS conveyor | Collect barcodes,weights,cubic dimensions,photos,system connection with host system | SENAD customized | ||
Wheet sorter conveyor | Convey to three or five exits | Left (*2),right (*2) and straight | ||
Connection conveyors | Different speed conveying | |||
Servo motor | 750W | / | ||
Parameters | ||||
Weighing error range | ±20~40g | |||
Weighing range | 0.03-60kg | |||
Efficiency | Average 5500pieces / hour | |||
Recognition rate | 99.9% (Normal packages) | |||
Error range | Normal: average ±10mm | |||
Abnormal: average ±15mm | ||||
Measuring range | 10*100*50~1200*1000*800（mm） | |||
Software interface | http、TCP、485 | |||
Application Software | SENAD DWS System | |||
Weighing mode | Dynamic weighing | |||
Temperature | -20℃-40℃ | |||
Power supply | 220V/50Hz | |||
Diagnostic method | Remote inspection / on-site inspection | |||
Speed of conveying belt | 90m/min（adjustable） | |||
Gathering images | yes | |||
