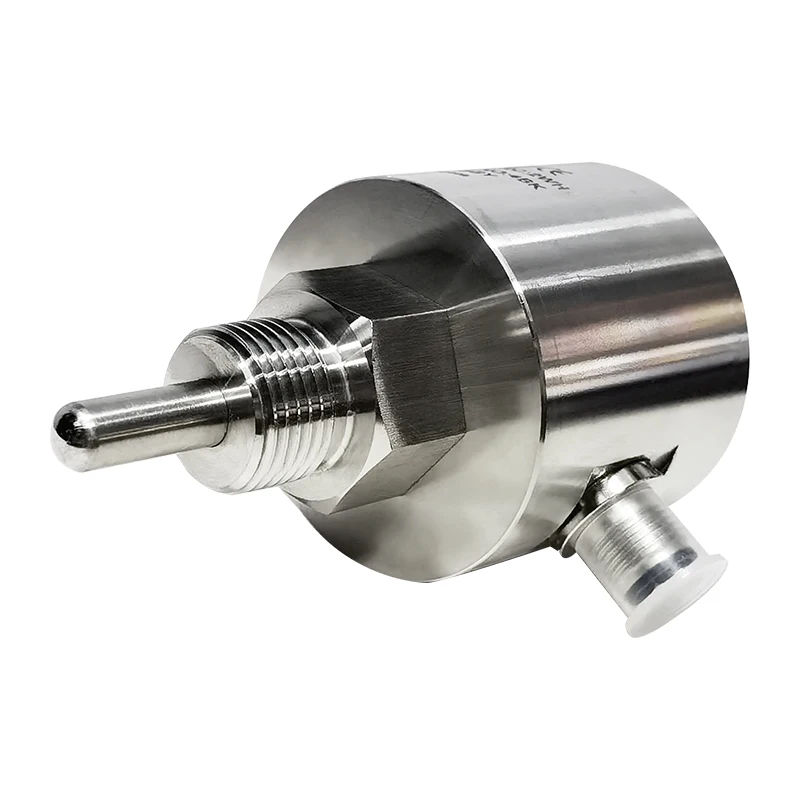

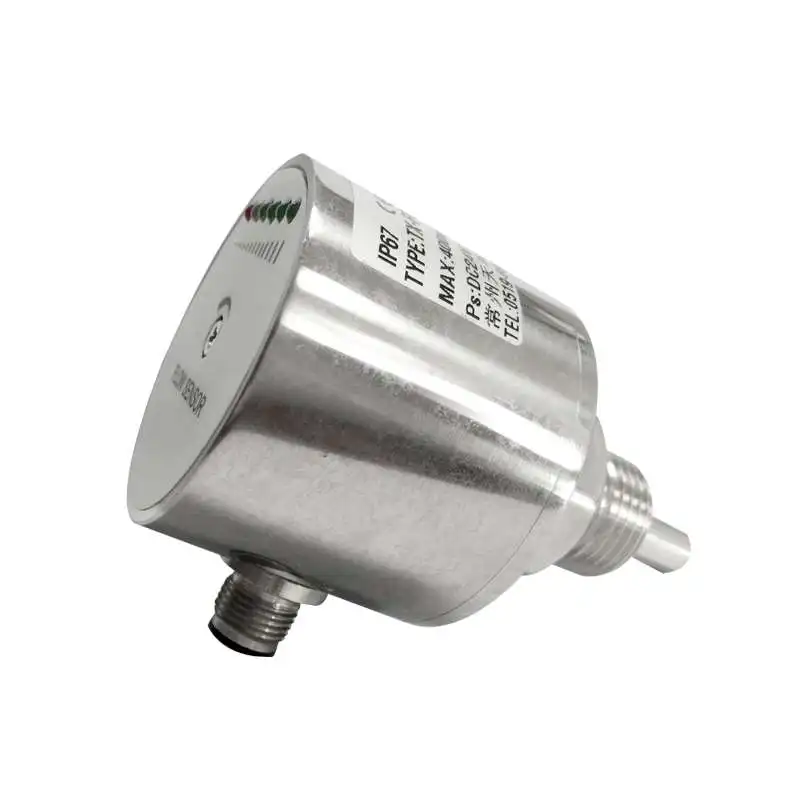

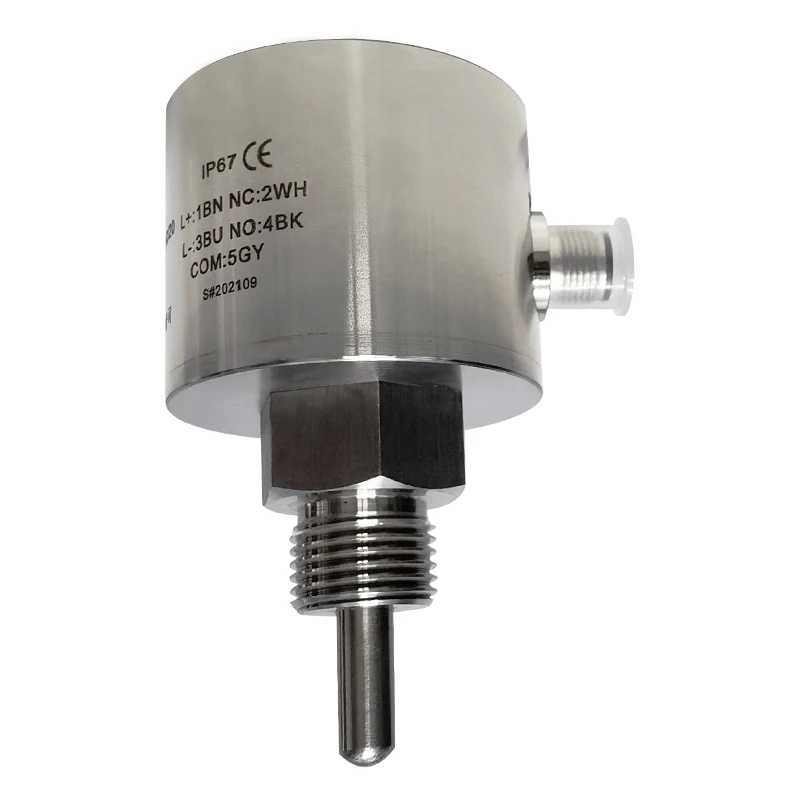

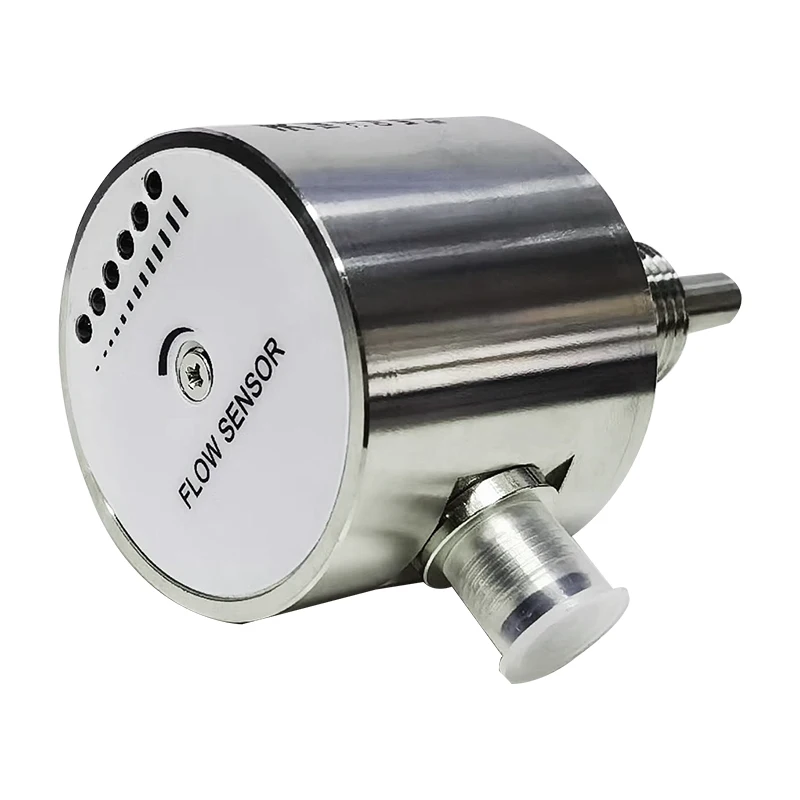

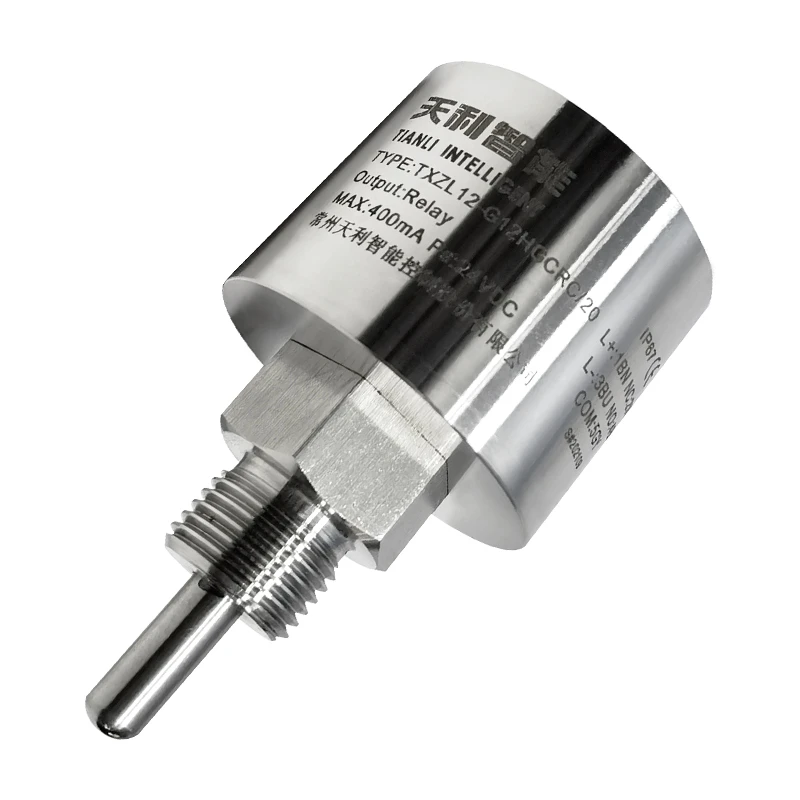

Электронный переключатель потока TXZL12, Высокочувствительный переключатель потока водяного насоса из нержавеющей стали
- Category: >>>
- Supplier: Changzhou Tianli Intelligent Control Co. Ltd.
Share on (1600613409989):
Product Overview
Description
Product Description

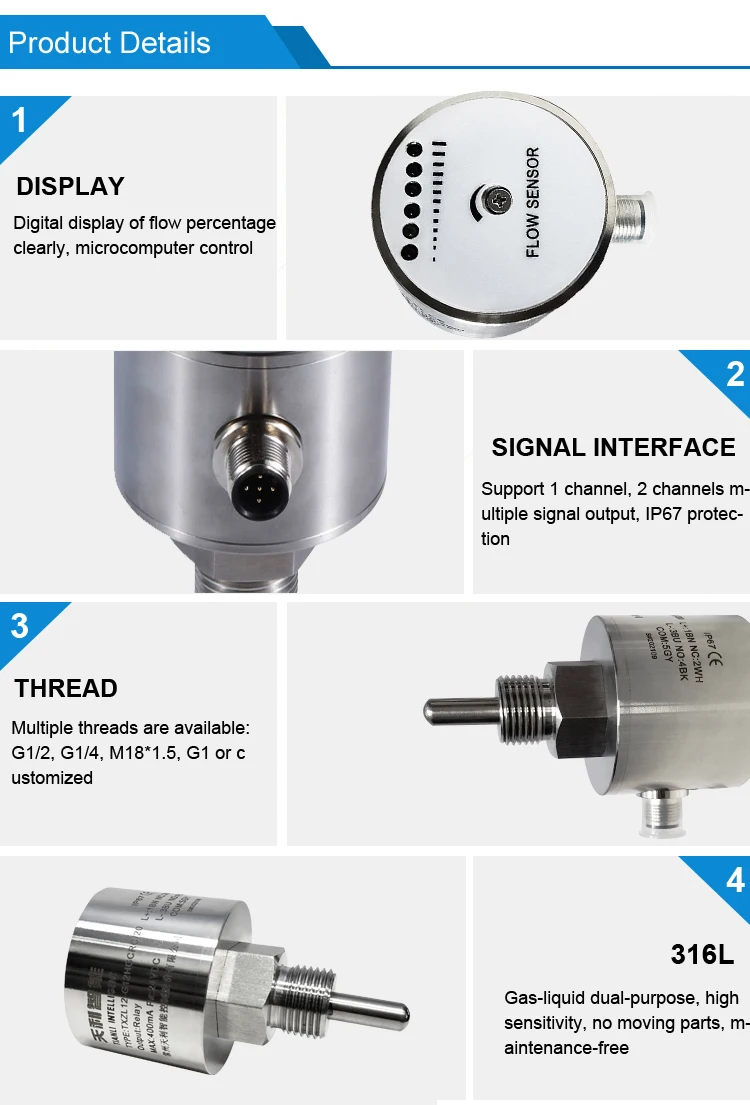

TXZL12 electronic flow switch based on the thermal principle, the sealed probe contains two resistors, one of which is not
heated as the detection resistance and the other is not heated as the reference resistance. When the mecum flows, the heat on the heating resistance is taken away, the resistance value is changed, and the difference between the two resistors is used as the basis for judging the velocity. No moving parts, maintenance-free, easy to install, one type is suitable for a variety of pipe diameter requirements, switch volume continuously adjustable, very low pressure loss, compact structure, LED display flow trend and switch status.
heated as the detection resistance and the other is not heated as the reference resistance. When the mecum flows, the heat on the heating resistance is taken away, the resistance value is changed, and the difference between the two resistors is used as the basis for judging the velocity. No moving parts, maintenance-free, easy to install, one type is suitable for a variety of pipe diameter requirements, switch volume continuously adjustable, very low pressure loss, compact structure, LED display flow trend and switch status.
Specification
TXZL12 Electronic flow switch | ||
Technical Parameter | ||
Set Range | 1...150cm/s(water) | |
3...300cm/s(oil) | ||
20...2000cm/s(air) | ||
Signal Output | PNP,NPN,Relay， | |
,No+Nc(SPDT) Normally open + normally closed（SPDT） | ||
Power supply | 24V±20%DC or 230V±15%AC | |
switch current | Max.400Ma(PNP NPN,type) | |
Max 1A@48V ac/dc(relay type) | ||
Onload current | Max.80mA | |
Flow Indicator: | LED（6） | |
Set Type | Potentiometer | |
Withstand Voltage: | 100bar | |
Temperature | 4℃/s | |
Respose Time | 1-13s， typical value 2s | |
Initialization time | 8s | |
lectrical protection | Reverse phase, short circuit, overload protection | |
Protect Grade | IP67 | |
Medium temperature | -20--80℃ | |
Ambient temperature | -20--80℃ | |
Storage temperature | -20--100℃ | |
Connection | M12 connector/2m cable | |
Material | Probe: stainless steel | |
Shell: SS | ||
Weight | 0.4KG | |
Selection table
TXZL12- | G12 | H | G | P | R | C | Details |
TXZL12- | TXZL12 Electronic flow switch | ||||||
G12 | Interface thread G1/2 | ||||||
G14 | Interface thread G1/4 | ||||||
H | Interface thread (external thread) | ||||||
G | DC24V±20% | ||||||
P | PNP | ||||||
N | NPN | ||||||
C | Relay output | ||||||
R | Normally open+normally closed (SPDT) | ||||||
C | M12 plug-in | ||||||
Z | direction attachment line |
Explosion-proof flow switch
TXZL12B SERIES USER MANUAL
TXZL12B SERIES USER MANUAL
TXZLT100 Digital Display Flow Switch
TXZL11 Electronic flow switch

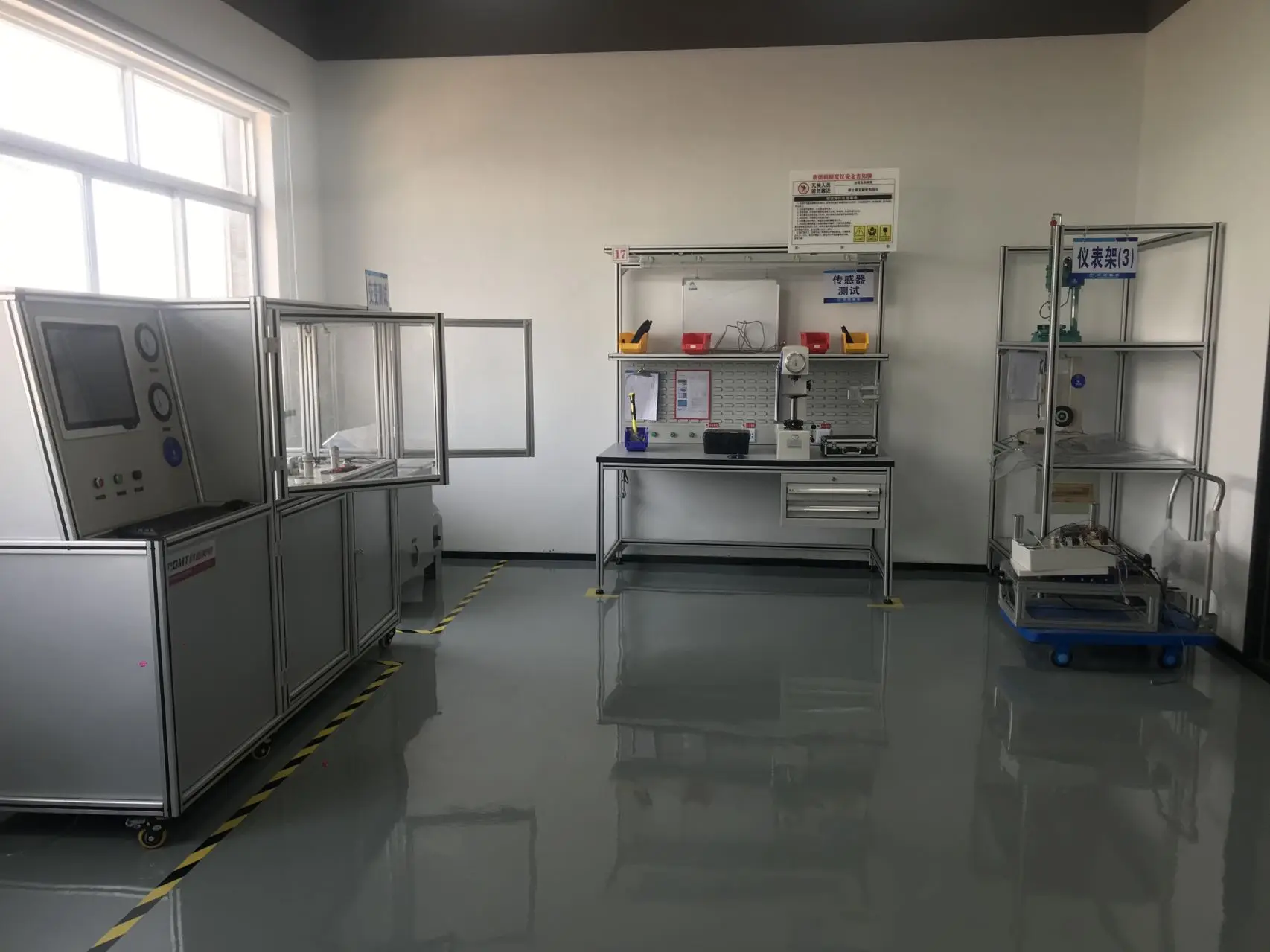

Company Profile
