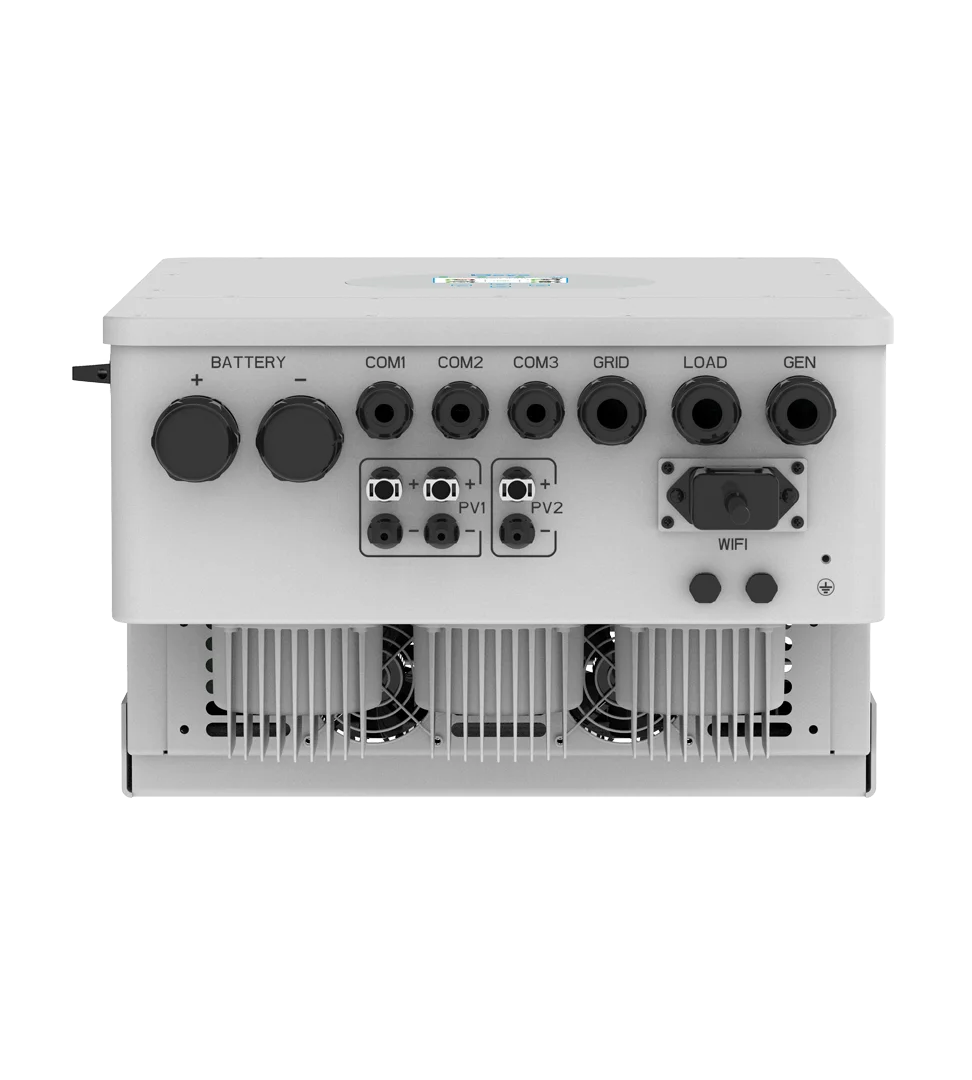

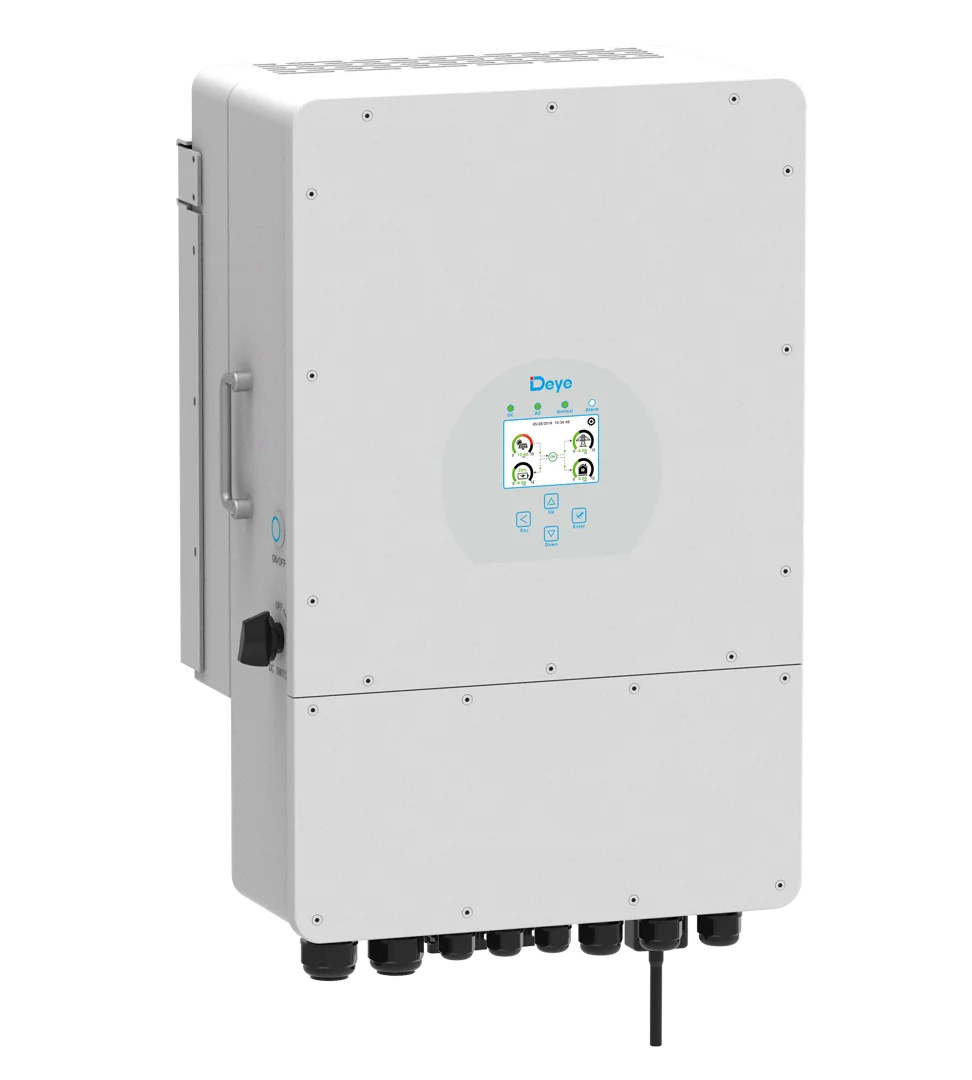

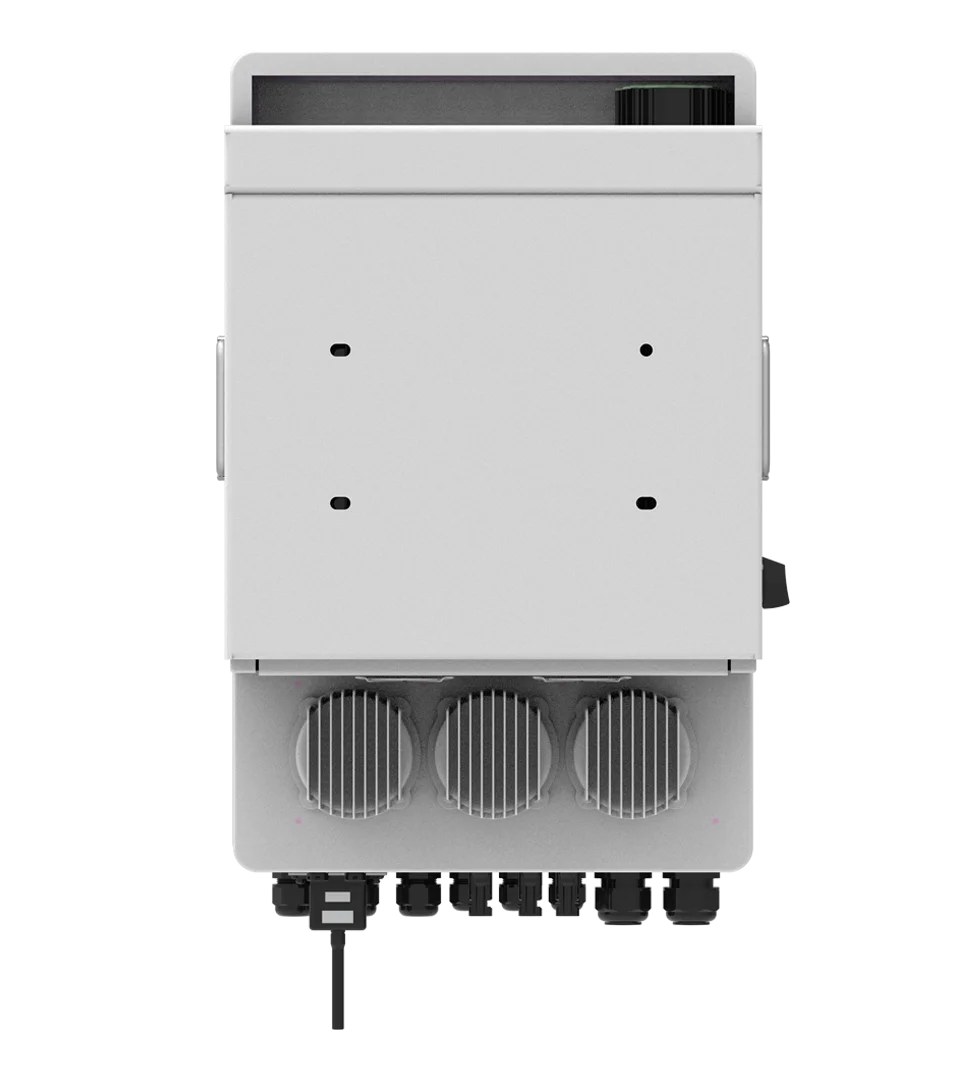

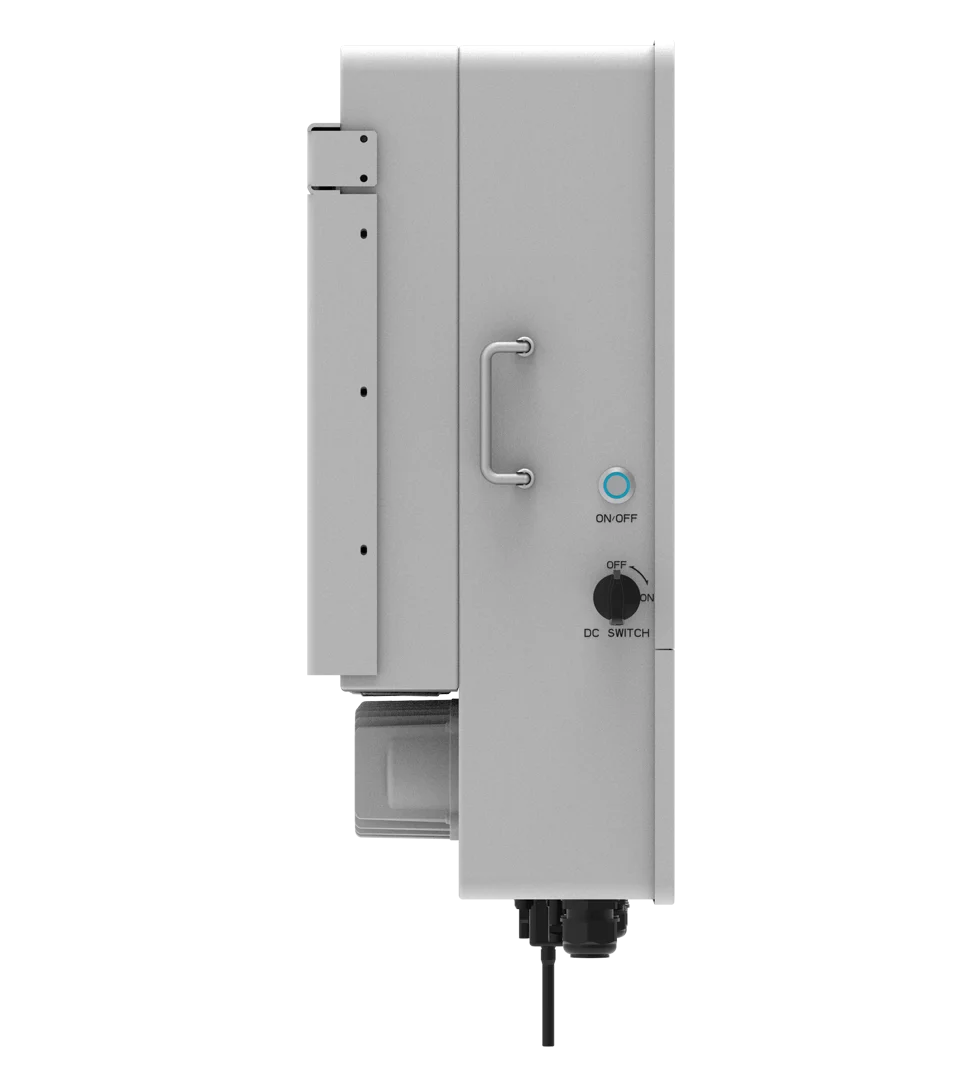

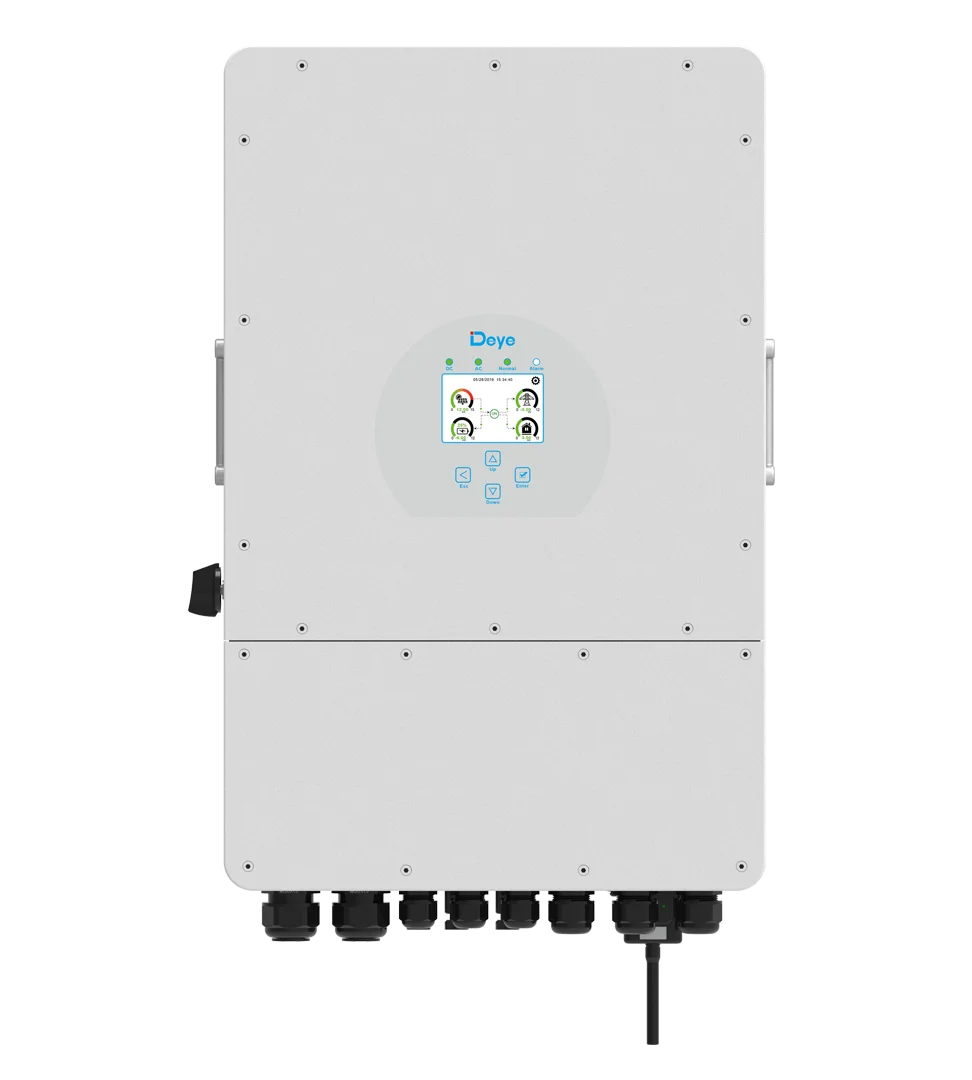

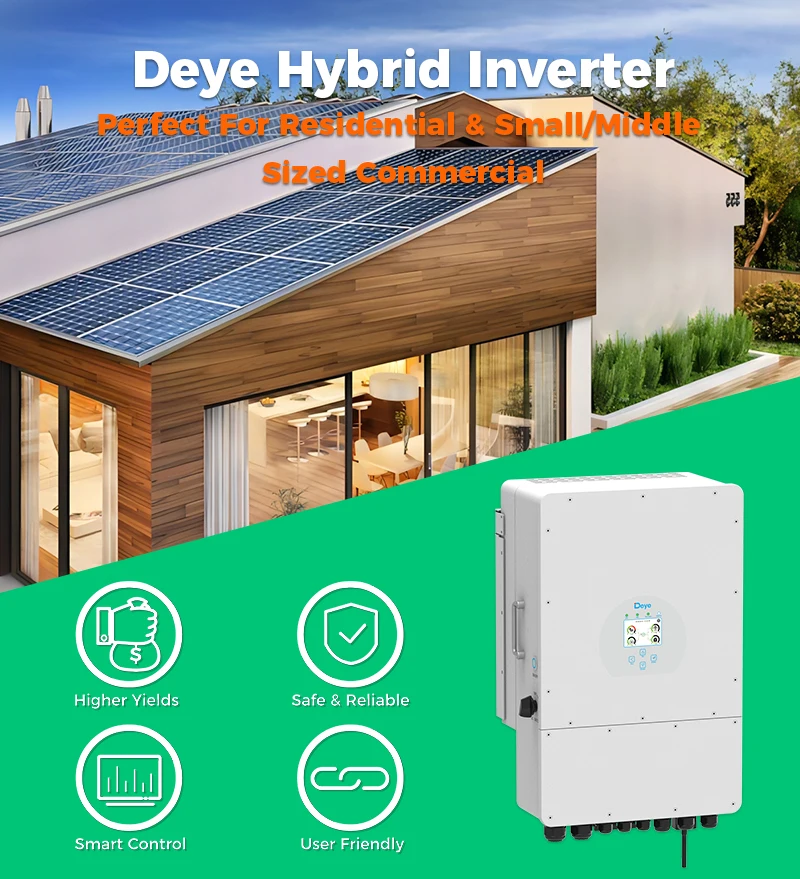

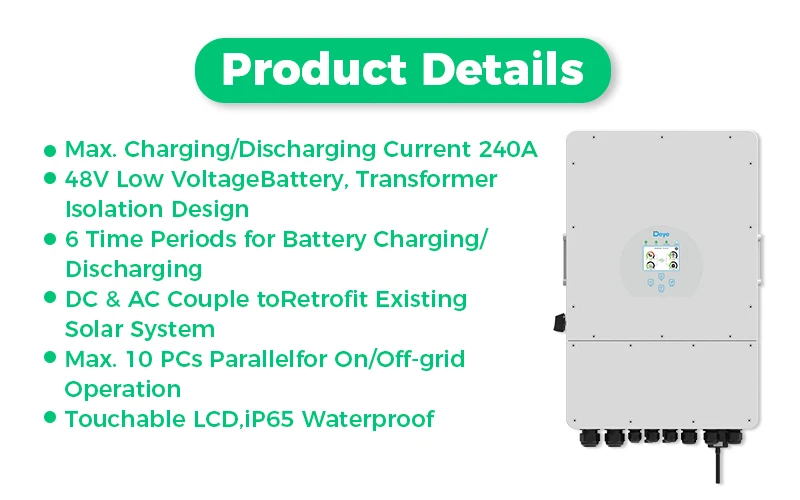

Deye SUN 10K SG04LP3 EU 380v 3 phase solar inverter 15kw 20kw 30kw 50kw 3kva hybrid solar inverter 10kv pure sine wave inverter
- Category: >>>
- Supplier: Ningbo Dcloud Information Technology Co. Ltd.
Share on (1600613415030):
Product Overview
Description
Model | SUN-8K -SG04LP3-EU | SUN-10K -SG04LP3-EU | SUN-12K -SG04LP3-EU | ||
Battery Input Data | |||||
Battery Type | Lead-acid or Li-lon | ||||
Battery Voltage Range (V) | 40-60 | ||||
Max. Charging Current (A) | 190 | 210 | 240 | ||
Max. Discharging Current (A) | 190 | 210 | 240 | ||
External Temperature Sensor | Yes | ||||
Charging Curve | 3 Stages / Equalization | ||||
Charging Strategy for Li-Ion Battery | Self-adaption to BMS | ||||
PV String Input Data | |||||
Max. DC Input Power (W) | 10400 | 13000 | 15600 | ||
Rated PV Input Voltage (V) | 550 (160~800) | ||||
Start-up Voltage (V) | 160 | ||||
MPPT Voltage Range (V) | 200-650 | ||||
Full Load DC Voltage Range (V) | 350-650 | ||||
PV Input Current (A) | 13+13 | 26+13 | |||
Max. PV ISC (A) | 17+17 | 34+17 | |||
Number of MPPT / Strings per MPPT | 2/1+1 | 2/2+1 | |||
AC Output Data | |||||
Rated AC Output and UPS Power (W) | 8000 | 1000 | 12000 | ||
Max. AC Output Power (W) | 8800 | 11000 | 13200 | ||
AC Output Rated Current (A) | 12.1 | 15.2 | 18.2 | ||
Max. AC Current (A) | 18.2 | 22.7 | 27.3 | ||
Max. Continuous AC Passthrough (A) | 45 | ||||
Peak Power (offff grid) | 2 time of rated power, 10 S | ||||
Power Factor | 0.8 leading to 0.8 lagging | ||||
Output Frequency and Voltage | 50/60Hz; 3L/N/PE 220/380, 230/400Vac | ||||
Grid Type | Three Phase | ||||
DC injection current (mA) | THD<3% (Linear load<1.5%) | ||||
Effiffifficiency | |||||
Max. Effiffifficiency | 97.6% | ||||
Euro Effiffifficiency | 97% | ||||
MPPT Effiffifficiency | 99.9% | ||||
Protection | |||||
Integrated | PV Input Lightning Protection, Anti-islanding Protection, PV String Input Reverse Polarity Protection, Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection, Surge protection | ||||
Certififications and Standards | |||||
Grid Regulation | CEI 0-21, VDE-AR-N 4105, NRS 097, IEC 62116, IEC 61727, G99, G98, VDE 0126-1-1, RD 1699, C10-11 | ||||
Safety EMC / Standard | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 | ||||

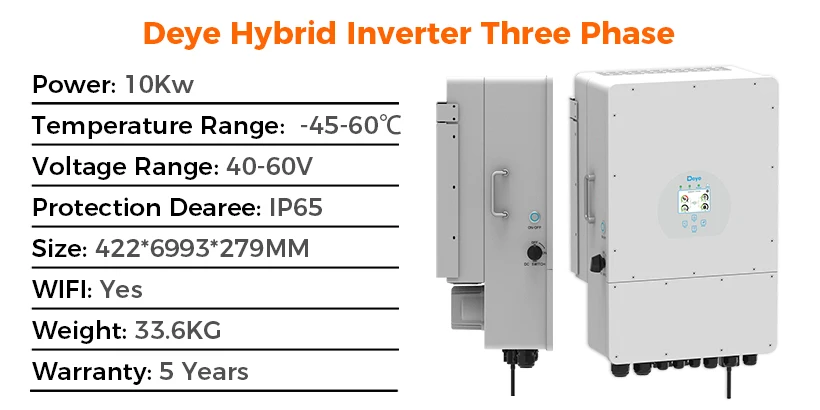

General Data | |||||
Operating Temperature Range (℃) | -45~60℃, >45℃ derating | ||||
Cooling | Smrat cooling | ||||
Noise (dB) | <45 dB | ||||
Communication with BMS | RS485; CAN | ||||
Weight (kg) | 33.6 | ||||
Size (mm) | 422W x 699.3H x279D | ||||
Protection Degree | IP65 | ||||
Installation Style | Wall-mounted | ||||
Warranty | 5 years | ||||
FAQ
1.Do you offer sample for testing purpose?
Yes,we do offer sample machine for testing.Please specify your requirements when contacting our agents.
2.What certificate do you have for micro inverters?
VDE 4105.EN50549-1.VDE0126-1-1.ABNT NBR 16149, ABNT NBR 16150, ABNT NBR 62116.RD1699. UNE 206006 IN, UNE 206007-1 IN, IEEE1547.Please double check with our agents for certificates.
3.Do you support OEM?
Yes, we do support OEM, however, there's requirement on quantities of your order.
4.What kind of shipment do you offer?
We offer land, sea and air freight upon your request. Fees varies.
5.How long does it take to receive goods I ordered?
For samples, the fastest you can receive is within one week. For bulk orders, dates may vary depending on quantity.
Yes,we do offer sample machine for testing.Please specify your requirements when contacting our agents.
2.What certificate do you have for micro inverters?
VDE 4105.EN50549-1.VDE0126-1-1.ABNT NBR 16149, ABNT NBR 16150, ABNT NBR 62116.RD1699. UNE 206006 IN, UNE 206007-1 IN, IEEE1547.Please double check with our agents for certificates.
3.Do you support OEM?
Yes, we do support OEM, however, there's requirement on quantities of your order.
4.What kind of shipment do you offer?
We offer land, sea and air freight upon your request. Fees varies.
5.How long does it take to receive goods I ordered?
For samples, the fastest you can receive is within one week. For bulk orders, dates may vary depending on quantity.
