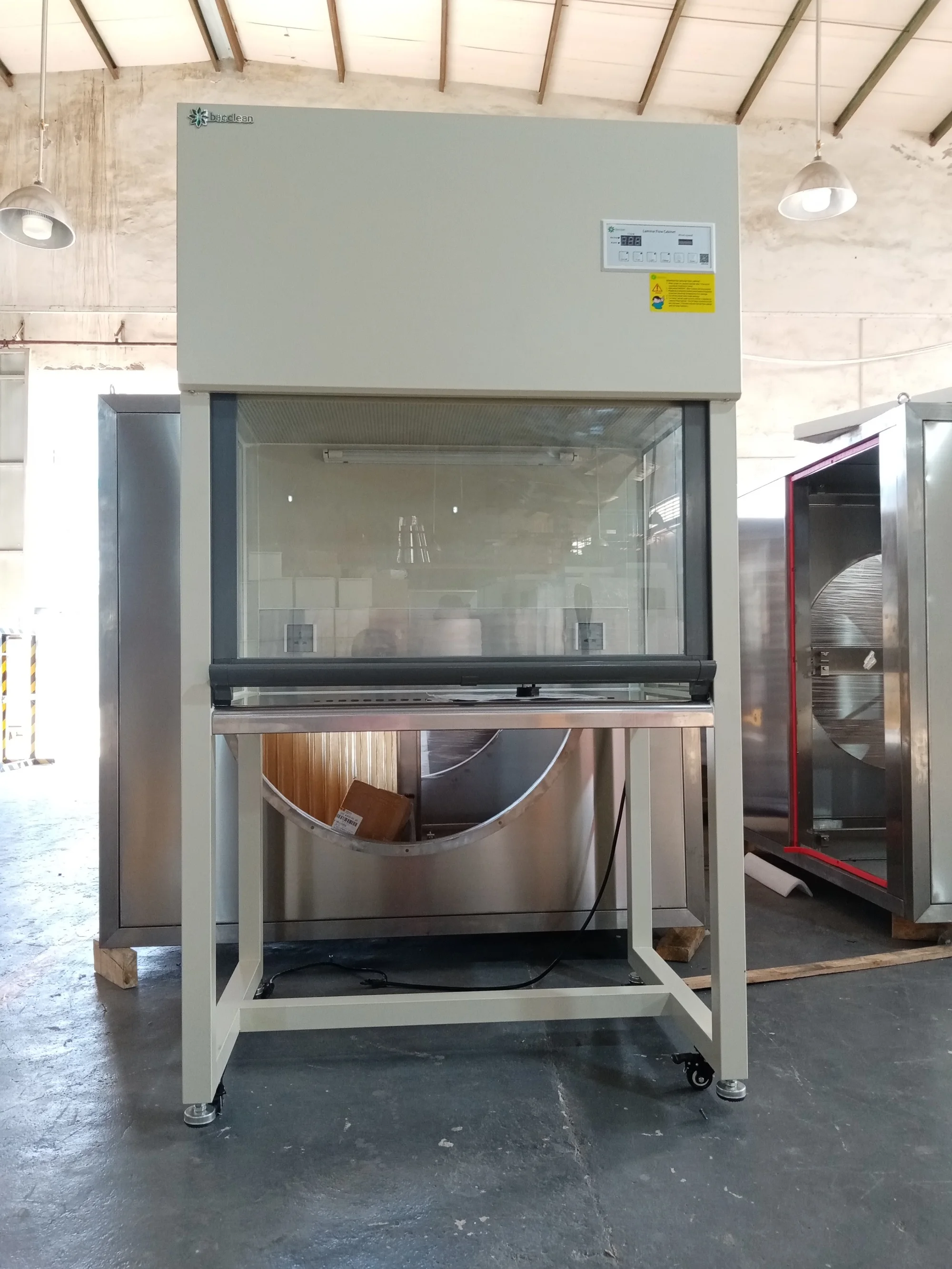

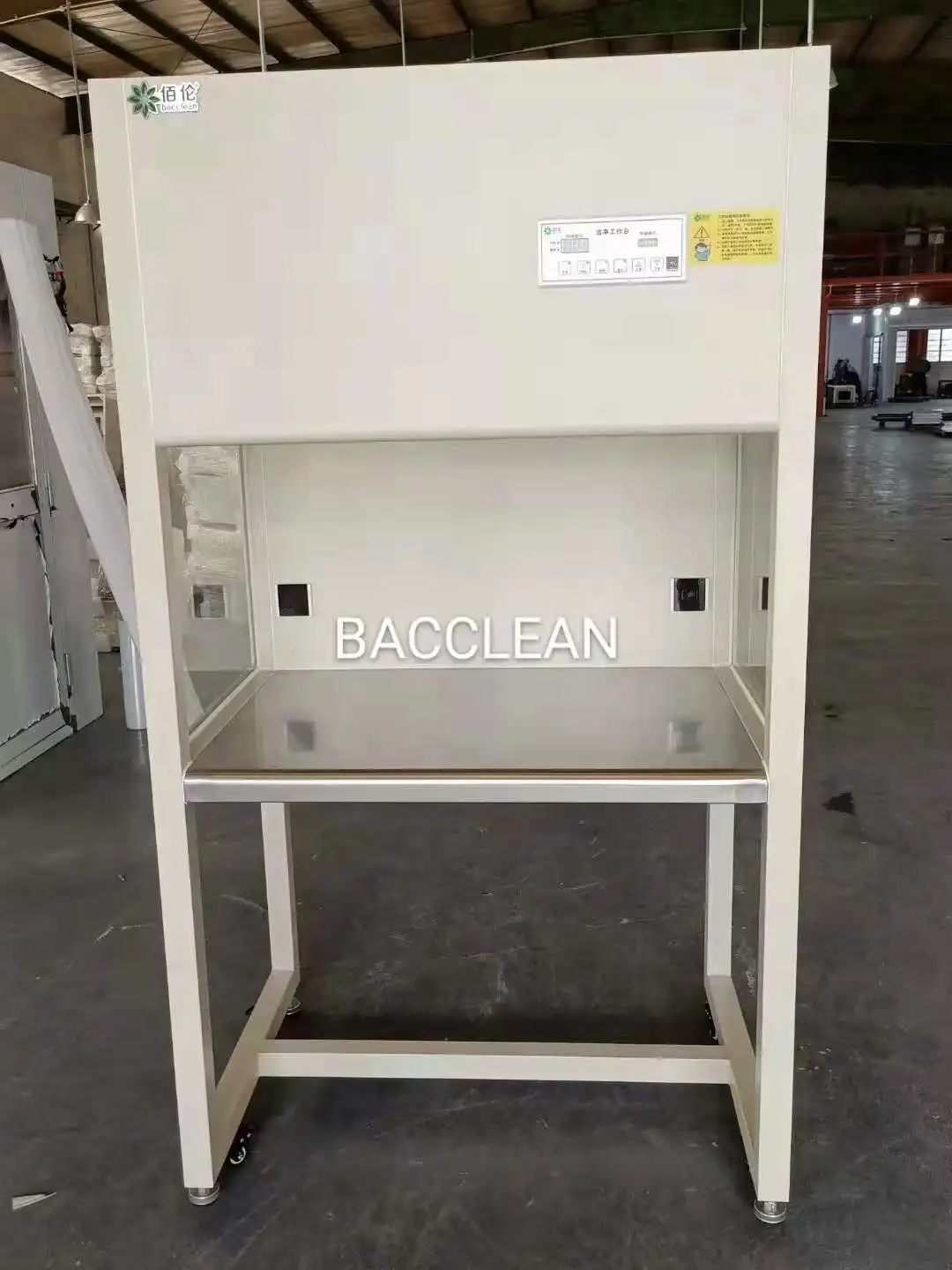

Media plate preparation Cost effective Sterile Horizontal Laminar Air Flow Cabinet Clean Bench
- Category: >>>
- Supplier: Guangzhou Bacclean Tech Co. Ltd.
Share on (1600613420210):
Product Overview
Description
Product Information
All sizes and styles can be customized | ||||||
Model | BAC-HLFC-A01 | BAC-HLFC-A02 | BAC-HLFC-A03 | |||
External size(mm) | 960*780*1580 | 1200*820*1580 | 1500*900*1580 | |||
Work zone size(mm) | 930*600*650 | 1170*600*650 | 1470*60*650 | |||
Cleanliness level (IS014644-1 standard) | ISO5 | |||||
Rated air volume(m³/h) | 600~950 | 750~1100 | 950~1400 | |||
Average wind speed(m/s) | 0.3~0.5 | |||||
HEPA efficiency(%@0.3 um) | 99.97 | |||||
Illuminance(lux) | 300 | |||||
Power(W) | 230 | 240 | 260 | |||
NoiseDB(Nearby equipment) | ≤65 | |||||
Power supply(V/Hz) | 220/50 | |||||
LED light(Wxpcs) | 30 | 40 | 60 | |||
Material | The cabinet material is steel with powder coated or stainless steel,table-board material is stainless steel. | |||||

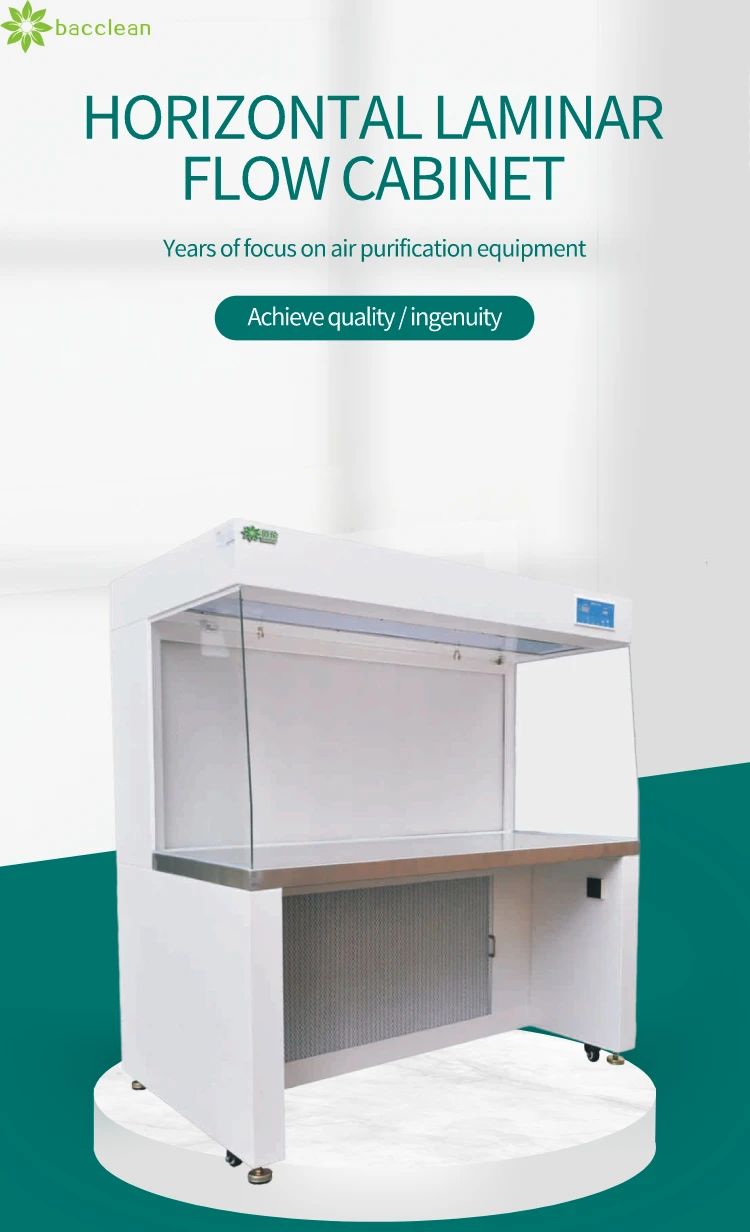

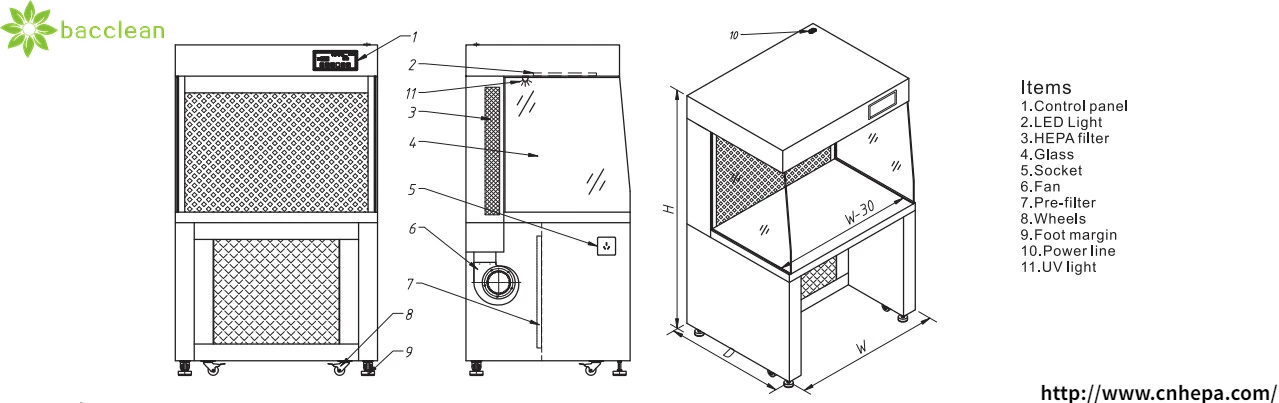

Horizontal laminar flow cabinet
All sizes and styles can be customized | ||||||
Model | BAC-VLFC-B01 | BAC-VLFC-B02 | BAC-VLFC-B03 | |||
External size(mm) | 1000*700*1800 | 1200*700*1800 | 1500*700*1800 | |||
Work zone size(mm) | 900*650*600 | 1100*650*600 | 1400*650*600 | |||
Cleanliness level (IS014644-1 standard) | ISO 5 | |||||
Rated air volume(m³/h) | 900~1000 | 1000~1200 | 1400~1600 | |||
Average wind speed(m/s) | 0.3~0.5 | |||||
HEPA efficiency(%@0.3 um) | 99.97 | |||||
Illuminance(lux) | 300 | |||||
Power(W) | 130 | 130 | 200 | |||
NoiseDB(Nearby equipment) | ≤65 | |||||
Power supply(V/Hz) | 220/50 | |||||
LED light(Wxpcs) | 20 | 30 | 40 | |||
Material | The cabinet material is steel with powder coated or stainless steel,table-board material is stainless steel. | |||||

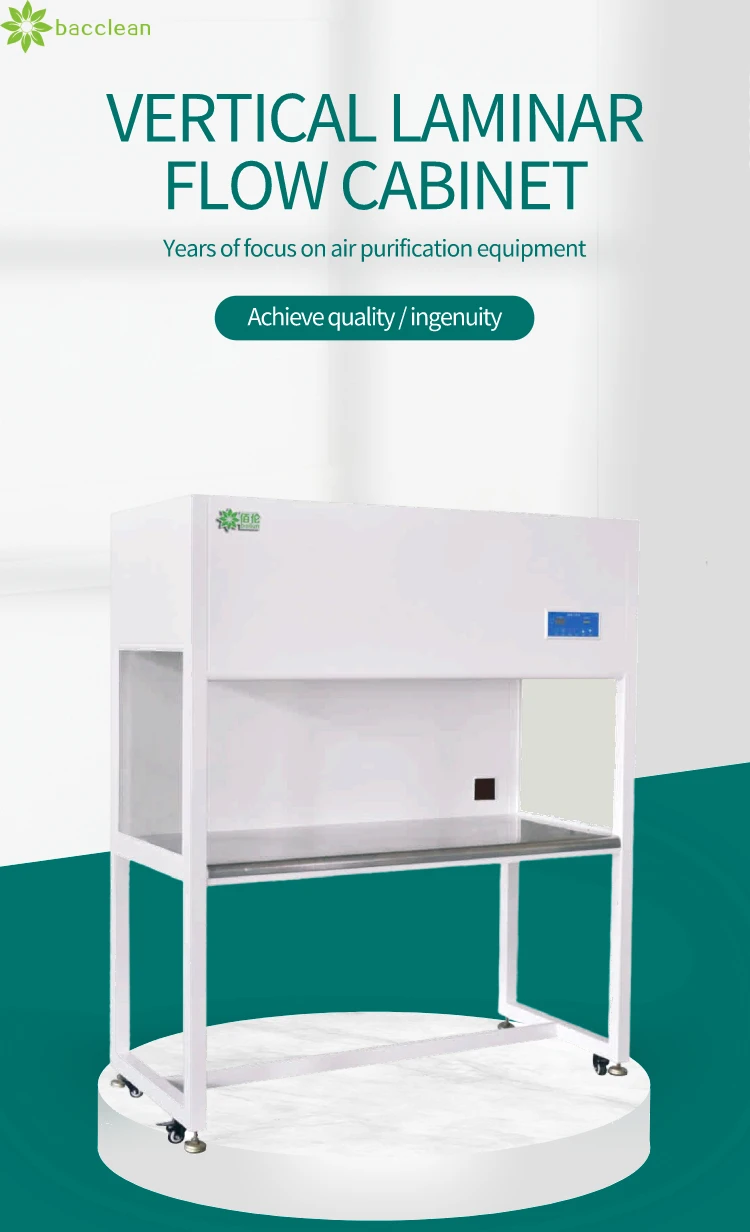

Vertical laminar flow cabinet
Product Display
Horizontal laminar flow cabinet &Vertical laminar flow cabinet
For a horizontal flow cabinet, the air moves from the back of the unit through HEPA or ULPA filters to the front of the work
surface. A laminar flow cabinet or tissue culture hood is a carefully enclosed bench designed to prevent contamination of
semiconductor wafers, biological samples, or any particle sensitive materials. Air is drawn through a HEPA filter and blown in a very smooth, laminar flow towards the user.
surface. A laminar flow cabinet or tissue culture hood is a carefully enclosed bench designed to prevent contamination of
semiconductor wafers, biological samples, or any particle sensitive materials. Air is drawn through a HEPA filter and blown in a very smooth, laminar flow towards the user.
For a vertical laminar flow cabinet , the air moves from the top of the unit through filters down to the work surface. Vertical
Laminar Flow Cabinet provides sample protection as purified air travels across the working zone of the cabinet in a vertical,unidirectional stream and leaves the main work chamber across the entire open front of the cabinet. Most vertical laminar flow benches also have perforations at the back wall of the work zone which are designed to eliminate air turbulence and the possibility of dead air corners in the work zone. It is widely used in Microbiology (non-pathogenic) ,forensics, Sterile product compounding
Laminar Flow Cabinet provides sample protection as purified air travels across the working zone of the cabinet in a vertical,unidirectional stream and leaves the main work chamber across the entire open front of the cabinet. Most vertical laminar flow benches also have perforations at the back wall of the work zone which are designed to eliminate air turbulence and the possibility of dead air corners in the work zone. It is widely used in Microbiology (non-pathogenic) ,forensics, Sterile product compounding
Features of horizontal/vertical laminar flow cabinet/clean bench
1) The direction of the airflow is horizontal/ vertical.
2) The material of the work area is 304 stainless steel.
3) Zero vibration and easy to move.
4) Multi-stage adjustable for the wind speed with stable operation and low noisy.
5) Adjustable, reliable operation, low consumption and energy saving.
6) Large work area and wider field of view.
7) Materials choice of steel with powder coated and Stainless Steel for the cabinet.
8) HEPA Filter rated hepa or ULPA FFU
9) UV light is available for the laminar flow cabinet.
10) With the high clean class for ISO 5 clean class.
1) The direction of the airflow is horizontal/ vertical.
2) The material of the work area is 304 stainless steel.
3) Zero vibration and easy to move.
4) Multi-stage adjustable for the wind speed with stable operation and low noisy.
5) Adjustable, reliable operation, low consumption and energy saving.
6) Large work area and wider field of view.
7) Materials choice of steel with powder coated and Stainless Steel for the cabinet.
8) HEPA Filter rated hepa or ULPA FFU
9) UV light is available for the laminar flow cabinet.
10) With the high clean class for ISO 5 clean class.

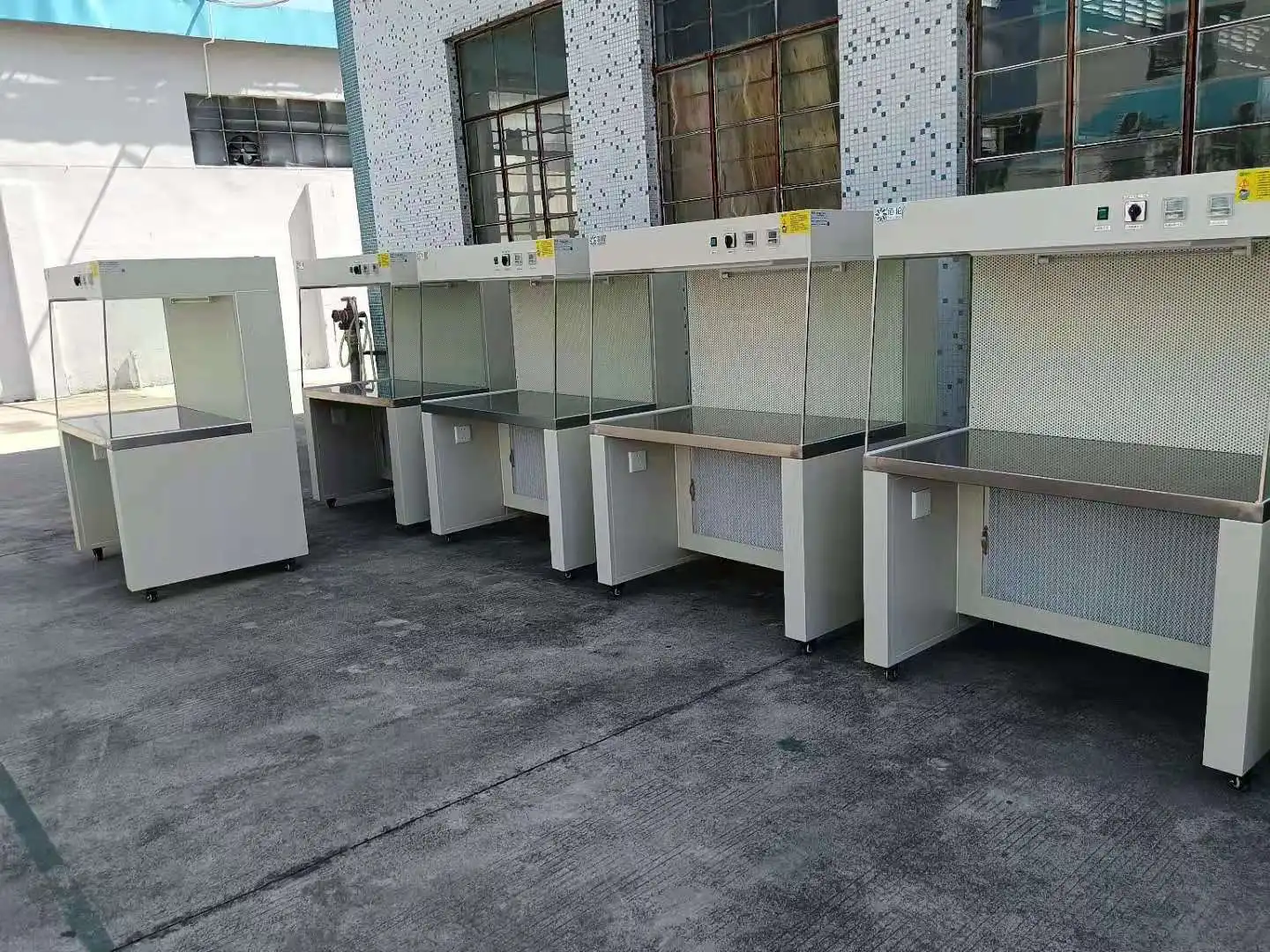

Horizontal laminar flow cabinet clean bench.

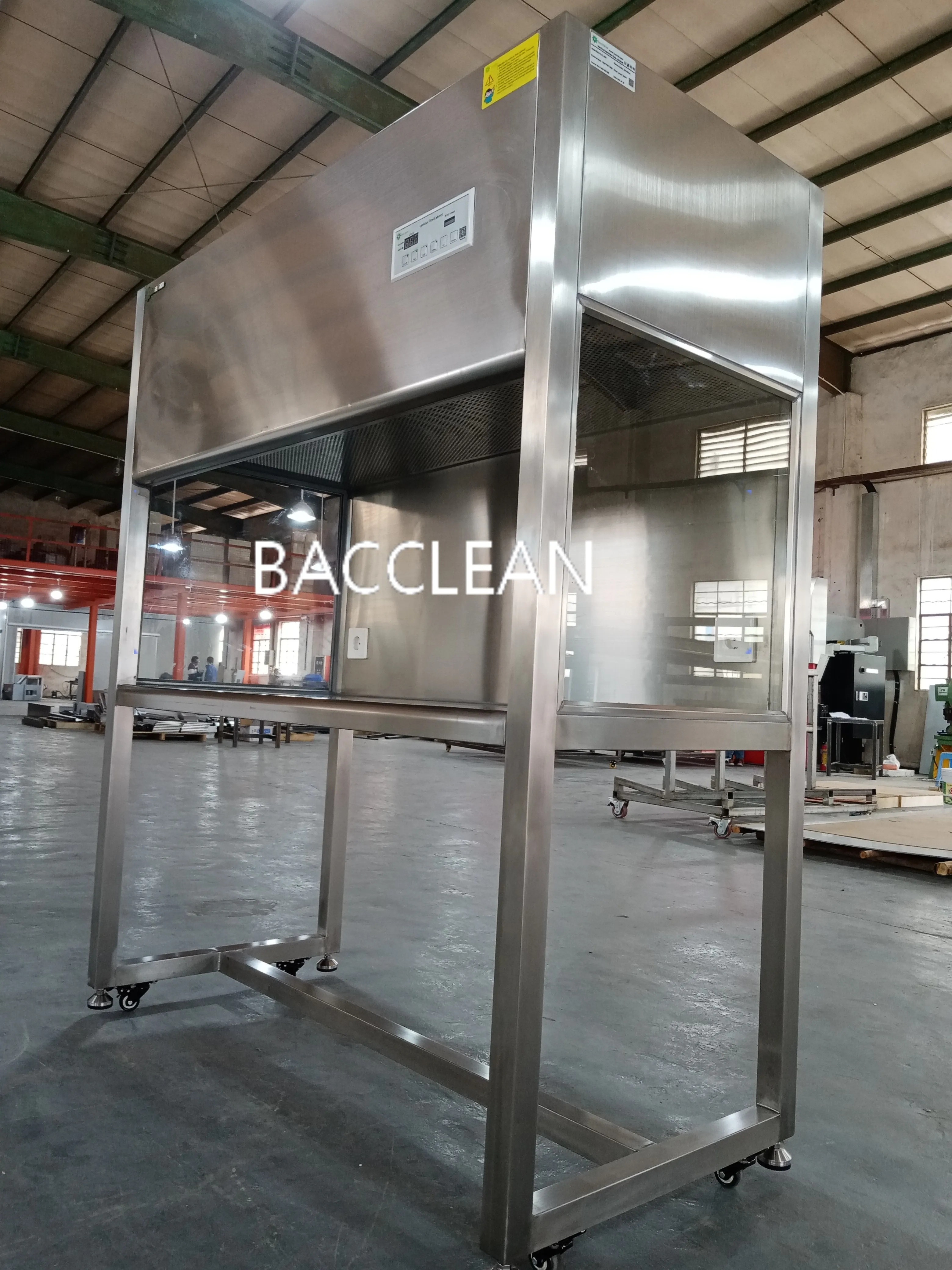

Vertical laminar flow cabinet clean bench

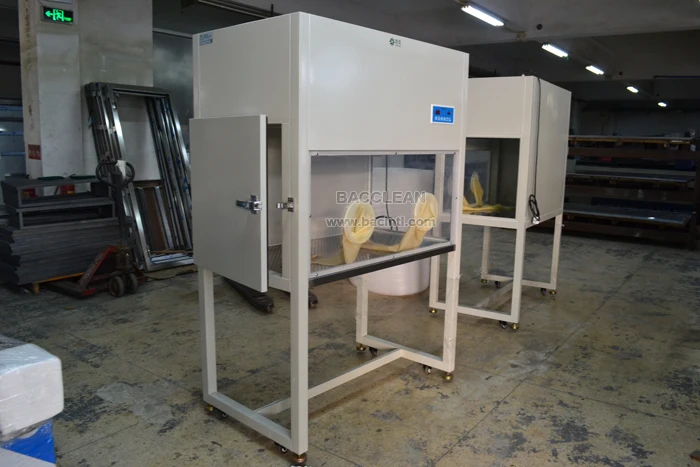

Manual front glass door is available if need.
.
Clean bench with FFU at top

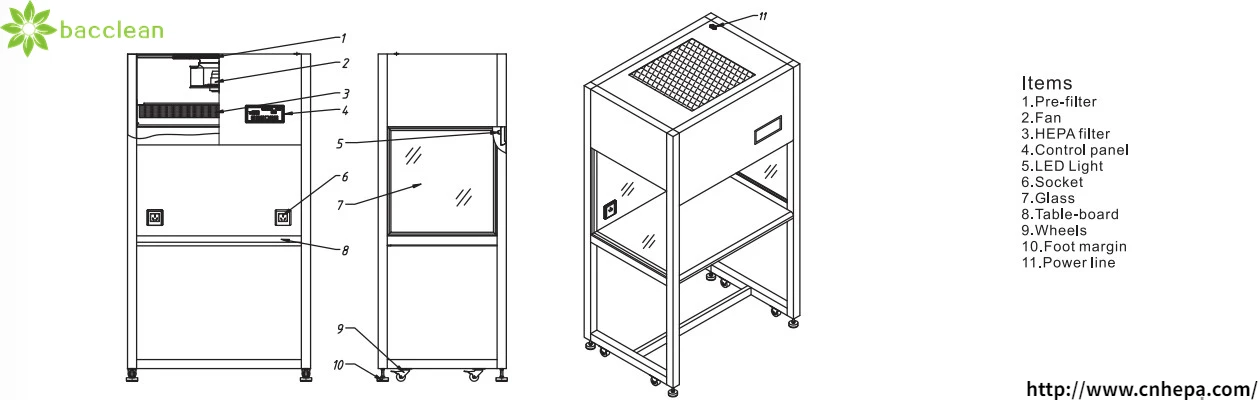

More details about horizontal laminar flow cabinet & vertical laminar flow cabinet clean bench
HEPA filter for Laminar air flow cabinet
Control panel. The logo can be removed if need.
UV lamp and LED light of vertical clean bench
UV lamp and Led light of horizontal laminar flow cabinet
Application
It is widely used in food processing,optical display, electronic semiconductor, aseptic microorganism test, plant tissue culture inoculation and other scientific research and production departments that need local clean aseptic working environment.
